dslr_rig

In FabLab CEPT, we do not have a documentation setup for the projects with any camera rig. So one team has made an automated DSLR rig to take videos / time lapse of their projects.

We have seen projects like Edelkrone / Cinetics for inspiration of the project.

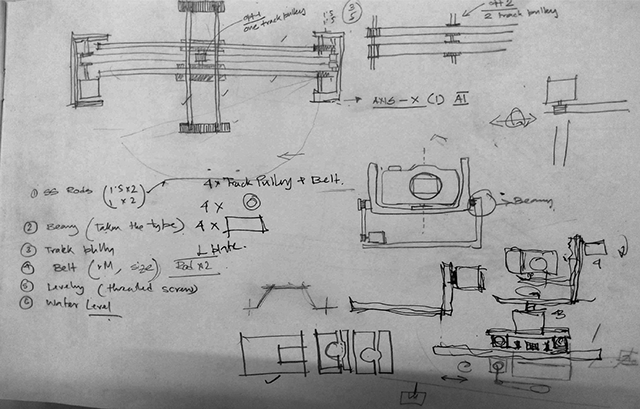

basic Sketch

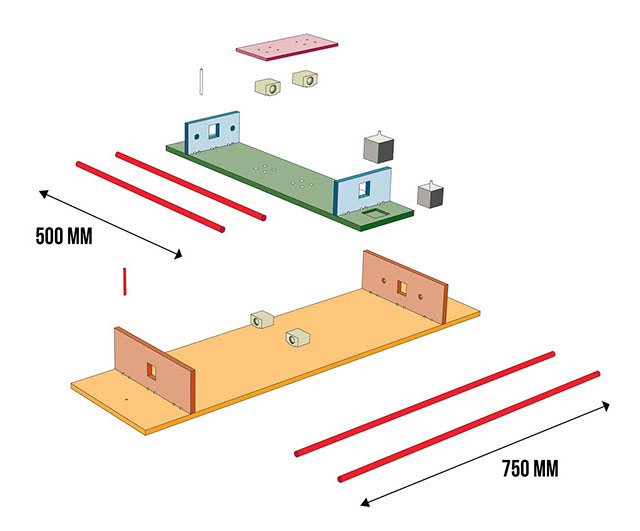

mechanism / diagram

This is the basic sketch from the team to figure out how to use the motions to achieve what we want to perform with the machine.

We saw Nadya Peek's MTM module and planned to make our design accordingly to that but a bit simpler version for us.

trial prototype

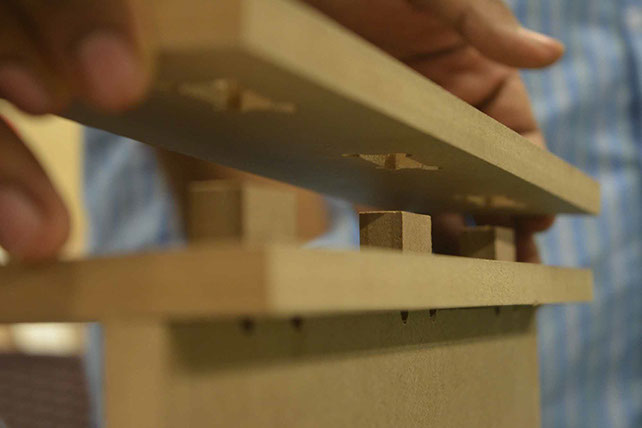

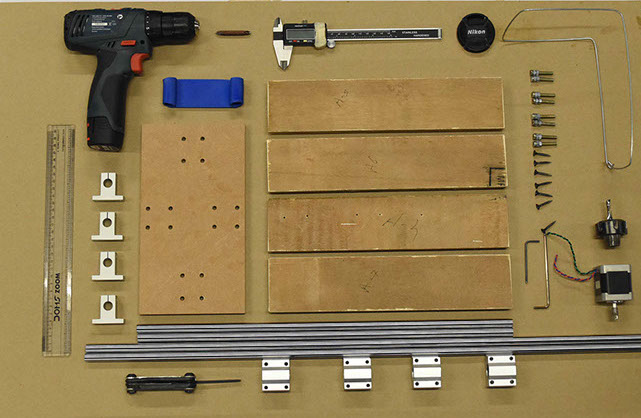

We initially did a prototype manually using market bought metal parts to check the functionality and smoothness of the bearings.

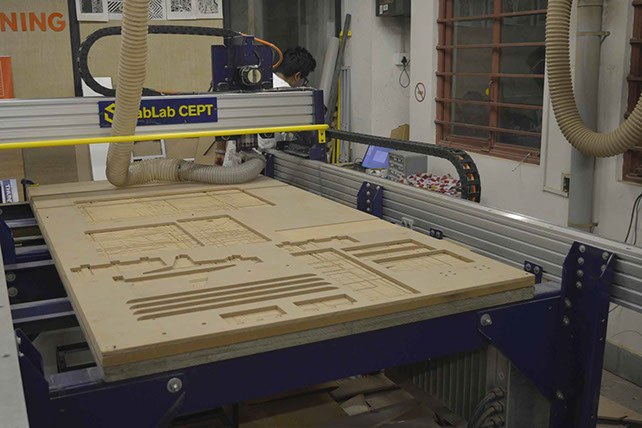

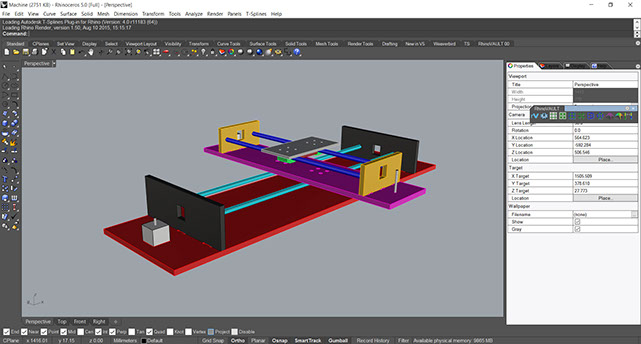

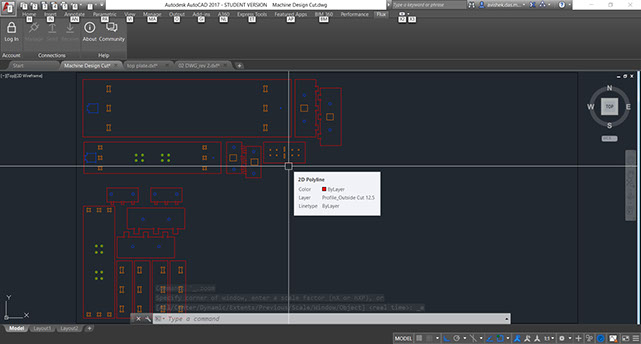

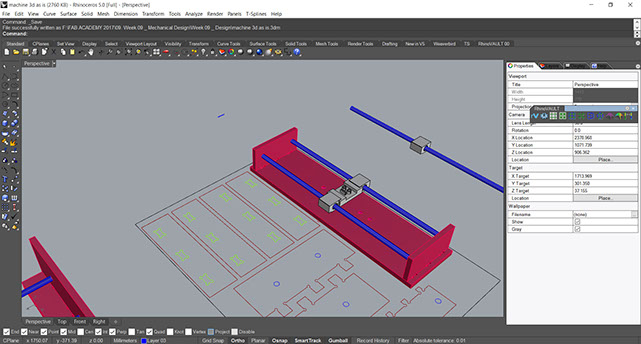

After this, we made drawings of all the parts In Rhino and CNC cut them.

fabrication and assembly

After this we bought two NEMA 17 stepper motors and used RAMPS, Arduino and Repitier to control the rig.

electronics handling

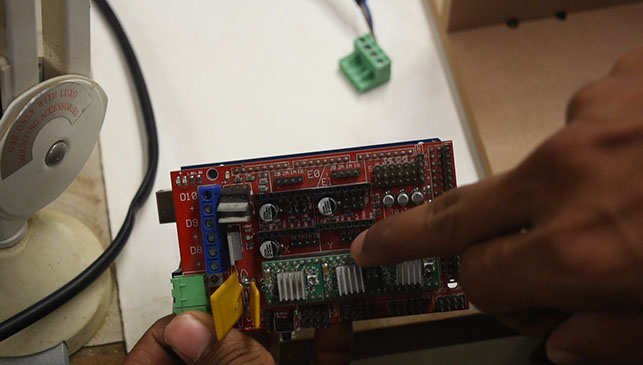

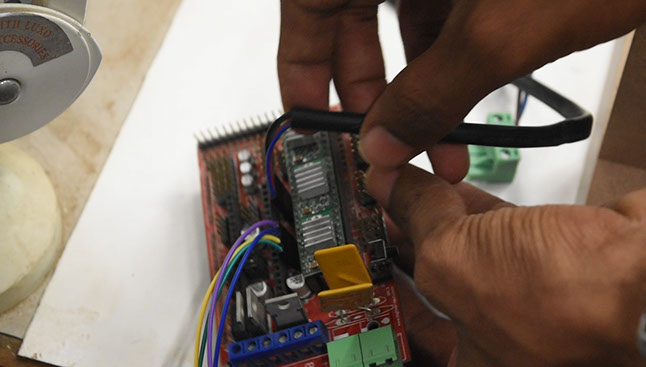

01 : Ramps Board with A4988 Installed

02 : Connecting servo to one A4988

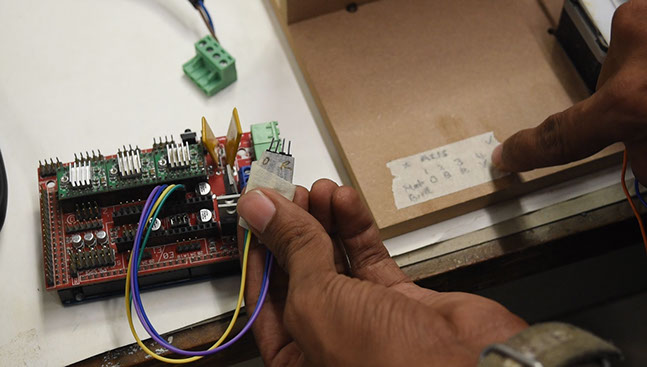

02a : Orange to Red color Code and arrangement

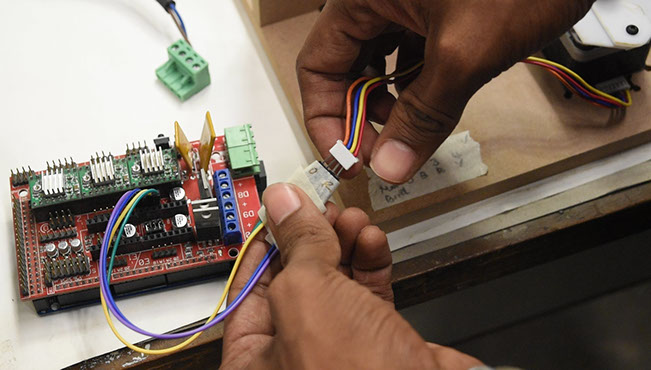

03: Connecting the Stepper Motor to RAMPS board

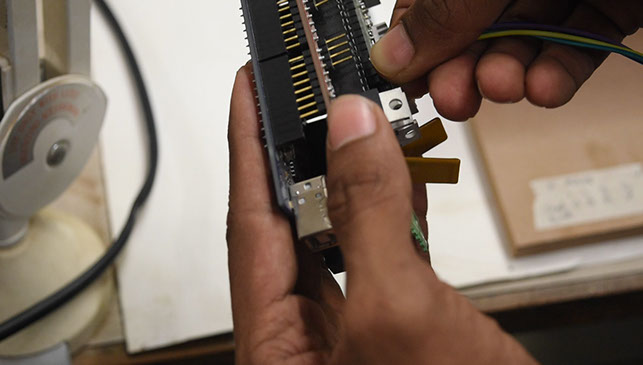

04: Connecting RAMPS onto an Arduino Mega

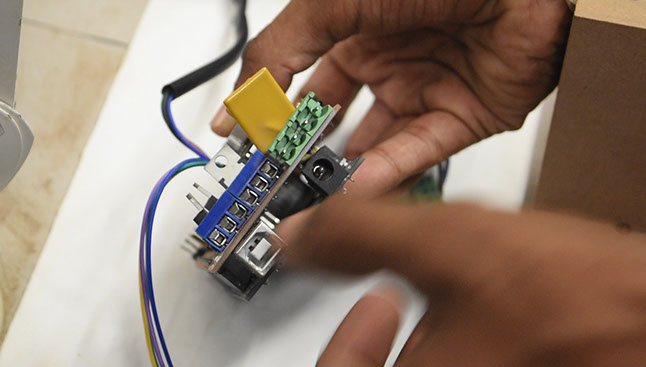

05: Connecting Arduino Mega and Power

06: Putting another Stepper

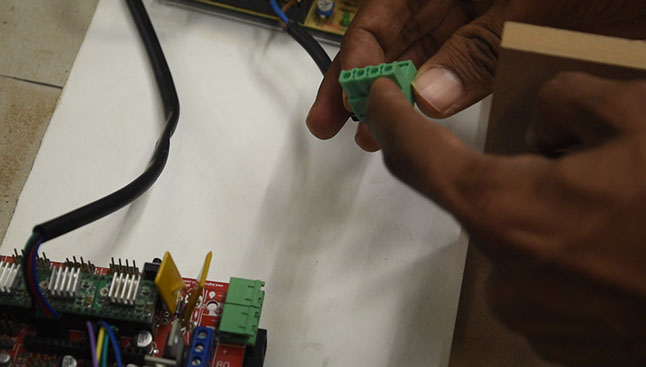

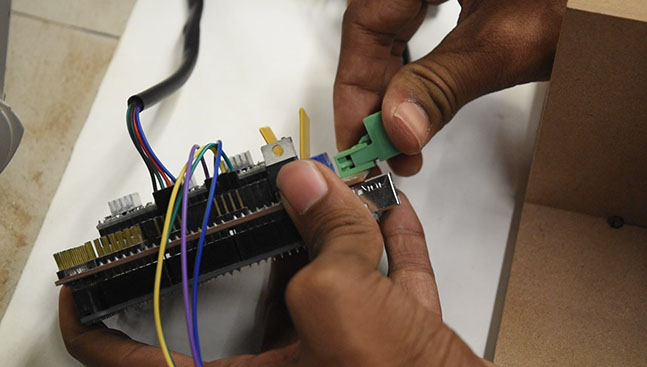

08:Connecting Power to board

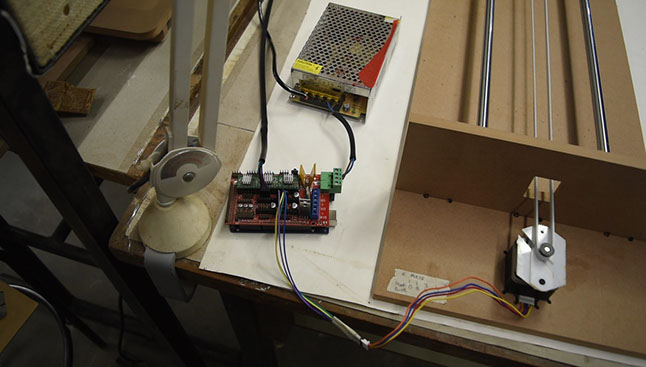

09: Total Assembly

Coding and programming

The mechanism, drawing and CNC production was handled by Avishek and Ashish while Gautam and Dhruv has contributed towards the electronics part of the project.

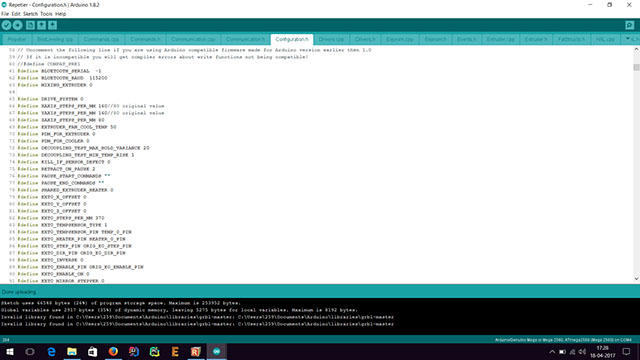

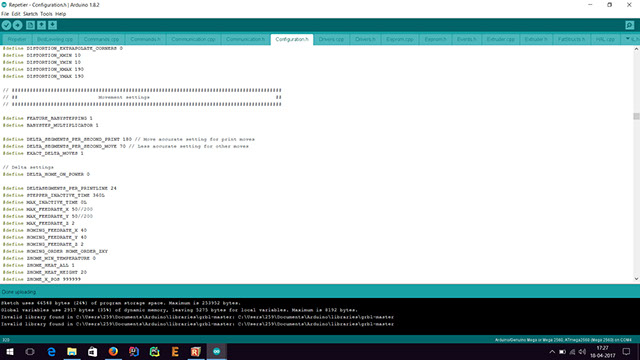

This is the basic repetier firmware that is to be uploaded onto the MEGA.

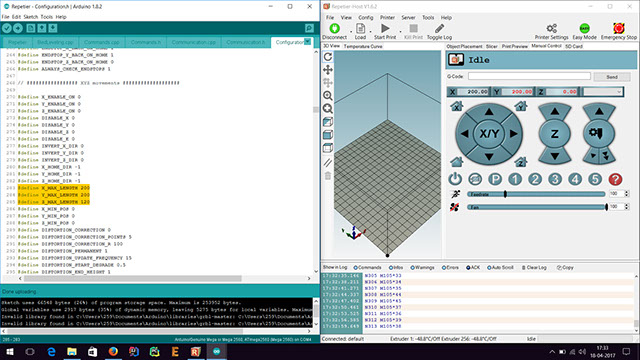

Gautam has done some changes in the X Length and Y length to make the device work properly.

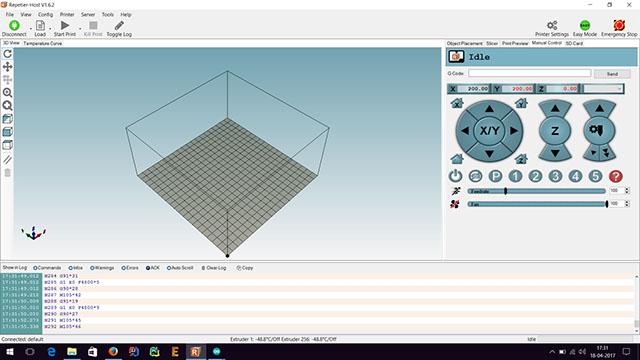

Connected in Repetier.

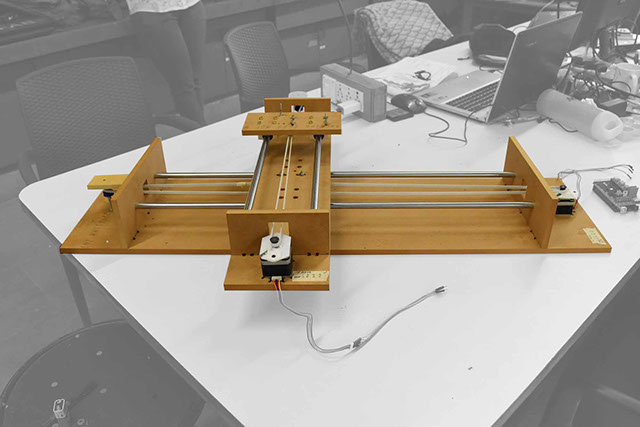

bare prototype

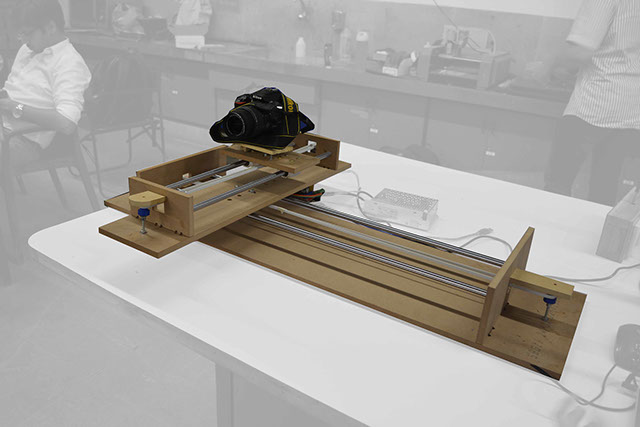

rigged with dslr
