Assignments

1. Design and fabricate a 3D mold and produce a fiber composite part in it

---

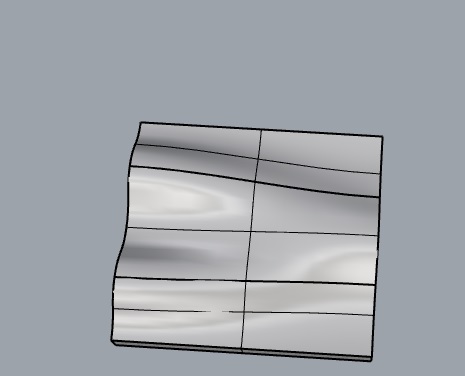

Designing a 3D mold

I designed one random surface having curves in rhino and decided to make composite of that shape.

---

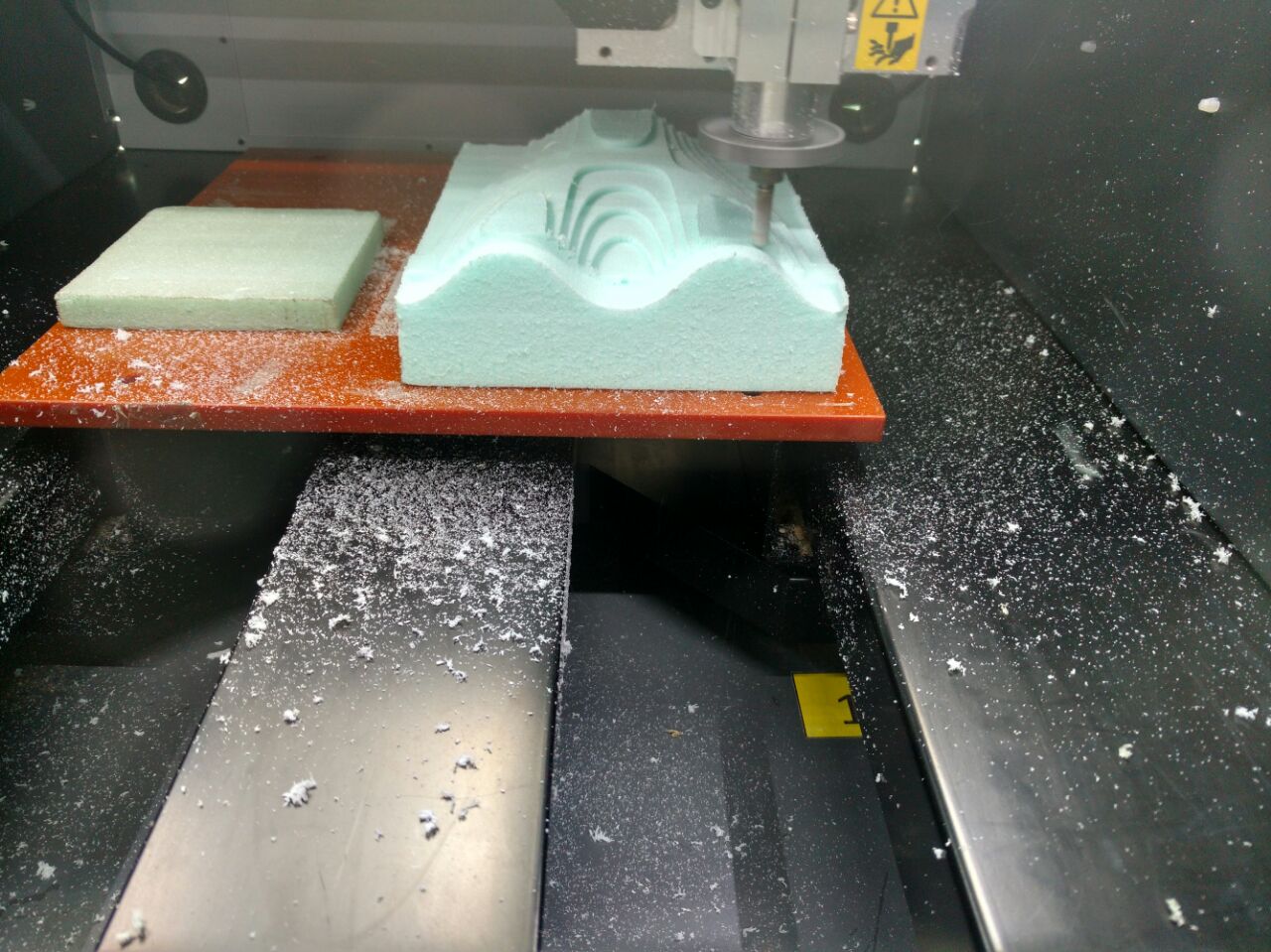

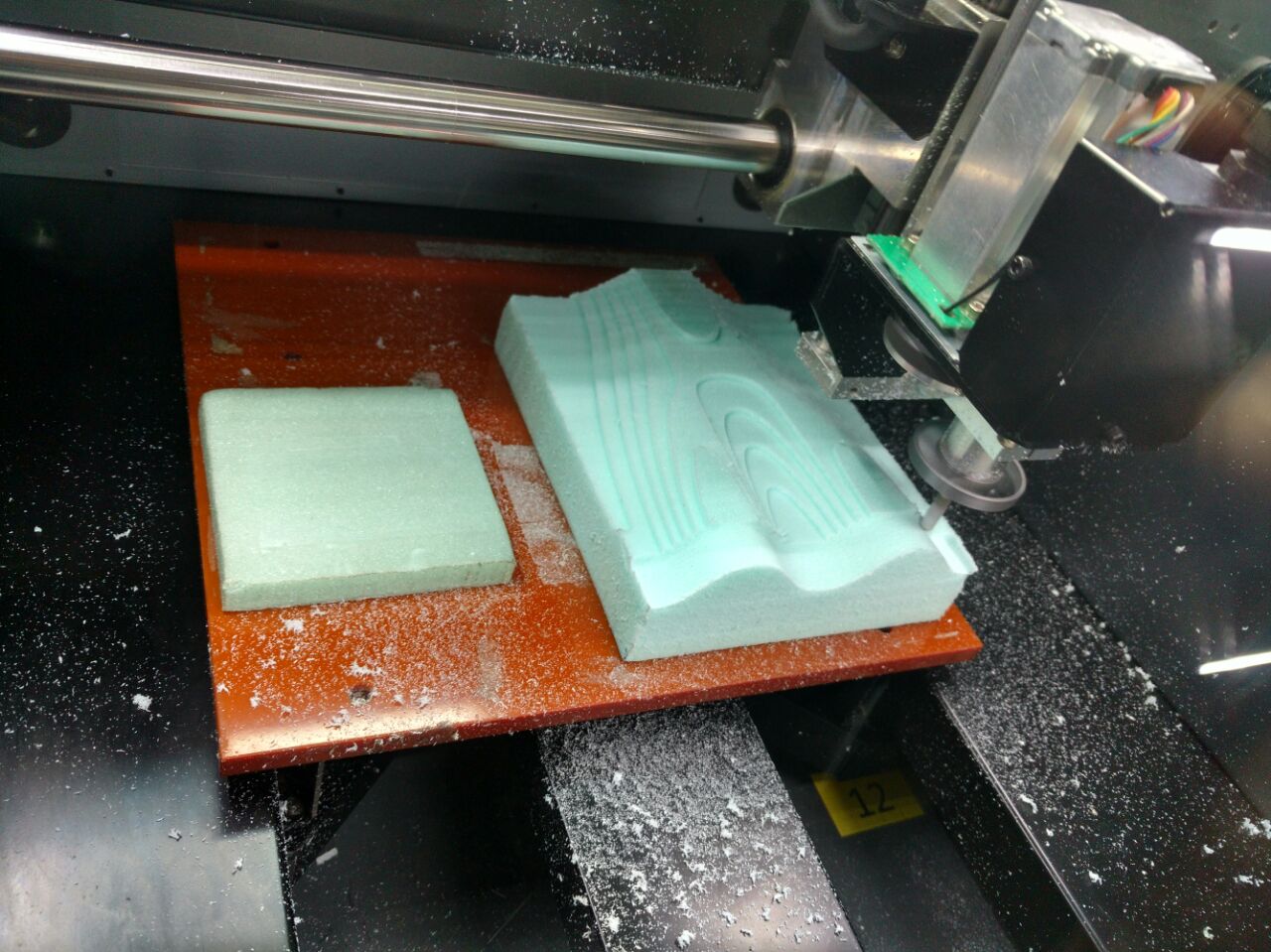

Milling Styrofoam

---

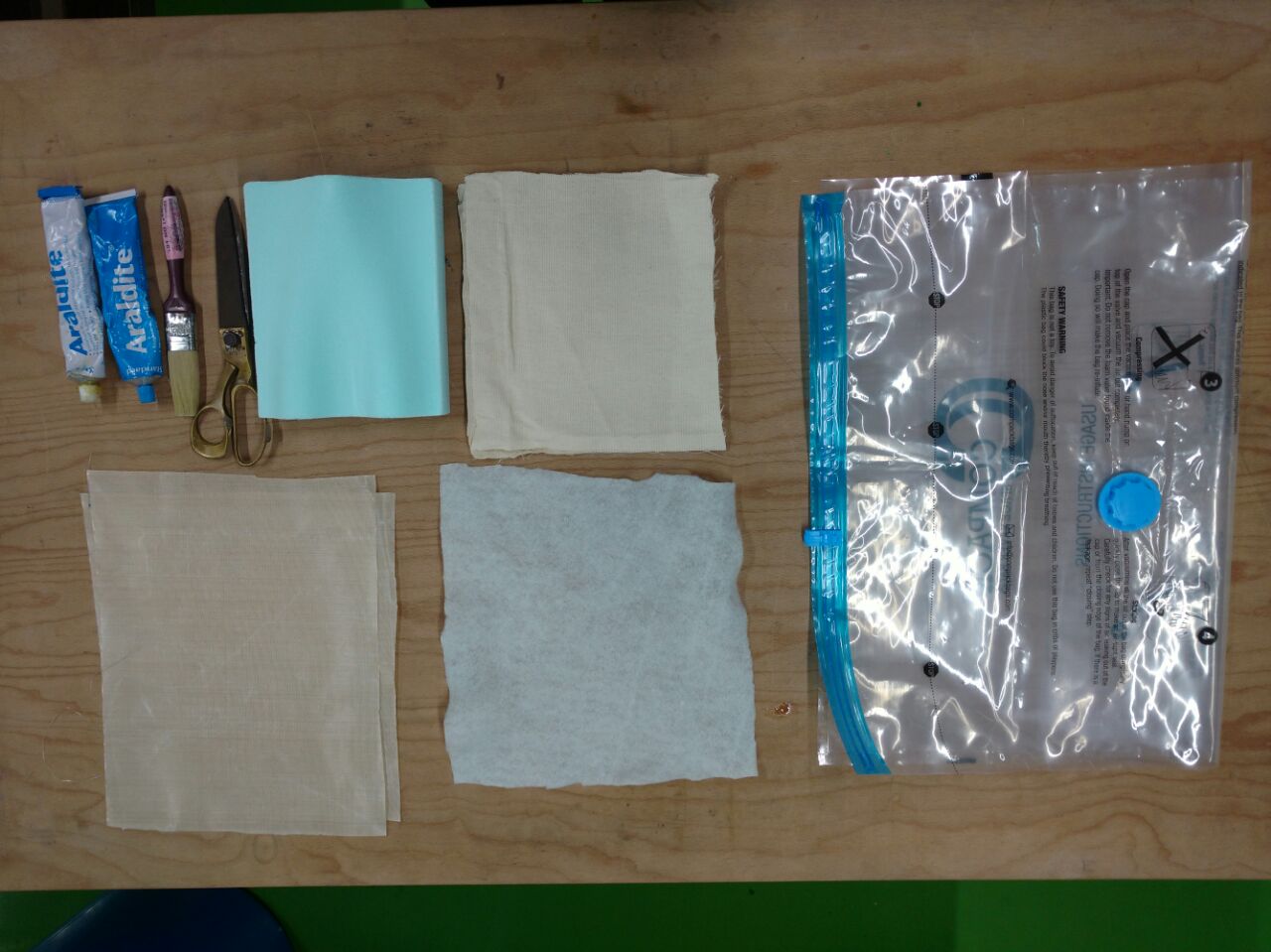

Entire Setup required for the vaccum bagging composites

Making Composite

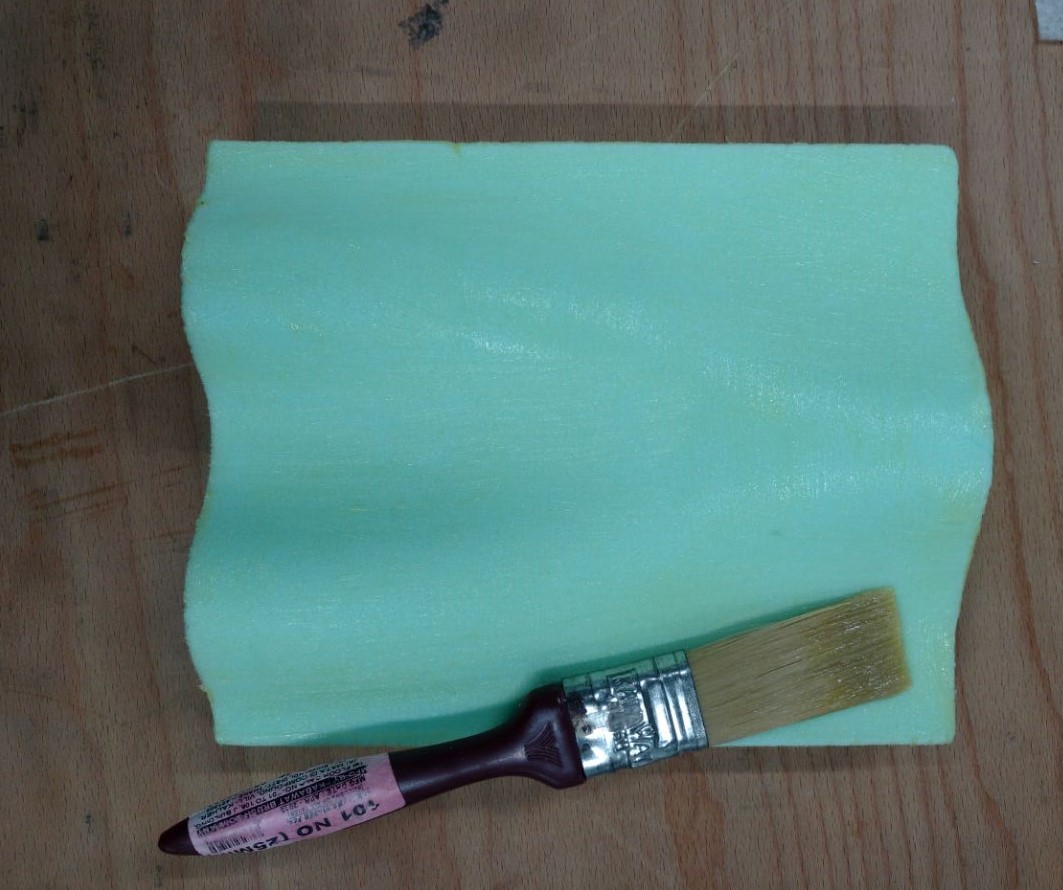

First, I applied grease on the milled styrofoam

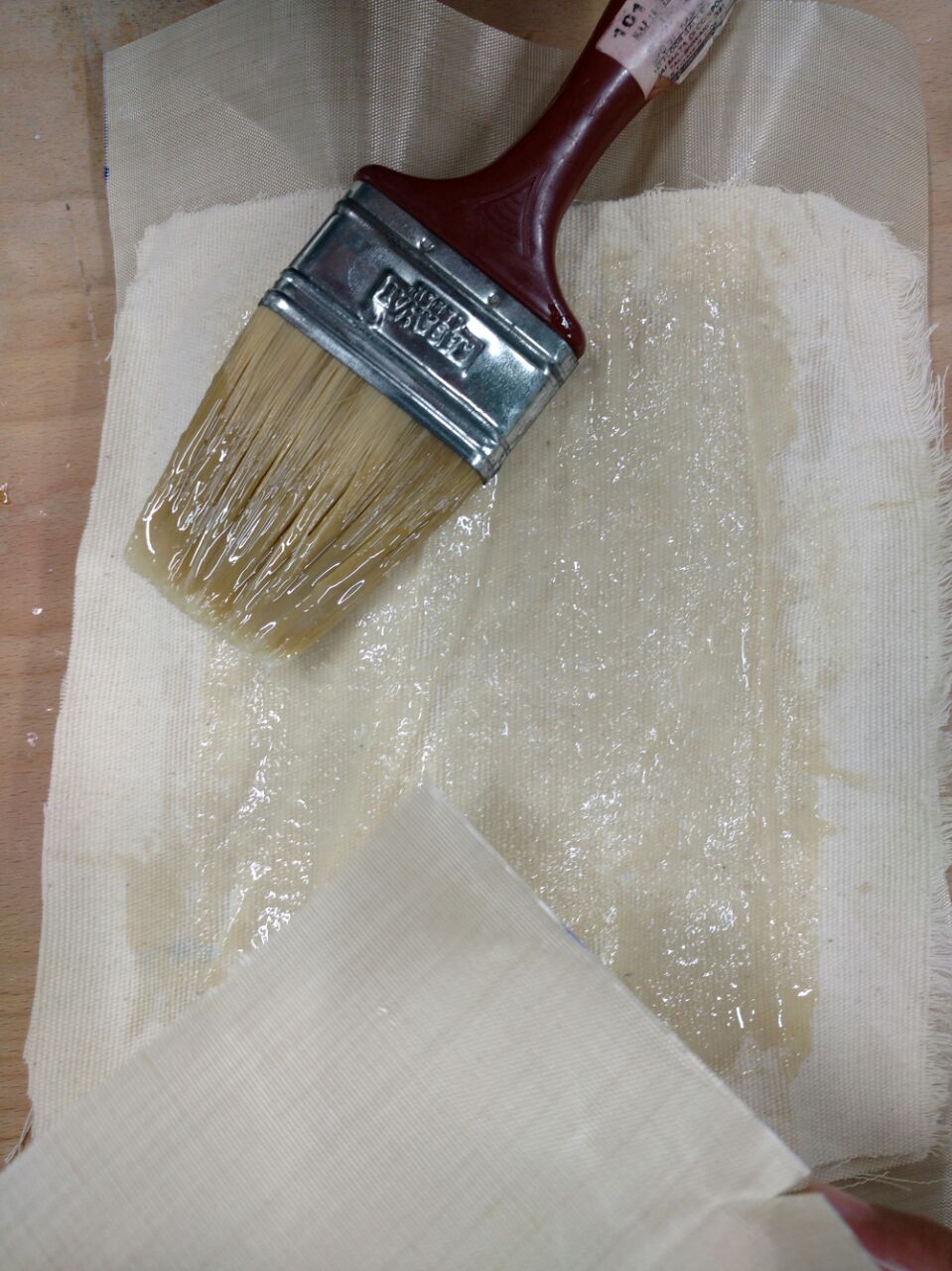

Then, I applied resin on the fabric

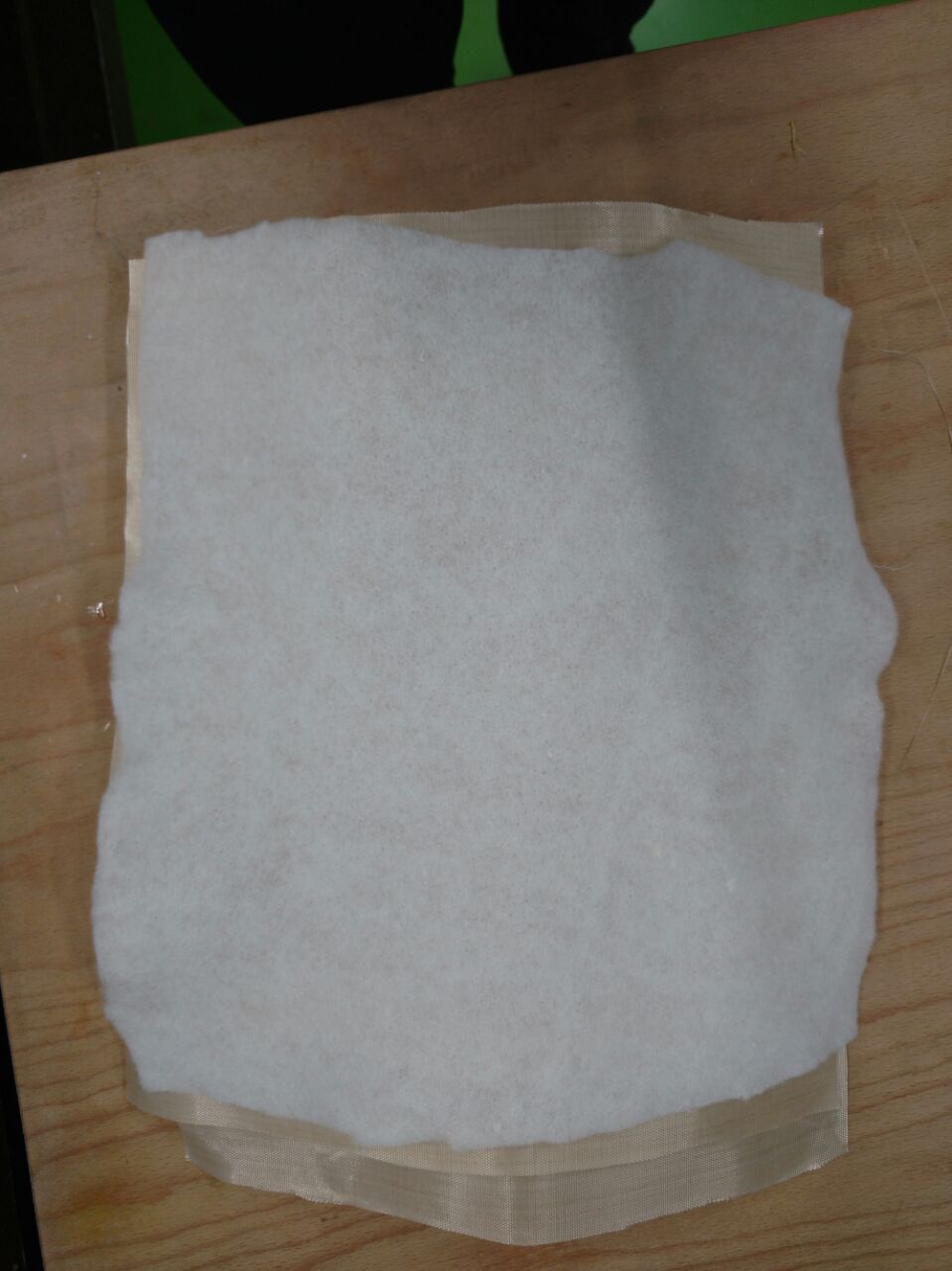

After that, we made layering --- release fabric >fabric >release fabric >breather material

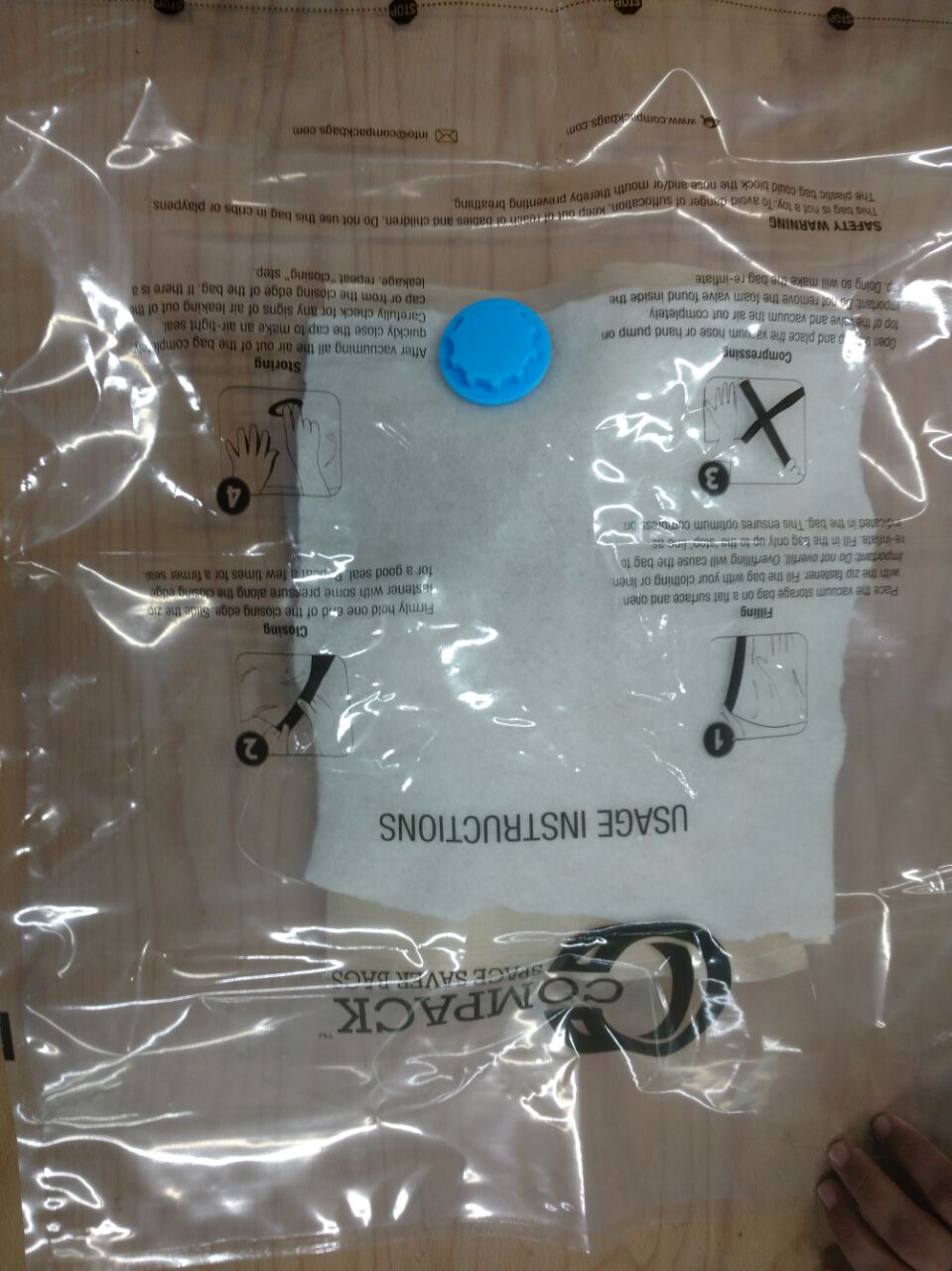

This is the vaccum bagging setup which we have in our Lab.

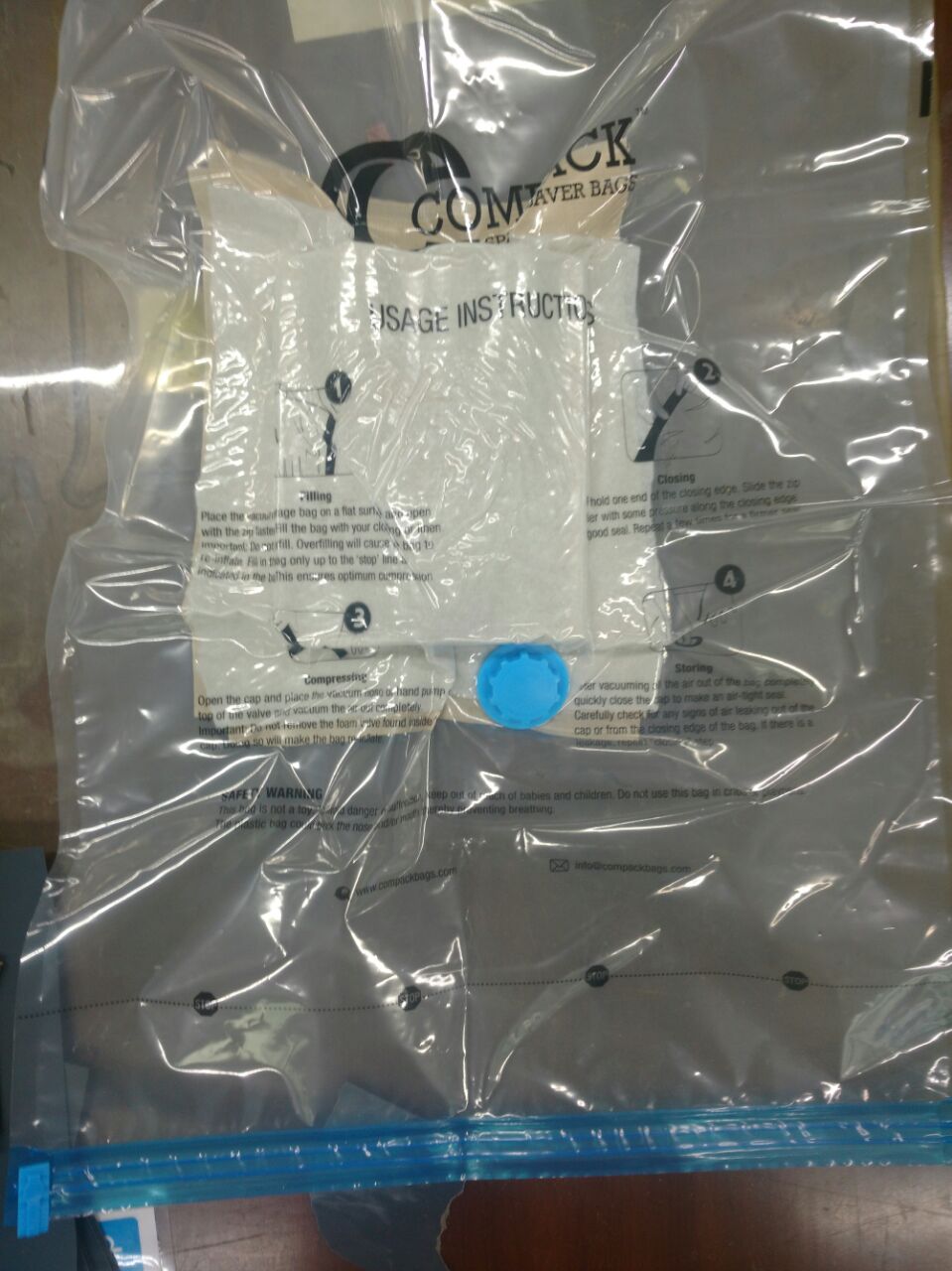

Once the layering is done, I clamped the composite under vaccum bag.

---

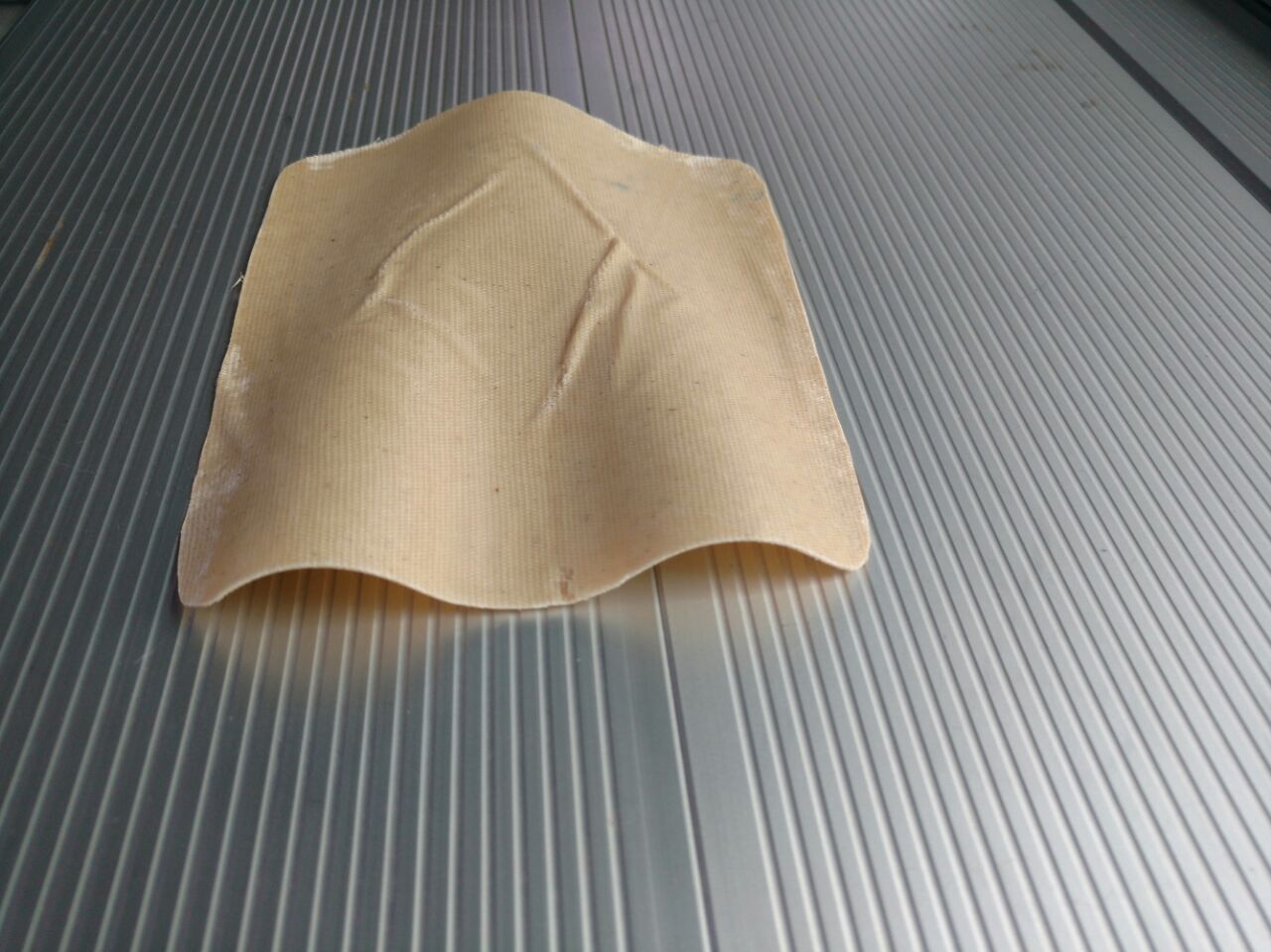

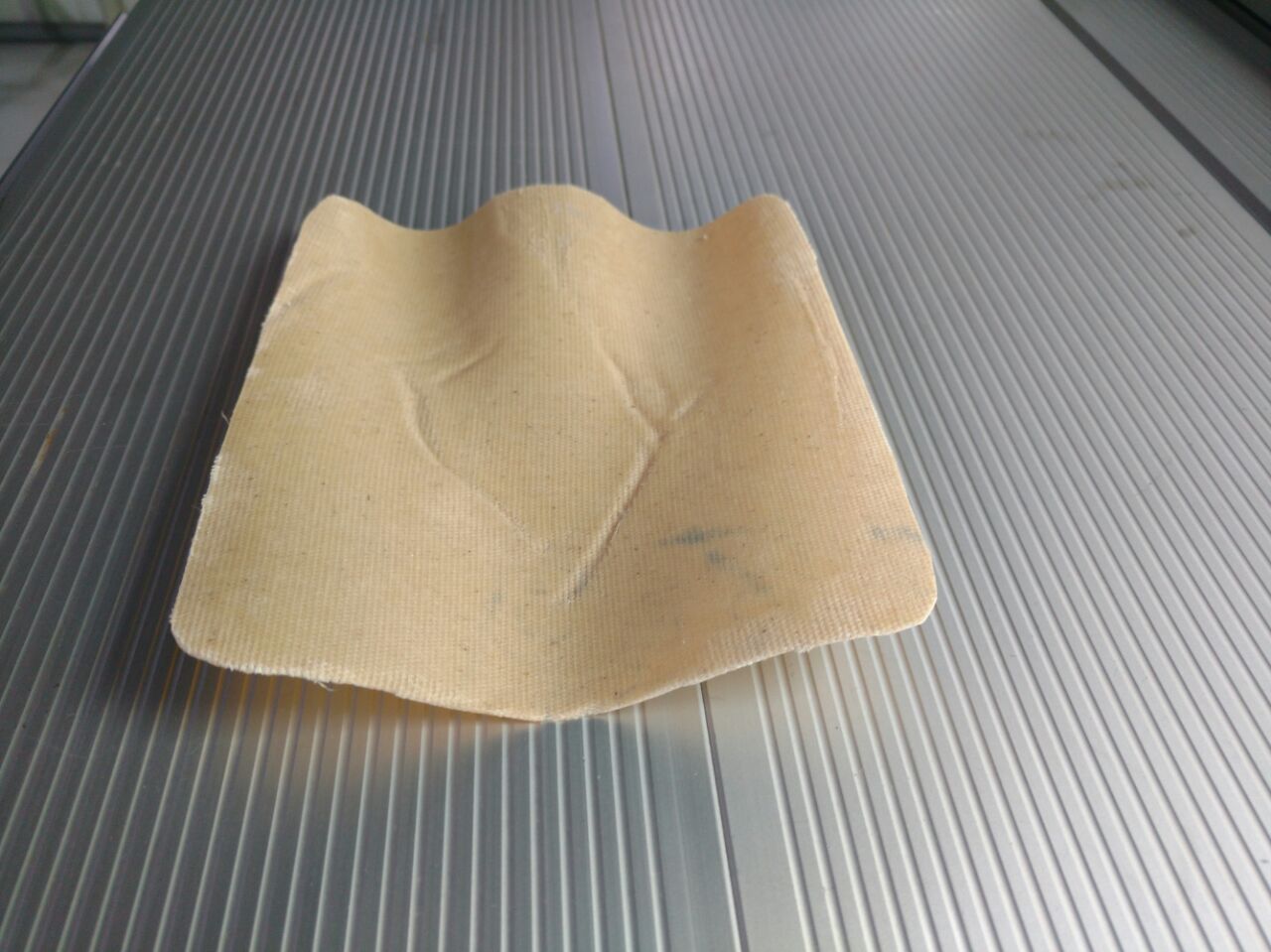

Final Composite

Here is the final composite made up of areldite & fabric

---

Material Safety datasheet for resin

Here is the material safety datasheet for Areldite resin

---

You can download files here...

• composite.3dm
• Composite.stl

---
