Automated Zen Garden

Before we begin to talk about our specific project, we think it's important to say that we received the MTM kit last Thursday (April 13th) which put us in a situation where it was hard to get the project ready on time for this week. This said, the concept was already clear in our heads and even if we had the main files to build the axes, it was hard to figure the way it would move or space it'd take. We did as much as we could but we'd still need a bit of time to complete it and documents it completly.

Even with all that said, We still didn't speak about the concept! So, what we want to do for this assignment, and that we'll continue later on this week, is a automatized zen garden. It's sure that the concept is not the most innovative in the way that it does already exist and also that we probably did not push the concept that far upfront. Still, for us, at least, it's a great introduction to machines building and the final result seemed really awsome to us. As a reminder, we are still novice and we've already traveled a long way to arrive at that point where we could make such a machine!

To be more specific, we're going to use a magnet, mounted on X and Y axes. We want it to read Gcode, so it can draw something in the sand using a metal ball placed on a sandbox above the axes. Pretty simple you'd say ... well to us it's sound pretty awsome!

It seemed obvious to us at this point that we were going to use the MTM kit to build our machine and that the mechanical part of it would be limited to a 2 axes movement in X and Y. I guess there would be many different possibilities regarding the choice of a mechanical processes for this kind of project but since we have acces to those kits, why not use them !

Also, as a group assignement for this phase of the project we were pretty much both involved all the time. Here how we separated the tasks :

Here what's going to be needed to build our zen garden :

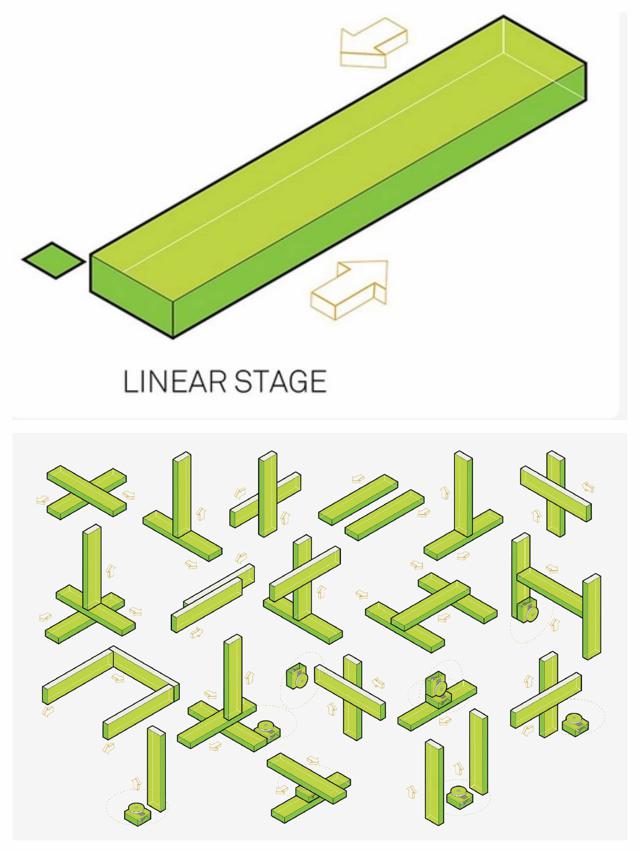

As soon as we finally received the mtm kit we start building the machine. What a great design! Nadia and James really did a great documentation job and even tough some things was not up to date it was really easy to assemble the kit. One thing we really like about the kit is the way it use cardboard, a cheap and super cool material for rapid prototyping. With cardboard mistakes are less stressful. The kit is modular and can be use to make machines that use linear and rotary stages. Like said above, for our zen garden, we only needed a two axes machine that can move on it's y and x axis, since it's not a plotter, no use to have a z-axis.

First step was to laser cut the cardboard part. The files that we found inside the documentation was in a .dxf format and when we tried to open them via inkscape it appears all weird and not complete. First thing we try was to open them with another computer, but the issu persisted. So we then tried to open it via another software than Inkscape, we use CorelDraw, and it worked! Since I never use Corel, I save the file as an svg and reimport it in Inkscape, everything was working fine after that.

The draw was made in two colors: blue for whats needed to be cut and red for the things that was supposed to be fold. After a few test, here is the parameters we uses on our speedy 300 60 watt trotec lasercutter:

      Cutting settings :          Power : 60          Speed : 1.75          Frequency : 1000

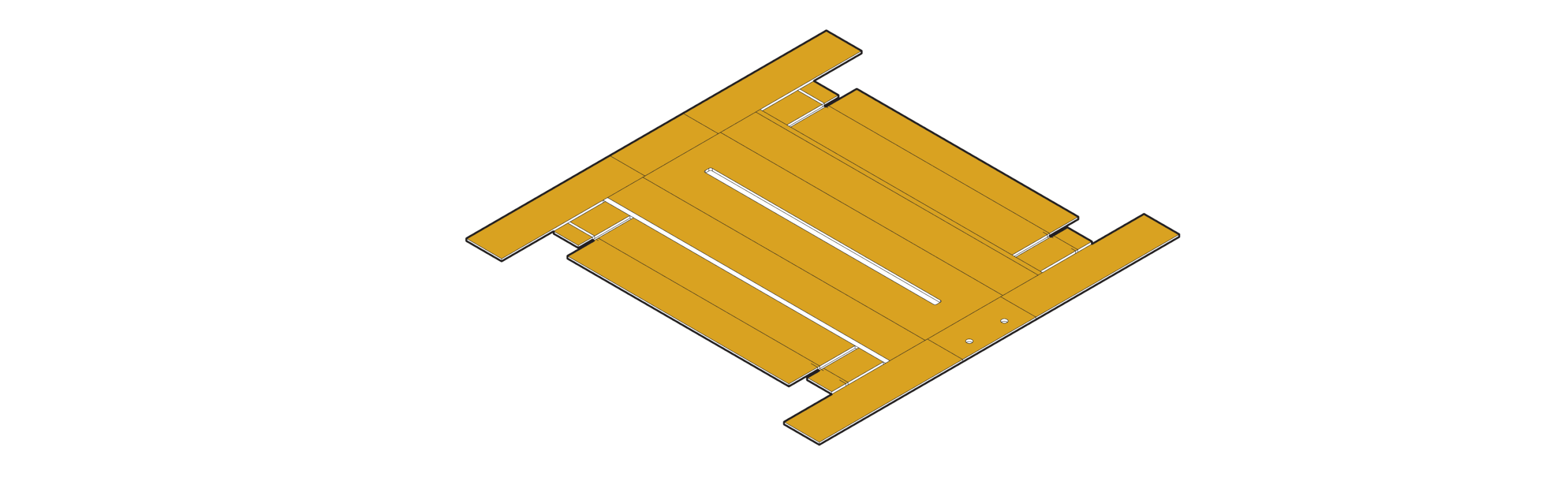

Once we had all the part we started to assemble the kit. We use glue and clamps to make sure everything stay in places, the design was super cool to assemble and we encounter no real issues during the process. We simply follow the steps from the gif made my Nadia's team:

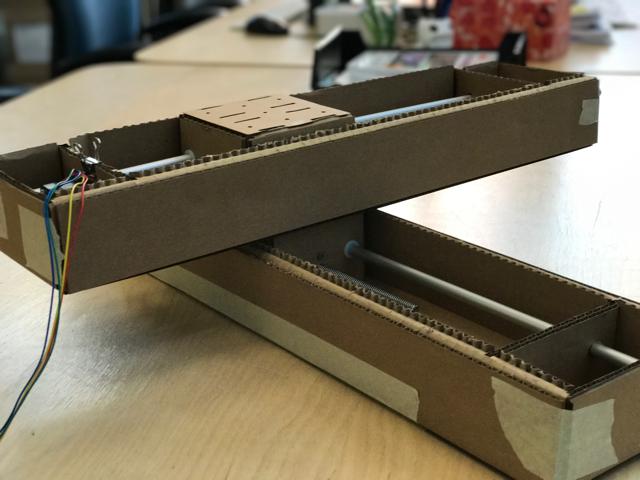

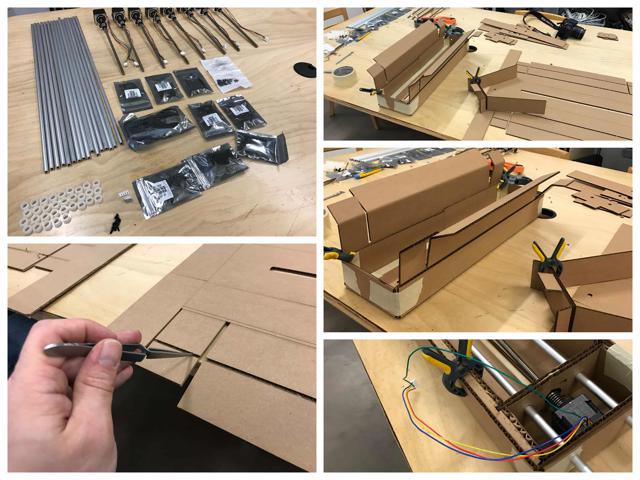

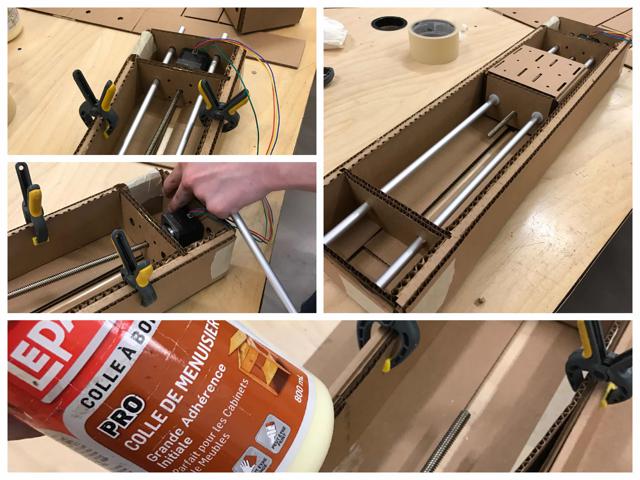

Soon enouph, the axis were made and everything seems good to go! Here are some snapshots of the process:

This is pretty much it for me mechanical part of the MTM assignment. Our mechanical structure is definitely done and working manually, as Neil advised us to test. The tasks that remain and will be continued with the machine design week. First, I have to design the machine itself, meaning how to integrate the mechanical parts within a box with sand on top so it can draw on something. There are two challenges that I'll face for that. The axes together are bigger than our laser cutter. I'd have to come with an assembling solution to make it possible to make with the laser cutter. Also, it has to be fully closed, no cracks can remain because the sand would come down and block the mechanical parts. All the programming and electronics tasks will be done by ma colleague because his better at it.

It has been about two weeks now that the project is going on. If you want a little reminder of what we're doing, here's a link to Mechanical design week. At that point, we decided to separate de tasks based on our main interest but also strength. I've always been more about design than coding. It seemed then obvious that I'd go on working on electronics integration and designing the casing of that zen garden. I'm not going to complicate myself that much in that design. I want it to be functional and simple but also I'll try to think about the finishes. As a former fashion designer, finishes are always very important even in prototyping. To me, it is as much part of prototyping than any other phase of my design process. This said, there two main things I should really think about doing designing that casing:

I guess you've already understood that my collegue will be in charge of the coding and programation of the machine.

First thing I need to do is to define the maximum distance the axes can reach in X and Y. As I want to make it very tight, because I find the machine to big already, I'll had only an inch on all side :

To plan the outside of the box, I used MakerCase as a base.

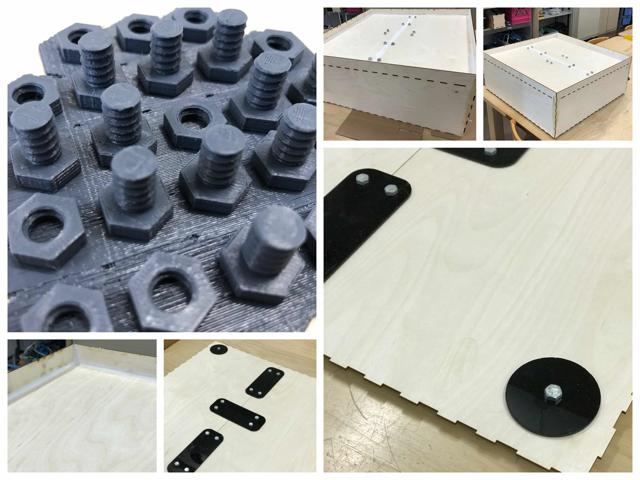

Then I modified it a little to make the side parts finished, to drop the top part by 1,5" and also I cutted de top and bottom part in half to make it fit in the laser cutter. To make them one again, I'll use some plastic screw that I 3D printed. I used 3D printed screws to anwser that problematic of having a magnet on top of my mahcine.

Finally, I needed to connect those separated top and bottom part. So, as you can see in the lasercut plans, I made some rectancular parts that are going to do that job. I made them in acrylic for better strenght.

This is pretty much everything I'll need to build the casing. I'll add to that a silicon paste so nothing can go through and that's it!

Once everything is planned, this phase is king of simple. I'll describe it in point form :

There you go! Now, I have to what for programmation. But in the future, I'd like to finish it with some 3D printed paws at the bottom so it doesn't screw your floor or table and also paint it with ultra mat paint. I'd like to make it so black it looks like a black hole with white sand in it. Put that is going to be another project. I don't have time anymore.

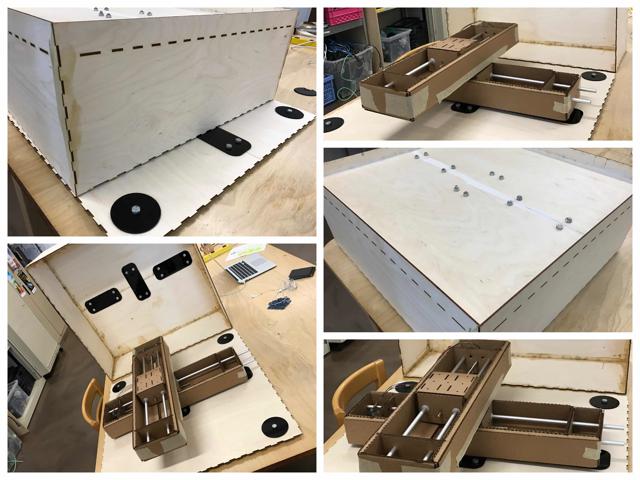

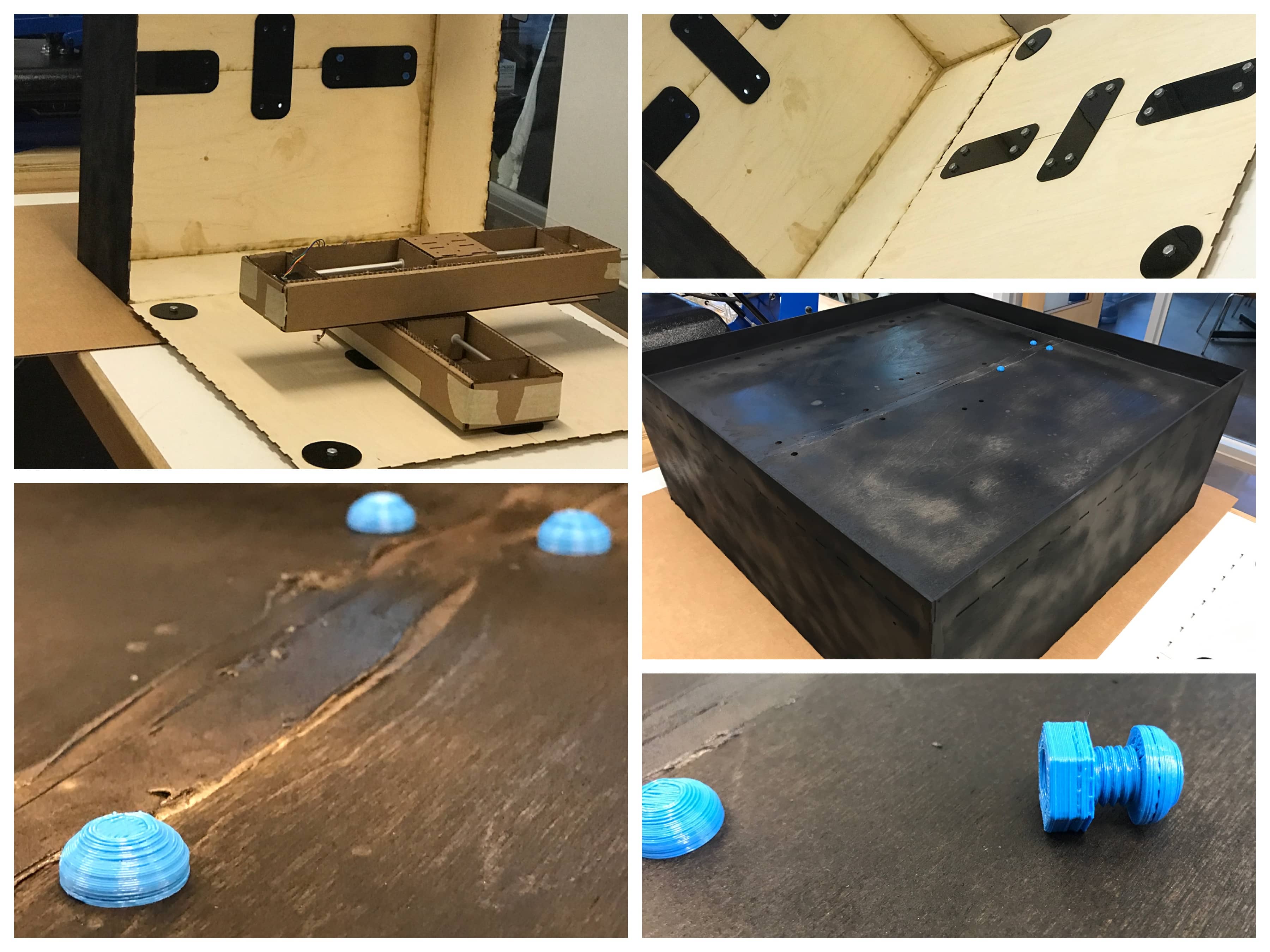

During global evaluation, I received the comment that it's not possible to see what's the machine is actually. At first, I didn't understand why but then, I read it again and well ... yes, there no way to see what it is. Even if incomplete, I've made, I think a good integration and machine design. So, the deal was to complete the documentation so we can see what's the machine is doing and look like and also to update the Lab page, which is done too. I'll also present another video of the machine later on as we agree with my global evaluator. Still, I enjoy working on this a lot !. Here some updates in pictures that make it more comprehensive.

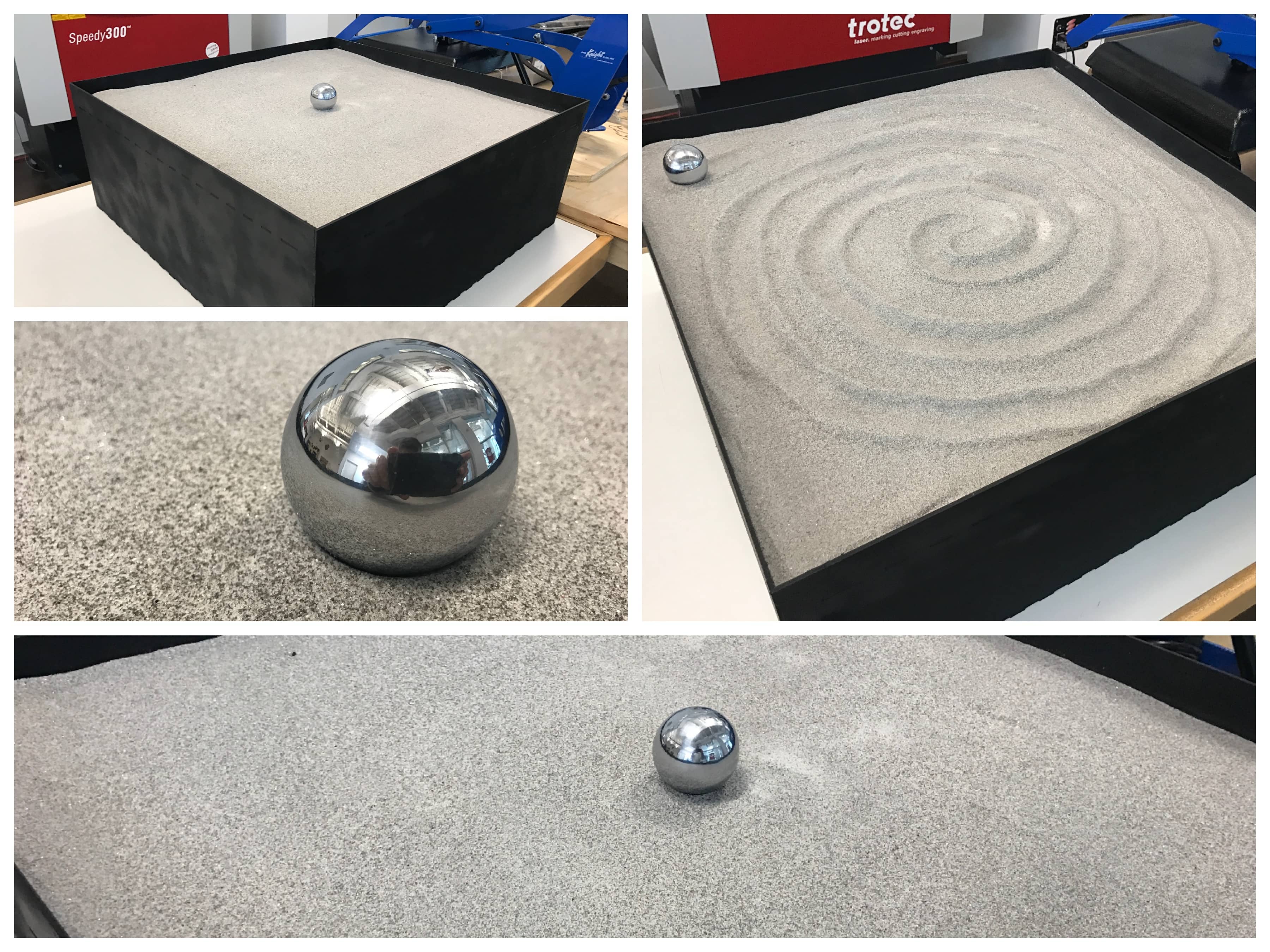

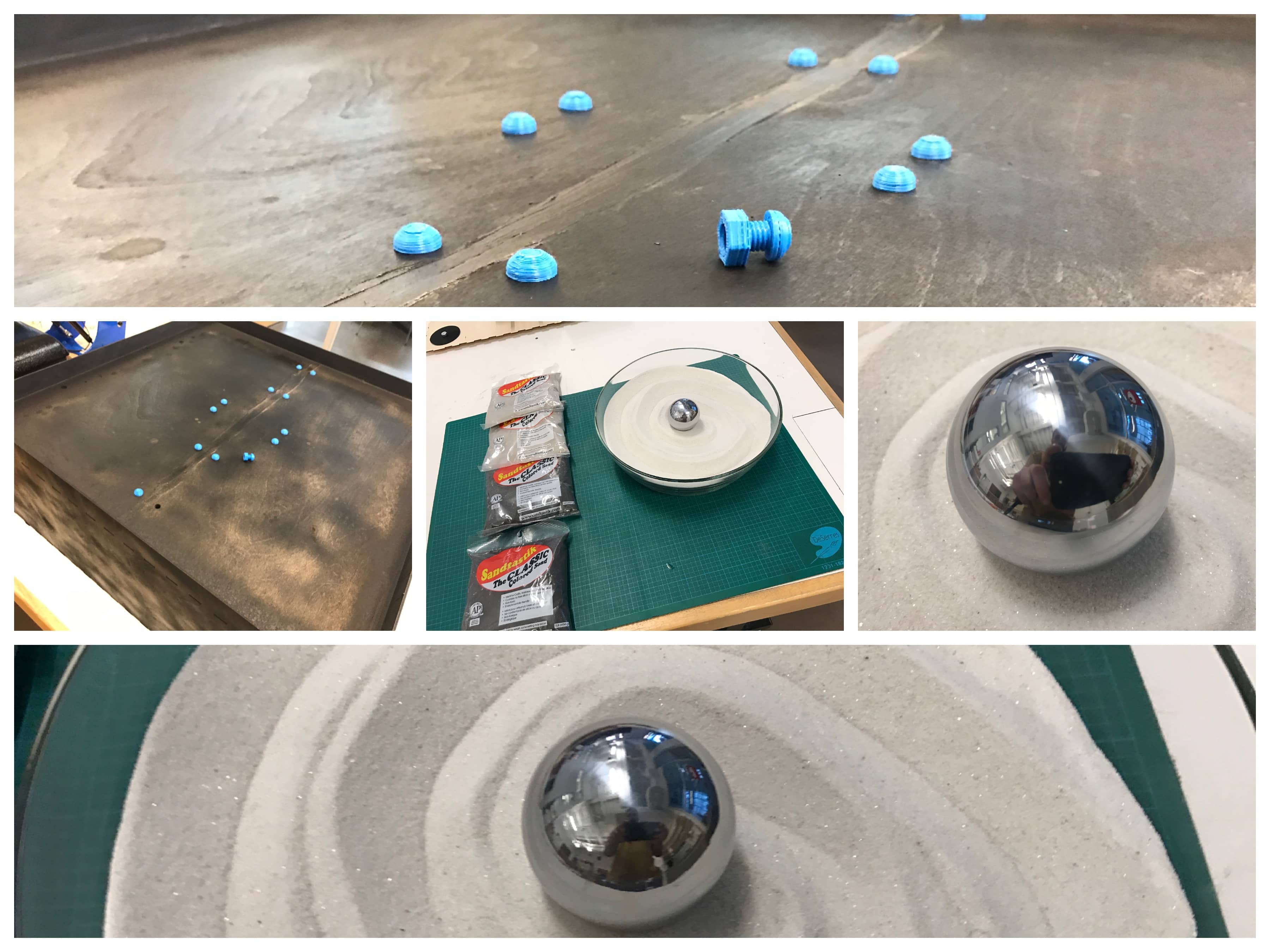

To put words on these photos, the machine as an X and Y axes that are the MTM kit develop by Nadia Peek. It's integrated into a machine that is designed to draw in the sand using a metal ball and a magnet on top of one of the axe. It'll use G-code to make simple shapes on the sand. Here's a video!
