Final Project – Lamps and Ballasts wiring

As shown in the structure page I milled a panel where to put the lamps with lamps holder on one side, and ballasts and wiring on the other one

The Parts

The components needed are:

• 10 x 18 watt UV fluorescent tubes
• 5 x 2x18 watt Ballasts Magnetek BBT IS1
• 1x18 watt ballast (taken from an energy saver bulb)
• Cable clamps
• Wires

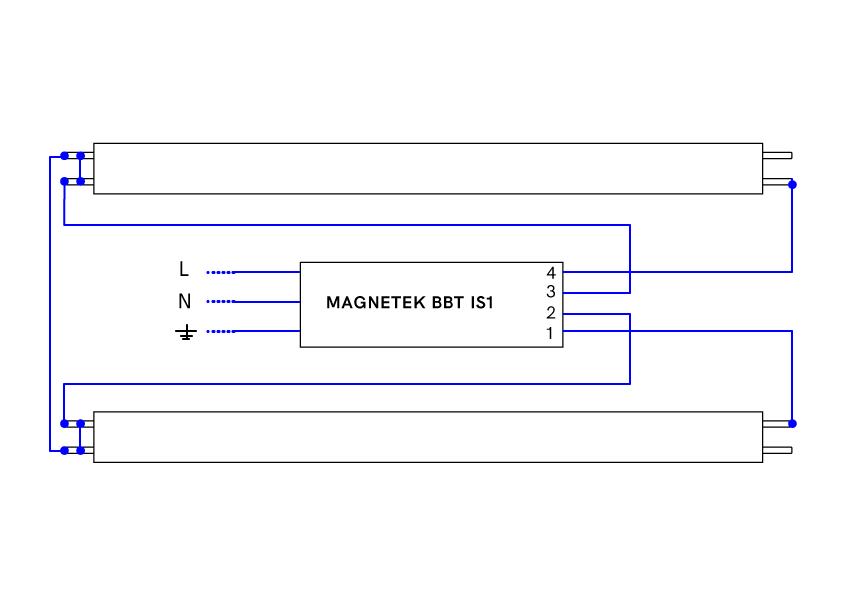

Ballasts wiring

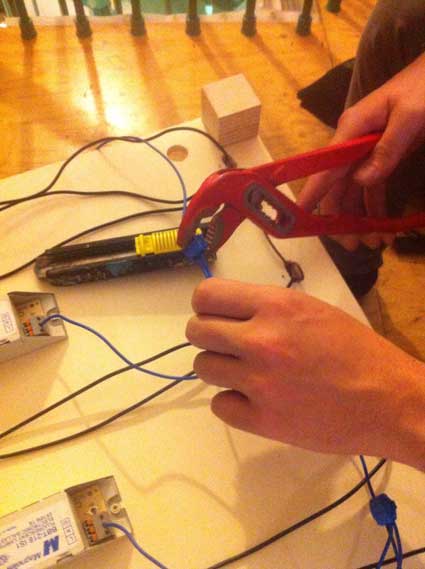

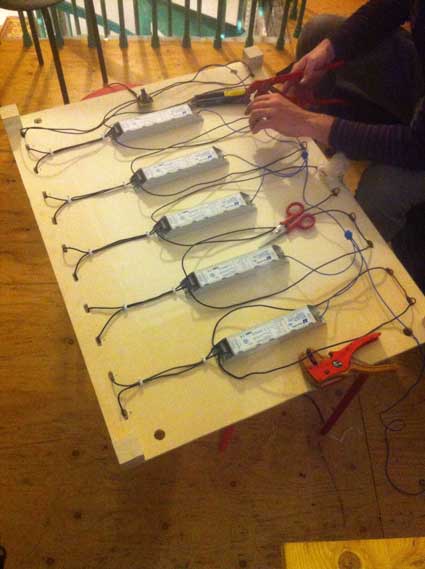

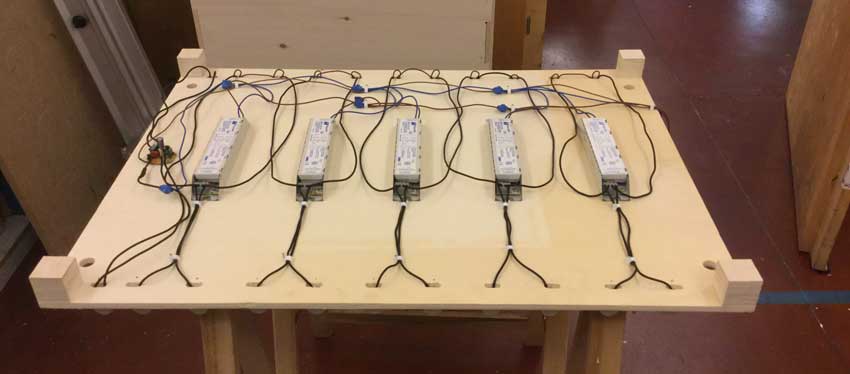

The wiring and assemble
