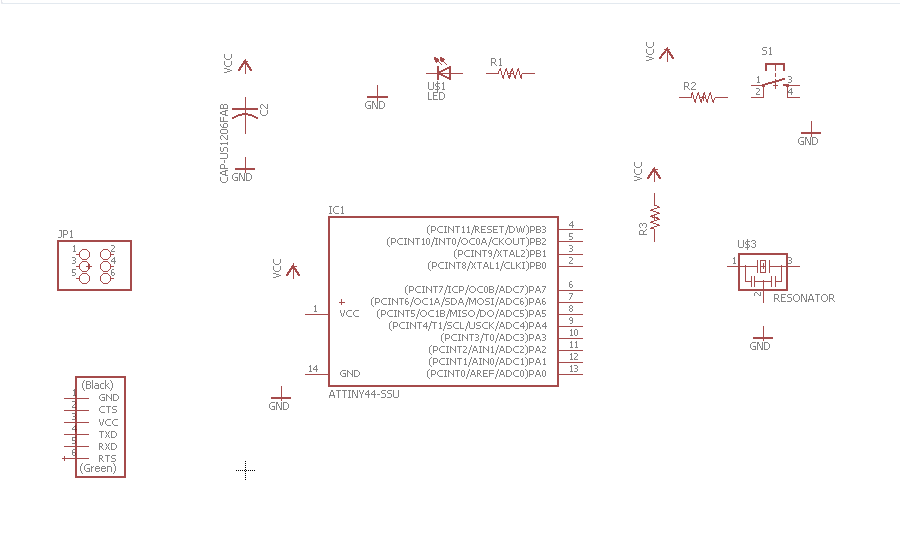

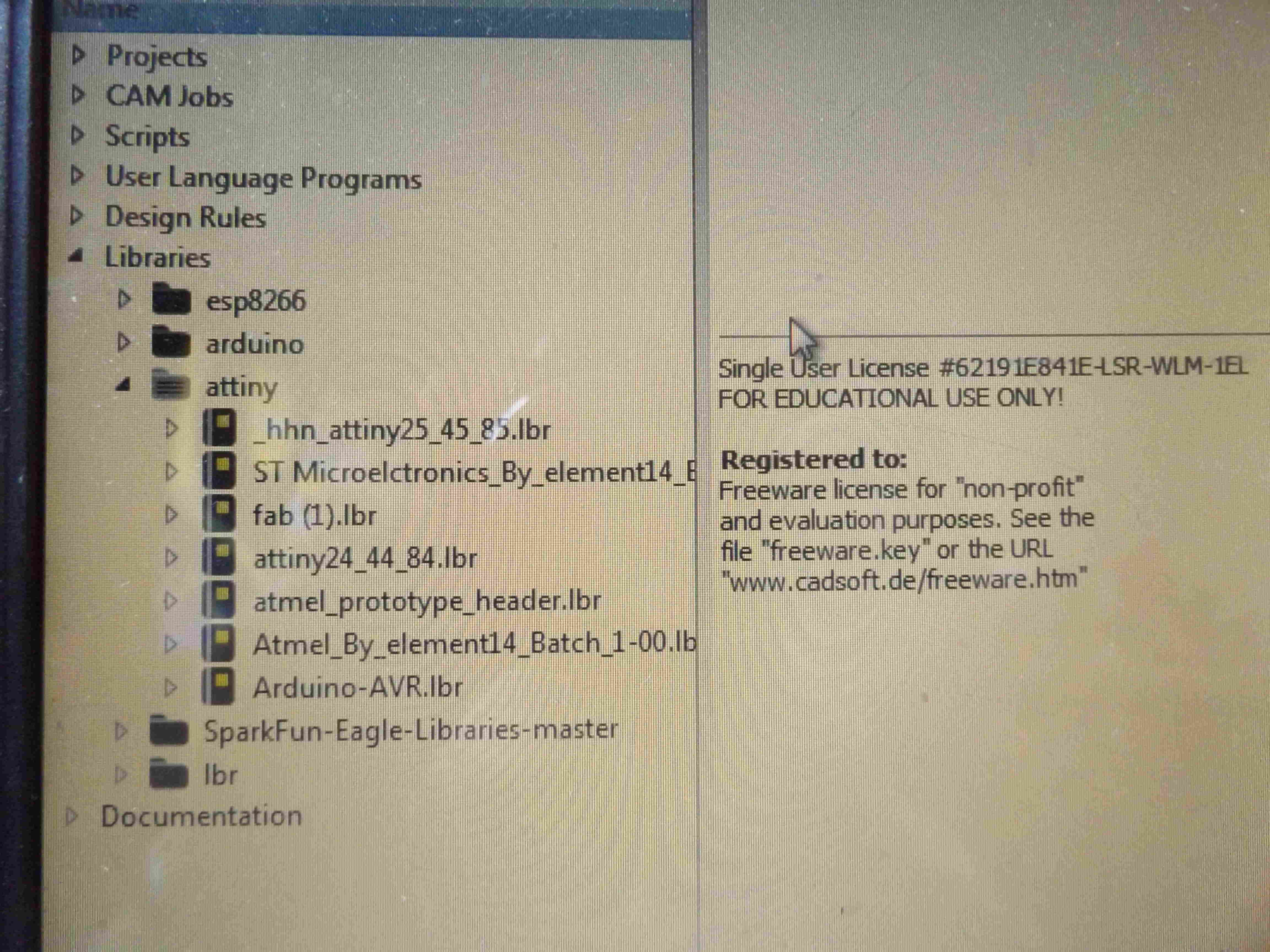

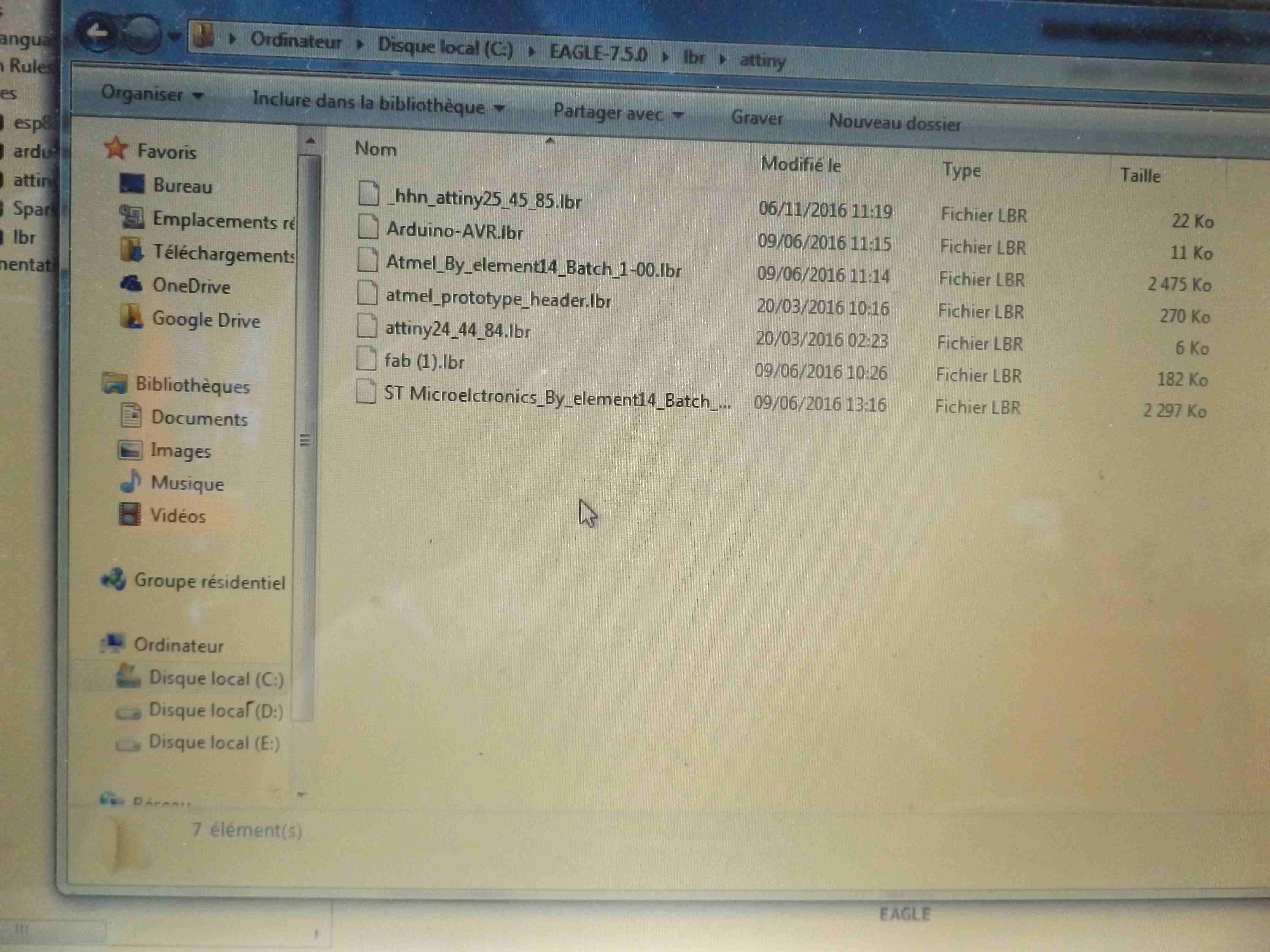

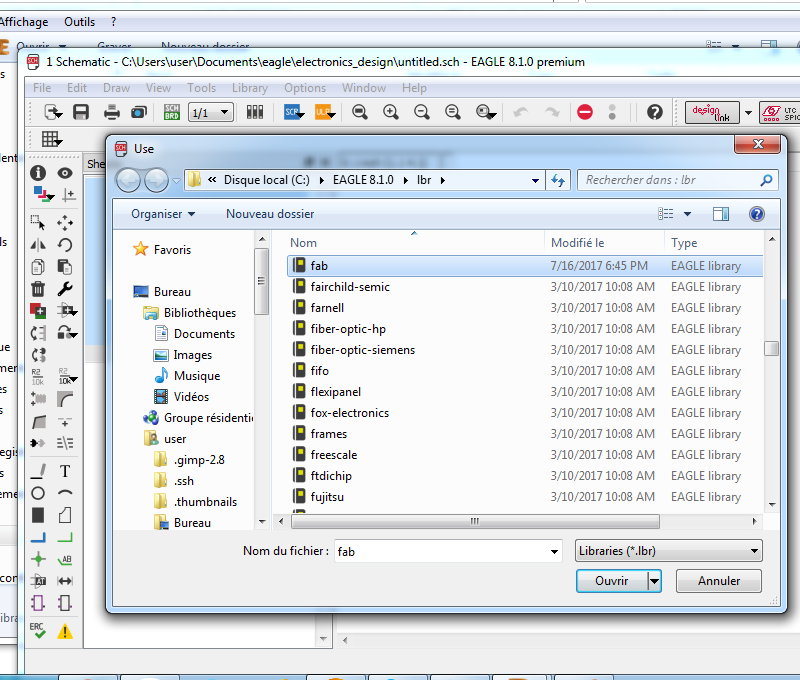

this week assignment is designing Hello world board. I use eagle following this and this tutorials, before I started I download fab library from class page and download sparkfun library from here. then I copied files into c:/eagle-7.5.0/lbr, then in eagle control panel, option->directories->lib, I add the full paths to my libraries and configure libraries that will be used by right click on the library->use all, use none for library that I dont want to use for ancien version for the new eagle version find please the screenshot to add, configure library, and schematic design of hello world board.

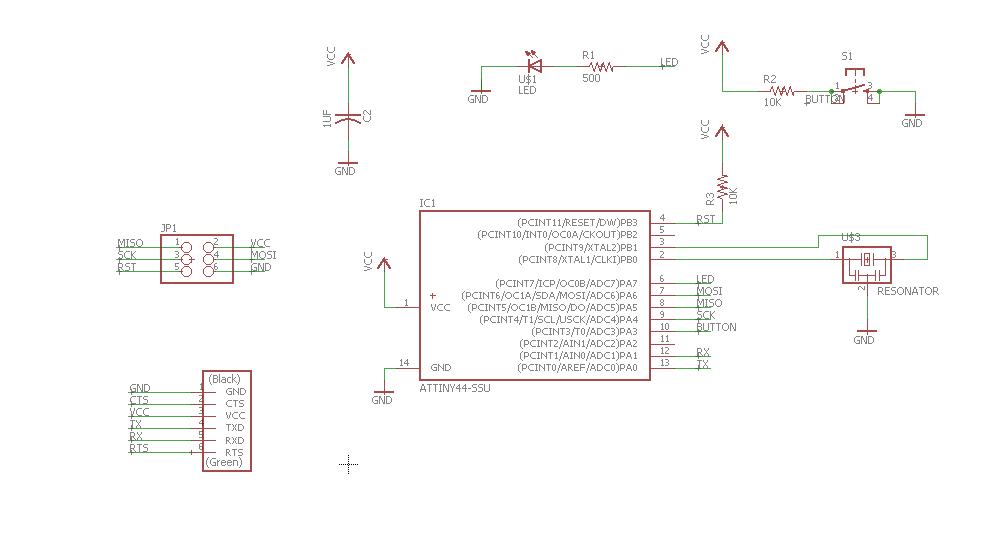

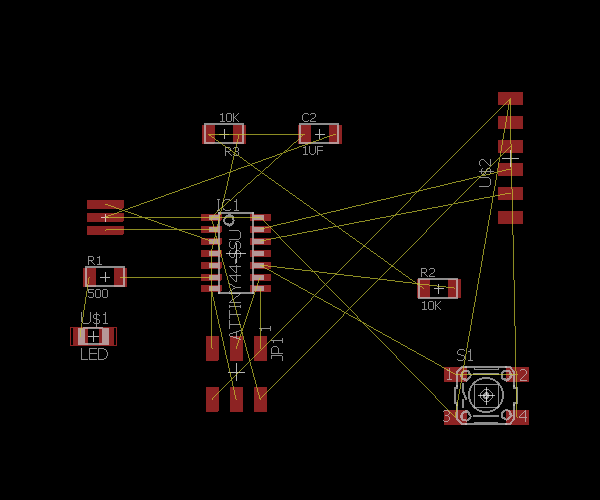

I checked connections before generating the hello world board from schematic, here hello world board arranged before tracing

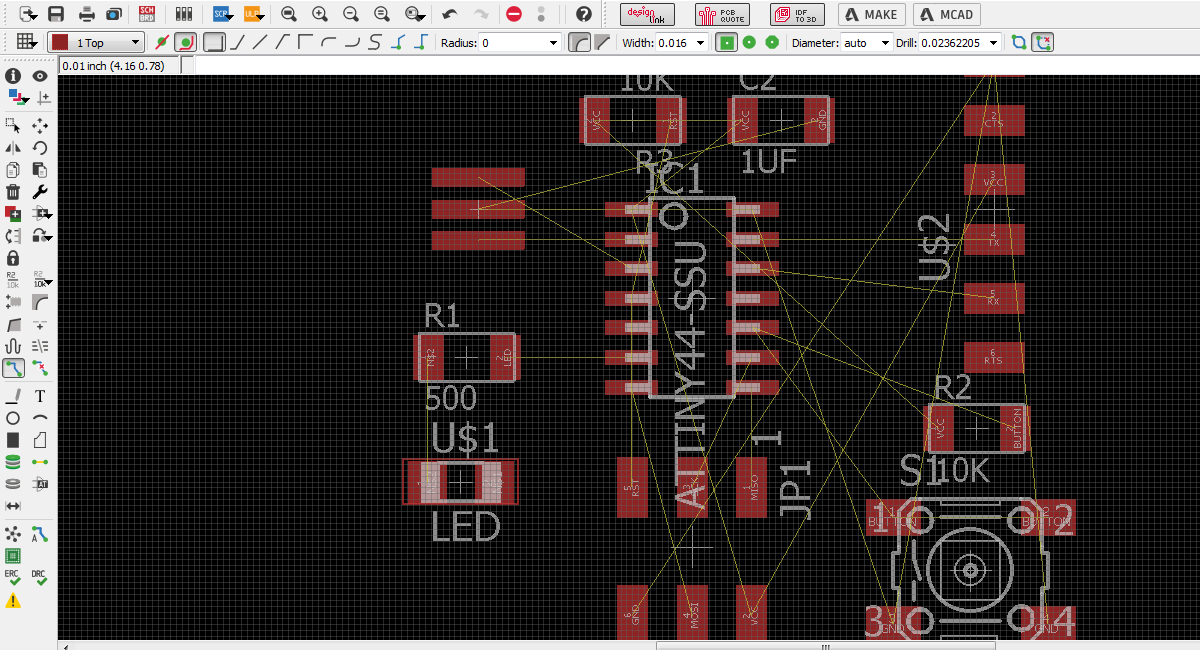

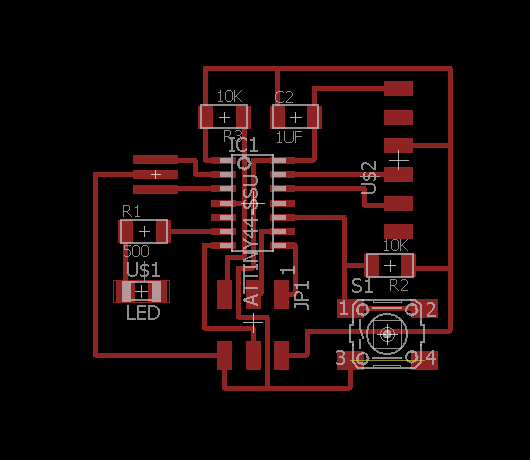

to trace hello_world board I use grid size 0.025 inch and alt 0.05 inch, below is the hello_world board

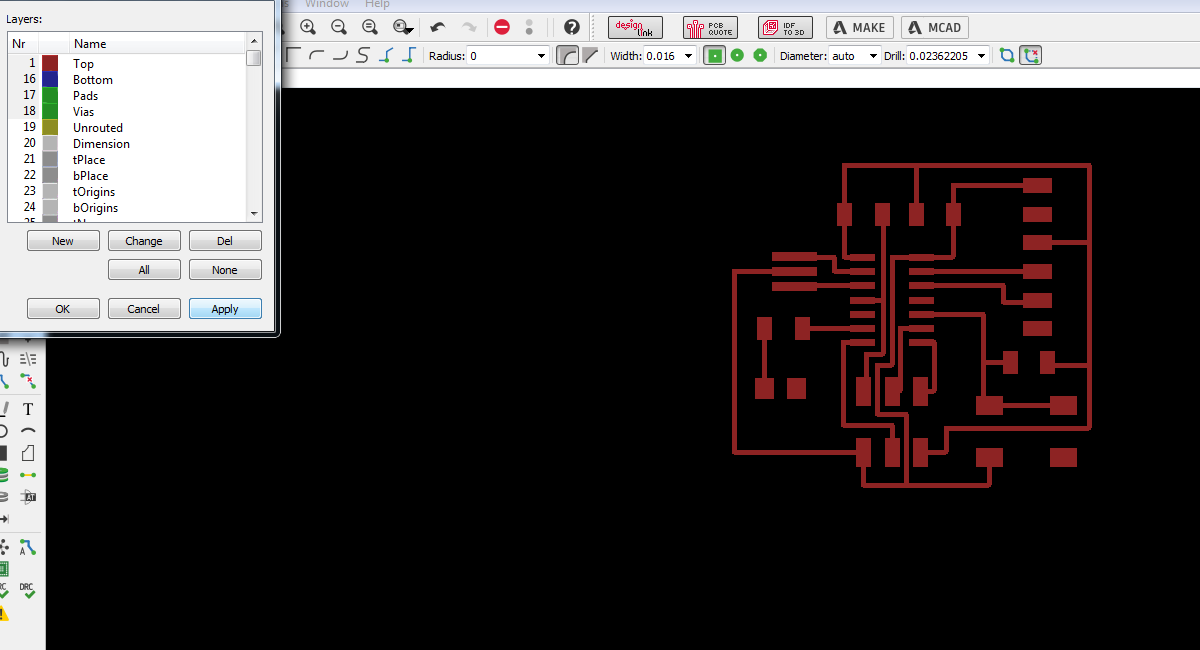

then I hide all layers in hello_world board to prepare for milling here is the board

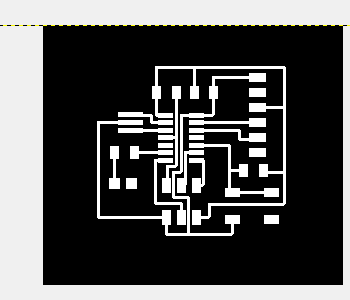

I export the file as png format file->export->image monochrome, 500dpi resolution, then I resize here is the png format of the file

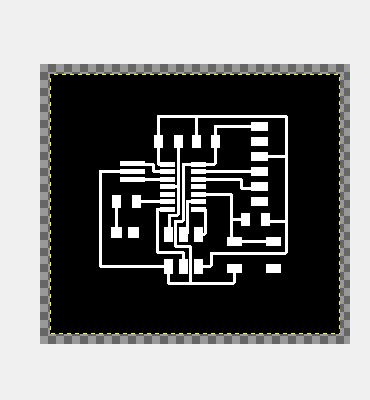

to add the outline to the image in canvas size I add 20 px in X and Y offset , center, image flatten resize apply the white color to border, here is the result

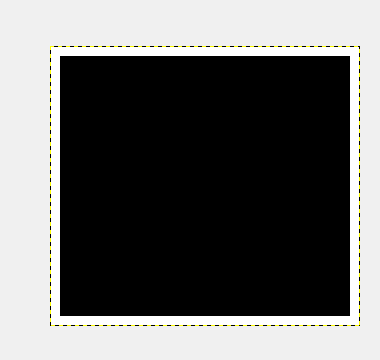

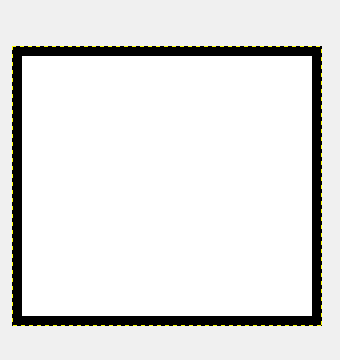

for the outline I used pot/fill to fill all the board in black color except the border then I invert colors, here is the outline

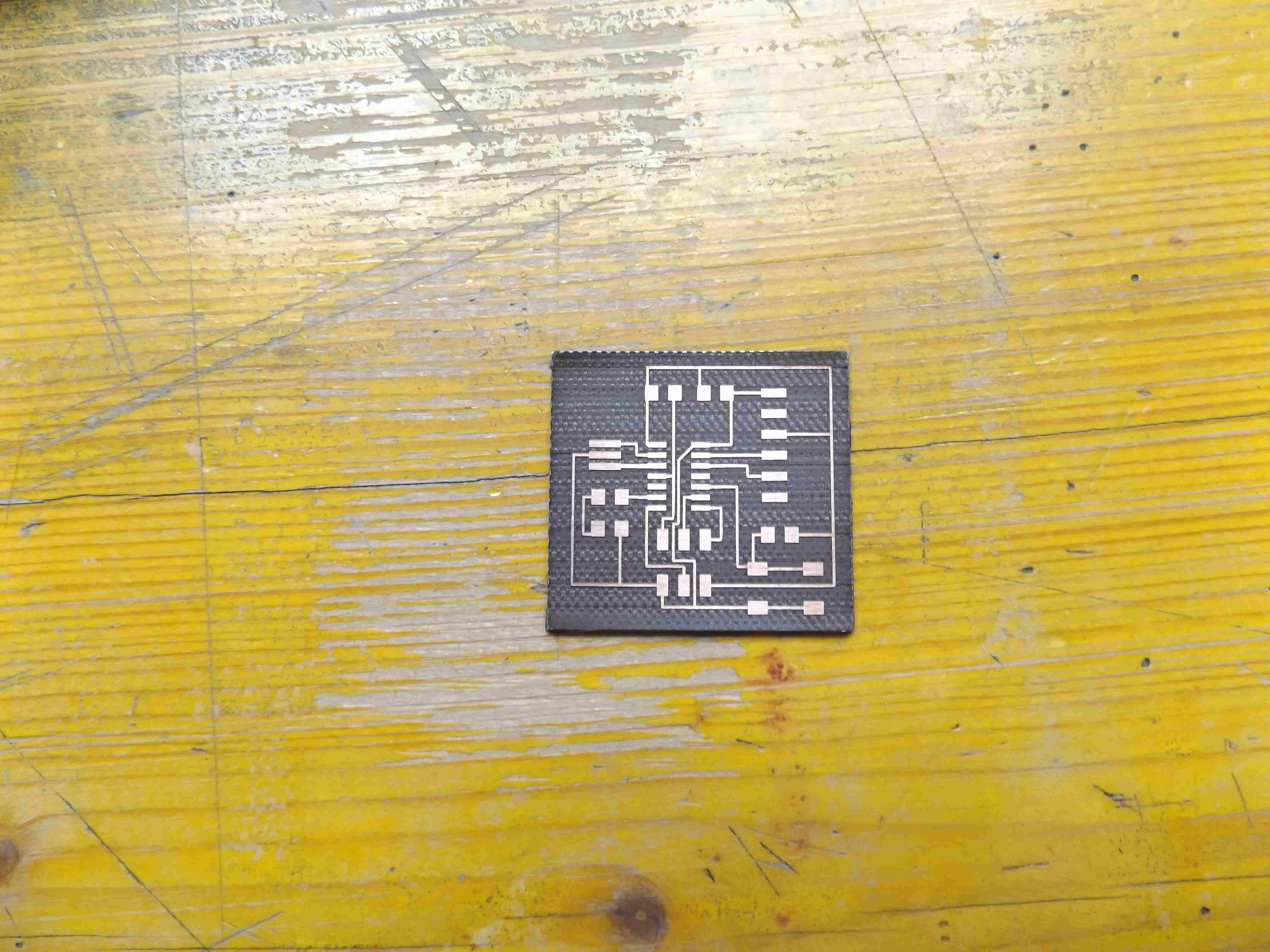

Hello world board
here are my hello world board card and video. To download design on eagle and png files.
here is the design board on eagle here is the shematic board on eagle here is hello world traces and outline.
