Introduction to EAGLE
The frist step is downloading the software EAGLE, but the way, in the FabAcademy tutorial you will find some extra information to make you own design.

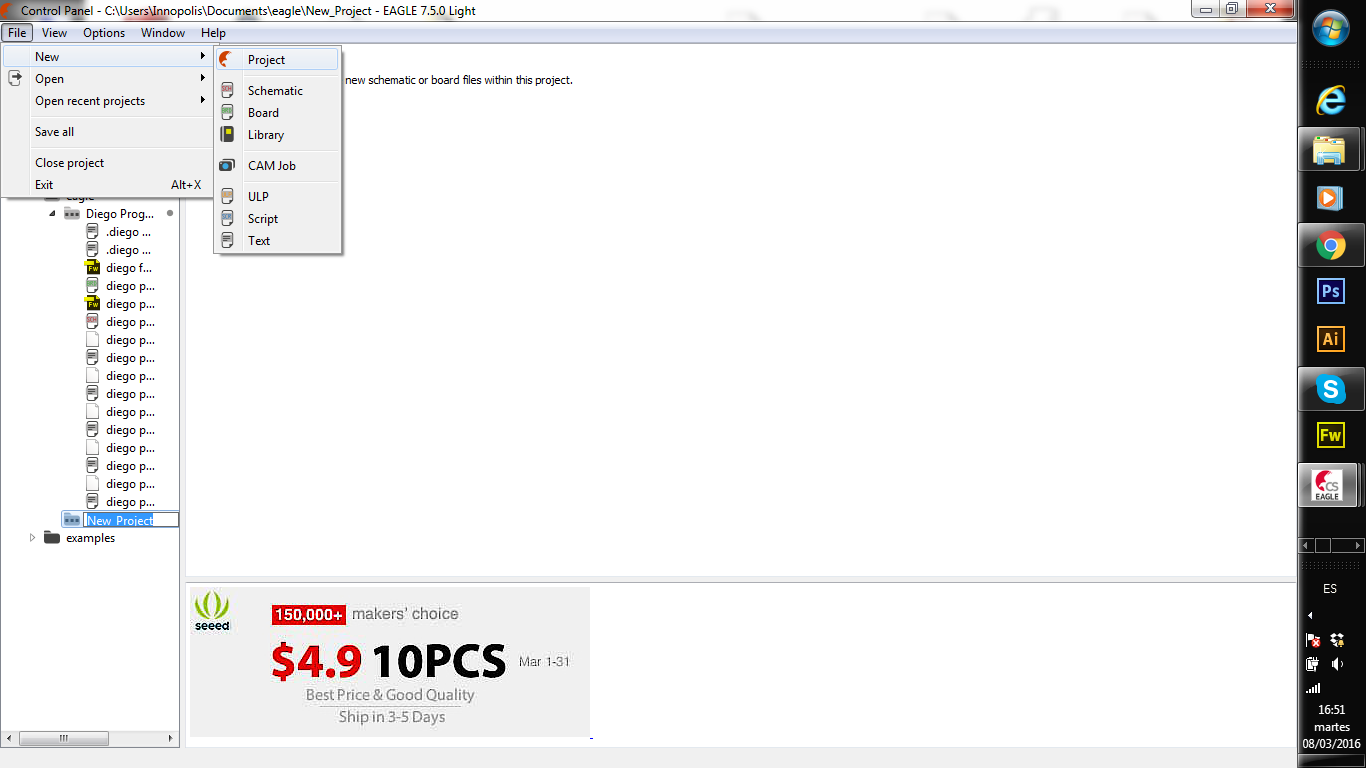

1.- In the Eagle software you need to start a new project

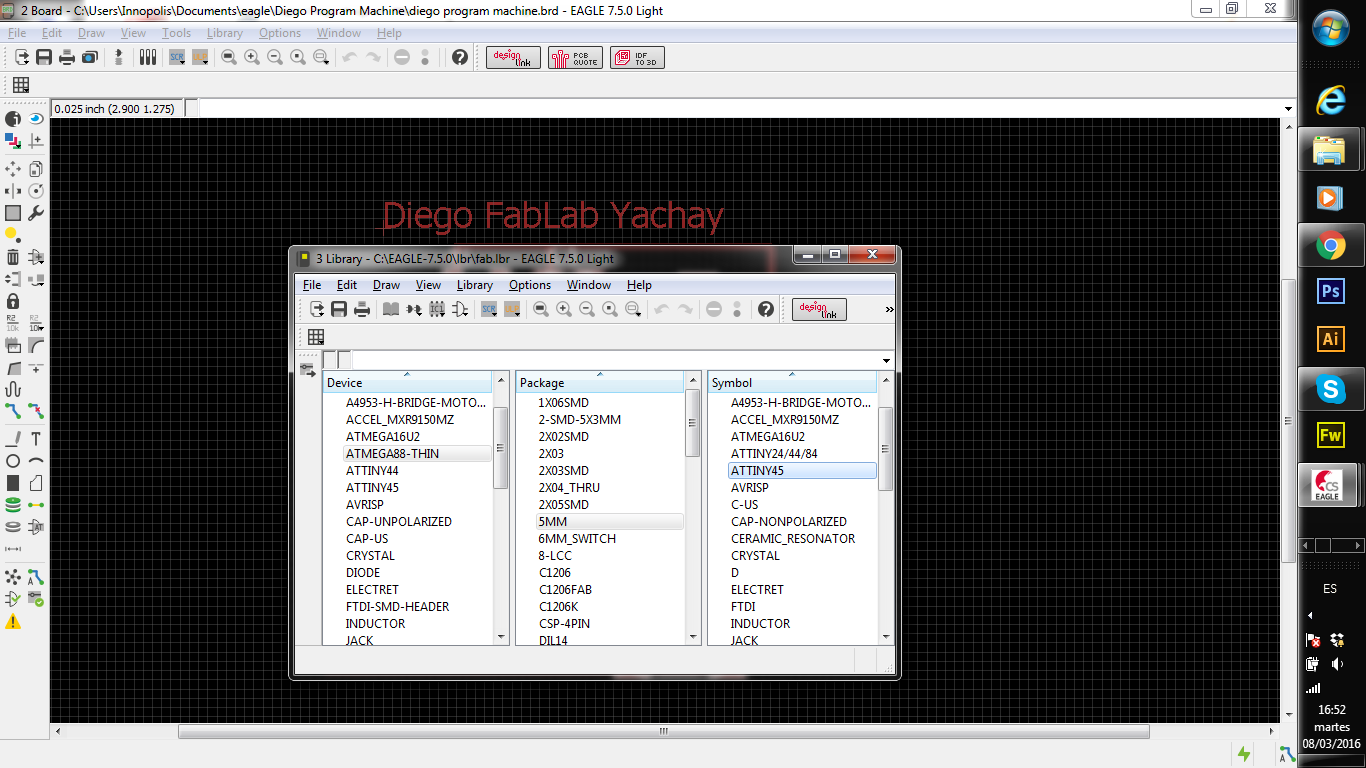

2.- It is very important thay you upload the library with the FAB file
3.- The project that you will worn on, must be on "Schematic" mode
Working on EAGLE
In this chapter I started to put the components in the software then chage some properties and values

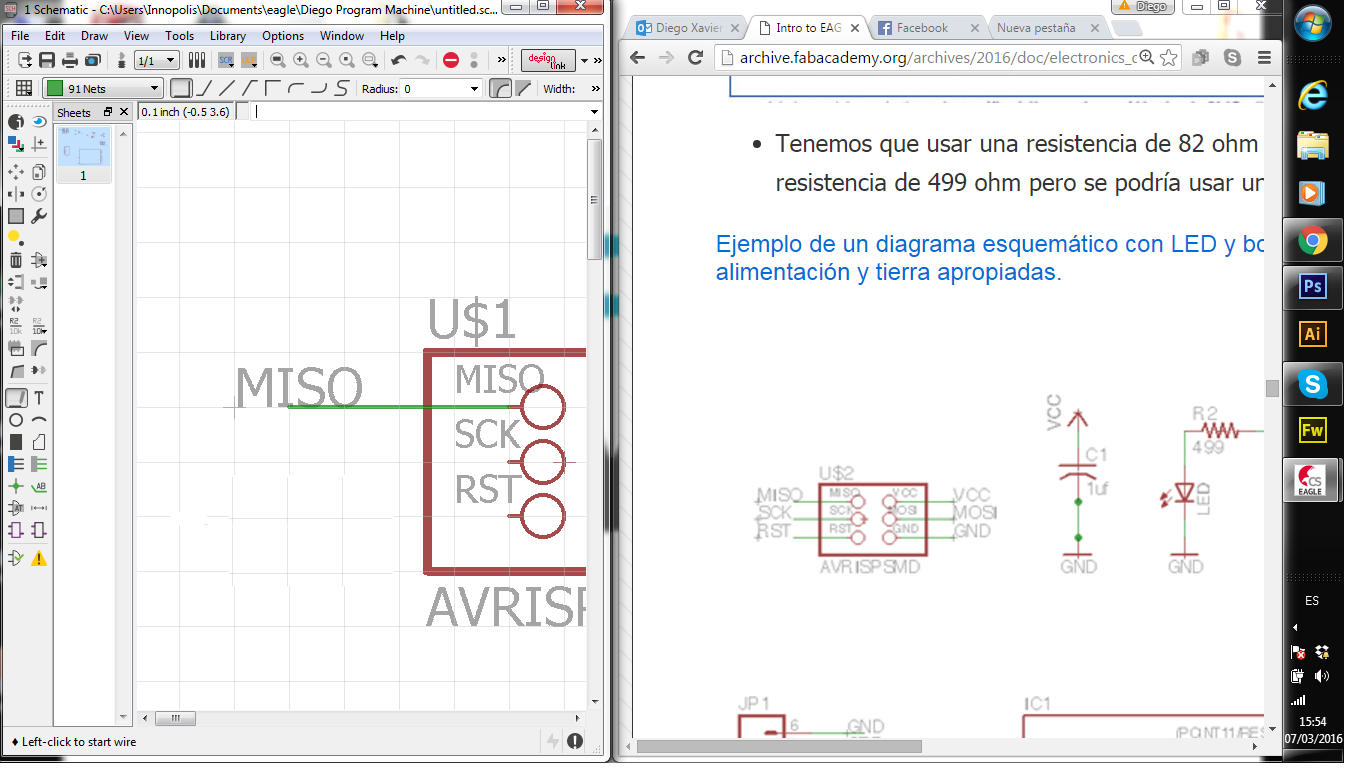

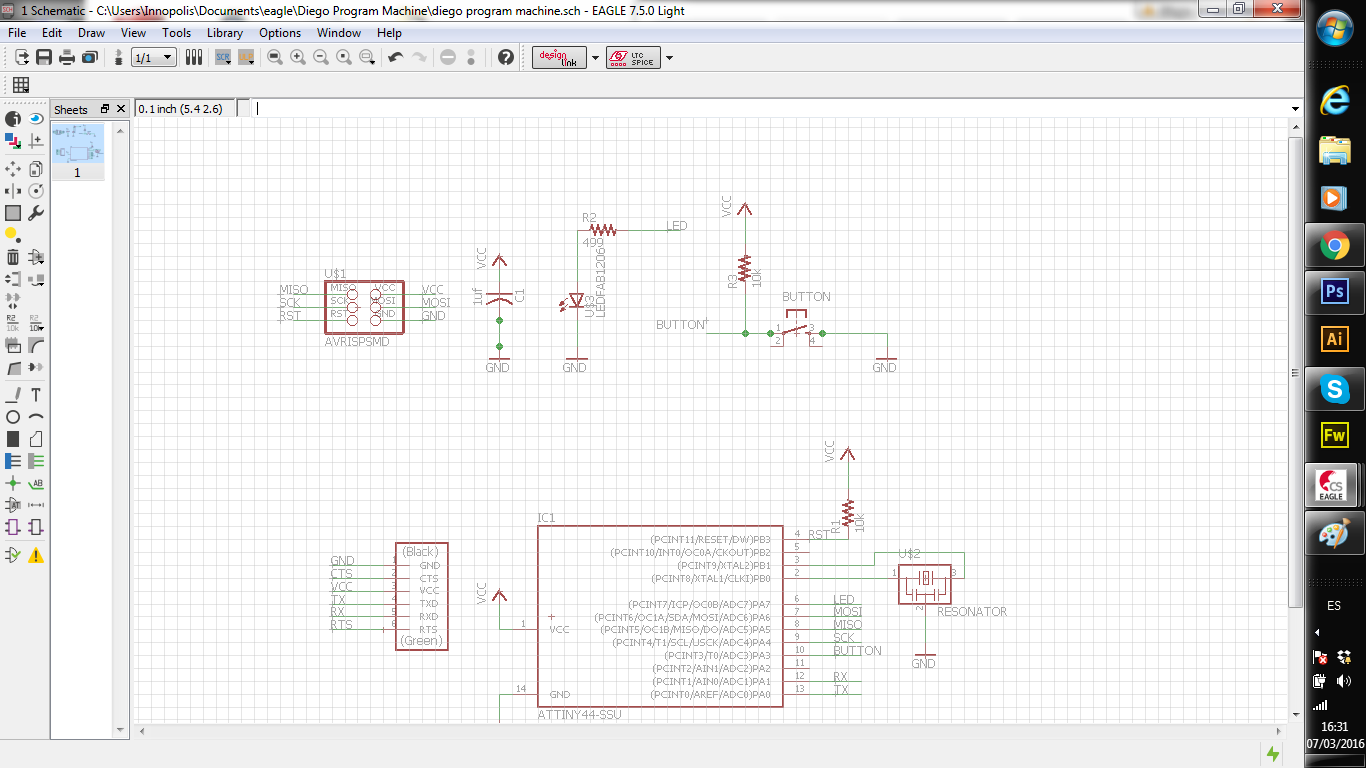

4.- Copy the elementes like the tutorial into the EAGLE

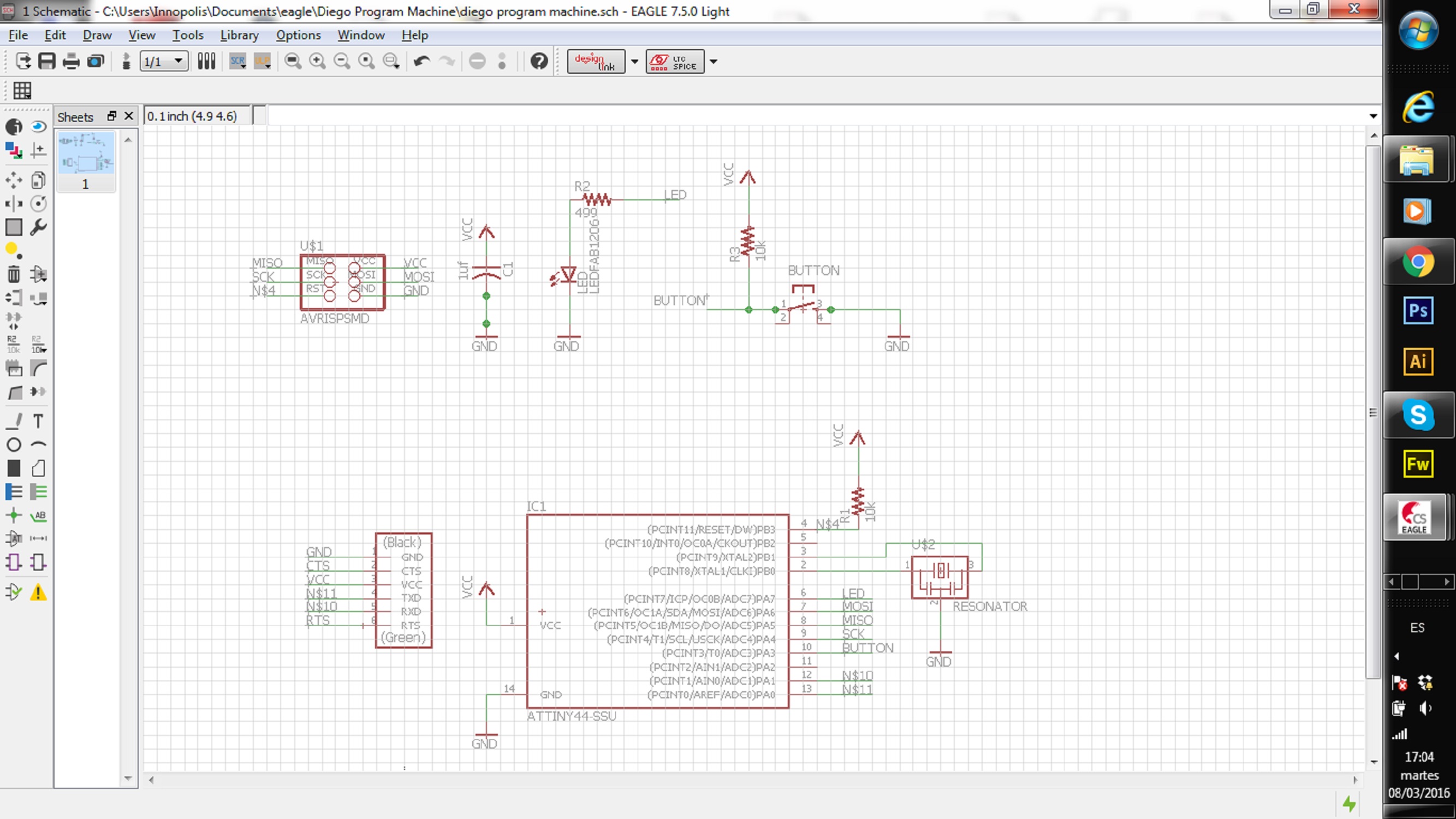

5.- Add the properties and values according to the tutorial
6.- Transform your design to a PCB diagram
PCB Diagram

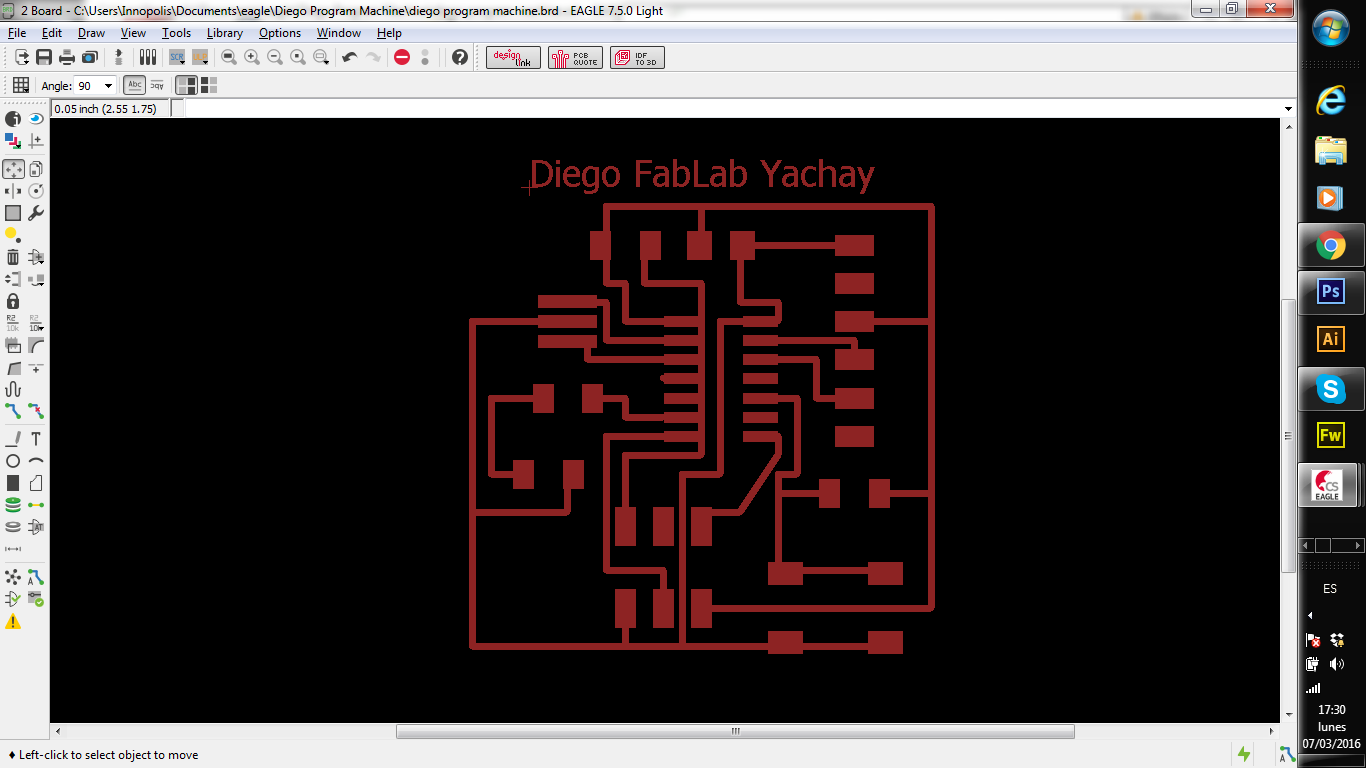

This stage it is critical because it need to be all rigth for milling the PCB

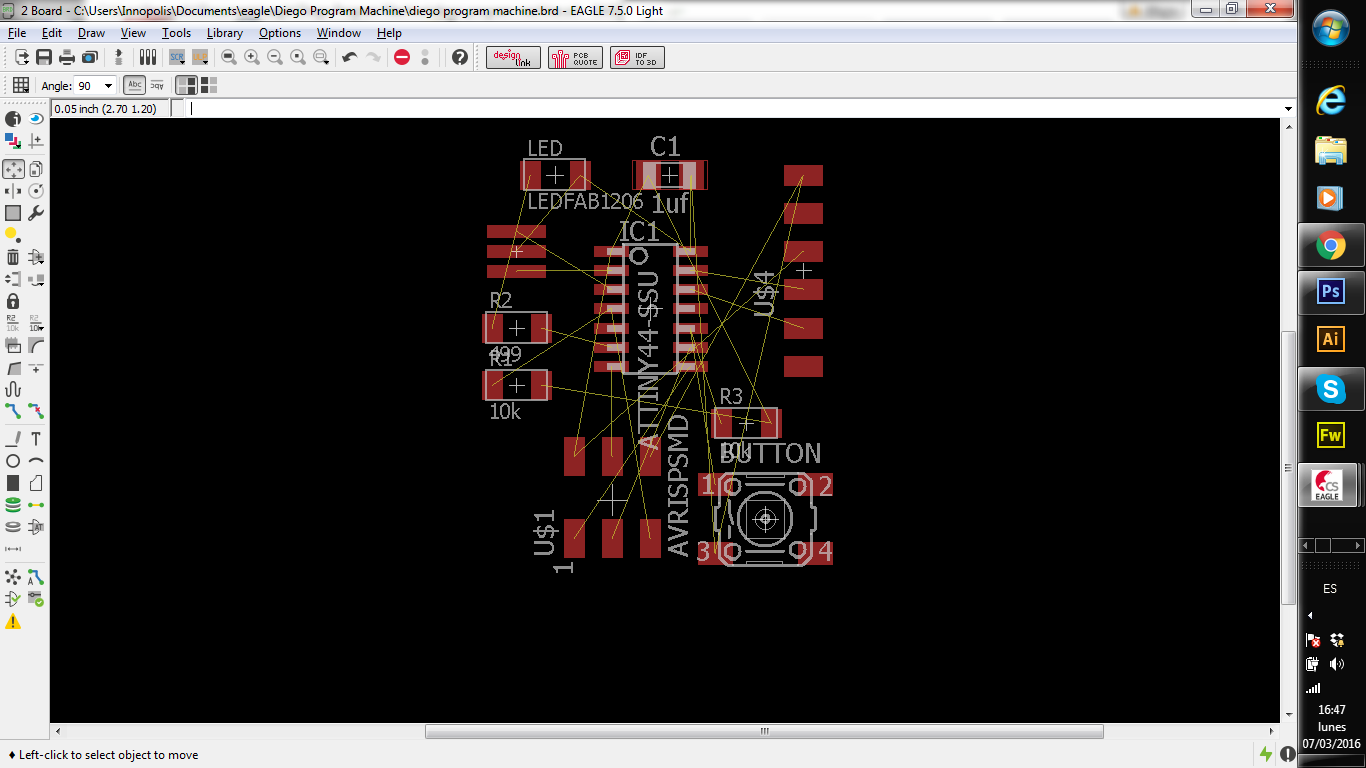

7.- The module in EAGLE allows to put the components like a physical PCB
8.- Export you design into a PNG file

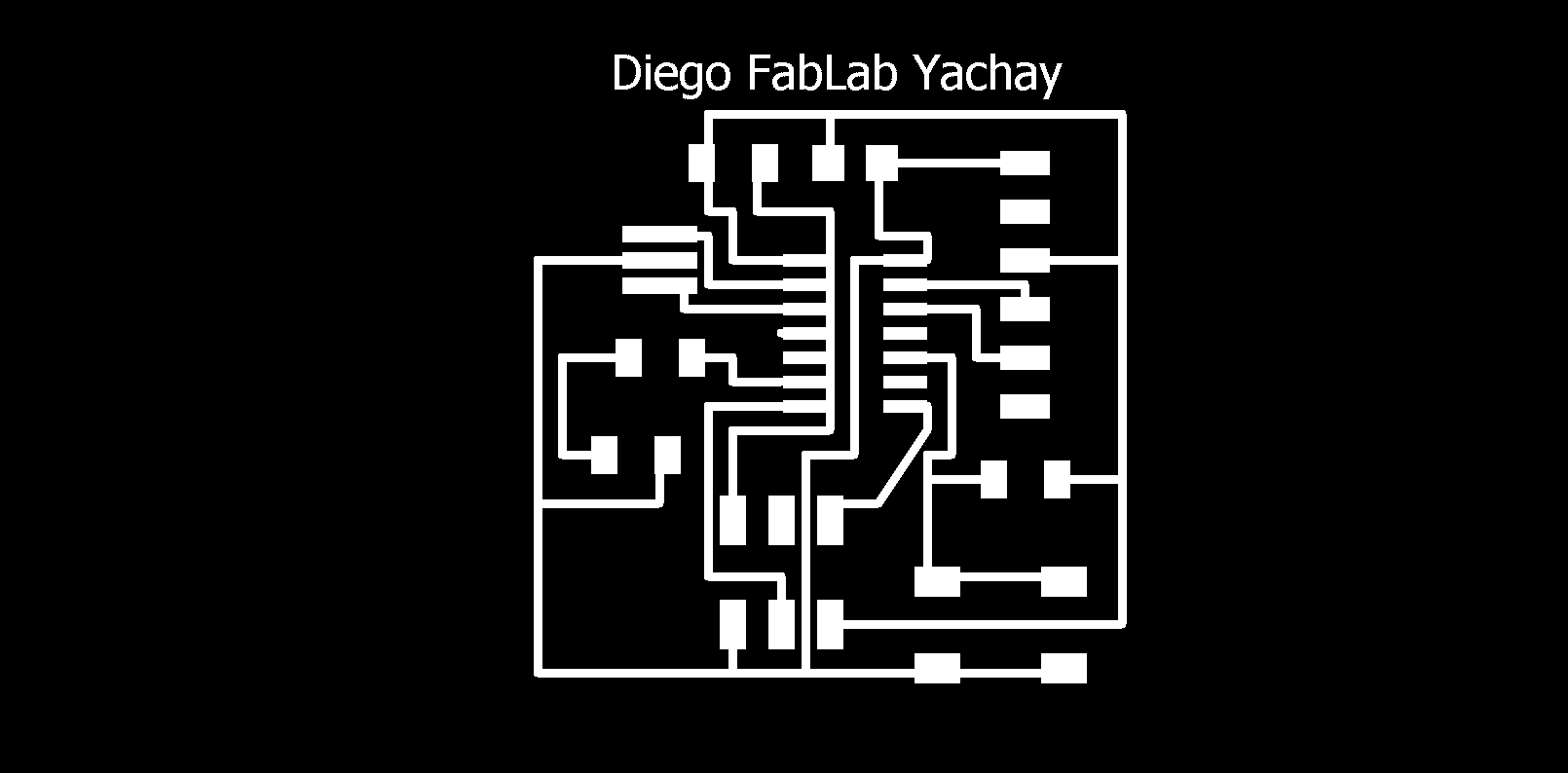

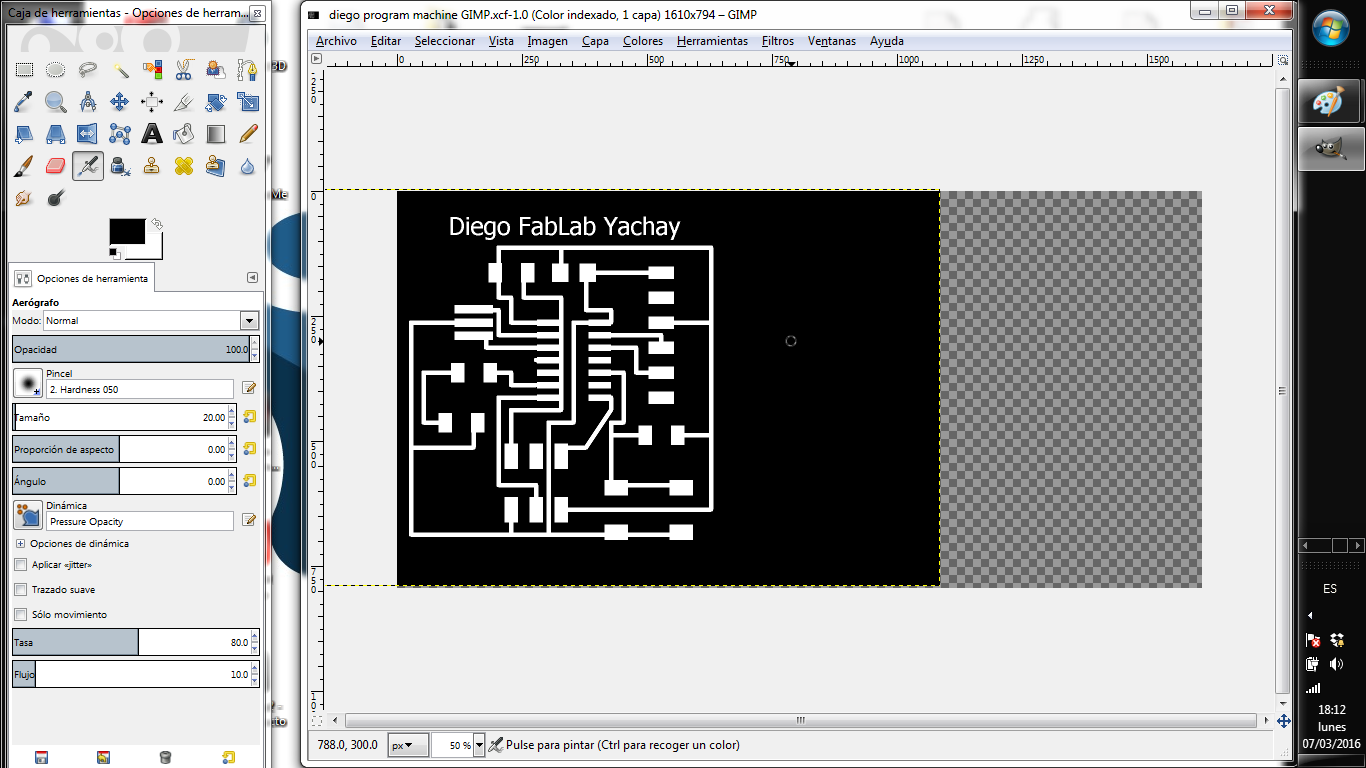

9.- Using GIMP to edit the PNG file
Preparing for milling machine
In this part you need to repeat some steps to create the milling files

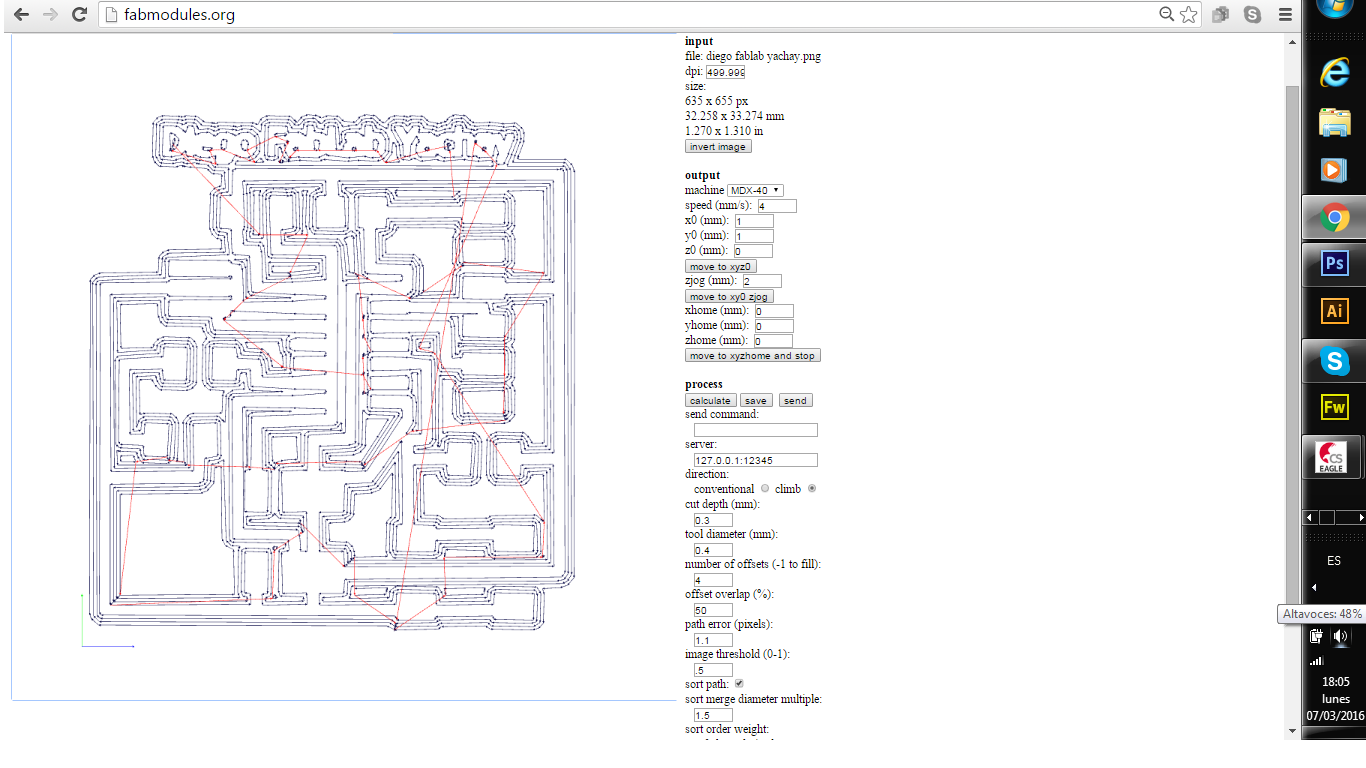

10.- Using the FabModules to generate the RML file

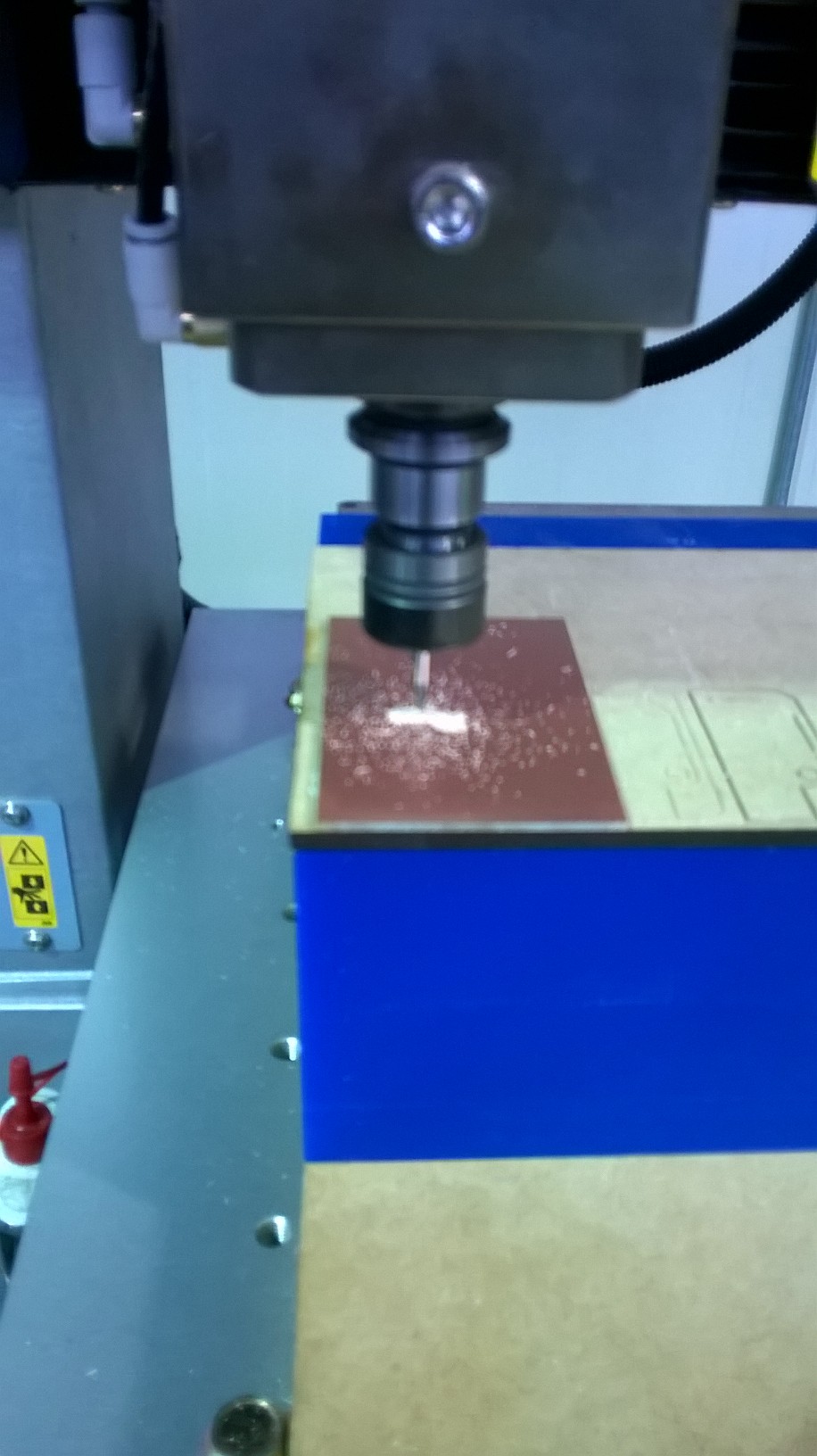

11.- Calibrating and milling with the MOdela MDX-540

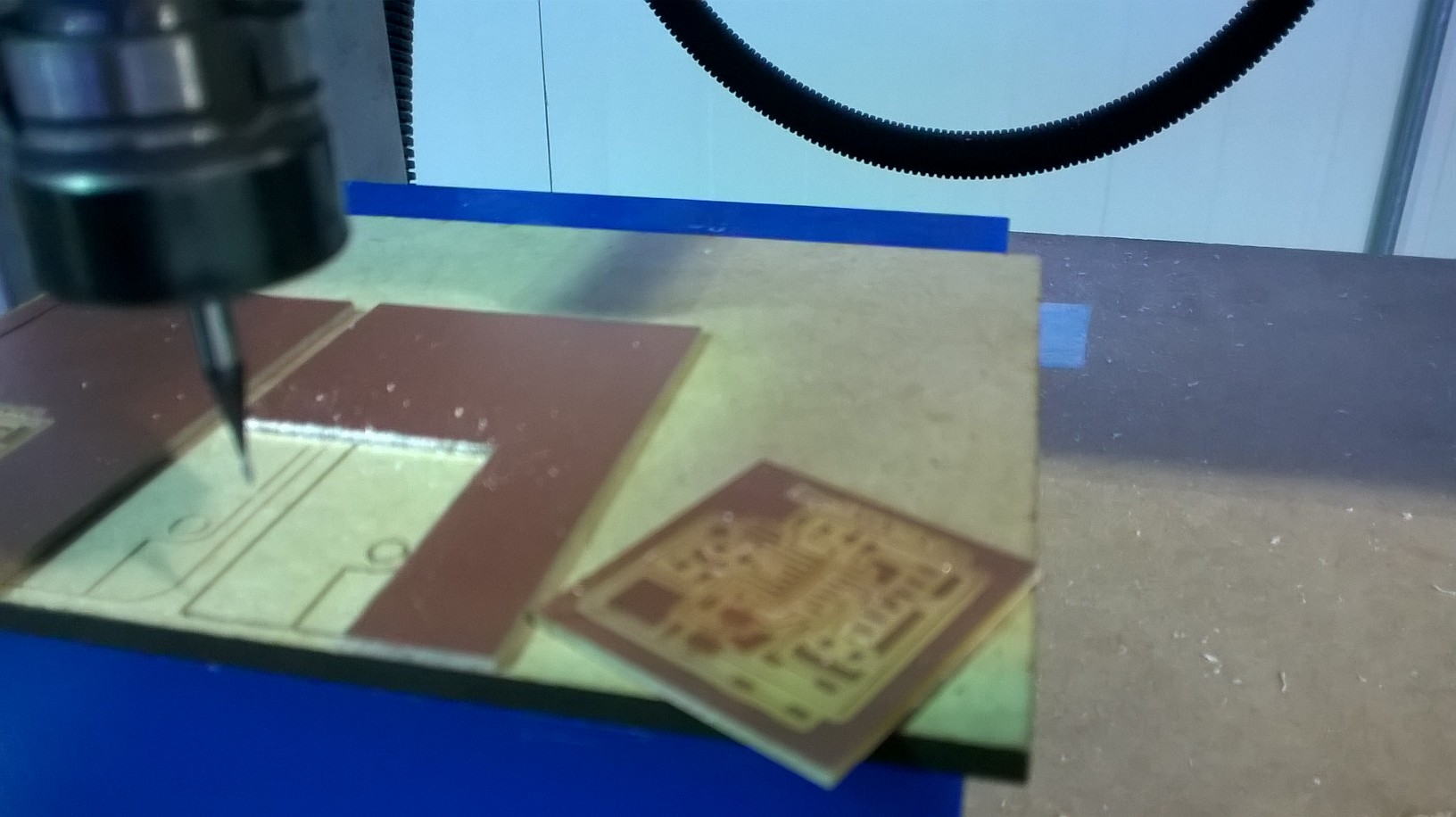

12.- Finishing the PCB!
Soldering the components
When you have done the PCB it is time to soldering the components, LED, resistences, etc.
13.- The components must be add one by one

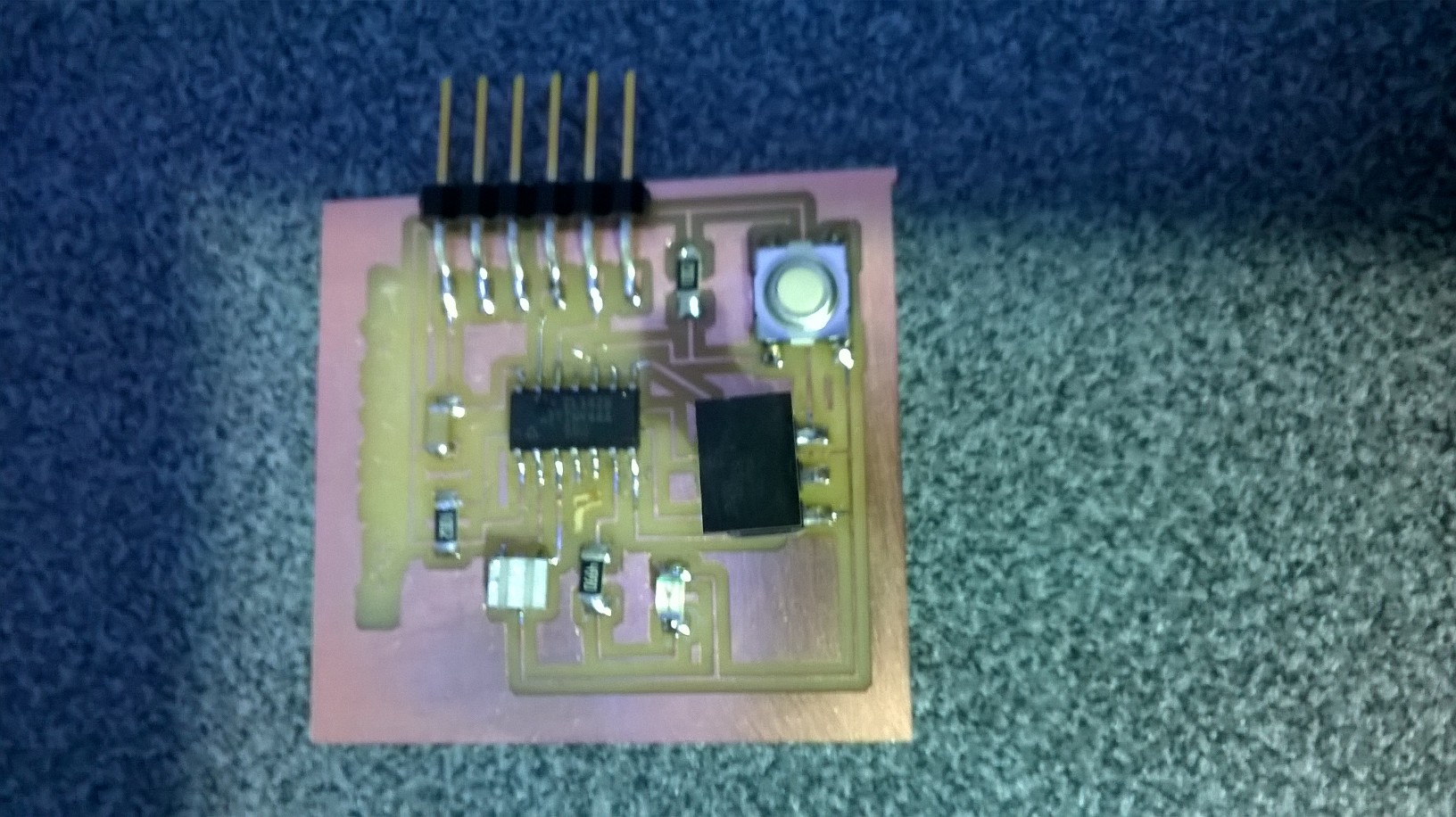

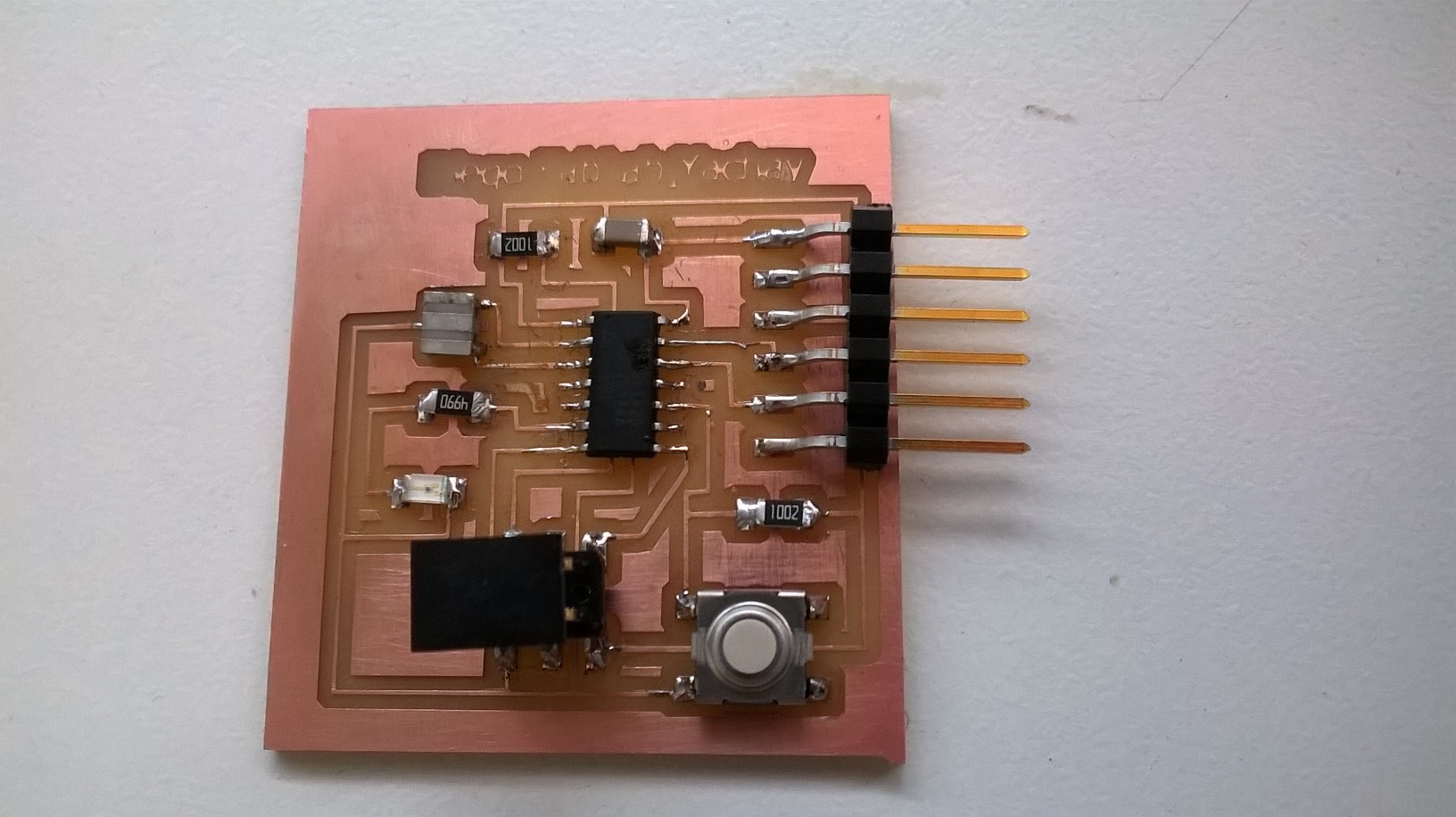

14.- Final PCB

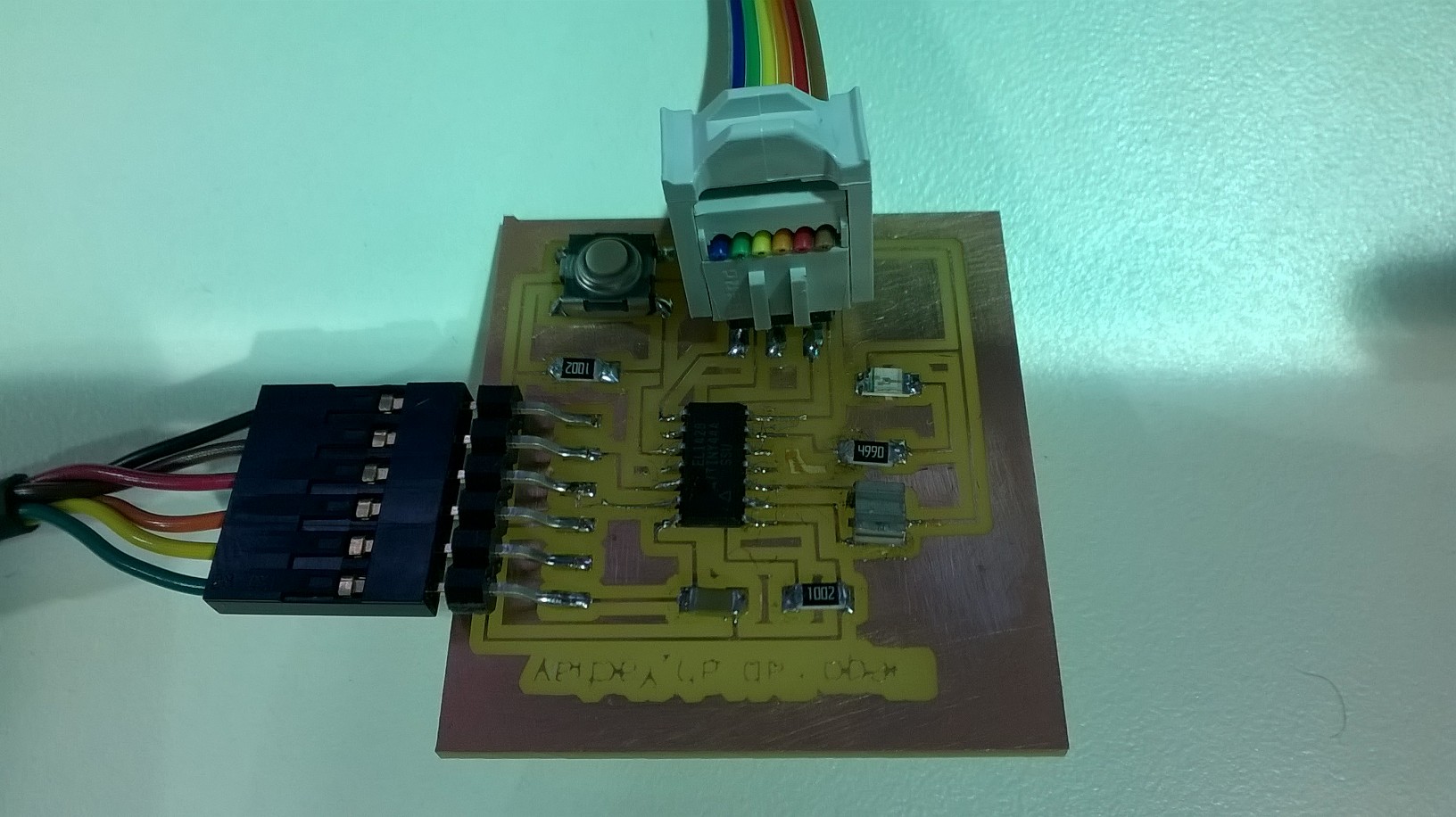

15.- Test the PCB
