4th Class
This stage it is very important because I started to design, make and millin the PCB board

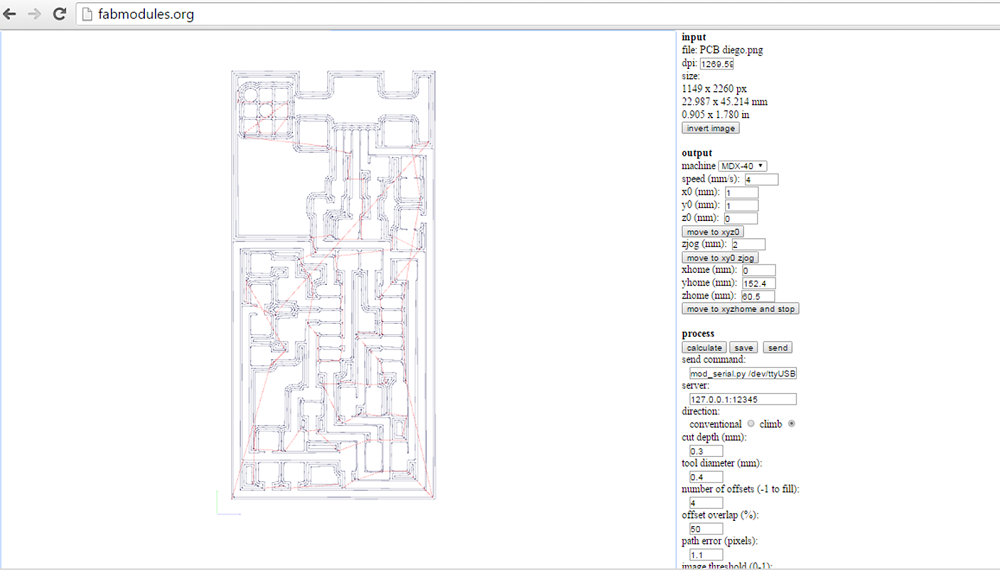

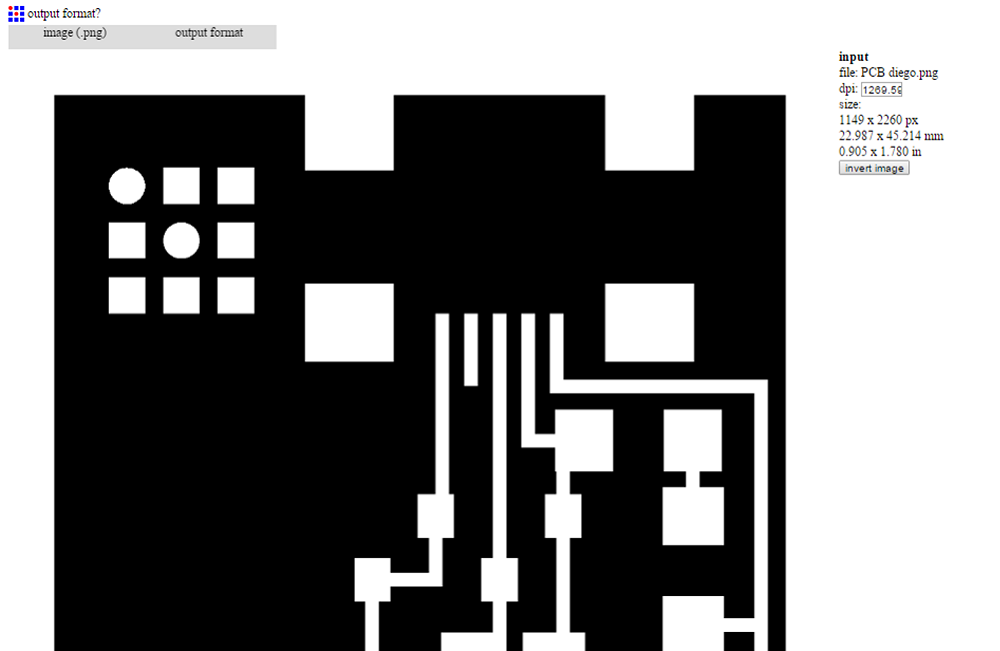

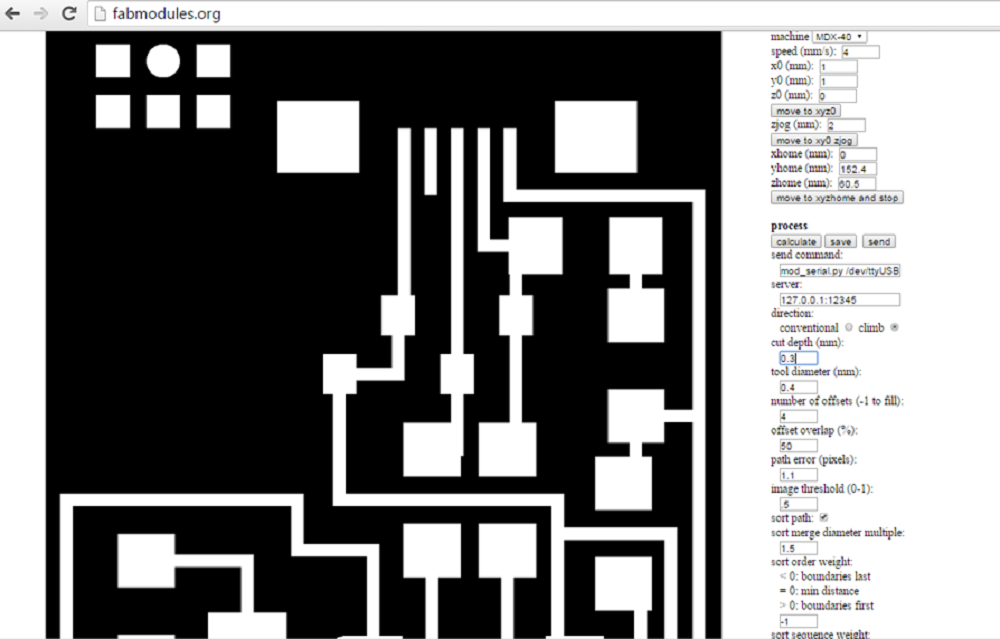

Using FabModules
In my FabLab there is a Modela MDX-540 milling machine, so at the begining was complicated to make the PCB board, but it works!

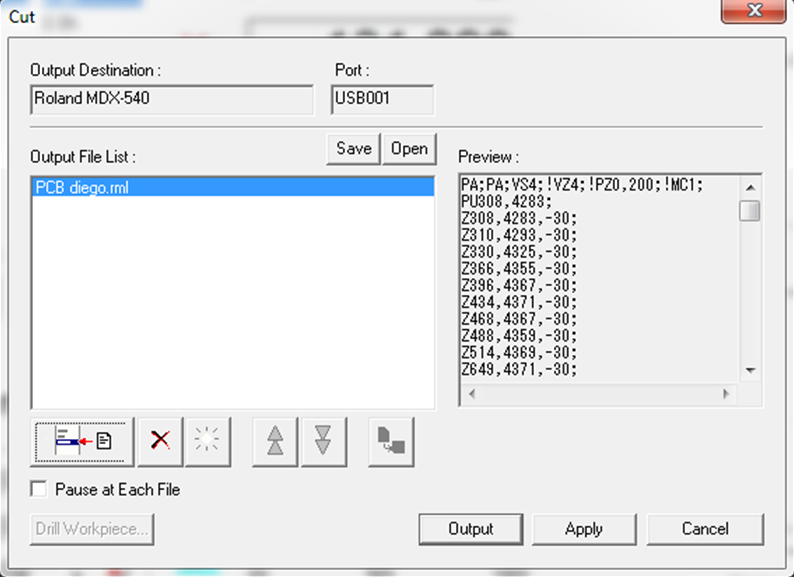

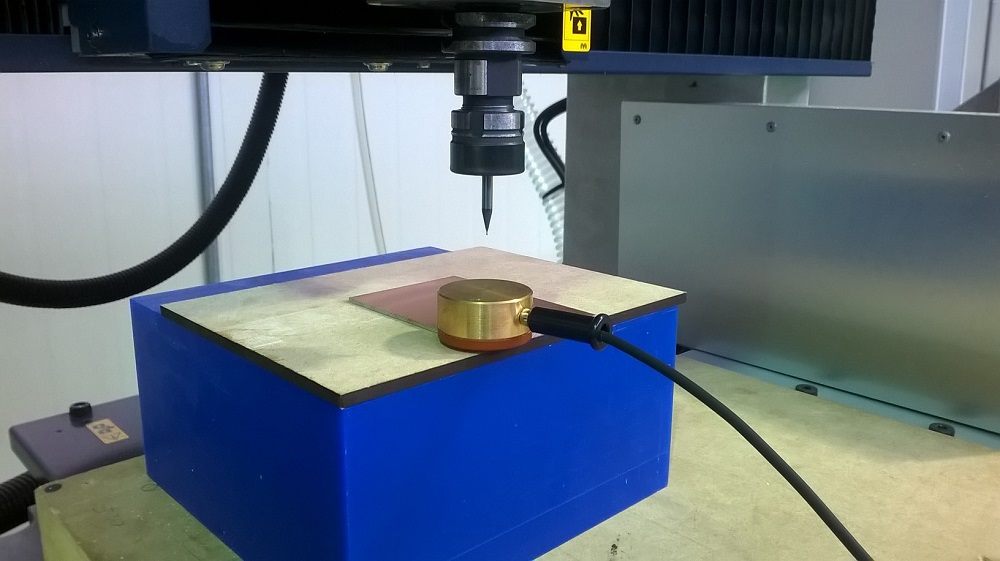

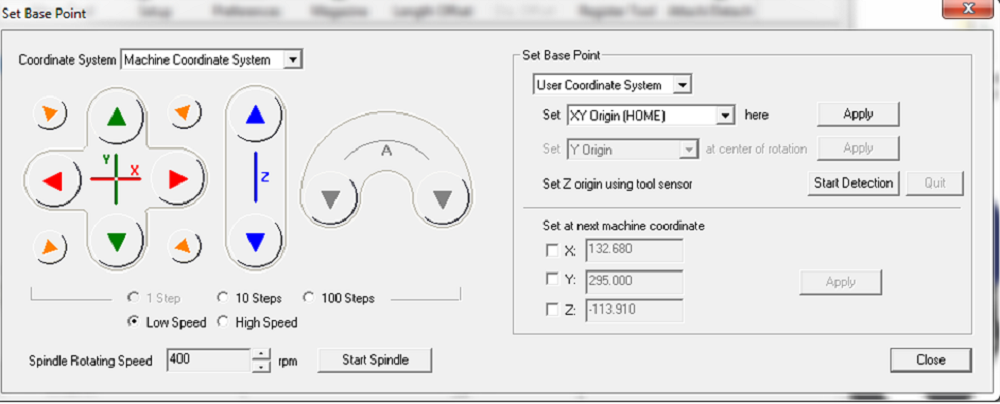

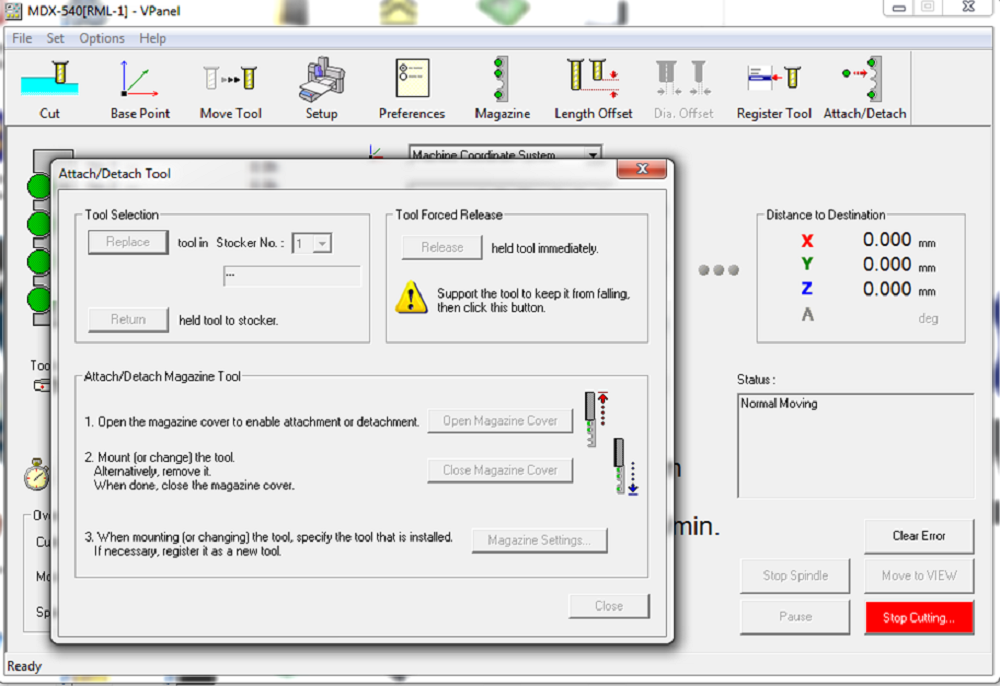

Setting the milling machine
It is necessary to setting the machine, the axes: X,Y,Z, the type of milling cutter
The bit is 1/64" for rastering

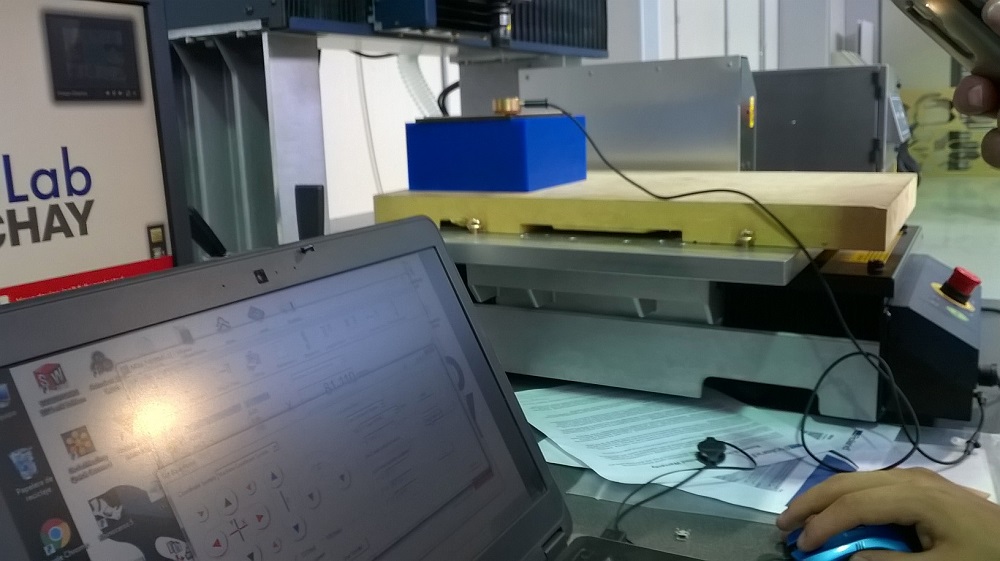

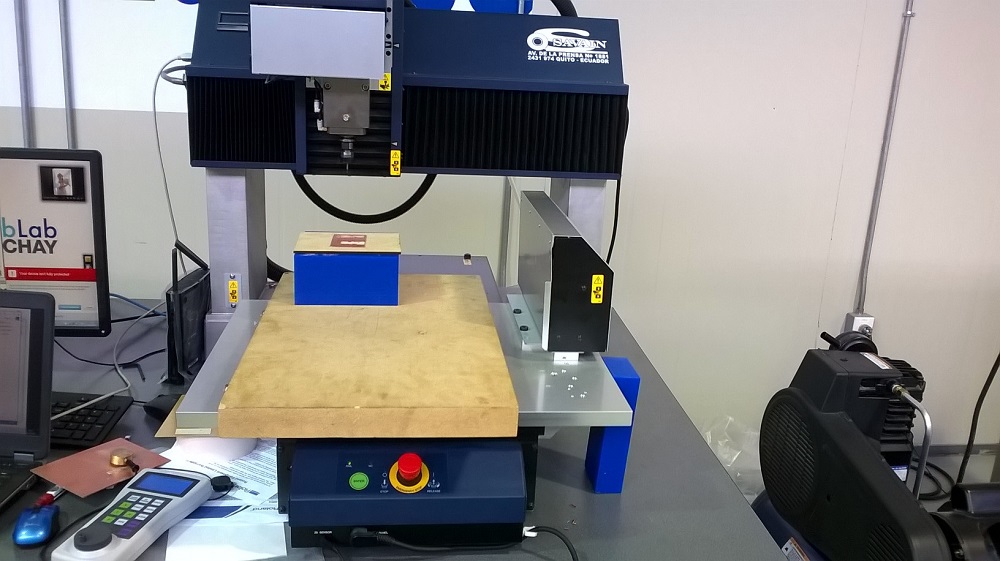

Machine working

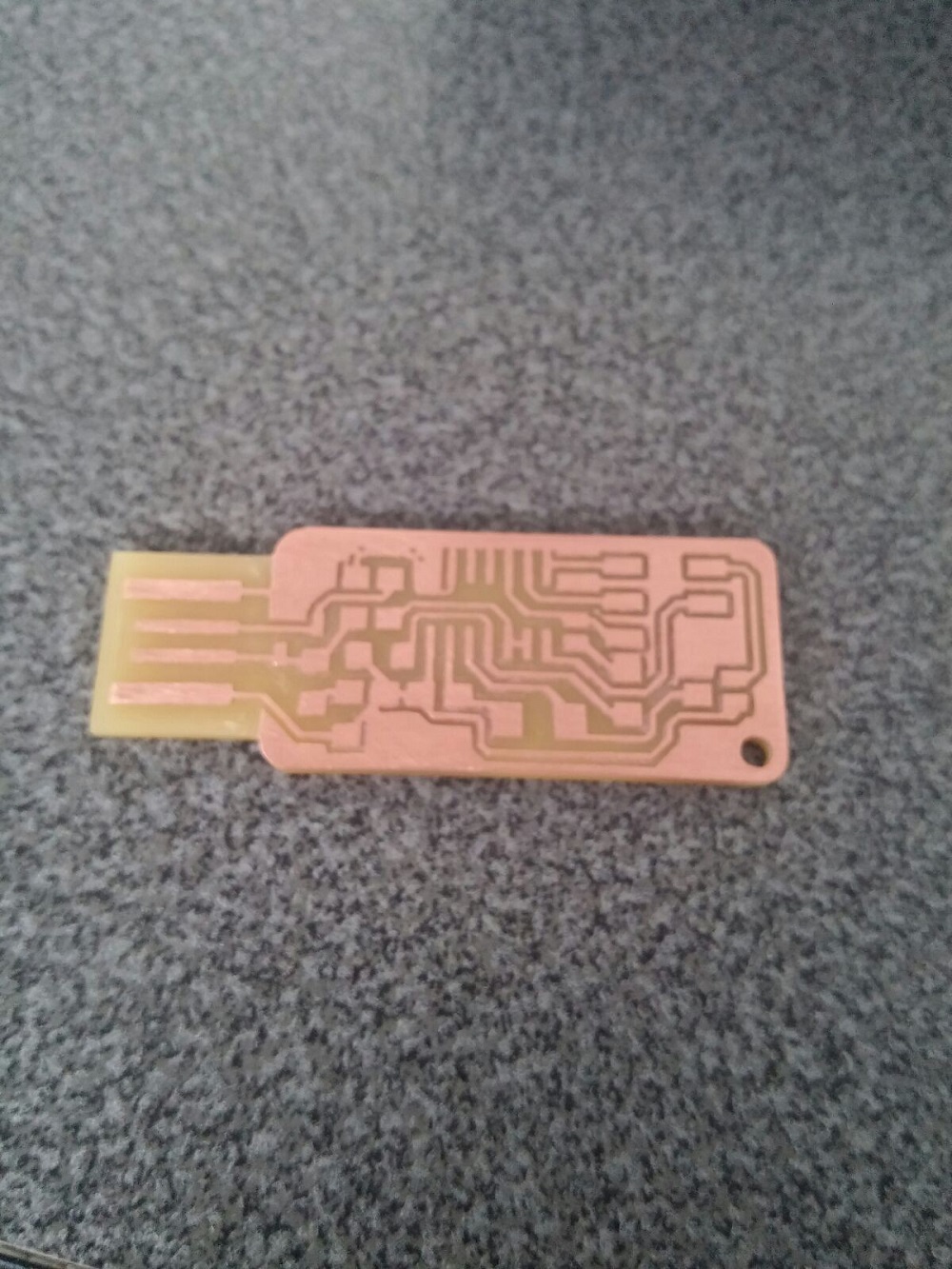

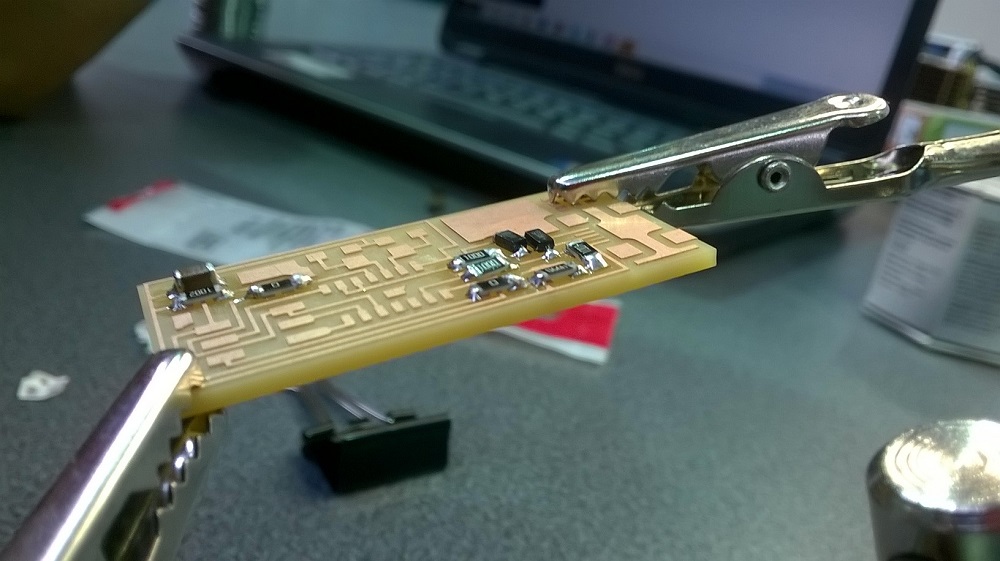

Soldering the circuits
The circuits are very small, so it was very hard soldering the componentes, but I dit it!

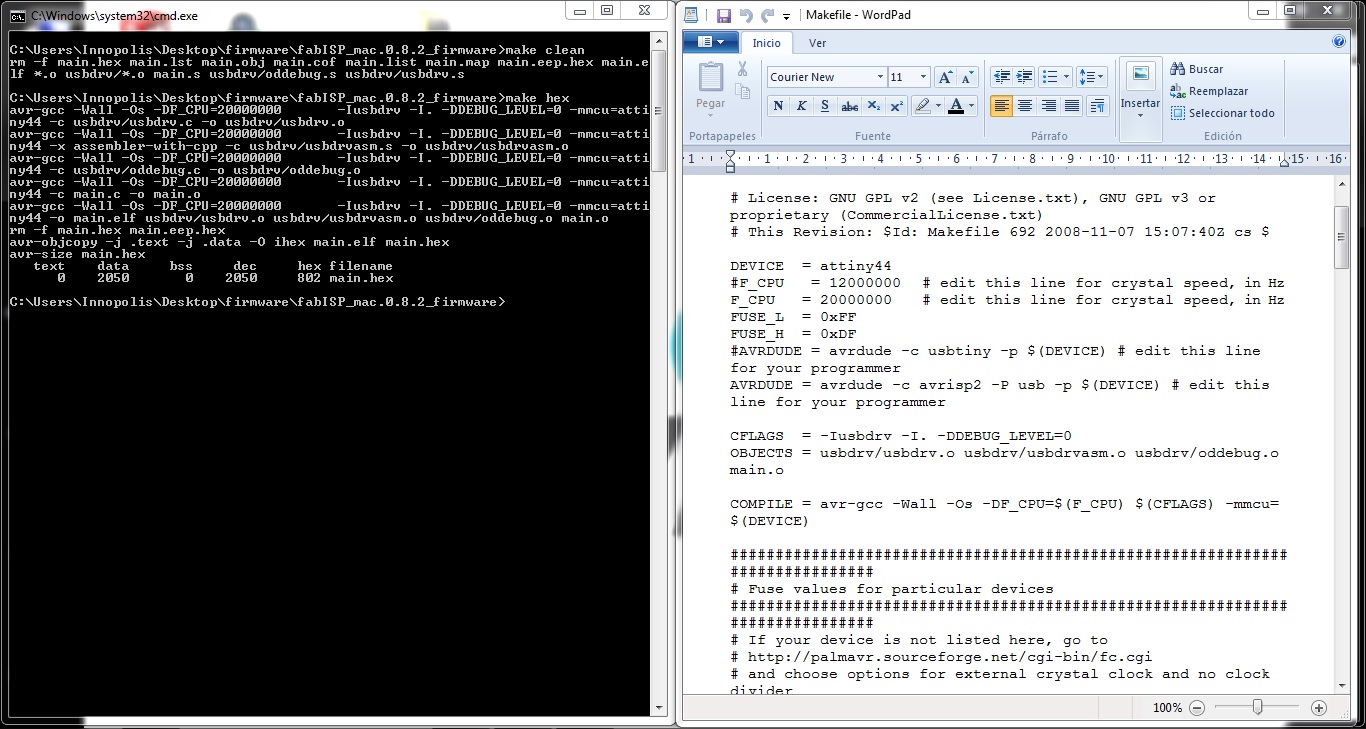

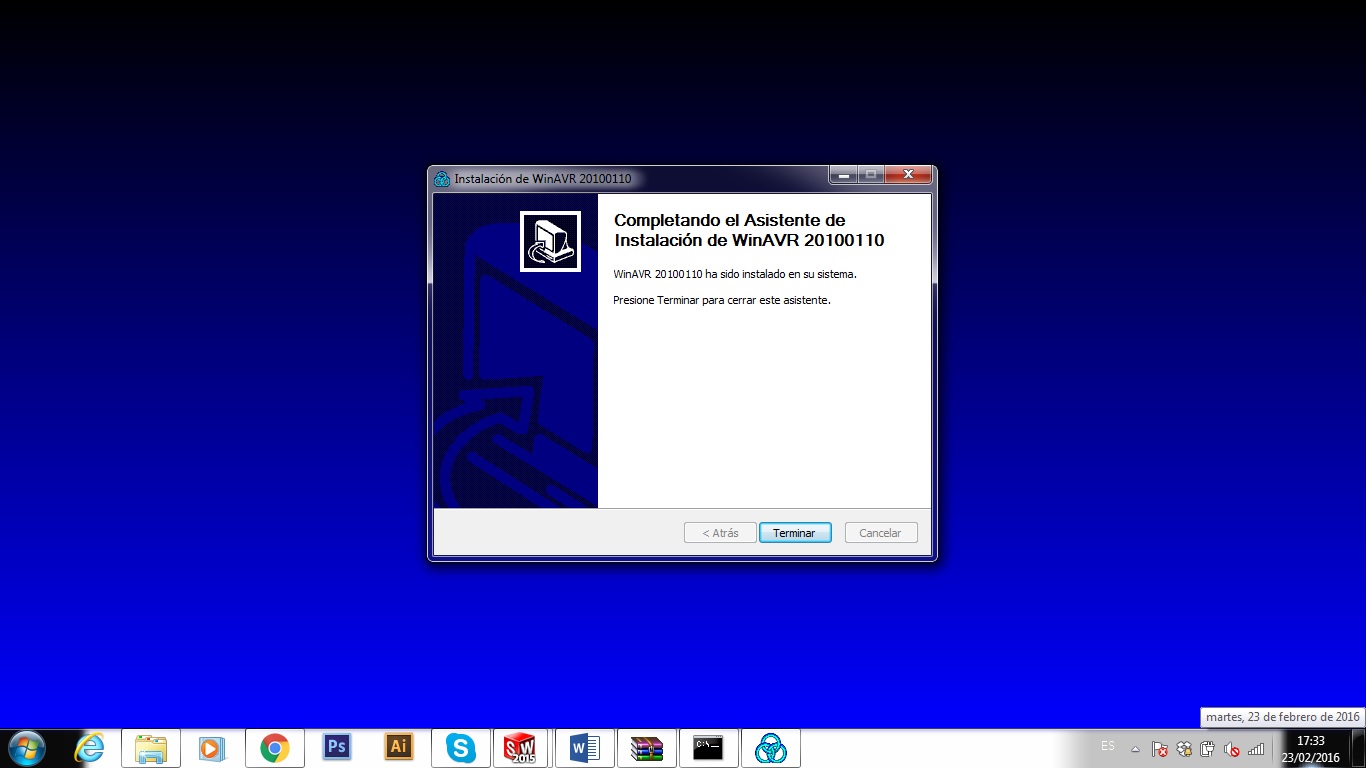

Programming
The circuits are very small, so it was very hard soldering the componentes, but I dit it!
