WEEK THREE

Assignment of this week is learn how to use vinyl cutter and laser cutter and design press fit construction kit for cut in laser cutter and also make a design for cutting In vinyl cutter




What i am going to do :

  • Make a 2D&3D design of a press fit construction kit
  • Cut the press fit construction kit using laser cutter
  • Make a 2D design and Vinyl cut it

laser cutter


I decided to make press fit construction kit using laser cutter . "Press-fit" means an interference fit between two parts in which one part is placed under pressure into a hole in the other part.




Finding The Perfect Fit

Before starting the design of pressfit kit determine the perfect slot width for it, for get perfect slot width , reduce lasers kerf from thickness of material used to lade cut

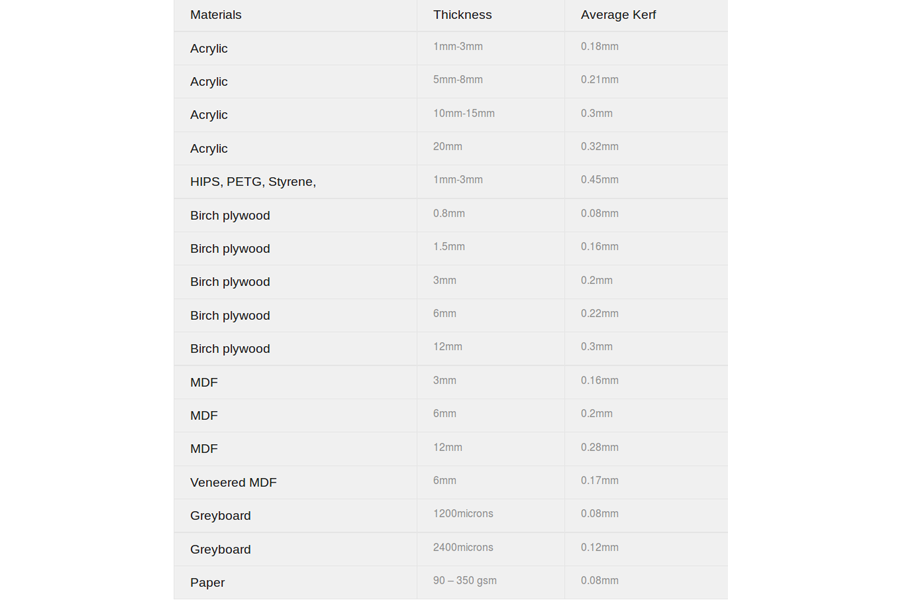

Kerf means width of material that is removed by a cutting process. here the laser beam burns a negligibly small portion of material when it cuts the material this is known as " Laser Kerf ". The ranges of laser kerf from 0.08mm to 0.45mm, it is depending on the type of material and other conditional factors

So

slot width = ( material thickness ) - ( laser kerf of cardboard )




                                             source from http://www.cutlasercut.com/resources/tips-and-advice/what-is-laser-kerf

In our fab lab we are using 4mm cardboard for laser cutting. So in my case slot width

slot width = 4mm - 0.08mm = 3.92


For get perfect fit I would round the slot width to 3.9 mm




Design

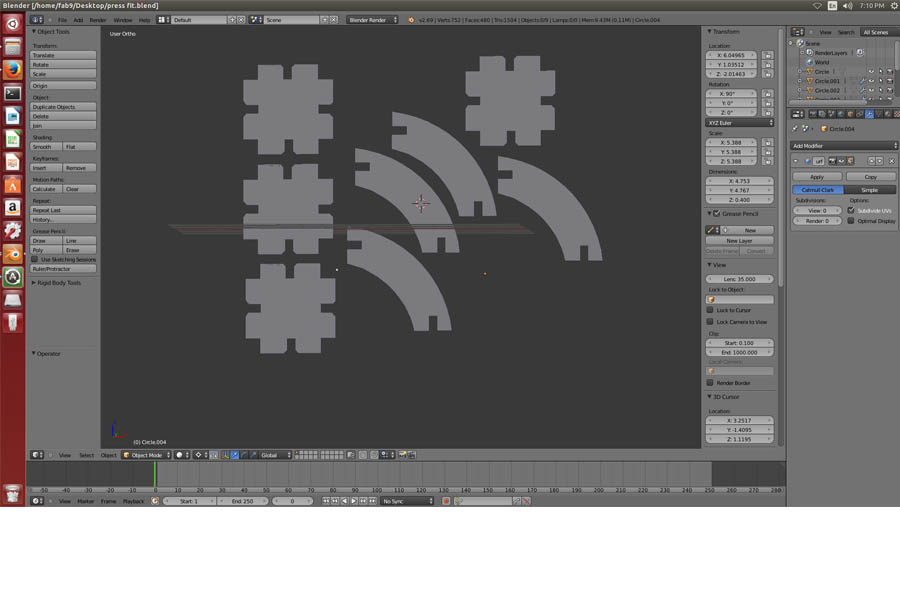

I started to design the parts of press-fit with 3.9 slot width .Our local instructor Fransisco told us to realize designed press fit model using any 3D designing software . I use Blender to design and realize 3D shape for laser cutter

Download Blender File(.blend)

Download Blender File2(.blend)

Download .svg File

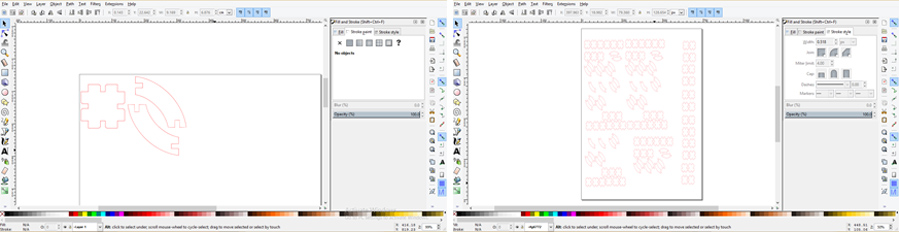

Then exported .svg file open with inkscape and arrange the position of pieces for cut





machine setup

In our fab lab using the laser cutter " Trotec speedy100 "

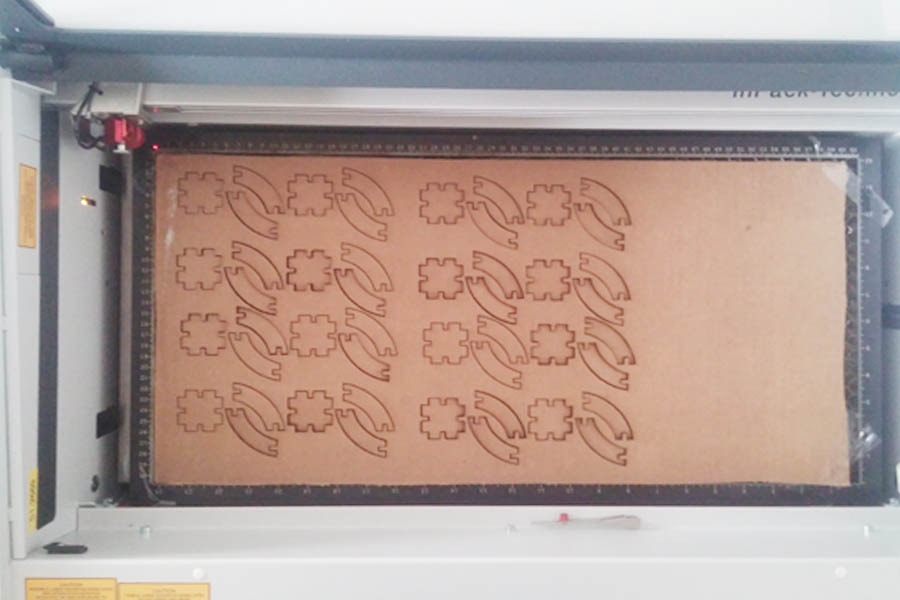

First I set position of cutting material (cardboard ) in to focus positions. Maintaining focus positions within the material is help to producing consistent edge quality
Material: Corrugated Cardboard
Power: 80
Velocity: 3
before setting above values I made some trials by setting different values for power and velocity

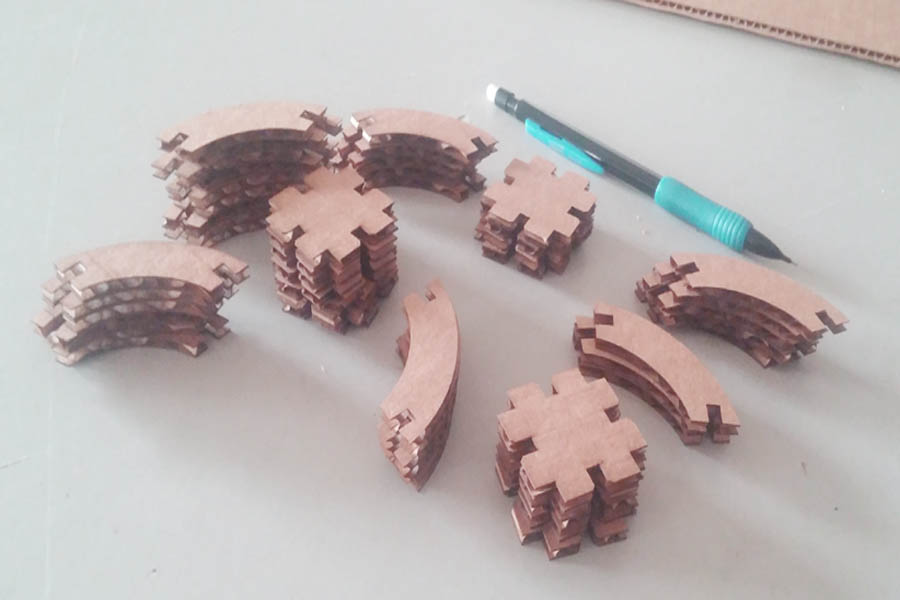

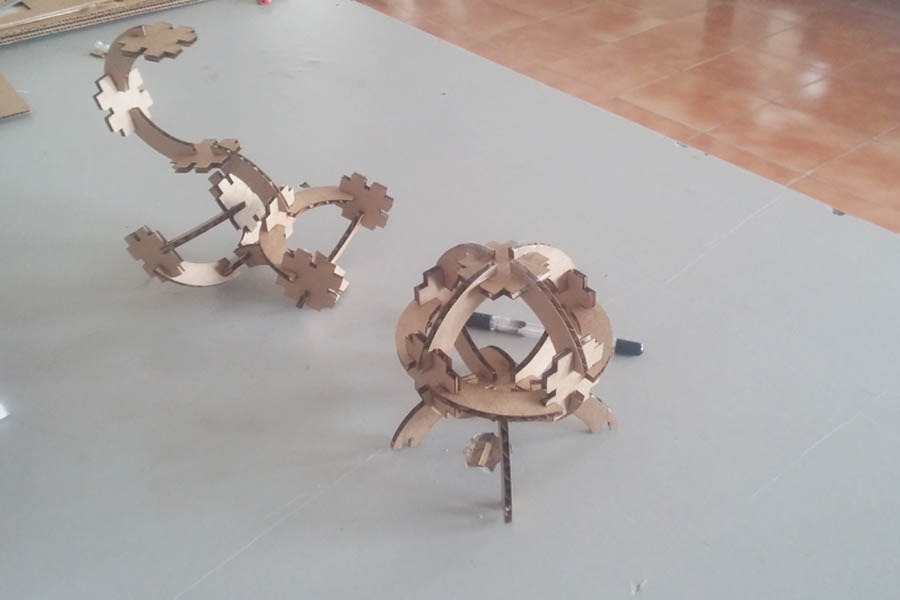

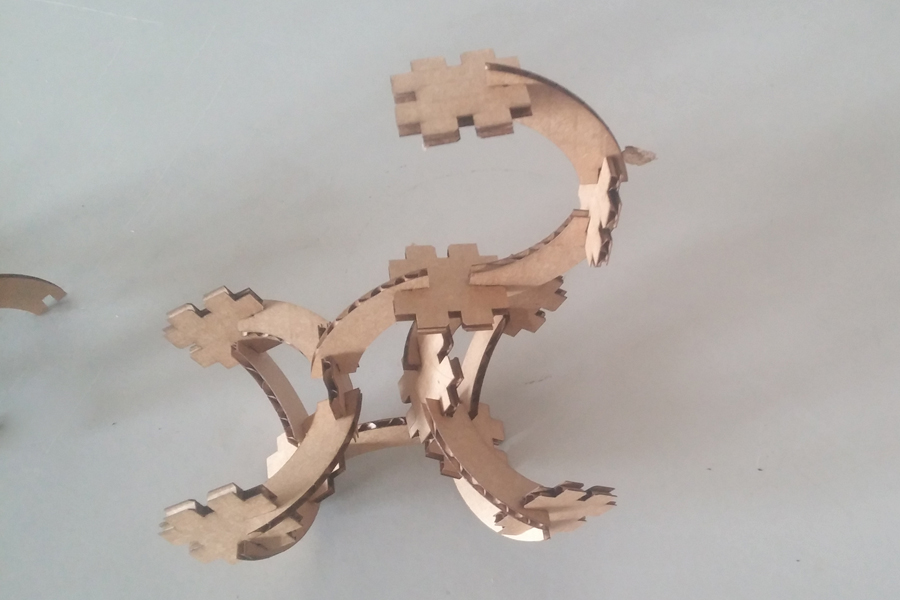

result

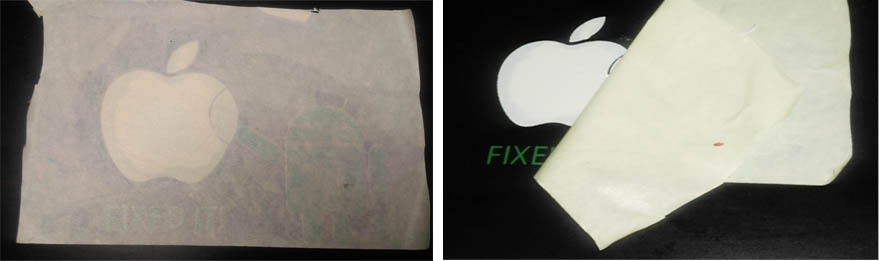

Vinyl cutting




Design

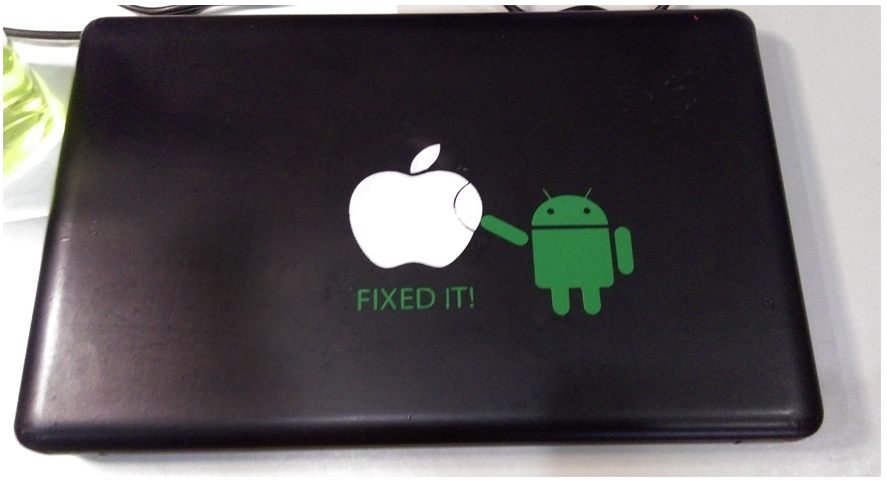

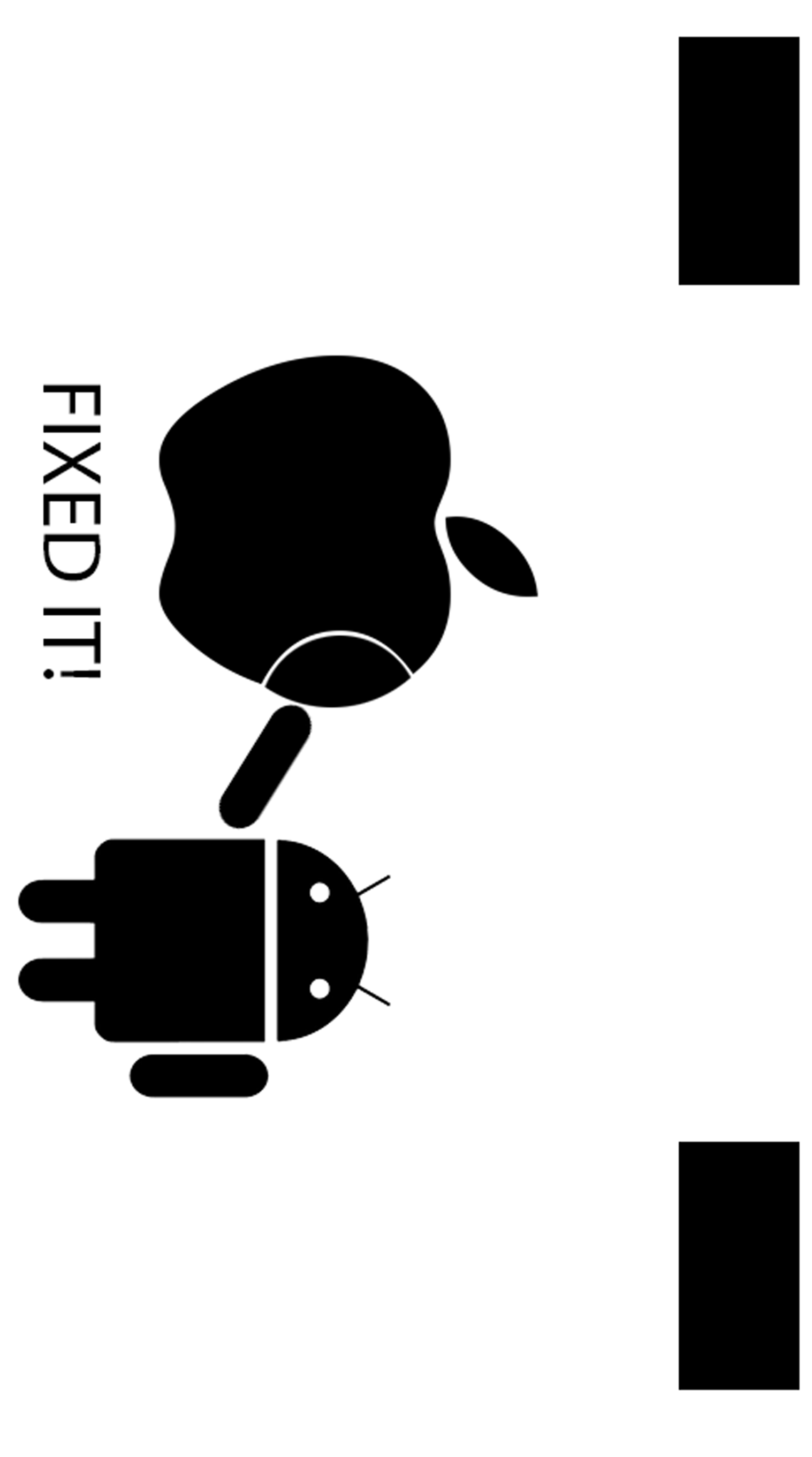

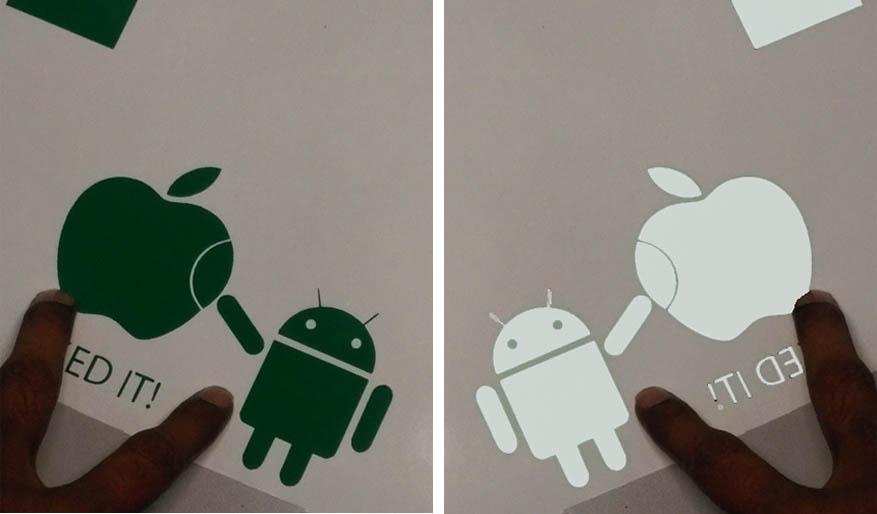

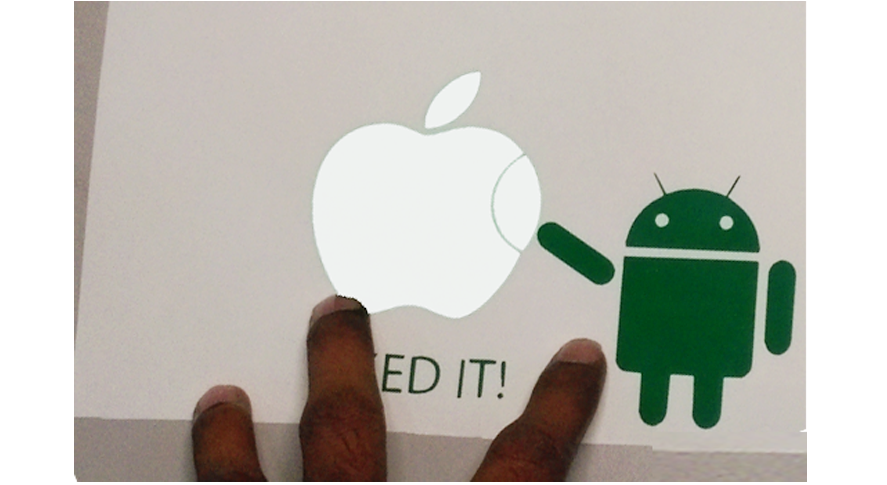

I decided to to build a multi layer sticker . For the design I download icons from The Noun project (a (collaborative icon project),then icons open with gimp



machine setup

For Connect the Roland GX-24 with the my computer

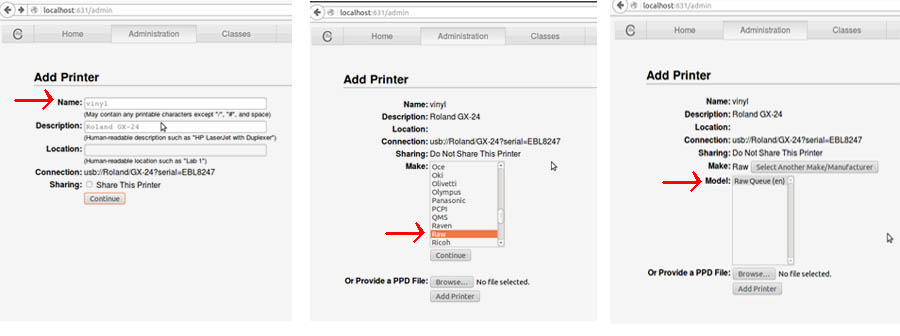

  1. First I go to CUPS administration panel http://localhost:631 (address of the CUPS administration panel) in my browser

  2. Connect the Roland GX-24 USB cable to computer

  3. Go to Administration tab and then click Add printer

  4. Then setup

    • Name (this is important!): vinyl

    • Make: Raw

    • Model: Raw Queue (en)

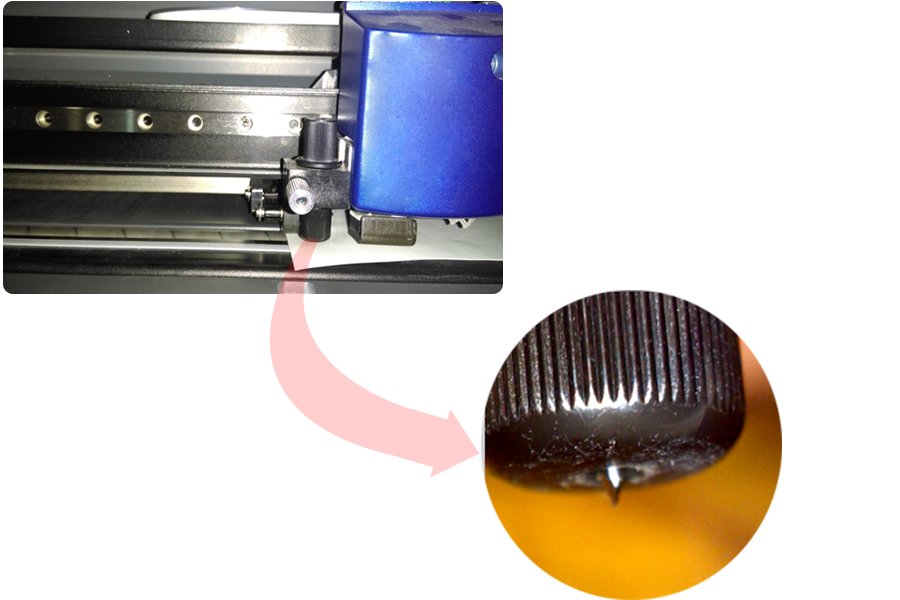

Then I check blade of printer with microscope and adjust blade length correctly . before fixing the length of blade and force I make some test cut


Install fabmodules usign the instructions here.
Open the fab module select format as .png and process as roland vinyl cutter(.camm)







Download Gimp File (.xfc)

Download .png File
