Week 2 - Model (raster, vector, 2D, 3D, render, animate, simulate, ....) a possible final project.

3D DESIGN

After wednesday's lecture I decided to try out two programs already installed on my laptops: SKETCHUP and AUTOCAD, I also reviewed SOLIWORKS. Afther taking a quick glance at the programs, playing around and evaluting them, I decided to try in AUTOCAD 3D. I present the evidence for my work.

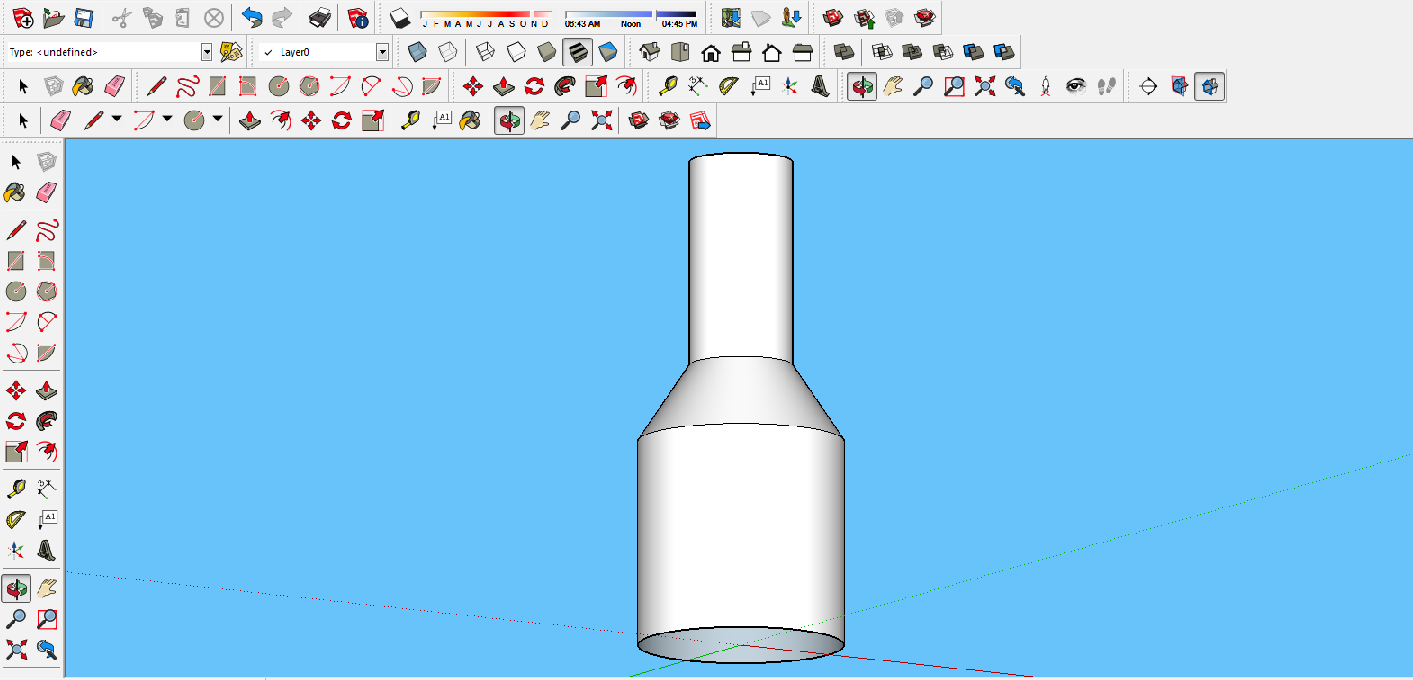

I tried to work with SKETCHUP, but it's more specialized for architecture. Following is a picture with Sketchup.

AUTOCAD: I have experience working with AUTOCAD. I chose this program because it's a good tool that combines industrial and mechanical design.

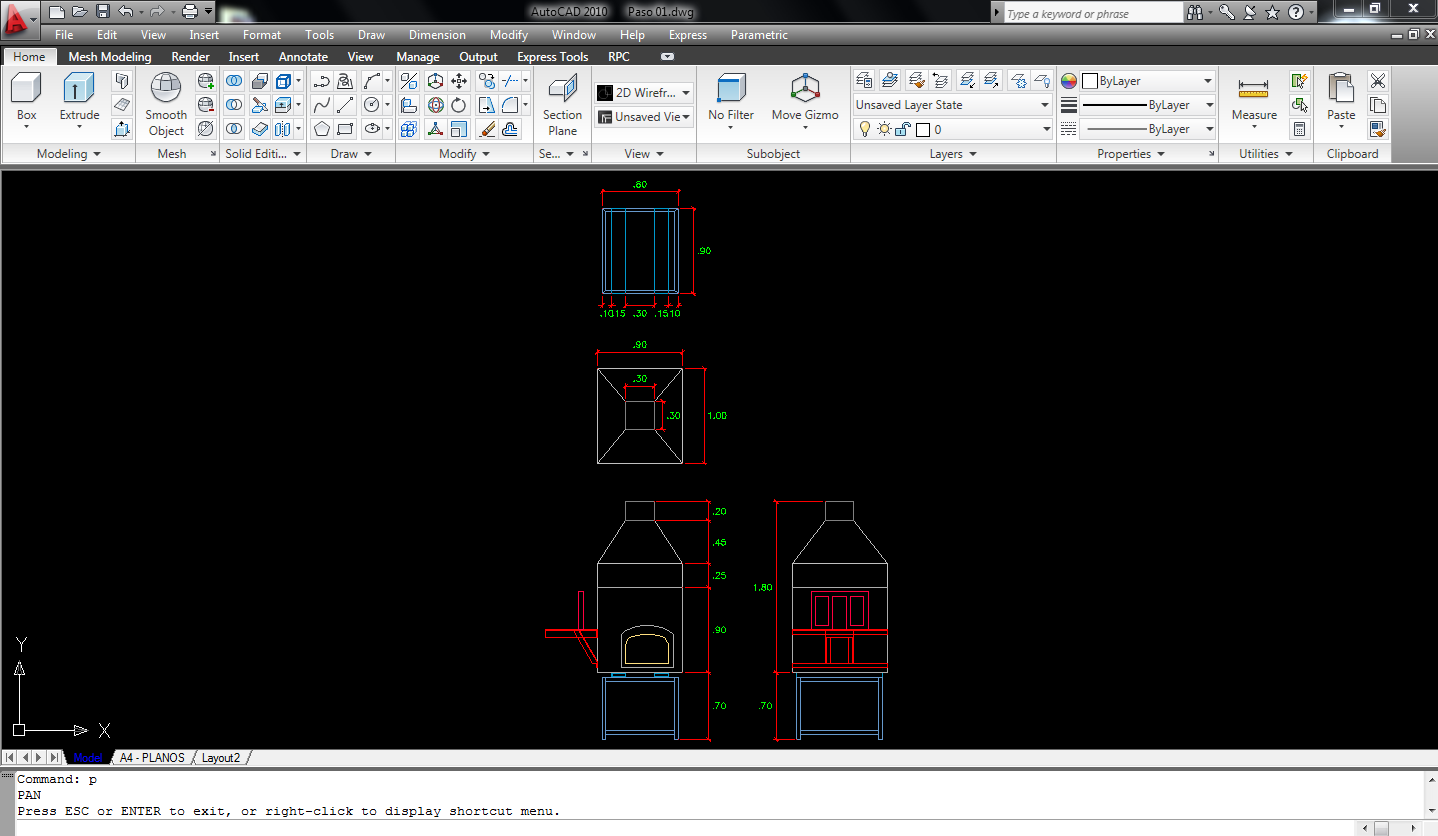

1.- I made the basic figure with oven measurement in 2D.

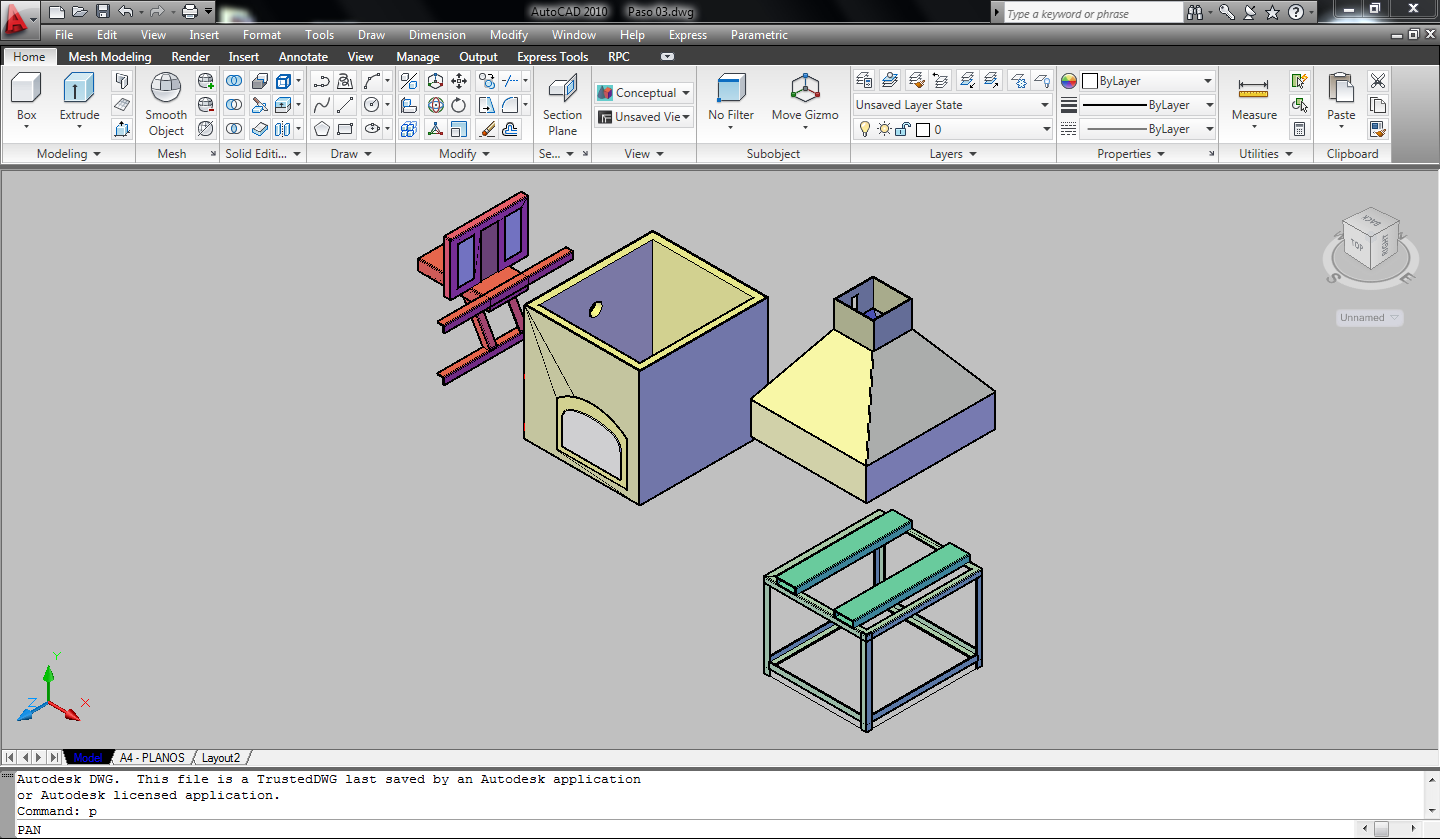

2.- I made the furnace base with measurements transform the drawings in 3D objects

3.- I perform the rotation of figure (side view) with measurements in meters.

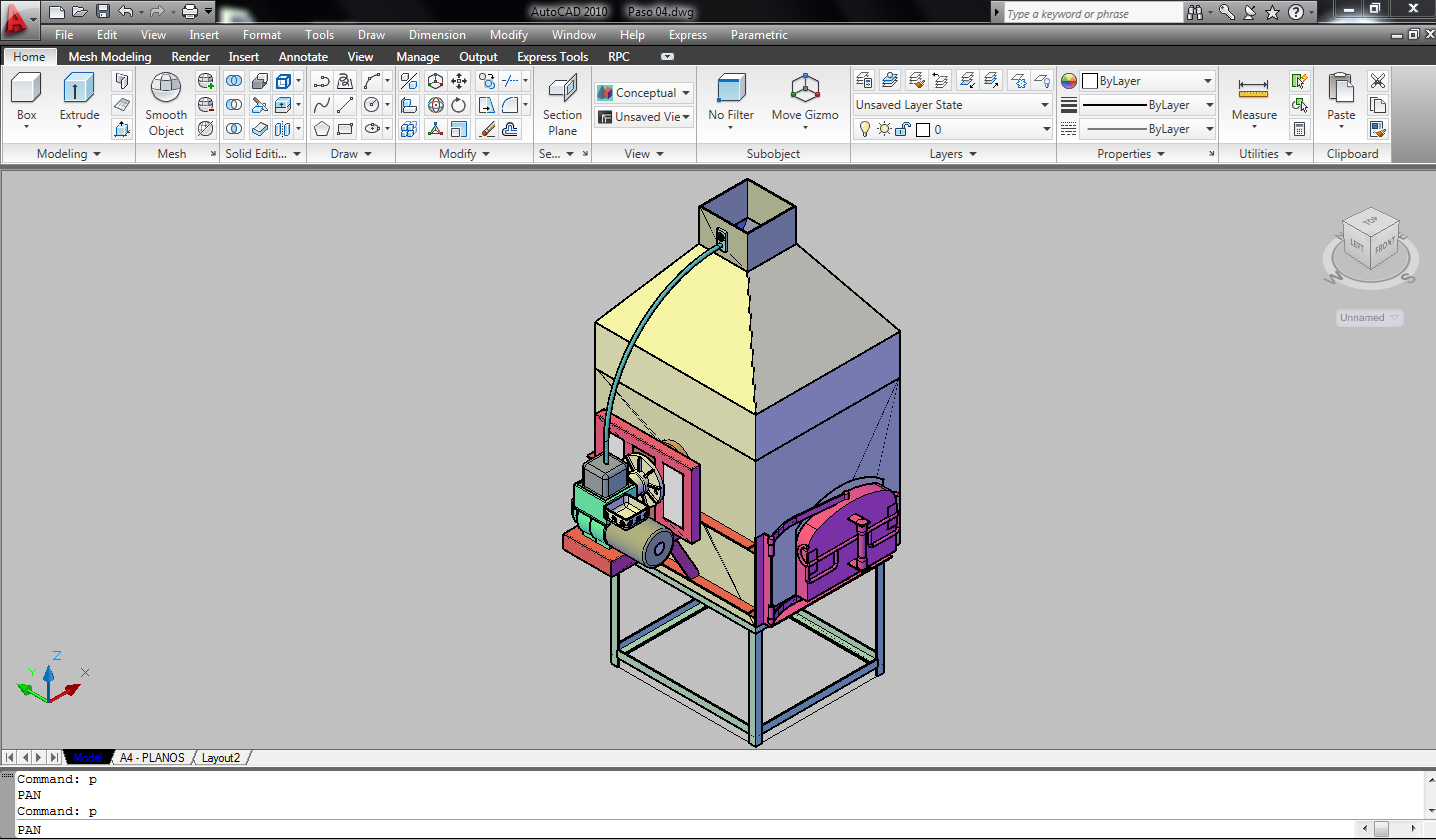

4.- I got my final figure in 3D of full oven with fan and your support.
