This task was very important because I was able to better understand the design of electronic cards using the Eagle program. With the experience of the previous task they will complement the knowledge in the area of electronics.

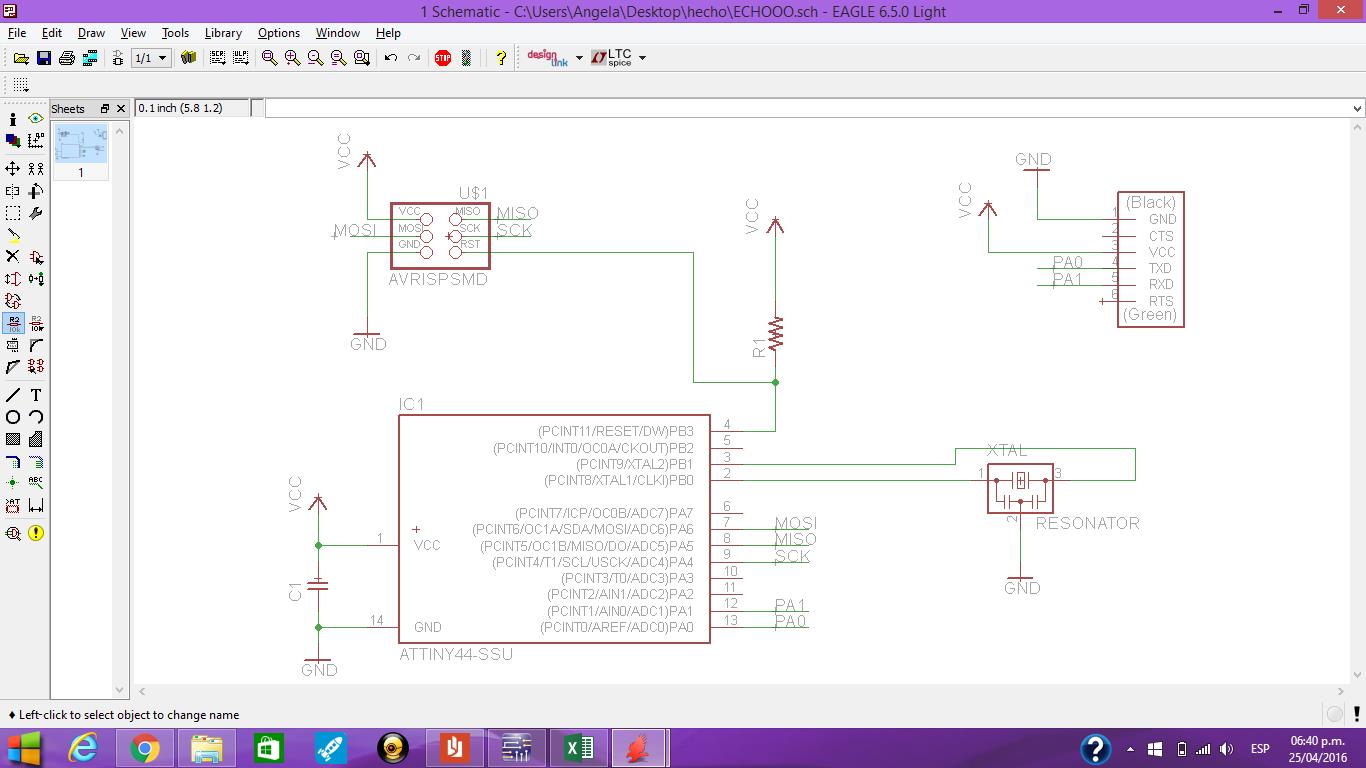

To start developing this task I joined the Eagle where I was adding software components using the library fab.lbr as shown in Fig. The green lines that show the connection between components.

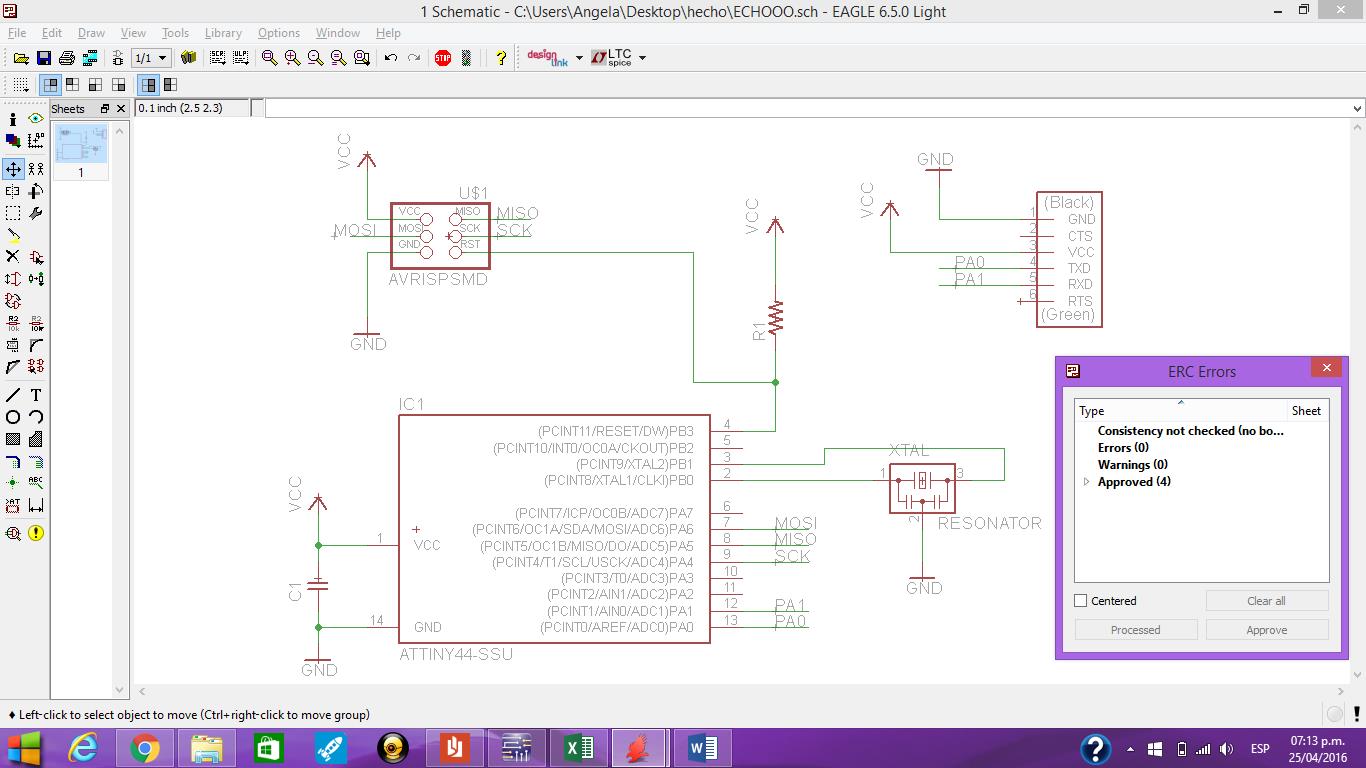

After making the connections auditioned to observe that all components are properly connected, so that in this case did not present errors as shown in the figure below.

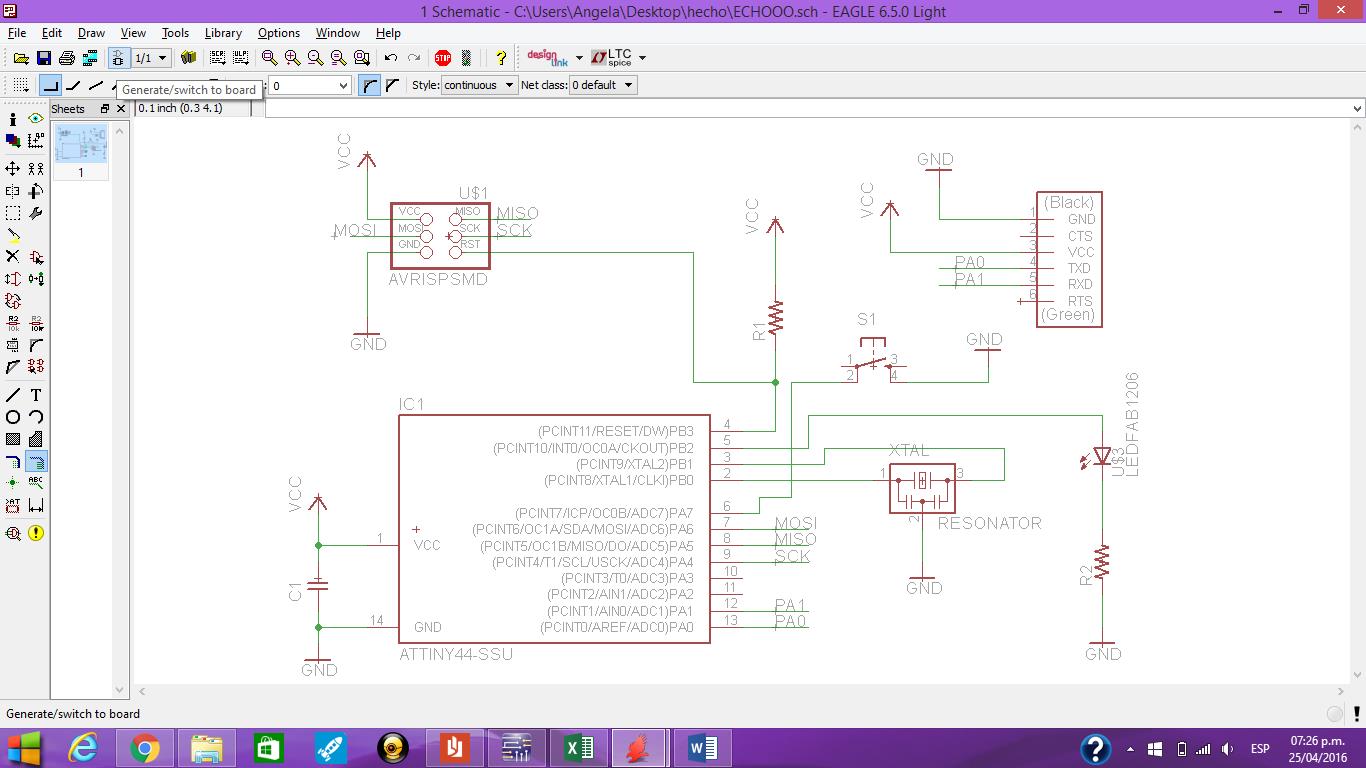

As shown in the task was added a button, light emitting diode with their respective resistance.

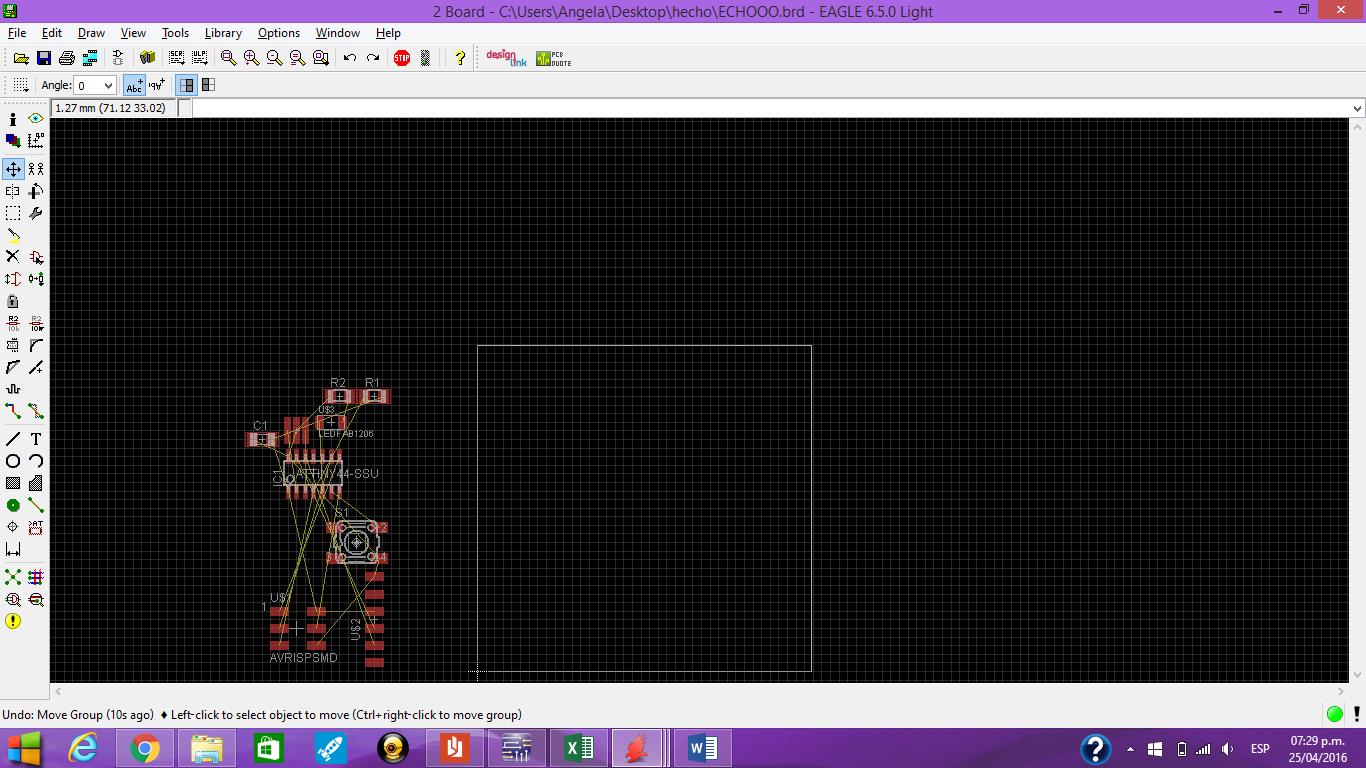

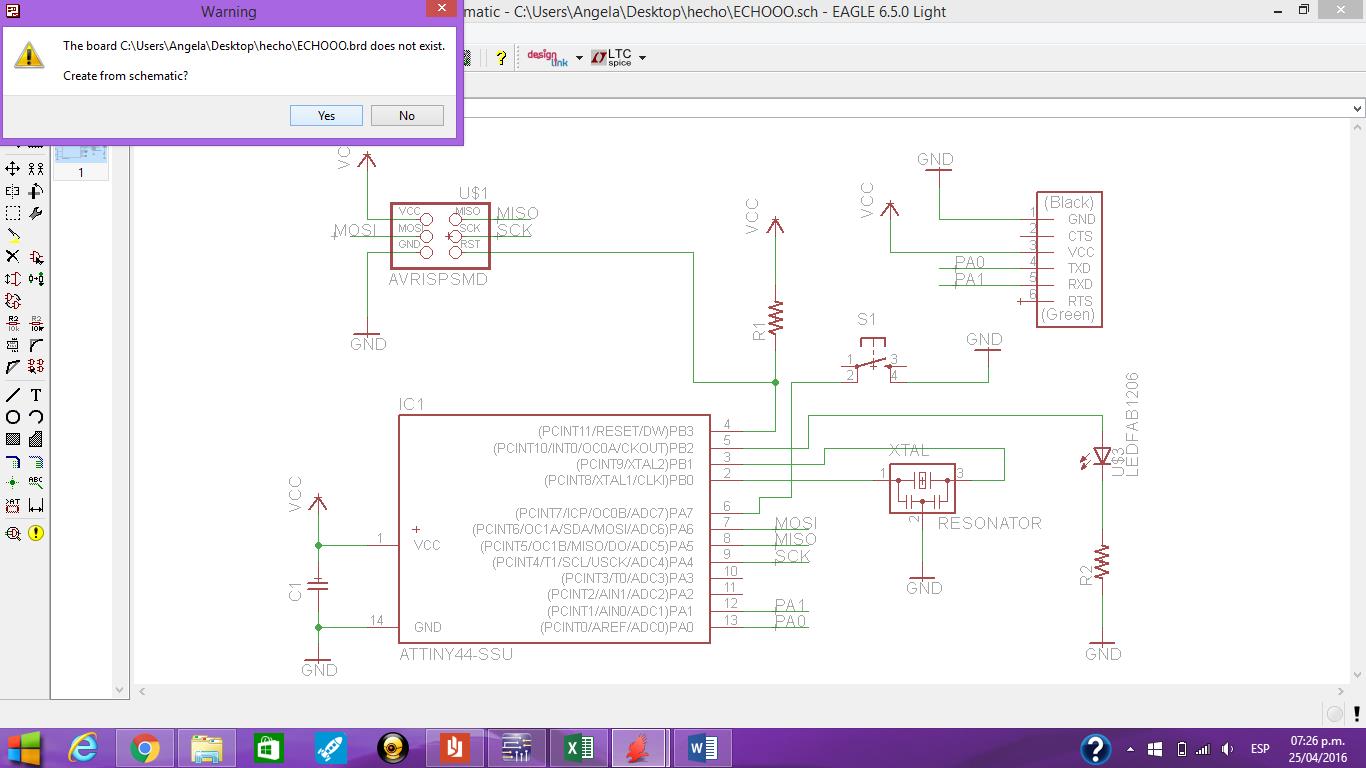

He clicked Generate / switch to board to generate the PCB and draw the final circuit.
The ready circuit designed is shown in the figure for routing

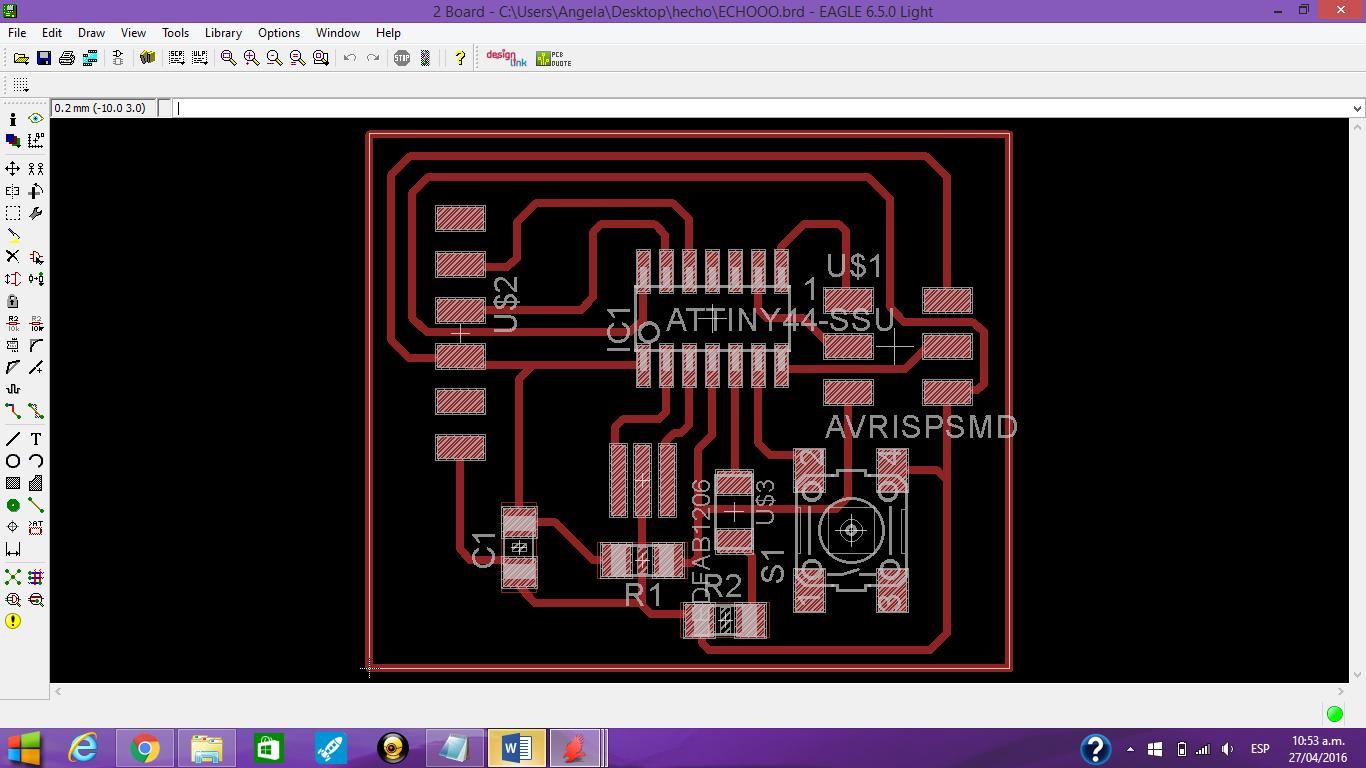

To make routing was had linked component by component to the workspace.Finally it is as shown in Fig.

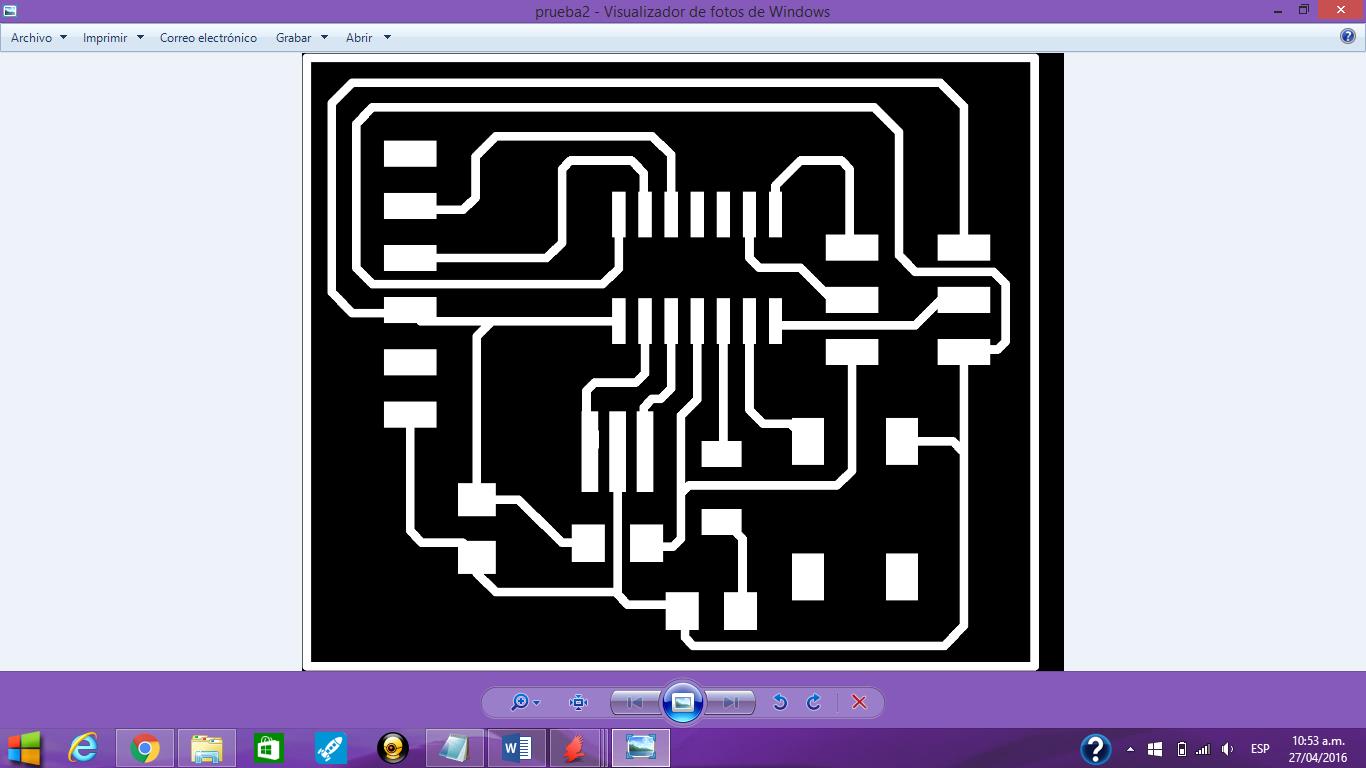

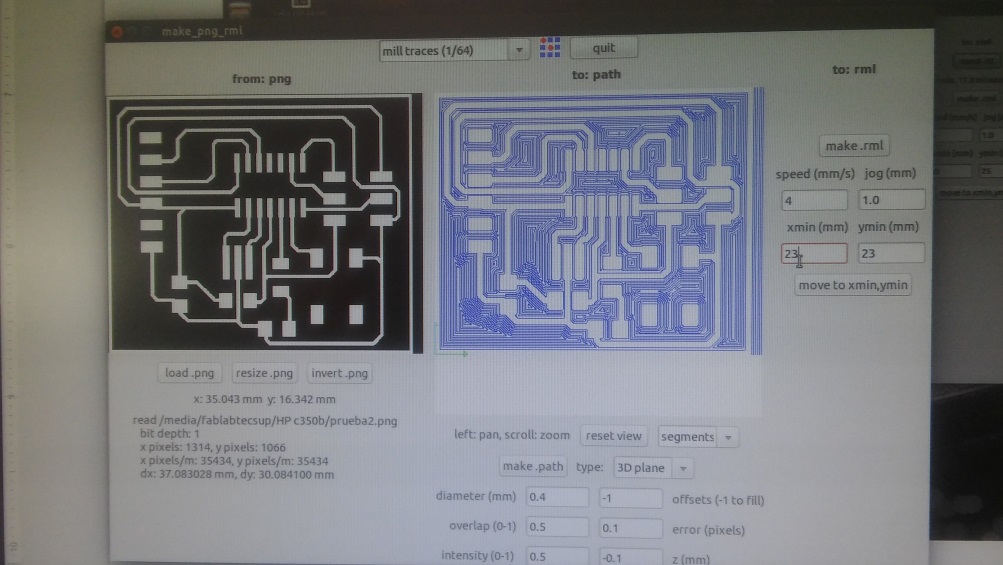

Then it is exported as image.

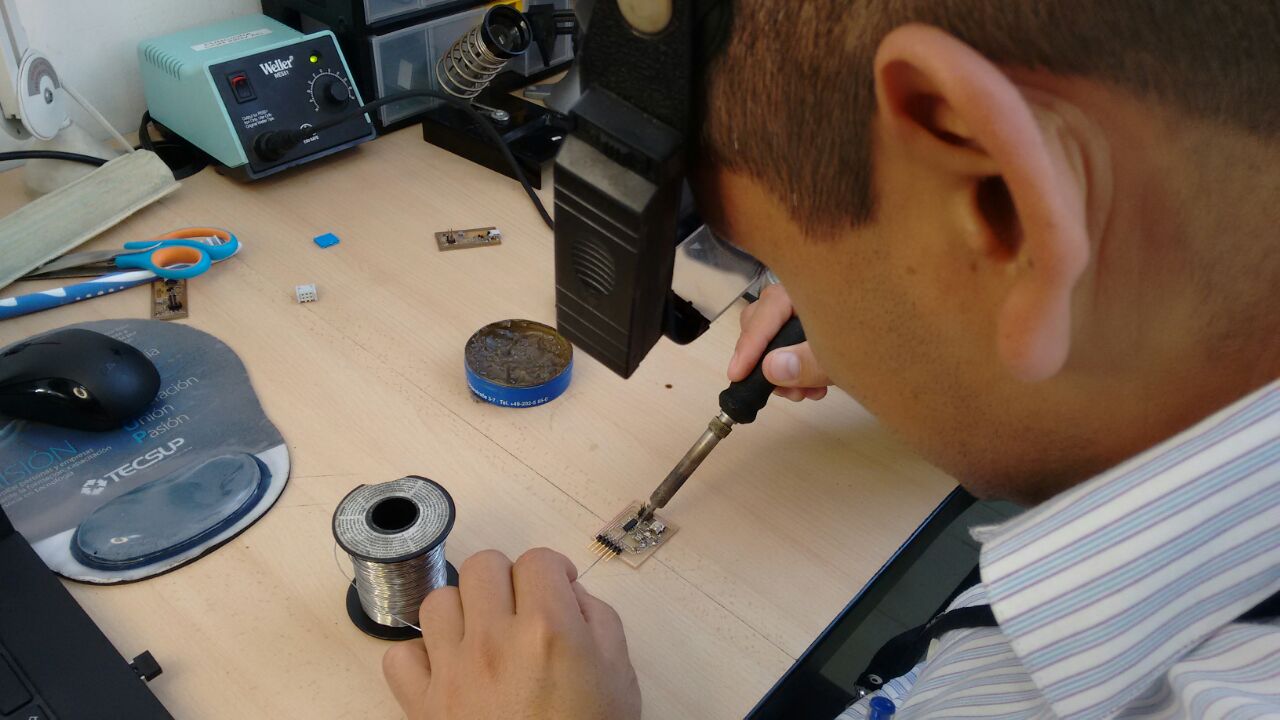

Following this I began with the card printing

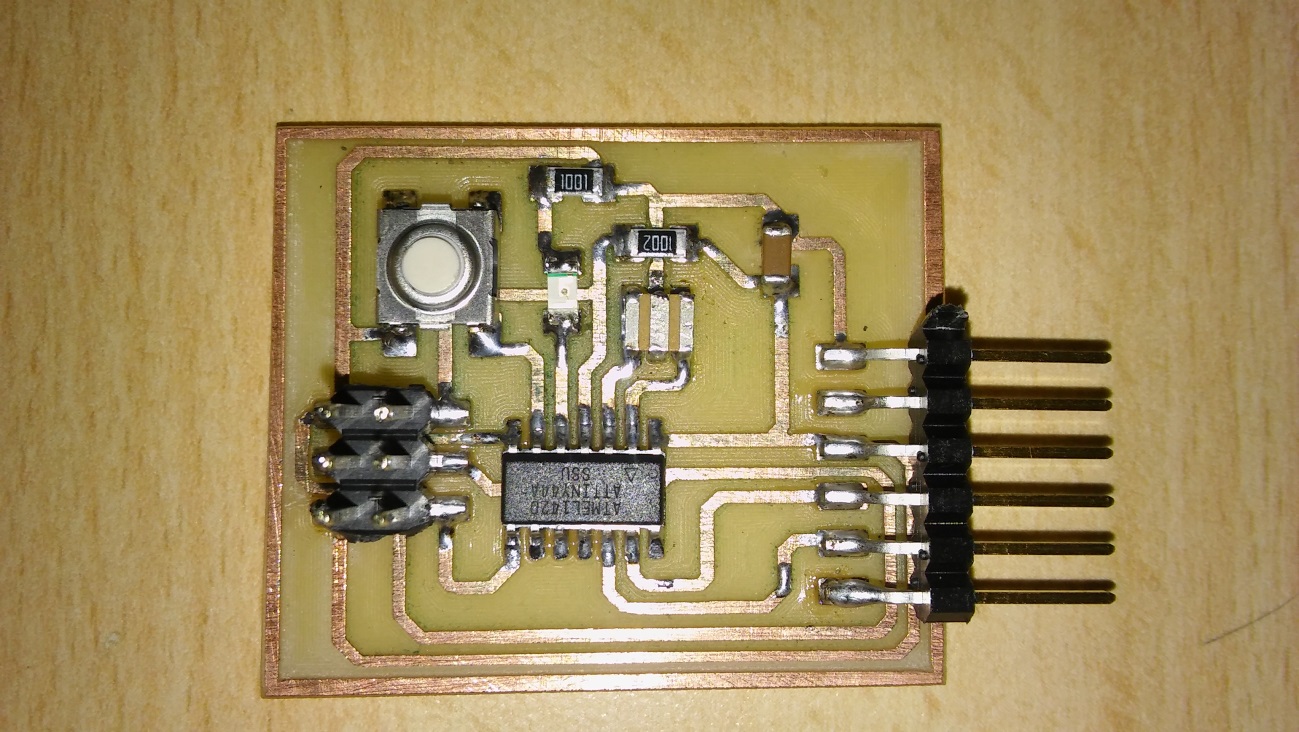

I should mention that in this task me more involved with electronic design since my own mechanical training more attention is required in these new aspects. To this end, the technical support is phenomenal Tecsup achieving the goal set is to design my own electronic card.
About problems I have to mention that, since i was trying to upload the program using Arduino IDE, I had a little problem configuring my arduino IDE to accept the attyiny. But finally I got it and edited the right folders and files, and it worked.
