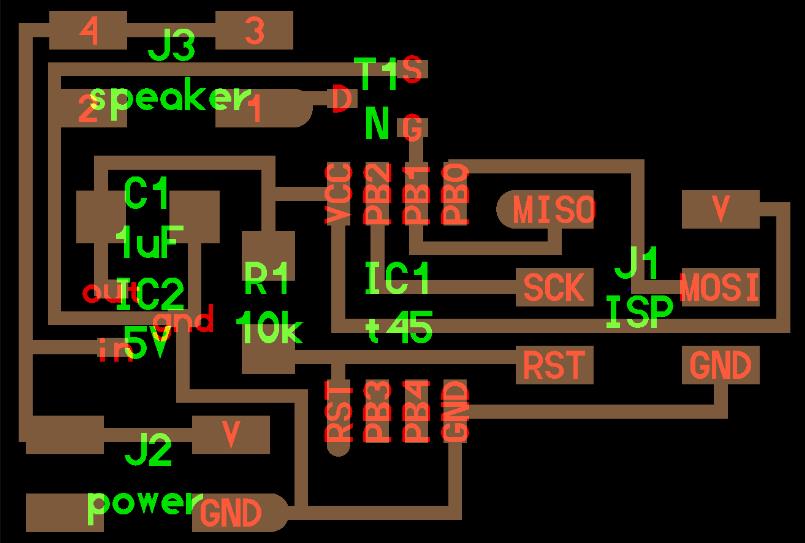

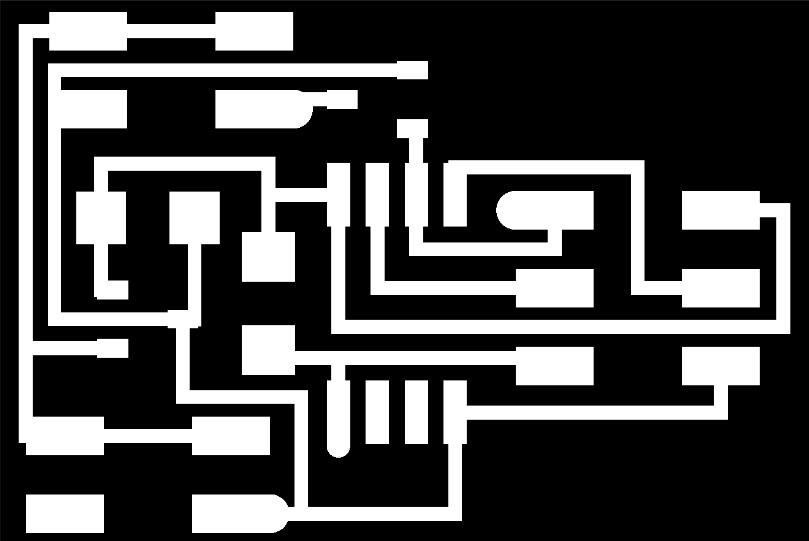

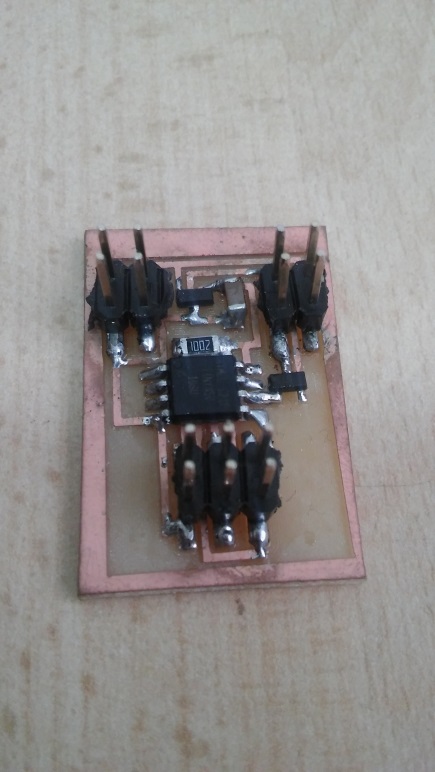

For this assignment it was decided to work with SPEAKER, whose board layout is as follows

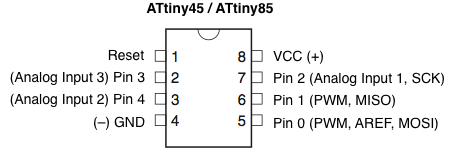

For this assignment I worked with microcontroller Attiny 45, some data are below
- It Has 3 Analog Input
- It has 2 PMW output
Port B is a 6-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.
Download this data sheet below
General Description

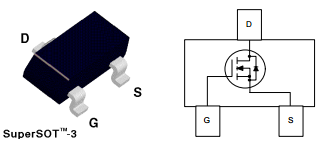

SuperSOTTM-3 N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage applications in notebook computers, portable phones, PCMCIA cards, and other battery powered circuits where fast switching, and low in-line power loss are needed in a very small outline surface mount package.

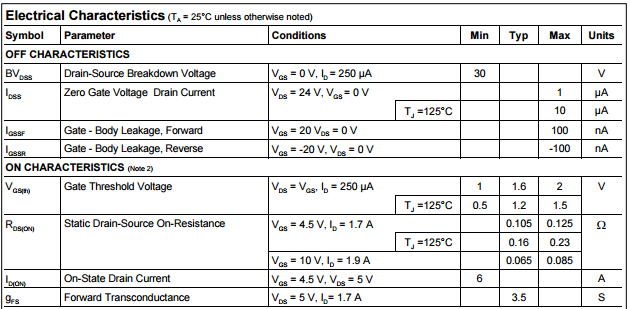

Electrical Characteristics
Download this data sheet below
http://fab.cba.mit.edu/classes/863.06/11.13/NDS355AN.pdf
Description

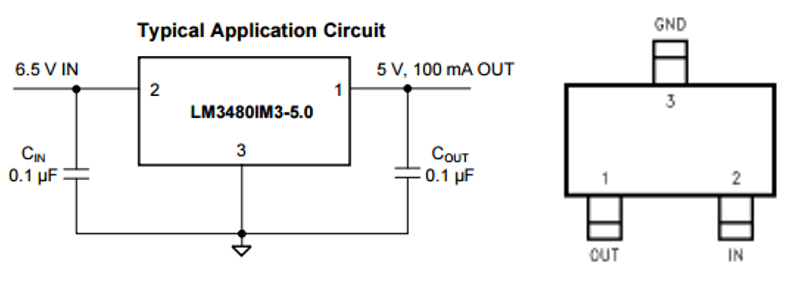

The LM3480 is an integrated linear voltage regulator. It features operation from an input as high as 30 V and an ensured maximum dropout of 1.2 V at the full 100-mA load. Standard packaging for the LM3480 is the 3-lead SOT-23 package.
Download this data sheet below
http://www.mouser.com/ds/2/405/lm3480-770057.pdf

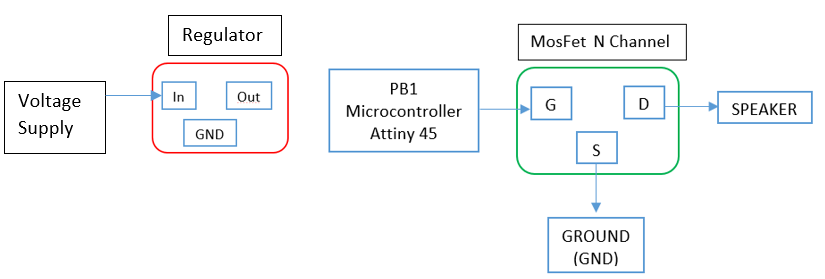

Connection Between components

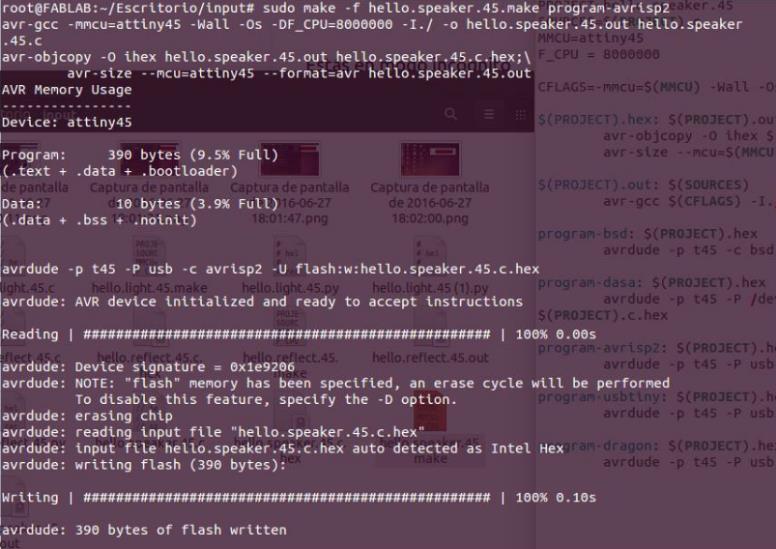

To program this card was used the following code
Once you get: "AVRISP done. Thank you" One can say that the program was successfully loaded
