Making the original design with more space within traces
Second Circuit Design
Board of Second Circuit design
Screenshot 2016-04-12 17.11.30
picture of different boards
hello.ftdi.44
Schematic_Initial_Diagram
Using autorouter
Sketch in monochromatic
board1
board2
SCHEMATIC_EAGLE1

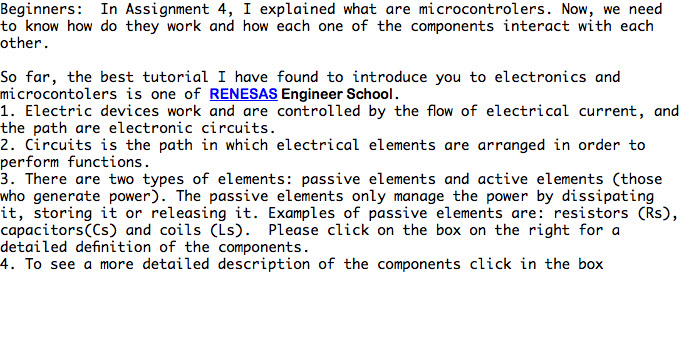

Click here for: RENESAS TURORIALS

DEFINITION OF COMPONENTS

board3

CLICK HERE FOR FILES IN DROPBOX

pistas_agujeros_vf_mirror

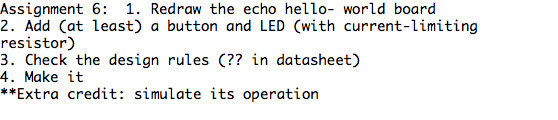

After this assignment I changed from FABLAB Ciudad de México  to Fablab Puebla.  And the components of the board were different because in Pueble did not have superficial components.



The board that I made in Mexico City was not correct because two traces were printed together so I needed to make another board with another sketch/design in Eagle so I could use non-superficial components. So I started my assignment again. This time I started doing without schematic part of Eagle and directly to the board since in this way I can make the traces manually.



Not all the process is with pictures because my cellular phone was stolen in the meanwhile.  But I have some screenshots and how the circuit looks at the moment.



Before making another board I tried to modify the original board and make the traces broader.  However then I realize that the components that FABLAB Puebla had were not the same.



Here is the design trying to open the traces on the right-hand side of the board.



The new model in Eagle using non-superficial components looks like this.  Here the traces were done manually.

The picture on the bottom shows my three different trials:

1. On the top is the design where I tried to open one trace from the original design I did in Ciudad de Mexico but then I realize I did not have the components.

2. The second one is with my new design but is not mirrored

3.  The good one that I am going to program.

I printed this model twice because I need to print the model like a mirror.
