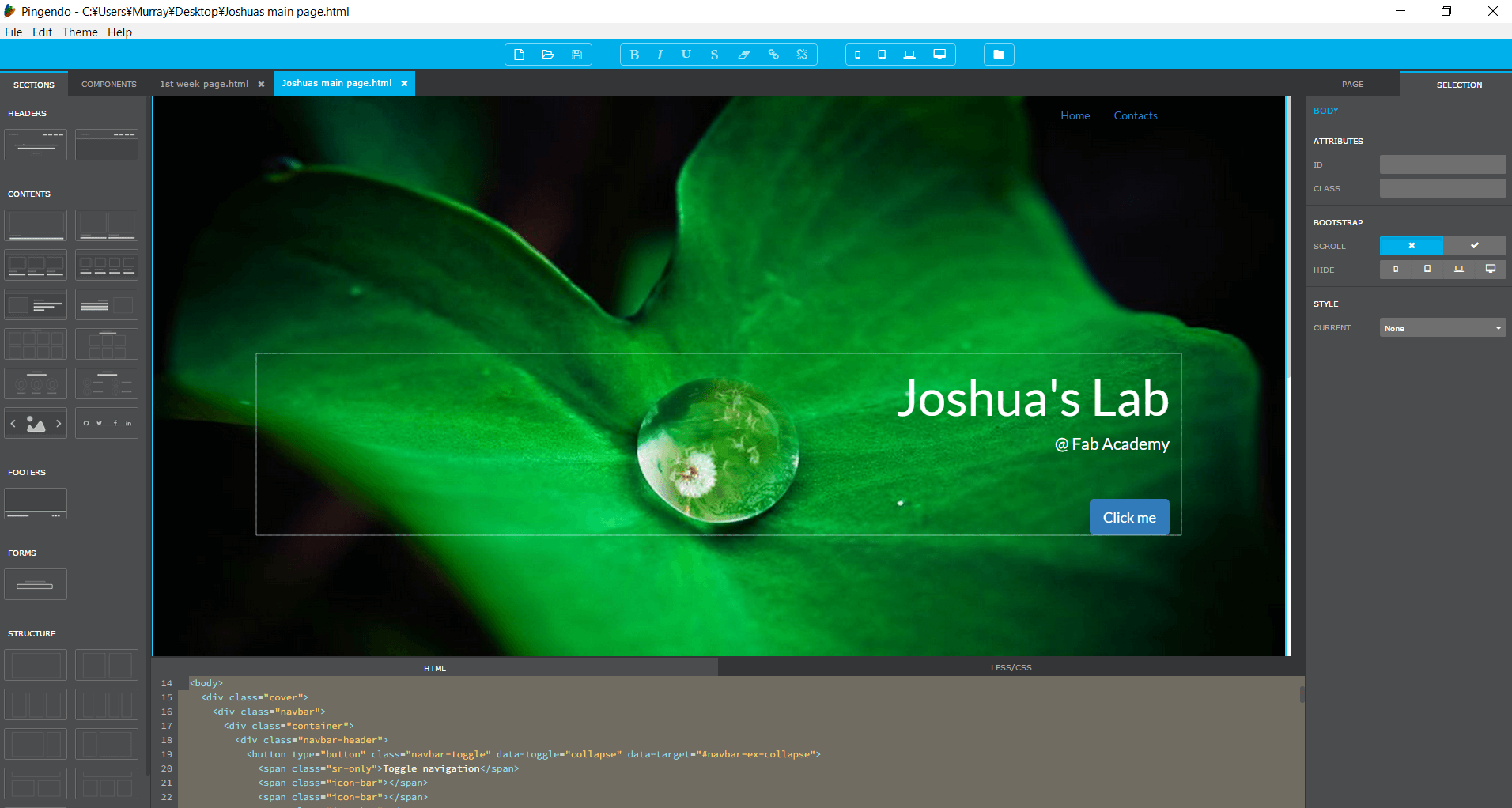

(Using pingendo to make the broad shape of my webpage)

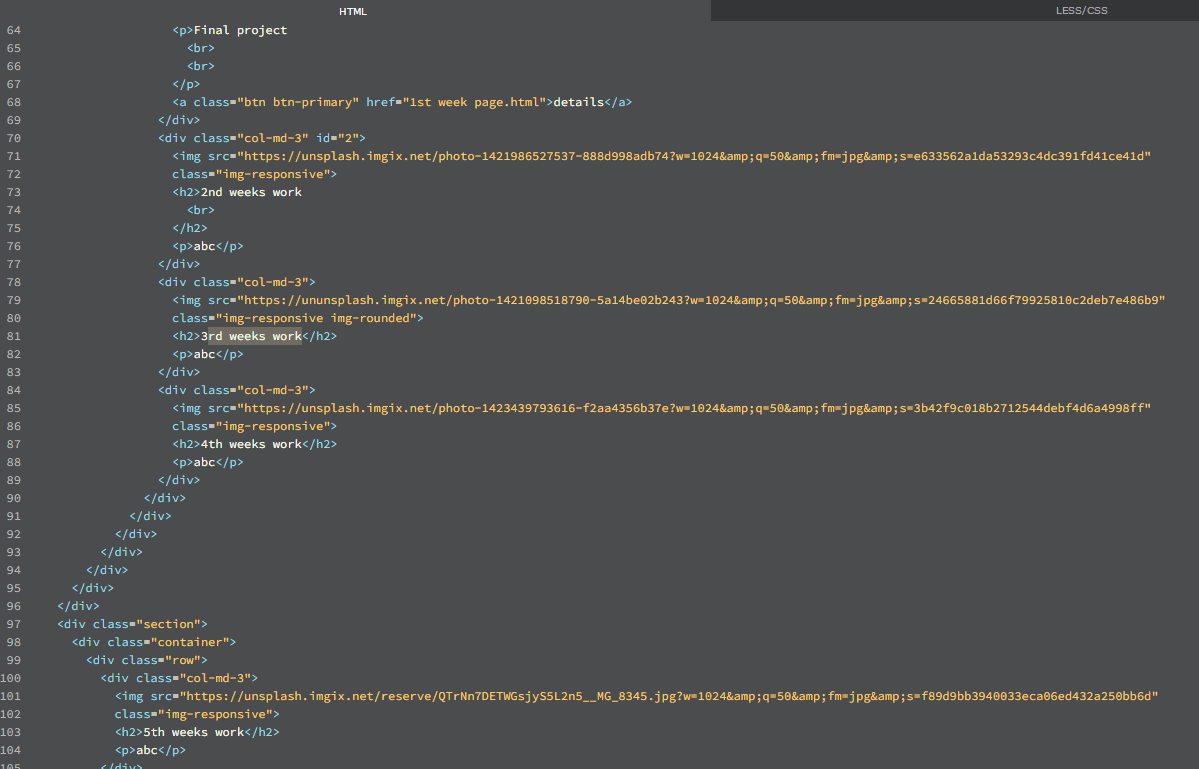

(Making small changes in html)

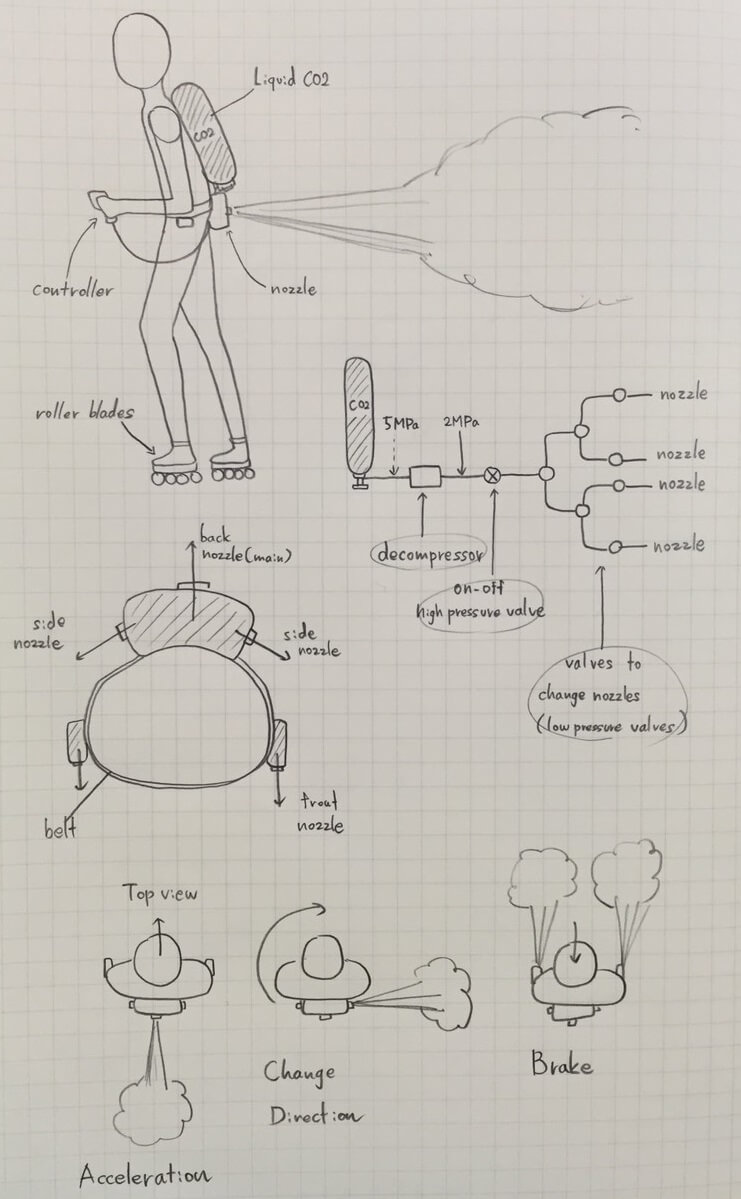

(Sketch of my final project)

1st week

PRINCIPLES AND PRACTICES,
PROJECT MANAGEMENT

This is the first week’s assignment of Fab Academy 2016.
This report would contain the followings.

1. Explanation of how I made my website
2. Explanation of plans of my Final Project
3. Steps of uploading files to archive

1. Website

I have used “Pingendo” (http://pingendo.com/) to generate the bootstrap page. I have used it to make the broad shape of my webpage. After making the big picture using this tool, I have made some slight changes by rewriting the HTML. Pingendo makes it very easy for users to create sophisticated design webpages, although it has little freedom over detailed changes.







2. About Final project

Final project        “Roller Jet gear”

In my Final project, I am planning to make a propulsion device for roller skating using CO2 gas. The main idea of this device is to use gas jet to achieve high mobility with roller skating. The device would be fastened to the belt around the waist. There would be 5 nozzles, 1 for acceleration (at the back side), 2 for changing direction (at the sides) and 2 for braking (at the front side). The liquid CO2 tank would be carried on ones back. The liquid CO2 gas would be decompressed (5MPa to 2MPa) in a decompressor, at the same time vaporize. After decompressing, the gas would be switched by an electric valve for high pressure use. The gas would be divided to different nozzles by many electric valves (non-high pressure valves under 0.5MPa). The non-high pressure valves would be programed so 1 or 2 nozzles would be always open. Therefore, the non-high pressure valves would not take the high pressure, but only making path for the gas. This would make the device much lighter by not using many high-pressure valves (they are heavy!!). The pilot would have a controller on each hand to change the nozzle and the gas on-off. I would use Arduino Mega 2560 and some relays to control the valves.





3. Uploading files to archive

To upload files to archive, I am using “Source Tree” to use git. Large files or design files like stl, dfx would be uploaded using “google drive”.
