LESSON TEME: Applications and Implications

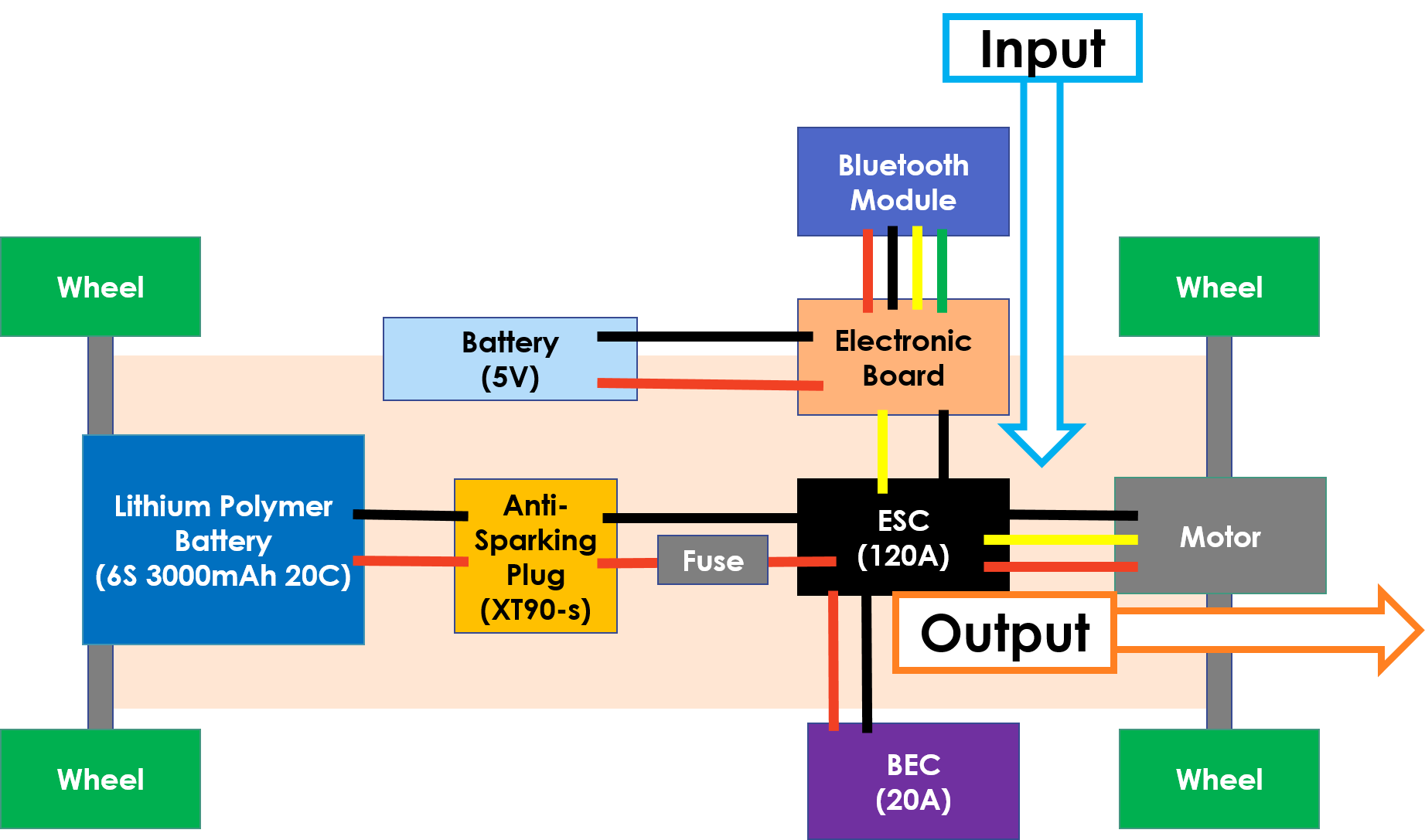

My final project is DIY electric skateboard controled by using wireless communication. Figure [1] is the electronic arhitecture.
What materials and components will be required?
Where will they come from?
How much will it cost?
- Hub Motor / @CARVON Inc. / abuot $300
- Electronic Speed Controller (ESC)/ @CARVON Inc. / abuot $100
- Lipo Battery / @TURNIGY Inc. / abuot $70
- Wood Board / @NAFCO Inc. / abuot $30
What parts and systems will be made?
- Electronic Board with a Bluetooth Module
- Wooden Case Containg Electronic Parts
- Inner Parts to Settle Electronic Parts
What processes will be used?
- Wooden Case: Cut Wooden Board by Saw
- Inner Parts: 3D Printer
- Input: Signal from Laptop Computer
- Output: Rotate Hub Motor
What tasks need to be completed?
- Inner Parts: Designed parts by CAD and printout them by using 3D Printer
- Programming: Receive Signales via Bluetooth Communication and Send Signals to Rotate a Hub moter
What questions need to be answered?
- Currently Nothing
What is the schedule?
- CAD Design: 5/23 - 5/29
- Inner Part Printout: 5/23 - 5/29
- Electronic Parts Setting: 5/30 - 6/5
- Construction: 5/30 - 6/5
- Programming: 6/6 - 6/10 days
How will it be evaluated?
- to be able to ride on the skatebaord
- to be able to communicate between the electronic board and the mobile device
- to be able to run
Who's Done What Beforehand?
- I have to design the overwhole appearance by using 3D CAD
- I have to design the electronic architecture
- I have to purchase and prepeare the electronic parts considering the architecture
- I have to make a board for me to ride on
