model (raster, vector, 2D, 3D, render, animate, simulate, ...) a possible final project
and post it on your class page

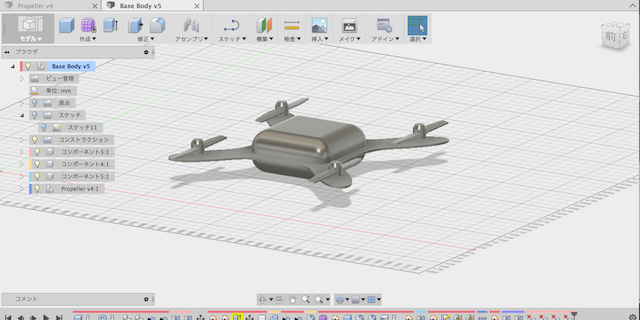

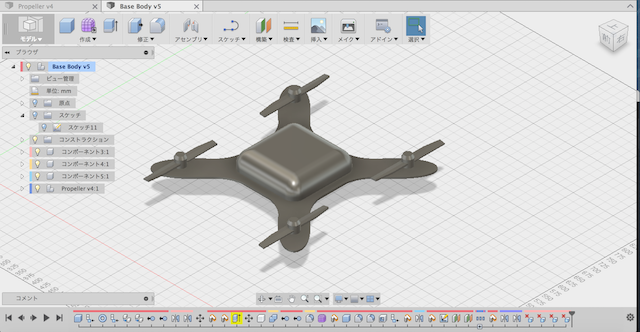

I use Fusion360. Modeling the dron.


Data:Base_Body.stl

This drone will have below modules.
  • Camera
  • GPS anntena
  • Gyro sensor and an acceleration sensor
    • However, I have not decided the mounting position of each module.

    Process

    Each parts was created from scratch.
    Propeller and Body, Arm.
    But body and arm were combained.
    Because there is a possibility that the rigidity of the arm becomes weak.

    Concerning point

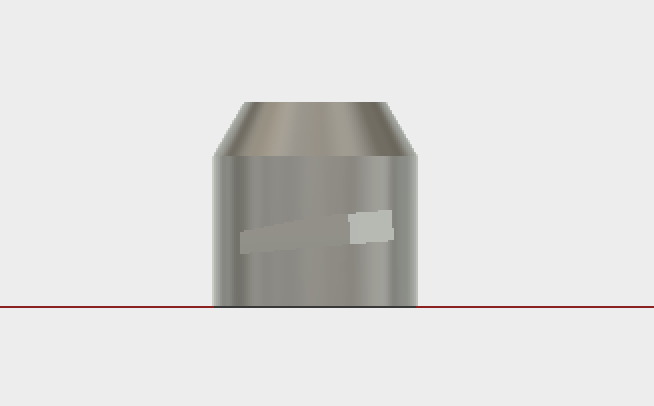

    Trial and error is necessary for the angle of the blades of the propeller

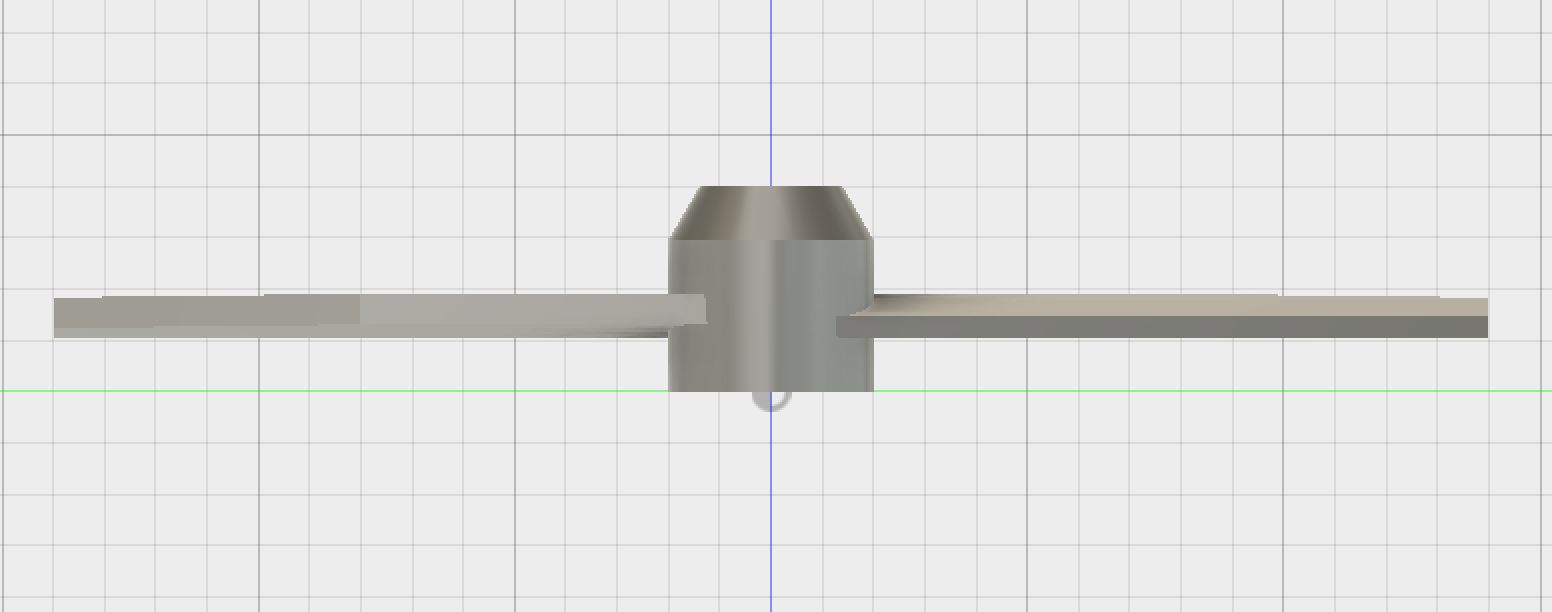

    Data:Propeller.stl
