Programming with Ardublock





I followed the instructions in this page

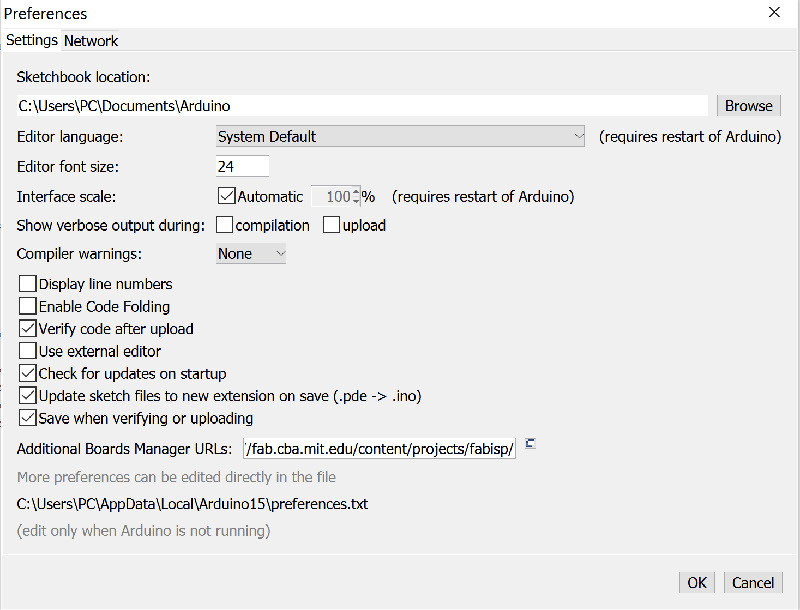

After downloading the files, enter in the Arduino IDE, in the Preferences option, look at Sketchbook location



​

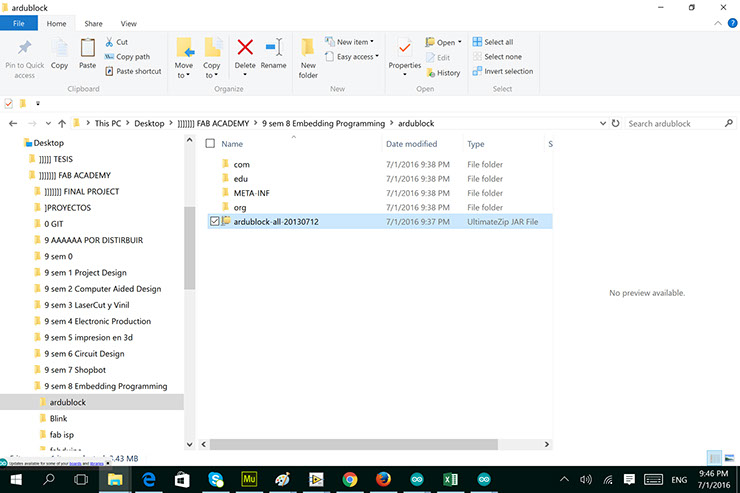

Place the zip file downloaded.



​

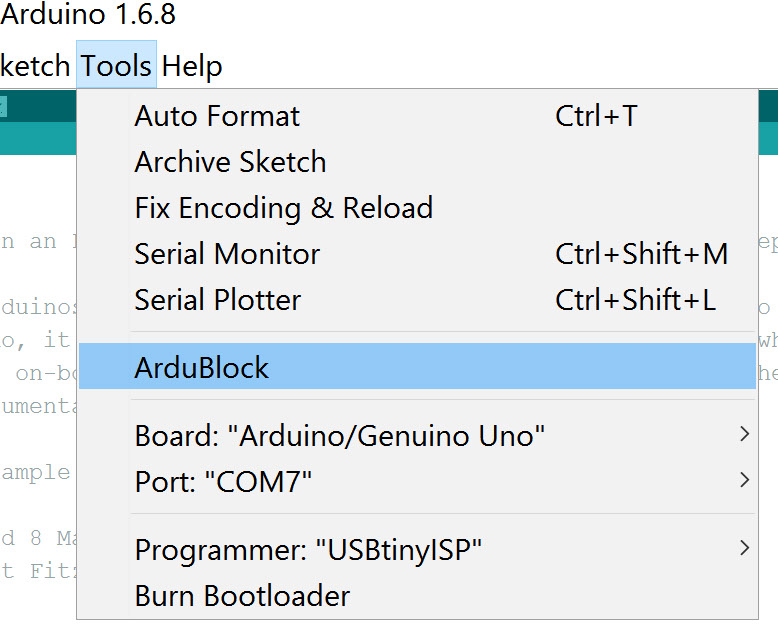

Once the zip file is there, launch the Arduino IDE, look at the Tools menu, the option Ardublock will appear there.



​

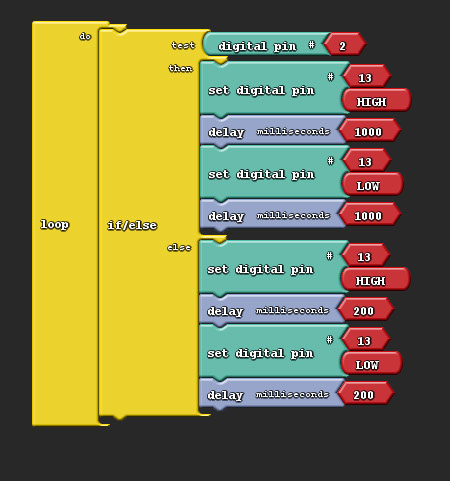

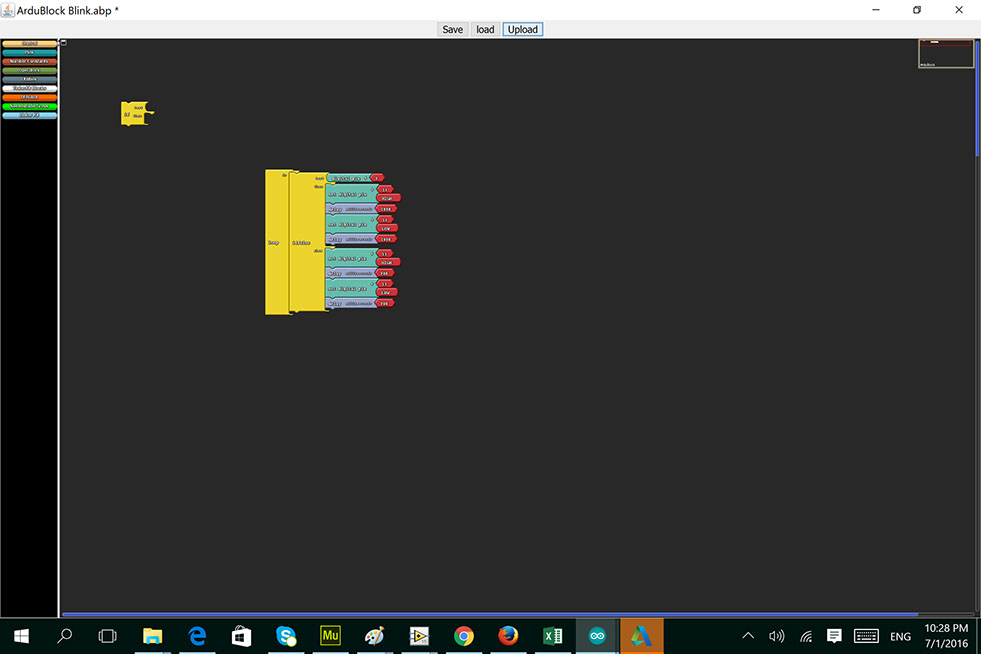

I made this program to control the Led, depending on digital pin 2 if it is HIGH or LOW, ther the blinking pattern will change.



​







The program, depending on the digital pin 2 is HIGH OR LOW, sets the DIGITAL PIN 13 on a different frecuency of turning LOW or HIGH.  The DIGITAL PIN 13 is connected to a led in Arduino, so you can see how the blink speed changes.



​









In the video you can see, that we move the conection between PIN2  and VCC or GND, alternatively, and it produces a diferent blink speed.





​
