Assignment:

  • Model your final project, and post your progress on your webpage
  • Try out as many different software applications as you can
  • This week’s home work page


Computer Aided Design:


Fab-Academy, first 2 weeks, and it has already been already so mindblowing! This week, among many other things, I learned to better explored open source softwares. I tried many softwares but the ones worth mentioning, to me:

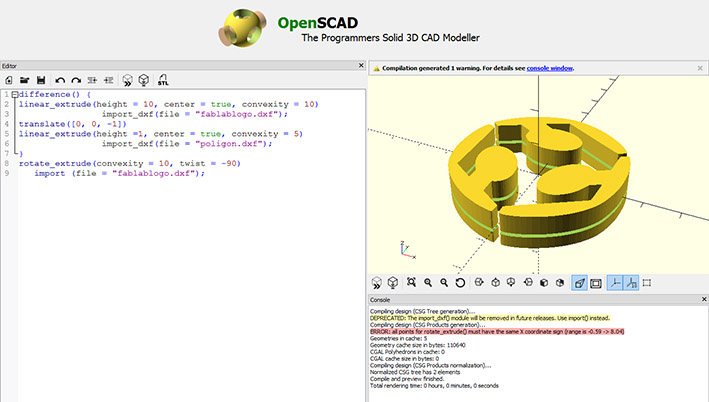

Inkscape and Gimp 2.0 as 2D, and OpenScad as 3D. I'm installing Ubuntu to try Antimony. I'm very excited to try it.



Then for the comercial 3D versions, we had a workshop about Rhino from nice McNeel's crew. I had the first version of our robotic_arm all designed in Rhino and it has been the software I have been using since long. Still, so many new things learned in this workshop.
The other software I dediced to give it a try was Solidworks. I had a demonstration around one year ago so I knew it could be something that could be helpful to my project. Parametrics <3!!




I started with the most basic tutorials and went on following step by step.Have a look on this one, I found it useful.

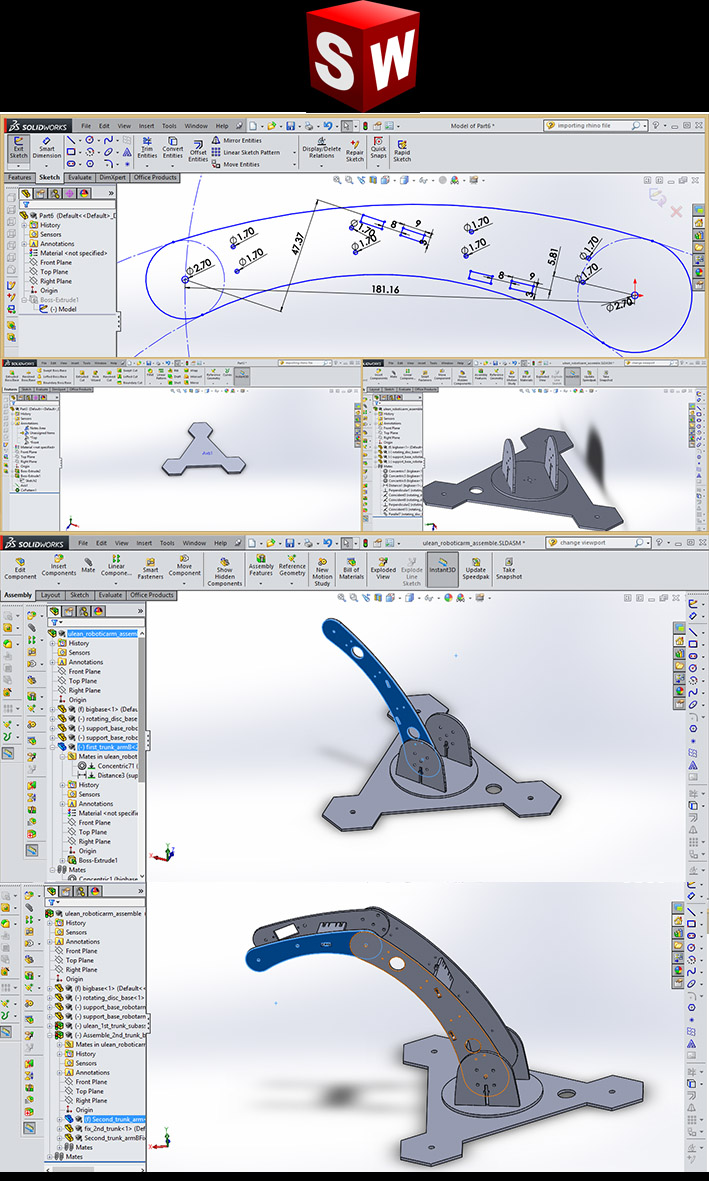

Here you can see my first results for the ulearn's robotic_arm.

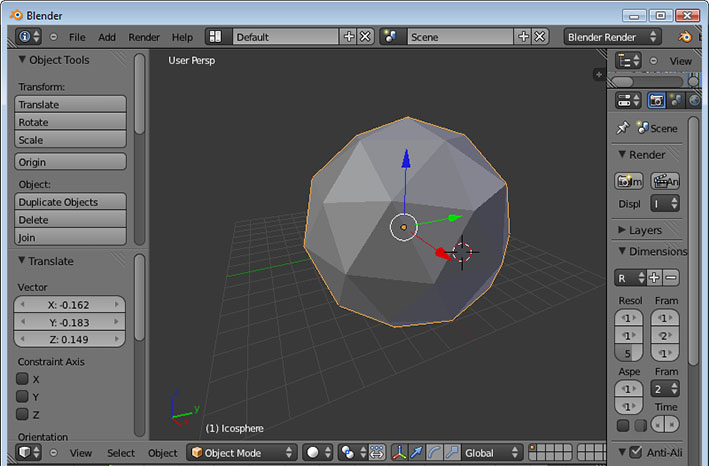

I also installed Blender on my pc and started playing around, but I need more time on it and I focus a lot of energy on solidworks in order to get results I can use in the next steps, the next weeks. But is looks good, here there is a link for Blender.




-Downloadable Link::

Solidworks' arm trunk
