What I did this week
I started by exploring
Processing, following the tutorials and playing with the
examples. Then decided to create an application that I could use
in my final project.

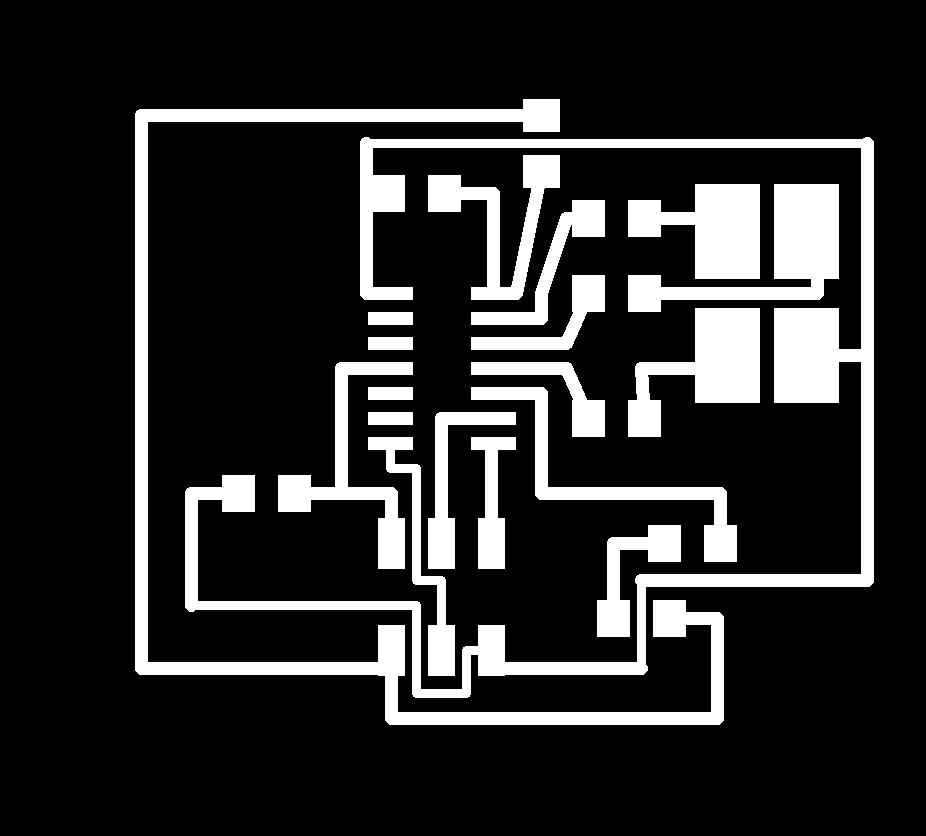

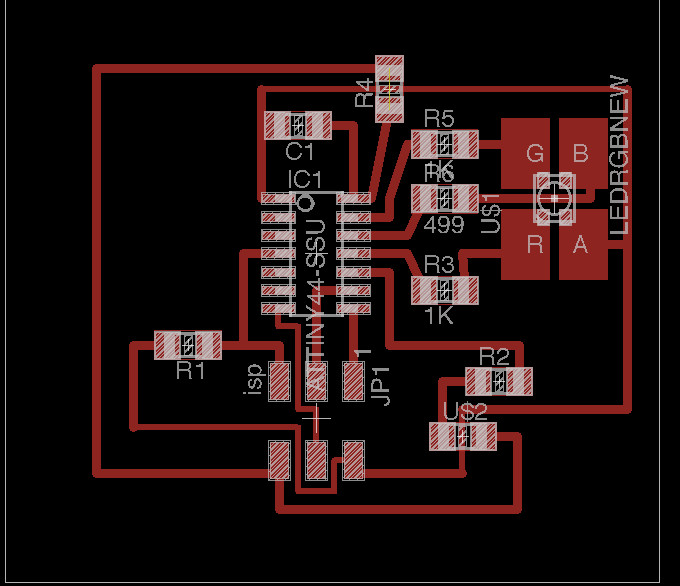

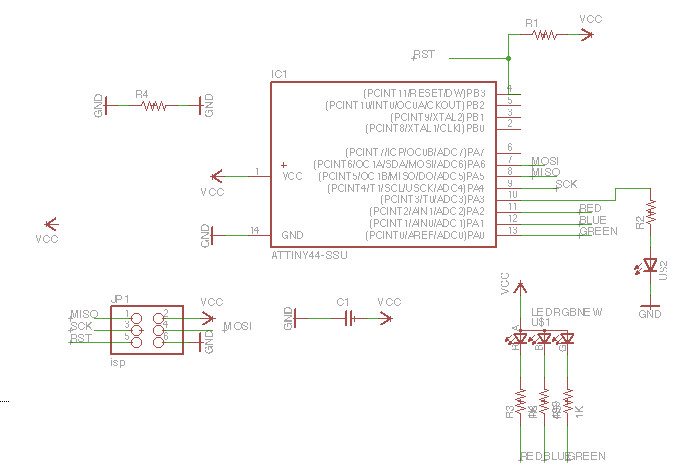

Next I designed a RGB LED
board in Eagle based on the Fab Academy Output board

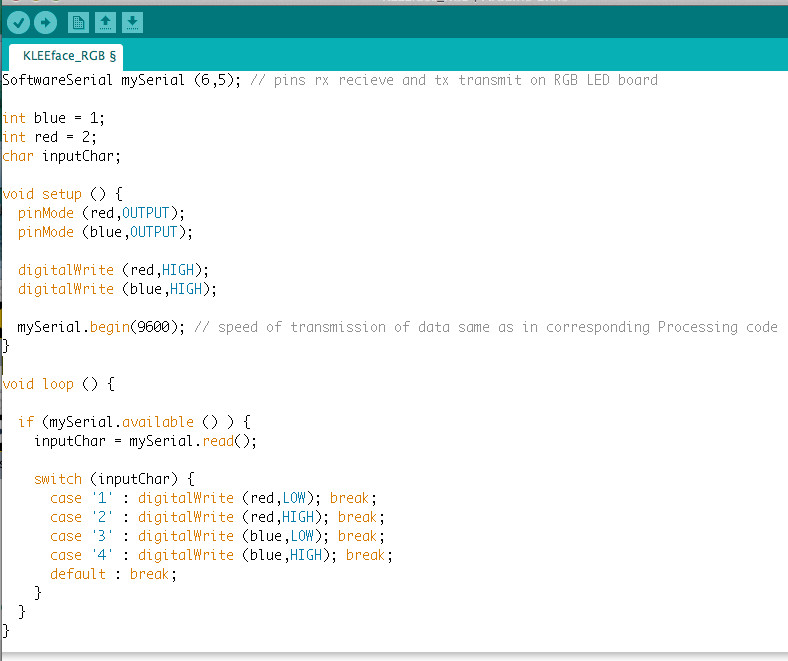

Programmed the board using
my FAB ISP in Arduino see code below.
Used internal clock so be sure to choose correct board before
uploading program.

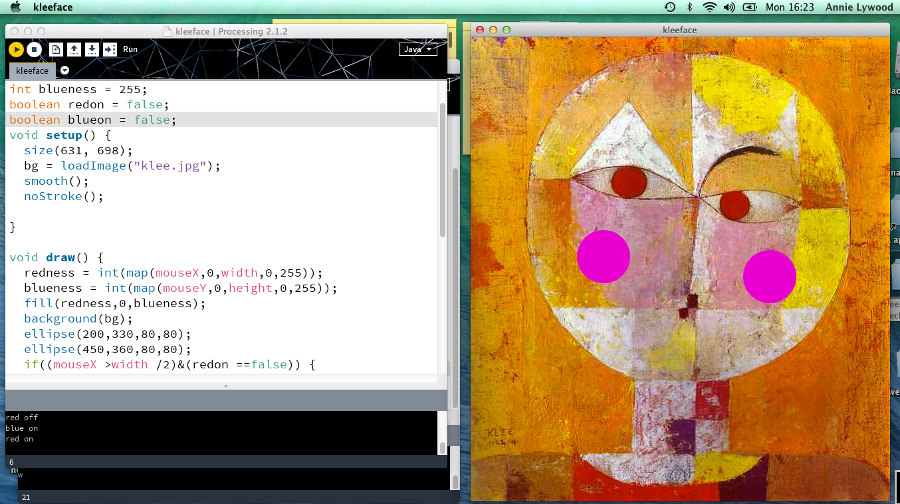

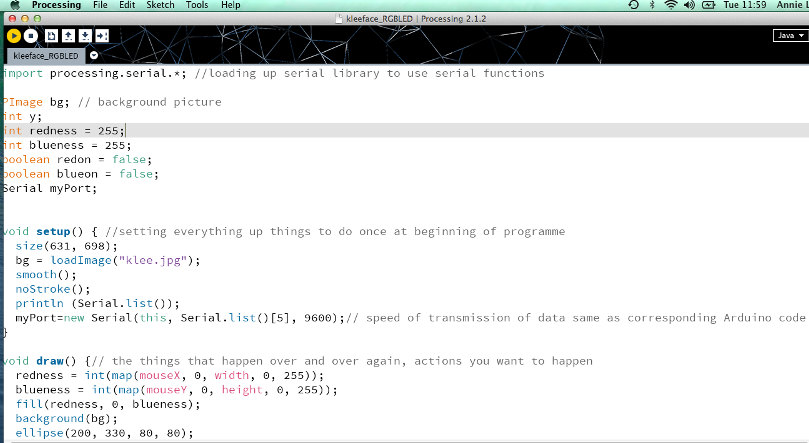

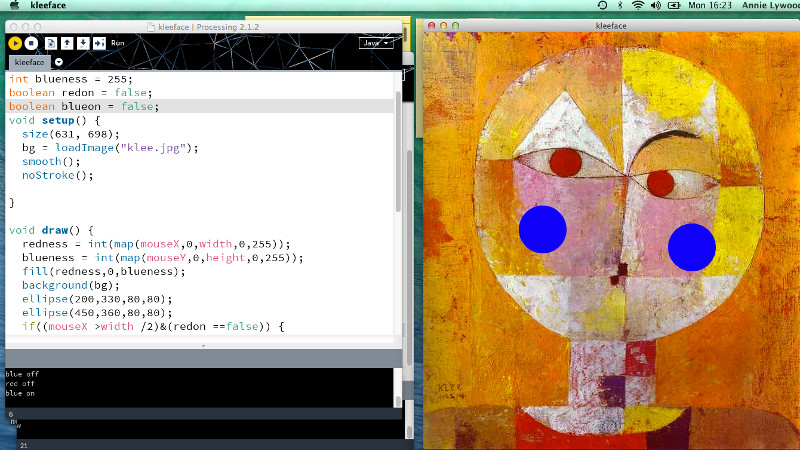

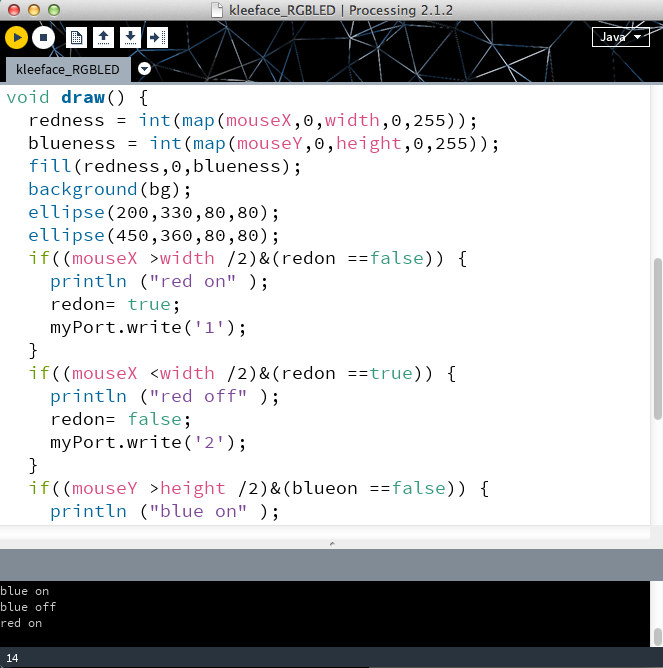

Using processing imported image of Kleebo Face as background and drew on cheeks. Made simple program to change colour of cheeks when the mouse moved across the background image and over the cheeks.

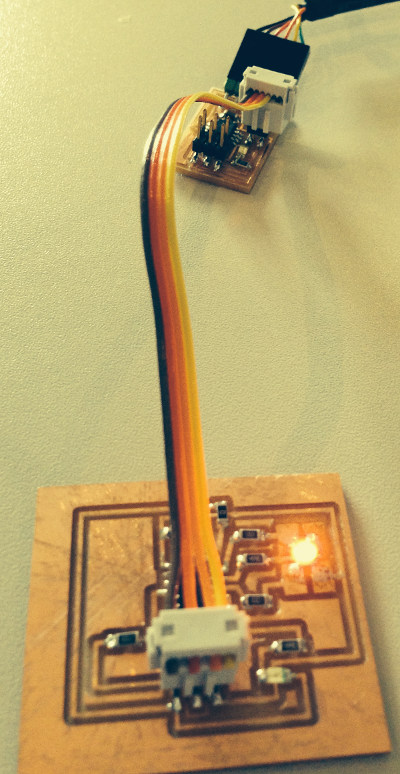

Used bridge board from
network week to connect up computer with RGB LED
Made new cable to join them up - from a 4 to 6
header

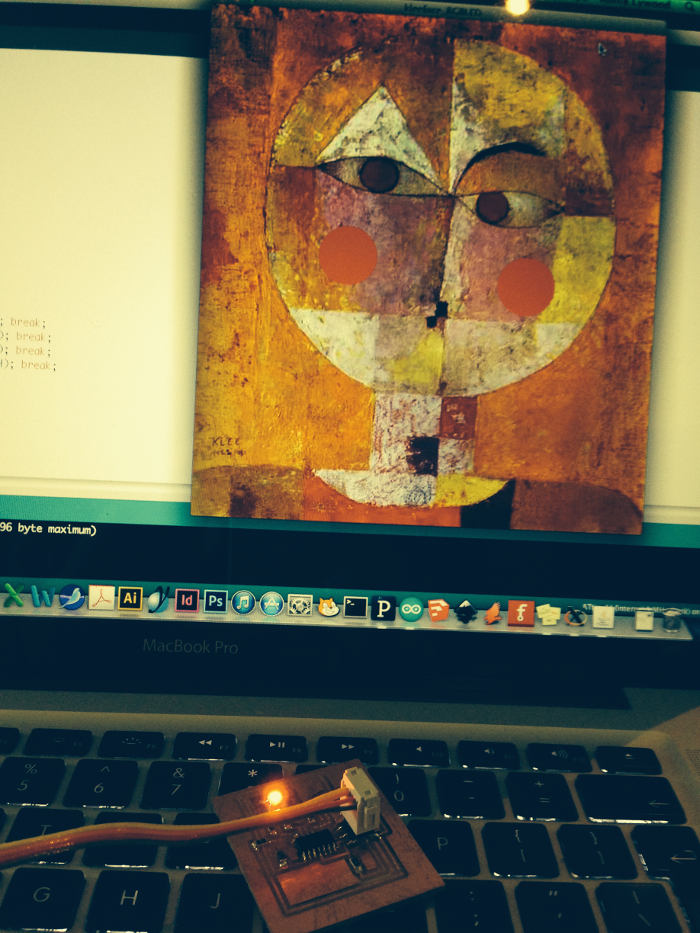

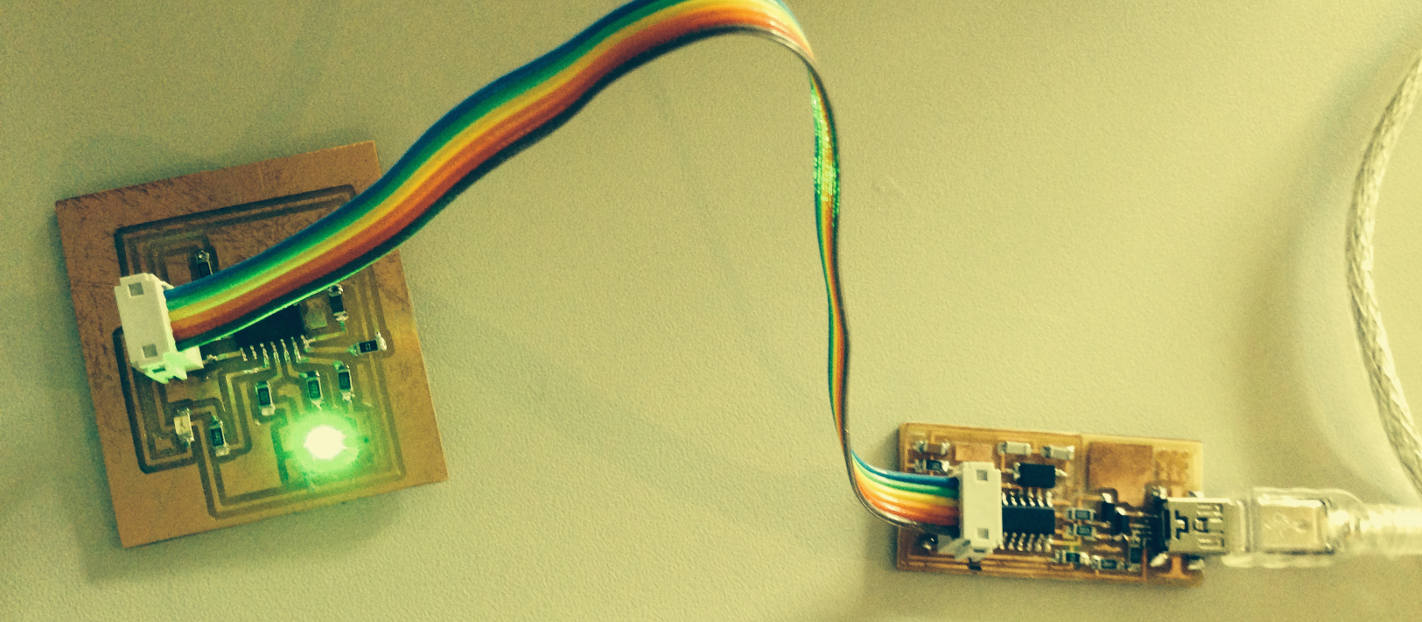

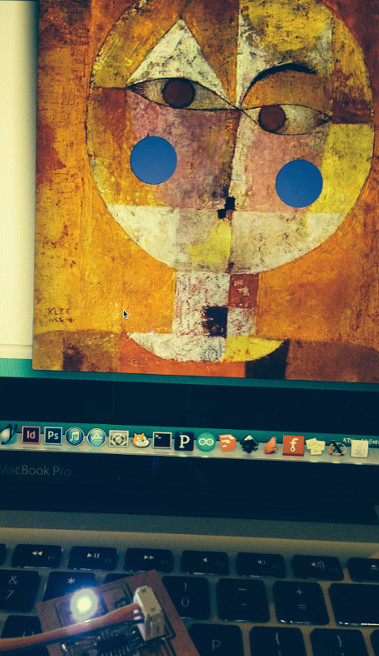

Tested the board - see
lights blue/cheeks blue and cheeks red/light red. Great
very exciting it works !

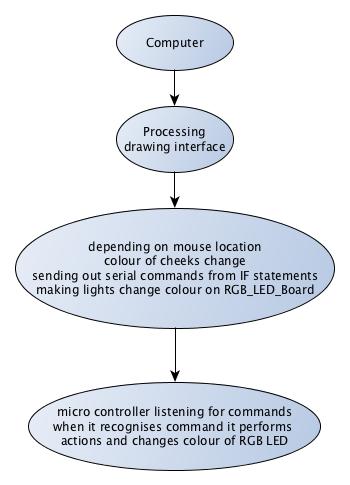

Add other features of the
face and develop the interface application further for the
final project
Make changes to board design to allow use of analogue function
