What will it do?
Difining my project now, I will make a mini farmbot, maybe only for plant nurseries. The nursbot will sense every area of plants with a humidity sensor to determinate if plants needs water or not and how mauch water needs. If Plants need water, the nursbot will open a electrical valve with programmable time in each area.
who's done what beforehand?
Farmbot is the one example that I finded.

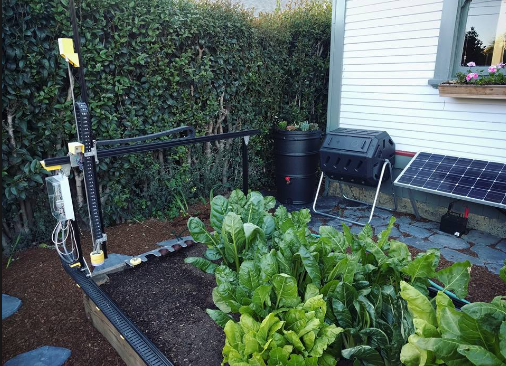

FarmBot is an open-source CNC farming machine and software package designed for mall-scale precision food production. Similar to 3D printers and CNC milling machines, FarmBot hardware employs linear guides in the X, Y, and Z directions. This allows for tooling such as seed injectors, watering nozzles, sensors, and weed removal tools to be precisely positioned and used on the plants and soil.
FarmBot is controlled by an Arduino/RAMPS stack and an internet connected Raspberry Pi 2. The hardware is designed to be simple, scalable, hackable, and easily produced.
Using the web application, the user can graphically design their farm or garden to their desired specifications and synchronize the numerical control code with the hardware. Other features include storing and manipulating data maps, a decision support system to facilitate data driven design, access to an open plant data repository, and real-time control and logging.
FarmBot Video here:
VIDEO what materials and components will be required?
I need:
1. Humiduty Sensor
a. Capacitive board
b. Amplifier circuit
2. AVR Microprocesor Satshakit
a. tmega 328P
b. Botton (1)
c. Led blue (1)
d. Led Yellow (1)
e. R 499 Ohm (2)
f. R 10K Ohm (1)
g. Xtal 18Mhz (1)
h. C 22 pF (2)
i. C 100 nF (2)
j. C 10 uF (1)
k. C 1uF (1)
3. Relé Circuit
a. Relé 5V (1)
b. Transistor 2N3904 (1)
c. led red (1)
d. R 499 Ohm (1)
e. R 1K Ohm (1)
f. Diode 1A (1)
4. Stepper Drivers (3)
5. Stepper Motors (3)
6. Bluetooth Module (1)
7. Wood
9. Threaded rods
10. Steel rods
11. Copper plates
12. Wires
13 Mecanized
where will they come from?
a. Yachay Fab Lab have majority components.
b. Local Electronic Store.
c. Electronic Local in Quito.
How much will it cost?
1. Humiduty Sensor ($2.0)
a. Capacitive board
b. Amplifier circuit
2. AVR Microprocesor Satshakit ($5.0)
a. tmega 328P
b. Botton (1)
c. Led blue (1)
d. Led Yellow (1)
e. R 499 Ohm (2)
f. R 10K Ohm (1)
g. Xtal 18Mhz (1)
h. C 22 pF (2)
i. C 100 nF (2)
j. C 10 uF (1)
k. C 1uF (1)
3. Relé Circuit ($3.0)
a. Relé 5V (1)
b. 2N3904 (1)
c. Red led (1)
d. R 499 Ohm (1)
e. R 1K Ohm (1)
f. Diode 1A (1)
4. Stepper Drivers and Motors (3) ($60.0)
5. Bluetooth Module (1) ($14.00)
6. Wood ($10.0)
7. Threaded rods ($5.0)
8. Steel rods ($5.0)
9. Copper plates ($2.0)
What parts and systems will be made?

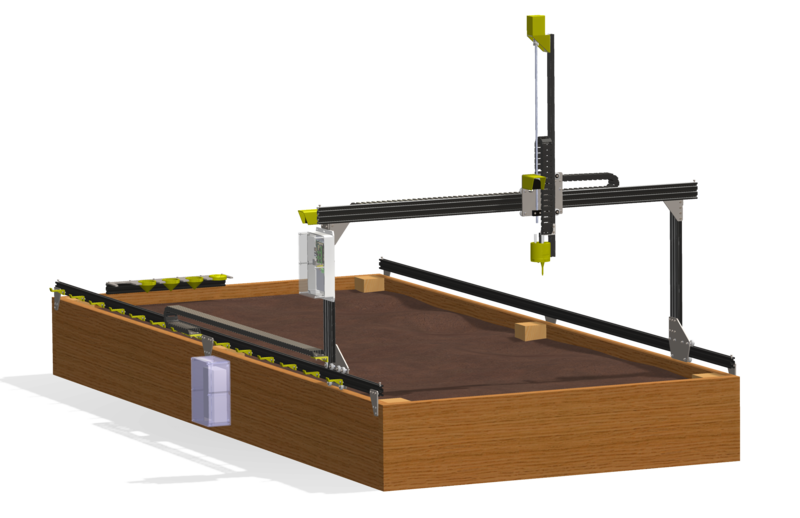

1. Plants Box
2. Control circuits
3. Circuit box container
4. Water sprinkler
What processes will be used?
1. COMPUTER CONTROLLED CUTTING
2. ELECTRONIC PRODUCTION
3. 3D PRINT
4. ELECTRONIC DESIGN
5. EMBEDDED PROGRAMING
6. INPUT DEVICE
7. OUTPUT DEVICE
8. NETWORKING AND COMMUNICATIONS
What tasks need to be completed?
1. Make a Plant Box pressfit.
2. 3D design for integrate many parts:
a. Electric Valve
b. Circuit Sensor
c. Bluetooth Transmitter
3. Water system
What questions need to be answered?
1. How integrate Bluetooth with Processor?
2. What modules I need in App Phone?
3. Scale my Sensor
4. How integrate circuits in 3D module?
5. Work with Gestalt Nodes?

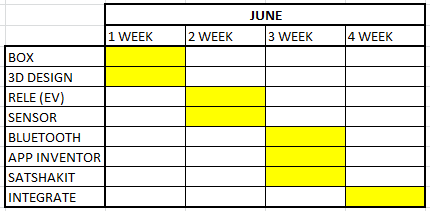

What is the schedule?
1. Make a box (2 days)
2. 3D Design (2 days)
3. Electric valve control Circuit (3 days)
4. Sensor circuit (2 days)
5. Bluetooth conections with cellphone (2 days)
6. Processor circuit (4 days)
7. Integrate all (2 days)
How will it be evaluated?
Can it work in City houses?
Every process is enought clear?
It is possible make it really by someone?
