Assignment 10
The Assignment for week 10 was to design a circuit to take advantage of an output device. I need to work on connecting an LCD screen to the Nano/fab board first so that I can have an easy to read display of what is going on in the compartment of the hot box. I will also explore the possiblity of a wireless transmitter so that I can monitor the system from a remote location in my house. I settled on a generic 16x2 ic2 LCD display. My goal is to have it display the hotbox temp providing a more stable reading of the actual temperature in the box. The sensor on the control module controling the heat source is actual in line with the fan to help keep the fan/heater from running constantly while it is pre-heating the box. The LM34 sensor will desplay the actual temp - once the box is preheated these sensors should read the same.
LCD Sceen and add on board to connect with 4 wires

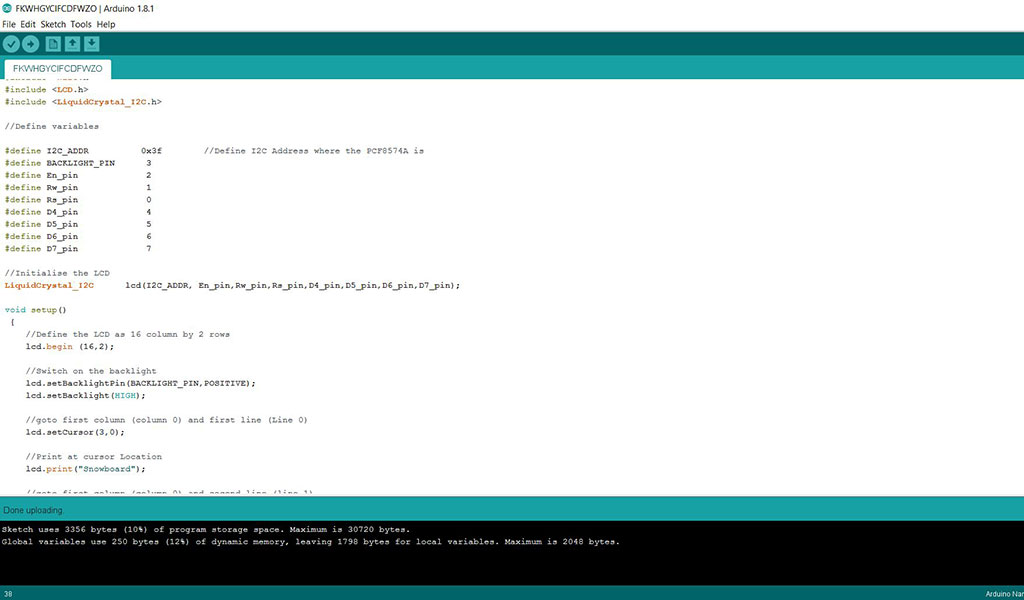

Arduino code that will allow my board to display text
Before realizing that I could not use a "commercial" board in my final project I built one of the free Arduino Nano boards that were donated to our lab. After getting the wires connected to the board I was able to connect the ground, 5V, A4 and A5 pins to the Arduino to test my code. As you can see I was successful in getting a display to appear. I was also curious so I tried to hook up my sensor (Input Device - Later Assignment) and was successful with getting a readout as well.

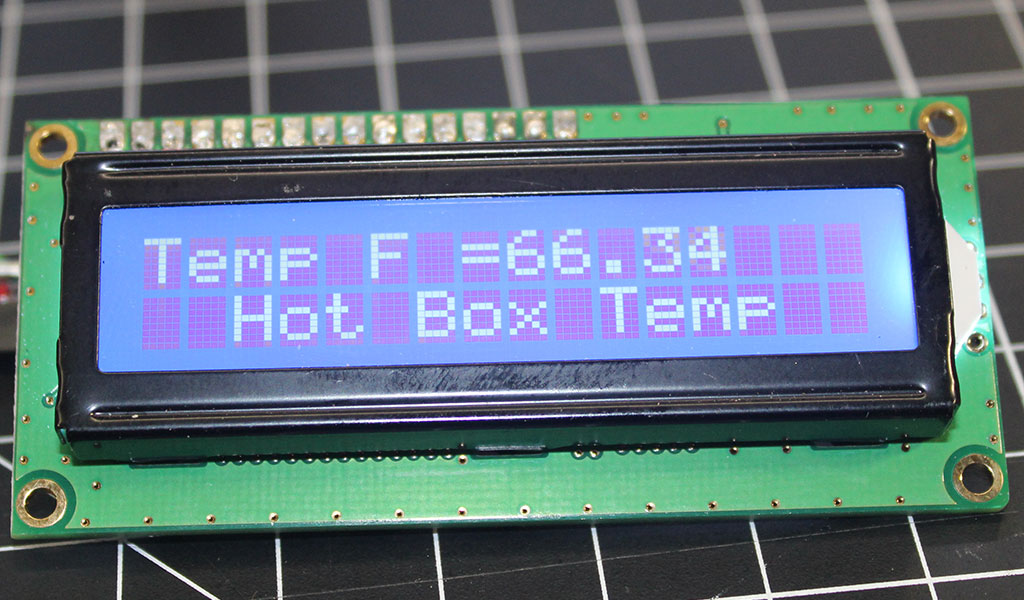

LCD readout code
For my final project will need to get both of my input and output devices working together in the same code so that I can monitor the system with one look. Right now I am loading either the sensor or the LCD code in order to read them. Mixing the two shouldn't be too difficult as I am pretty sure it is as simple as telling the chip to "print" what the sensor is reading.
UPDATE:

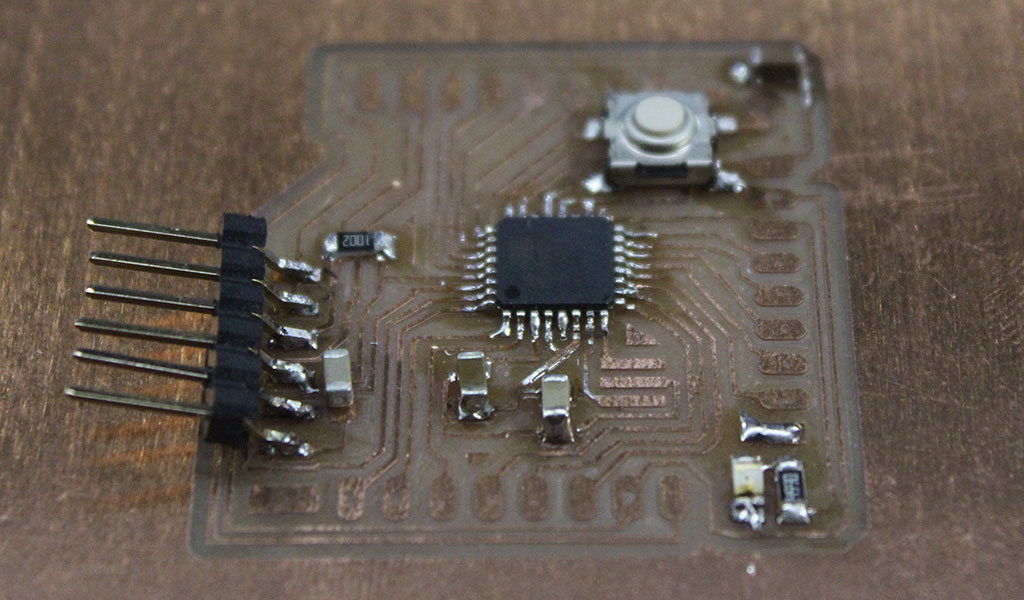

As mentioned before I am no longer able to use the Arduino Nano as it is a comercial board. I did some checking around and I am going to be making my own chip to see if I can load the arduino code onto it. The Microprocessor will be an ATMEGA88 and will connect via FTDI cable to the computer. I have started to design it in Eagle and trying to load the code
The final step is to load the bootloader and flash the Arduino code on to the micro controller. According to my research the chip should act like an Arduino Clone.
