week 9
Mechanical Design.
Group Assignment:
* Design a machine (mechanism+automation), including the end effector build the passive parts and operate it manually document the group project and your individual contribution
* Design a machine (mechanism+automation), including the end effector build the passive parts and operate it manually document the group project and your individual contribution
Guillermo Jaramillo :: Fab Academy 2017
Fab Academy 2017
For this assignment, in group we started to think about what kind of machine we could build. We started a workflow to be able, according to degrees of freedom, to design a machine. We organize and delegate the responsibilities that we had to fulfill since as it is my case I do not live in Lima and I only travel two days for the Fab Academy.
Then our work had to be coordinated from a distance.
Then our work had to be coordinated from a distance.
We divide the workflow into parts under the responsibility of each. Alejandro Otazu would be in charge of automation with the Gestalt.
Alexandra Roldán of the cut and assembly of the boxes, I would take care of the mechanical design.
We would all work at dawn to assemble the parts.
Alexandra Roldán of the cut and assembly of the boxes, I would take care of the mechanical design.
We would all work at dawn to assemble the parts.
This was our initial design.

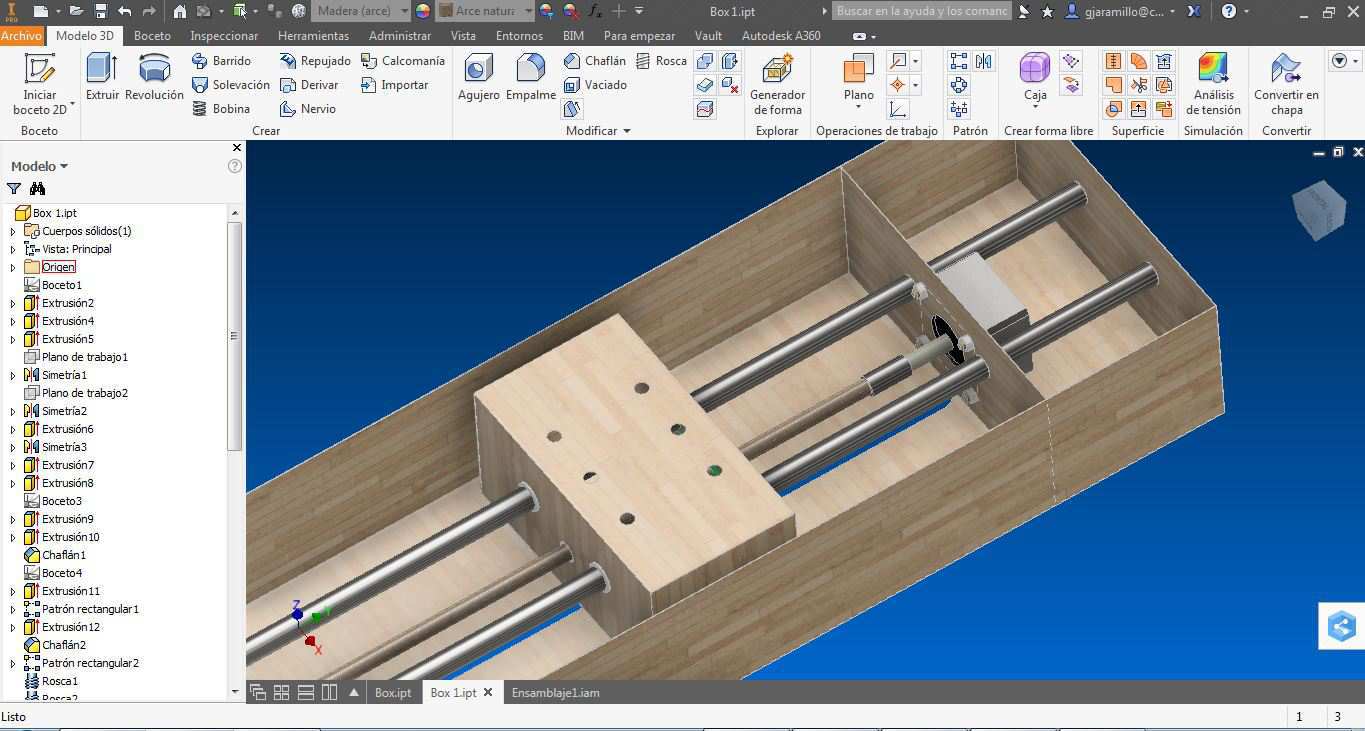

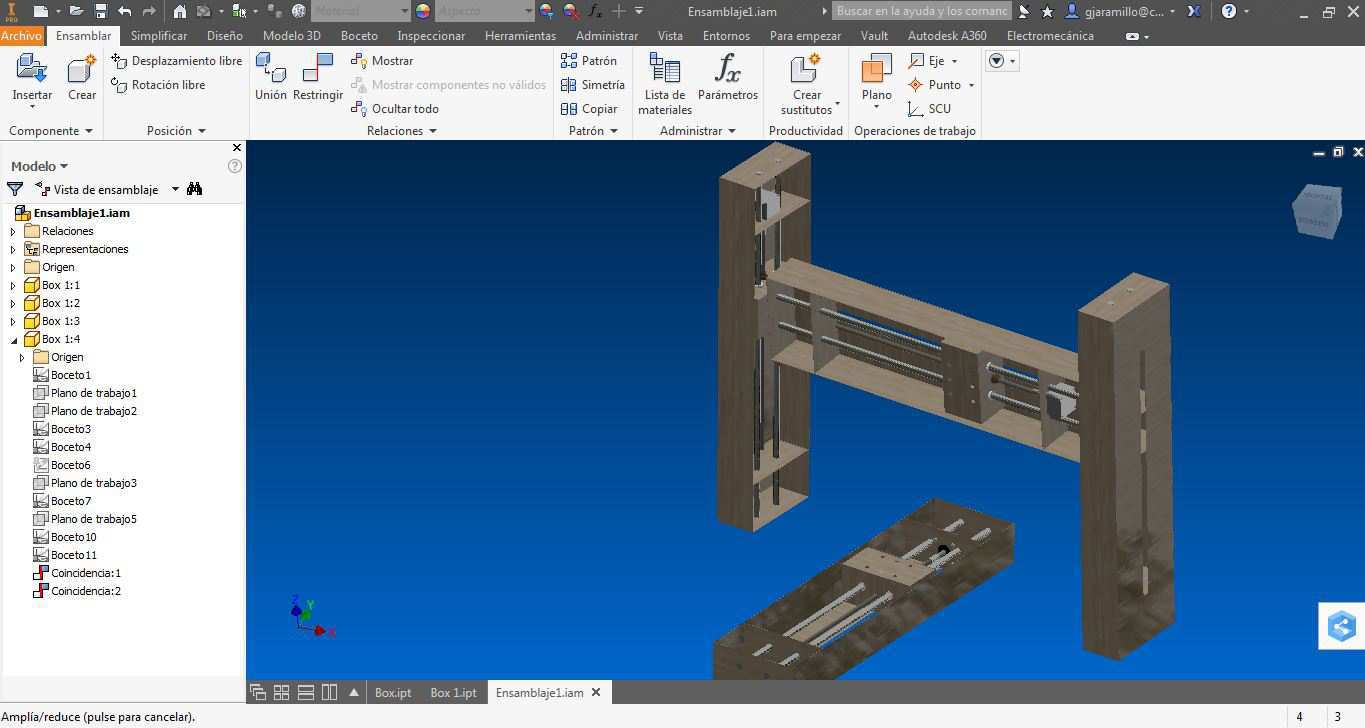

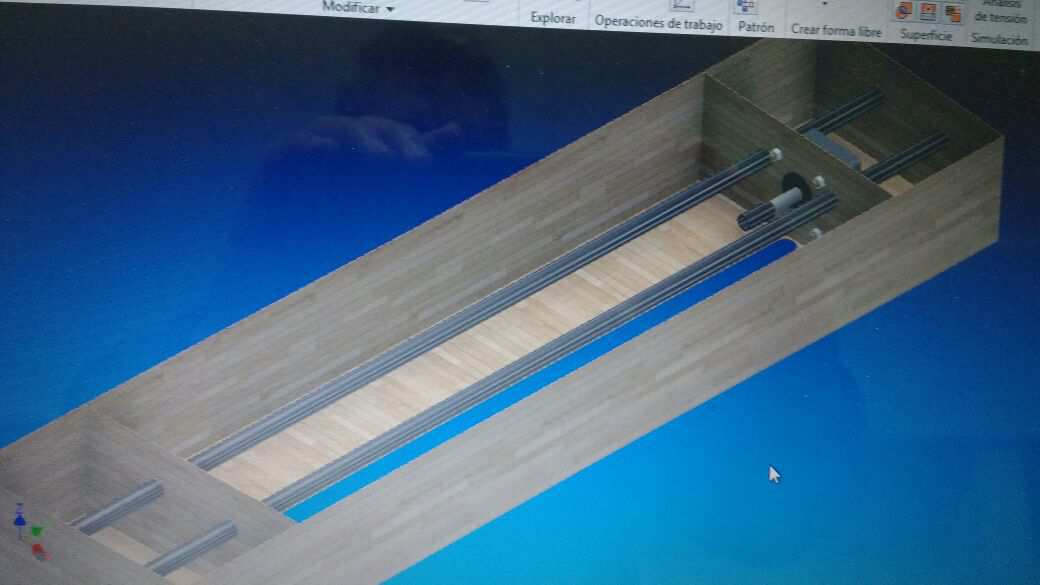

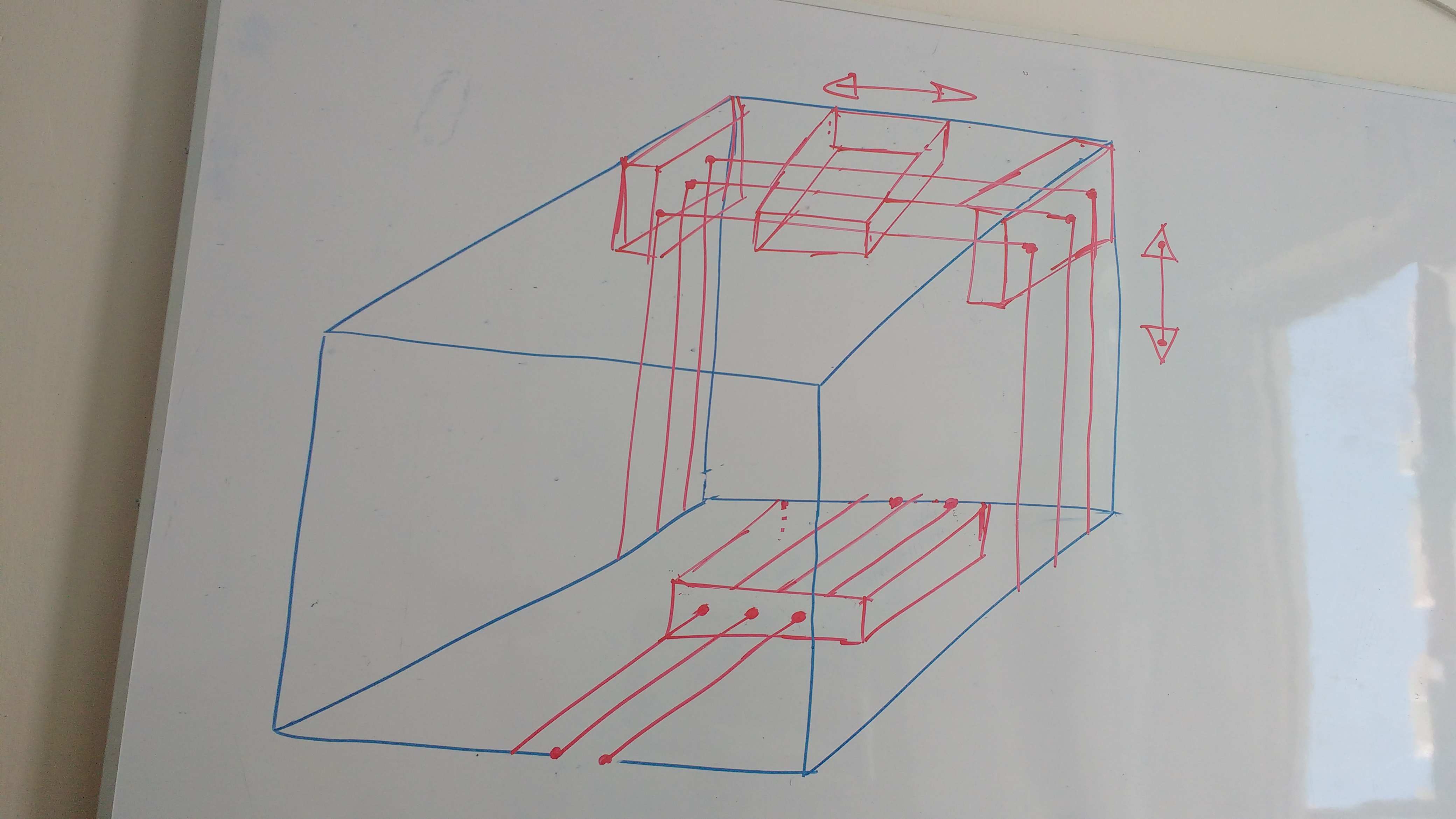

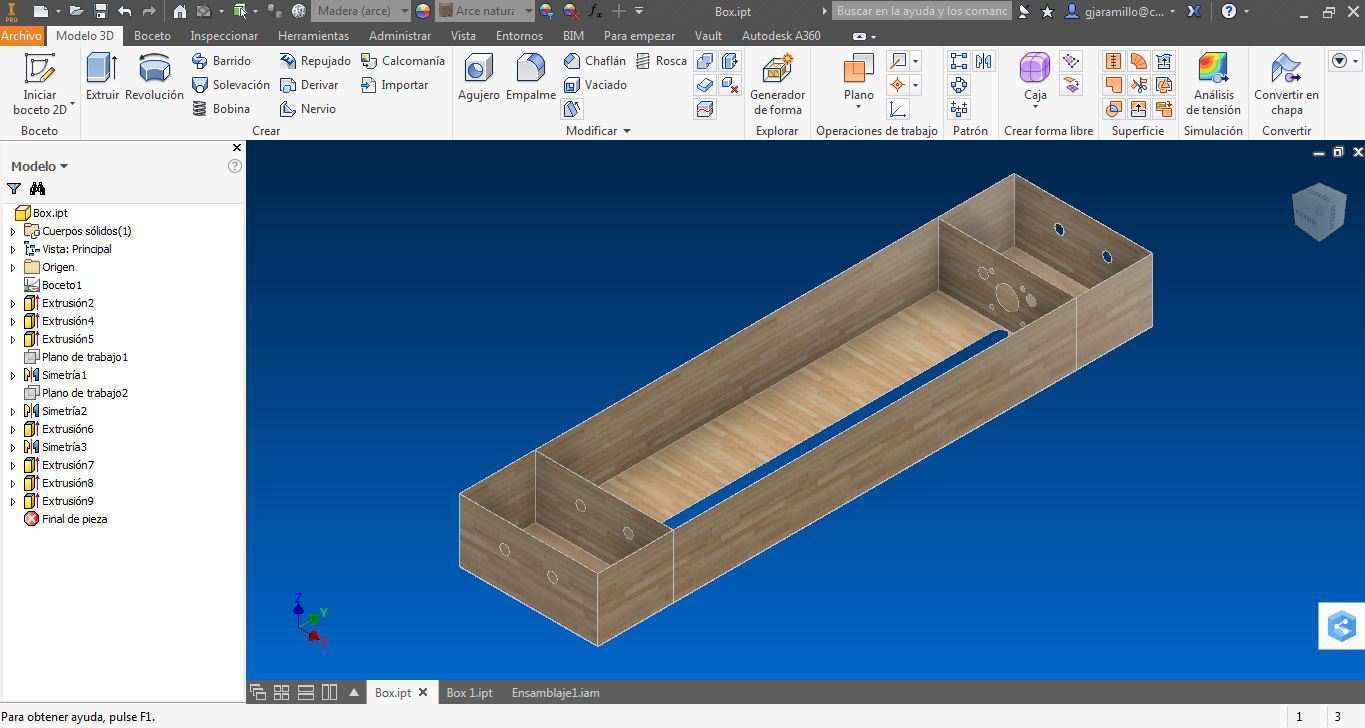

Already in Huancayo, with more time and patience I began to design the complete machine, first on blackboard and then using CAD software.
My personal contribution to project is the design of parts.
