WEEK02-COMPUTER AIDED DESIGN

My final project is a gravity main drived car, I design the structure by 3D model design software CREO. It have almost 33 parts.

3D Model Design

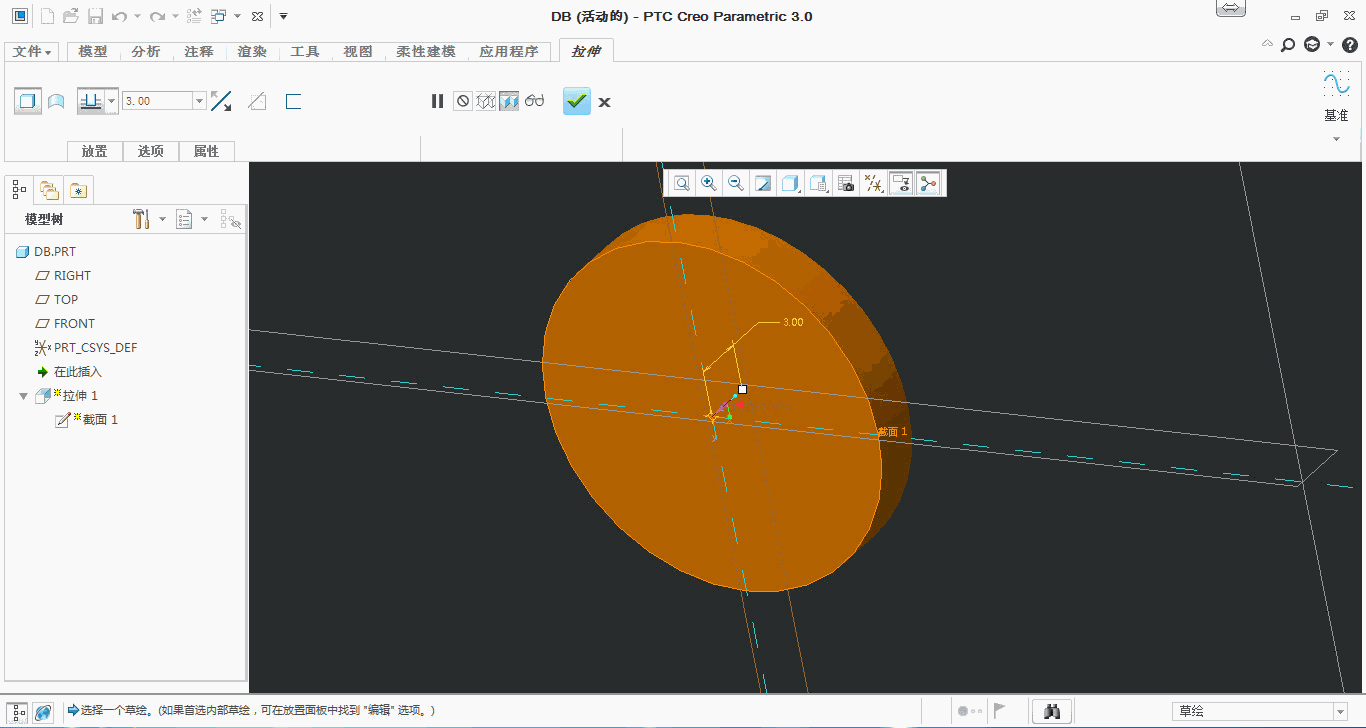

The base plate was design below.
800x600

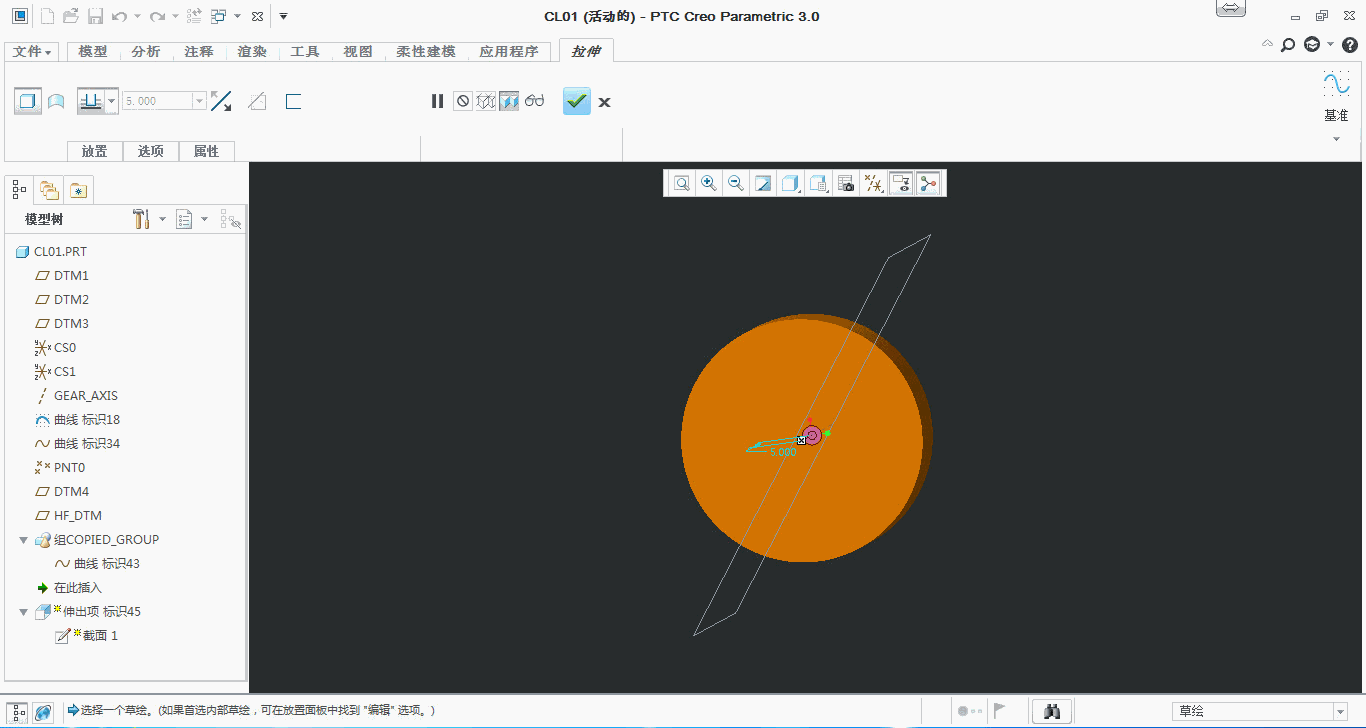

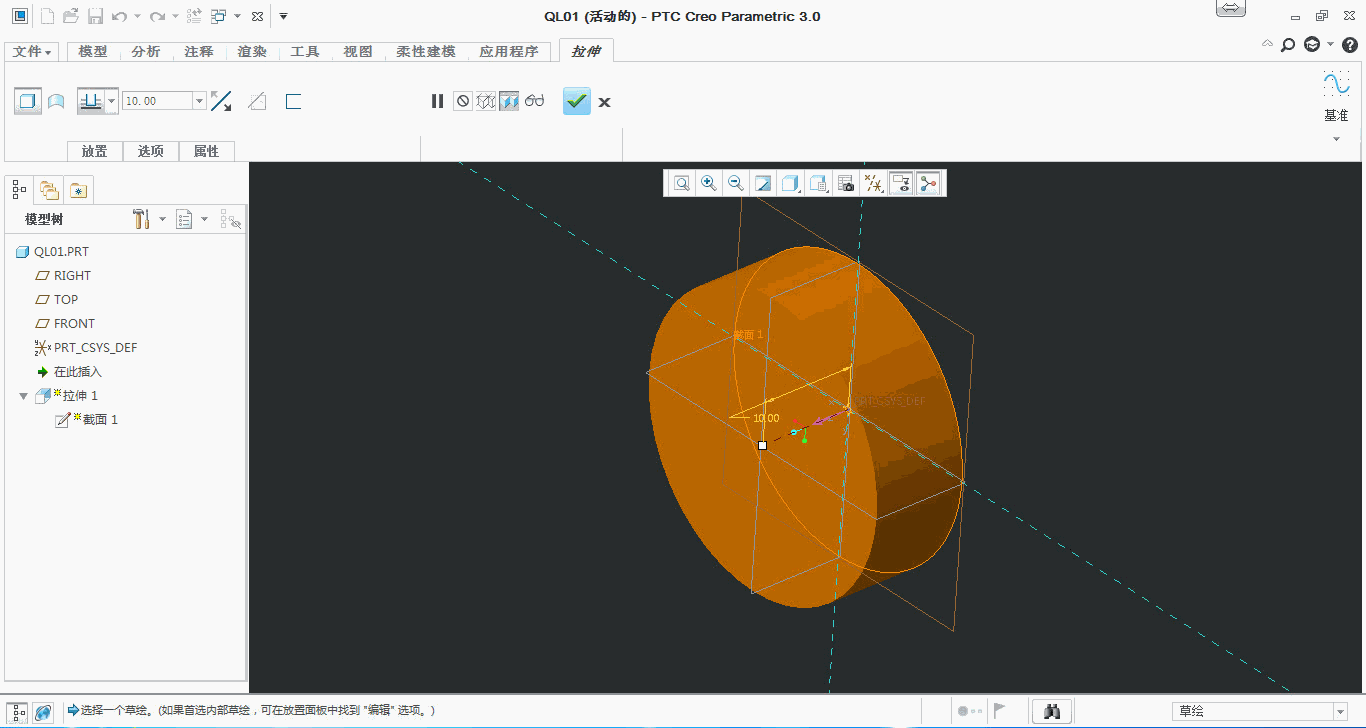

Front wheel was design below, both extrude and revolve can used.
800x600
The support for front wheel,it need rotate when the car turing.
800x600

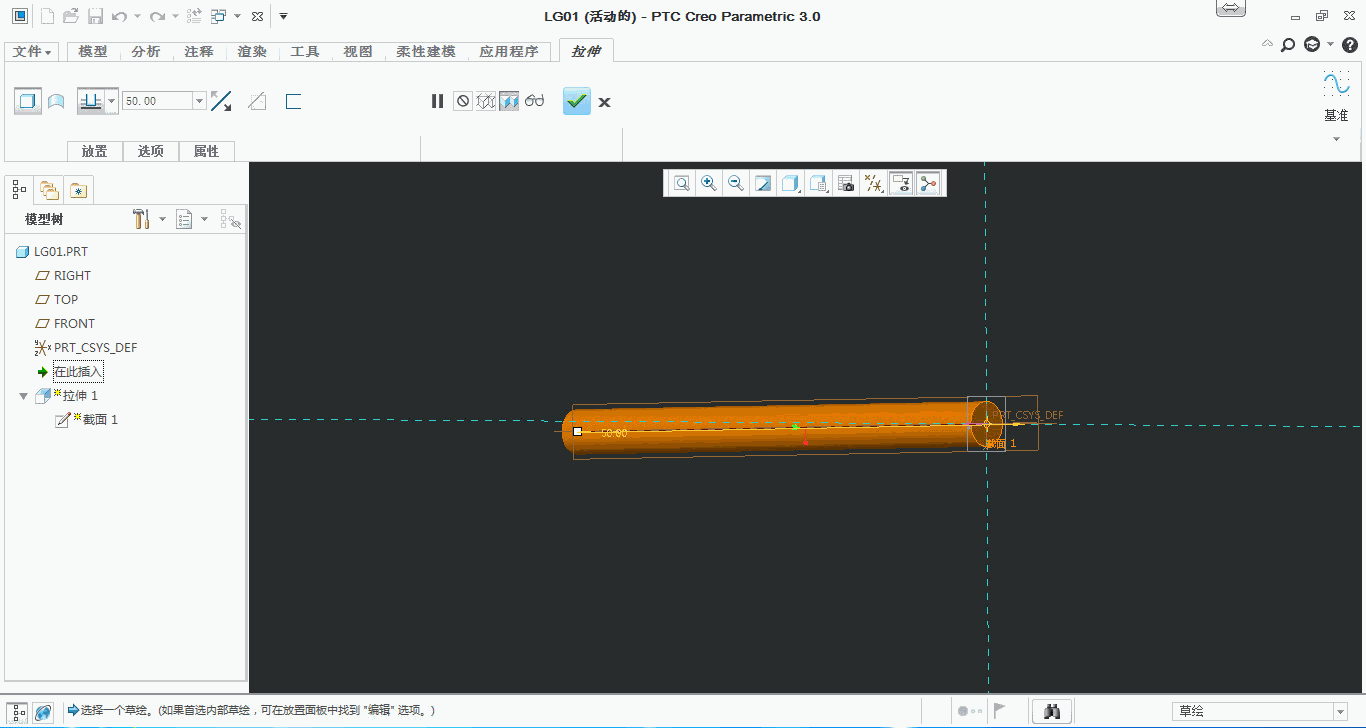

A bolt that used for fix front wheel.
800x600
A part used for fix the support of front wheel.
800x600

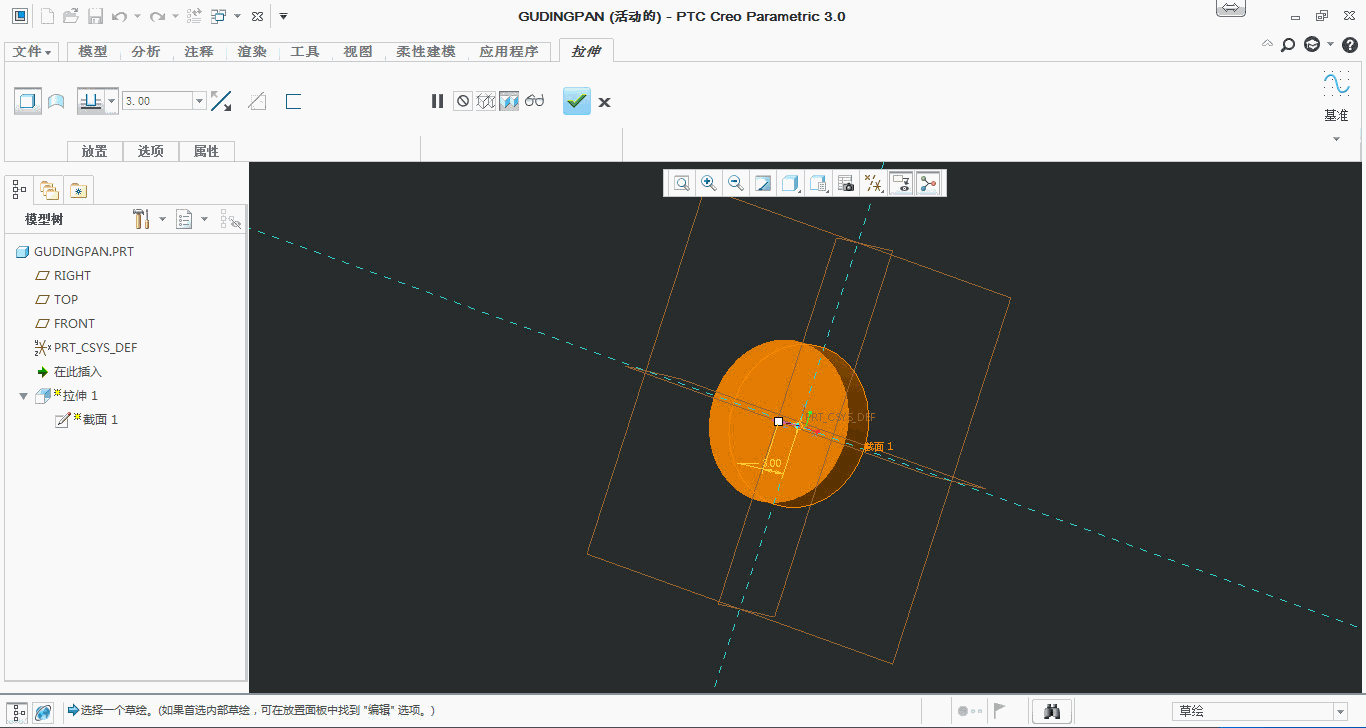

Fix plate for the front wheel.
800x600
Bolt used for fixed plate.
800x600
Screw used for adjust turning angle.
800x600
Ball sleeve pair with the screw.
800x600

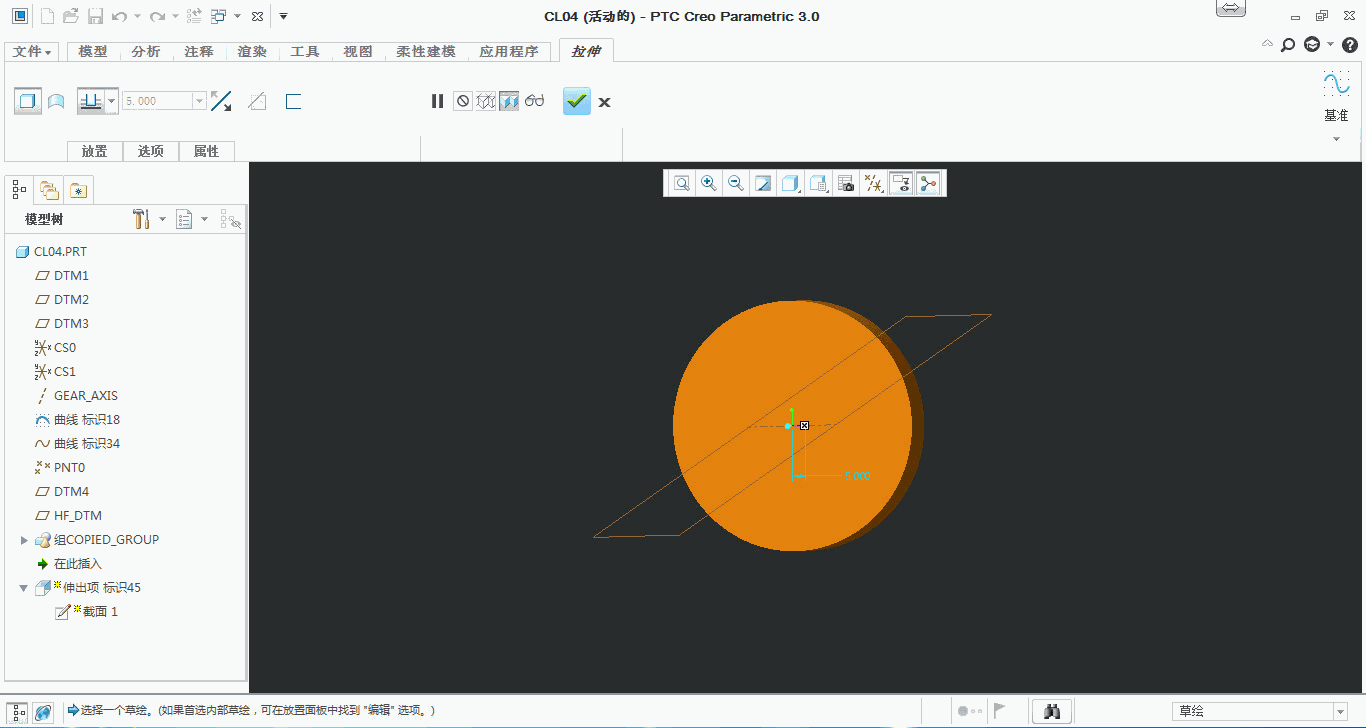

The gear that deliver power to turning wheel.
800x600
A pin fix the gear.
800x600

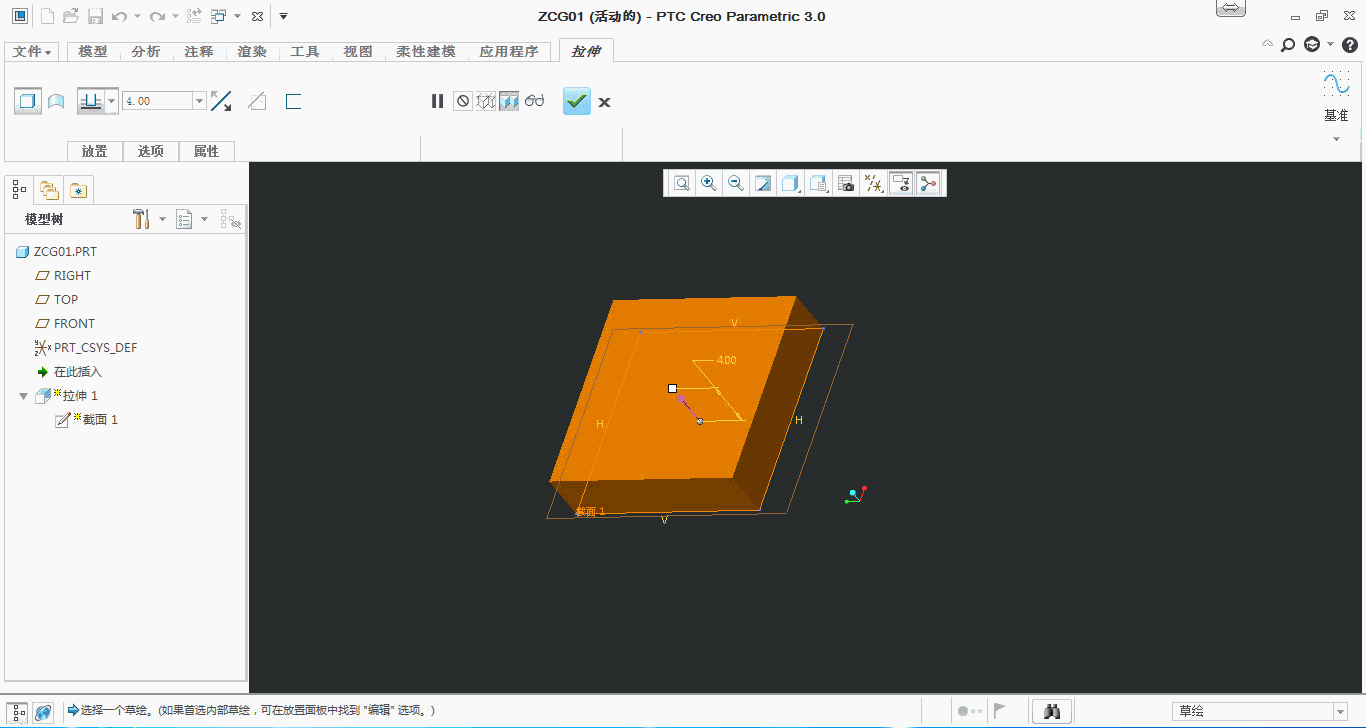

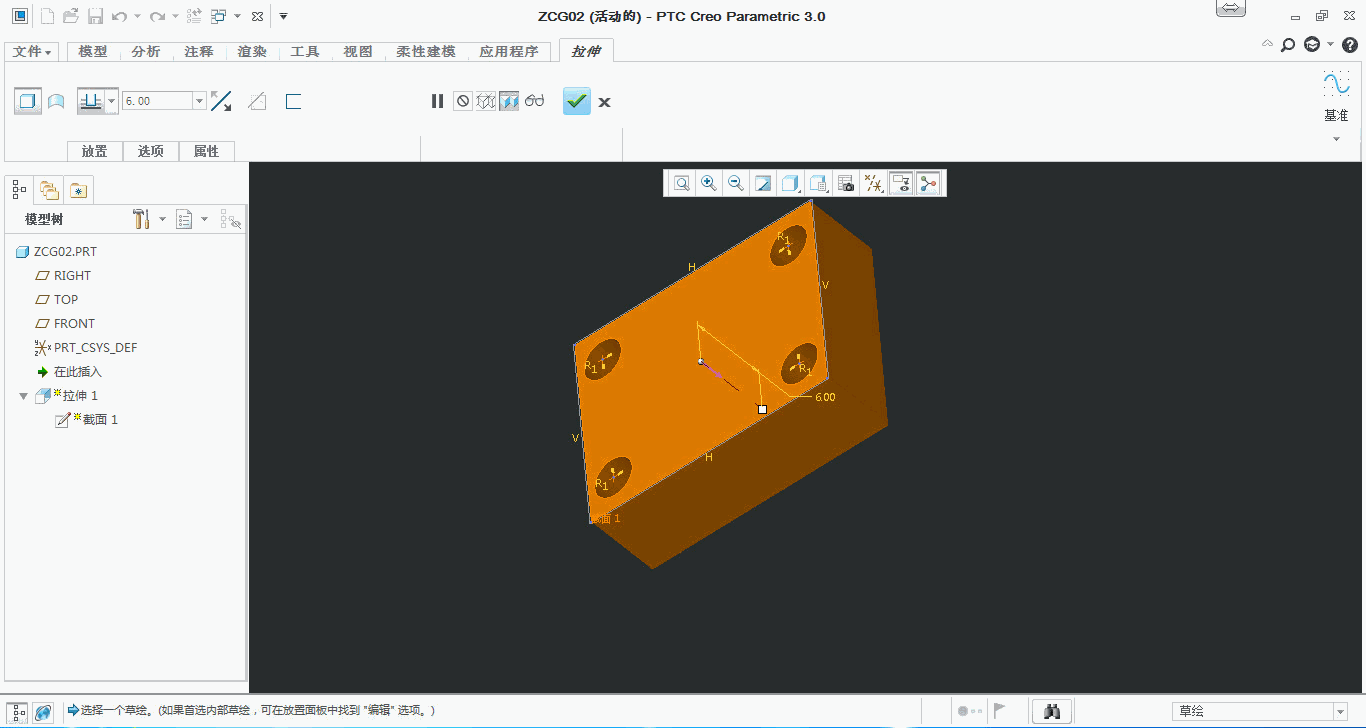

The support for gear and pin.
800x600
Screw connect the gear with ball sleeve pair.
800x600
Part A of support for intermittent gear and axis.
800x600
Part B of support for intermittent gear and axis.
800x600

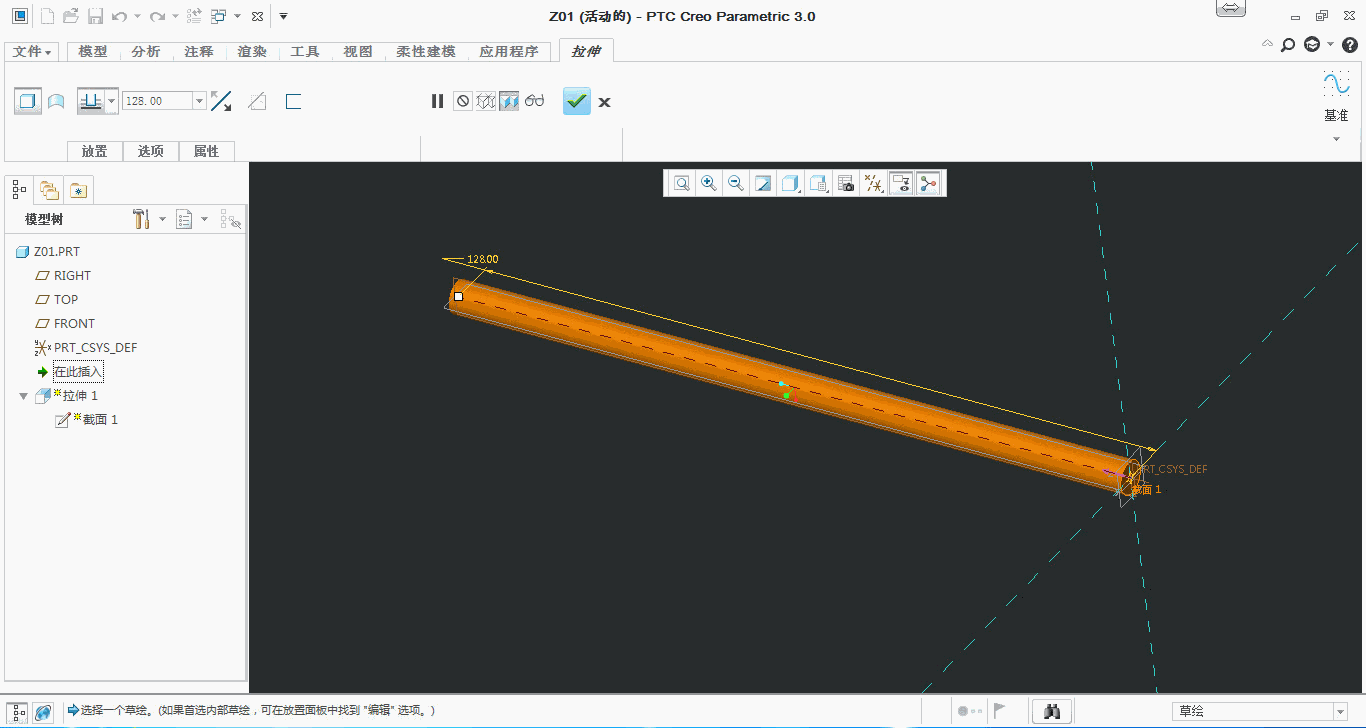

A axis was designed, intermittent gear big gear and winder are all assembled by it.
800x600

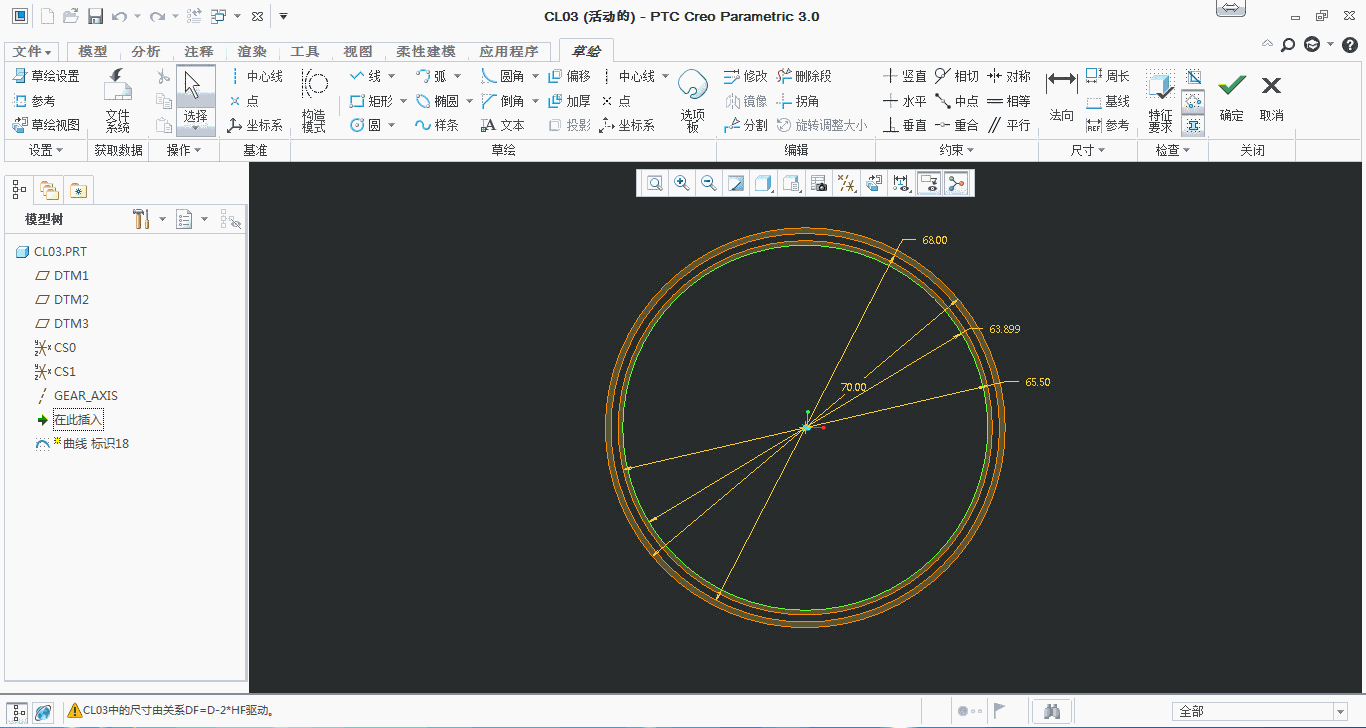

A big gear can deliver the gravity power to rear wheel.
800x600
The intermittent gear that can make the turning wheel turn.
800x600
Flange used for fixing big gear.
800x600
Winder tranfers gravity to rotational energy.
800x600

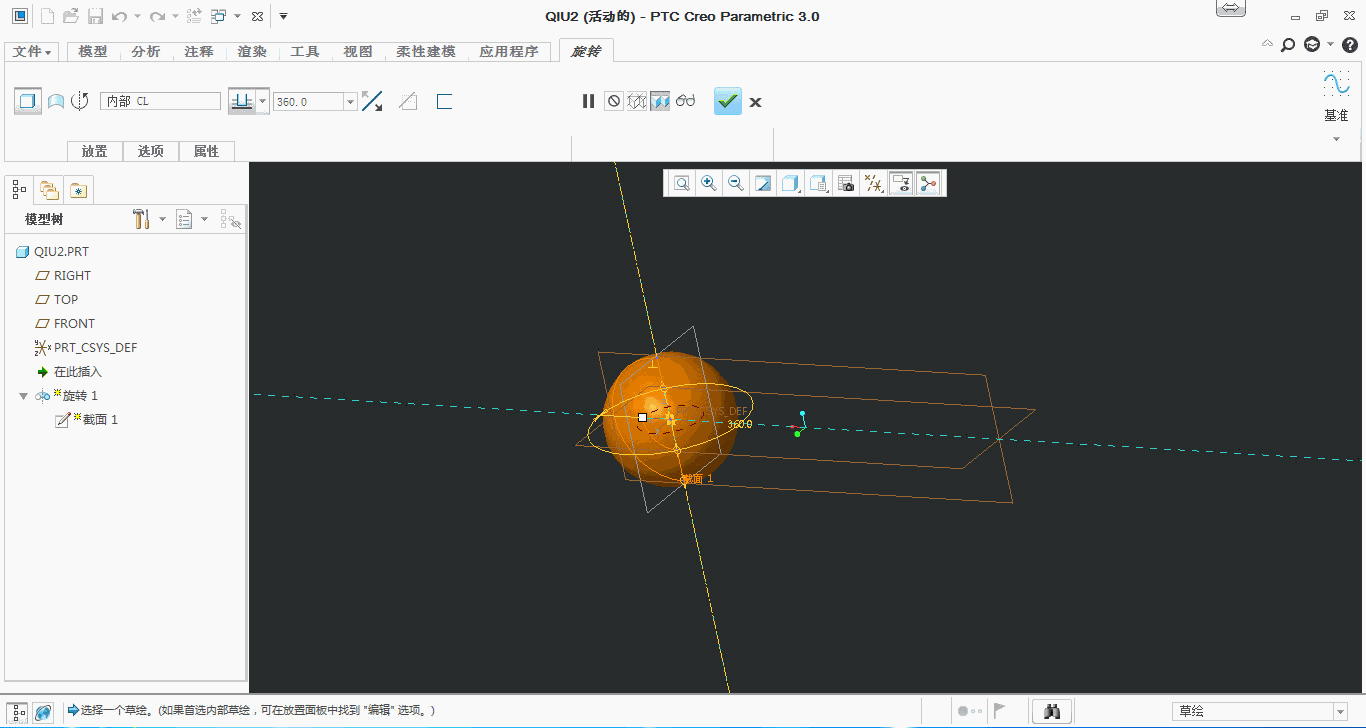

A small gear assembled on an axis which is meshed with big gear.
800x600

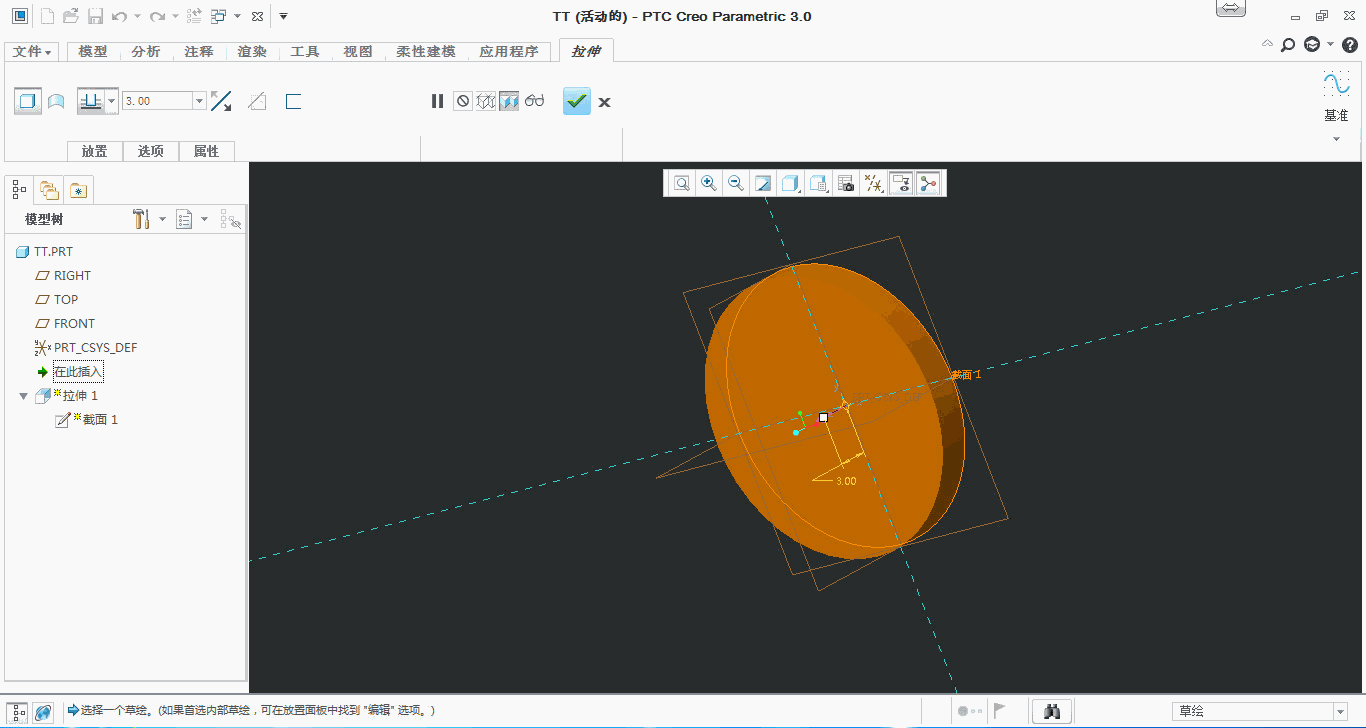

Rear wheel also the drive wheel.
800x600

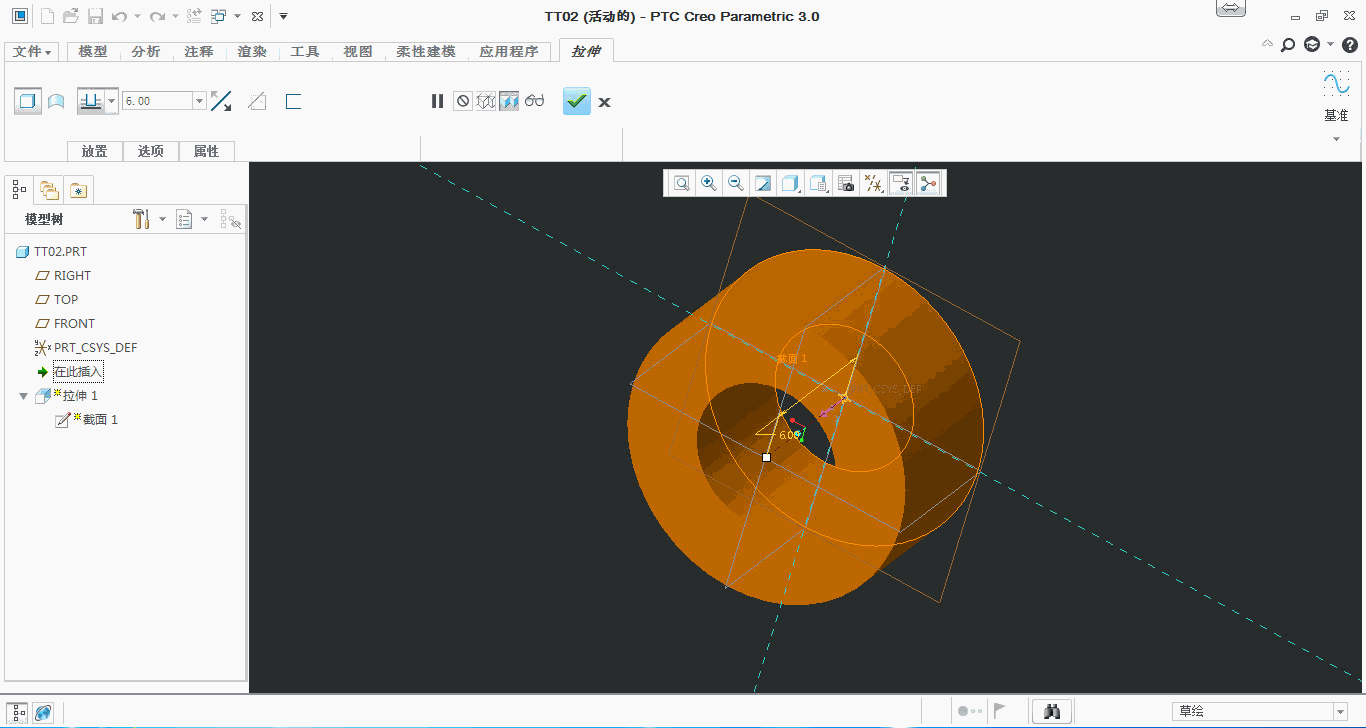

Axis sleeve used for fixing rear wheel.
800x600
A plate used for fixing pulley.
800x600
Pulley support.
800x600

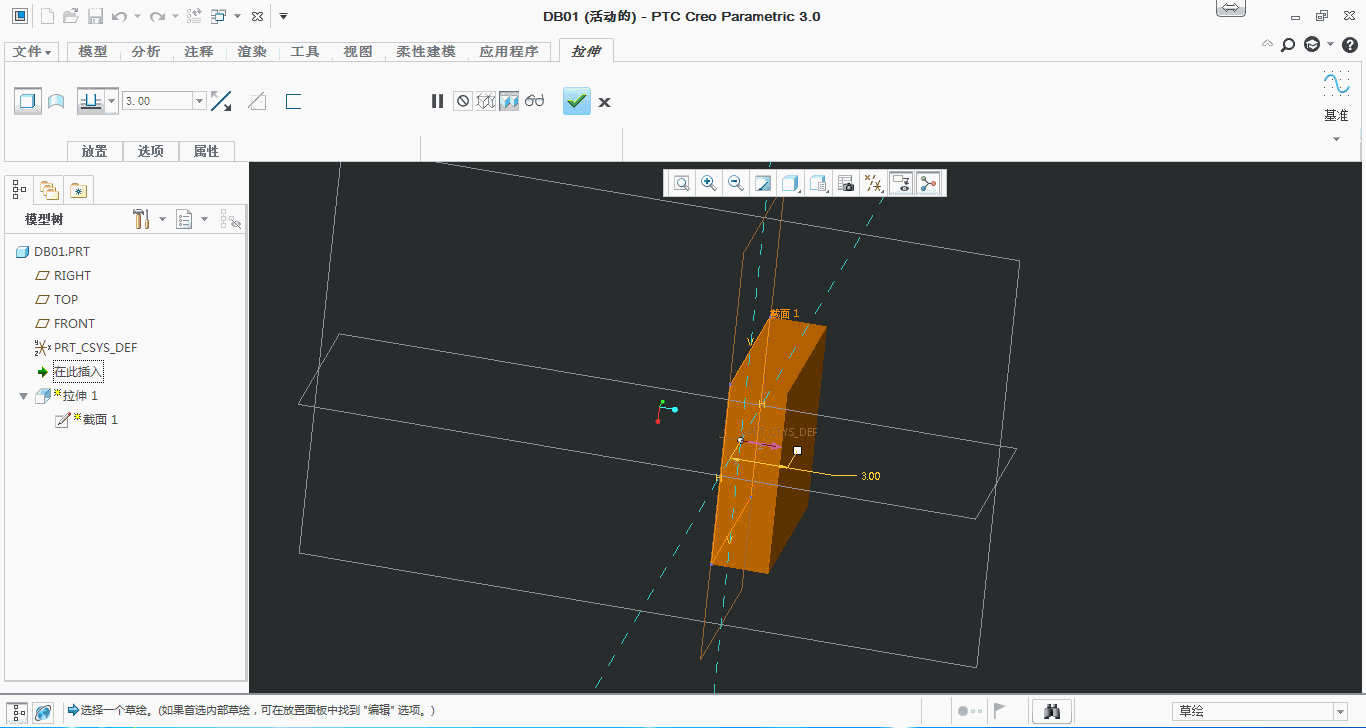

Pulley that used for hanging weight.
800x600
Three poles for hanging weight enough height.
800x600

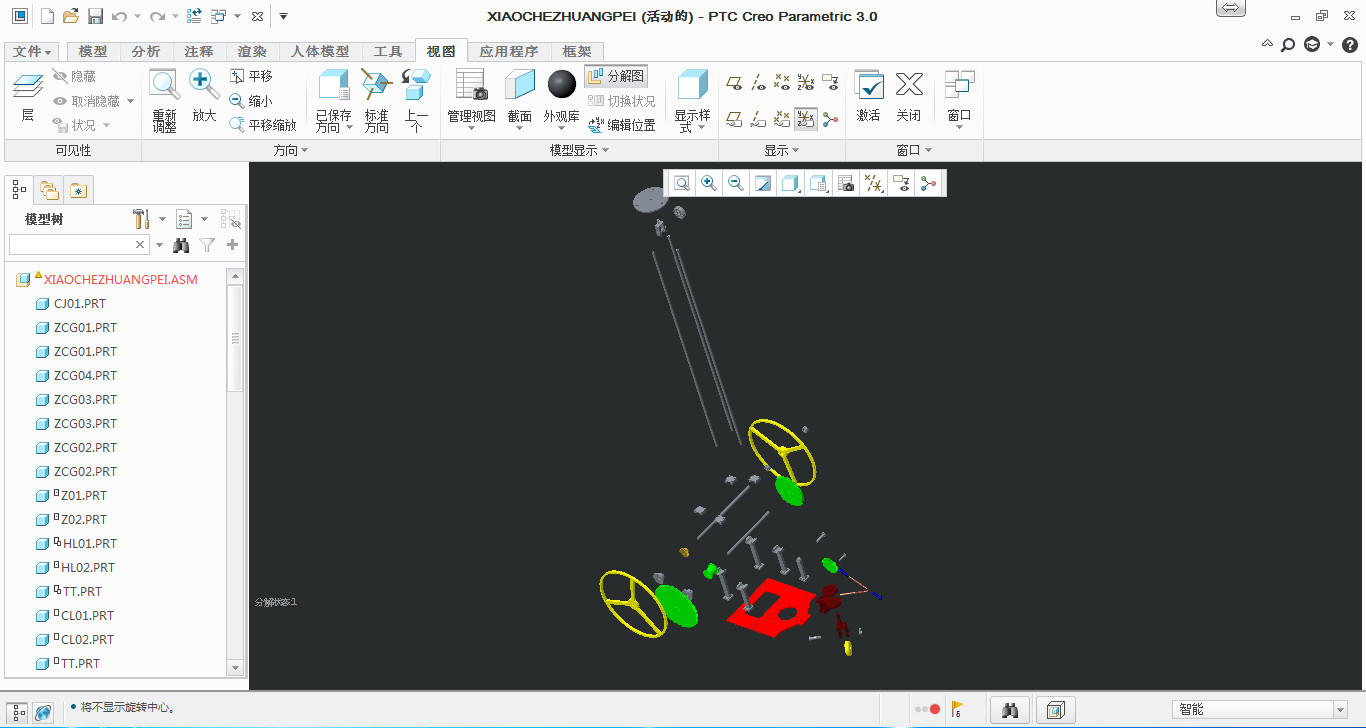

All parts were designed and assemble them.
800x600

Parts Download

I change the turning method, at first the turning was execute by a linkage. And in my final project a sona detected the descending distance and this distance conrolled a servomotor which makes the car turning. I decided to make the car by laser cutting and 3D printing. It will cost a lot time if I print all of the parts. Laser cutting can save many time, a cutting file need be designed.

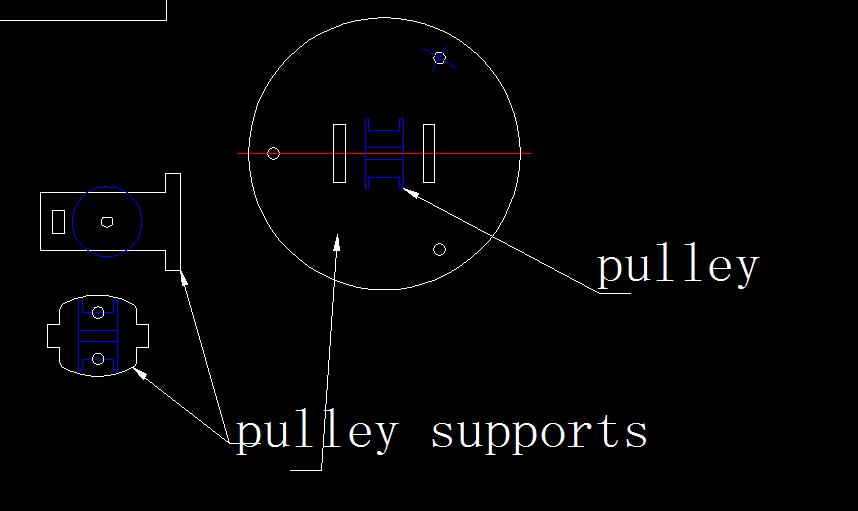

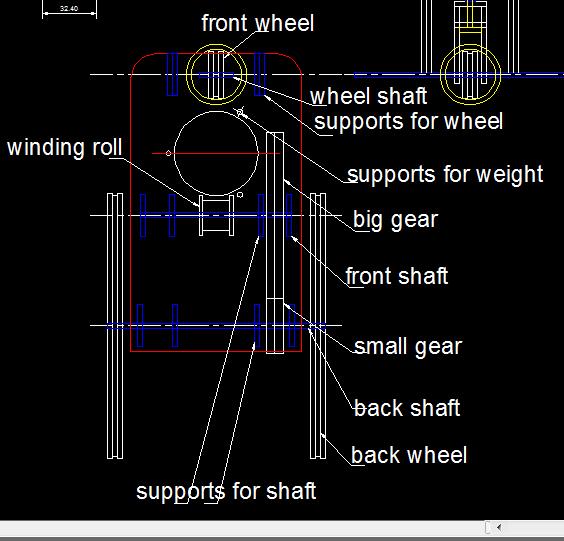

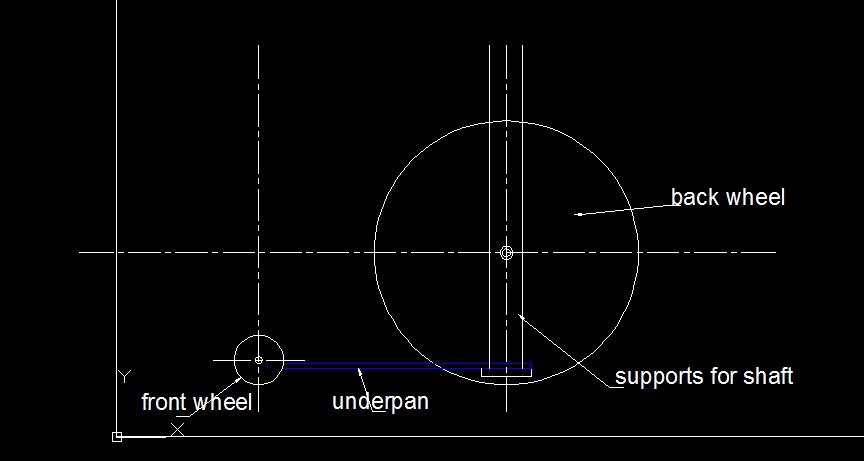

AutoCAD 2014 was used for designing the cutting file. The car arrangements was show in the picture.

800x600

Another view angle of the arrangement. When the weight falling the winding roll will rotate, the big gear rotates with the roll at the same time. The small gear will roate so the back wheels will rotate then the car moves.

800x600

Front wheel sets, servo make the wheel turning.

800x600

Pulley was used for it can decrease friction.

800x600

All the parts were designed the size and shape were showed in the picture below.

800x600 Desgin file download
