1. Making and application to see the visual in the computer with any Analog Sensor
PROCESSING

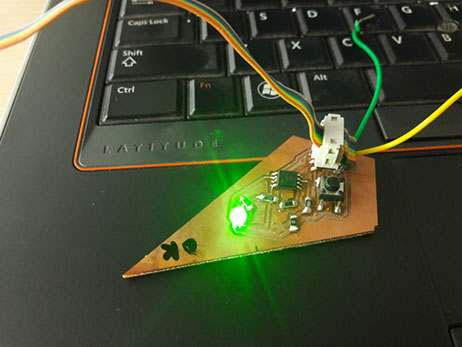

For interface and application programming, I decided to use Processing to generate a graphic from output generated to on and off the RGB led lights
on the twinkle tricks board I created

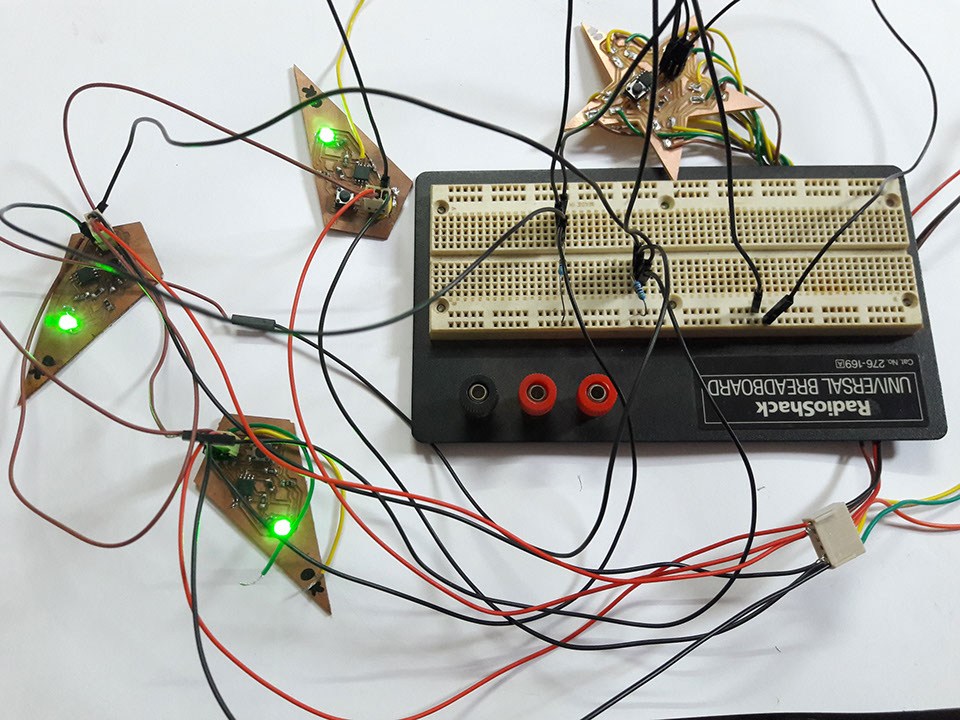

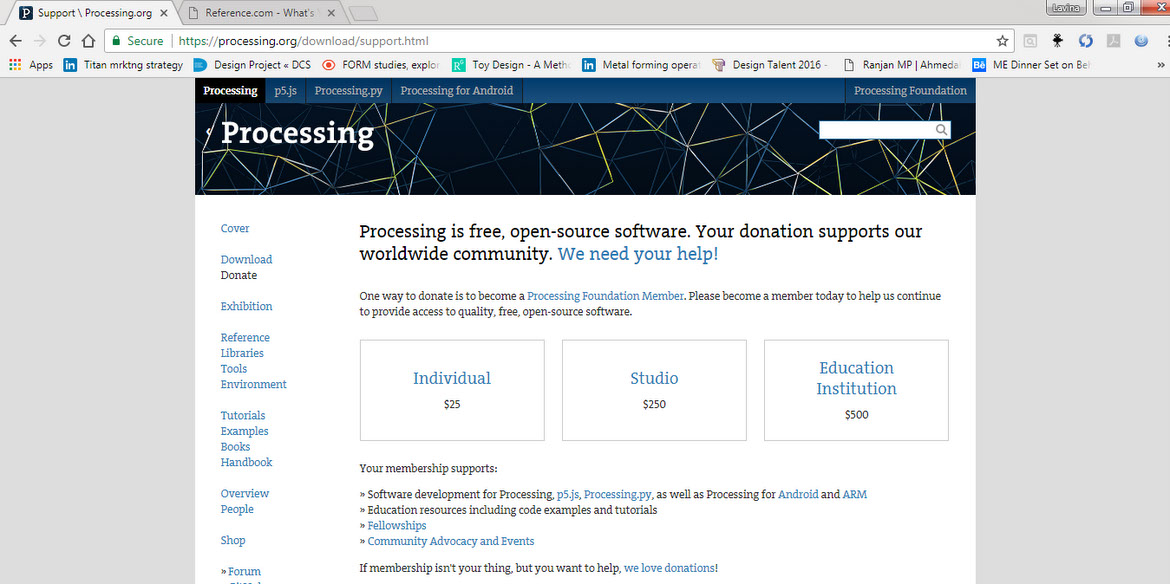

To start I downloaded Processing

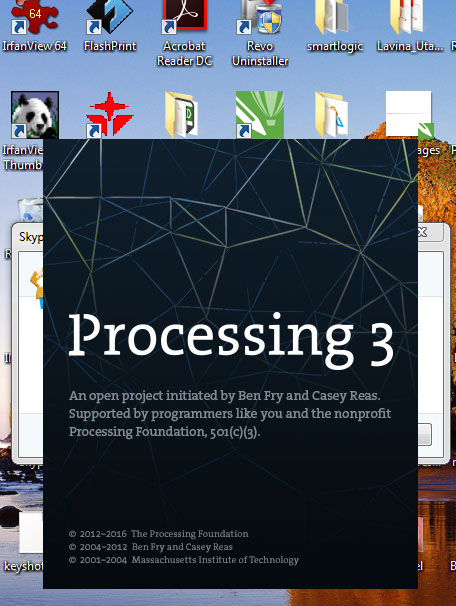

After downloading Processing I got this on the screen
I decided to write a code which will create a rectangular button on the interface which will turn ON when the curse was in the rectangle else turn Off
import processing.serial.*;
Serial port;
void setup() {
port = new Serial(this, "/dev/cu.usbmodem1421", 9600); //define the port at which the Arduino is connected
size(300, 300);
background(255);
}
void draw() {
background(255);
rect(100, 100, 50, 50);
if ( dist( mouseX, mouseY, 100, 100 ) < 25 ) {
port.write('1');
fill( 0, 255, 0 );
text("ON", 10, 30);
} else {
port.write('0');
fill( 255, 0, 0 );
text("OFF", 10, 30);
}
delay(100);
}
Ardiuno Code
int state;
void setup() {
pinMode(13, OUTPUT);
Serial.begin(9600);
}
void loop() {
if (Serial.available() > 0) {
state = Serial.read();
if (state == '1') {
digitalWrite(13, HIGH);
}
if (state == '0') {
digitalWrite(13, LOW);
}
}
delay(50);
}
