Week02: computer-aided design
Assignment
- model (raster, vector, 2D, 3D, render, animate, simulate, ...) a possible final project, and post it on your class page
raster
This is my first time to use "Gimp". Gimp is really like Photoshop.

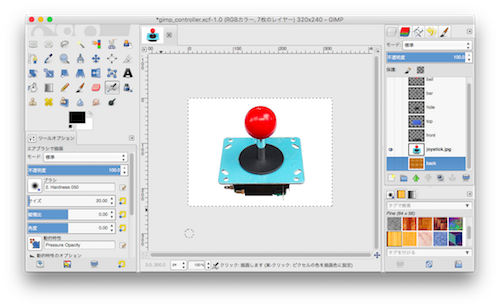

Import photo of joystick.
Use guide line function.

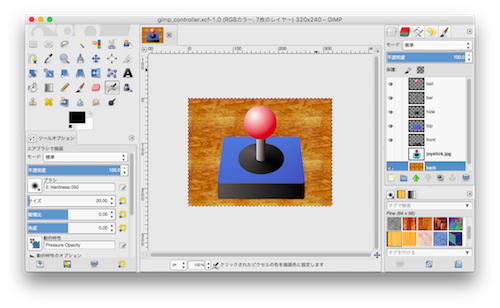

Use path to make the base box and Draw circles.
download .xcf
vector and 2D

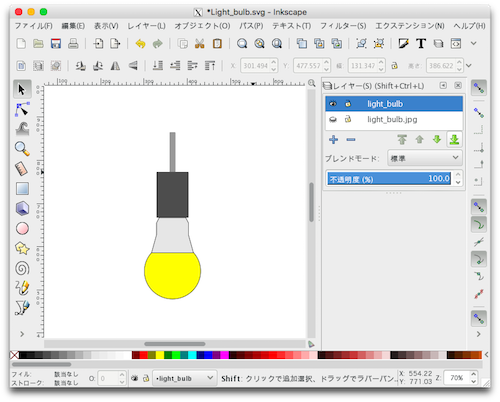

Sometimes I use Inkscape.
The way to draw is almost same as Gimp's.

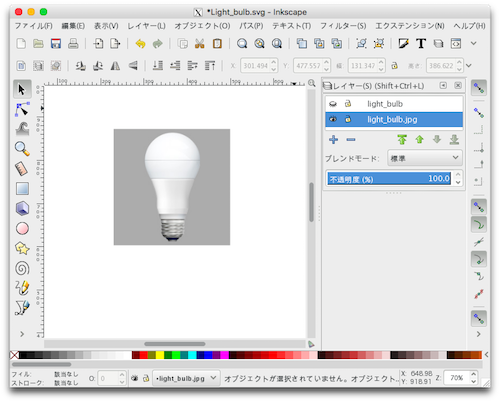

Import photo first on base layer
Use guide line function.

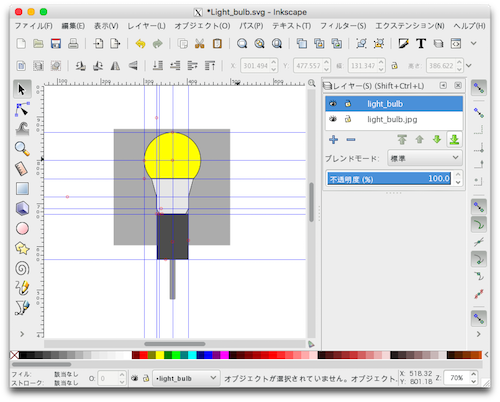

Draw circle and path to make each part of shape on another layer.
Rotate the objects
download .svg
3D and render
I normally use Fusion360 for 3D modeling.
To make 3D model, I imported SVG file from Inkscape I made.

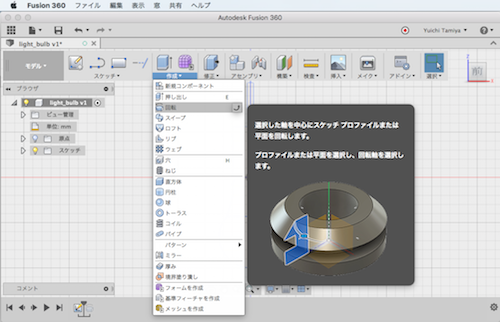

Use revolve function to make 3D
Selecting profiles and axis
3D model made

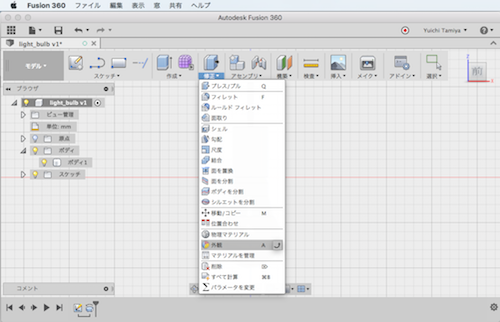

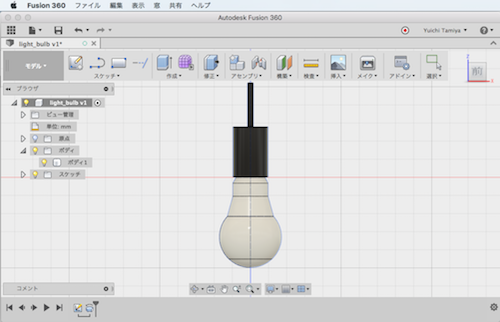

Change appearance

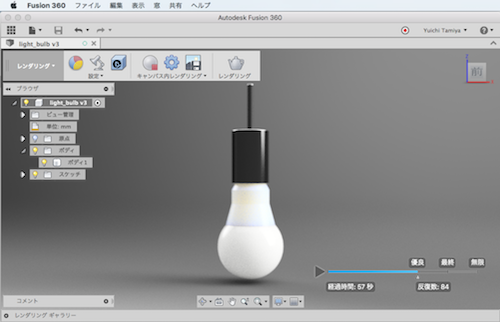

Render light bulb
download .f3d
I tried some software.
parametric design
FreeCAD
Sphere's radius and position(x,y,z), Box's width and height are all related to Box's length.
download .FCStd

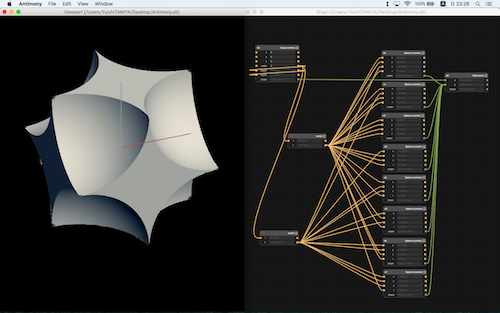

Antimony
Sphere's radius and position(x,y,z), Cube's width and height are all related to Cube's width.
download .sb
