Vinyl Cutting
I used Rhino to create the graphics for vinyl cutting
Select the graphics and go to File > Export selected and choose the file type as "AI"

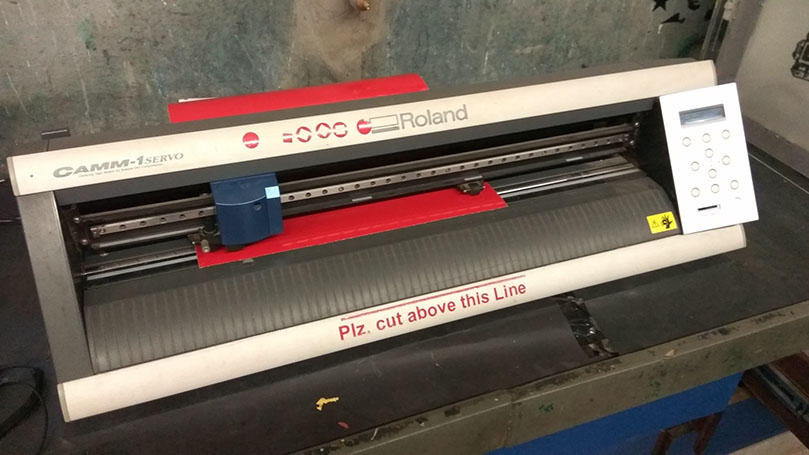

CutStudio was used to transfer the files to Roland CAMM-1 servo.
Here are few images showing the above described process on the machine

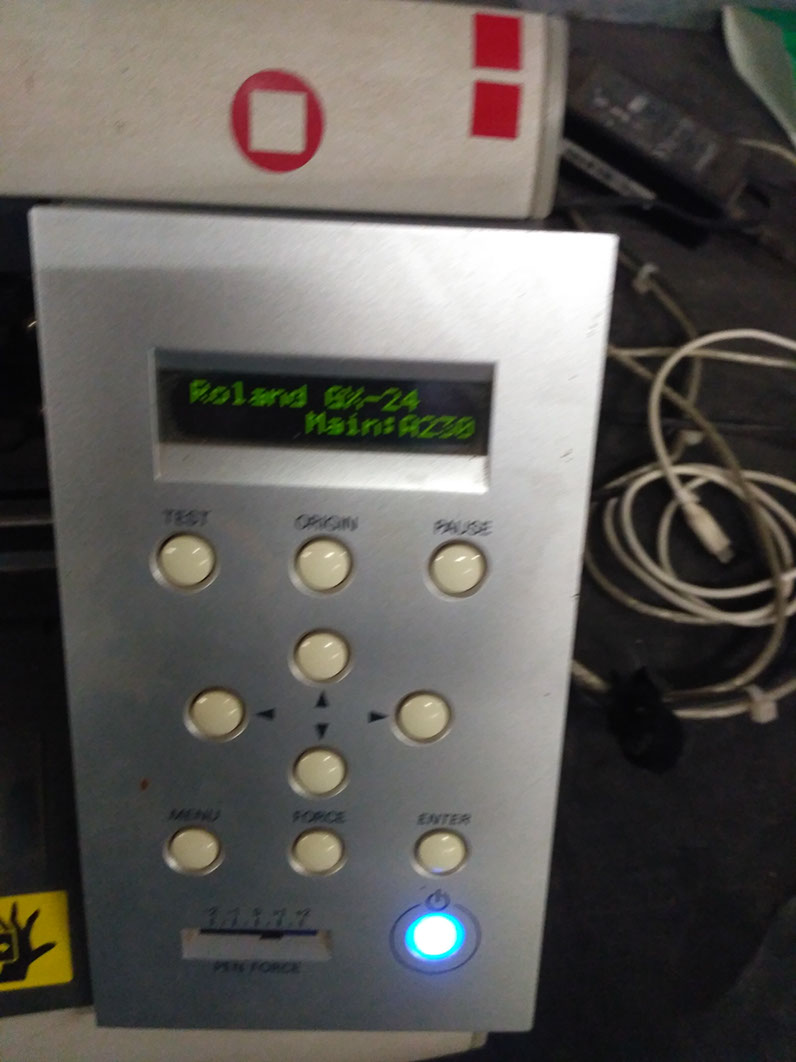

This is how the display on the machine looks like when you turn on the power.

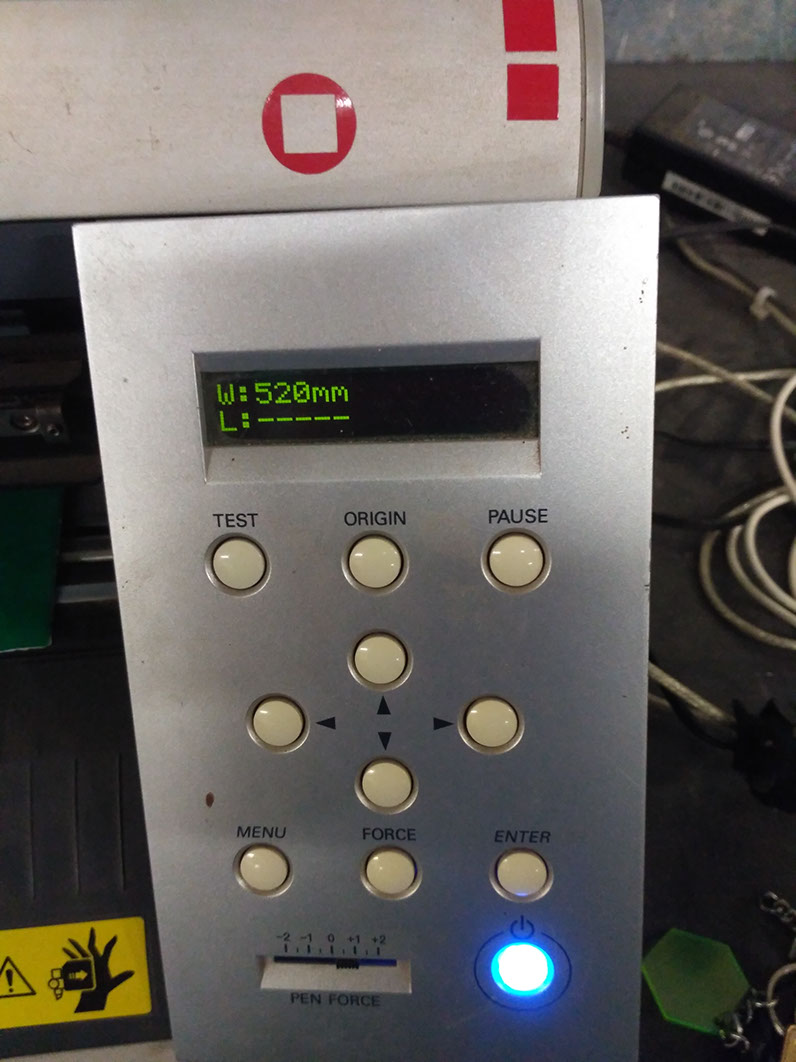

Once the sheet is inserted, you can see the measurement of th ewidth of the sheet on the display.

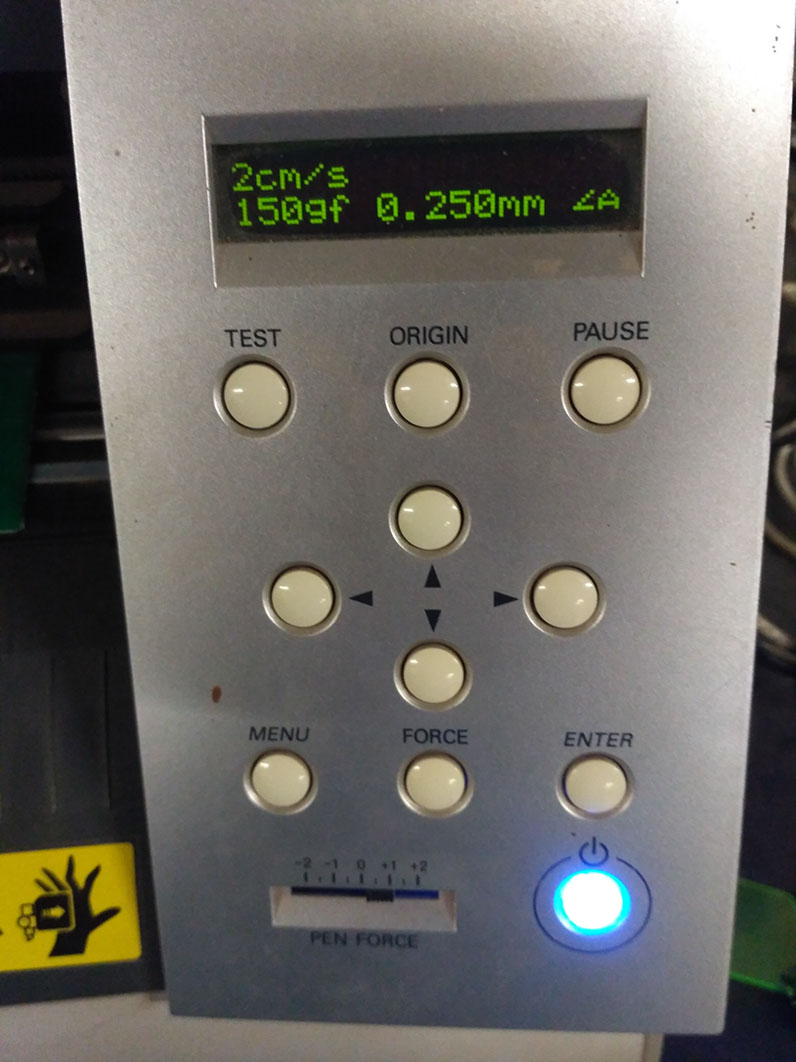

It also shows thickness.

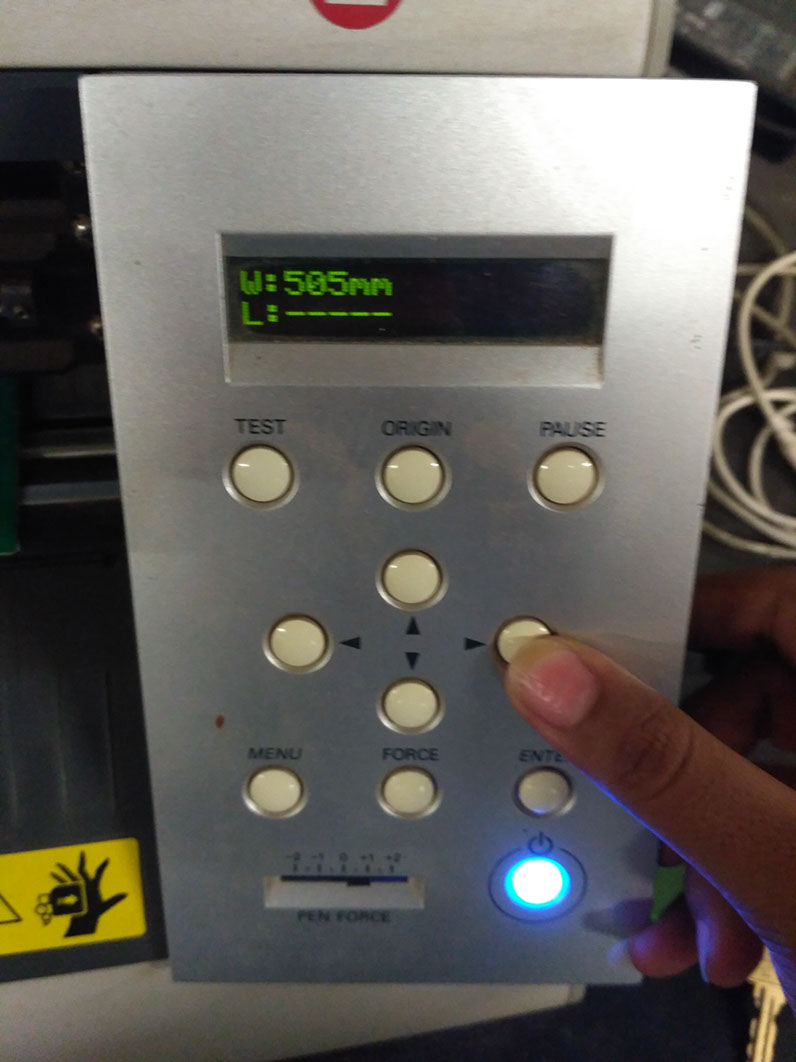

You can use the arrows to move the needle to set the origin. Press the origin button once you are done.
4 - 4
<
>
Once the cutting was done, the sticker is separated and pasted carefully on the sieve. And the tshirt is printed by applying colour .
Design files can be found here.
