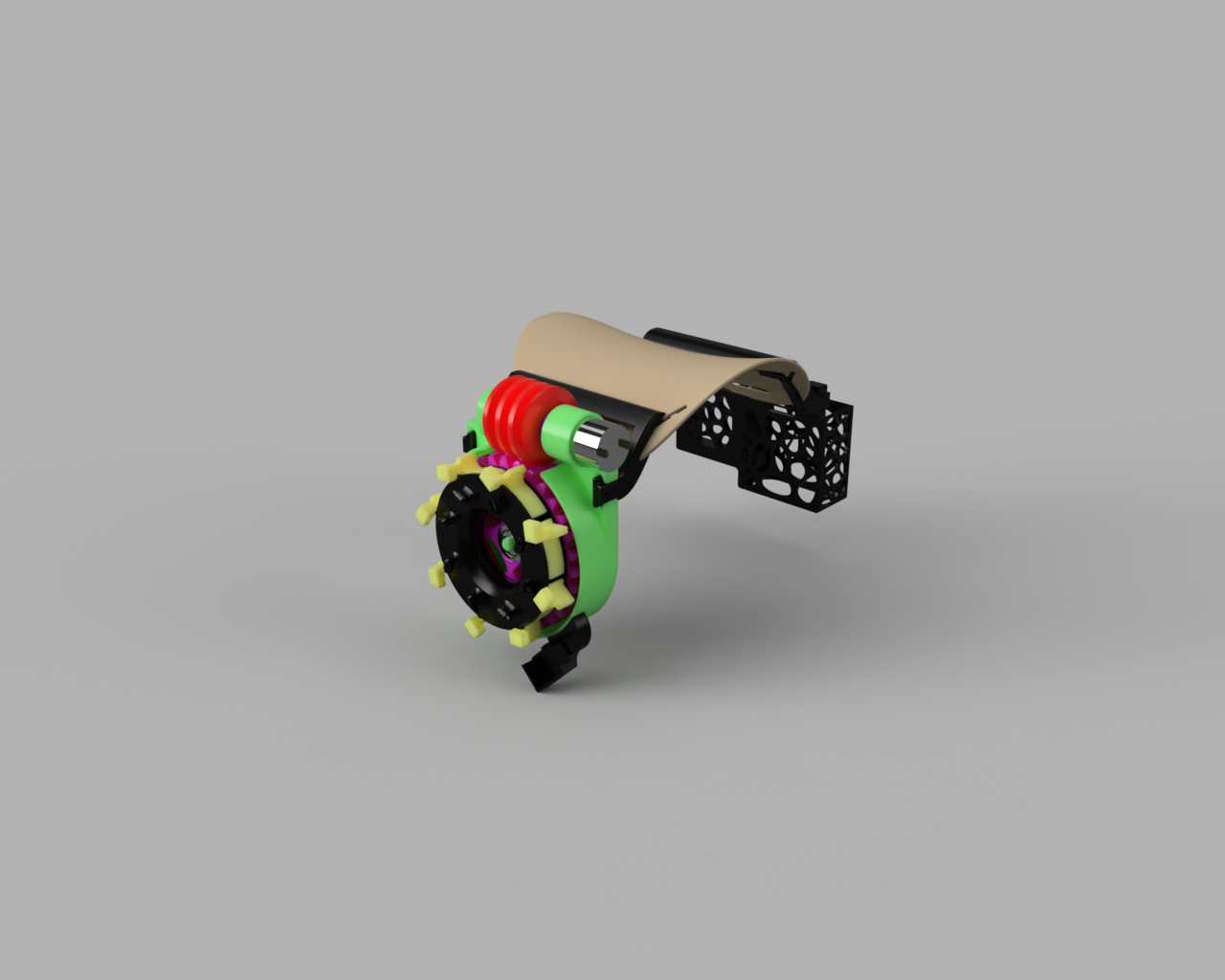

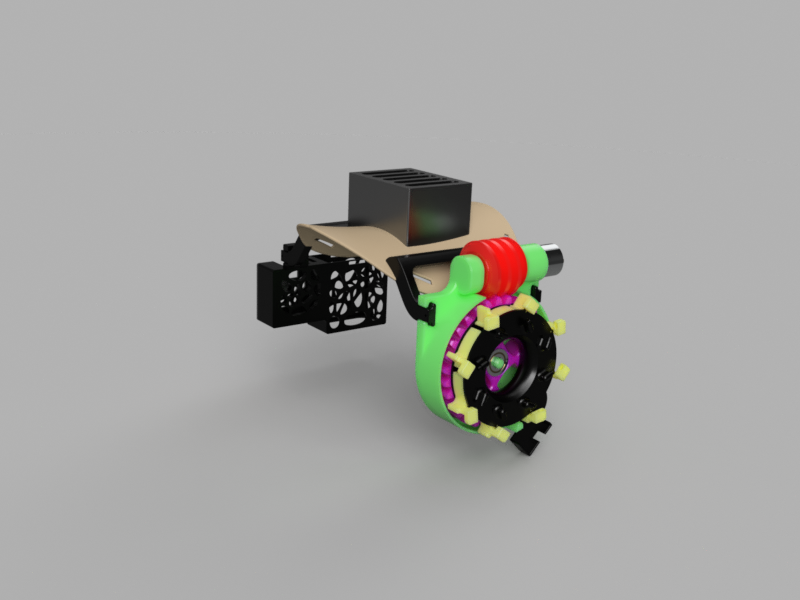

Assemble the remote feeder fitting

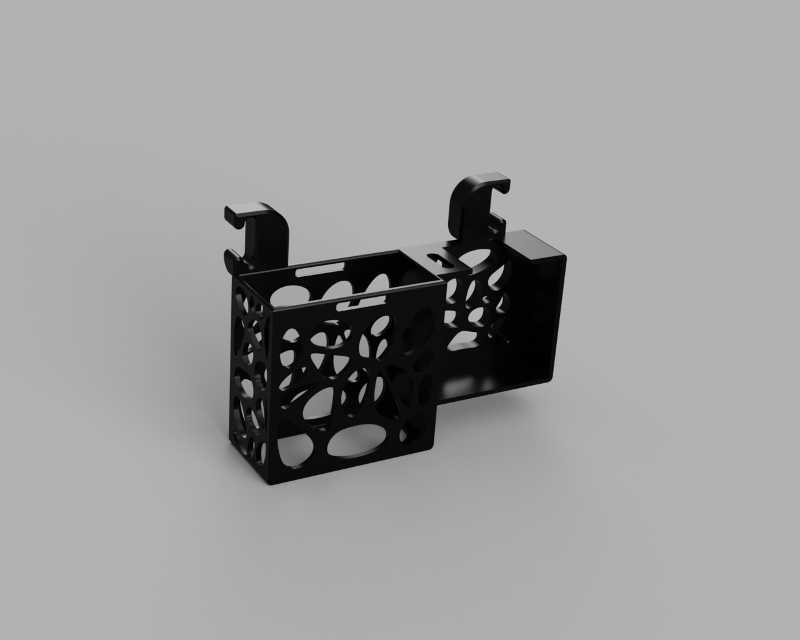

With the counterpart of the mechanic ready designed and printed it is time to assemble everything together to get the final product. But first take a look at the casing for the electronic. I designed a custom case for the battery and the motor driver electronic. I added a fancy voronoi pattern to save some material and weight.

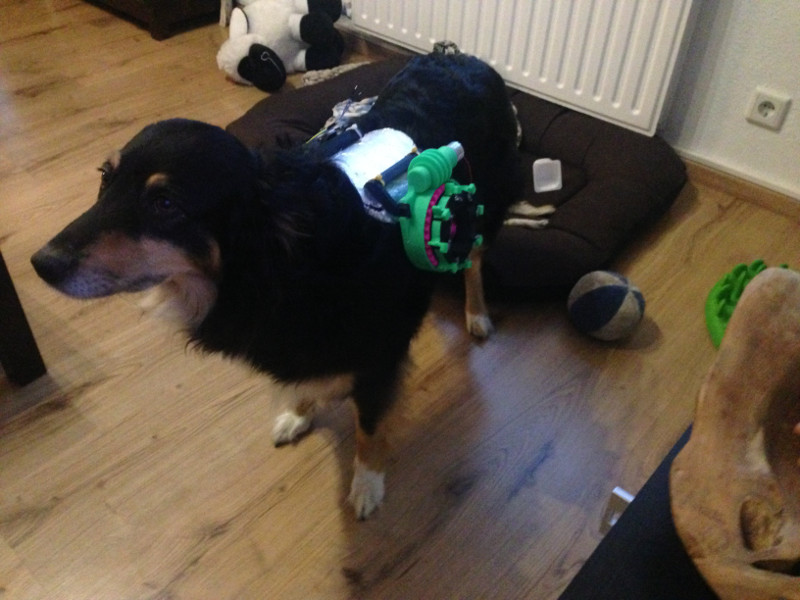

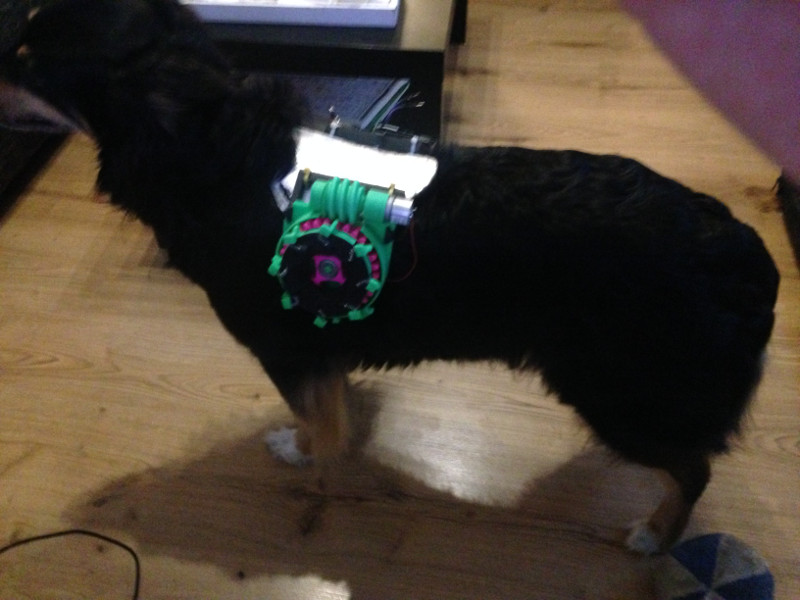

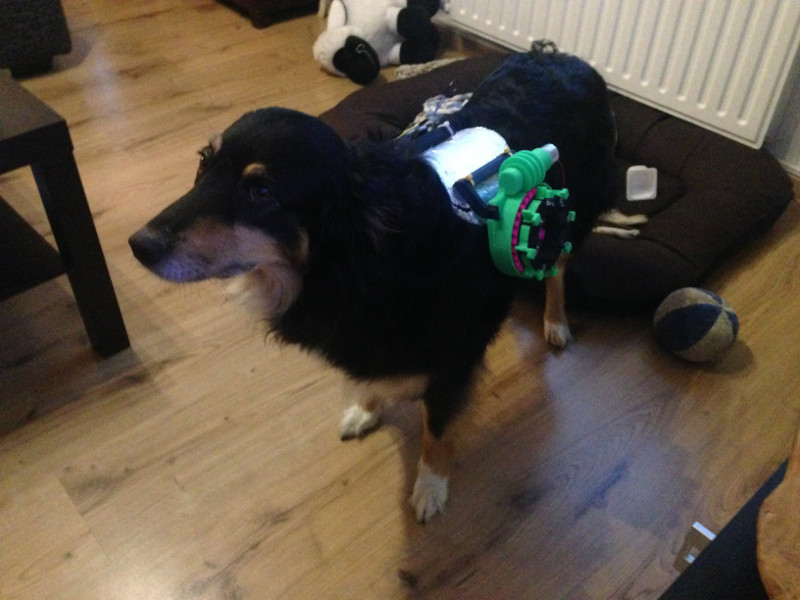

With this electronic case as counterweight to the feeder and the composite saddle I crafted the final holster. My dog had to be my model to se if everything is fitting as expected. It was good to create the battery holder on the other side of the saddle because so is everything in balance.

here you can download the cases I developed for the electronic and battery pack. Also the main PCB case on the back of the saddle.

Download section build yourself

Electronic case (stl)	download
Electronic case flap (stl)	download
L298N case flap (stl)	download
Battery pack L298N holder (stl)	download
Combined download (stl)	download
