Assignment: Add an output device to a microcontroller board you've designedand programme it to do something
I reused the same Satshakit as the one from the Input Devices assignment, and probably I will also use the Satshakit in my final project.
wire connections: 28BYJ-48 Stepper Motor to ULN2003 driver; ULN2003 driver to Satshakit; Power and Serial provided by FTDI cable |
here is the programit simply pushes the number of steps to the motor via serial |
schema of the ULN2003 driver |
photo of the ULN2003 driver |
In order to improve my knowledge in output devices, I decided to redo the Niel's RGB led board. All outputs files and programs are above in the summary table at the top of the page.
Here is the Neil's original RGB led board. See the related .png and .rml files in the ouputs at the top of the page. |

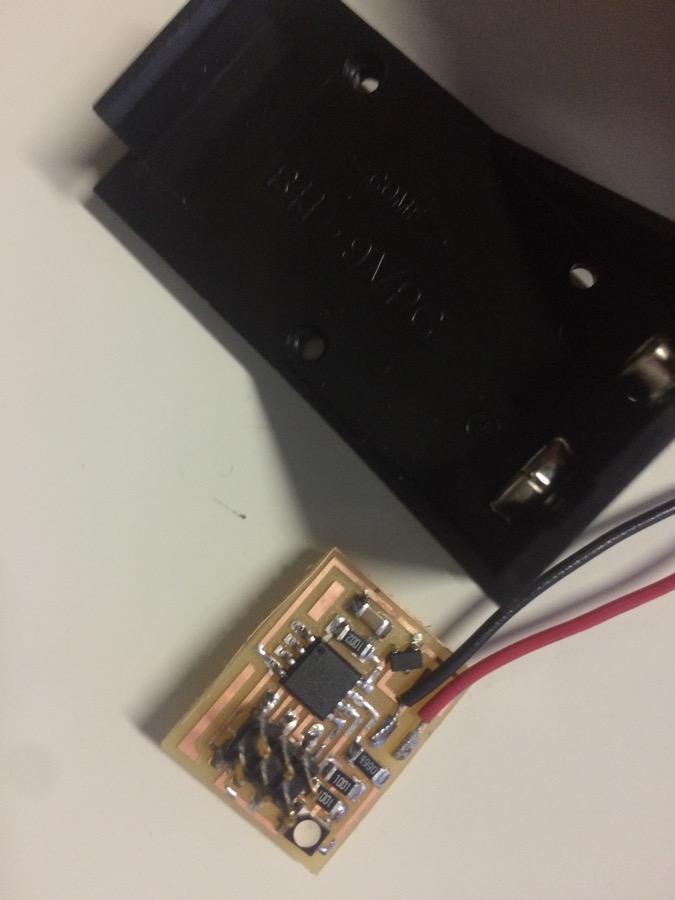

Here are my boards, after milling and solderingNotice the strange positionning of the LDO, it is because I didn't have the correct model, so I put it like this in order to respect pins gnd/VCCin/VCCout |
Burning the board with my FabISP |

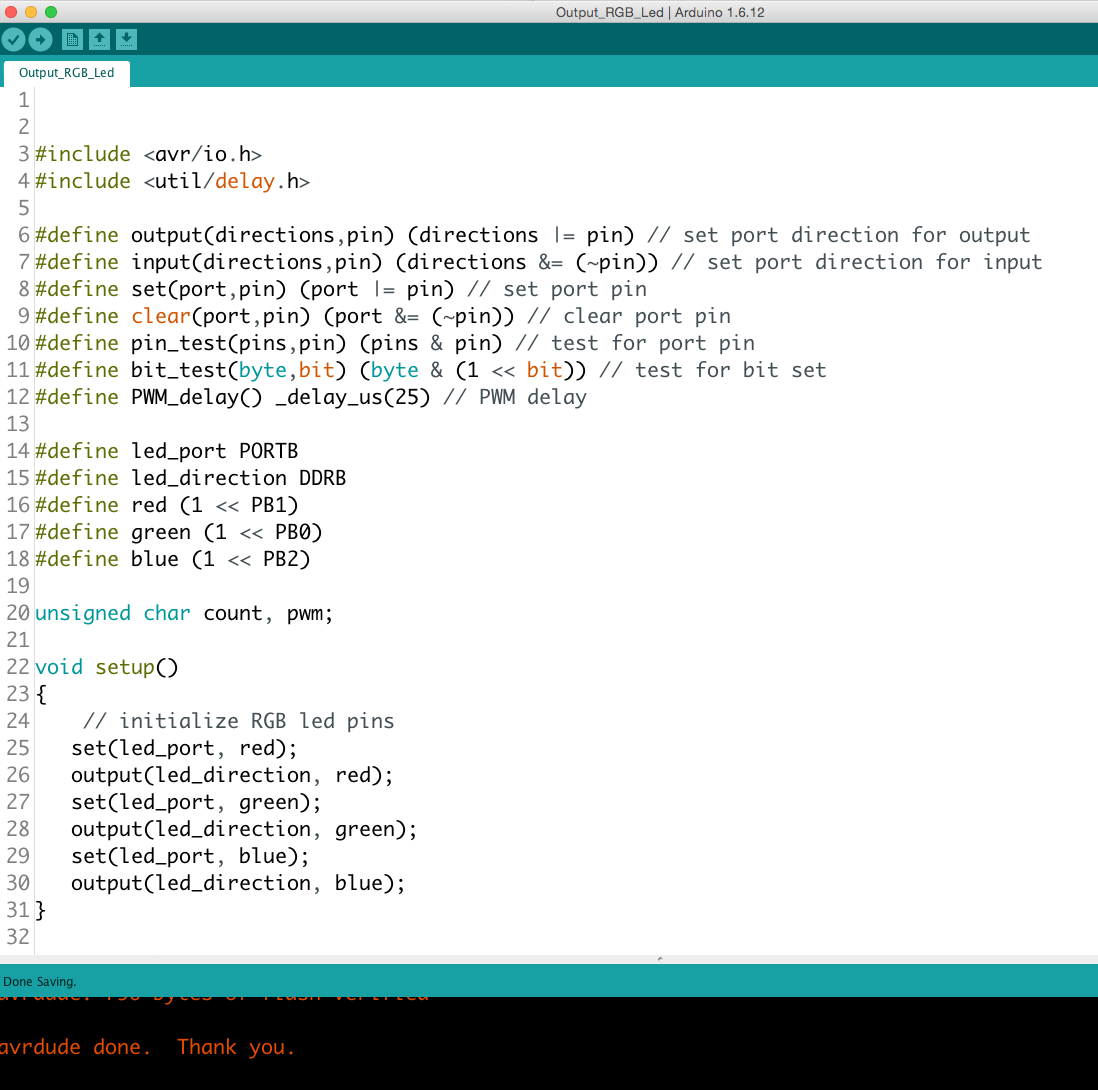

Programming the boardUsing same library "avr/io" than for Embedding Programming and Input DevicesAlso using library "util/delay" to manage PWM |
Programm pushed via FabISPand powered by FabISP
And now powered by external Battery (9V) via the 5V LDO integrated on the board
