Assignment: Design a 3D mould, machine it, and cast parts from it.
I decided to mold a small hull of boatusing the small CNC (Roland monoFab SRM-20)

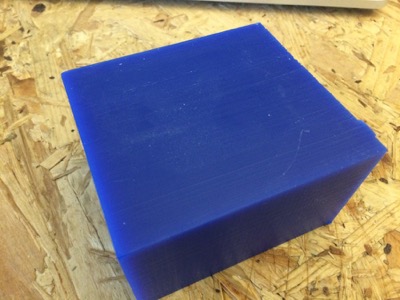

Here is the Machinable Wax piecein which I will do my mold |

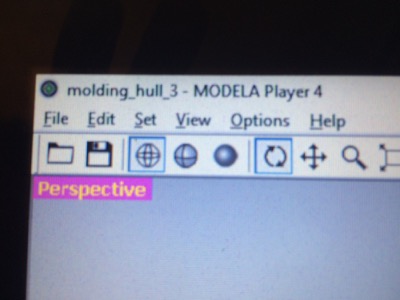

Using the software Modela Player 4coming with the Roland monoFab |

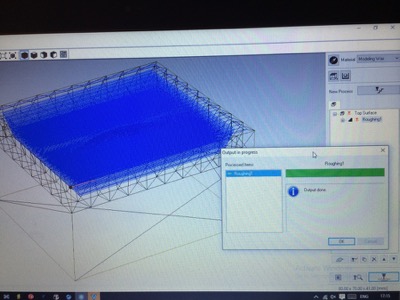

Compiling the Roughing jobwhich is the first milling job |
Here is the previewand the positioning of X/Y Zero and Z Zero |

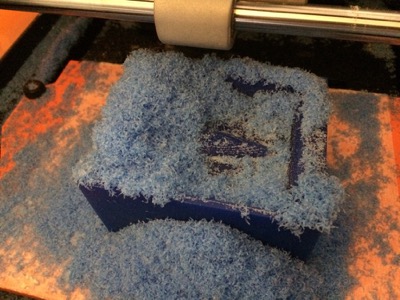

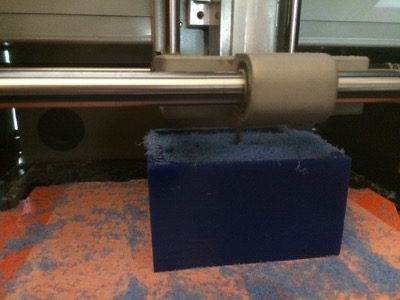

Milling in progressusing a 4mm Square milling bit |
Milling finished |

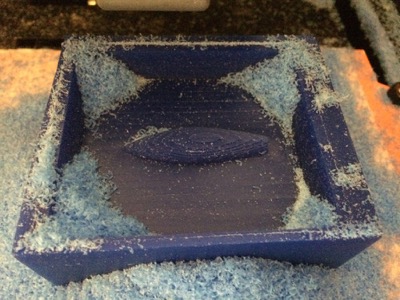

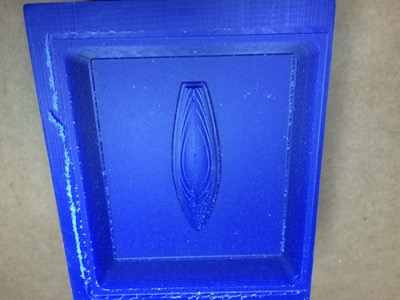

Here is the result of Roughing |

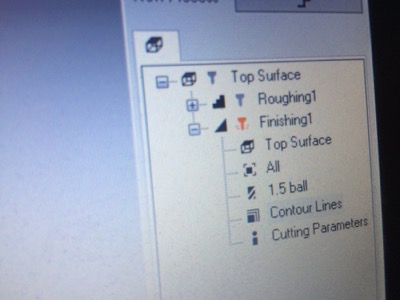

Configuring the Finishingusing a 1,5mm Ball milling bit |

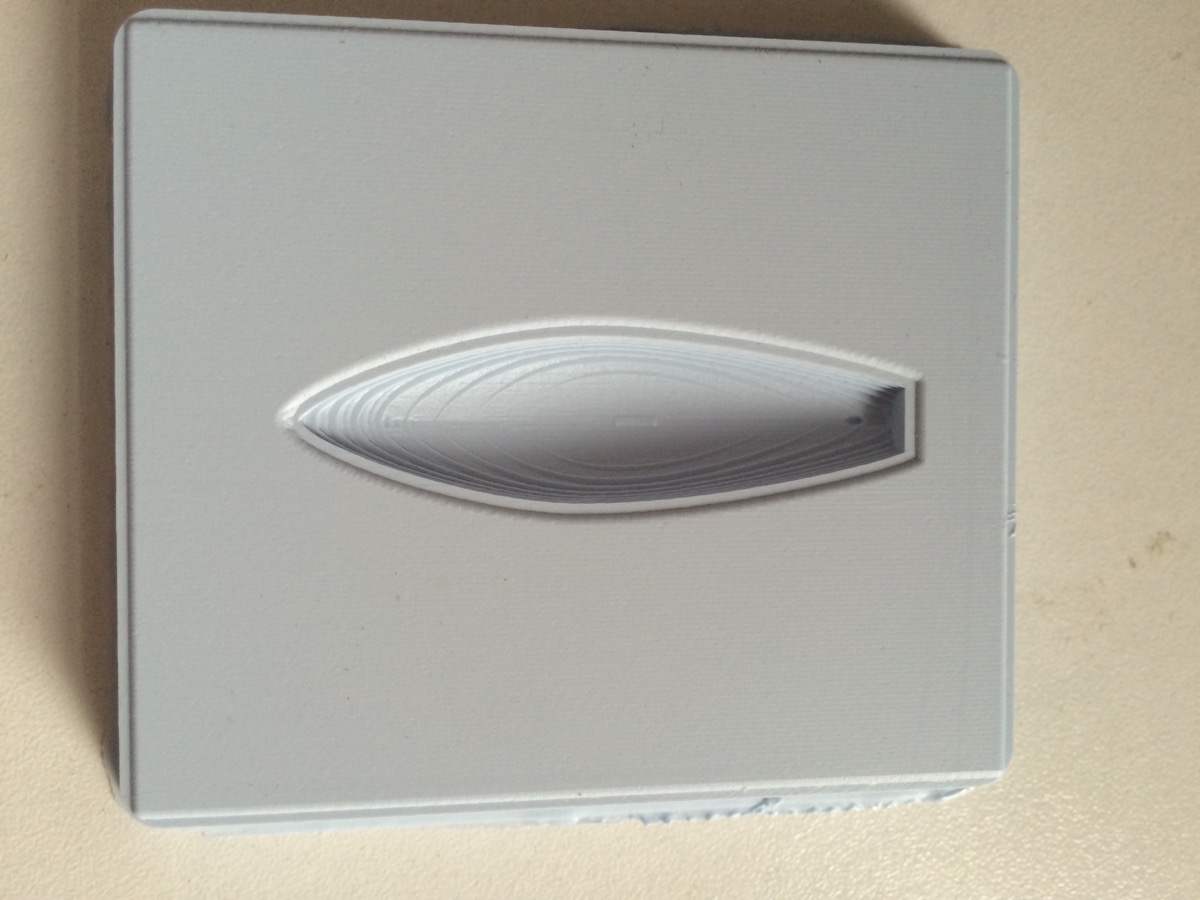

And here is final resultgreat machin this Roland! |
|
Doing the mold with Silicon Rubber RTV/HE (same as used previously for the recast job, see extra below)

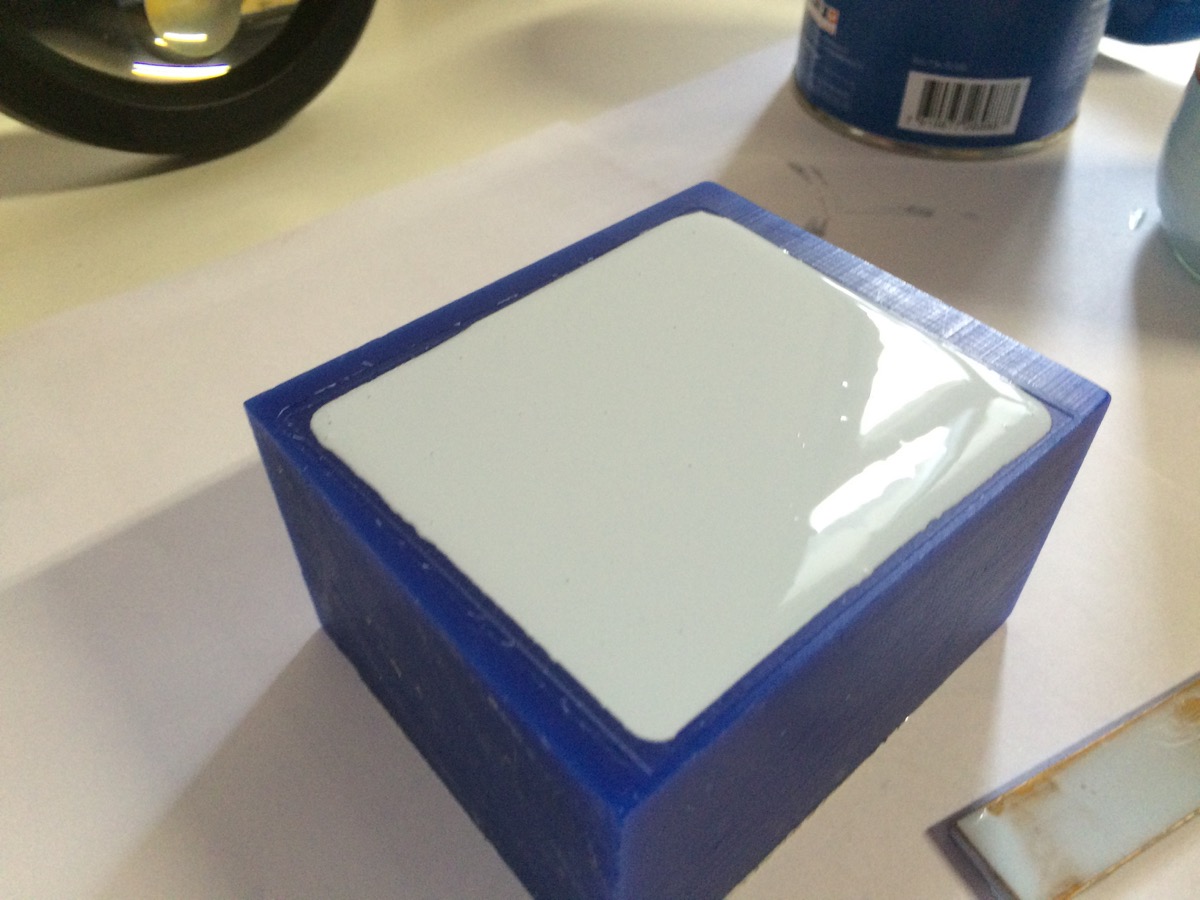

Silicon Rubber in placewaiting for 1 day to harden |
Here is the mold in Silicon Rubber |
Casting of the hull done, waiting ... |

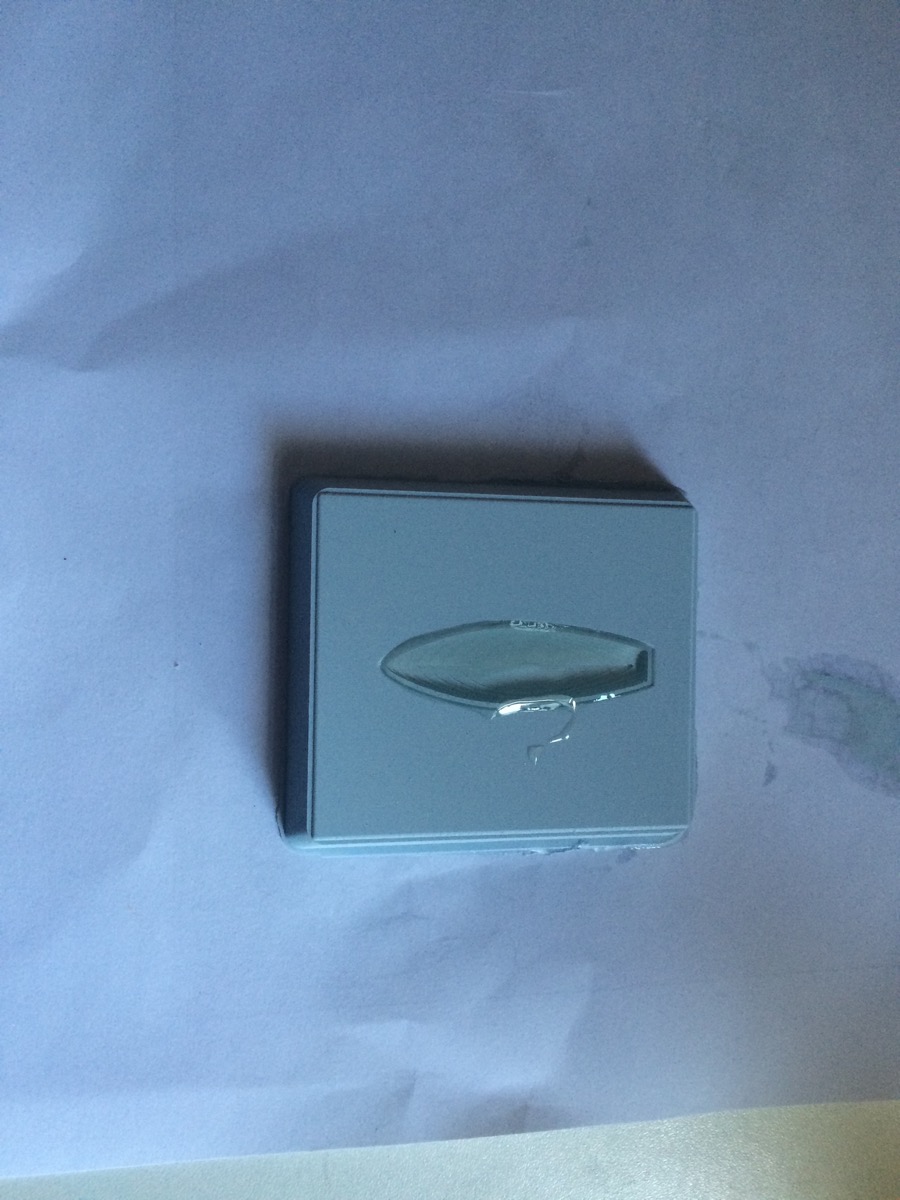

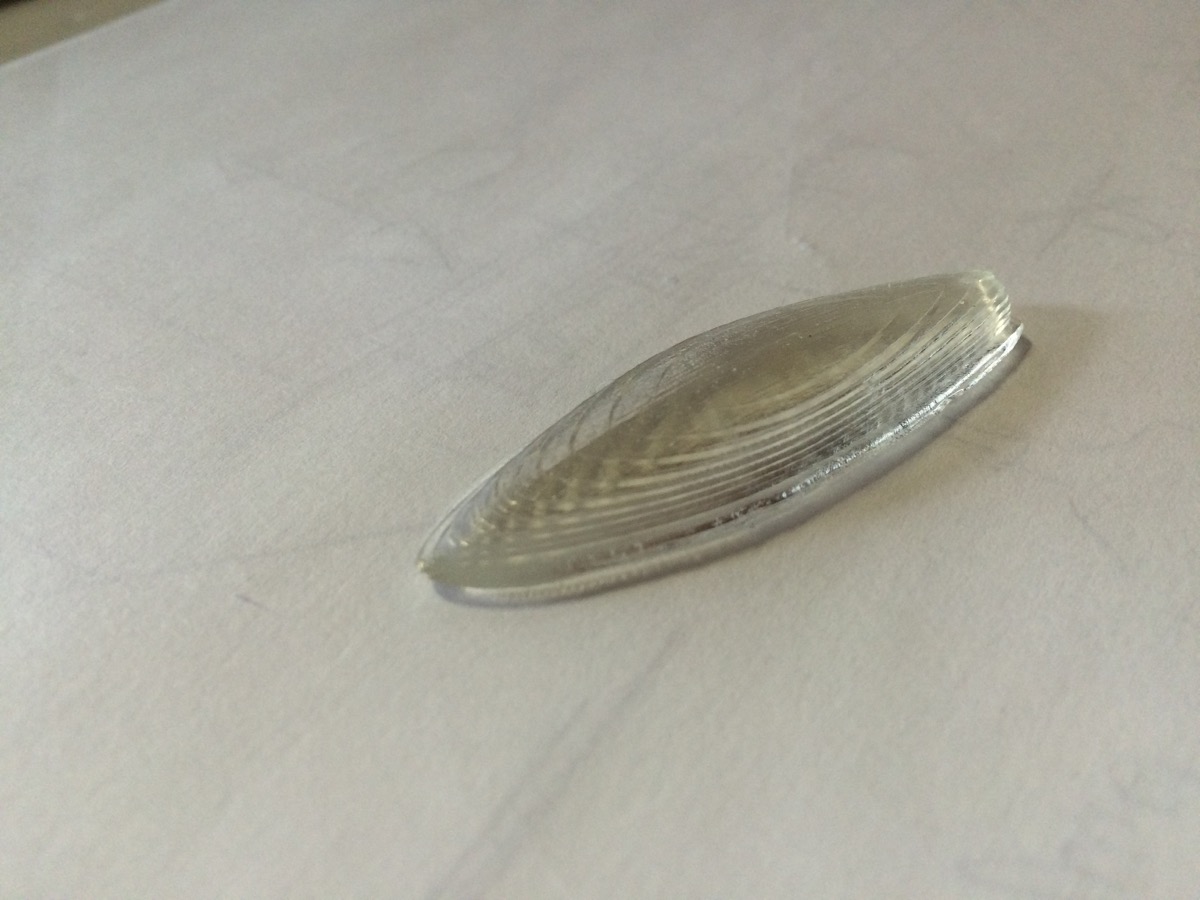

And here is the final "mini Hull" :-) |
As I was not able to go to Woma FabLab the week of the assignment, I decided to do a mold from an existing object, and (re)cast the object
I took a Chess piece, the white queen, and I did a mold of the piece using some Silicon Rubber

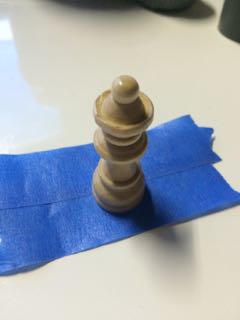

Here is the Chess piecethat we will duplicate |

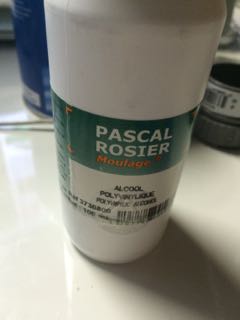

The piece is brushed with polyvinyl alcoholso that the Silicon will not stick or mess the piece of wood |

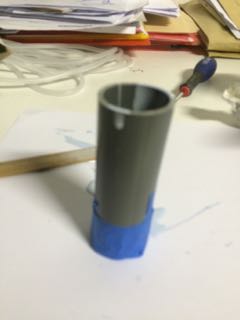

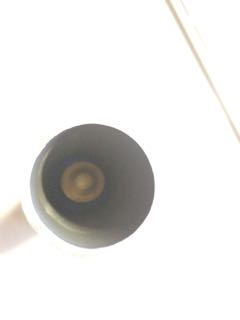

Putting the piece in a tubein which we will do the mold |

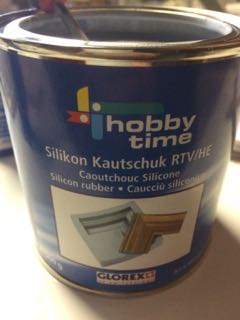

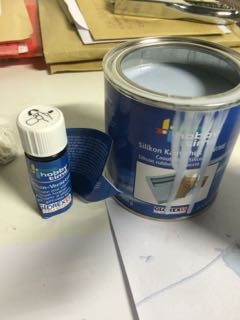

Here is the Silicon Rubber usednamed RTV/HE |

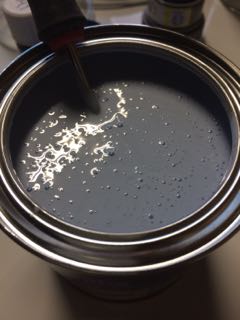

Mixing the Silicon Rubber |
Weighing the Silicon Rubber |
Mixing it with the good quantity of hardener |
Casting the Silicon Rubber inside the tube |
And waiting for 1 dayso that the mold can harden |

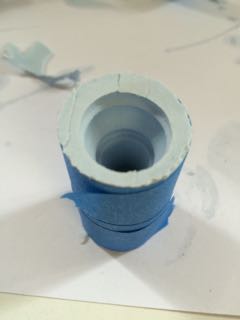

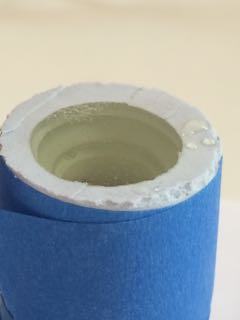

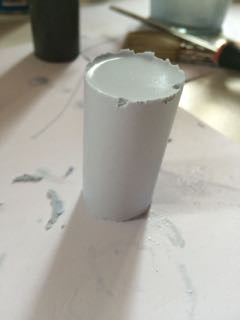

Mold is taking out from the tubeit is solid now |

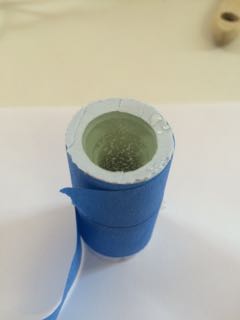

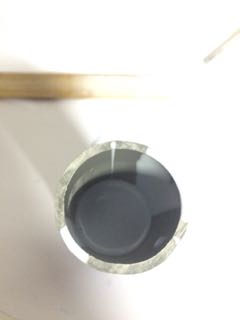

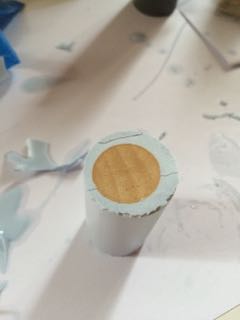

The bottom is cleanwe can see the bottom of the wooden piece |

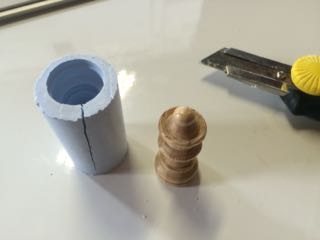

Taking the Chess piece out of the Mold |

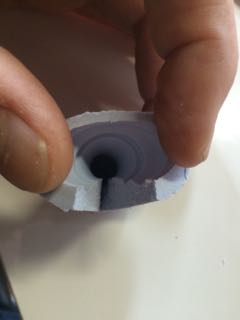

Using a cutter to open the mold |
|
Using polyester resin to recast the piece
Closing the moldusing scotch |

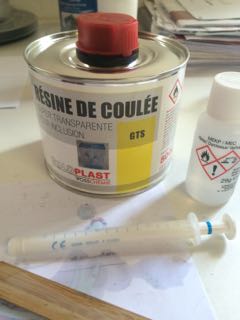

Doing the mix of Polyester Resin with the Hardener (2%) |
Casting the piece |
Top surface is plan |
And here is the new piece ... a crystal queen! |
