Computer-aided Design

During this week i had to design a first 3D model of my final project. The list of the recommended softwares includes several possibilities of choice. I chose Rhino because it's a powerful software for the 3D modeling, and also it's a good 2D cad.

Download the [3D files] here

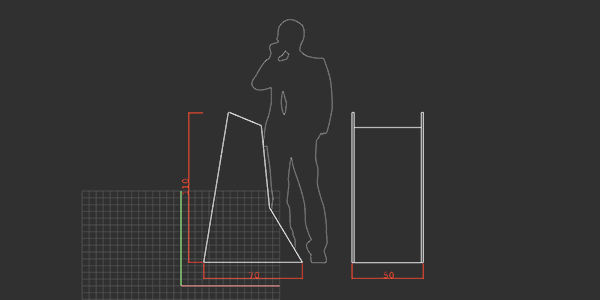

I'm started from 2D drawing in order to reach the right size of the project, based on the human body dimensions.

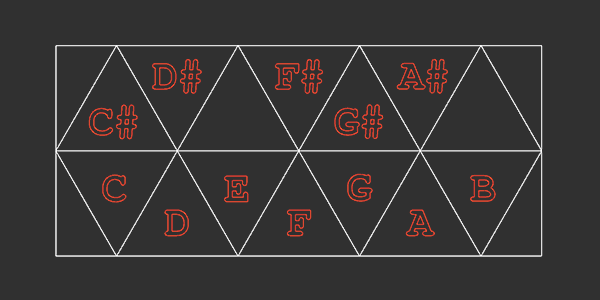

Then i thought about the user experience to design the first layout of the physical interface, based also on the size of the human hand

After the 2D drawing i moved into the third dimension, and i modeled the possible shape of the project

At the end i've tried to think about the mechanical components and where to place them.
