In this week I maked a FabISP which is based on Neil's FabISP .

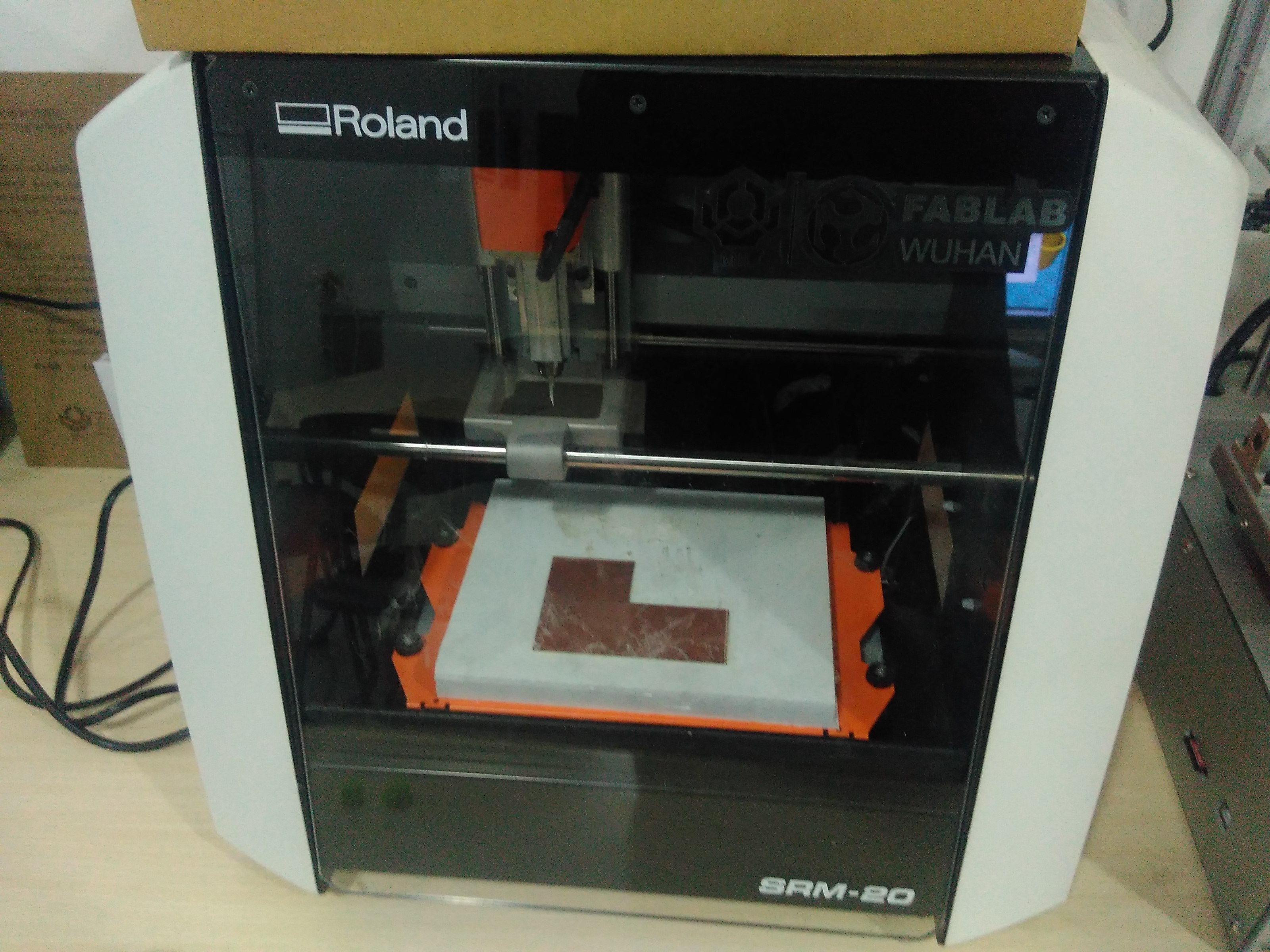

1.Use Roland SRM20 to cutting CCL.

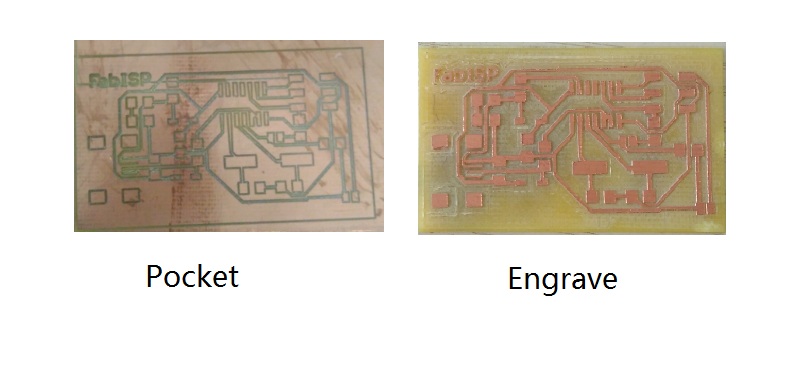

2.The software controlling SRM20 is iModela Creator. The face of board is based on the mode of cut and the knife.I try both of Pocke Mode and Engrave Mode . They are like this. And the knife is sharp and 30 degree.

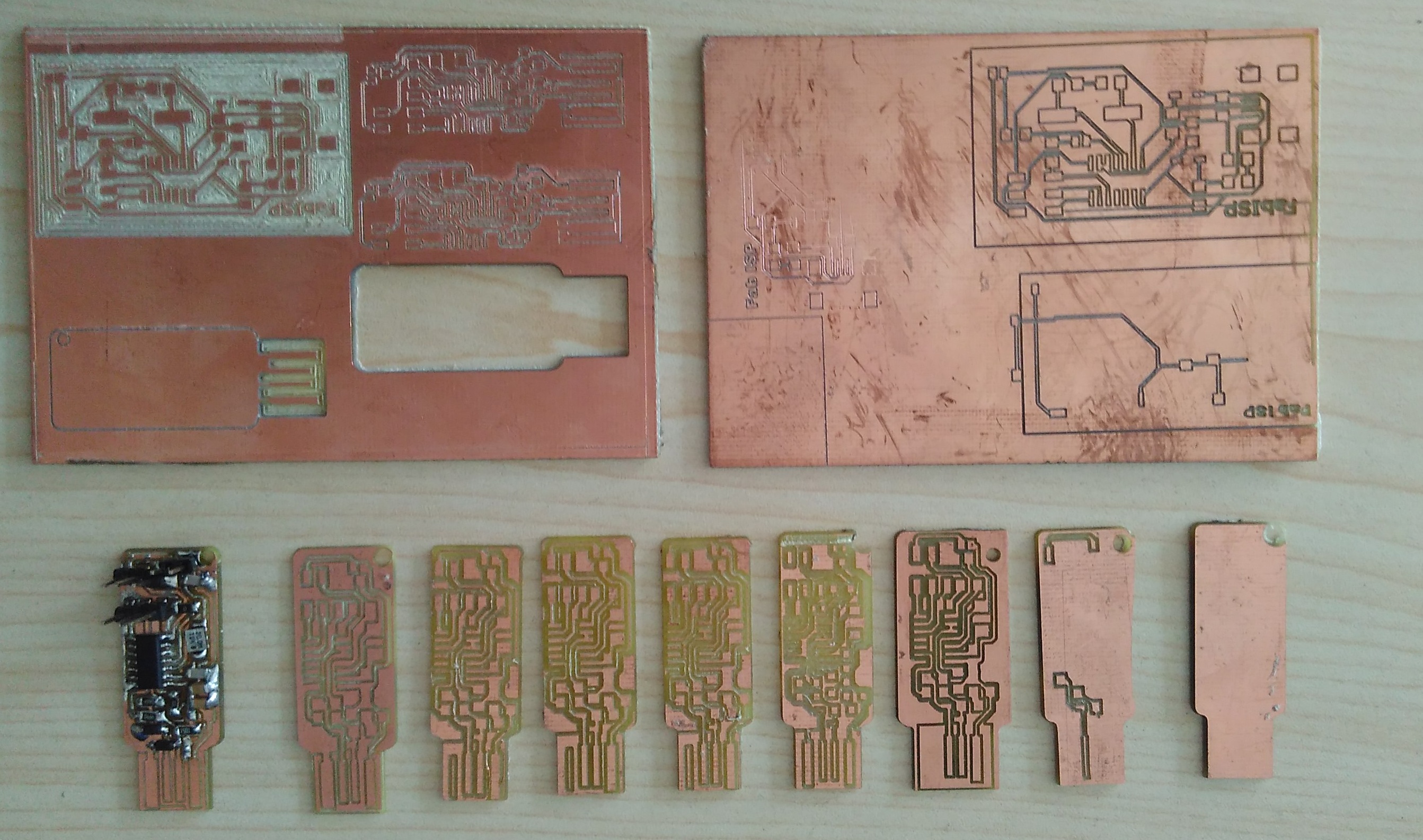

Finally, I chose Engrave Mode for cutting more board. This is the parameter of iModela Creator.
3 Fix CCL,then install cutter, then position zero points of x,y,z,then cut CCL.

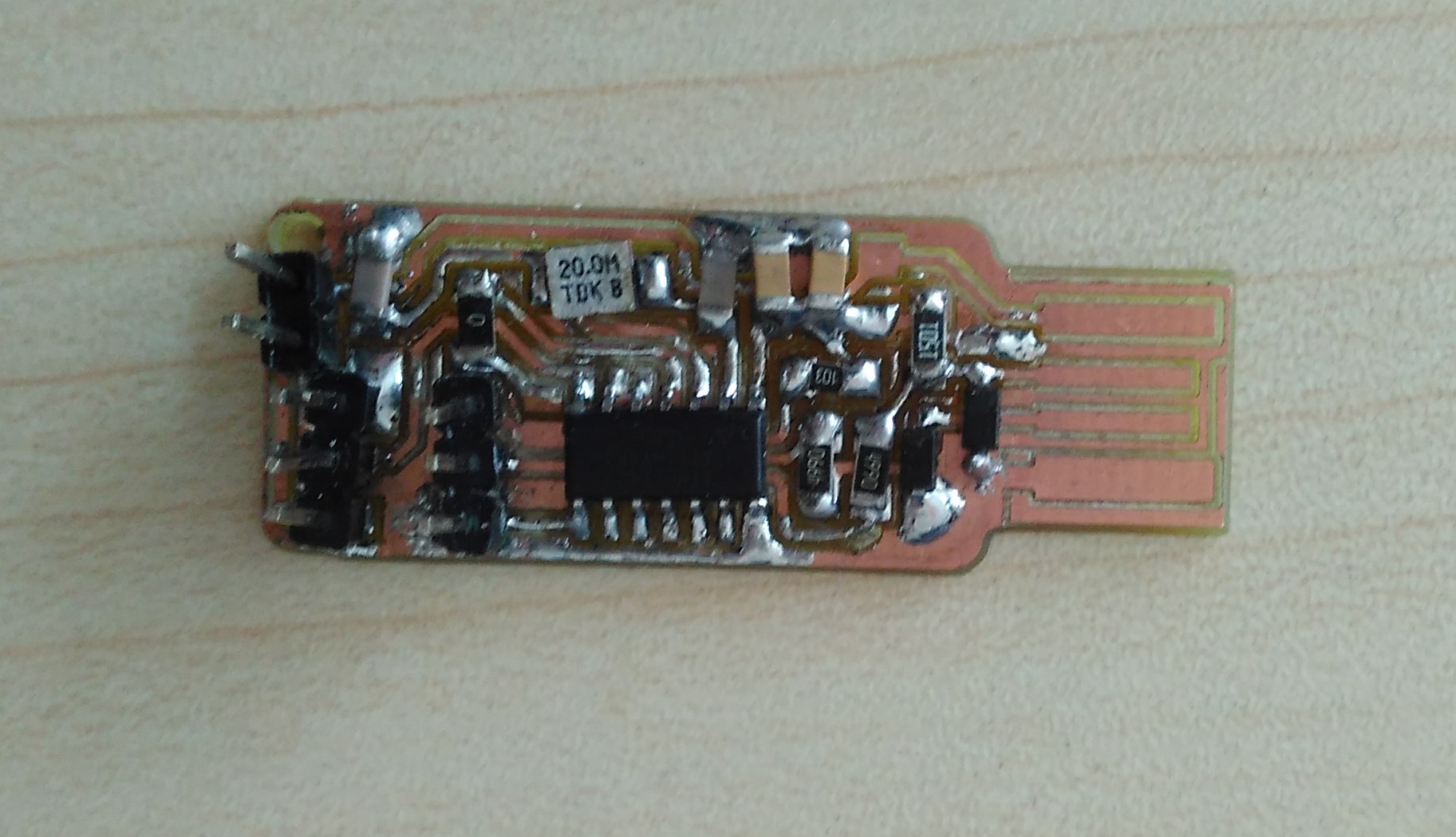

4 Soldering. Place the elements on the right place,then finished one by one.
