week 2
Computer-aided design
Model 2D/3D your final project
Raster/Vector
Render/Animate

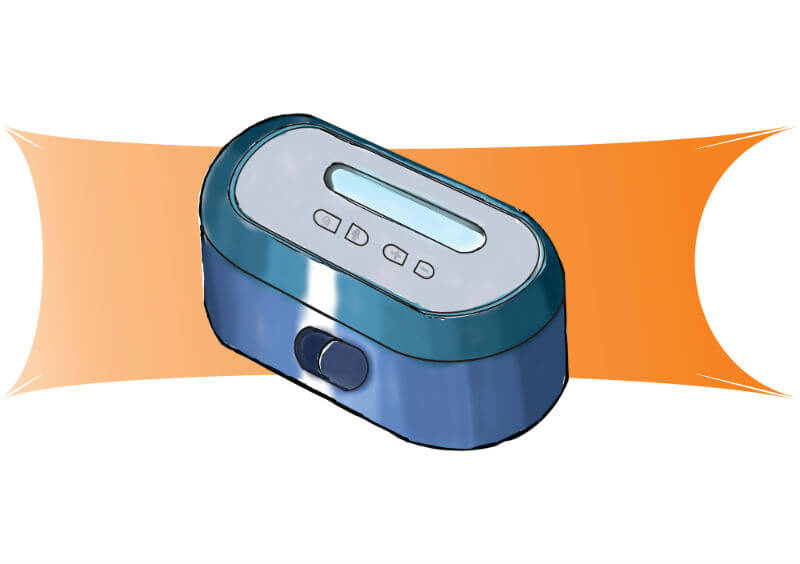

With the 2D model software, In the Raster tools i used Concepts (an Ipad app) and Photoshop for editing photos and renders images. Vector tools, i was experimenting with Inskcape and Corel Draw to create the brand logo of the product designed.
The 3D modeling programs i tried were:

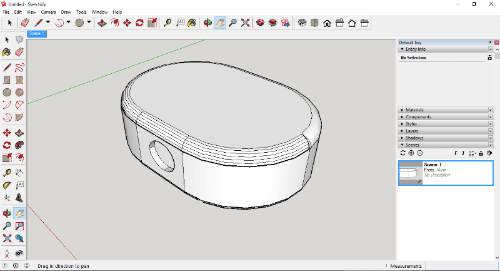

SketchUp, which it was not very useful for me because the curved generated edges did not have good finish and were inaccurate.

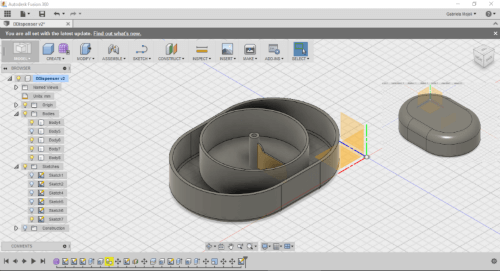

Fusion 360 was more interesting, unlike SketchUp using curves in the model is much better. But it was difficult to manage the layers to make changes to the model.

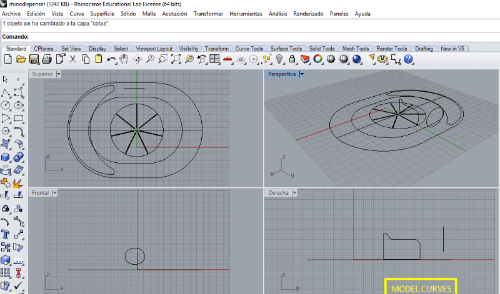

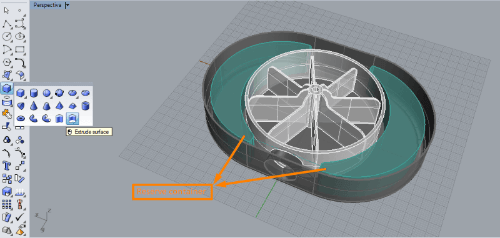

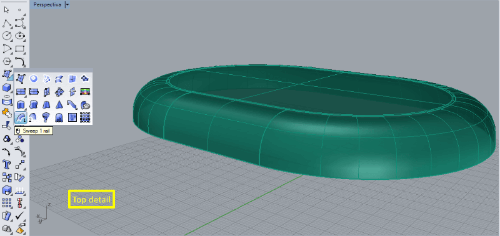

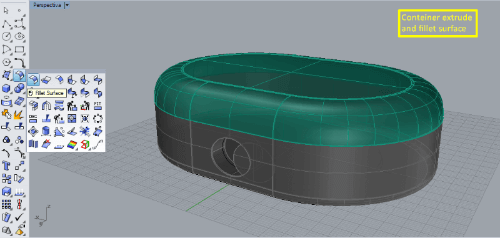

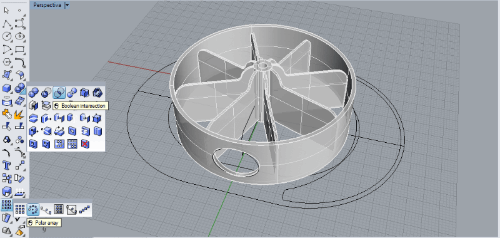

Rhinoceros was the easiest software to work for me. I got the result I wanted. Compared to Fusion, rhino has more steps to make softer models, but is easier to interact with the different layers to modify.

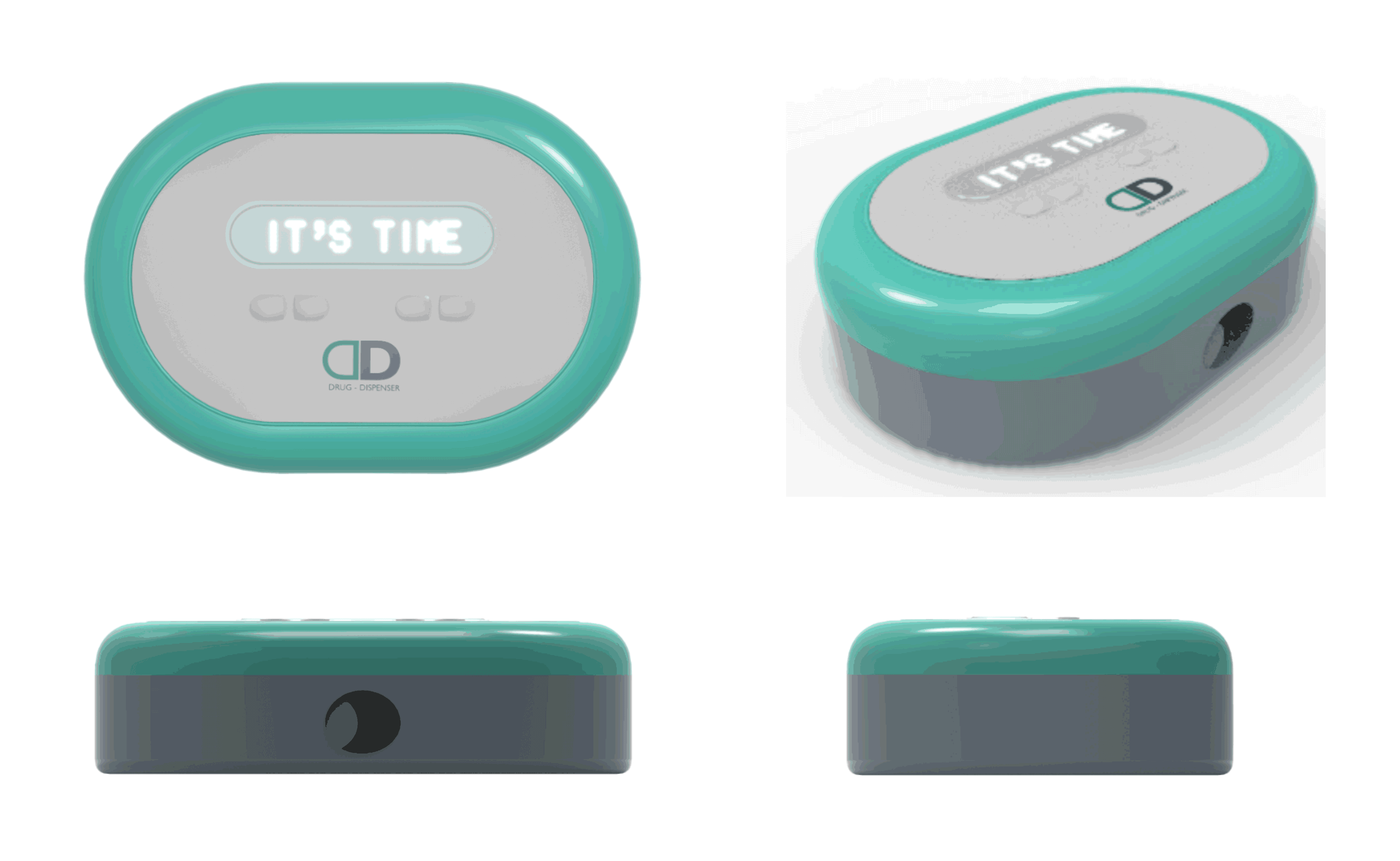

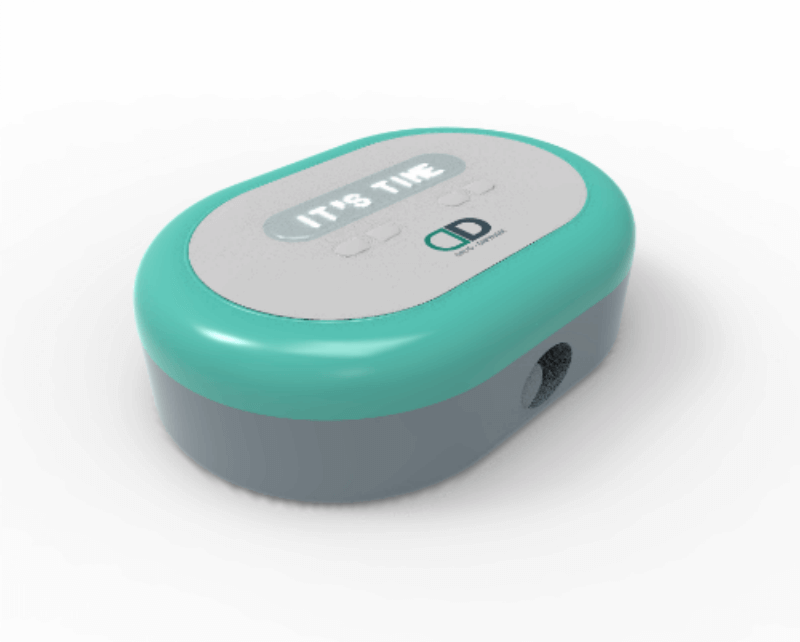

The Rendering software I tried was Keyshot an excellent program to render models in a short time with good image quality. It is easy to use by the simplicity of the user interface. It also allows you to make animations (videos and VR for websites).
