What will it do?

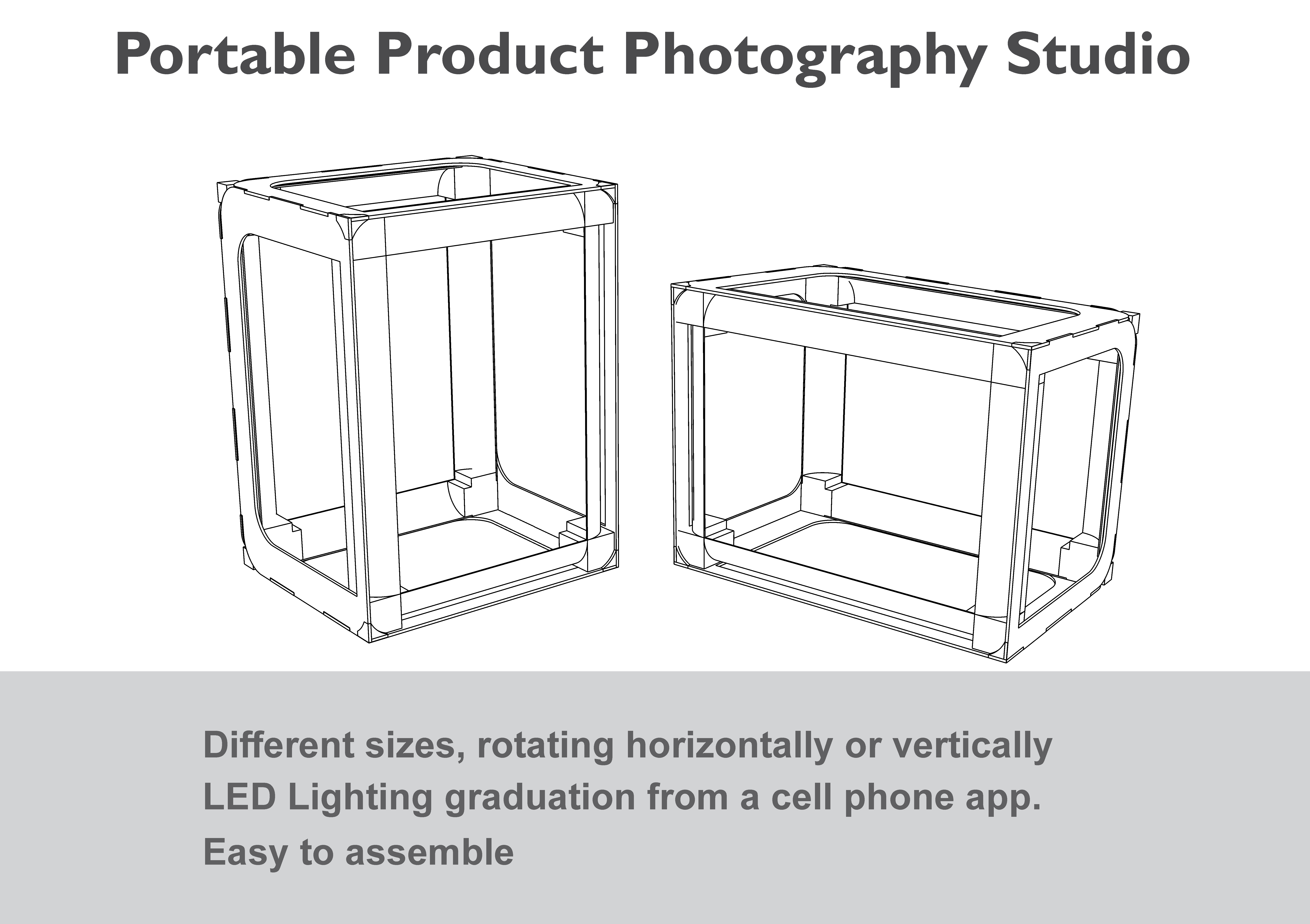

It be a portable Product Photography studio, which controls the brightness of the LED strips modules through an app with bluetooth connection. Also let you change the background, and have two different sizes by rotating horizontally or vertically the studio.

Who's done what beforehand?

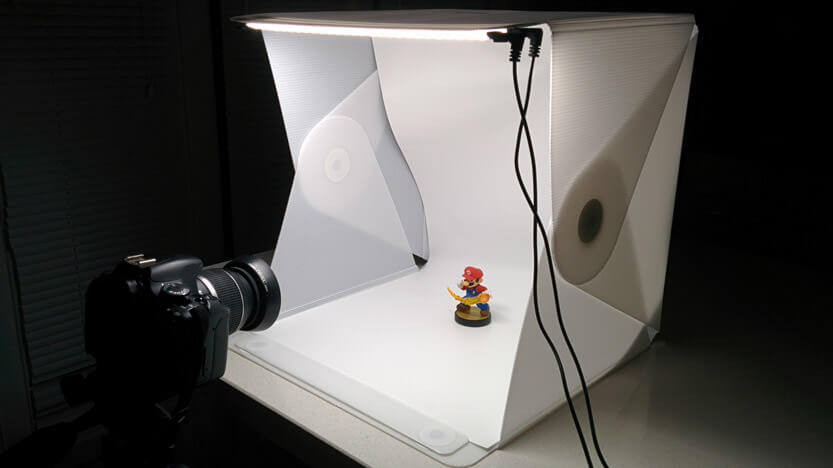

Many people made a homemade product photography studio, with boxes, but it isn't portable, and don't have illumination incorporated. Recently i saw in kickstarter Foldio - portable photo studio. With this photo studio you can take photos whit the camera or cellphone, but the ilumination always is the same. They have two models in different sizes, with one LED strip or two LED strips.

What materials and components will be required?

Where will they come from?

How much will it cost?

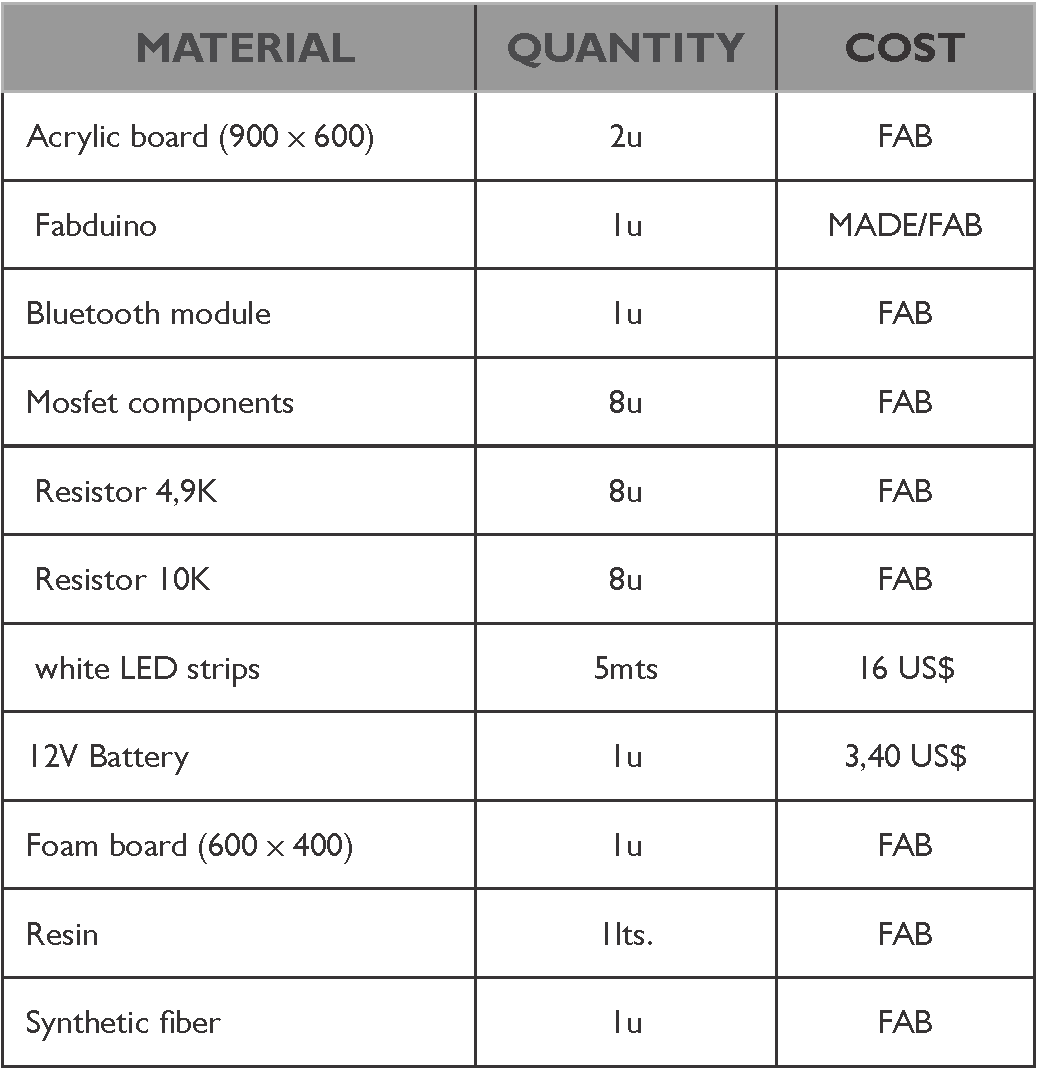

Majority of components have the Fab Lab, only had to buy the LED strip and the 12V Battery. Although i need to finish the final design, I think we would need the materials shown you in the following table:

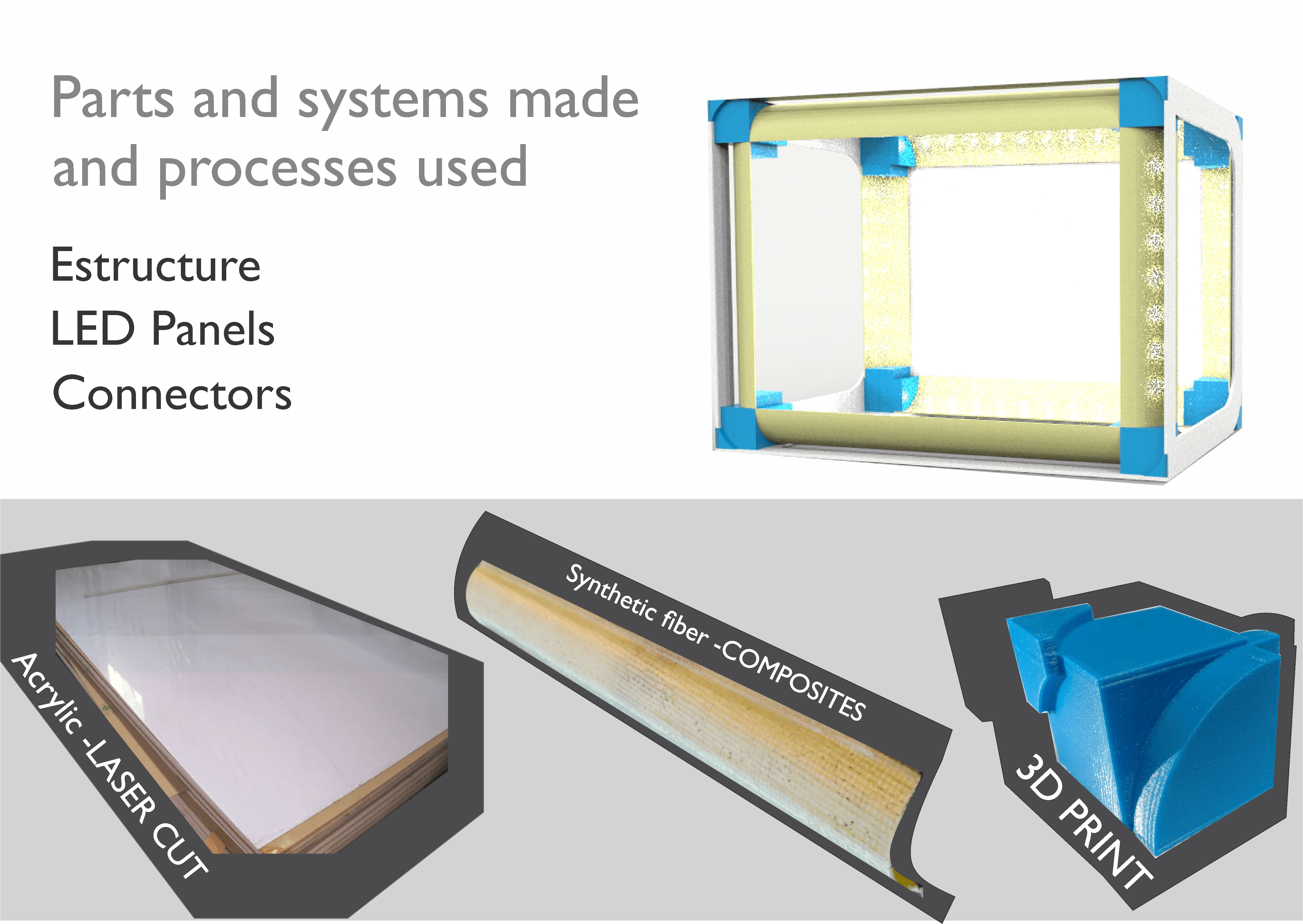

What parts and systems will be made?

What processes will be used?

My project is divided in fabrication and electronics, for the fabrication i will use the Laser Cut to cut the acrylic for the structure, the shopbot to milling the mold i will use in the composites for the LED strips panel, and the 3D printer to print the panels connector.

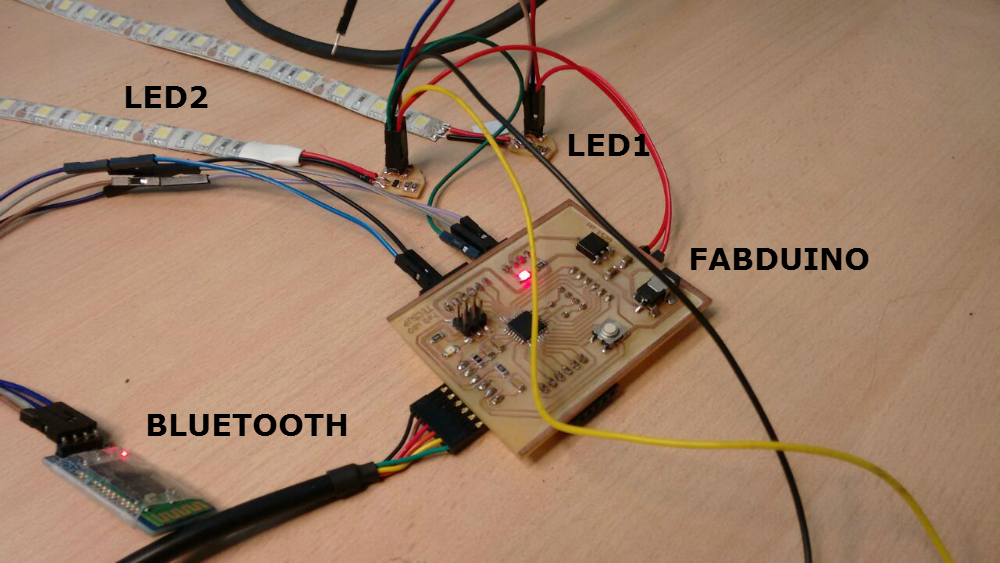

In electronics, i will use a Fabduino to connect the Led strips and comunicate it with the cellphone app through the bluetooth module. i tasted it in the interface and comunication assignment.

What tasks need to be completed?

I have to do many tasks!, first cut and test the fabrication parts, and adapt it to the electronics. In the electronics i have to modify the programming used in Interface and communication for add more Led strips.

What questions need to be answered?

With lighting proposal (LED strip ), may be obtained results similar to a photographic study of large scale?

Other accessories for photography can be performed through digital manufacturing?

What is the schedule?

I hope to present on 15 June, which left me only three weeks. The following table I point out that I will be doing

How will it be evaluated?

When i explain what will do my project in the first question, i quote three important requirements (Different sizes, rotating horizontally or vertically, LED Lighting graduation from a cell phone app, and Easy to assemble).

I think if i fulfill the requirements my work is complete.
