This assignment was very hard and frustrating for me, at first I designed the PCB to handle Attiny44 LED strips with power and communicate through I2C protocol. But I had problems in programming. Then i tried to redesing the schedule example, in this case my slaves worked well, but the Master in the programmer don't allowed me to compile because it was heaviest.

First Tried

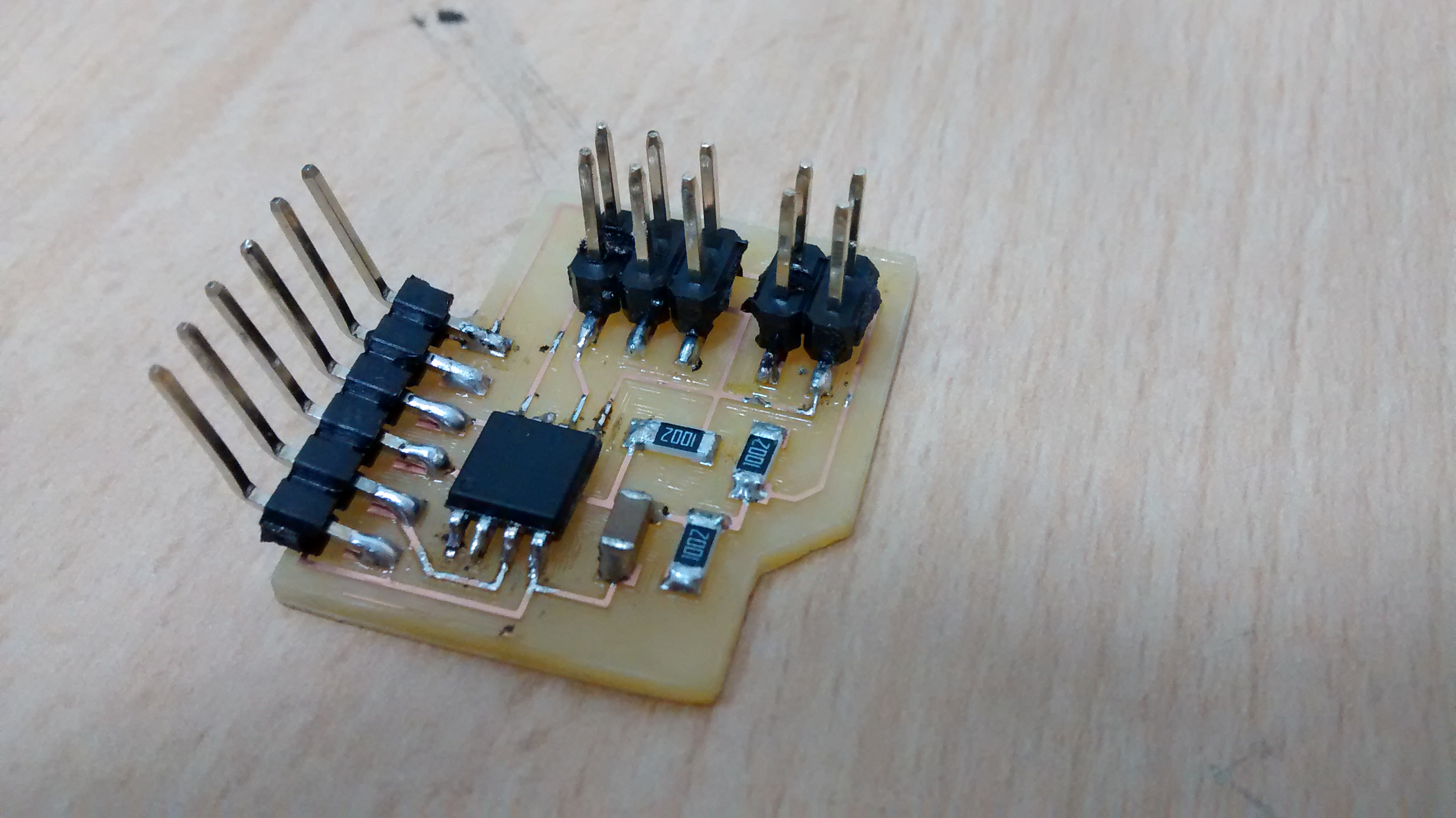

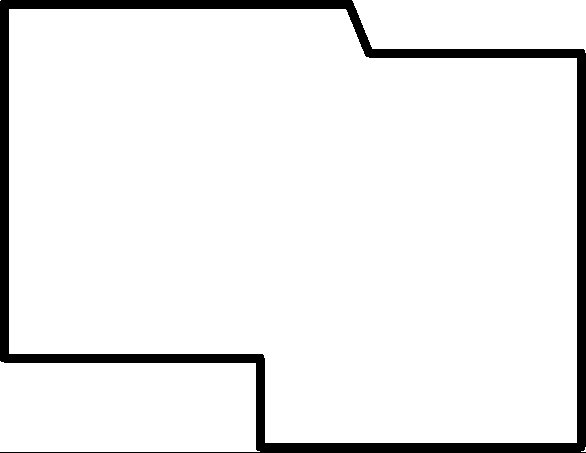

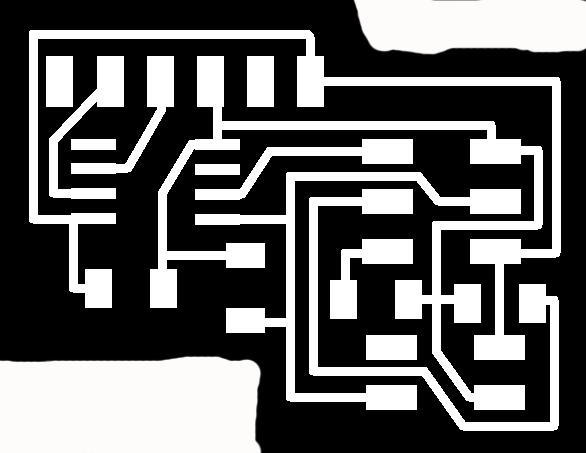

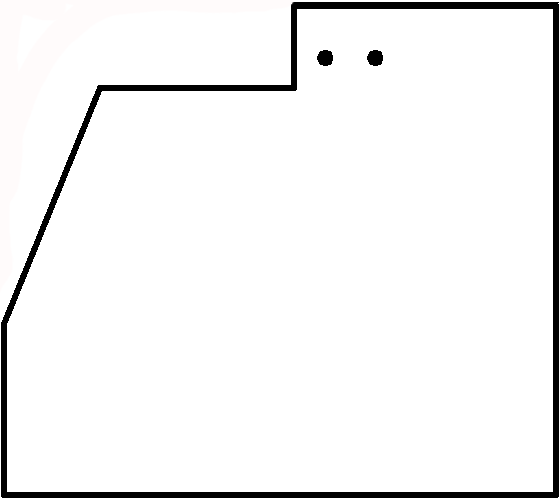

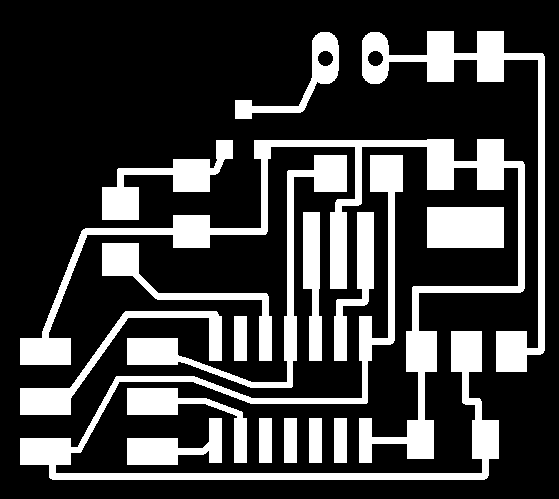

Following you can see the traces and cut .png and the PCB milled and soldered. In this case it was the slave and the Fabduino was the master.

Second Tried

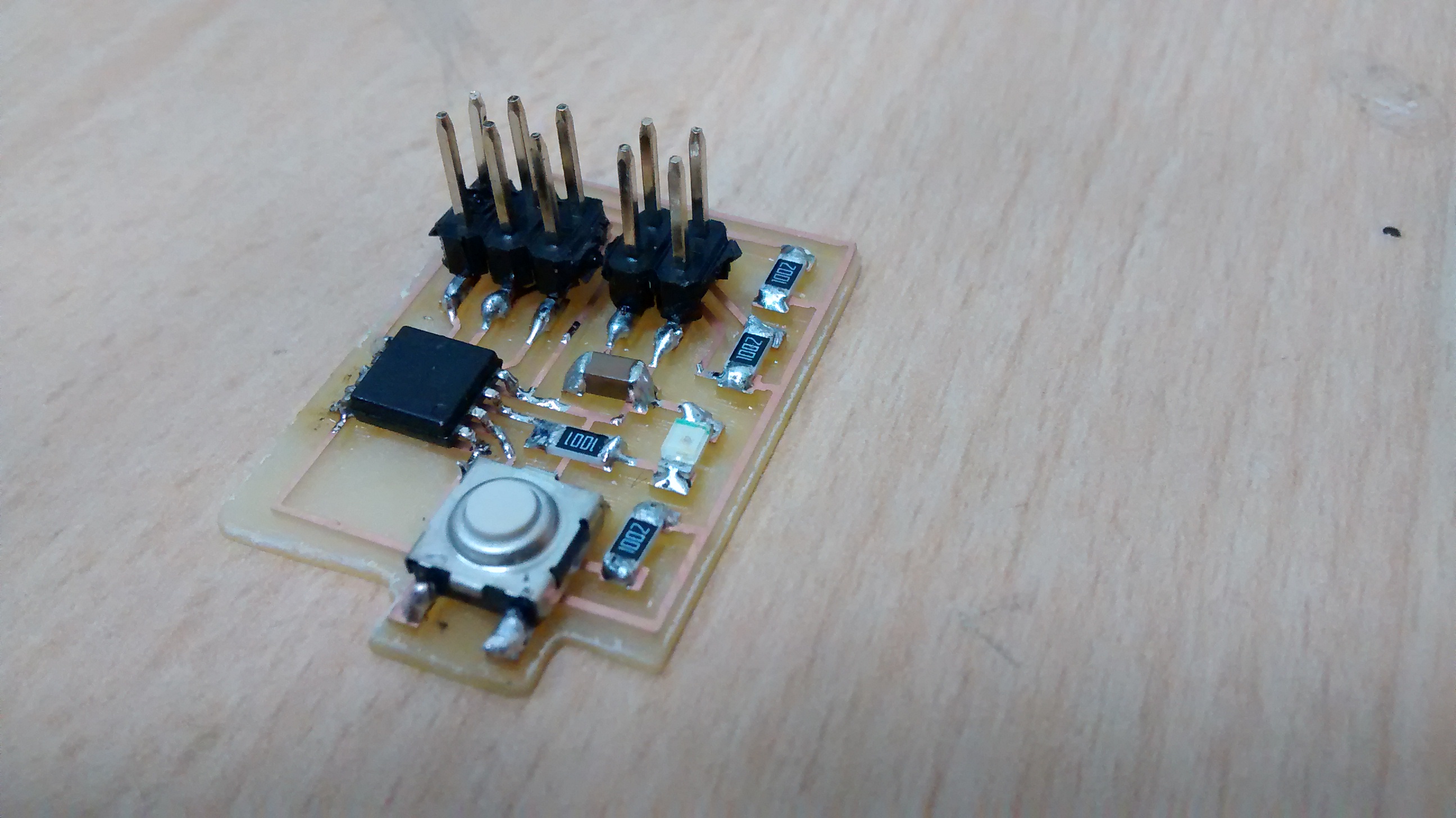

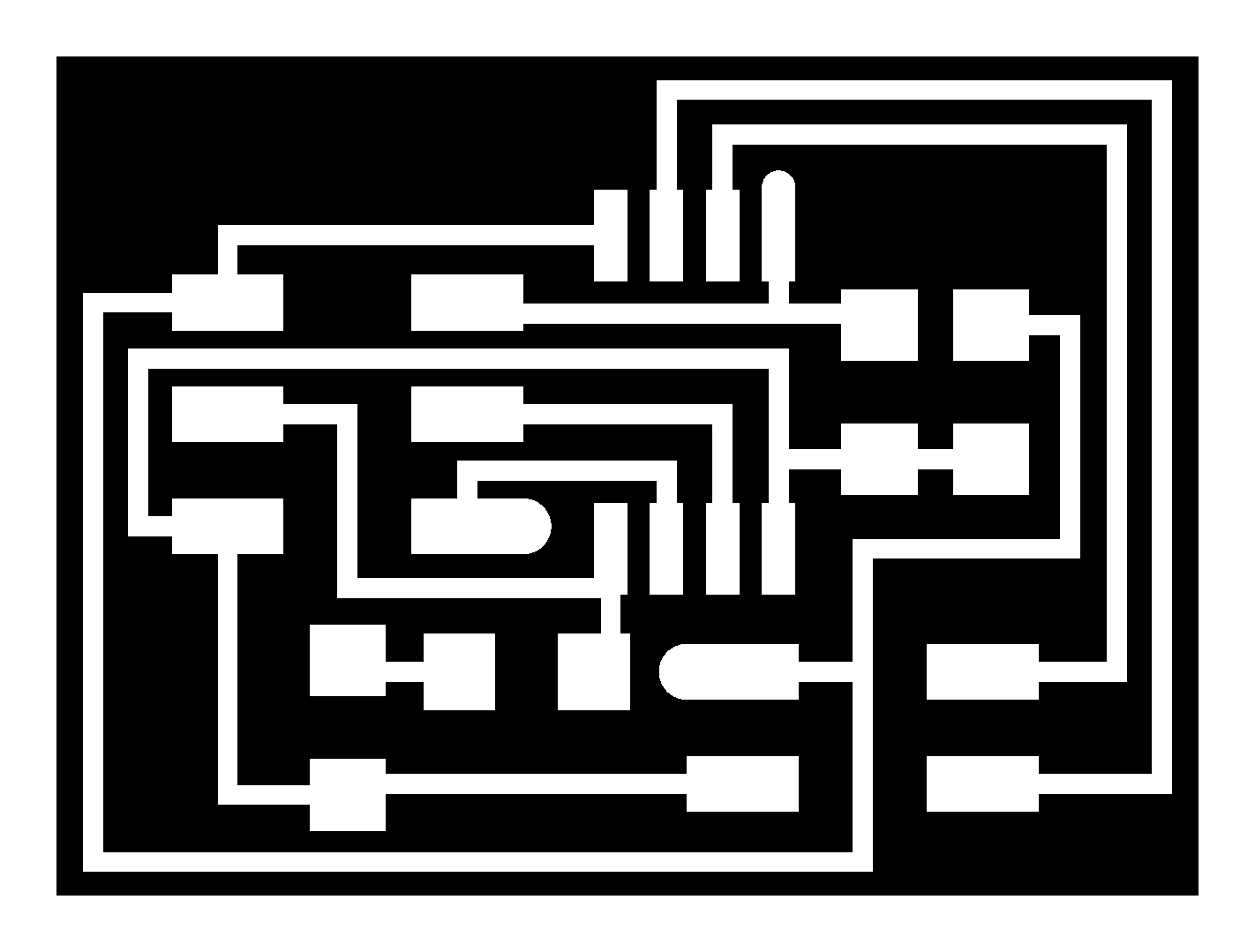

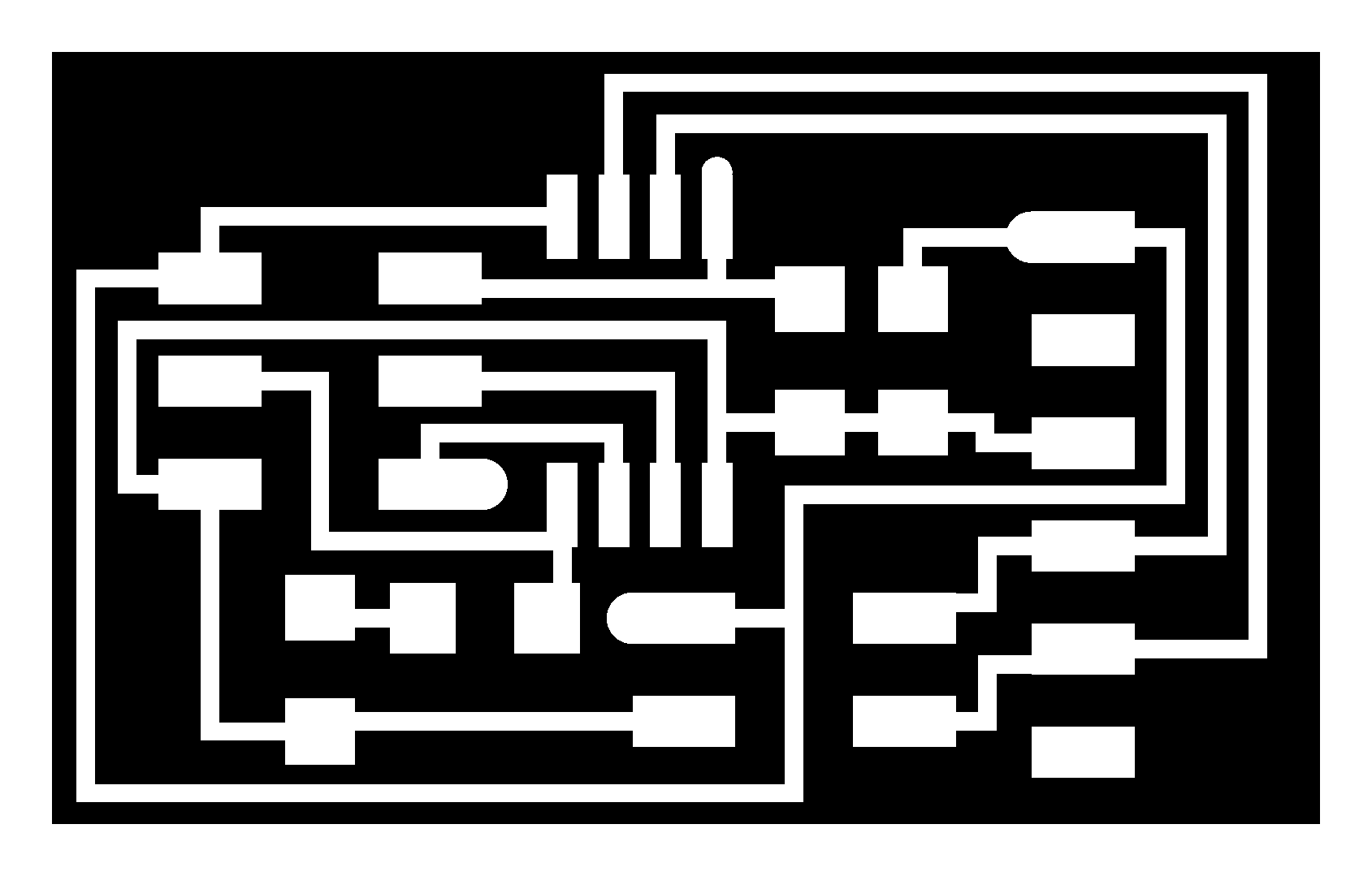

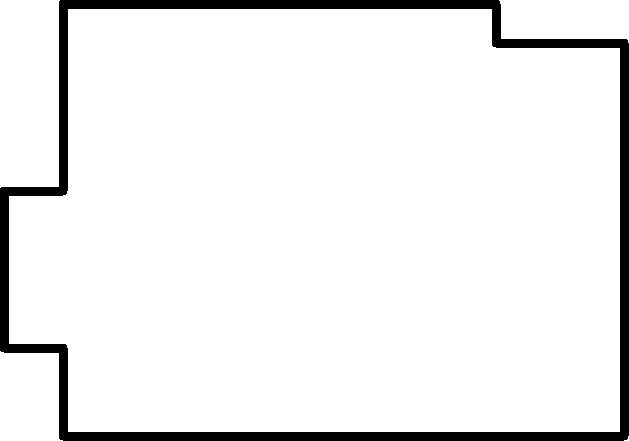

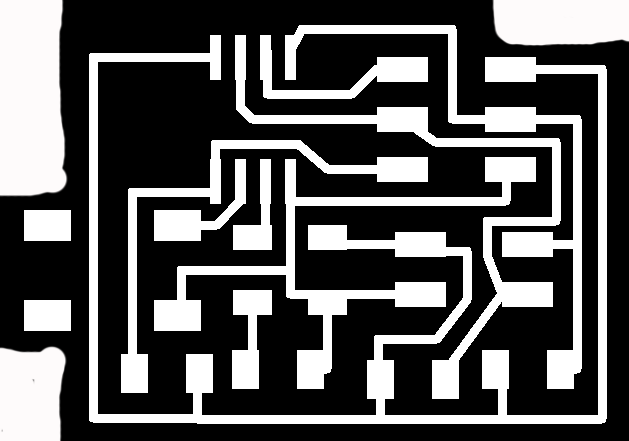

Following you can see the traces and cut .png and the PCB milled and soldered

Third time lucky

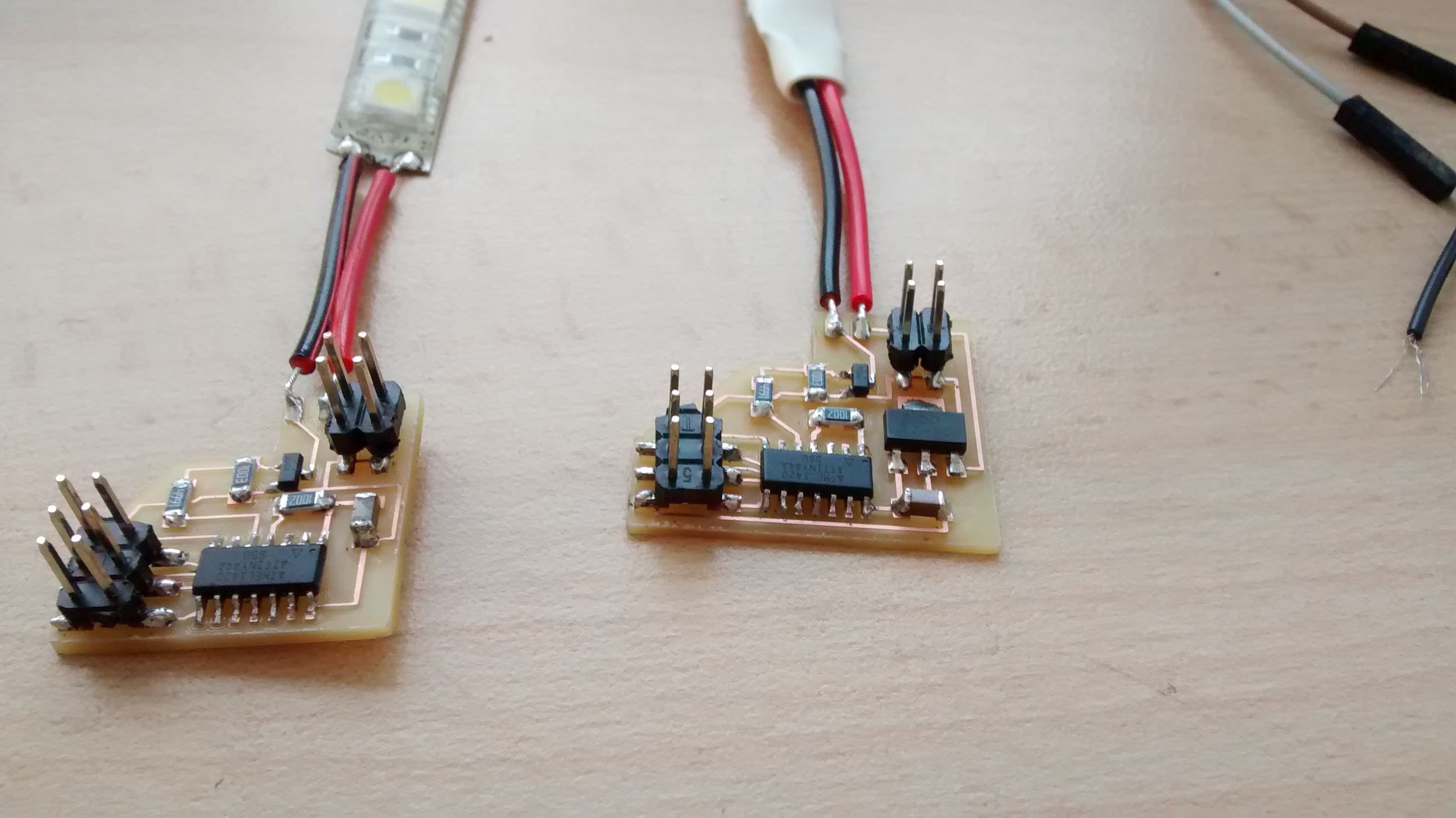

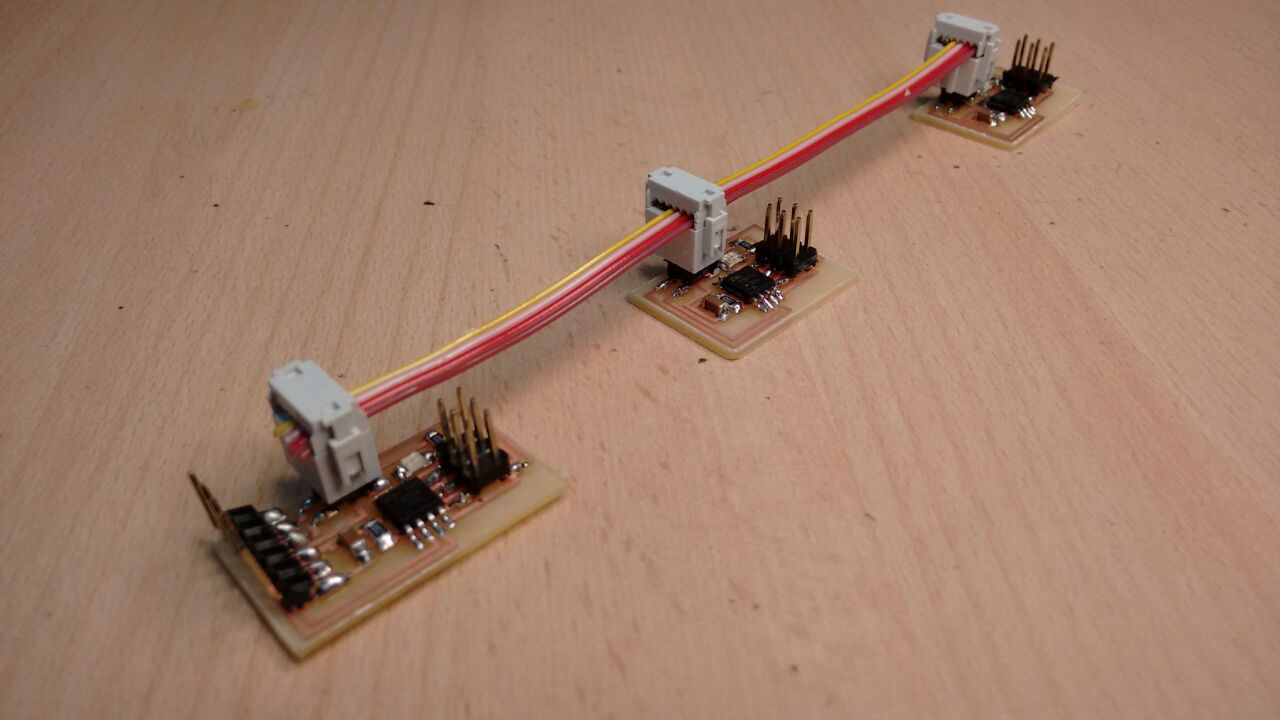

In previous tests I tried to make the communication with the I2C protocol, now I tried the asynchronous system. And finally it worked! following the pics of the boards.

To program asynchronous serial communication my three cards (master, 2 slaves). I used this code.

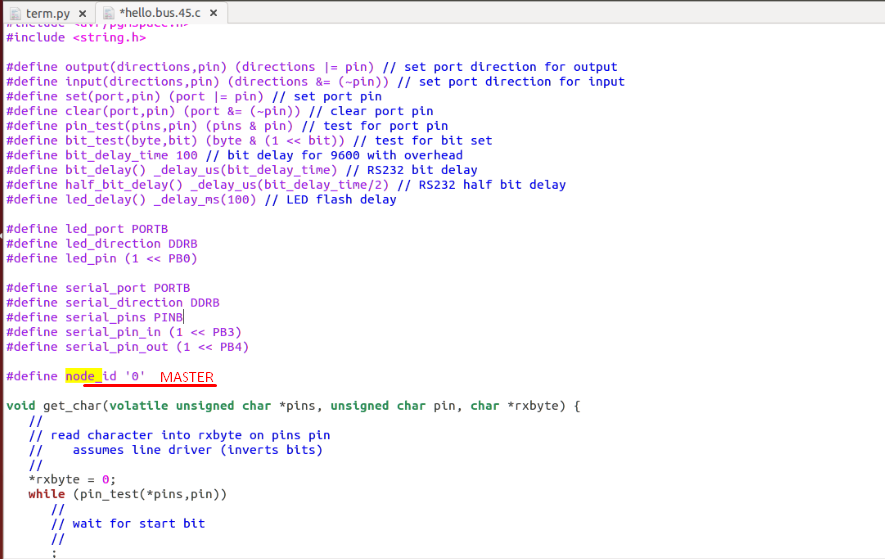

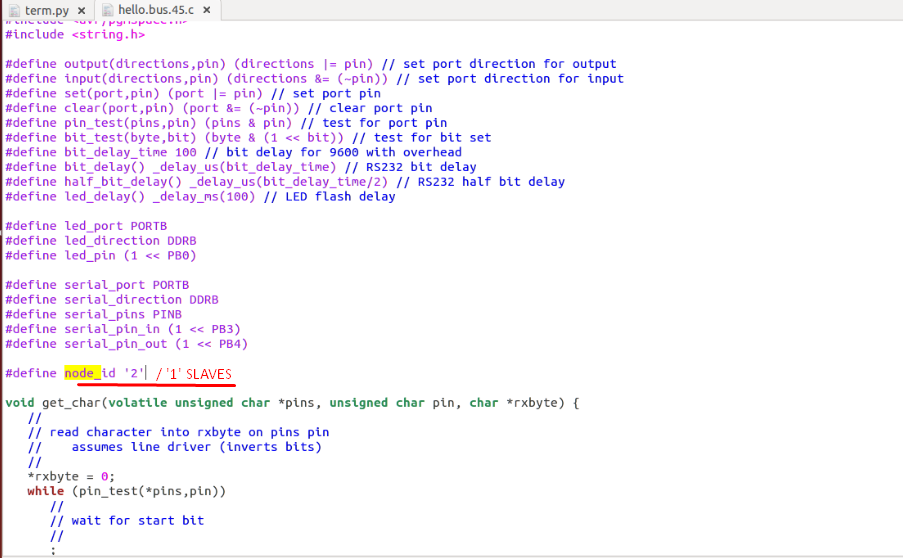

To program the MASTER first, it is important to note that the address in the code is "0". Subsequently, for SLAVES should appear as "1" and "2" respectively.

For tasting the network, I used the arduino serial monitor to display the operation.
