Clicking on the picture you can see the group documentation! my individual contribution were the group webpage, the photos, the design and assembly of the rotary axis.

Machine modifications

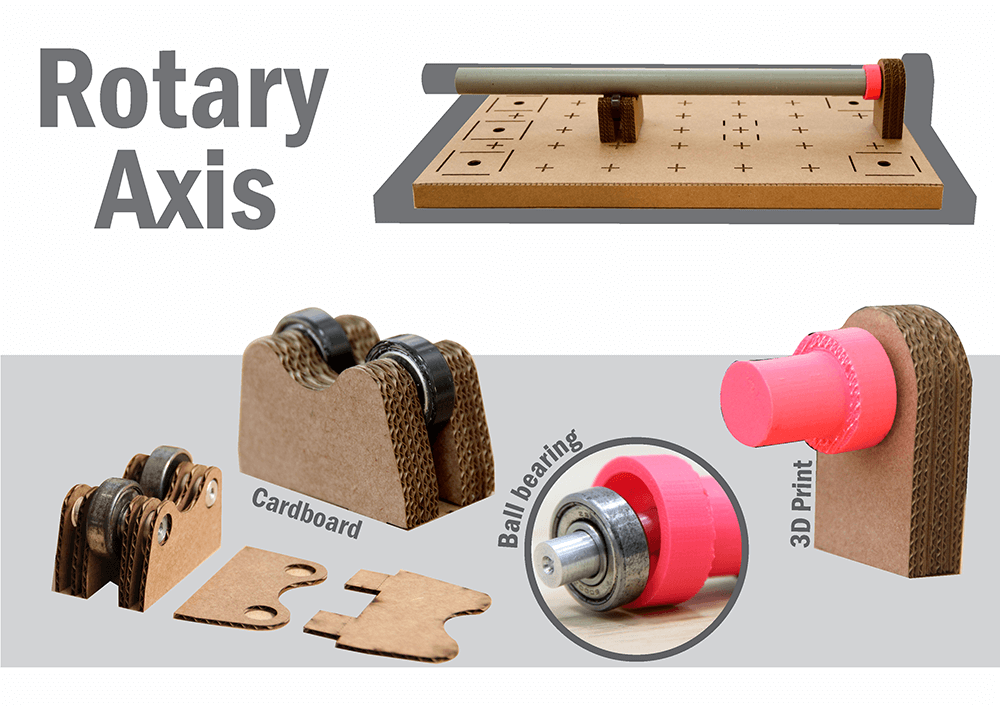

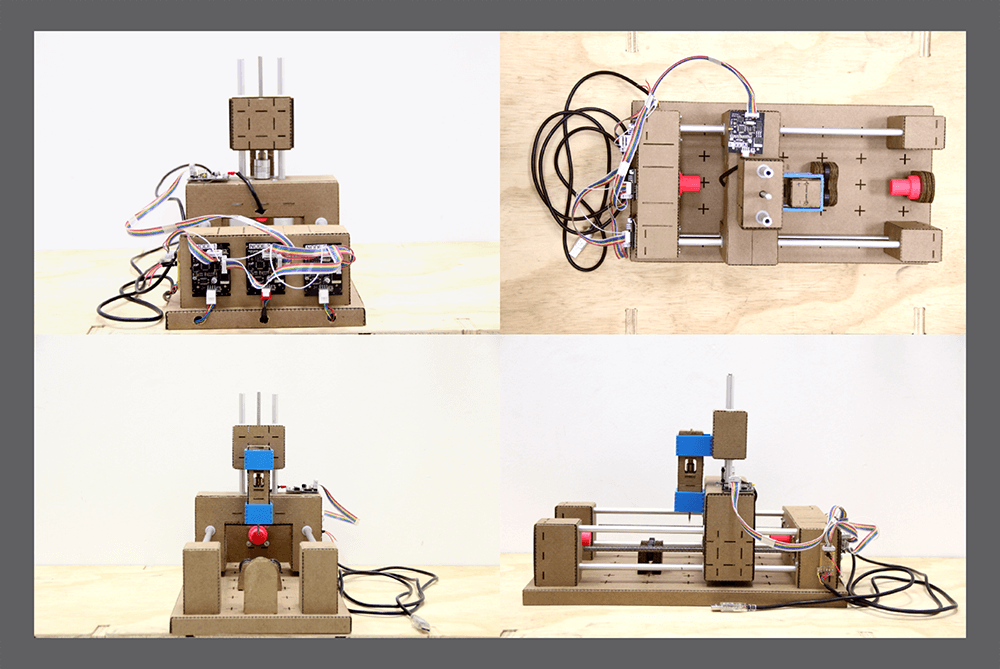

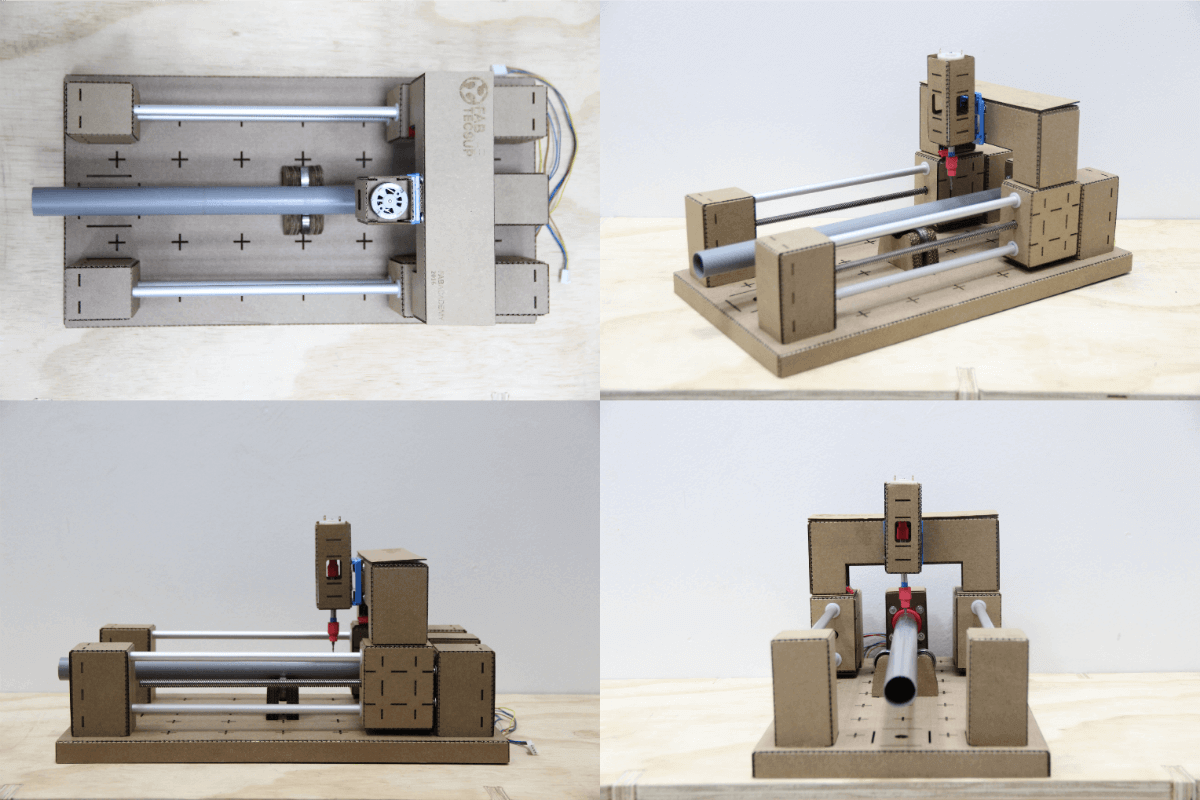

Last week, we designed and assembled our cardboard CNC Tube Cutter, machine. Now we have to automate it. But before programming we modified some pieces of the machine. I worked in the rotary axis, and add a new piece to support the pipe in both ends.

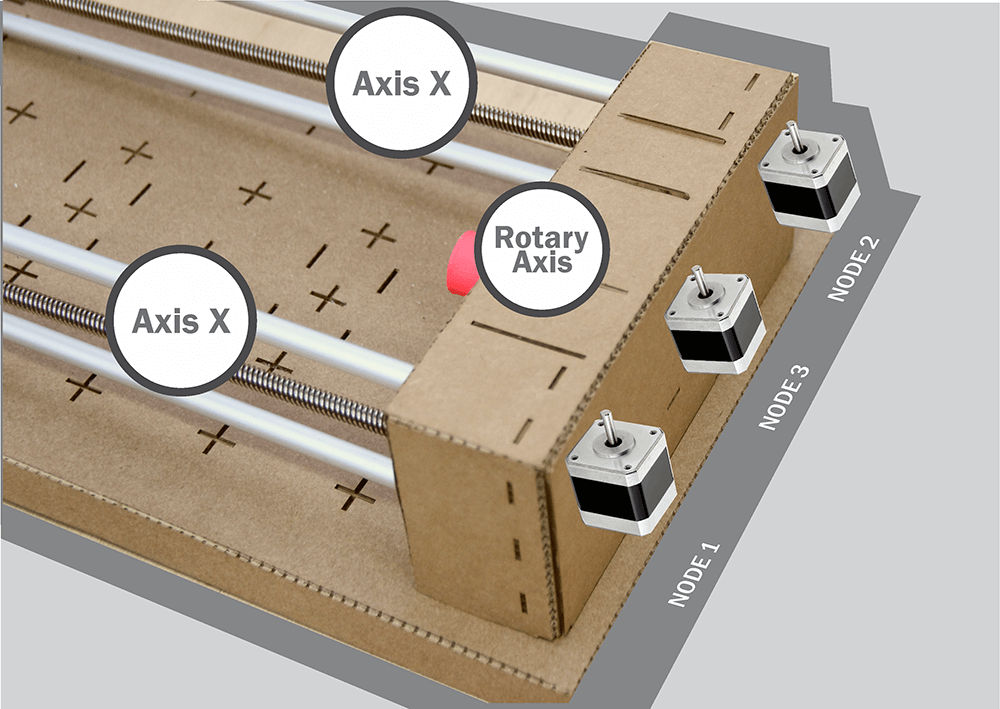

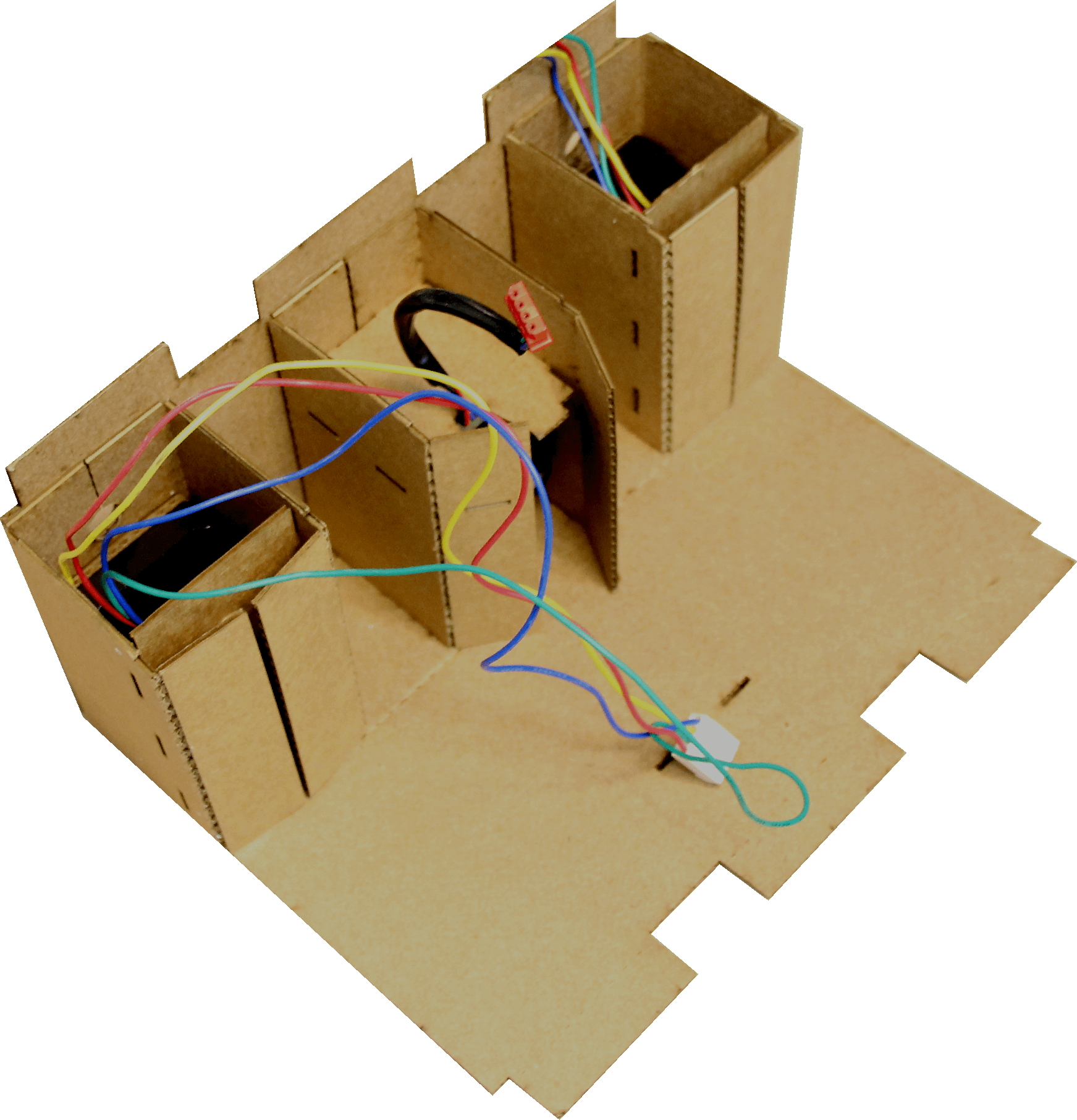

Also i modified the steppers content block, where was the three modules with steppers 2 for X axis and one for rotary,to get it more rigidity.

Automate your machine

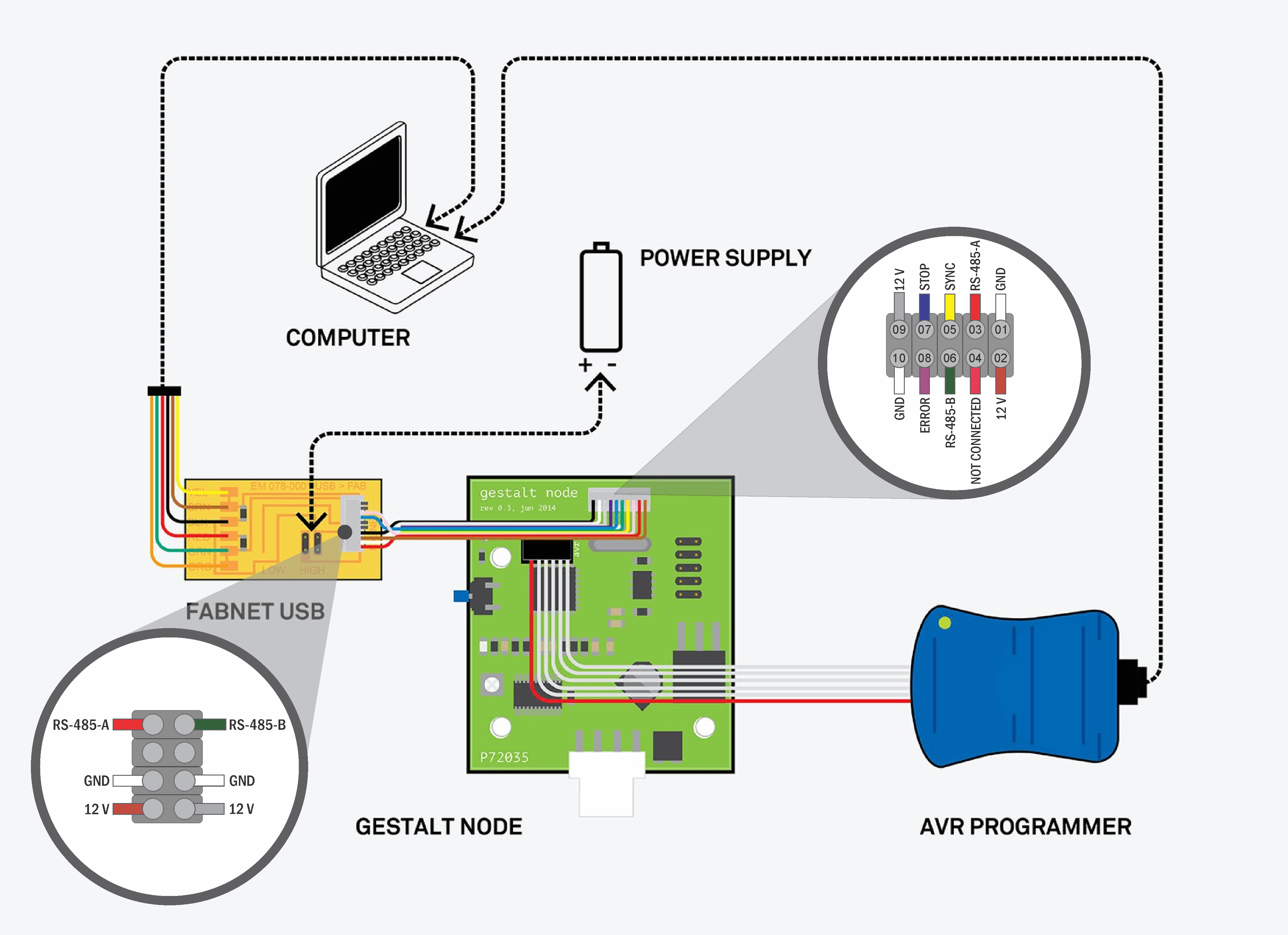

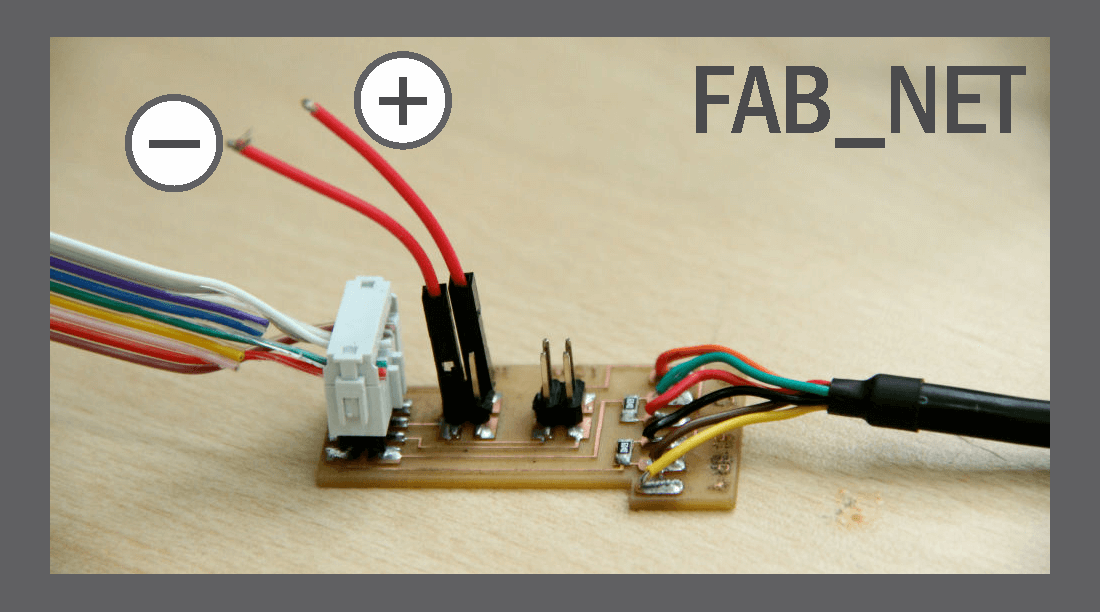

My partner programed the gestalt nodes in python, i worked with he for documentation. For that i modified the scheme picture adding details to connect the Fab Net in the gestalt node.

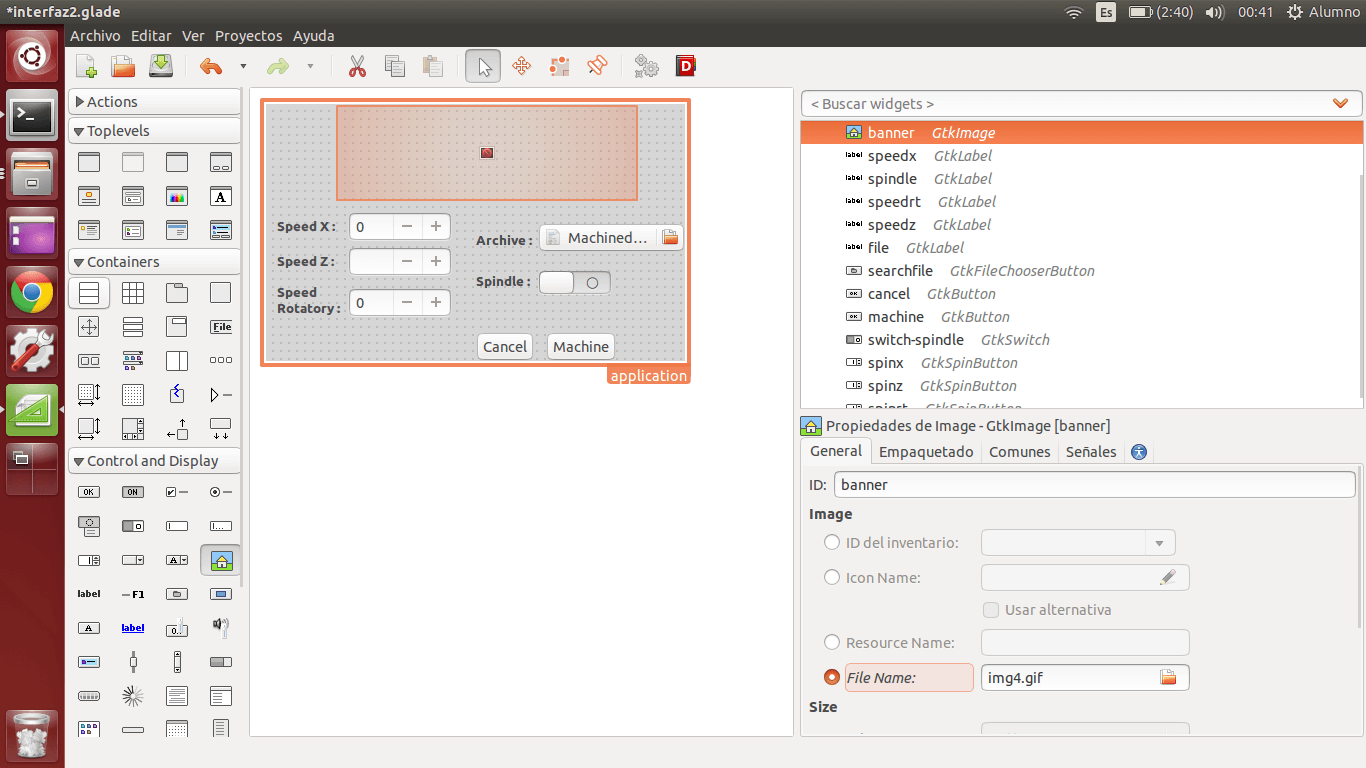

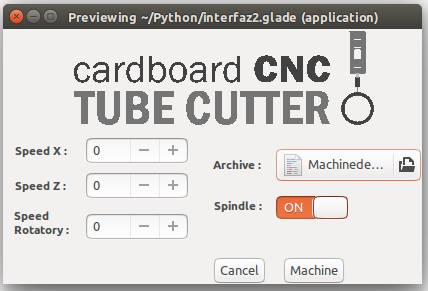

To work in programming, I take care of the interface, I managed to make the interface, but I could not run on Linux, because I had problems with the installation of a library.
