Week 5::3D scanning and printing


Test the design rules for your printer:

For 3D printing I was used 86Duino ENJOY and RepRap 3D printer.

At the beginning, we download two files from thingiverse for test our printer.

First one we test for 0.1mm height and 60mm/sec.

test2
Fig1. - Test printer
test1

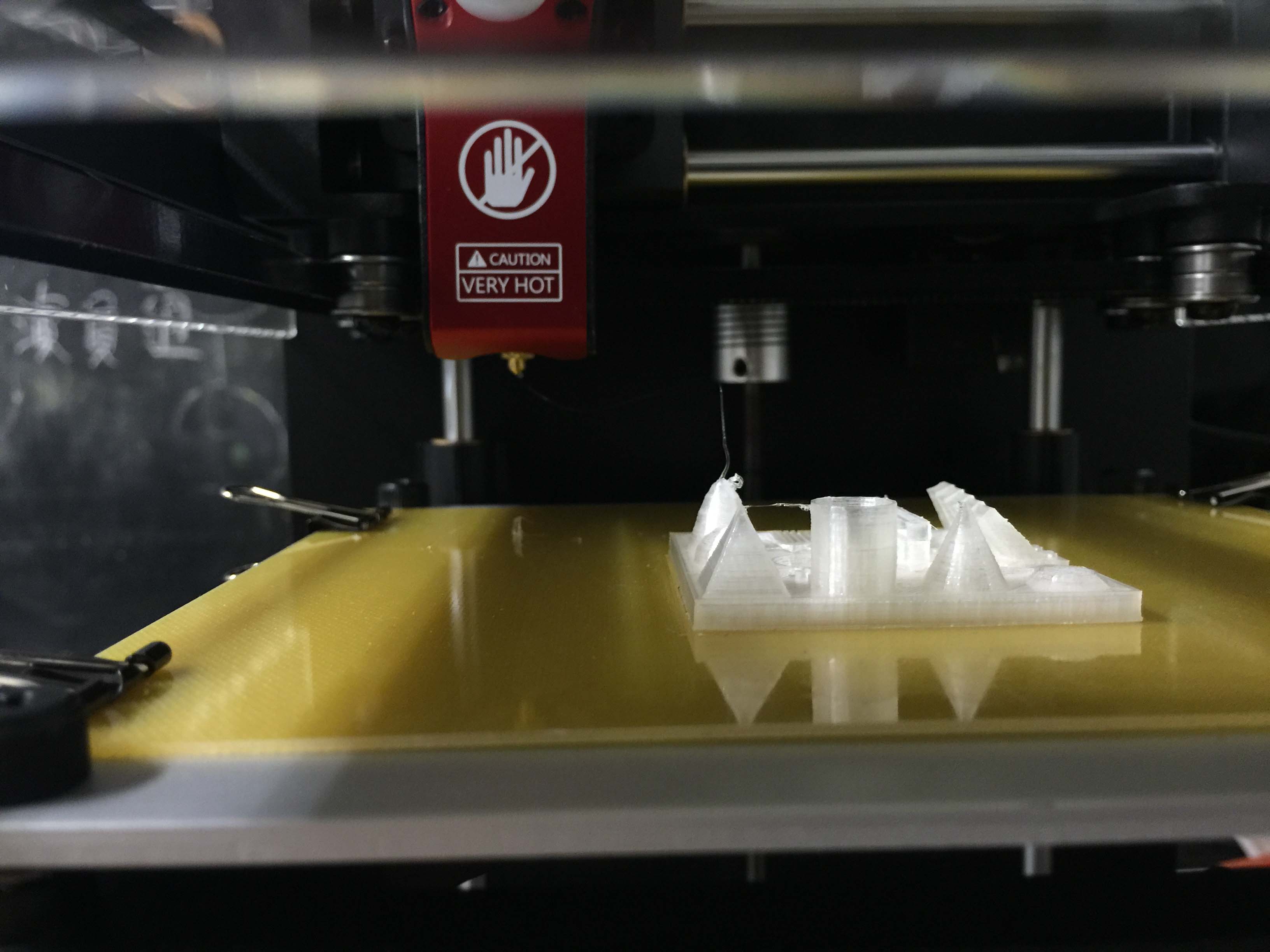

Fig2. - Test printer
3d_printing_calibration
Fig3. - Test printer

Second one we test spring without support for 0.1mm layer height and 15mm/sec.

3d_printing

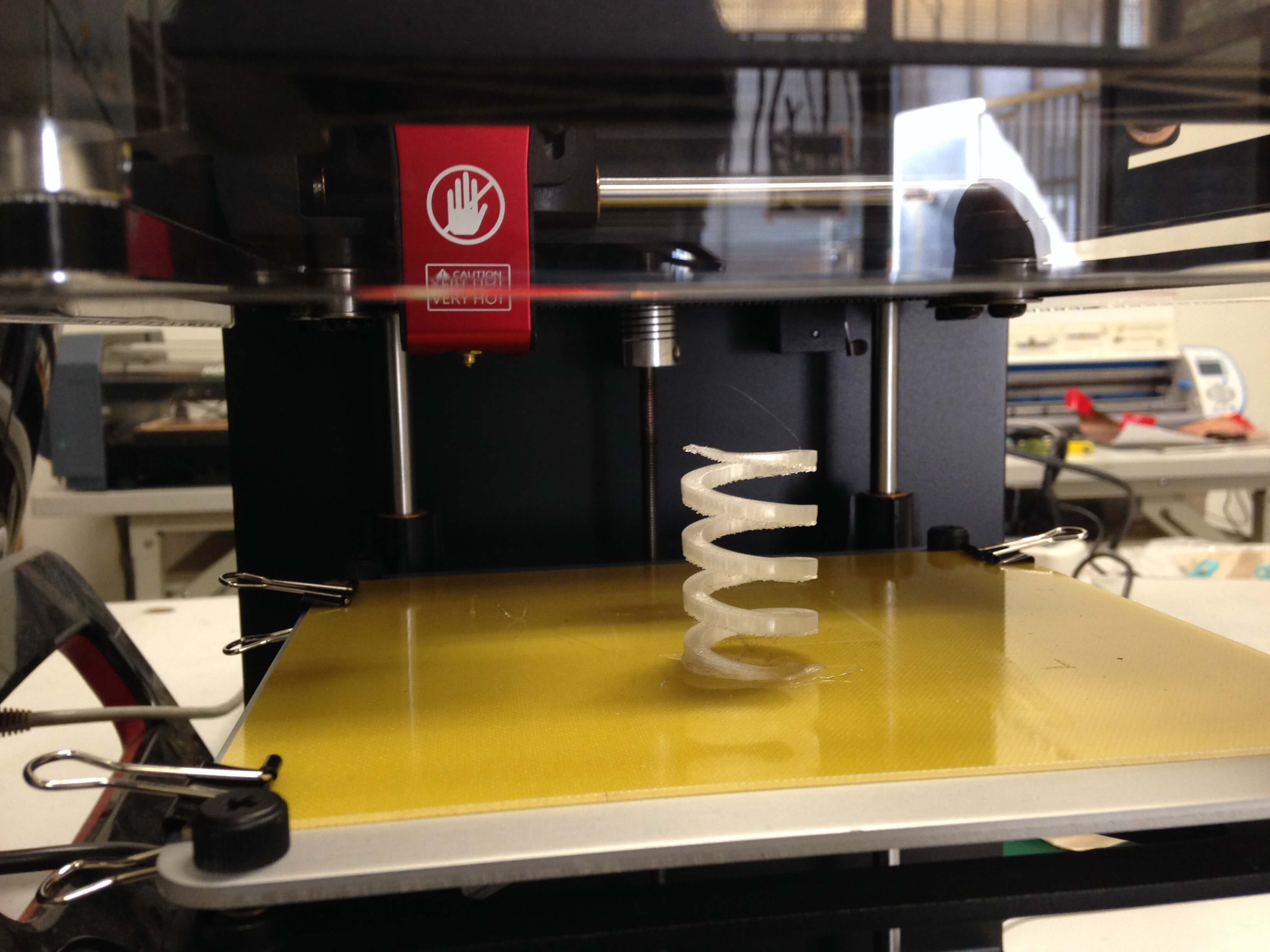

Fig4. - Test printer

The other one is test for myself.

3d_printing_calibration2
Fig5. - Test printer
3d_printing_calibration3
Fig6. - Test printer

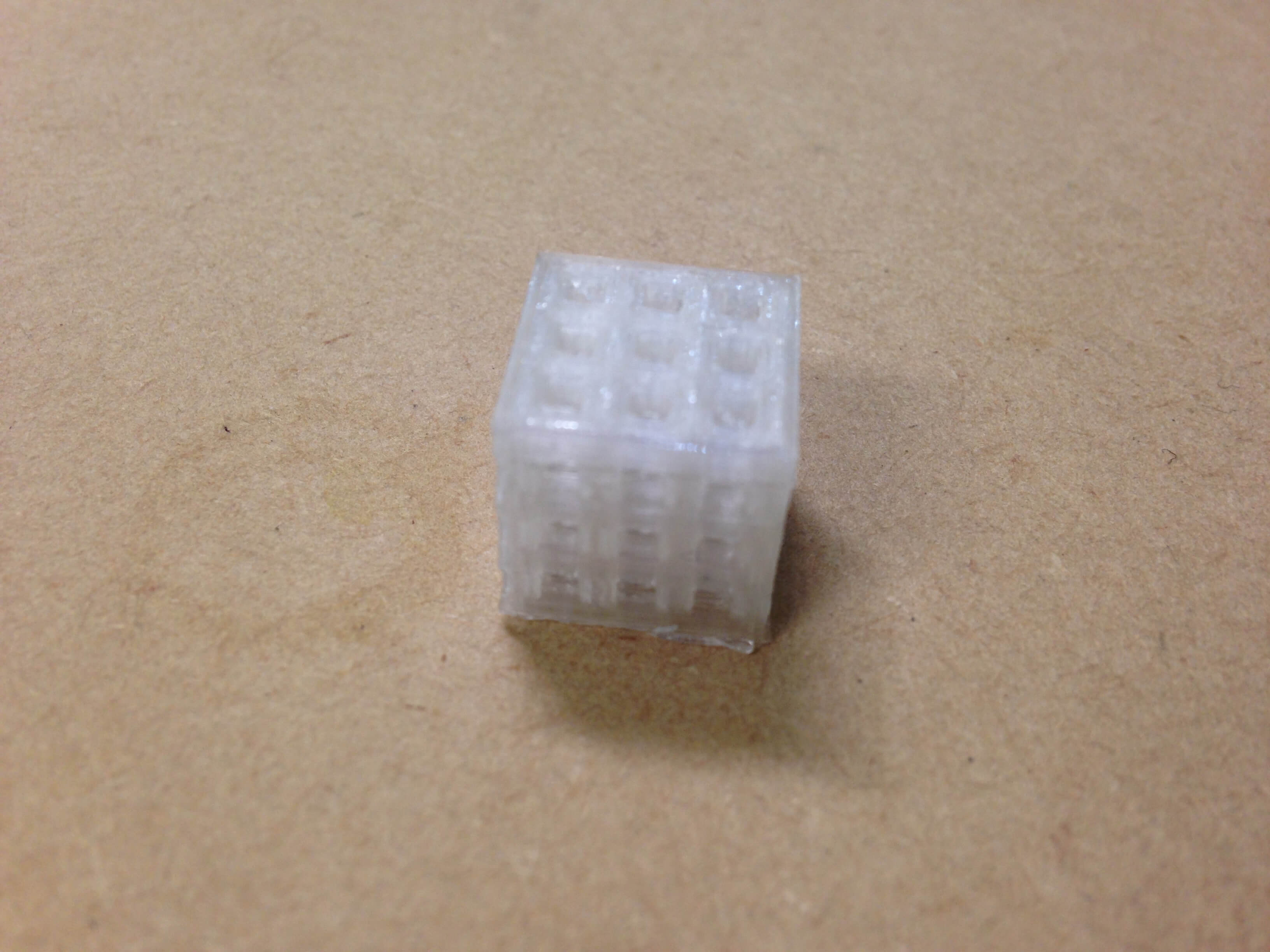

3d_printing_calibration4
Fig7. - Test printer

From test 3D printer experience, I have learned a slower speed will give us a higher quality print.

Design and 3D print an object:

I have observed my friend always spend a lot of time to clean his aquarium.
I want to make a hose adapter for a small aquarium.
It can help to change clean water with it.
You can put tiny plastic tubing with it. I used sketchup for 3D design. When I was finishing with the design I saves as a STL file for 3D printing.

3D design
Fig8. 3D design with freecad
3D design3
Fig9. 3D design with freecad
3D design2

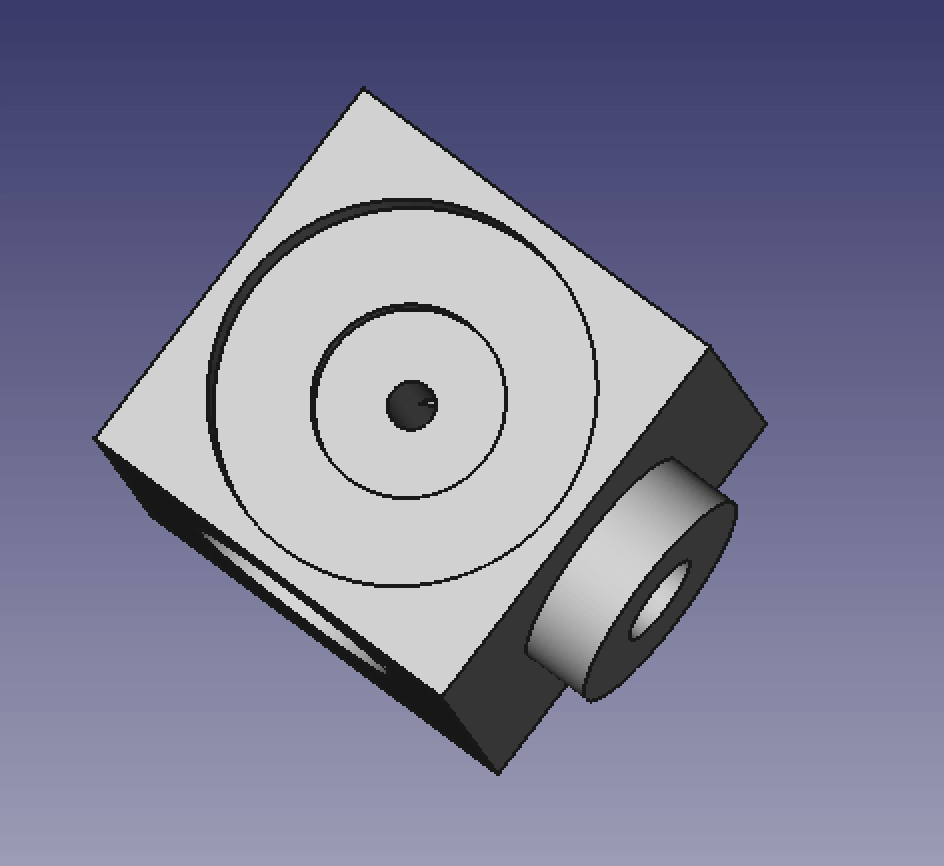

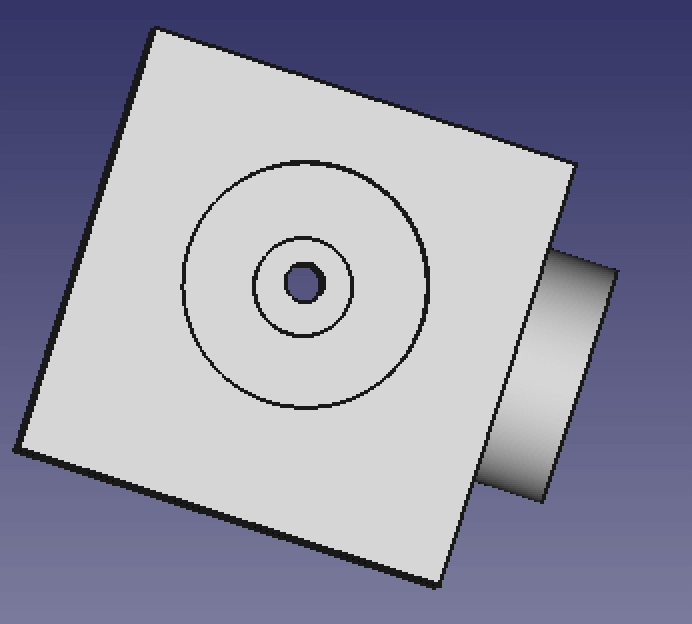

Fig10. 3D design with freecad
3d_printing2
Fig11. 3D printing
3design_printing2
Fig12. 3D printing
3design_printing
Fig13. 3D printing
3design_printing5
Fig14. 3D printing final
3design_printing3
Fig15. 3D printing final
3design_printing4

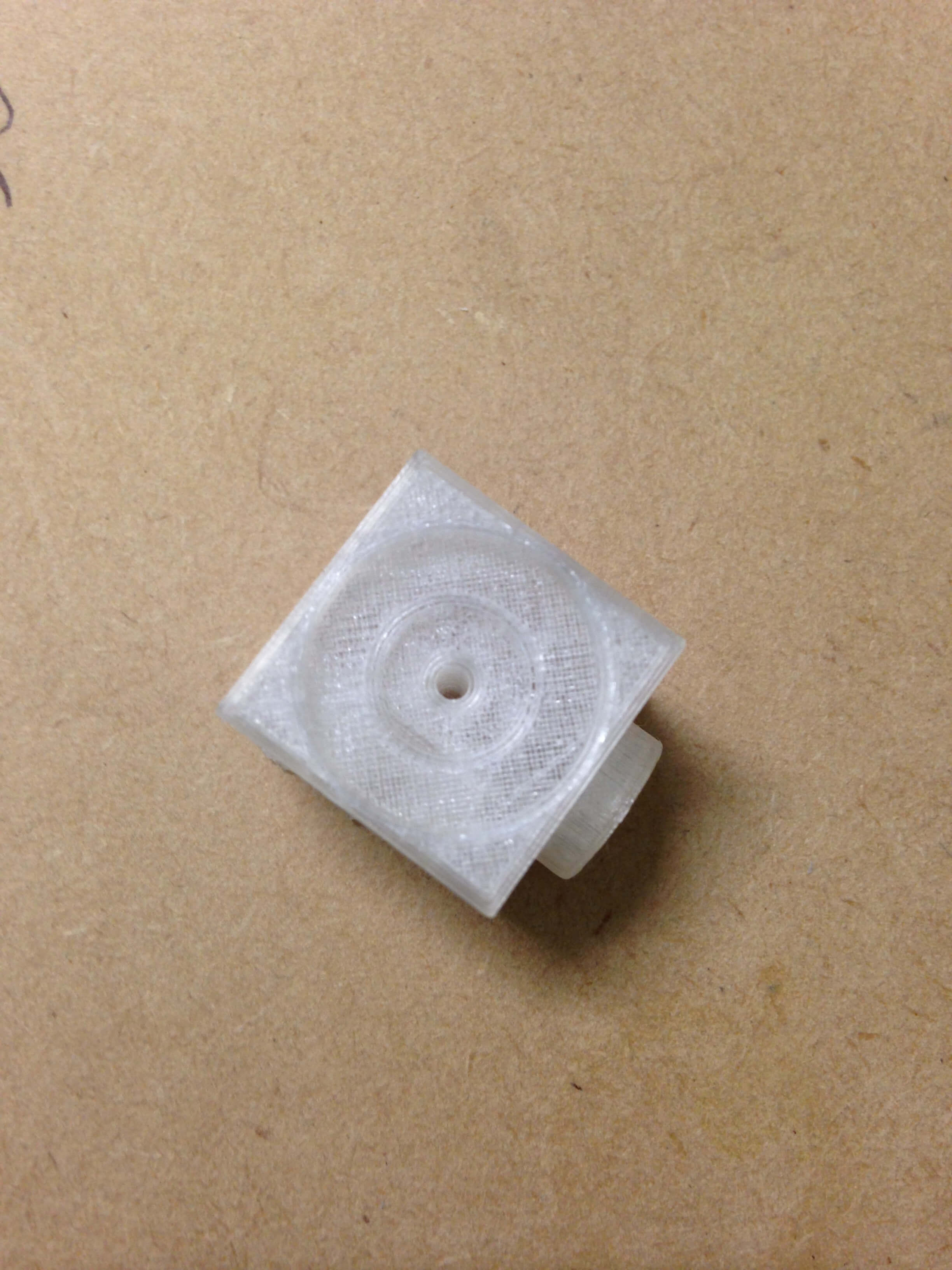

Fig16. 3D printing final

The result looks great.

3D scan an object:

For 3D scanning, I was used Structure sensor and kinect to scan my self and chair.

After scanning, save the model in .obj file, and import to meshmixer for cleaning and repairing. And save the model to .stl file.

chair
Fig17. chair
3d_scanner_chair2

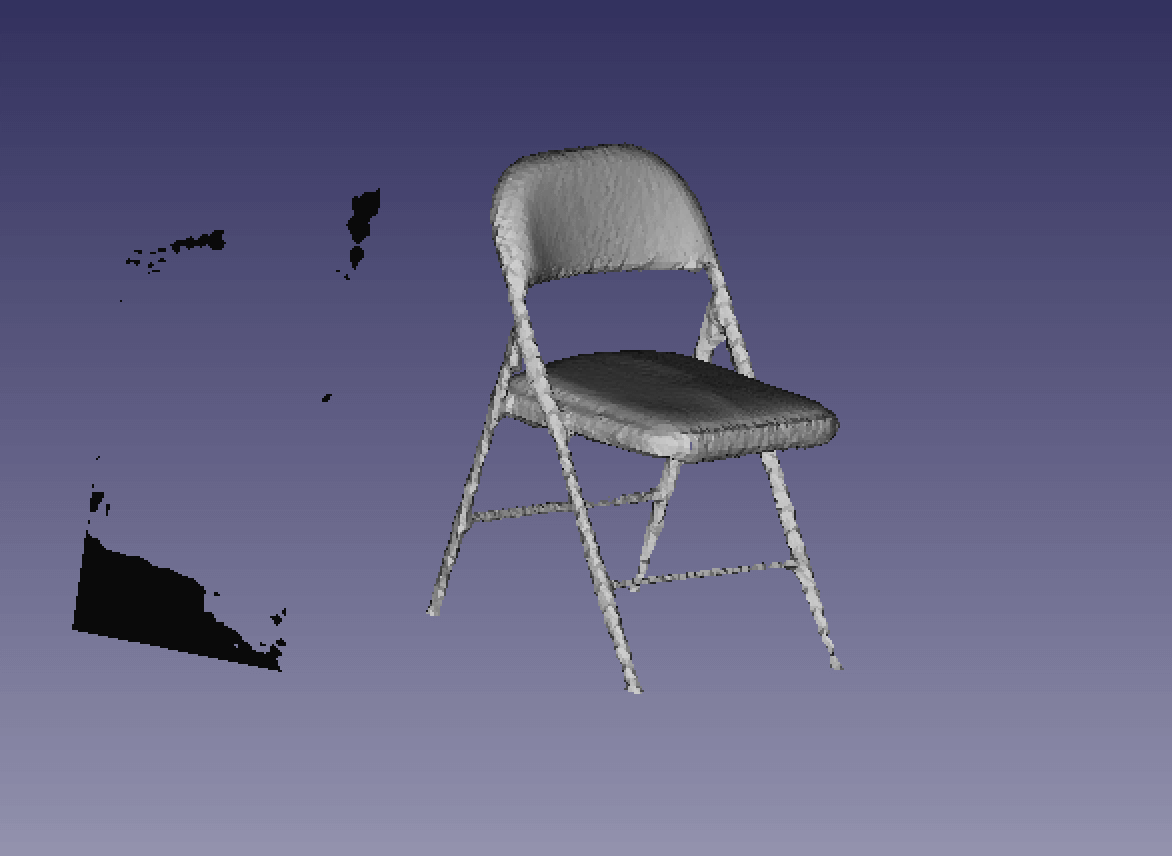

Fig18. 3D scanning: chair with Structure Sensor 3D scanner
3d_scanner_chair
Fig19. 3D scanning: chair with Structure Sensor 3D scanner

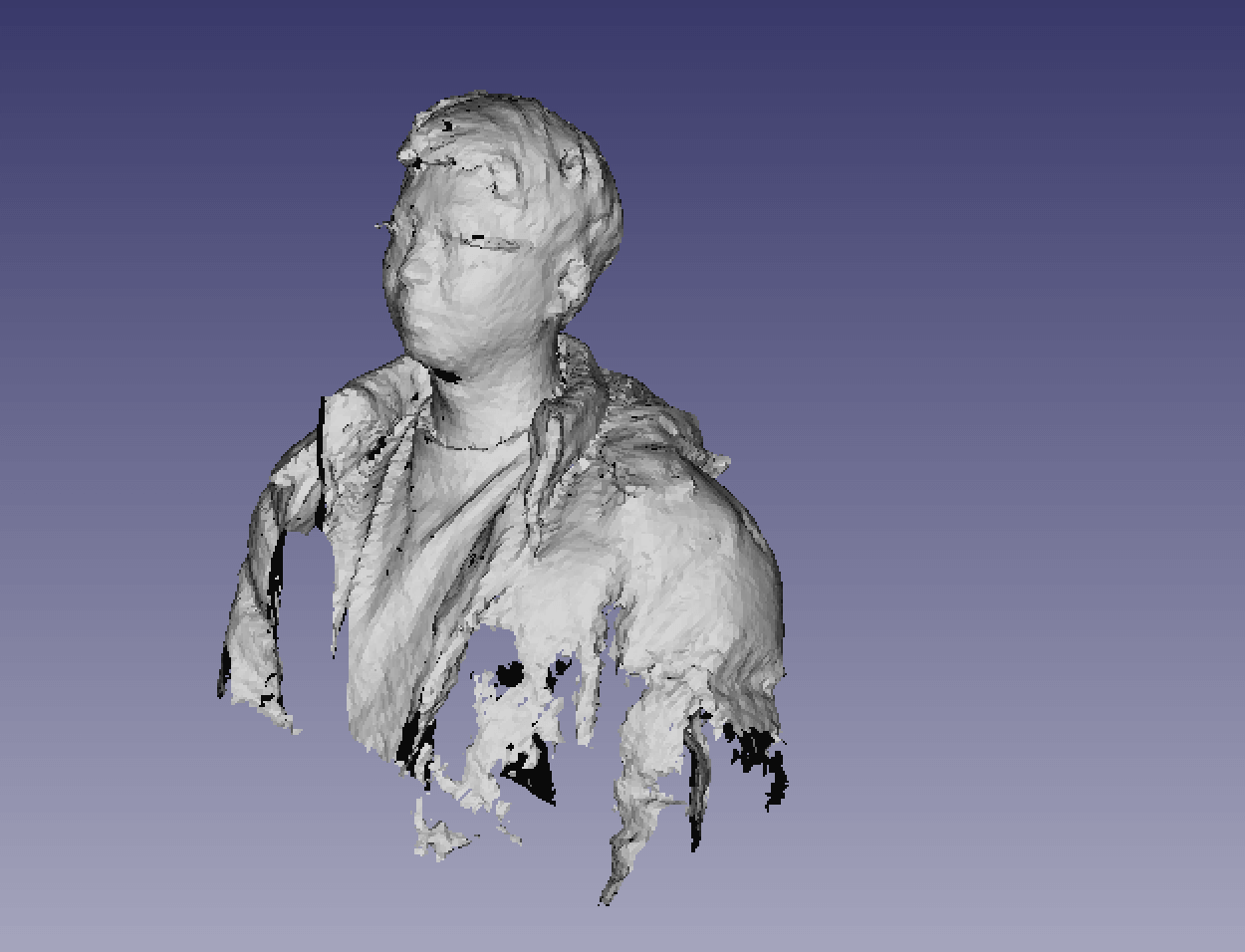

3d_scanner_phone
Fig20. 3D scanning: selfie with Structure Sensor 3D scanner

Then I try to use kinect to scan my self. The result looks better than structure sensor.

3d_scanner_kinect

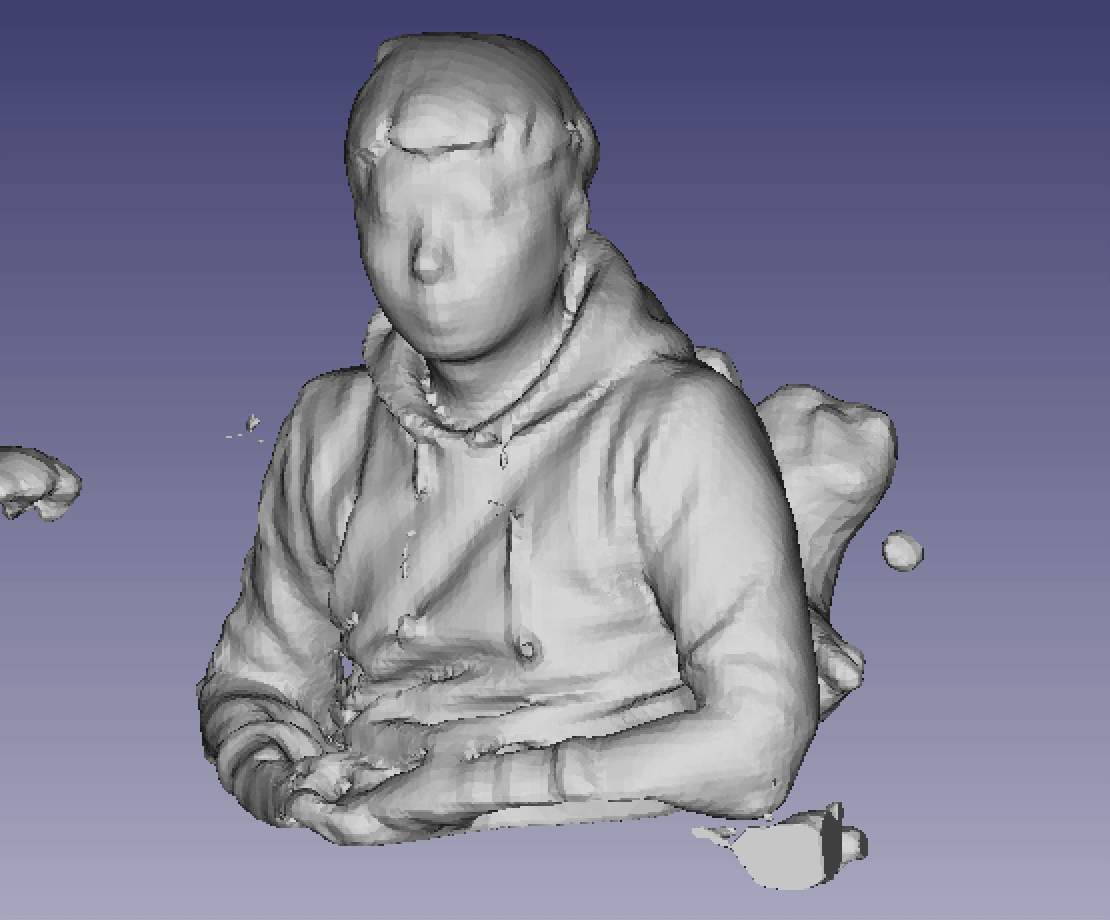

Fig21. 3D scanning: selfie with kinect

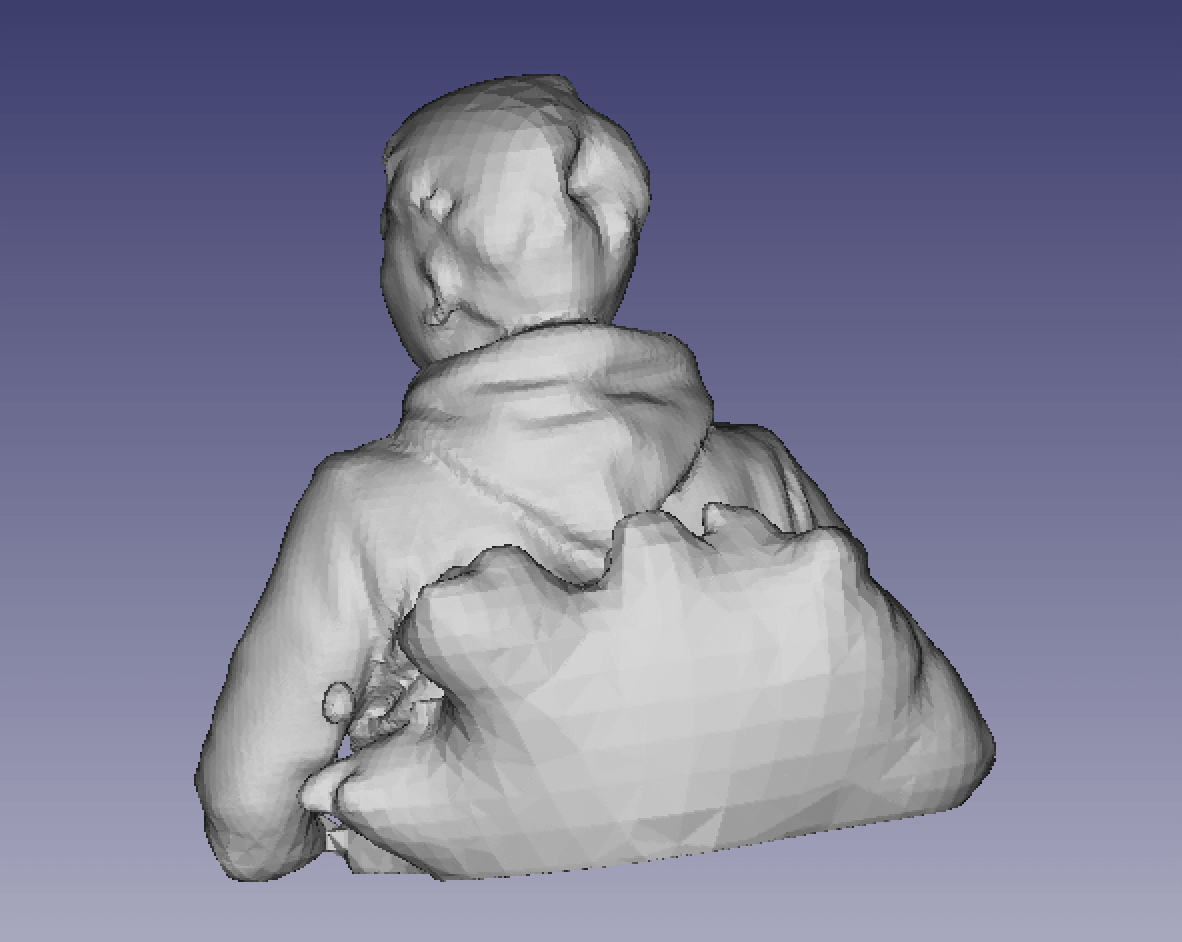

3d_scanner_kinect3
Fig22. 3D scanning: selfie backward with kinect

After used two type of 3D scanner, I would prefer to use kinect to be a 3D scanner.
Structure sensor should be take your phone with it by your hands. It is inconvenient for me and unstable.
If I used kinect for 3D scanner I can sit in the chair and was more stable than structure sensor and better result.

Source Files:

  • Spring_without_support.zip
  • Test_your_3D_printer.zip
  • myself.stl
  • myself_scanning.stl(via kinect)
  • chair.stl
  • hose_adapter.stl
  • chair_repair
