Week 4

Electronic Production

My working experience were all in electronics fields. Yet for the past 5 or 6 years I have never use a CNC milling machine to do a PCB. This can be a very challenging week.

Knowing the tool

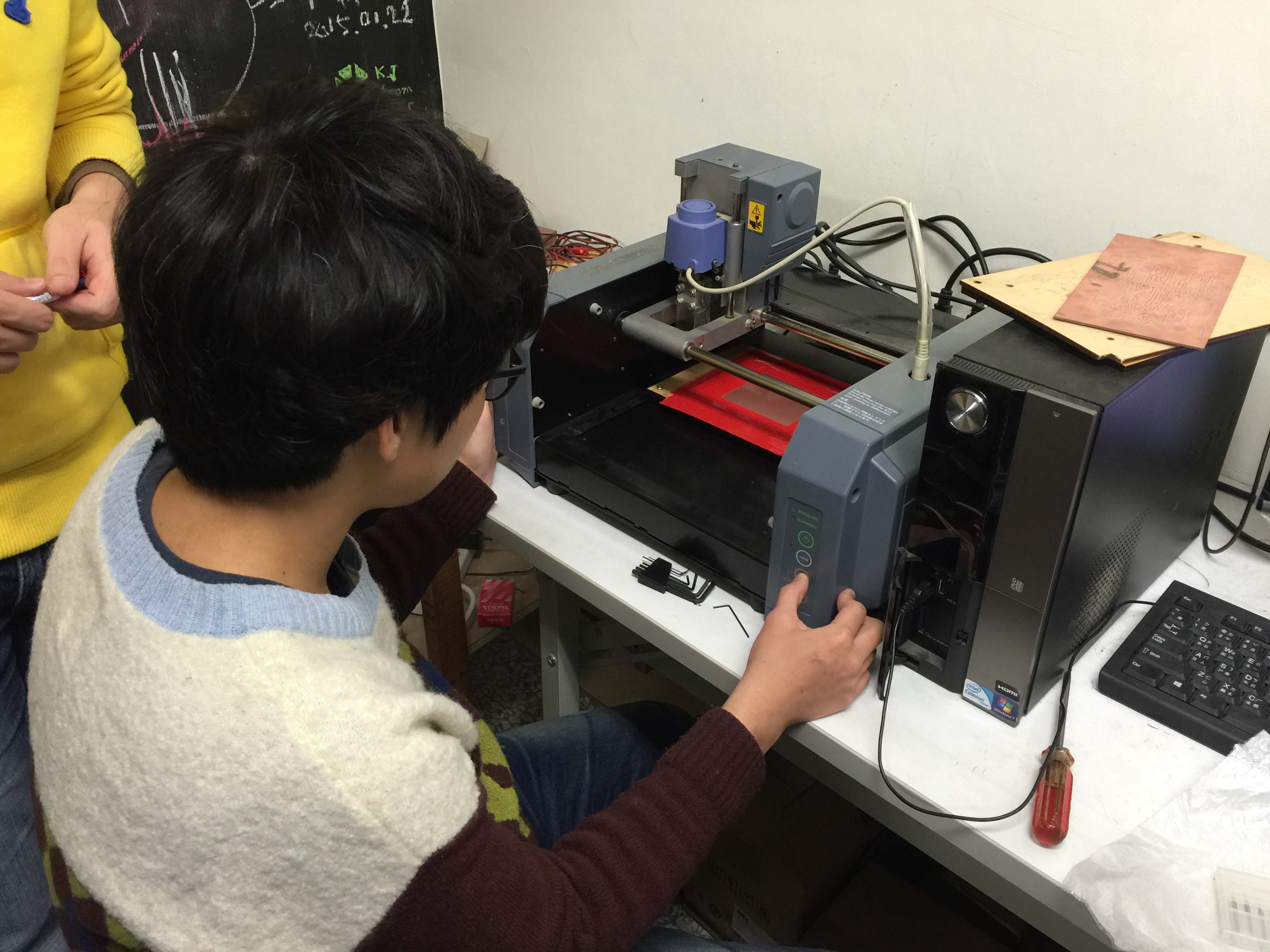

MDX 20

Roland Website

plus a PC running Ubuntu 14.04

Icing on the cake

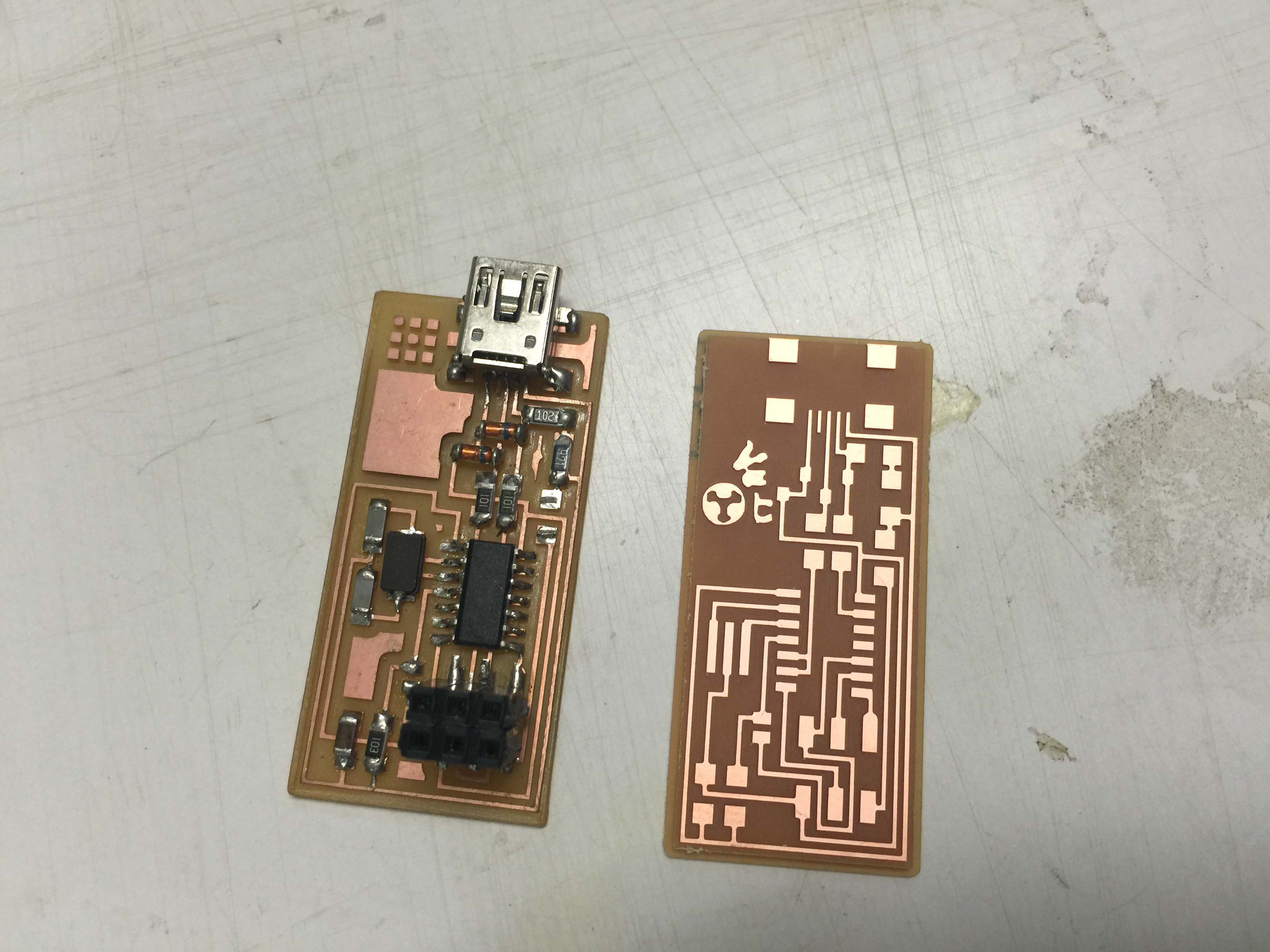

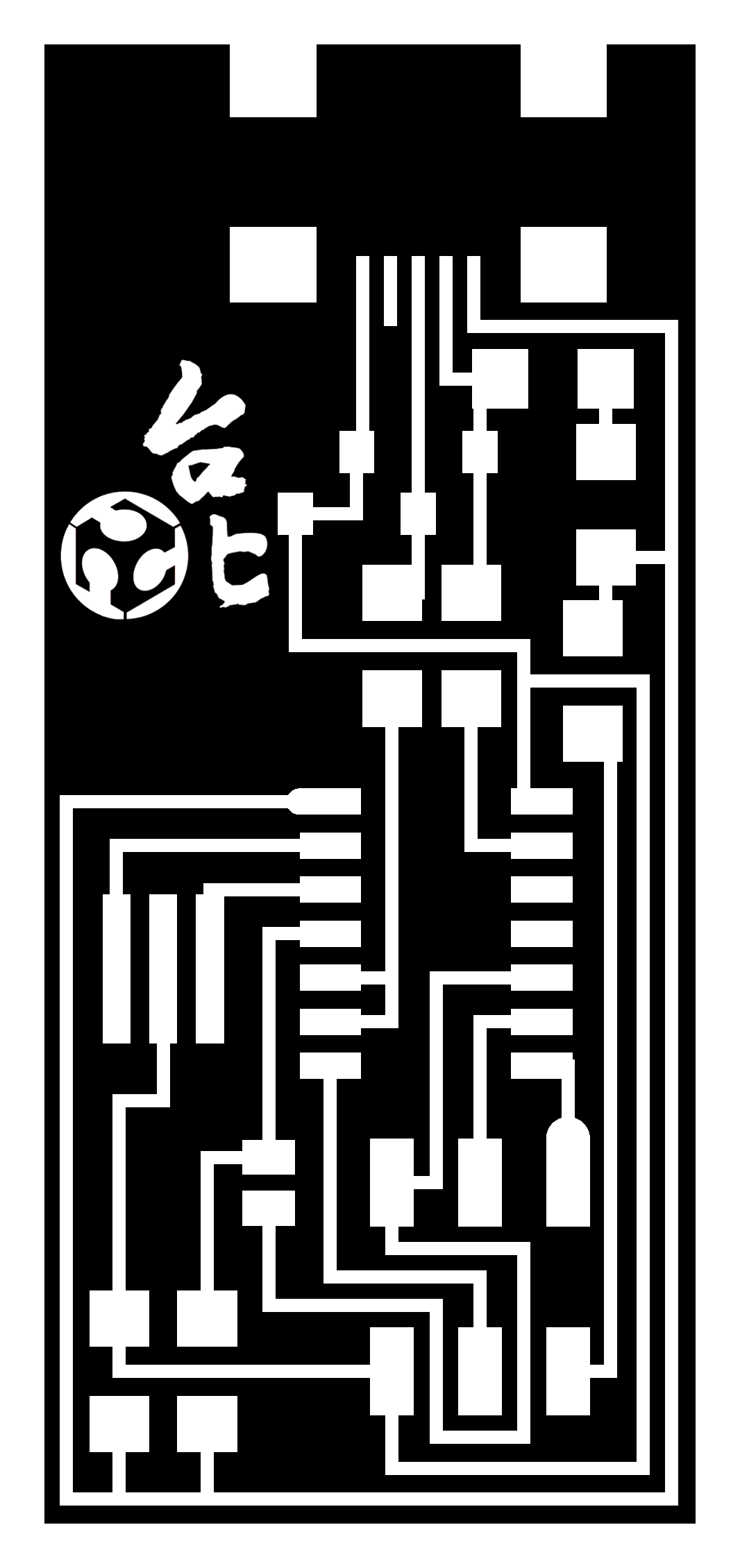

Voilà, a FabLab Taipei limited FabISP!, I used Photoshop to add our lab's logo to the FabISP, you can download the file by saving the png below or just click on the link.

download here

Fab Module

Web Installation

http://fabacademy.org/archives/2015/doc/fabmodules-html5.html

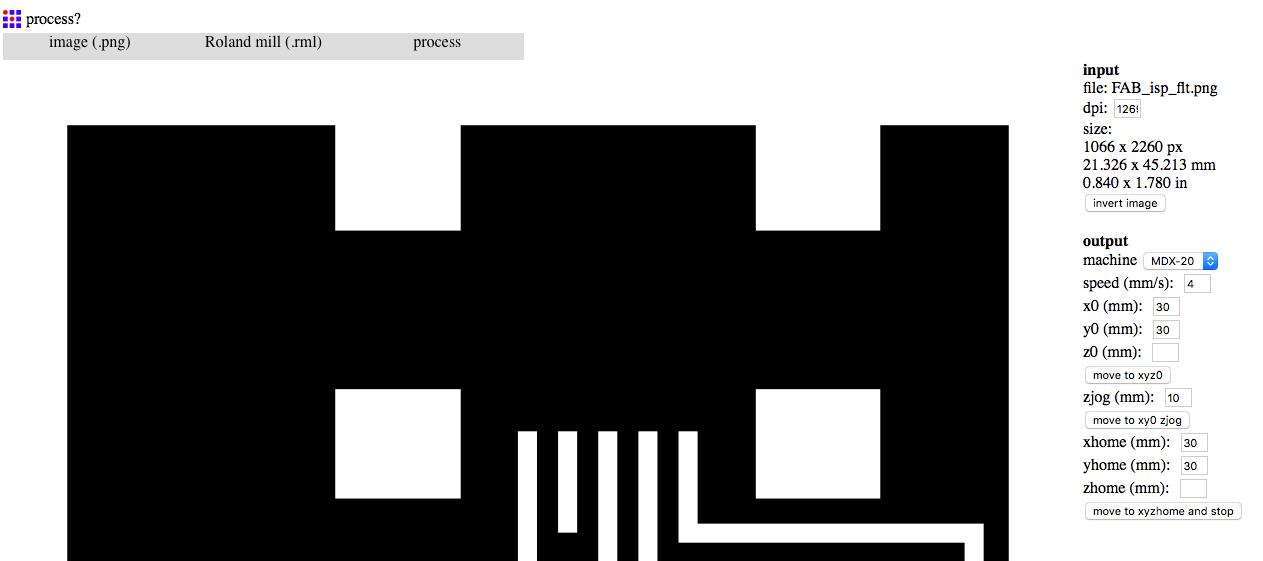

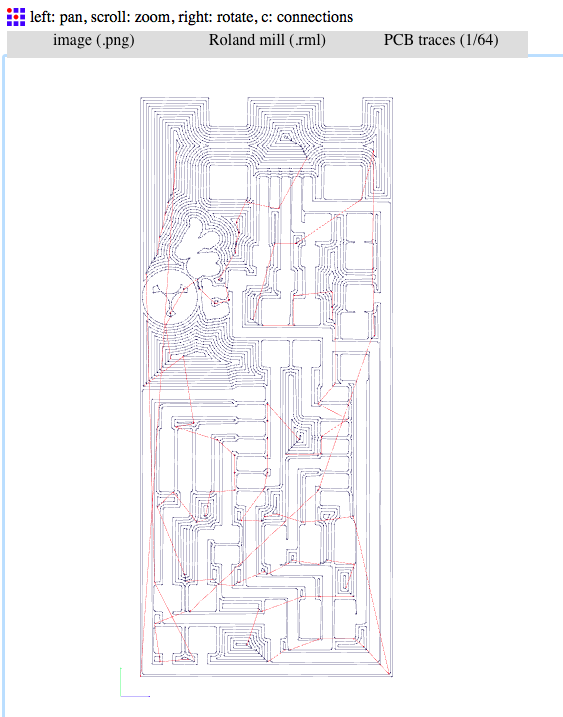

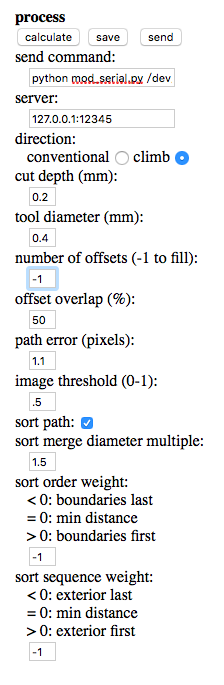

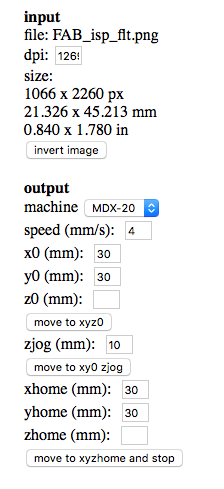

Operation and parameters

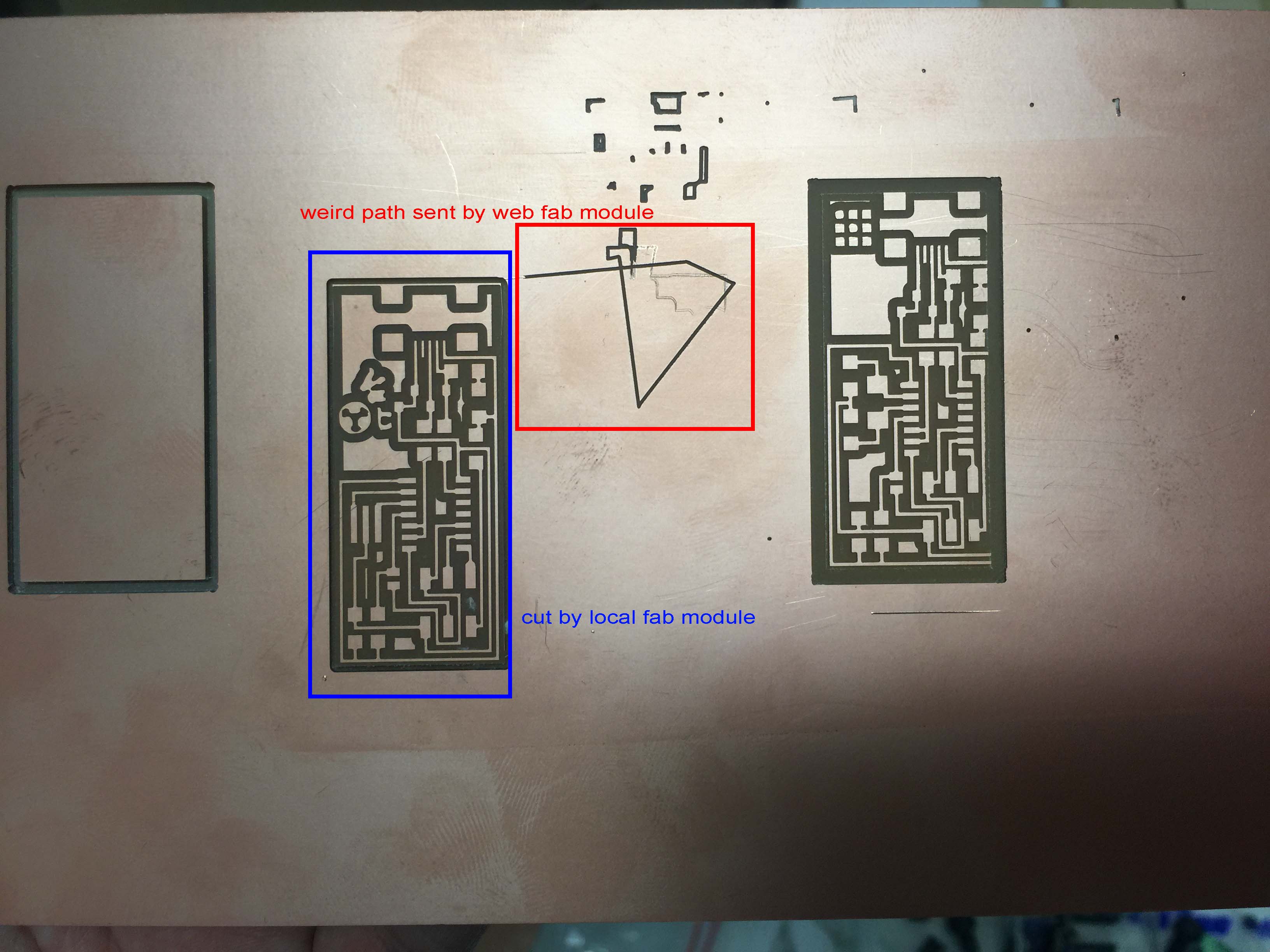

Result: Failed with web based fab module, sent crazy pathes,reason unknown (yet).

Vinyl Cutting while waiting milling

(credit to Kevin Cheng)

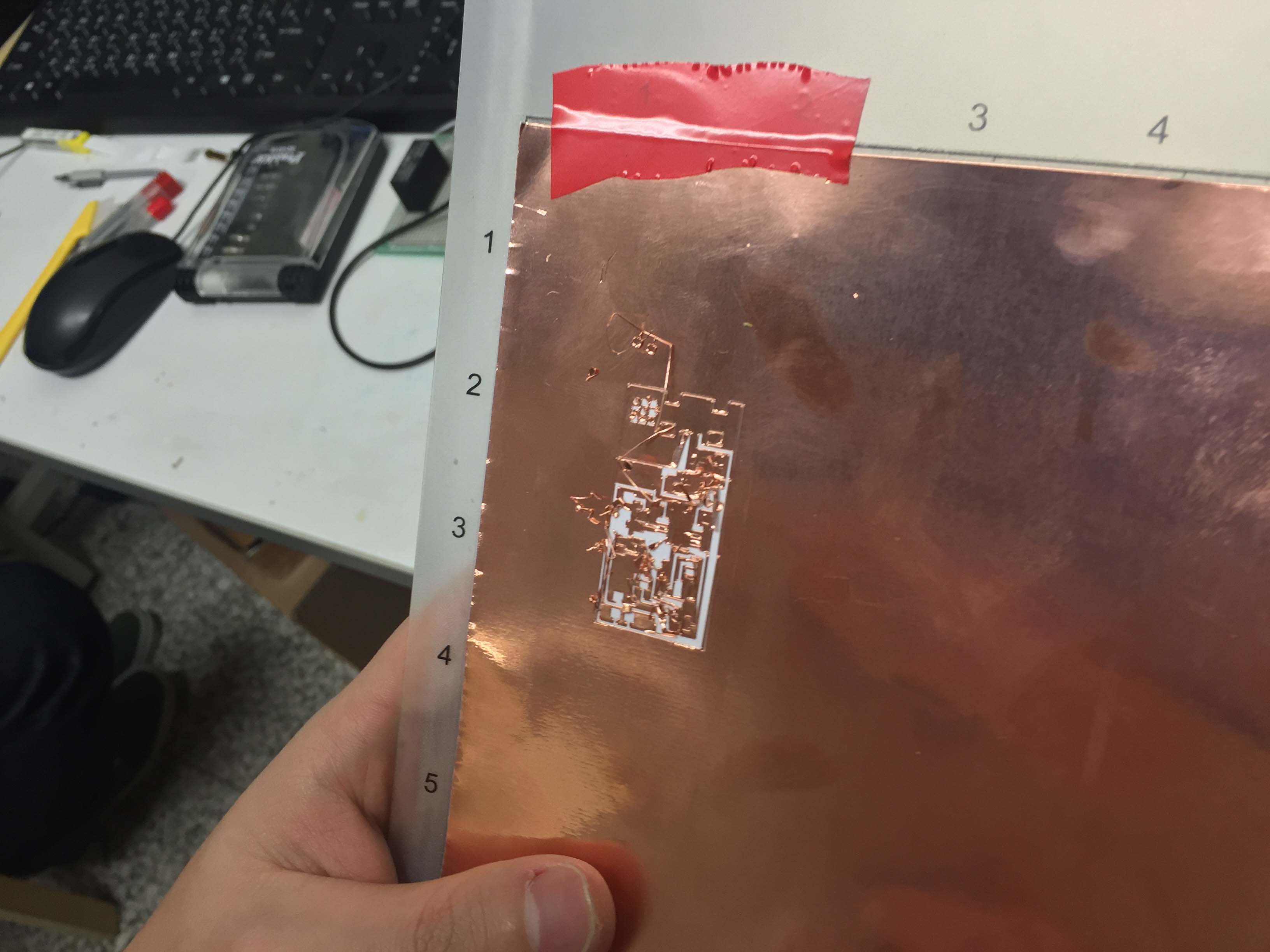

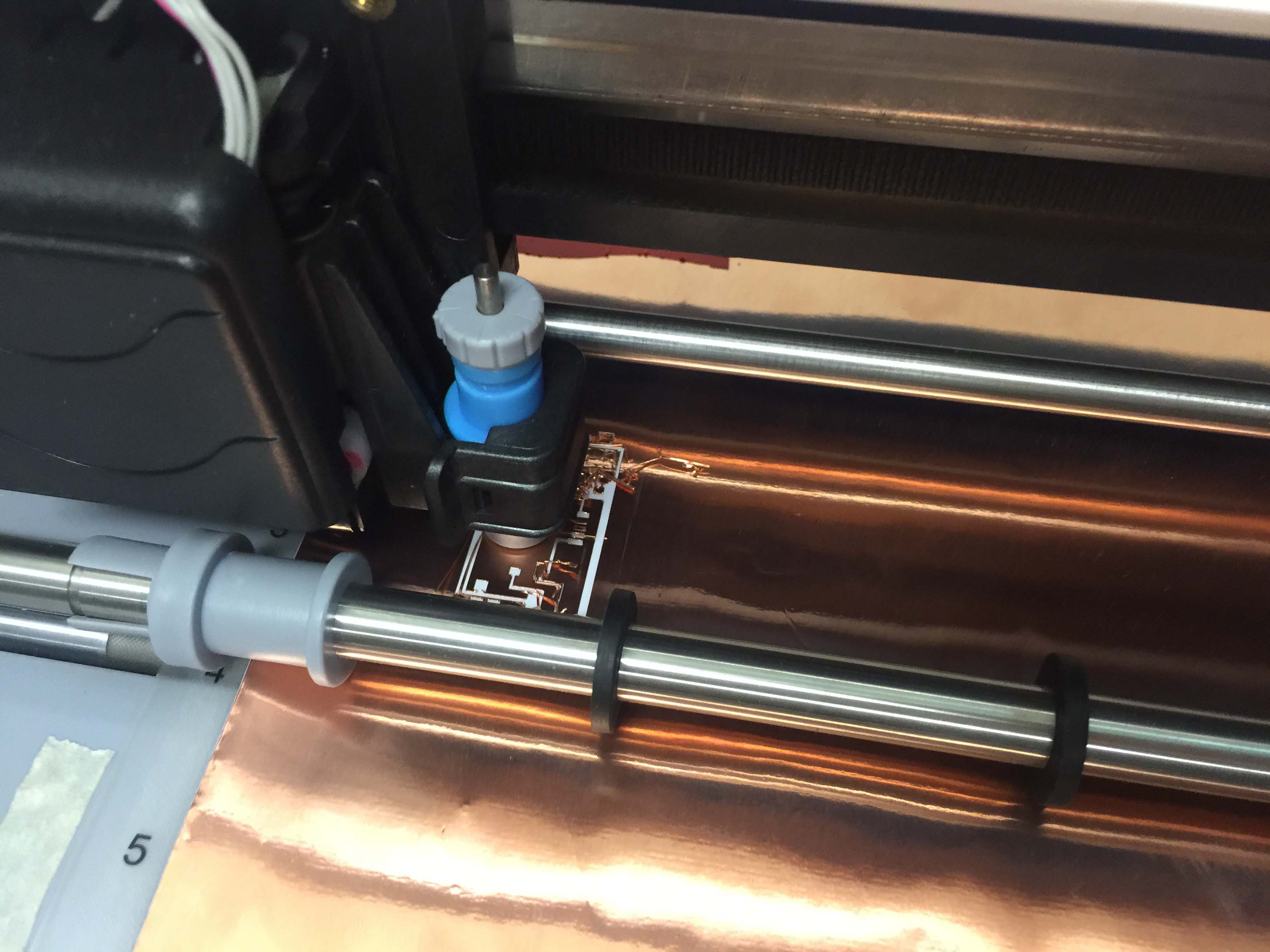

We tried to use a GCC i-Craft vinyl cutter to build circuit too, result was not good though.

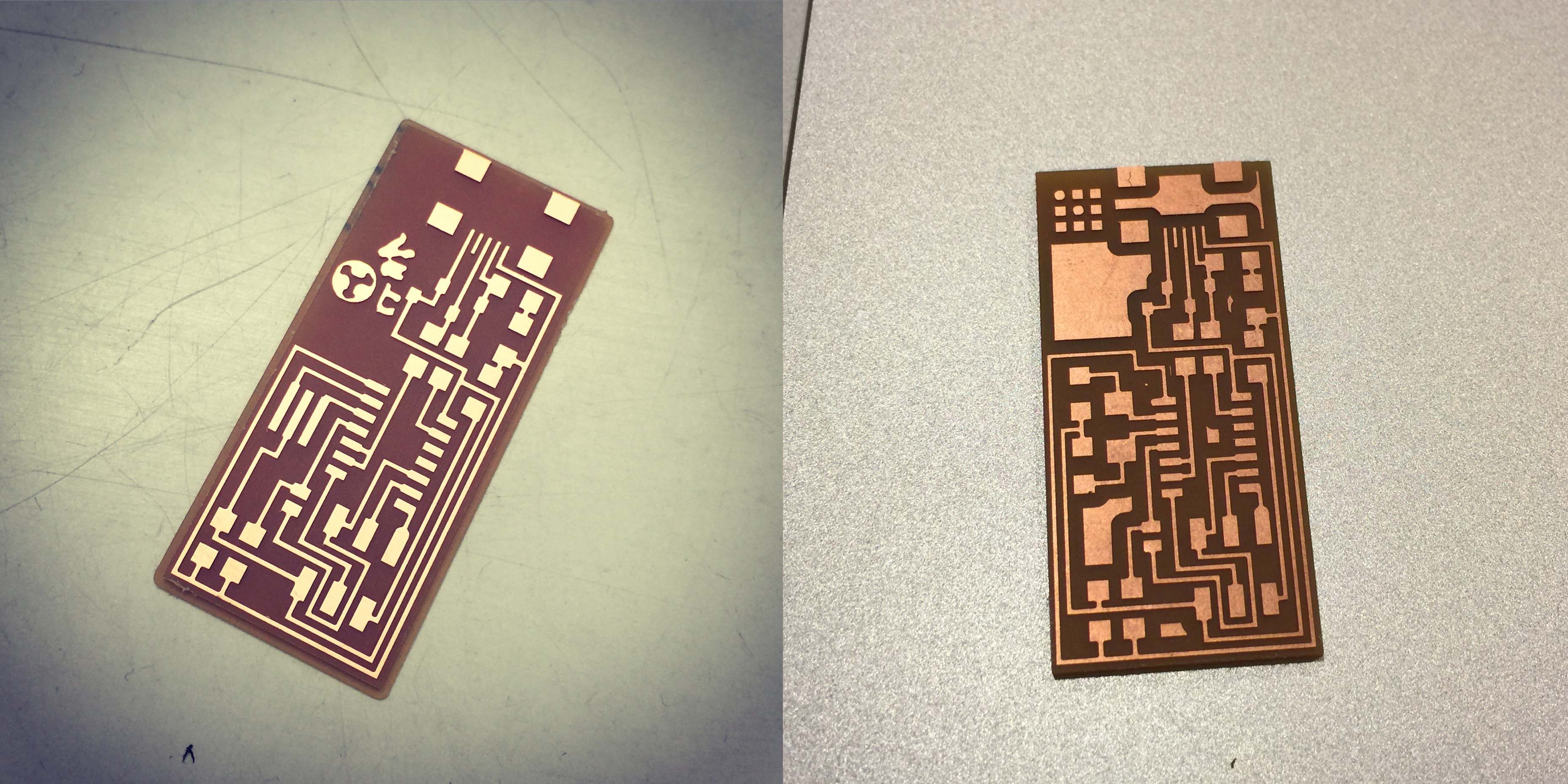

Steaming PCBs

(left fill, right fill) = (-1, 4)

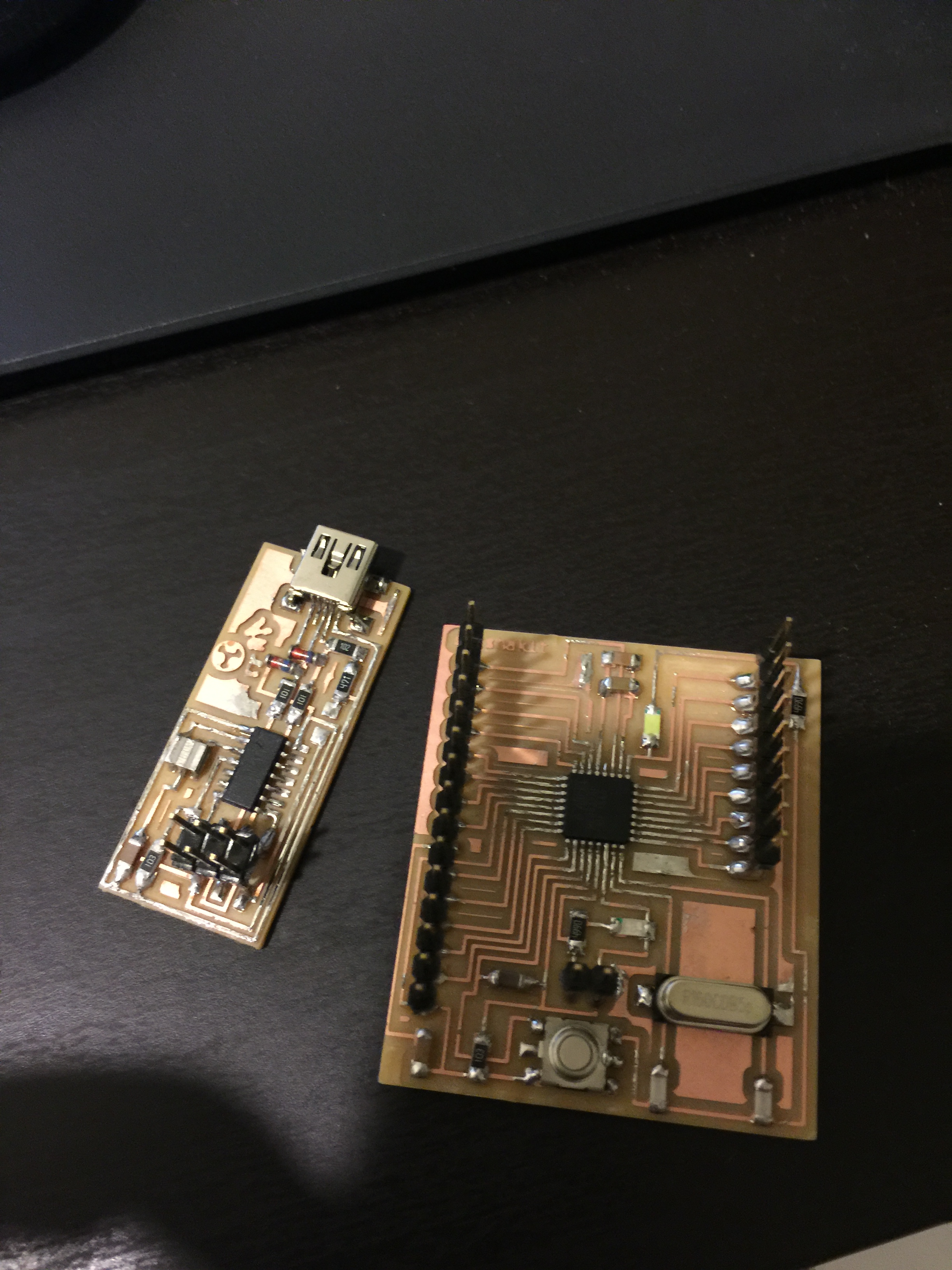

Stuff the circuit

(Apr 15 update)

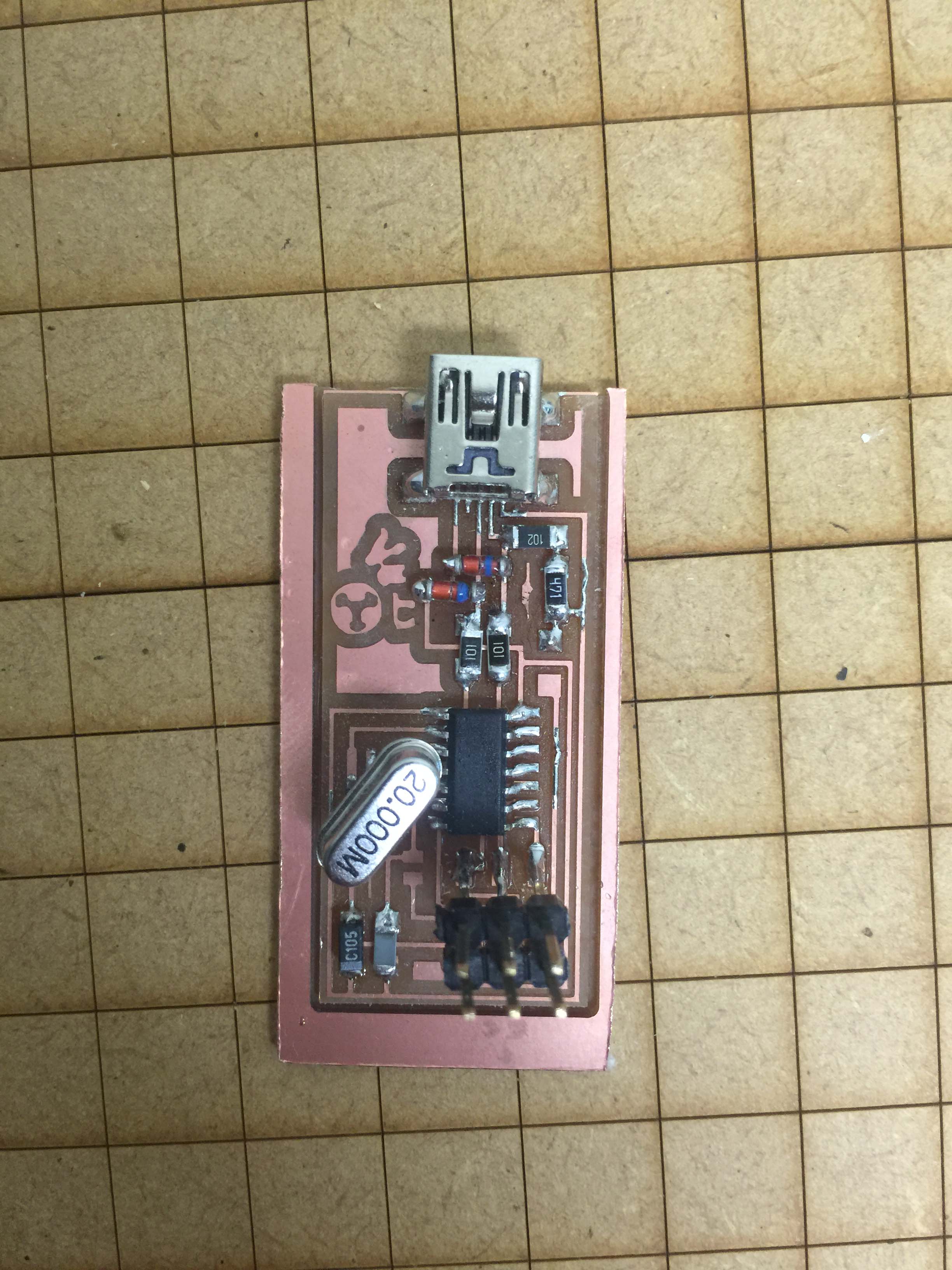

I made a new FabISP with 20MHz resonator after received the order from DigiKey

Kickstart the FabISP with boot(loader)

Preparing for embedded programming...

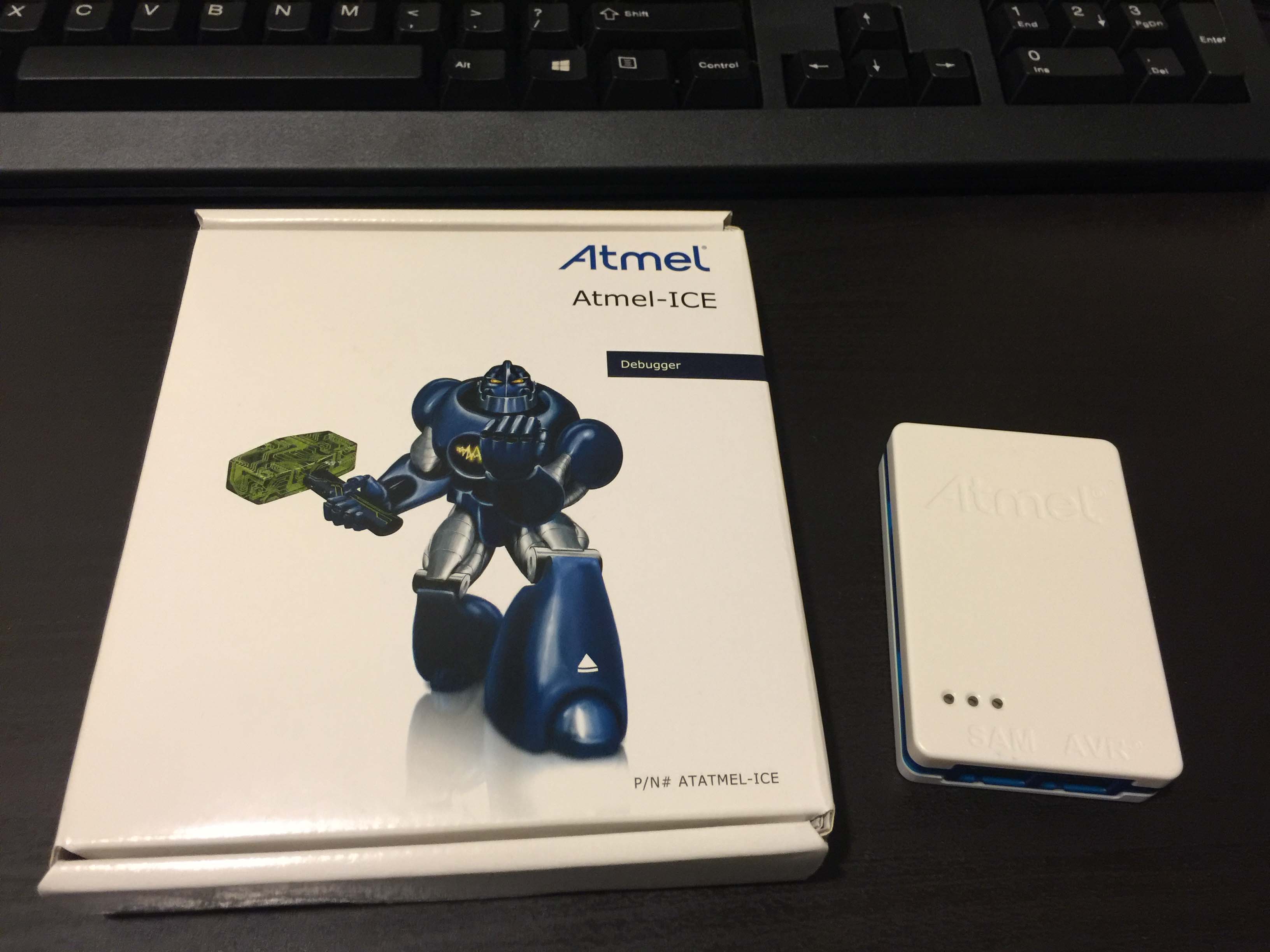

Atmel-ICE user manual

Atmel ATtiny44 datasheet

Tiny AVR Programmer Hookup Guide by SparkFun
