Exercise 02 Computer-aided design

Requirement

Explore a few 2D and 3D software and document your evaluations.
Model (draw, render, animate, simulate, ...) a possible final project , and post it on your page with original 2D and 3D files.

2D software

Because of my occupation in a school environment, I have access to the campus licence of the Adobe suite - Photoshop, Illustrator, Indesign, Premiere Pro, Audition. And for many years I have found sufficiency in the suite, without exploring other open-source software. For the purpose of this course, I have explored GIMP and Inkscape.

GIMP

GIMP, which stands for GNU Image Manipulation Program, is a free and open-source raster graphics editor used for image retouching and editing, free-form drawing, resizing, cropping, photo-montages, converting between different image formats, and more specialized tasks.

With my experince in using Adobe Photoshop, I was able to explore the various icons and menu selections and quickly understand their functions. With the help of an online tutorial, I was able to convert a bitmap image to a vector image quickly. I tested by creating a post card for Lunar New Year using GIMP and Inkscape.

[See Figure 1] Hand-wrote "Happy Monkey Year" on a piece of blank paper.
Using my iphone, I took a photo of the sketch and upload to GIMP.
Crop the original image using the Crop tool.
To delete the unwanted background, perform this step: Layer > Transparency > Add Alpha Channel.
Use the Fuzzy Select tool to select the areas to remove and hit the delete key.
Save / export the file to a PNG format.

Figure 1. Handwritten draft of my Lunar New Year greetings (top) and a downloaded monkey image from the internet (bottom).

Inkscape

Inkscape is a free and open-source vector graphics editor; it can be used to create or edit vector graphics such as illustrations, diagrams, line arts, charts, logos and complex paintings. Inkscape's primary vector graphics format is Scalable Vector Graphics (SVG).

I was quite impressed by the vectorized result of my test sketch.

[See Figure 2] With the Selection tool, select the image and head to Path > Trace Bitmap. Hit OK.
Close the dialog box and you will get a copy of the vectorized image, sitting on top of your original image. Pull them apart and you see stark difference. [See Figure 3]
On the vector image, I can manipulate the form of the design by selecting the "Editing paths by nodes" icon or simply press F2.
On a 4R layout, I followed to add another vectorized image, and moved my text around, aligned and distributed them centrally. And my Lunar New Year Greeting postcard is completed. [See Figure 4]

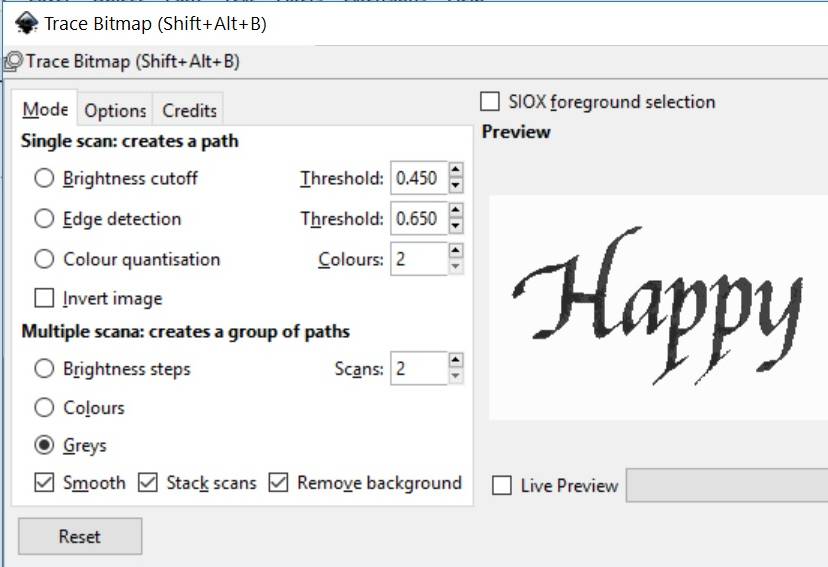

Figure 2. Trace Bitmap to vectorize an image.

Figure 3. Bitmap (Top), Vectorized (Bottom).

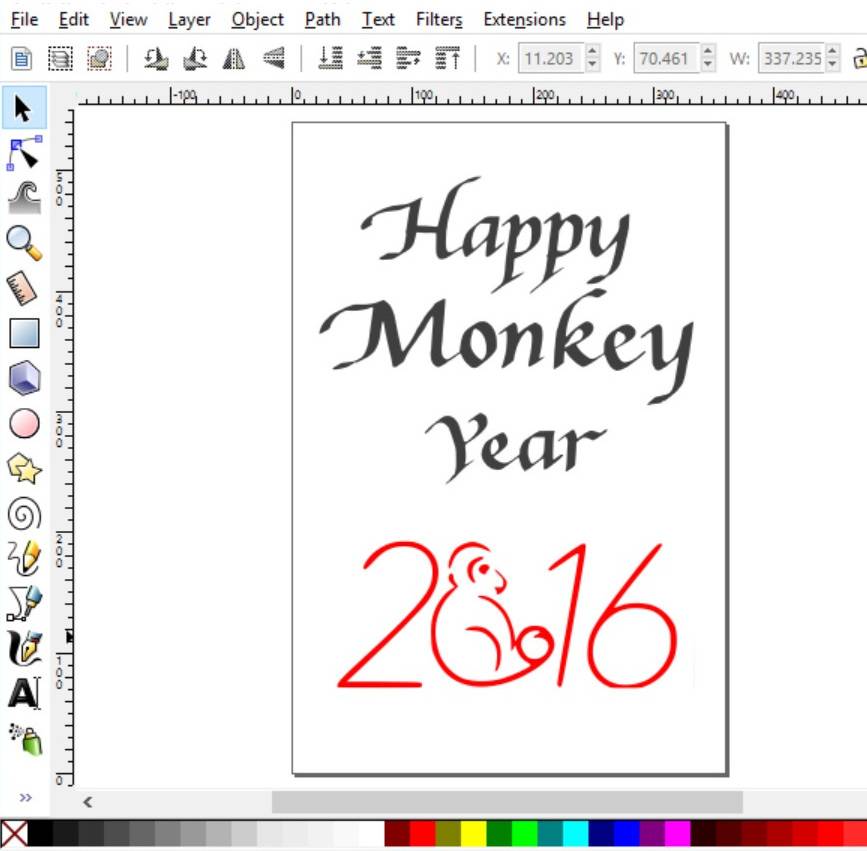

Figure 4. Lunar New Year Greeting Postcard

Surprisingly, inkscape does not have a Crop tool, which is such a common standard tool. And so, cropping an image takes a few more steps to complete.

Use the Rectangle tool and draw out an area you’d like to keep.
Use the Selection tool to select both the image and the rectangle, then head to Object > Clip > Set.

3D software

In my line of work, I do not need to have a hands-on understanding of 3D CAD software, so this week's requirement is quite an uphill task for me. I explored Autodesk Inventor, 123D Design, Sketchup, Tinkercad but realized that seemed too ambitious, and I got confused by the different software. So I narrowed down to Inventor and 123D Design, which I think would be most helpful to my course of study.

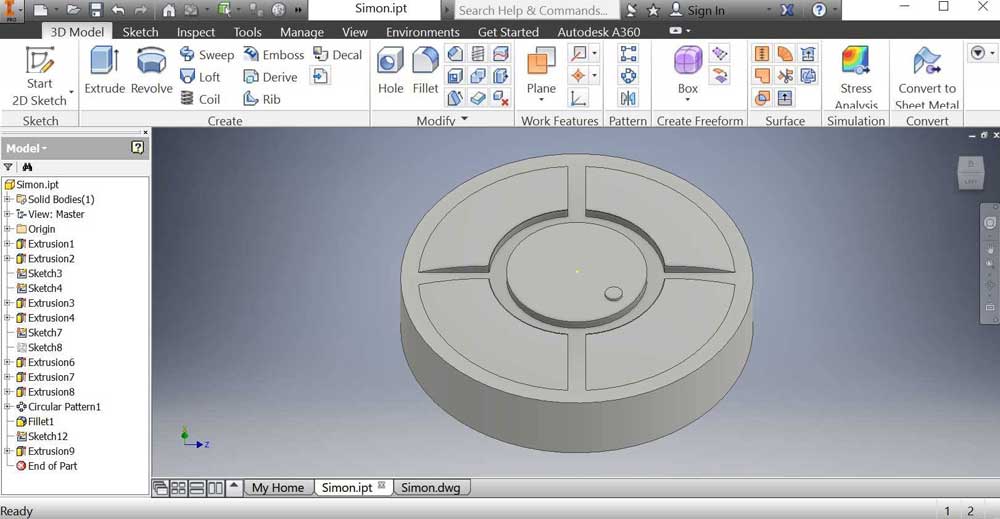

Autodesk Inventor

Autodesk Inventor is a CAD application for creating 3D digital prototypes used in the design, visualization and simulation of products. It is available free for download to educators and students, and the free licence lasts 3 years. It is a very powerful software if we are able to harness all the capabilities it offers.

I have not used this software before. But thanks to Singapore Polytechnic being a premium member of Lynda.com, I was able to have unlimited access to many online tutorial courses. I find that to be better than reading reference books. And Inventor is NOT a software that can be learned by exploring the interface alone. User needs to be familiar with basic 3D terminology and characteristics. I practiced some hands-on with something simple, such as a Lego brick and below are some screenshots of the results. Because Inventor is a very powerful tool, it is my software of choice.

Using extrude, mirror, shell etc to make a Lego brick.

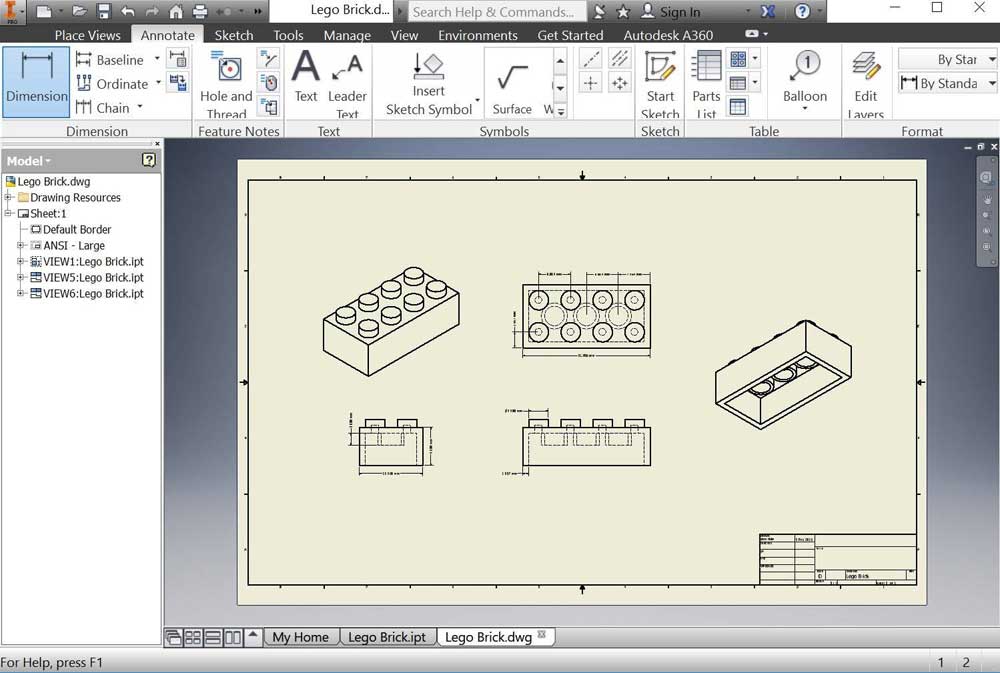

Generating a drawing view of the Lego brick.

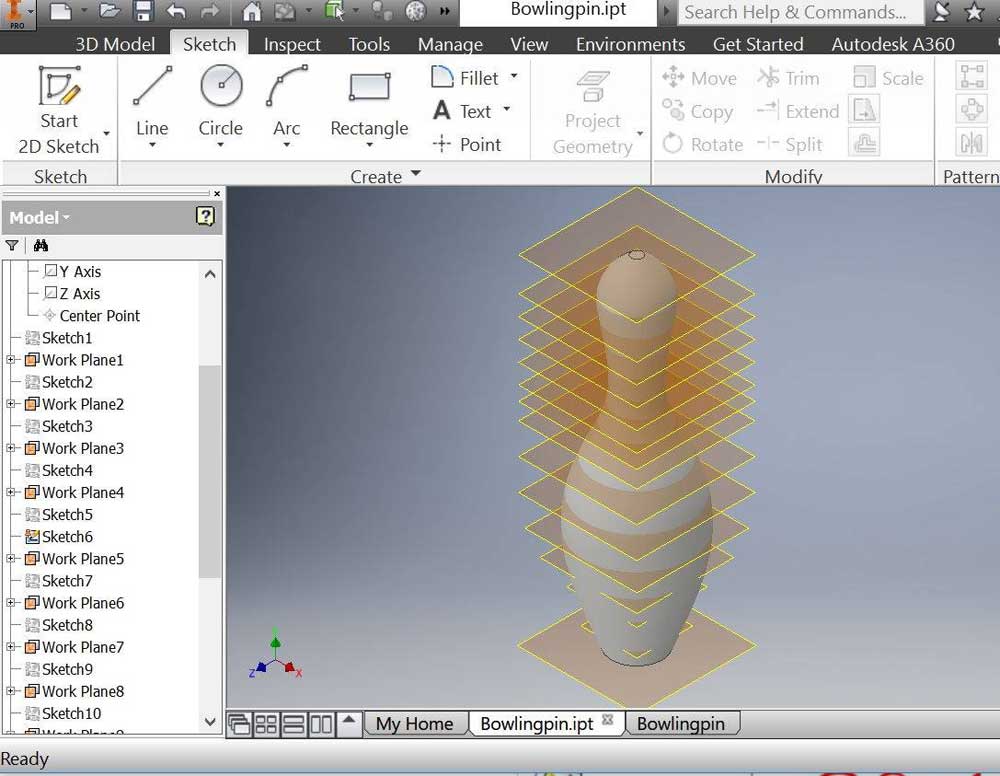

Using offset planes and loft to make a bowling pin.

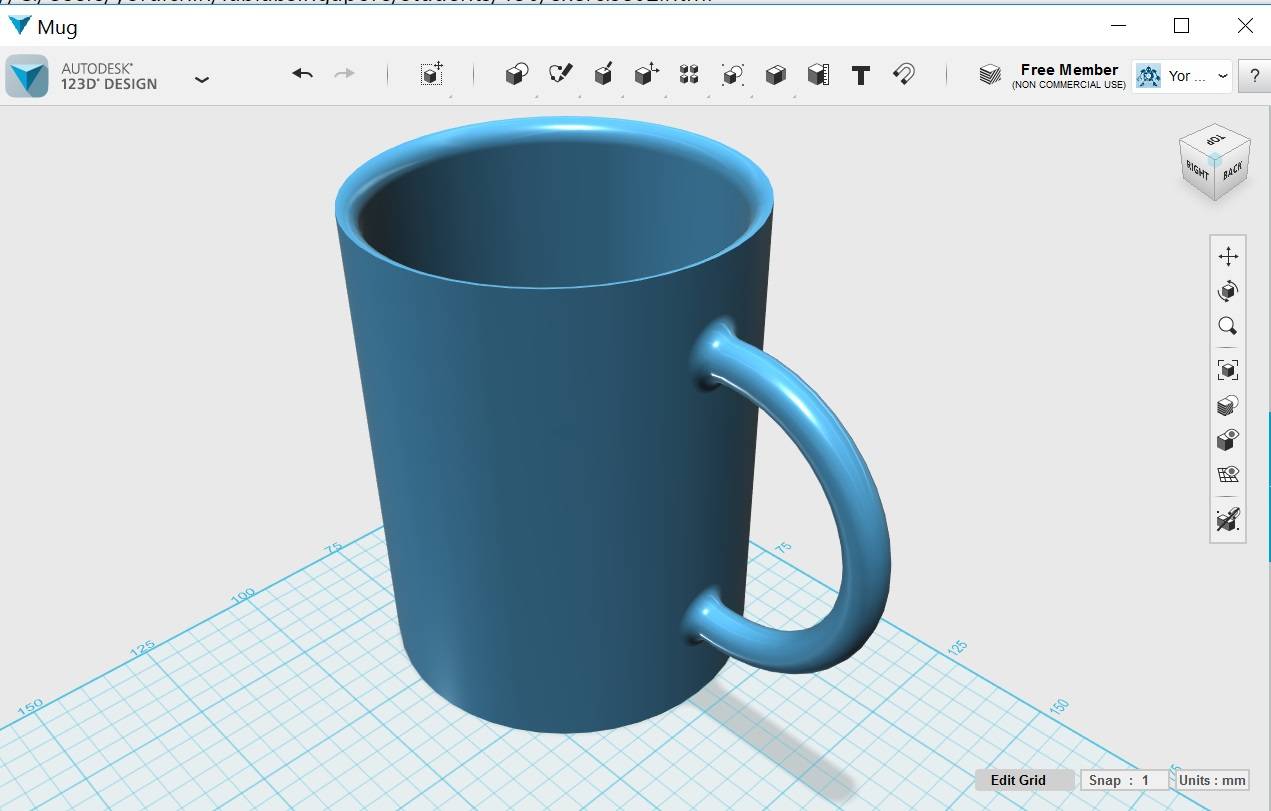

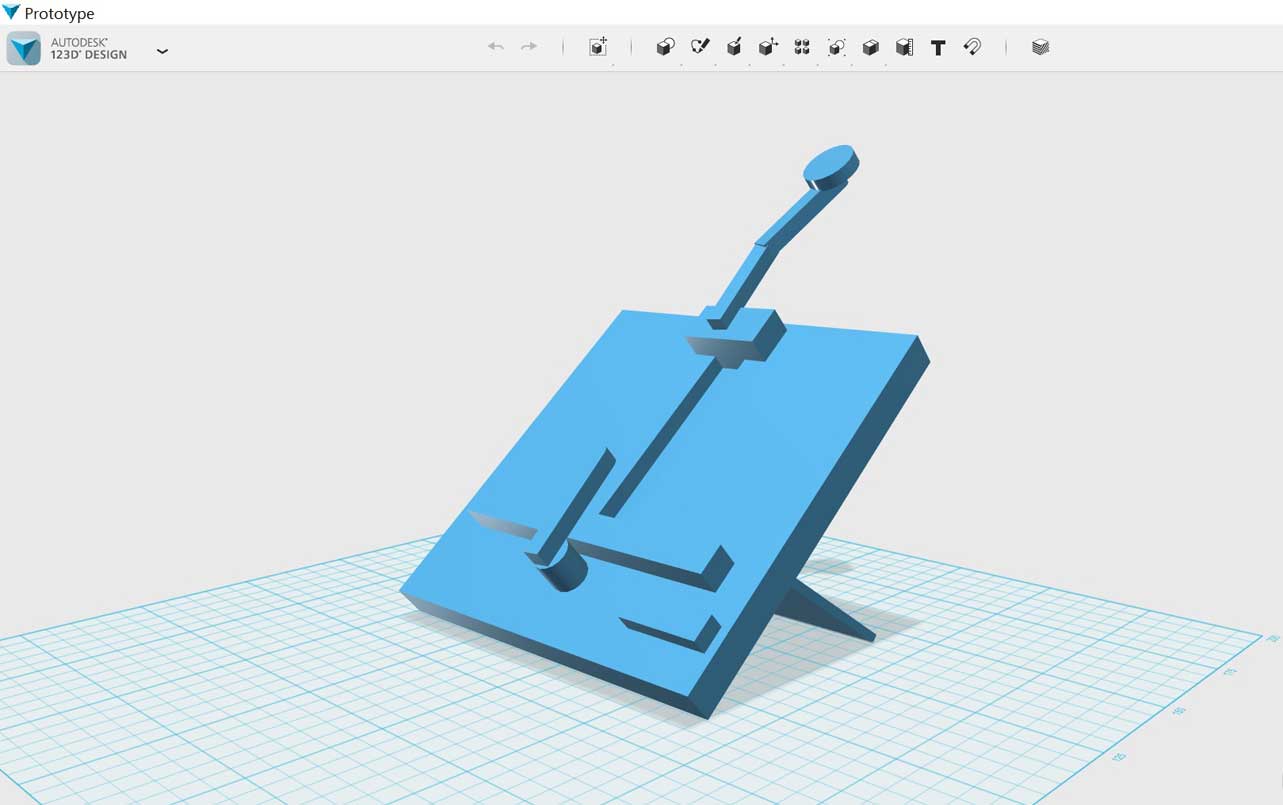

Autodesk 123D Design

Autodesk 123D is a suite of hobbyist CAD and 3D modelling tools created by Autodesk. 123D is linked to a community of makers online where we can draw inspirations and learn from one another. It is easier for beginners compared to Inventor as instead of using 3-dimensional planes, it uses other primitive blocks to act as plane and axis. However, I don't think 123D has the functional capability to generate drawing view. So I had to import to Inventor to do that.

Using press/pull, pattern, shell etc to make a similar Lego brick.
