Week 3

With making 3 dimensional object for a cat tower, to cut wood panels using laser cutting machine,

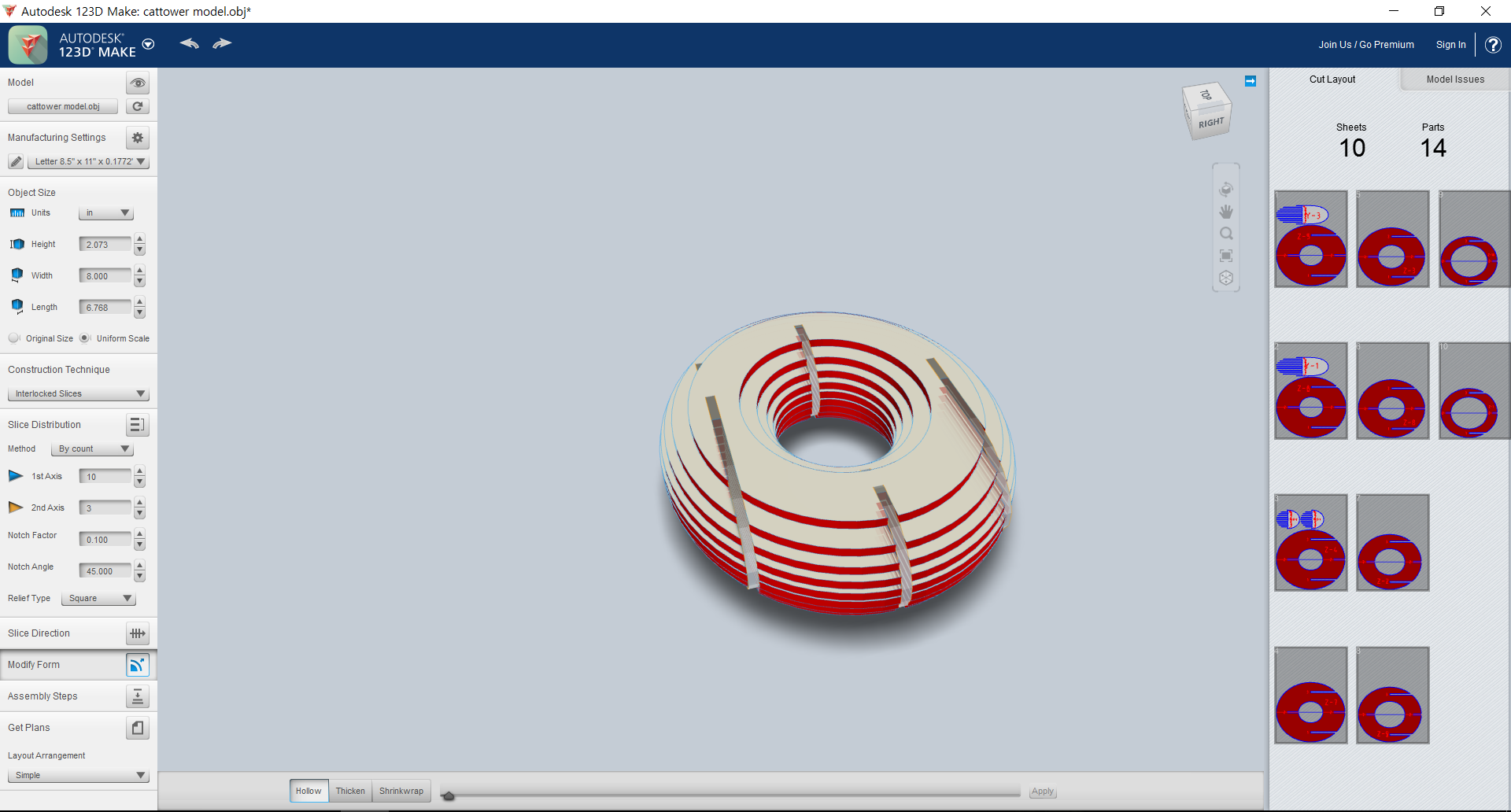

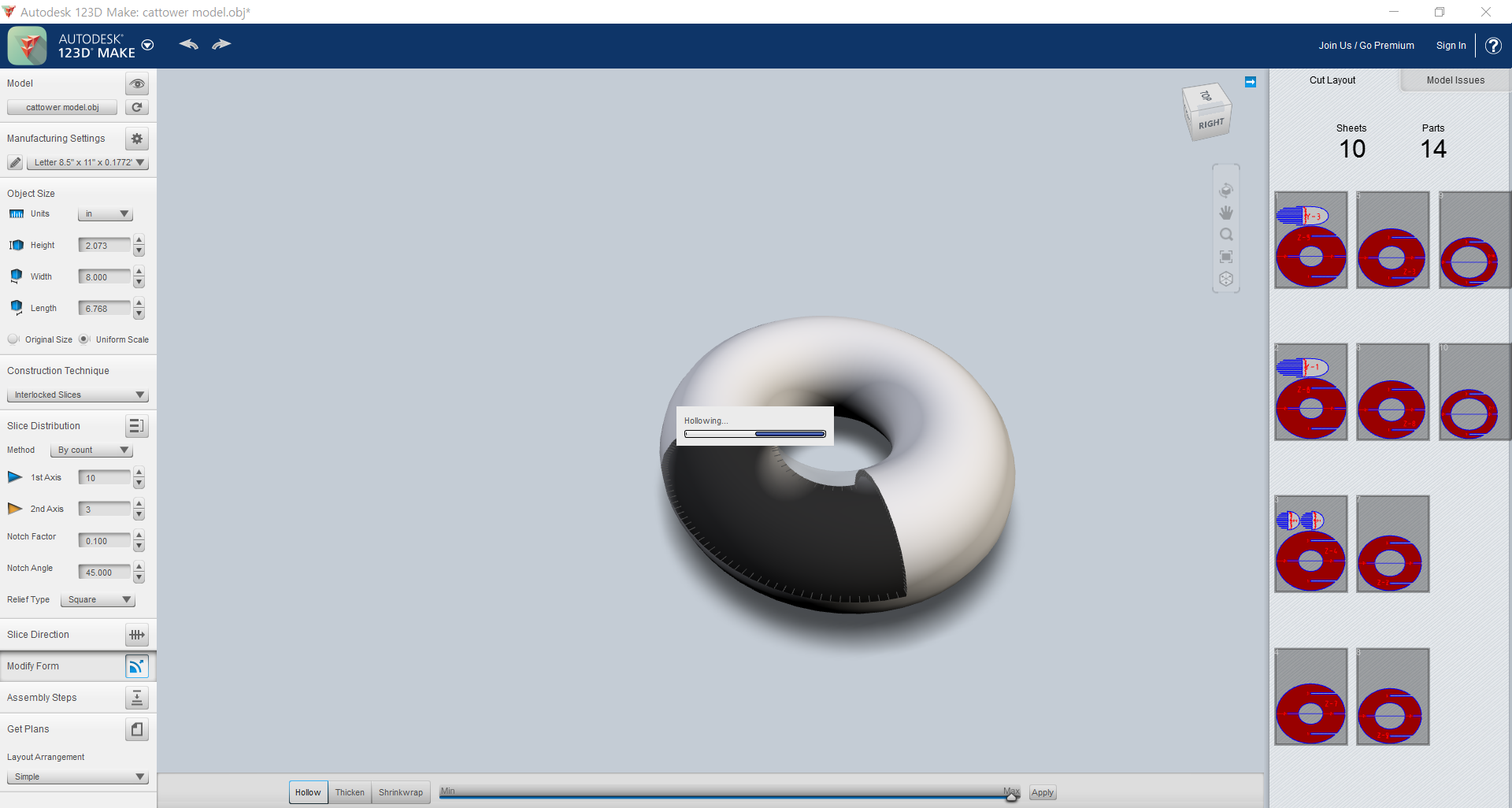

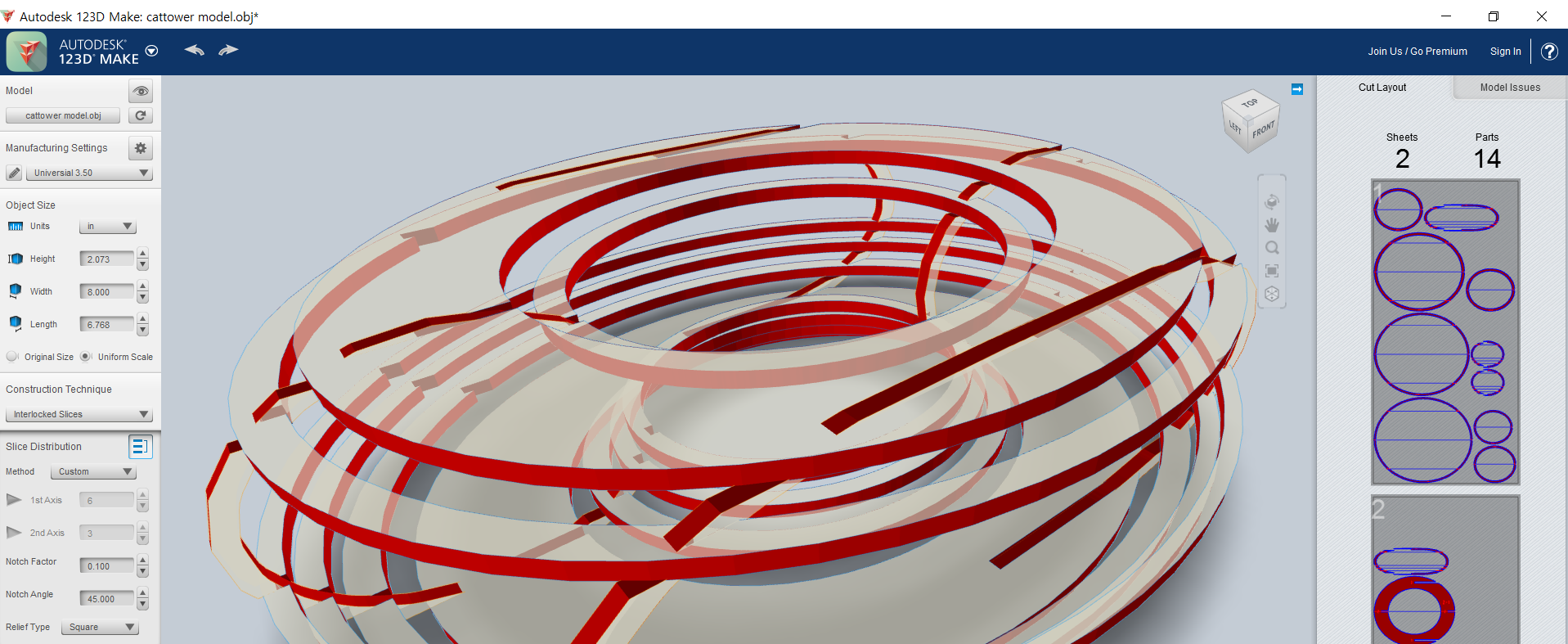

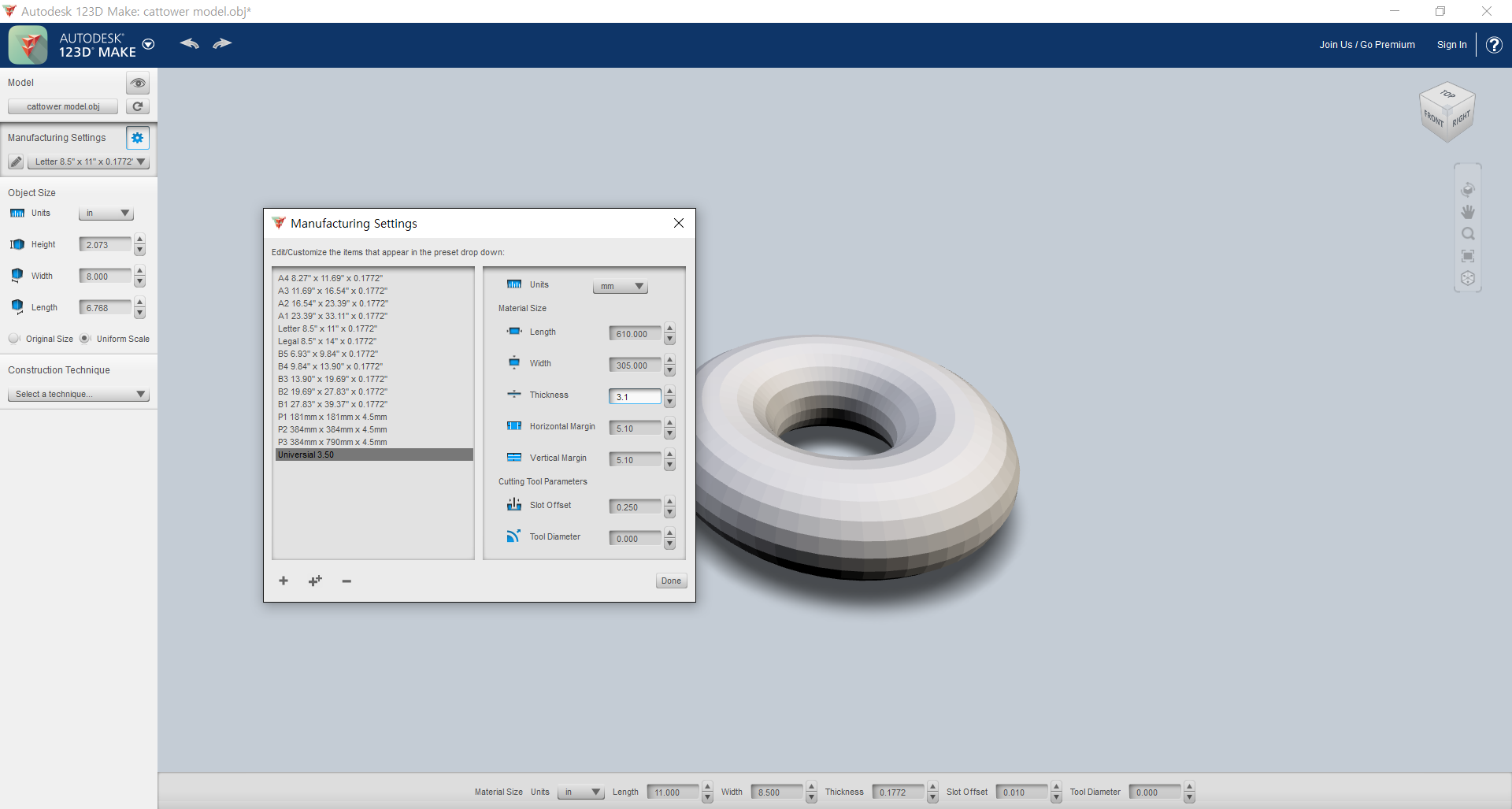

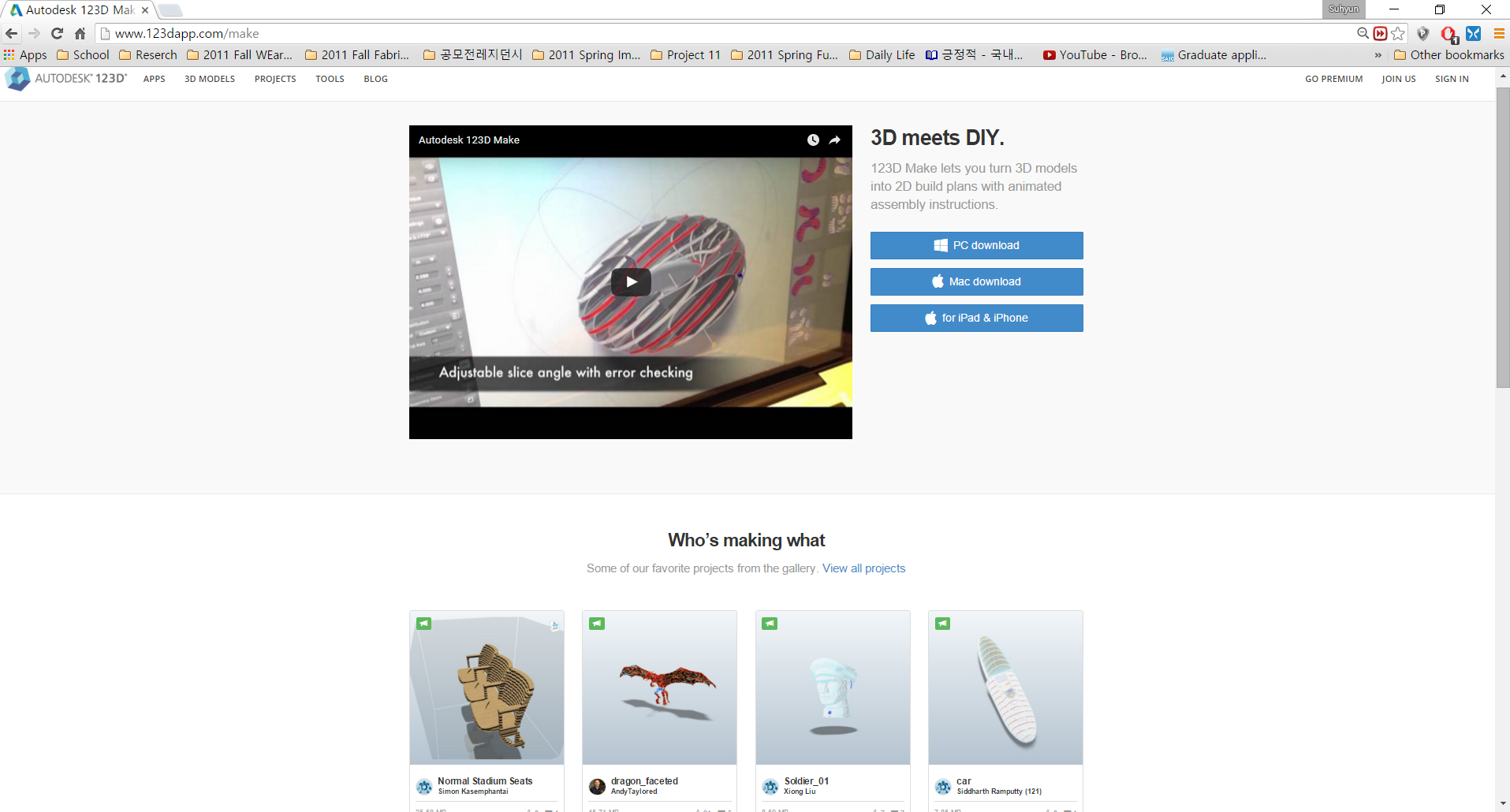

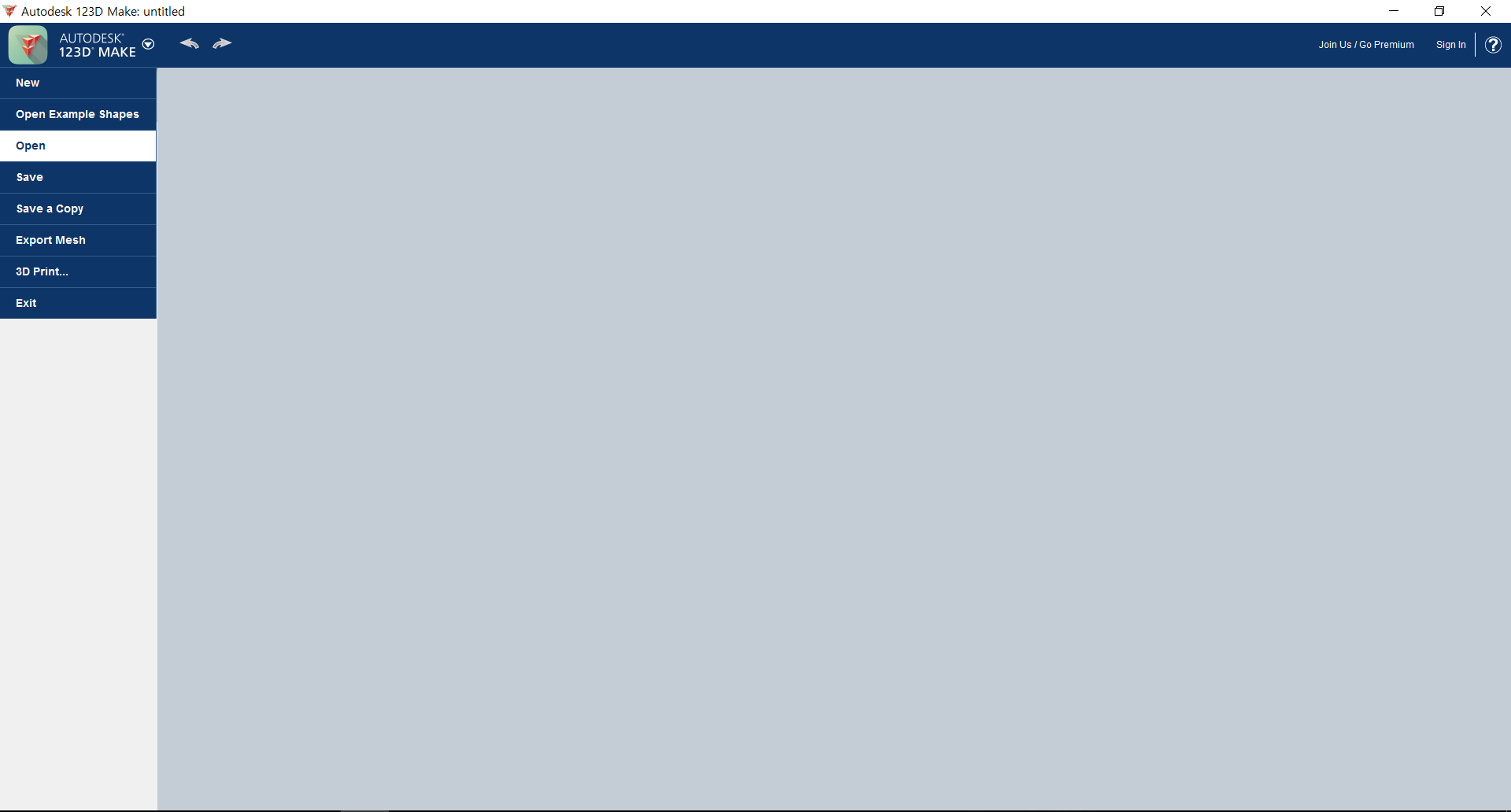

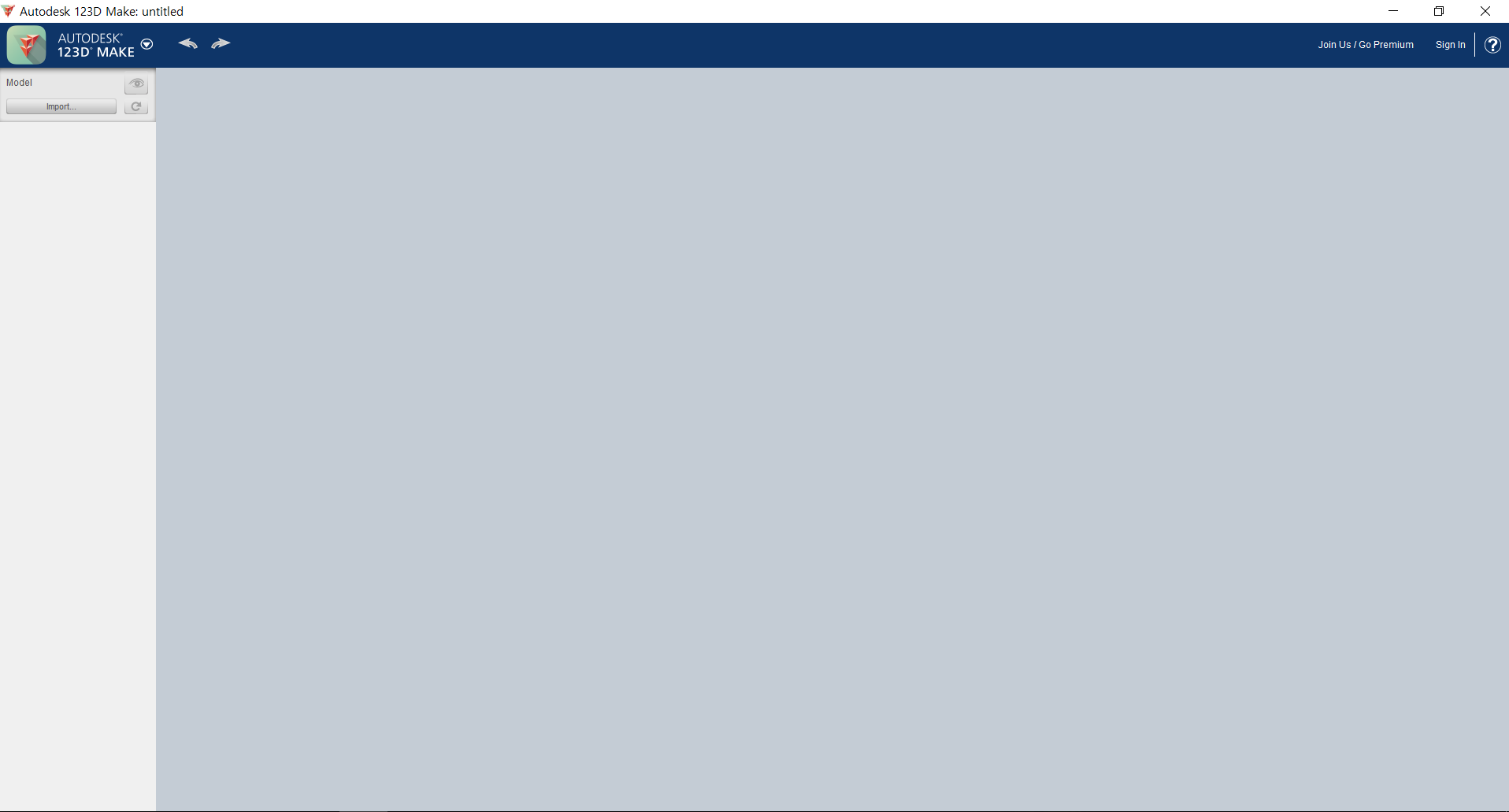

I had to use a program that can convert 3D object to 2D drawing. So I tried to use Autodesk 123D Make. Autodesk 123D Make Website

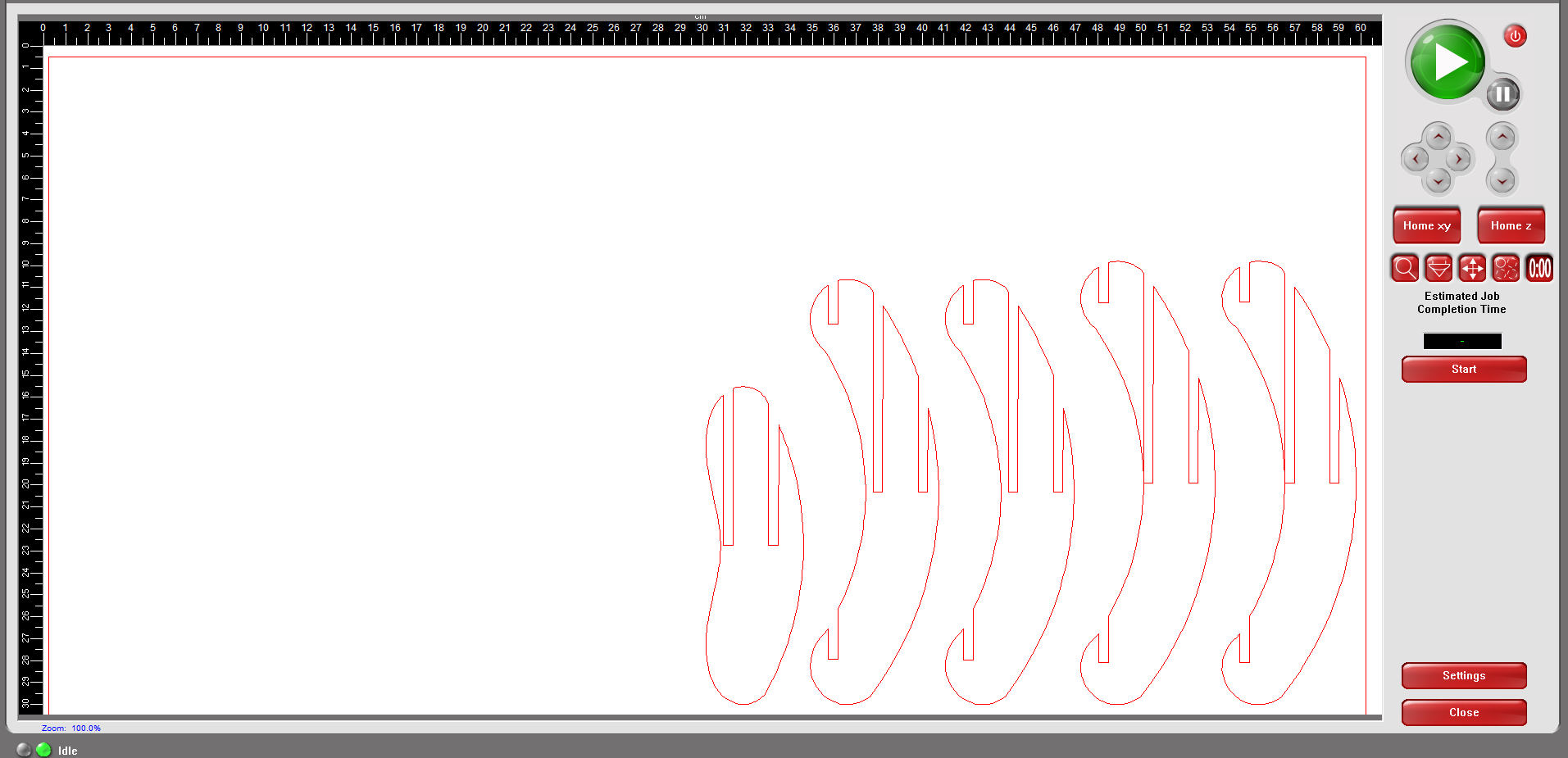

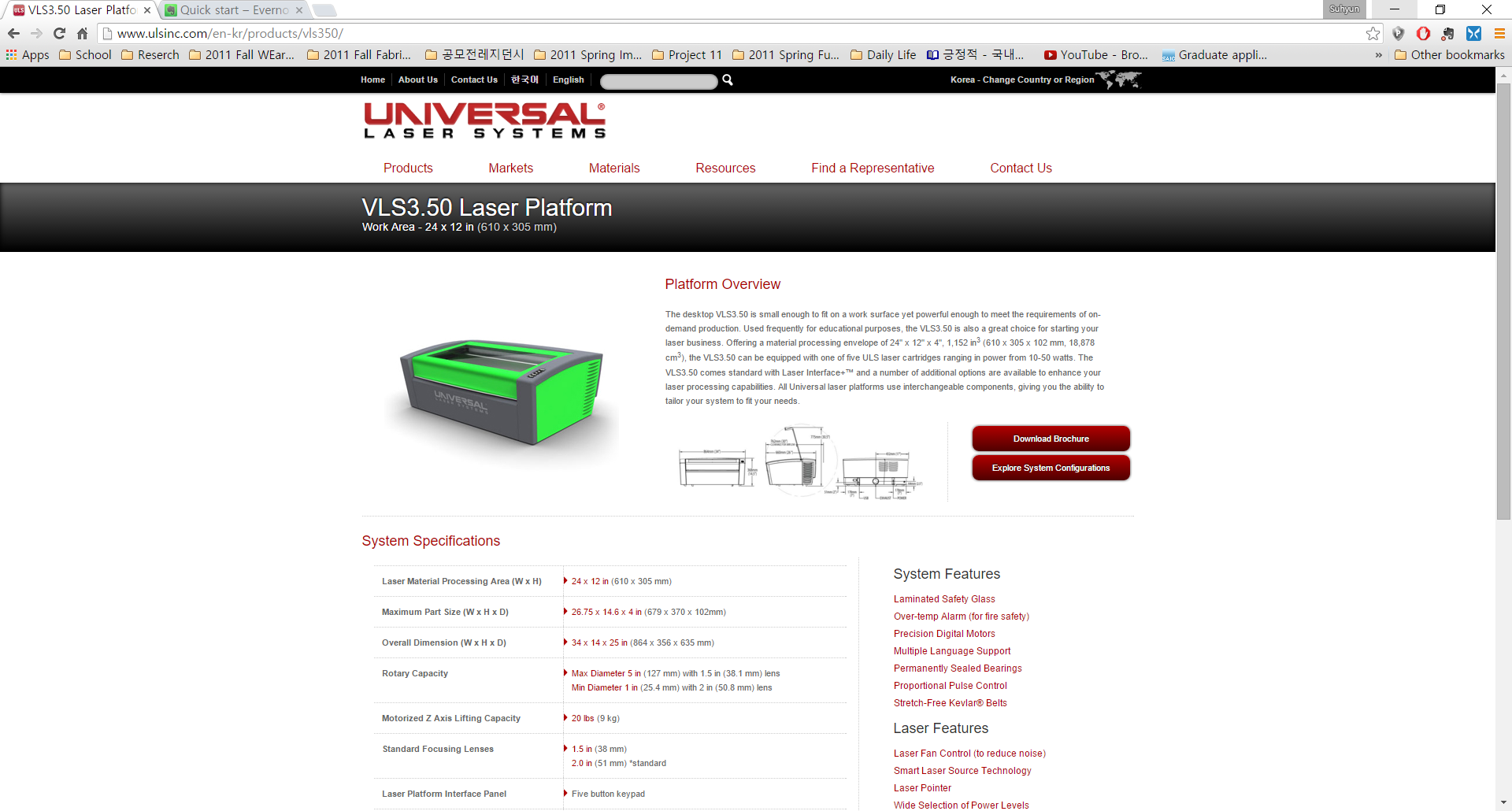

In my lab space, there is a laser cutting machine; VLS 3.50 model of Universial Systems company.

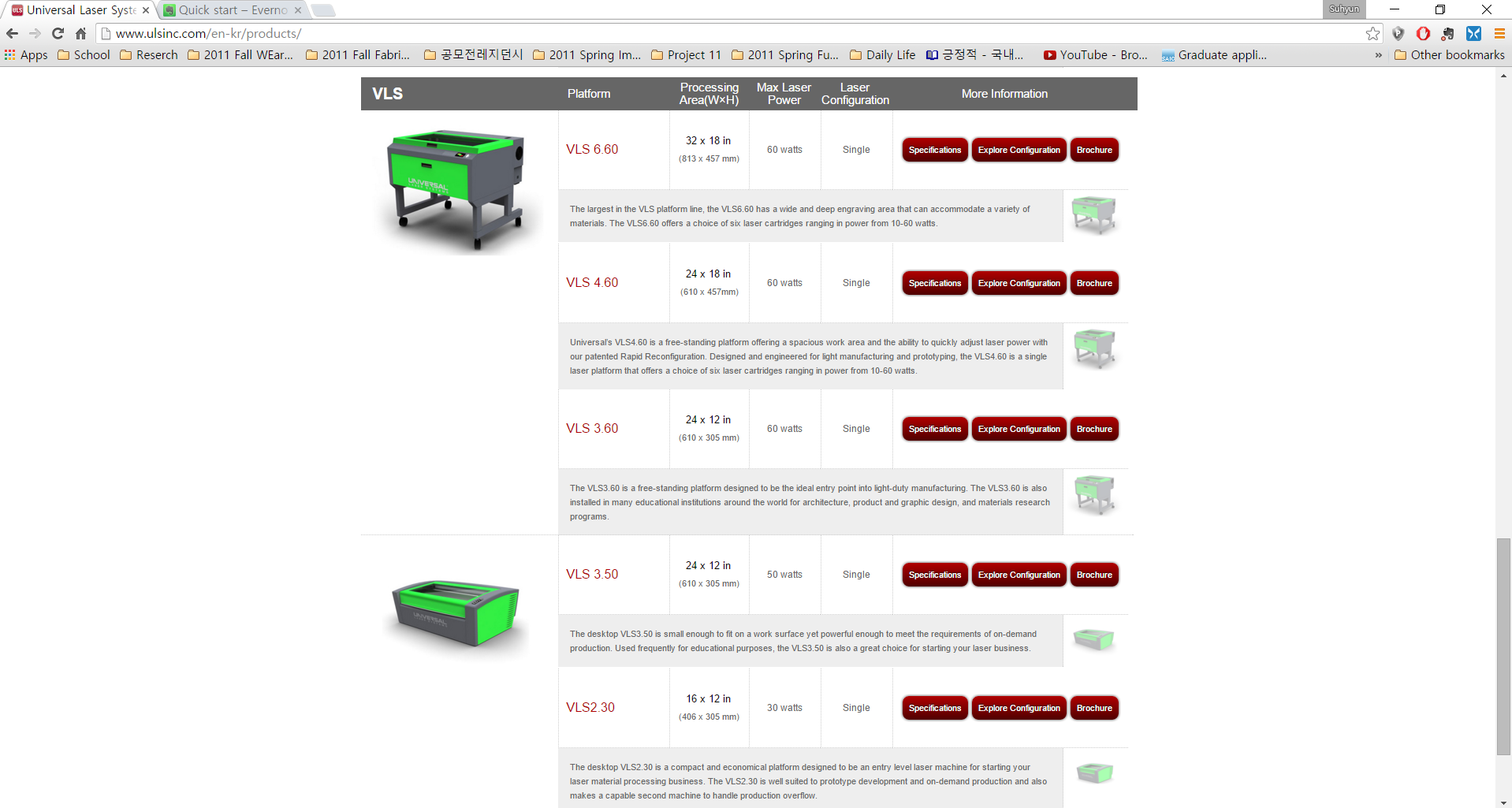

I checked the system specifications of it. VLS 3.50

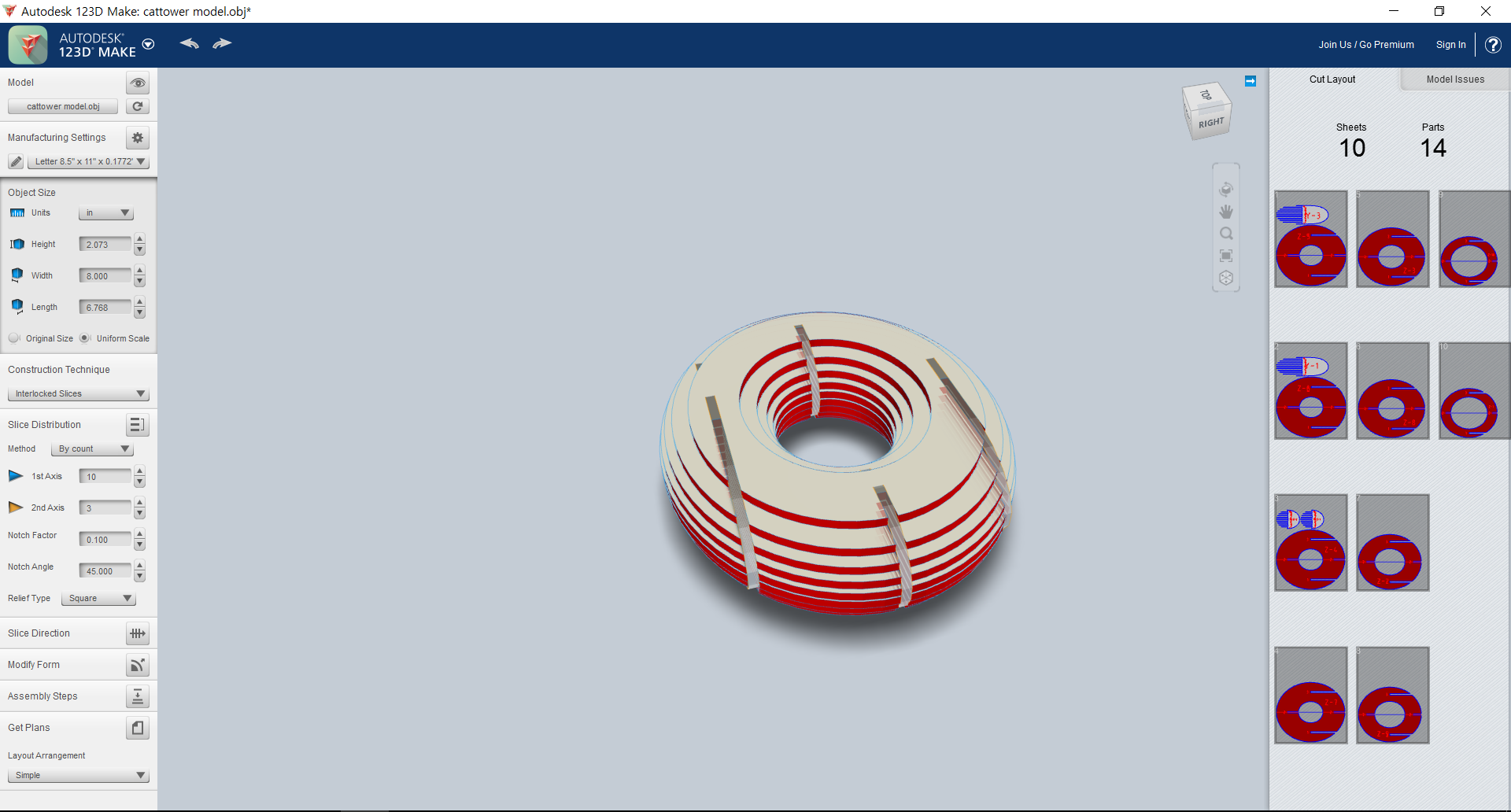

Through several mistakes, I decided to make a simple form and put all parts together.

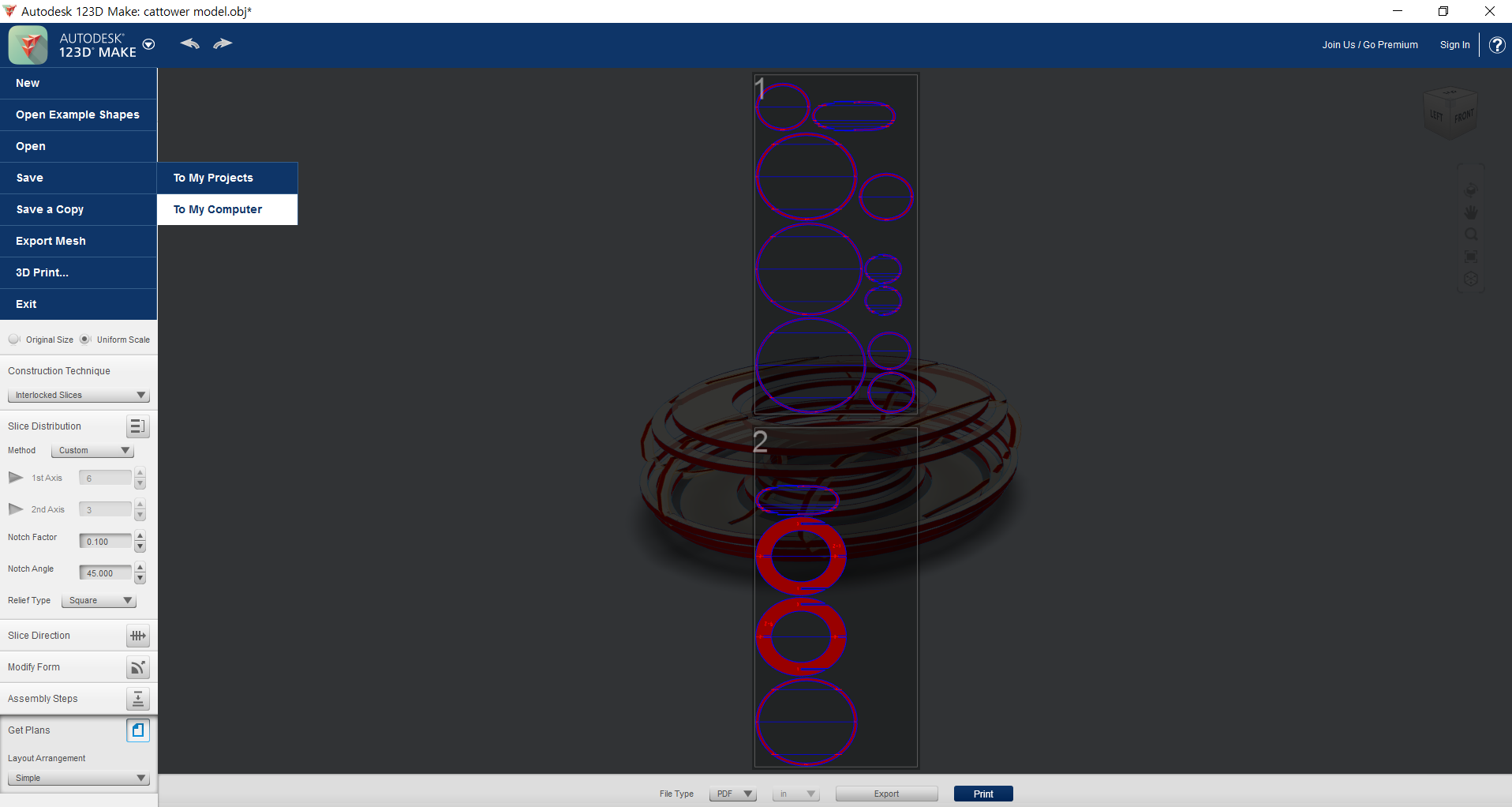

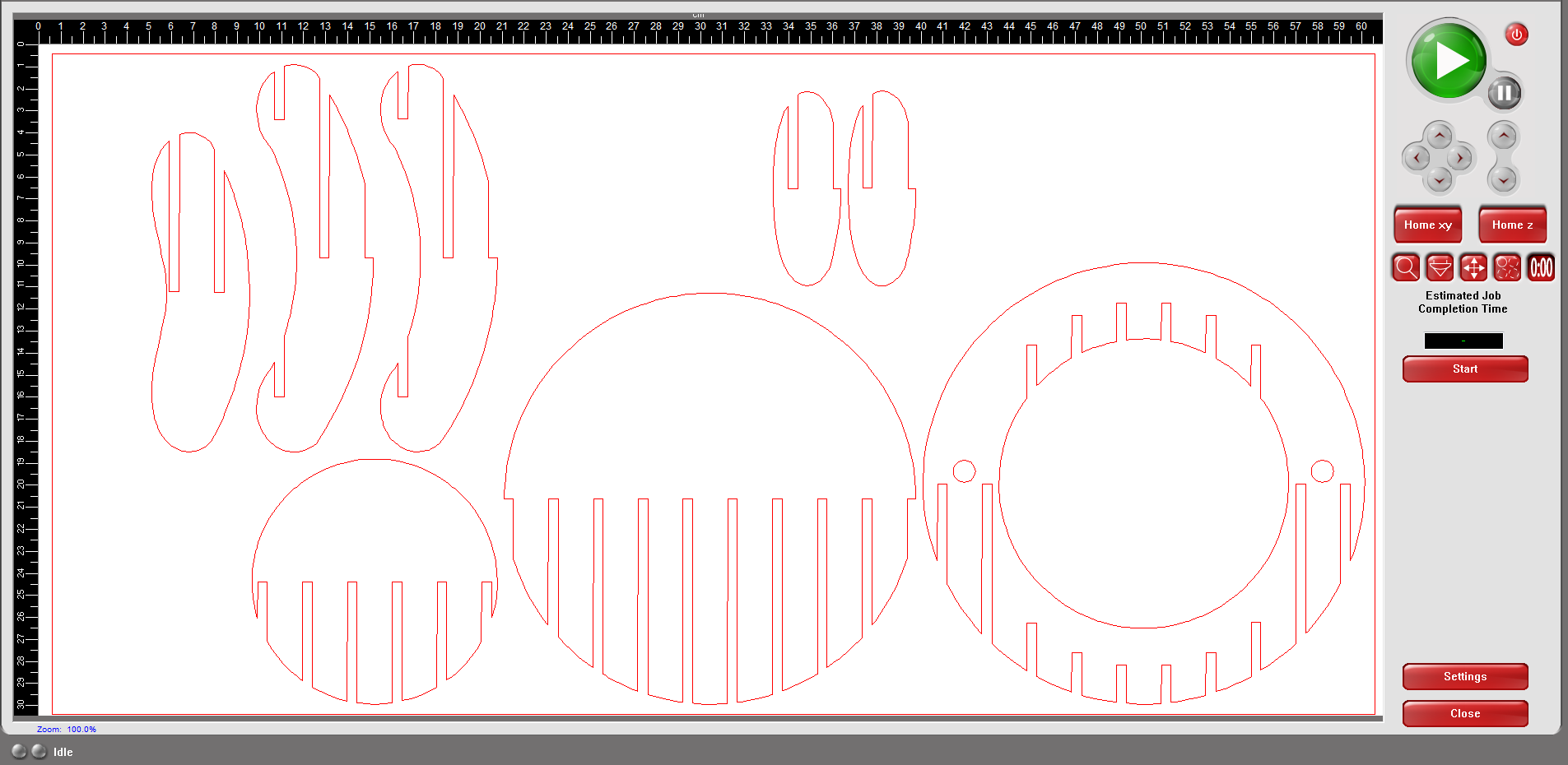

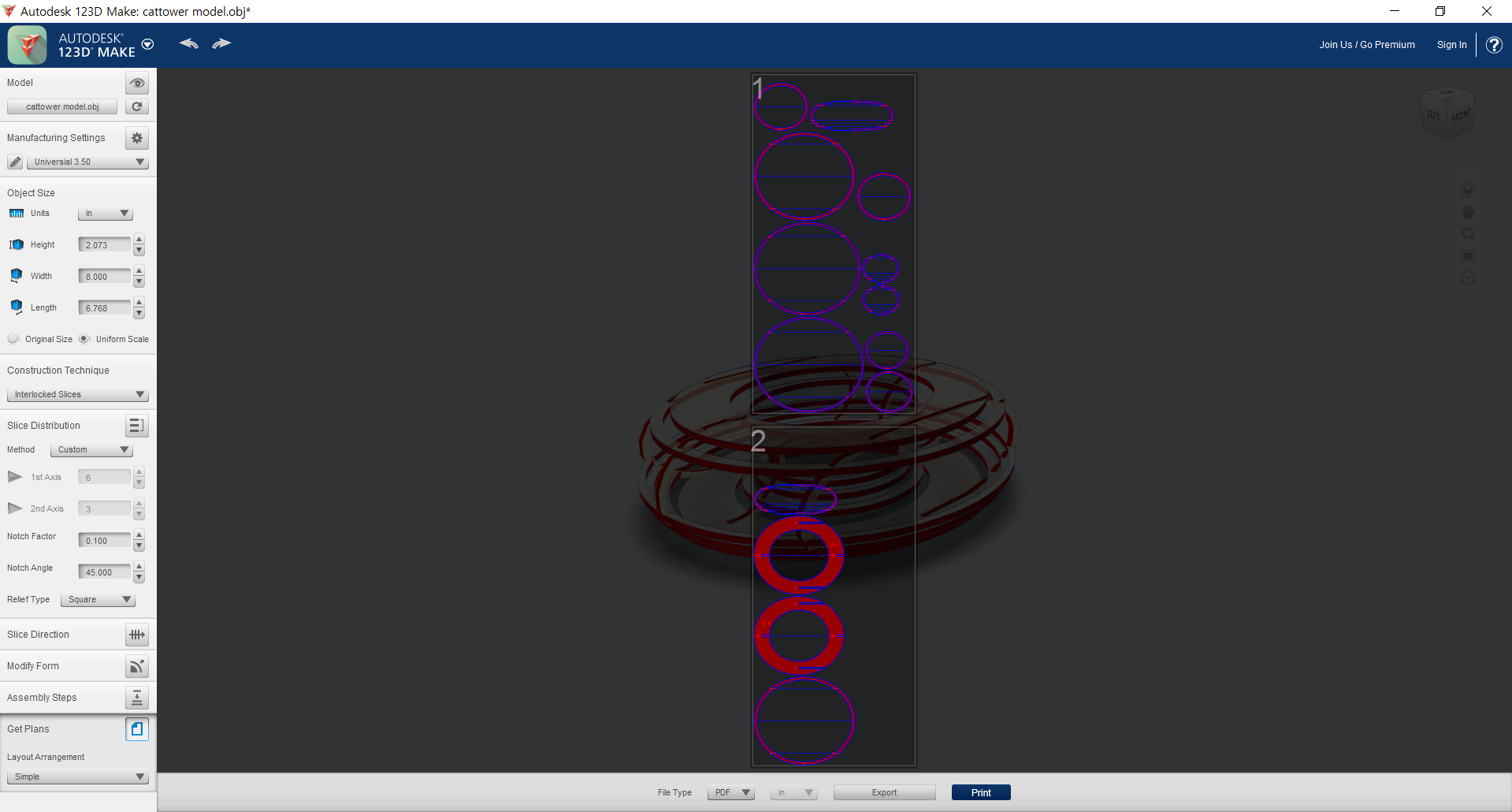

These are my process.

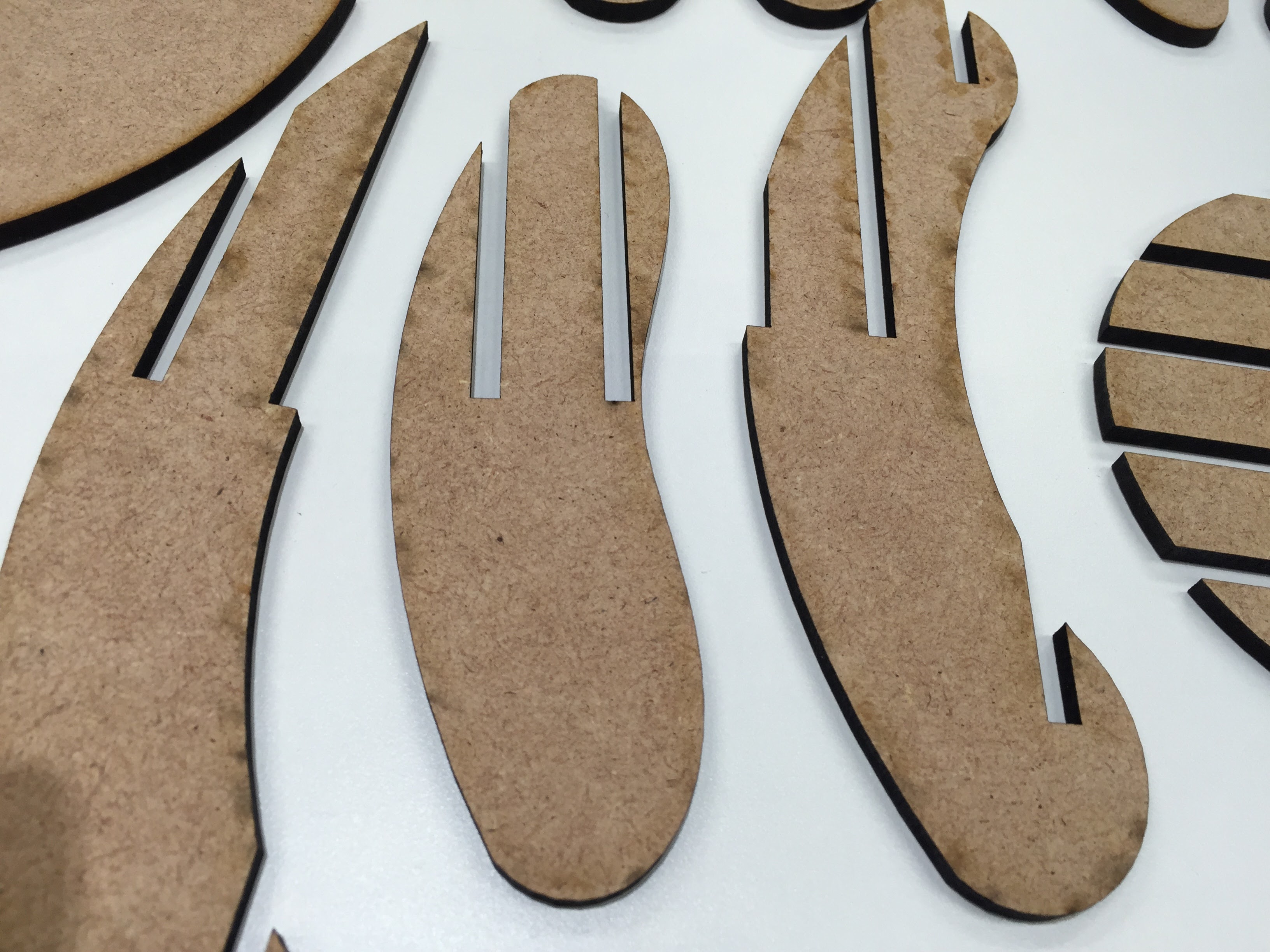

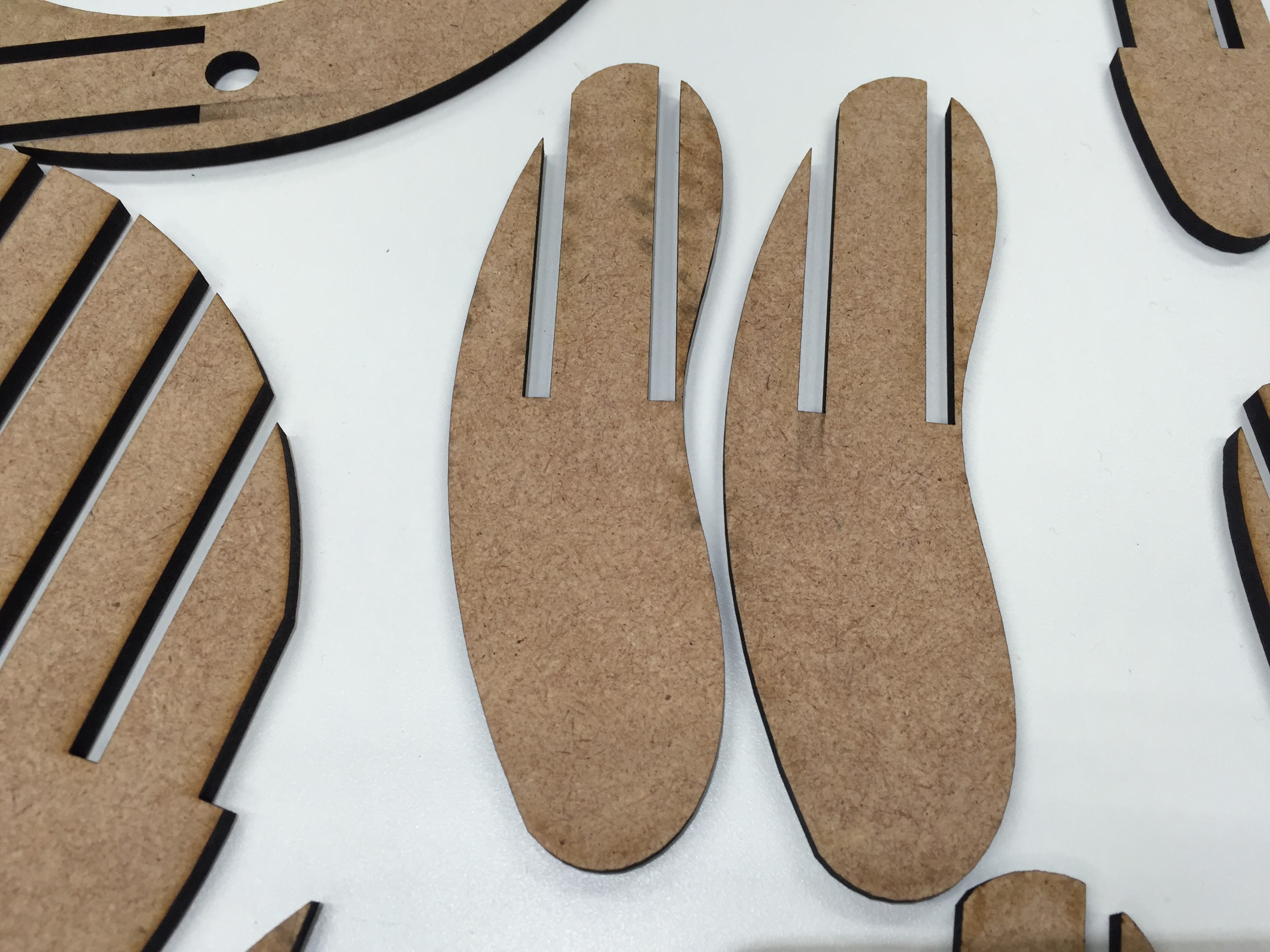

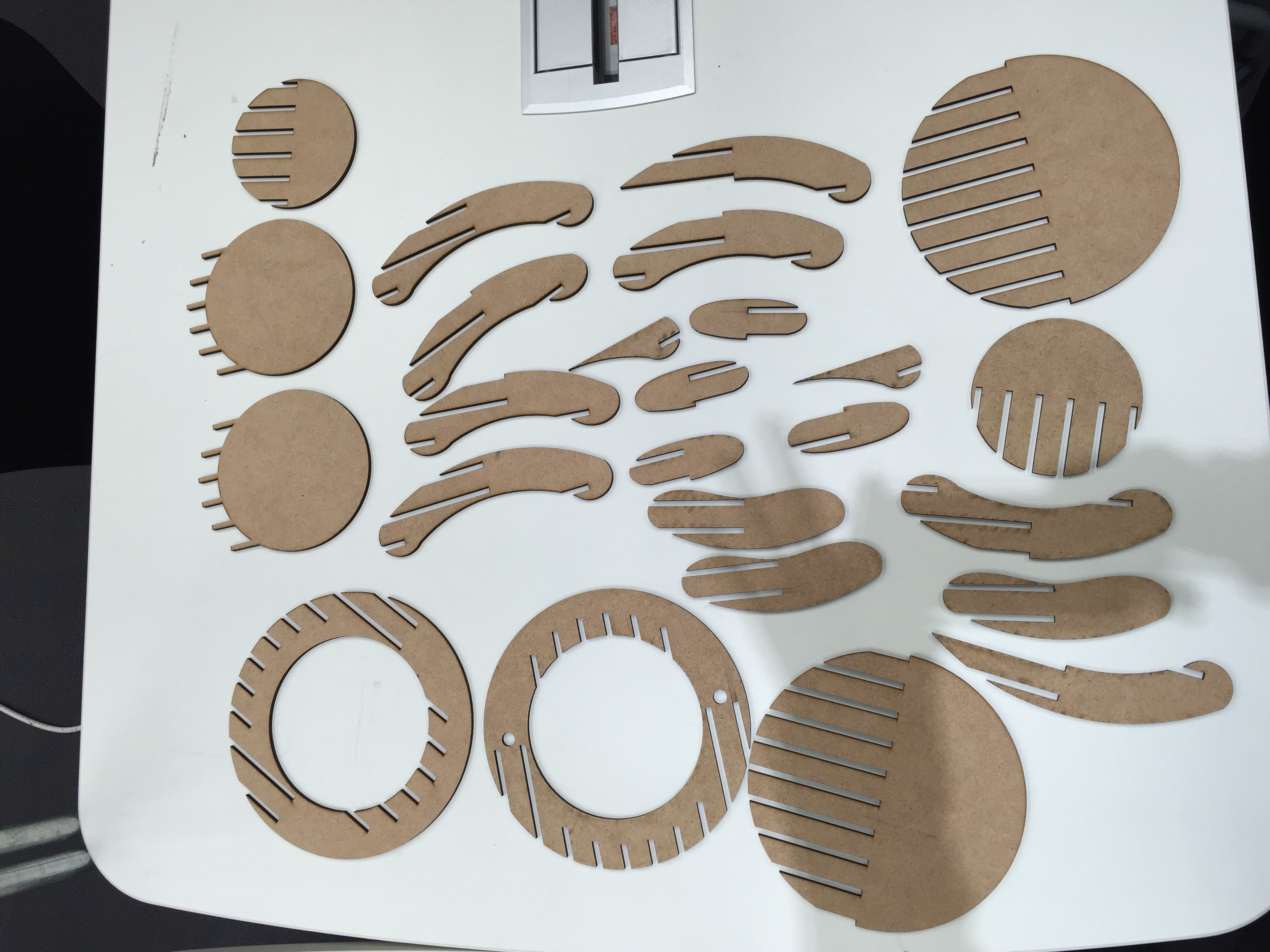

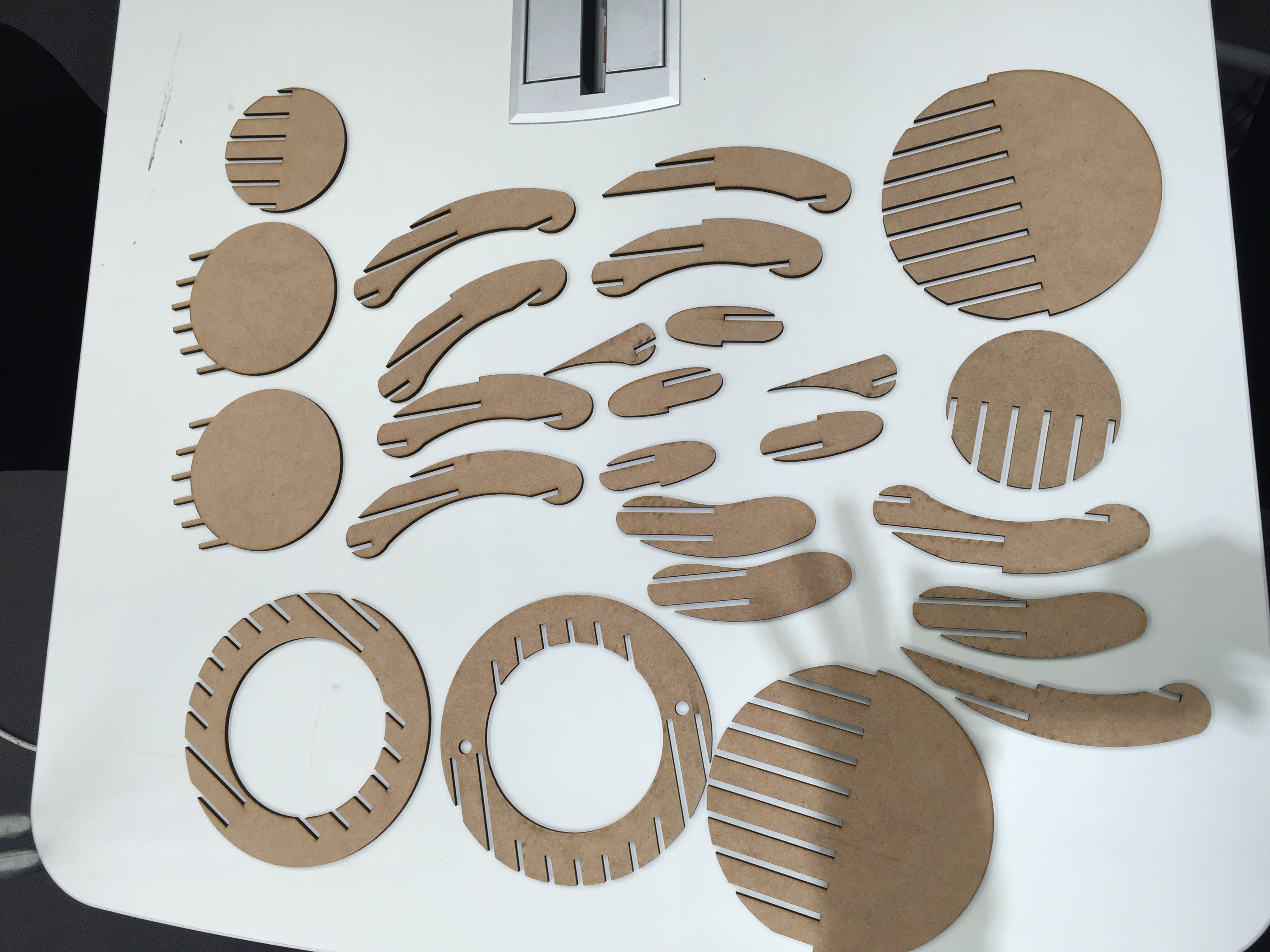

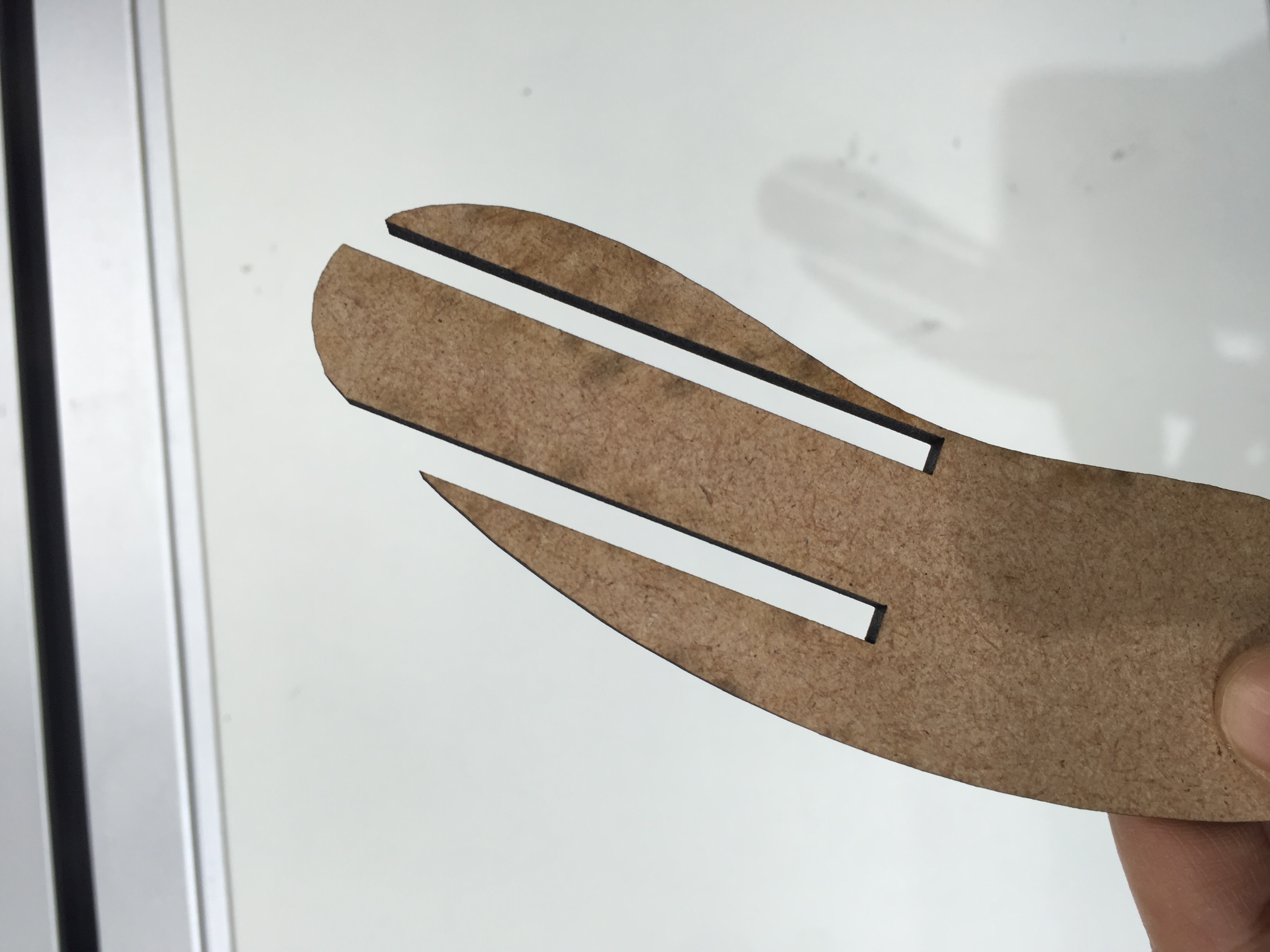

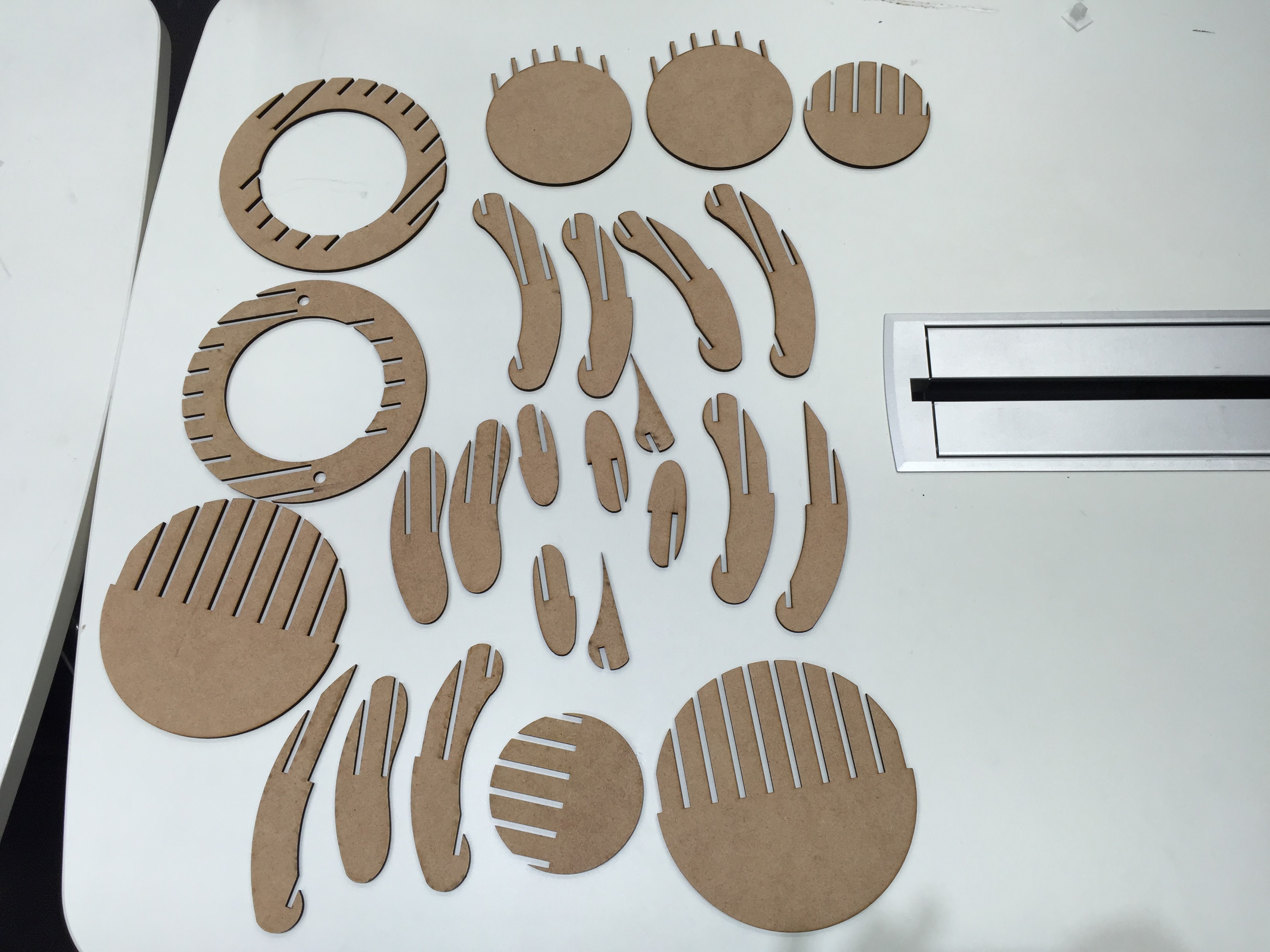

These are the parts; I found that there was a very weak point of each part.
Before putting them together,
I have to figure it out how set the size of furrow using 123D Make. To be continued...
