13. Output Devices

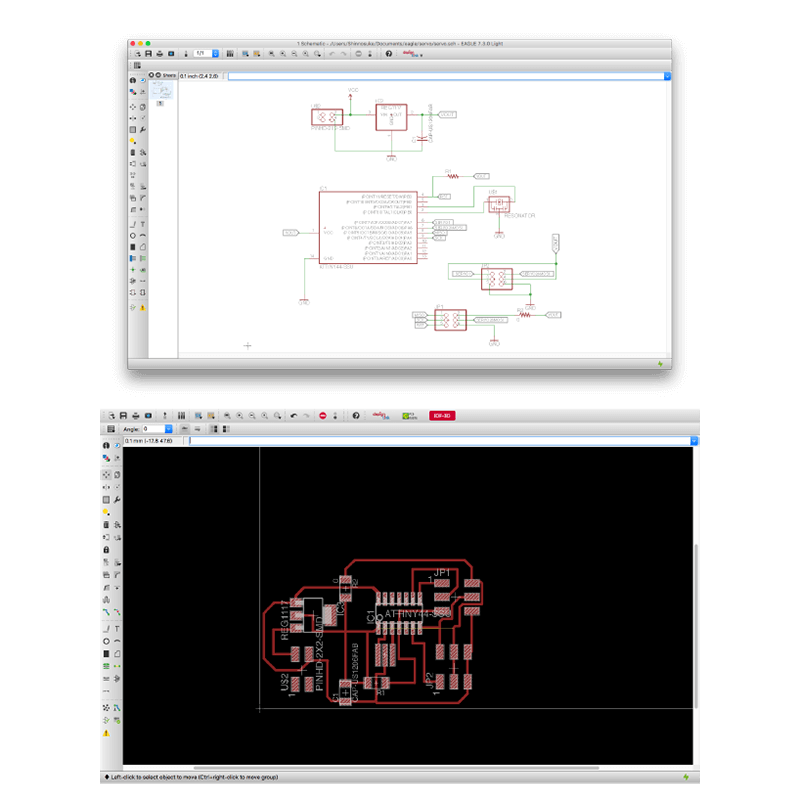

Making Data
I tried to make board to running servo motors. So I downloaded sample files Neil made.
DOWNLOAD

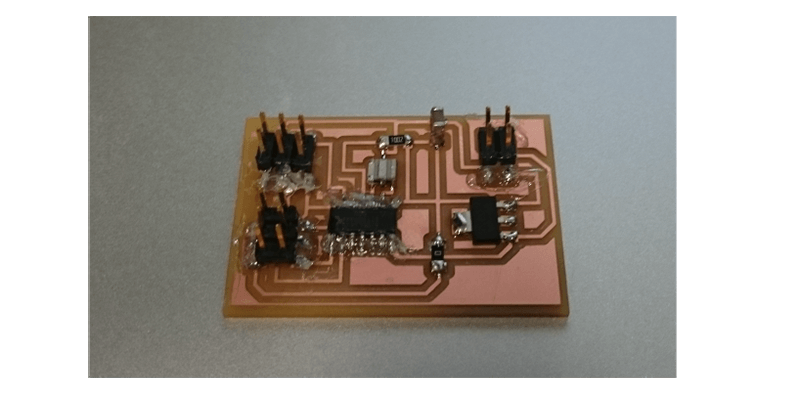

Milling & Soldering
I used SRM-20 to milling a board.
- trace:
- 0.4mm endmill
- cutout:
- 0.8mm endmill
DOWNLOAD
Writing
I used FabISP to write program.- open "iTerm" that is like a terminal.
- cd ~/Desktop/servo/(I saved .c file and .make file in this folder)
- command "make -f hello.servo.44.make"
- command "sudo make -f hello.servo.44.make program-usbtiny-fuses"
- command "sudo make -f hello.servo.44.make program-usbtiny"
Result
