Exercise09

Mechanical and machine design

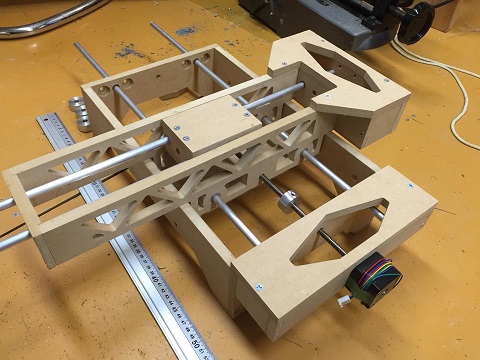

In this class, we made a team and invent a machine using MTM; machine that make.

You can see how it was in detail here.

Oppotunities for improvements in the design

This machine doesn't always work correctly.
The cause of it is not the accuracy of material made of 3d printer but the electrical circuit.
If we change the parameter of registor and capacitor in it properly, it will work better.

Work and communicate effectively in a team and independently

For completing the team work, I mainly cooperated in electric circuits.
I learned the principle of the flipflop circuit and I tested if it works correctly using tester and some LEDs.

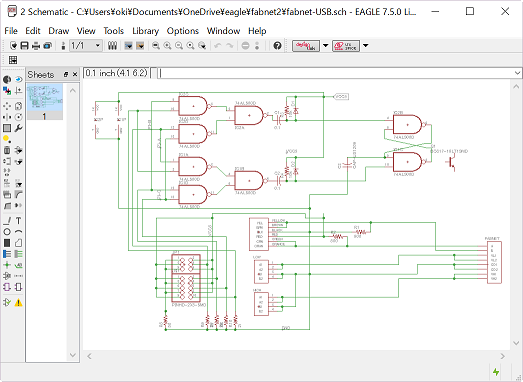

download sch data for flip flop circuit

This is the data Yuji Oki; a member of our team, made for this project.

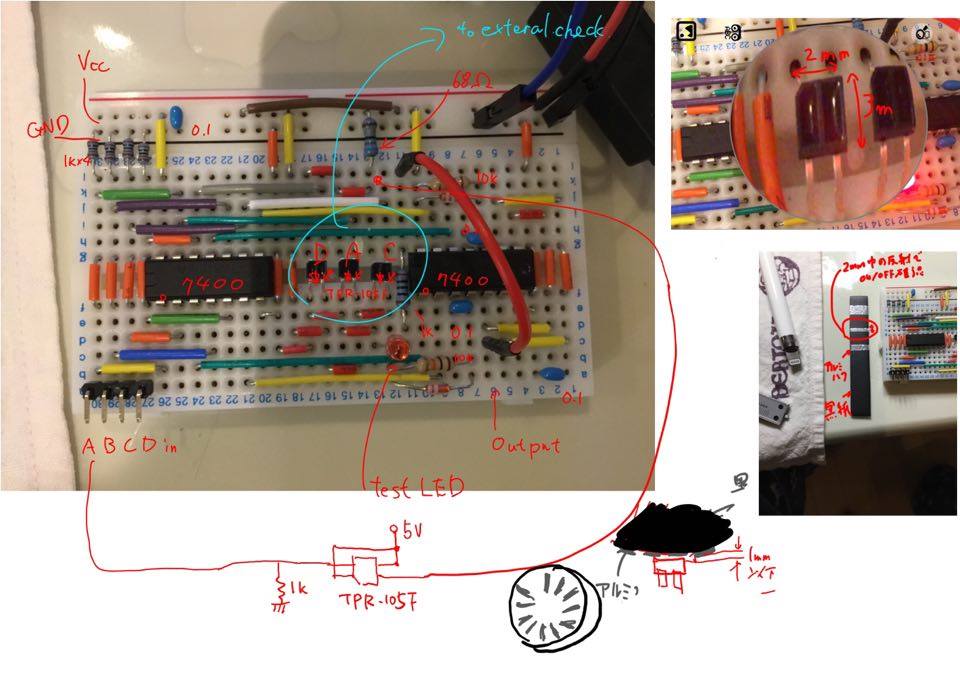

We made the circuit using bread board, so we don't have brd data.
The reason is that the most important thing for this assignment is not this point, but make the machine move and controll it.
Also, we needed to check if it works well or not.

So please reffer this data only for recognizing the system of the circuit. <
