Fab Academy 2016 Week03

computer-controlled cutting (Feb 10)

Assignments

cut something on the vinylcutter
design, make, and document a parametric press-fit construction kit

Applications

  • Fusion360
  • Inkscape
  • Coreldraw
  • iMovie

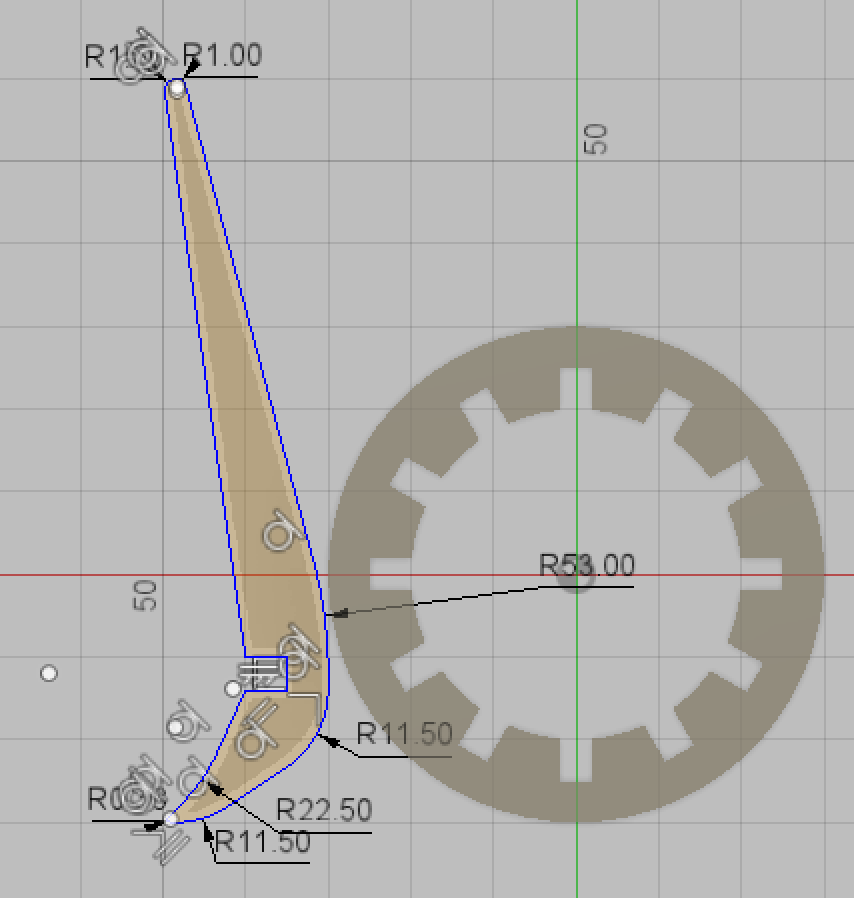

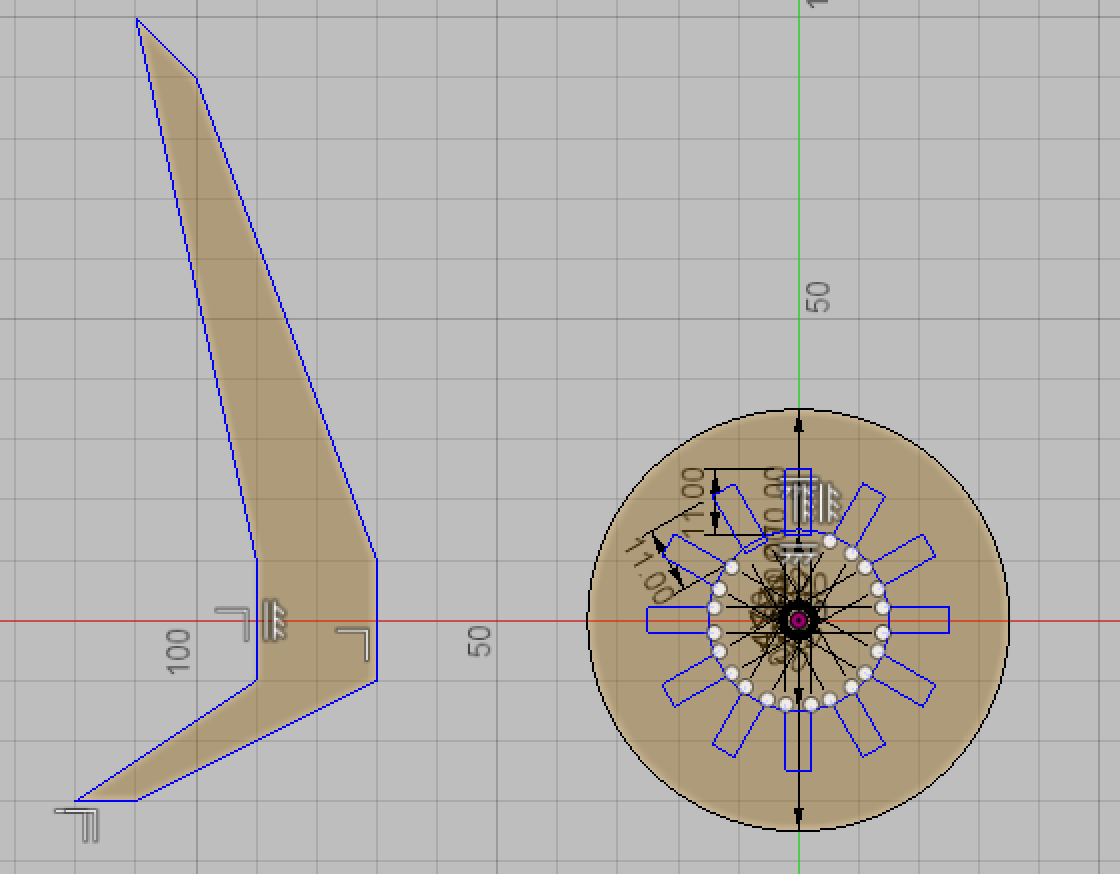

  • Firstly, I designed the object by 'sketch' tool of fusion360.
    There are several restrictions on the sketch function.

  • it can not pattern copy.

  • It can not be cut out of each other sketch.

    I exported the DXF file from this scketch of Fusion360

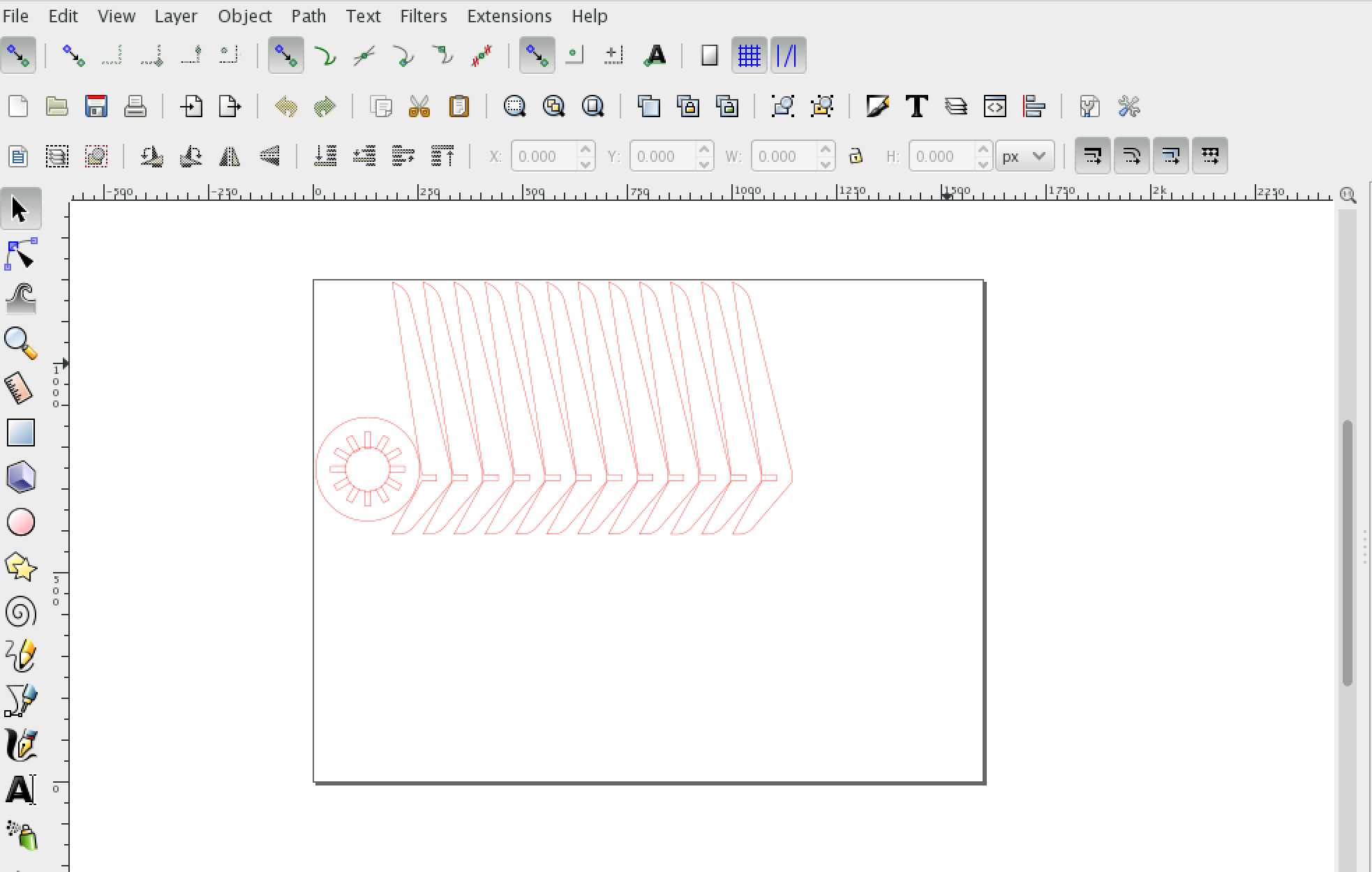

    and this DXF was opened by Inkscape. Inkscape converted to PDF.

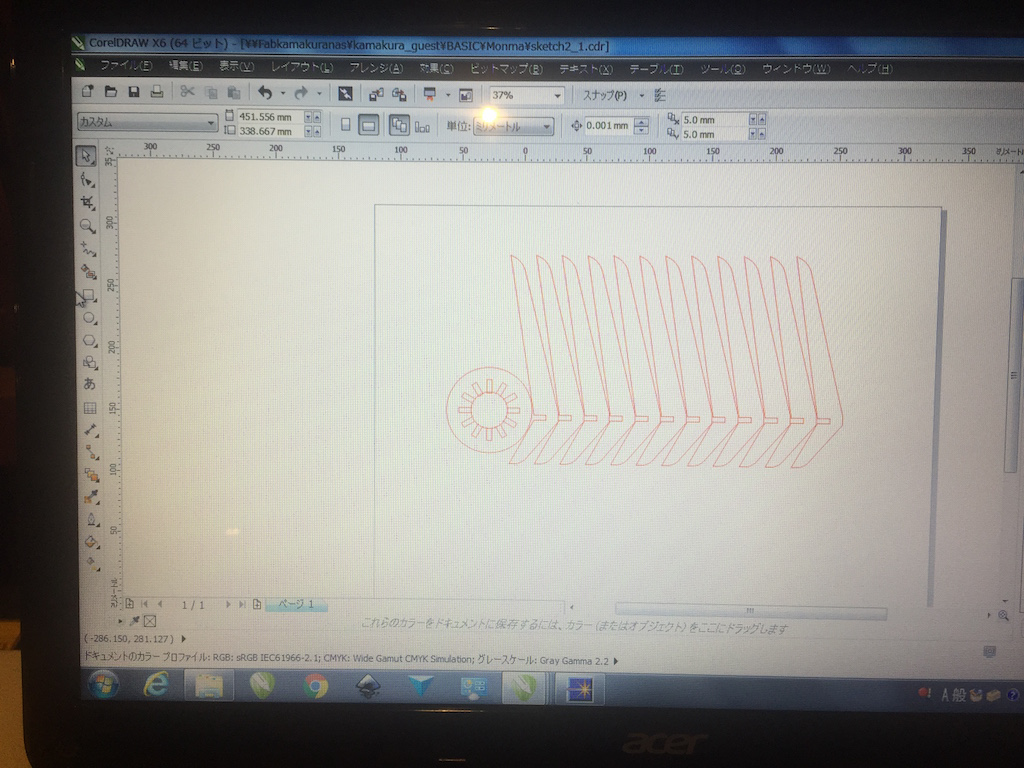

    This PDF has been converted the line type in Coreldraw for laser cutter cut out.

    Data:Pen_stand

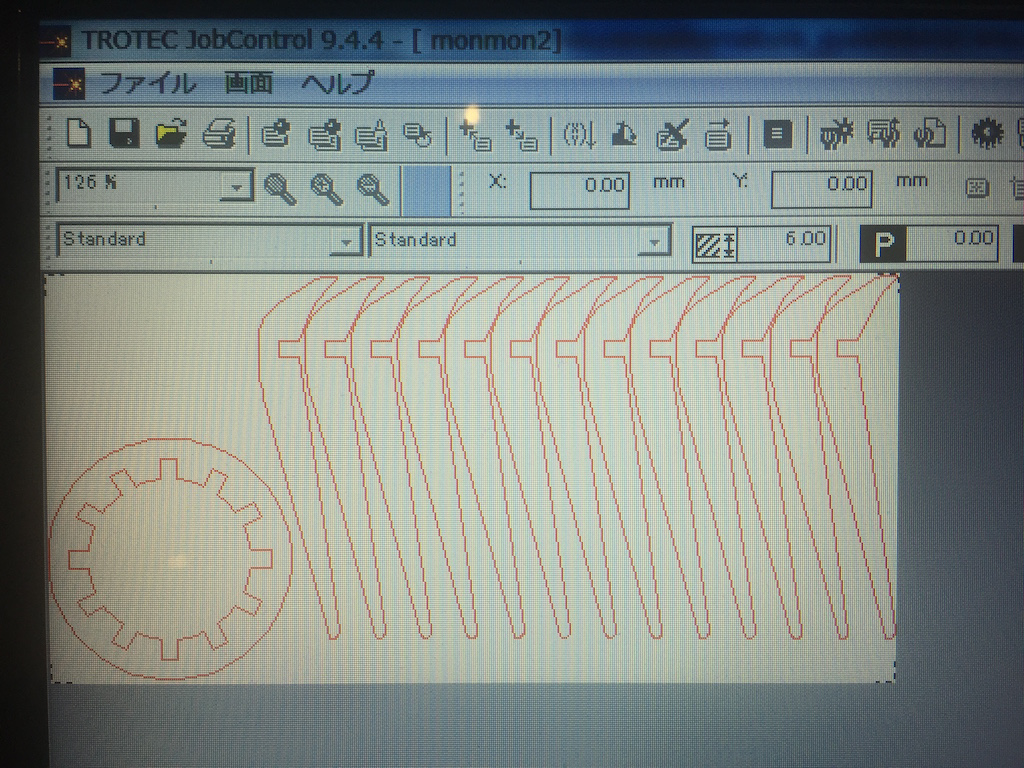

    This file was export to Lazer cutter by Trotek.

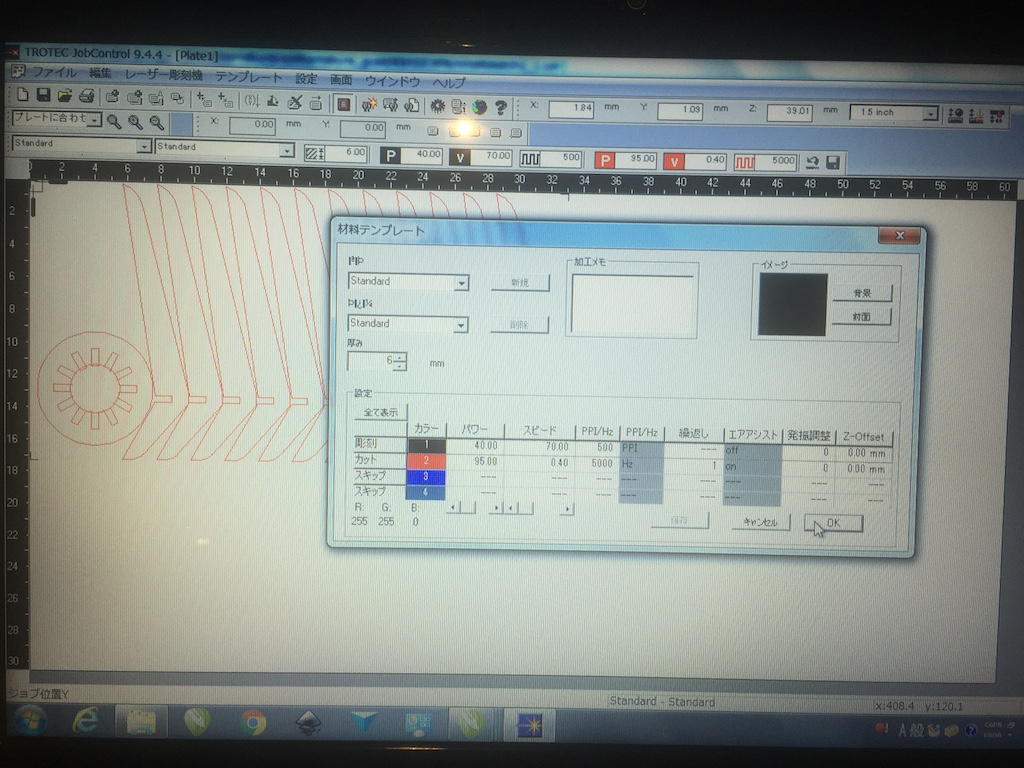

    The parameter that output of Lazer power is below picture.
  • Power : 95
  • Speed : 0.4
  • Frequency : 5000Hz

    Regarding lazer cut, please see the movie of cutting. it is bottom link.
    I tried again.

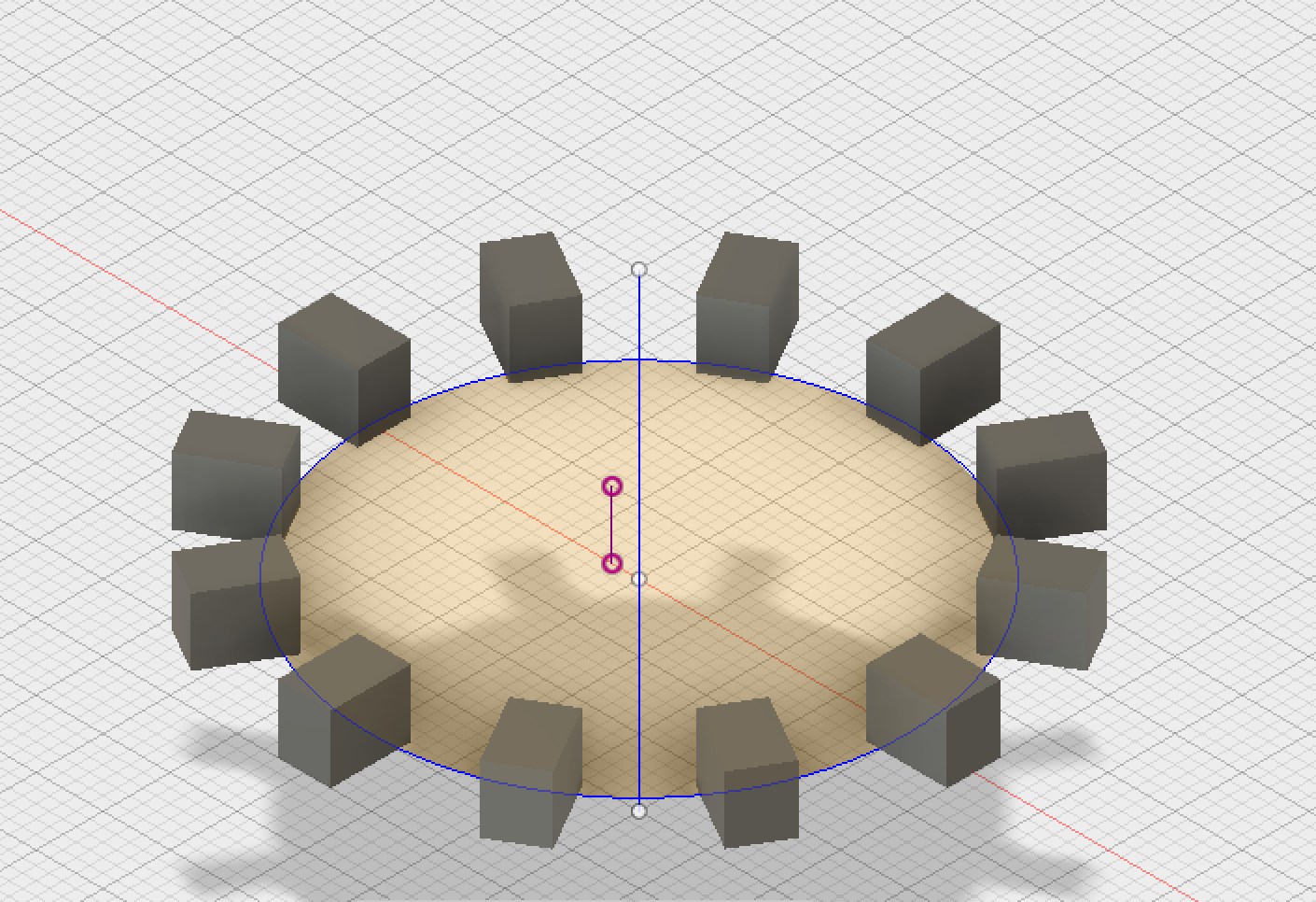

    The process was a projection from 3D modeling to 2D sketches.
    This way was useful.

    Cutting movie is below

    LASER CUTTING

    Cut something

    My doughter was birthday at 28th May.
    I made sticker for her birthday.
    Machine
    Silhouette CAMEO
    Software
  • Silhouette Studio

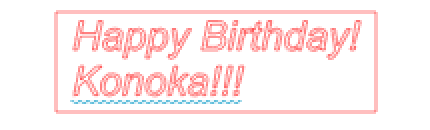

    At first, I designed the message by Silhoutte Studio.

    Data:Happy_Birthday!

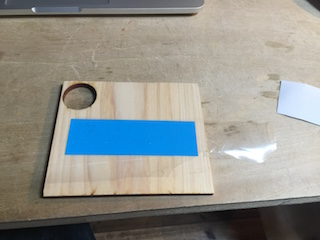

    This design was printed out to Silhoutte CAMEO.

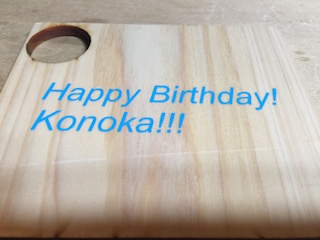

    Below is finished
