Fog Catcher



Fogcatcher Design



To design my fogcatcher, I used Autodesk Fusion 360, taking advantage of the licence agreeement that has FabAcademy with Autodesk



​

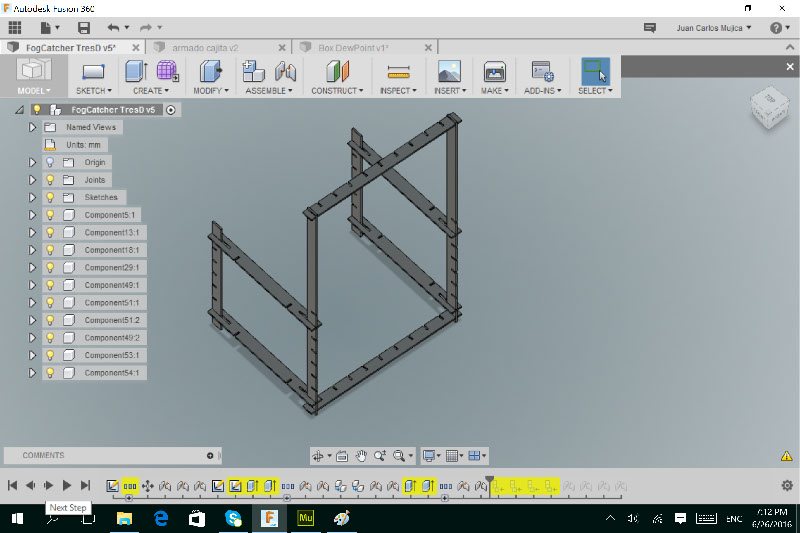

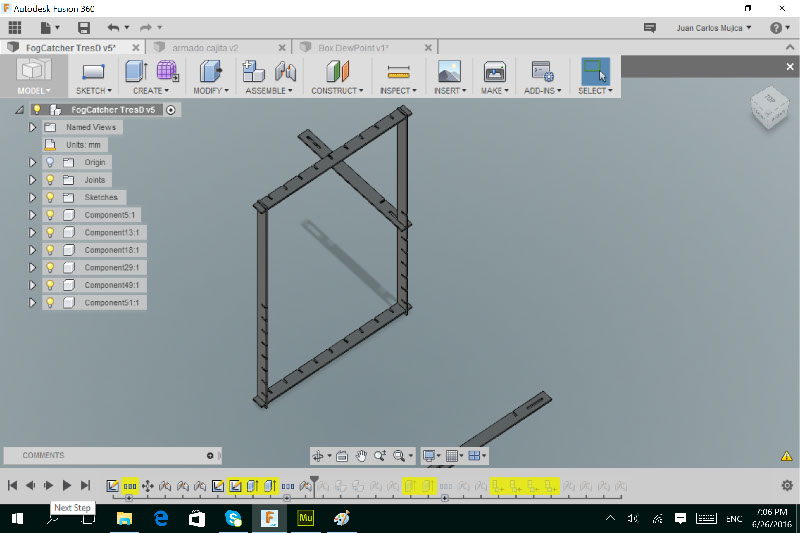

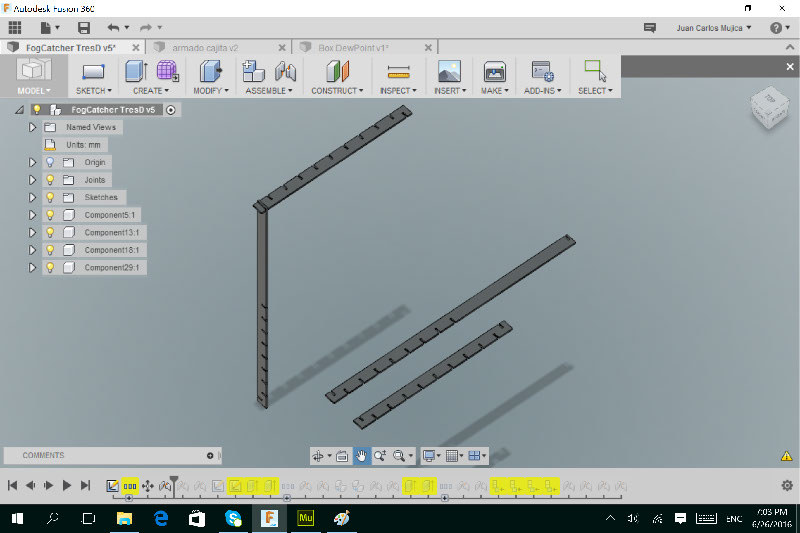

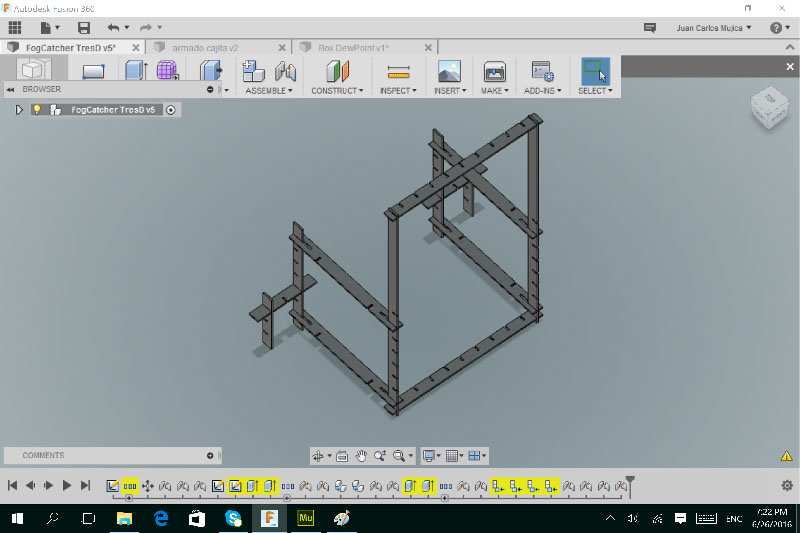

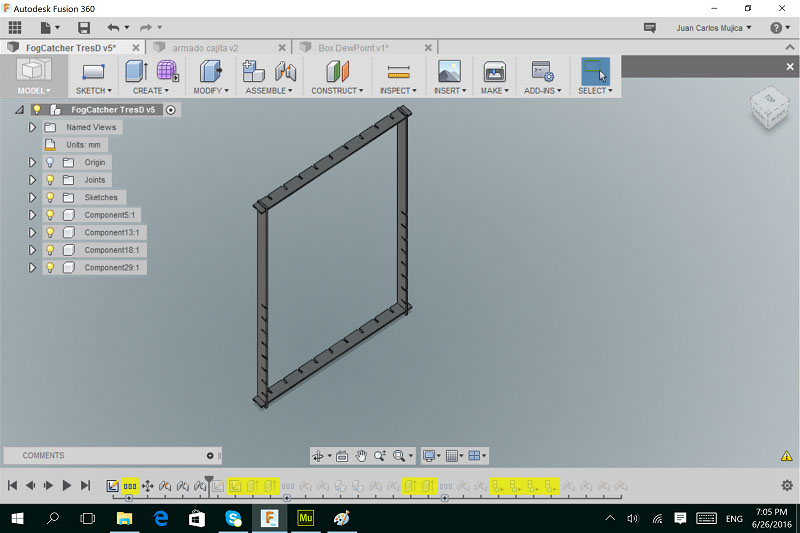

I placed the screenshots in a sequence to display how can the fogcatcher be assemby.



​



All unions are done with the pressfit technique.



​





This process can be done only by one person, but is better if two.





​

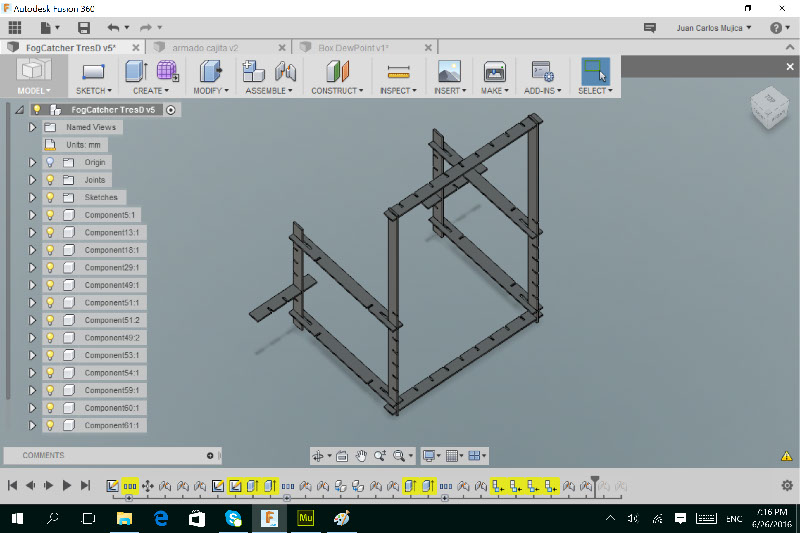

This additional parts of the structure were designed to give stability.



​



The fogcatcher already assembled.

​





Making the fogcatcher



Making the fogcatcher with the Shopbot machine, following the learnings already acquired, from Big Thing assignment.



​

Fog Catch Assemby

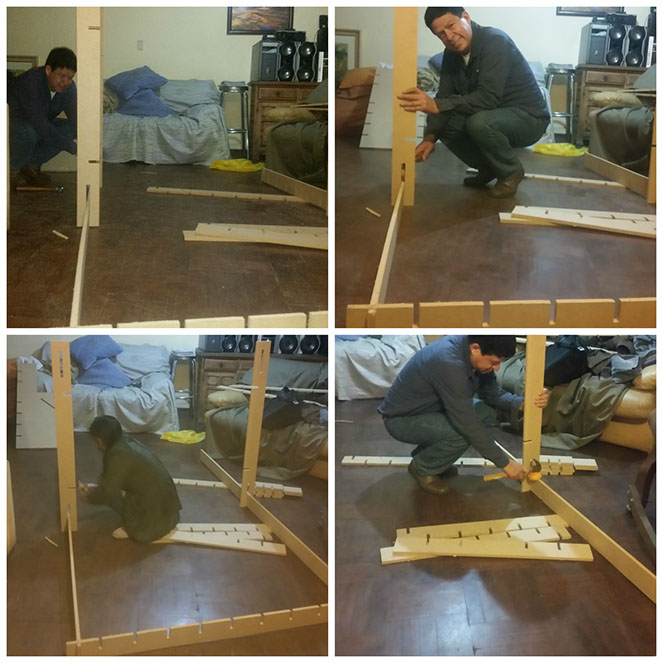

My first test to assemby the fogcatcher



​

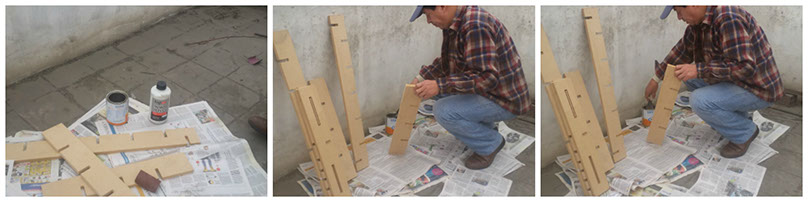

I need to daub the pieces with marine varnish to make it impermeable



​

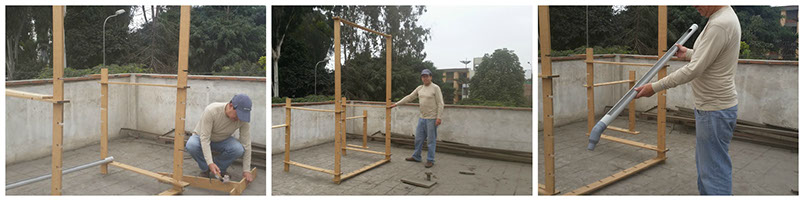

A colector pipe had to be instaled to store the water collected.



​

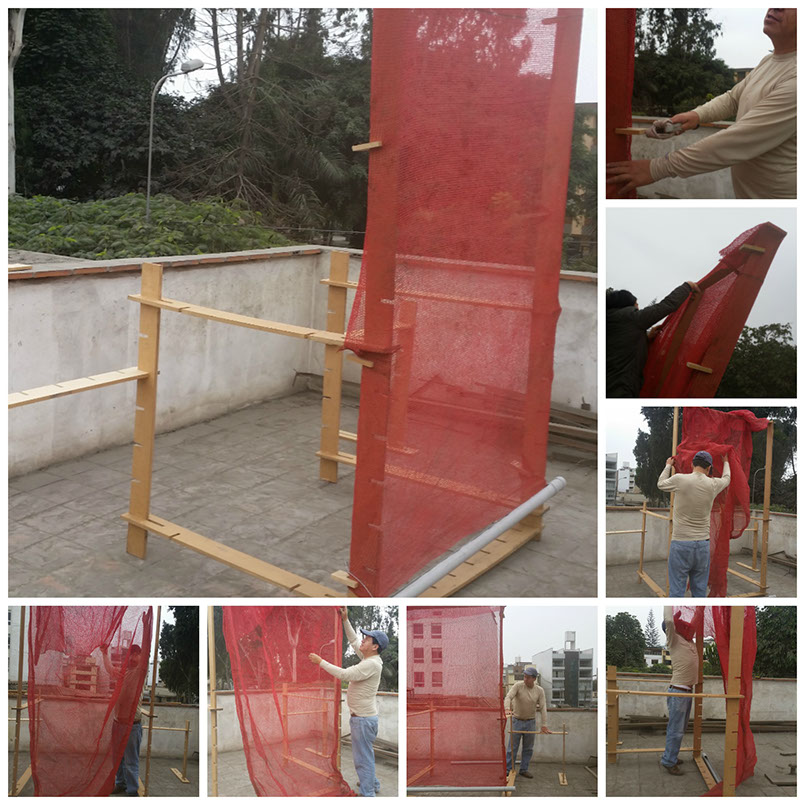

Finally, the mesh is instaled, using some hooks that I cutted in the Shopbot as well.



​
