Assignment #11 Input Devices

Introduction

At the beginning I wanted to use the Piezo as input device but changed it to the Photosensor after that

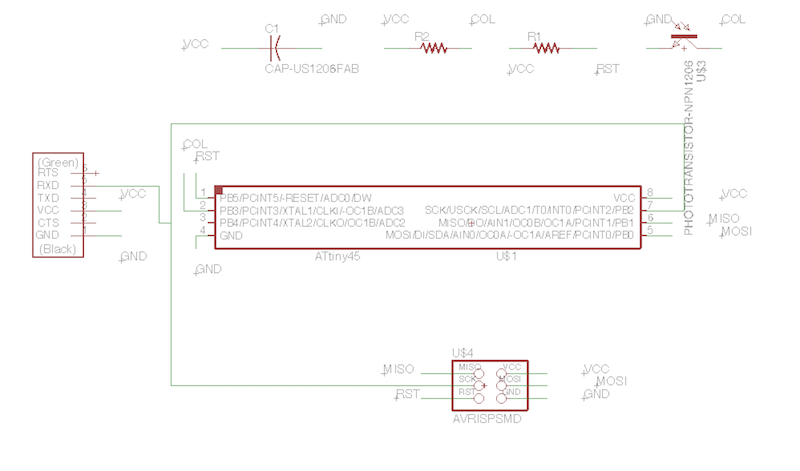

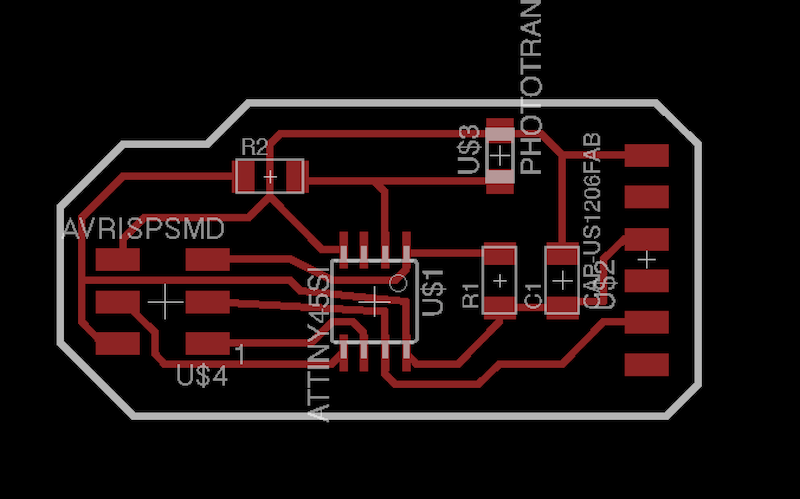

• I used eagle as usual to draw the schematics and the PCB, I used the PCB in the Fab Academy archive as reference
• Take care when you are drawing the traces to connect the lines to the tip of the components pins, or else it won't connect when you draw the board

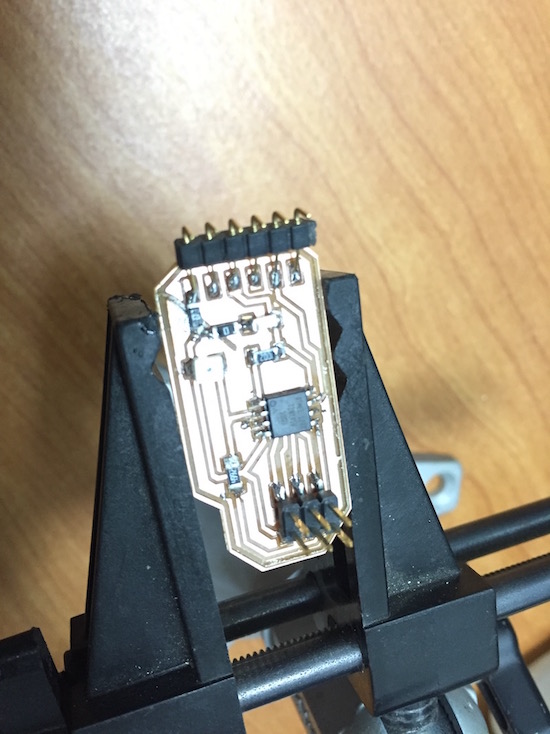

• Here it is after soldering the components, I had to use two 0 ohm resistors to connect the traces as two of them get milled by mistake :D

Download File

<

• I downloaded the C and Make file from the Archive and I used the terminal to program the board as shown in the video

• I connected the FTDI cable after that and searched for a way to read serial via terminal and i find this video which help me very much

• As you can see the input only give me characters not value, I searched for it and i found that the input was sending me the bytes, the terminal interpret the bytes as ASCII which is shown as garbage

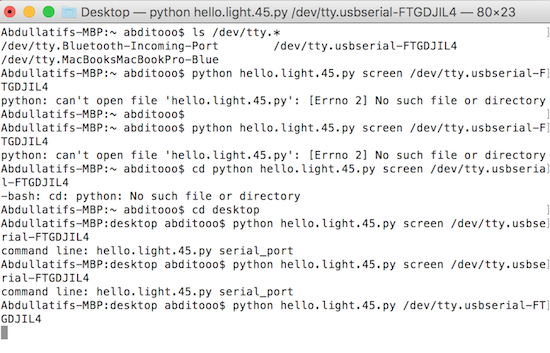

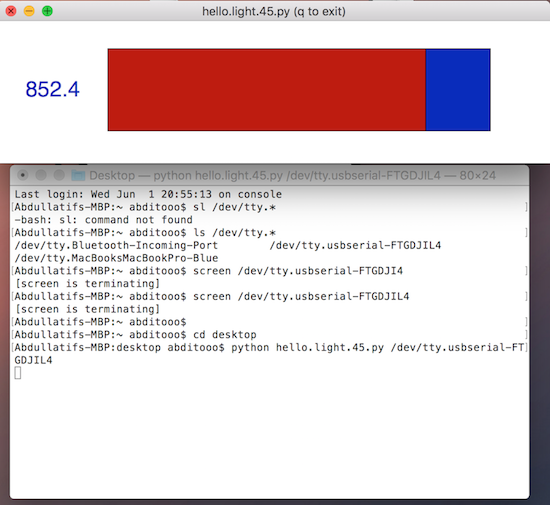

• I wanted to use the python file to show the interpret the data, I found this video that teach me how to use python in mac.

• I also made a push button input circuit that control a DC motor in my Final project
• I used the ATtiny 45 and only one push button
• I used the Mosfet transistor to control the DC Motor


• Now after I connect the Mosfet into the ATtiny Analog pins I can control the speed of the rotation





• As you can see if you want to determine the speed of the rotation you have to write it in no. range form 0 to 255, I decided to use half speed so I wrote 130






int in1Pin = 3;
int switchPin1 = 4;


void setup()
{
  pinMode(in1Pin, OUTPUT);
  pinMode(switchPin1, INPUT);
}

void loop()
{
  if(digitalRead (switchPin1) == LOW)
  {
    analogWrite(in1Pin,130);
  }
  else
  {
   analogWrite(in1Pin, 0);
  }
}







Download Code





• I faced a problem after connecting the motor to the board, as it won't work when I push the button
• After rechecking the schematic and the soldering connection, i thought of testing the circuit with a LED



• As you can see the circuit is working fine with the LED but won't work with the DC motor
• After a long period of debugging the circuit I get disappointed as I can't find any thing, I even thought of running the motor without the Micro controller, but then I will lose the feature of controlling the speed of the motor
• Finally and thanks to my friend Mohamad Kamel who helped me in fixing the problem, and after a deep search in Mosfet data sheet we found that we have to redesign the board to add a resistor between the microcontrollar controlling pin and Mosfet, and that what we did :D




Download File




• Finally it is on and running, now I am ready for SPIN "My project name :D" Designing phase
