Assignment:
* Propose a final project that integrates the range of units covered, answering:
I would like to apply what I have learned on the course, to the arquitecture and art fields. So for the final project, I will create a prototype to achieve this goal. I would like to experiment using data that reflects emotions as an input and convert it to something visible.
WHO'S DONE WHAT BEFOREHAND?
One of the first projects that has used data and represented it visually was The Tower of the Winds - Toyo Ito 1986 - following the concept of "converting the environment in information". This project was considered as an inflection point on the history of architecture.
More contemporary projects:

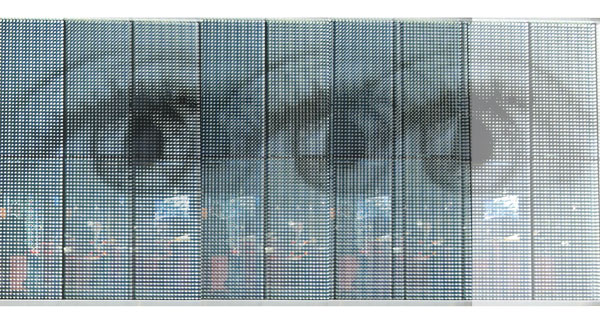

pixel-skin-interactive-facade
media facades
Aperture Interactive Display reacts to light with dramatic effects
PCB to create circuits (input, output & networking)
Electronic Components
ATmega32U4 for doing a fableo
ESP8266 Wi-Fi module
Plexiglass (case)
Cable
Leds
Batteries (2x3v)
Most of them from the inventory.
STEPS:
1-Making the output
For visualizing the emotions I will use light as the output, but how?

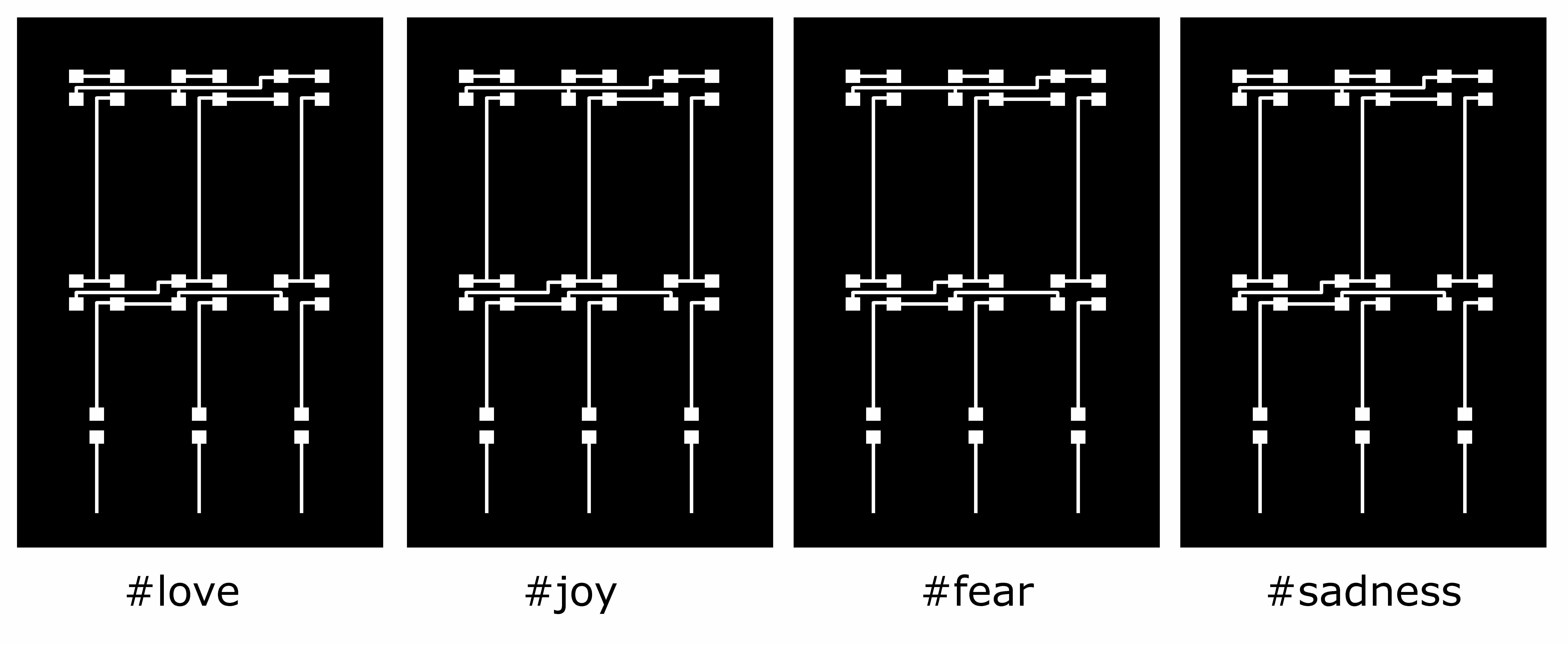

I started by doing four modules of 6 leds and 3 pins each using charlieplexing method, each module will be an output representing an emotion.
2-Electronic / programming
Make the fableo
Make the prototype autonomous
3-Input
I will fetch data from twitter, searching for the most twitted emotions from a certain place, for a period of time and represent them visually.
4-Case
Laser Cutting (for the case)
3D printing (support)
Electronics Production (Input, Output & Networking)
Documentation
2D Design
Find out how to get the data from twitter and used it in arduino.
How is the best way to visualize the emotions.
Designing the case.
How much will it cost?
Week17(may25)
Designing the prototype, how can it worked, how is the best way to show the data, make prototypes.
Week18(jun1)
Work in the programming, testing the output and the input with an arduino.
Week19(jun8)
Making the Electronics.
Week20(jun20)
Presentation.
It could be evaluated based on few factors:
Could it be cosidered as an art product?
Design
How much have I learnt in the process
vendor | quantity | cost per unit | price | ||||||
ELECTRONICS | |||||||||
fableo | |||||||||
Machinable PCB 6"x4" | Global Laminates | 1 | 0.7 | 0.7 | |||||
Header 2x3 | Mouser | 1 | 0.72 | 0.72 | |||||
LED | DigiKey | 1 | 0.15 | 0.15 | |||||
Female Header 0.1" (12pos) | DigiKey | 2 | 0.76 | 1.52 | |||||
resistor 499 | DigiKey | 1 | 0.1 | 0.1 | |||||
resistor 680 | DigiKey | 1 | 0.1 | 0.1 | |||||
resistor 22 ohm | DigiKey | 2 | 0.1 | 0.2 | |||||
capacitor 18pF | DigiKey | 2 | 0.05 | 0.1 | |||||
capacitor 0.1uF | DigiKey | 8 | 0.12 | 0.96 | |||||
CRYSTAL 20MHZ 8PF SMD | DigiKey | 1 | 0.49 | 0.49 | |||||
USB | DigiKey | 1 | 0.74 | 0.74 | |||||
ATMEGA32U4-AU | DigiKey | 1 | 6.5 | 6.5 | |||||
voltage regulator board | |||||||||
Switch | Diotronic | 1 | 0.36 | 0.36 | |||||
capacitor 0.1uF | DigiKey | 1 | 0.12 | 0.12 | |||||
voltage regulator 5v | DigiKey | 1 | 0.5 | 0.5 | |||||
battery holder | DigiKey | 1 | 3.5 | 3.5 | |||||
battery 3v | Diotronic | 2 | 2.5 | 5 | |||||
led panel | |||||||||
Machinable PCB 6"x4" | Global Laminates | 2 | 0.7 | 1.4 | |||||
LED | DigiKey | 30 | 0.15 | 4.5 | |||||
resistor 0 ohm | DigiKey | 42 | 0.1 | 4.2 | |||||
resistor 499 | DigiKey | 6 | 0.1 | 0.6 | |||||
wifi | |||||||||
ESP8266 Wifi Module | amazon | 1 | 6.95 | 6.95 | |||||
MECHANICS | |||||||||
PLA 3D printed pieces | BCNDynamics | 1 | 34USD/kg | 5 | |||||
acrylic 5mm | Servei EstaciĆ³ | 100cm x 60 cm | 28 | 28 | |||||
TOTAL | 72.41USD |
