Week.16 Interface and Application Programming

Assignment write an application that interfaces with an input &/or output device that you made,comparing as many tool options as possible

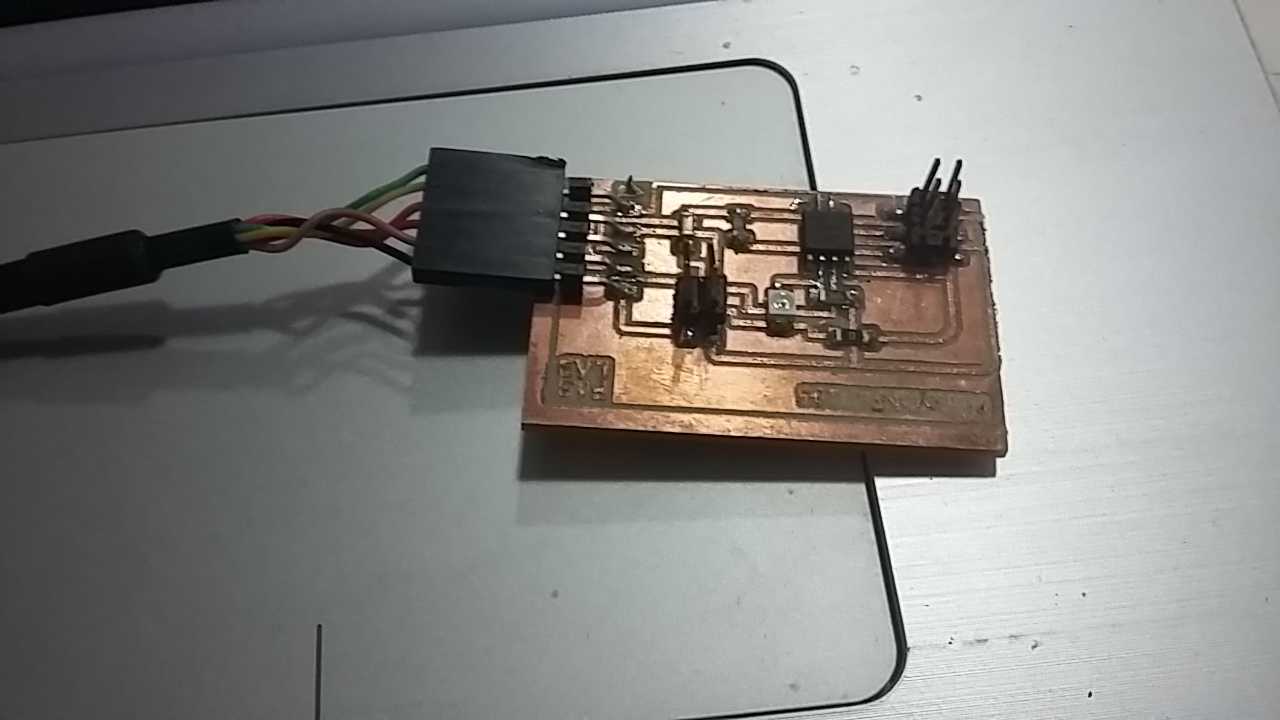

The input Device Hello.Light.45

I have used my Hello.Light.45 input device. I have made a lot of experience with Phototransistor and also in the Final Project and for this reason this is my input device par excellence!

Software

First of all I have installed Python than TkInter and the pyserial module I suggest to install a Python version 2.7.12

Source Software
Python
TkInter
pyserial 3.1.1

Control if you have all installed:

Instructions:
WindowsCommand Prompt
type: python
type: help()
type: modules

check to have serial module installed

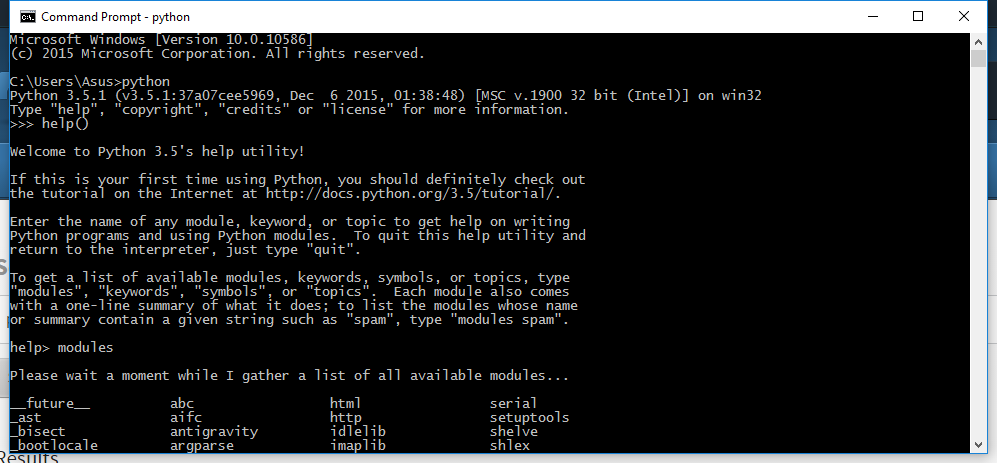

Python screen shot

Fix bug from newer version

remember

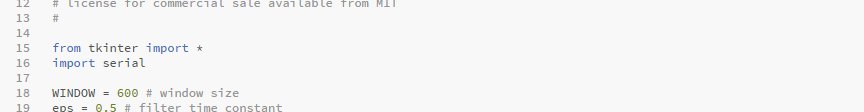

1) remove a capital letter in Tkinter

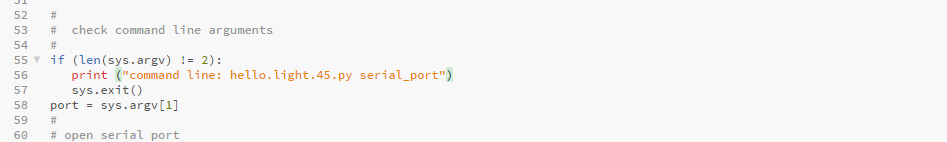

2) add brackets in print string

Idea

The idea is change the colour with the change of the light intensity. With low light the colour will be Violet then with the increase of the light intensity will pass to blue, green, yellow, orange until red with brightness light. Also the windows will show the intensity of the light, then the RGB colour and the hexadesimal colour code.

Source Code
Hello.color.py
Hello.color.text.py

Processing and Processing.js

tree_pde : Built with Processing and Processing.js

tree_pde

Source code: tree_pde
Built with Processing and Processing.js

Source web.export
Tree web javascript
