WEEK 2: COMPUTER-AIDED DESIGN

Assignment: Model (raster, vector, 2D, 3D, render, animate, simulate, ...) a possible final project, and post it on your class page

| | | | | | | | | | | | | | | | | | | | | | | | | | | |

I also made a 3D model in Rhino, the software I am used to work.

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |

This week we learned about open source and free softwares for creating 2d bitmap and vector images files.

GIMP

Inkscape

OpenScad

Later on we had a class about OpenScad where I couldn't attend. But I'm putting up to date!

Assignment: So for my final project i tried to make some sketches in GIMP, which was kind of slow for me, I'm really used to Photoshop, Rhino and Illustrator.But, I tried!

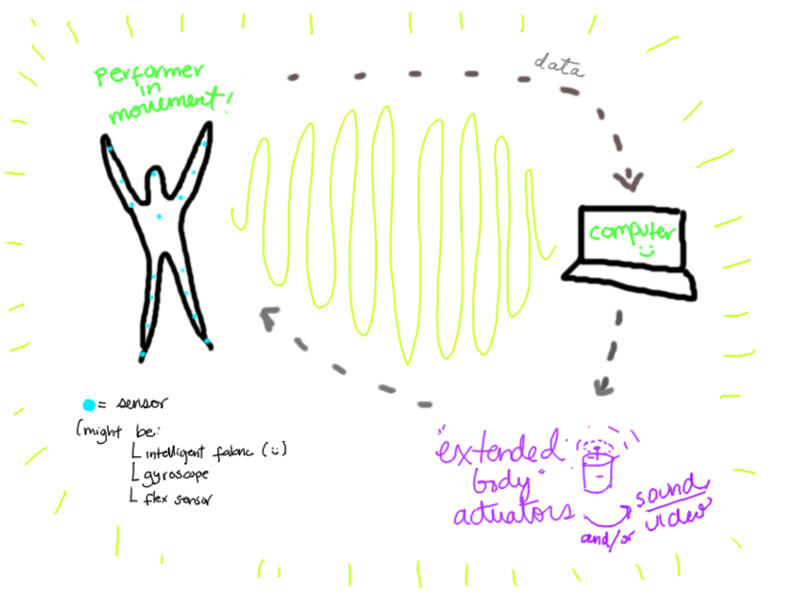

GIMP sketches:

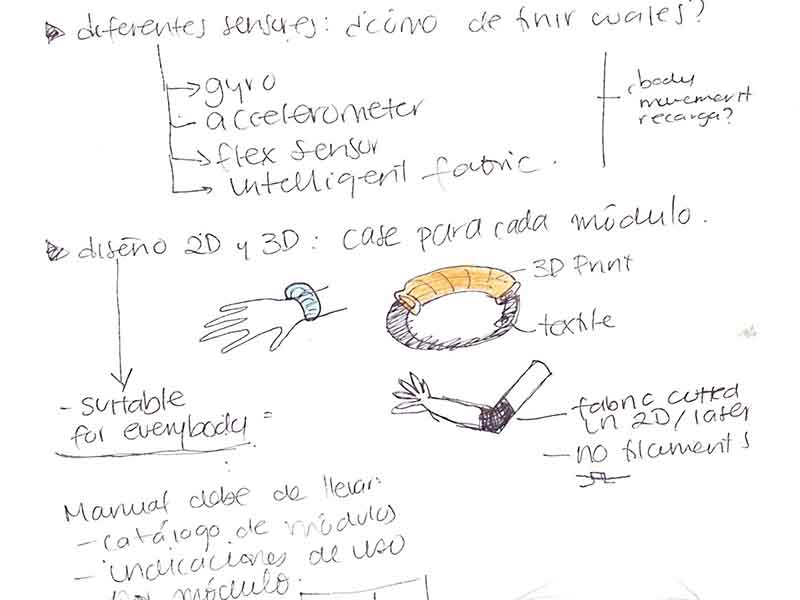

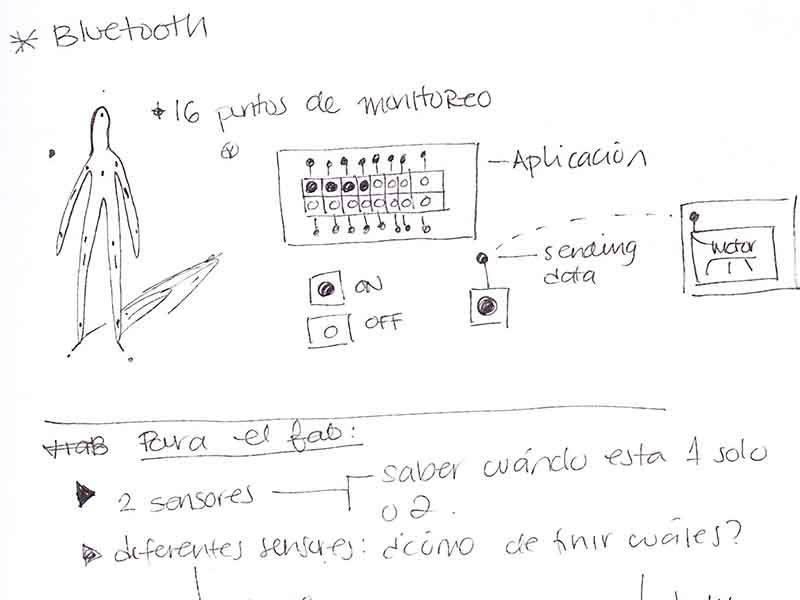

Handmade sketches:

I also made a 3D model in Rhino, the software I am used to work.

I made a drawing in Illustrator

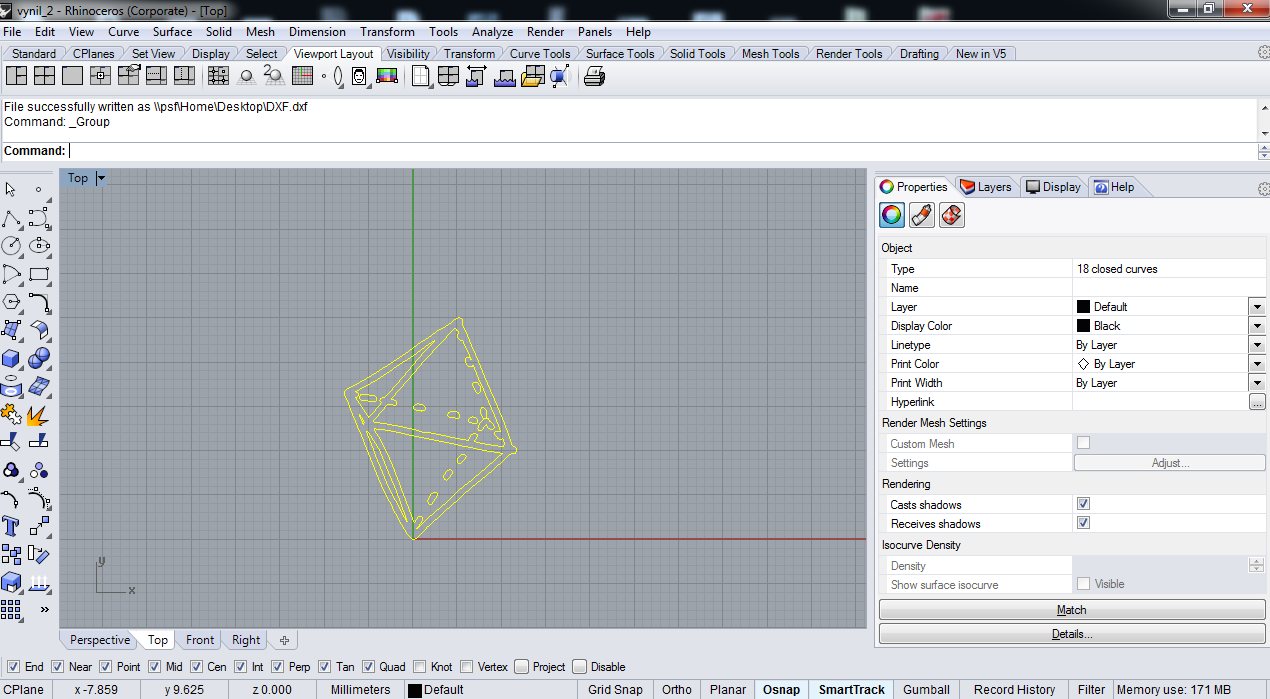

Opened it in Rhino directly. I didn't know you could open an .ai. :)

I tried to extrude the curves, but the extrusion had wird results, so I used my favourite fixing curves command: Make2D, using my current plane.

If you are unfamiliar to this, what will happen is that Rhino will redraw in a plane what you select. This is very useful.

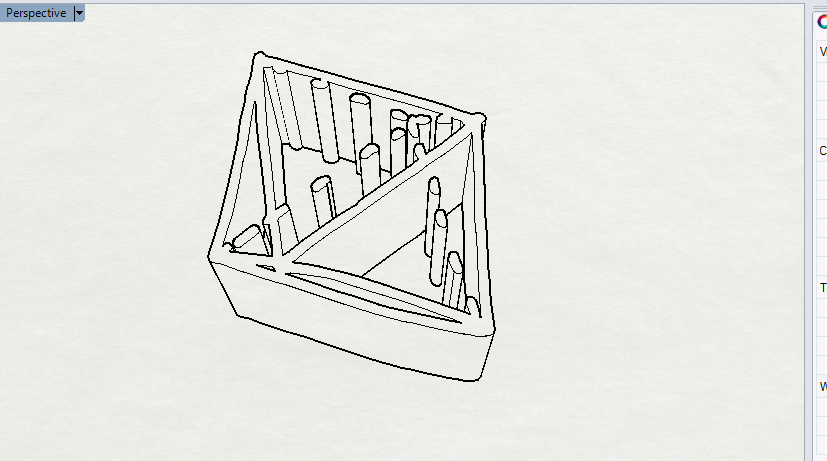

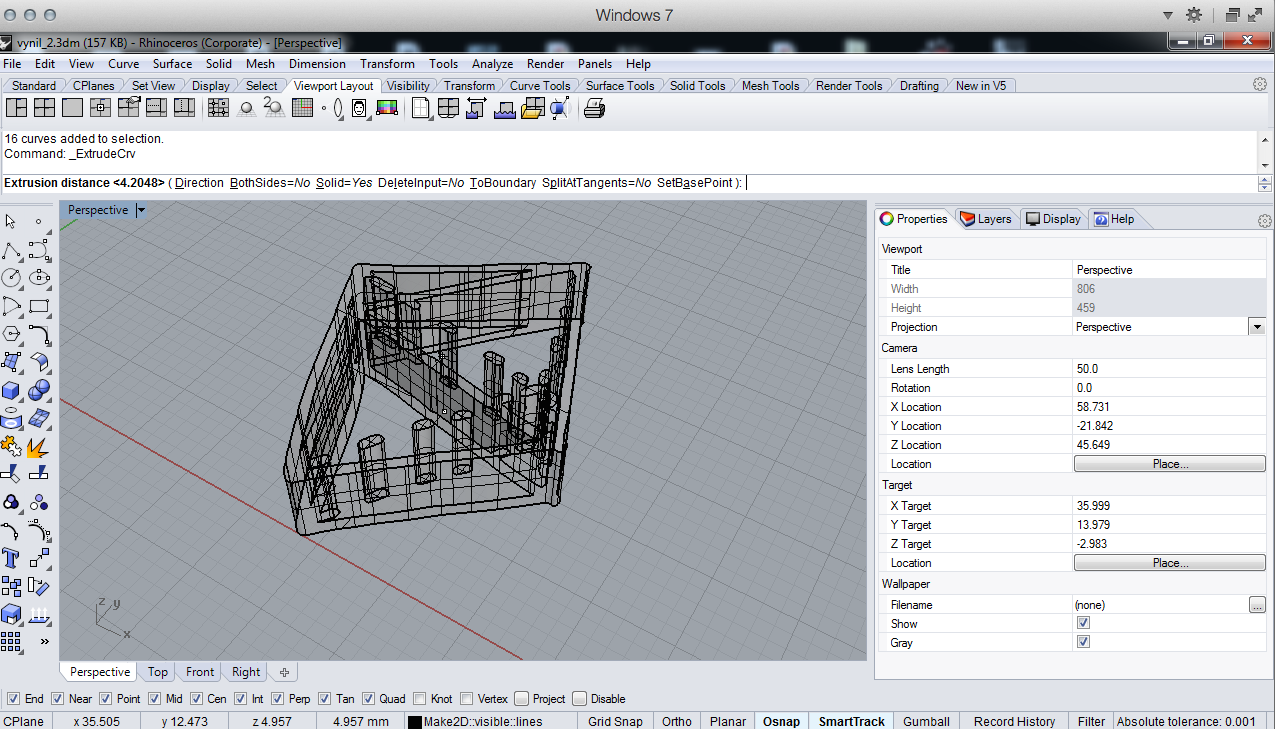

Then I made an extrusion:

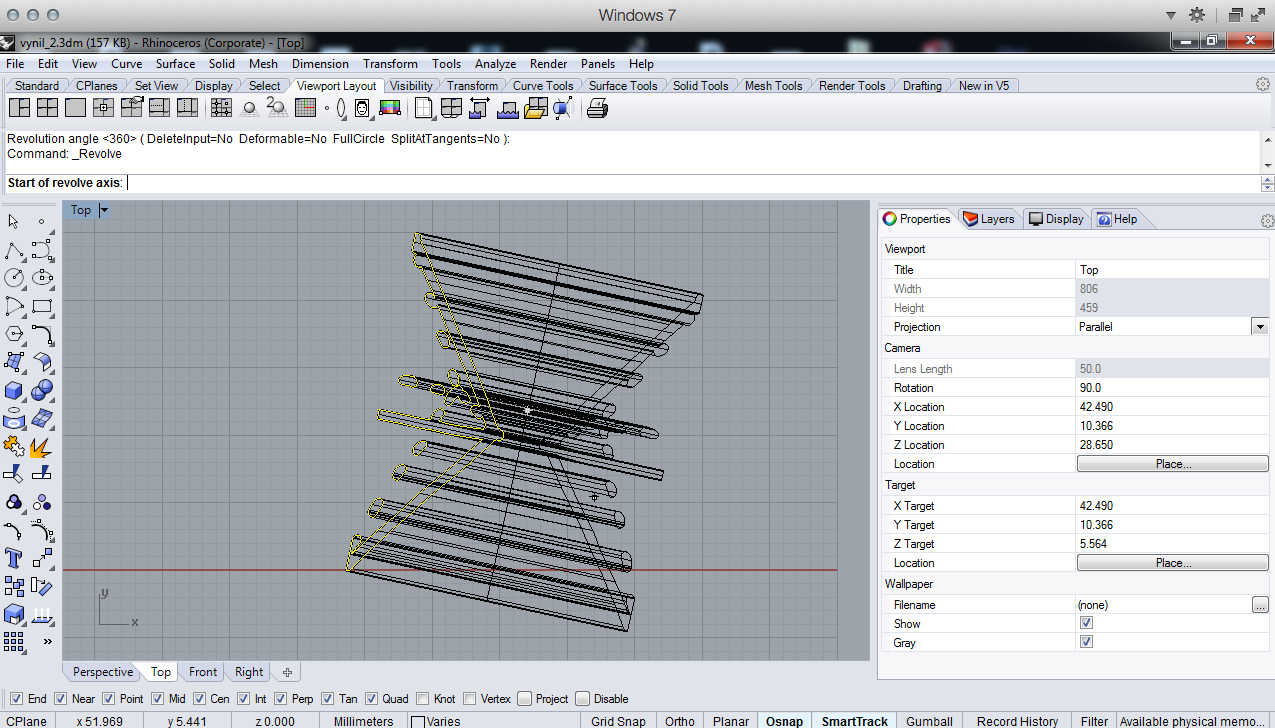

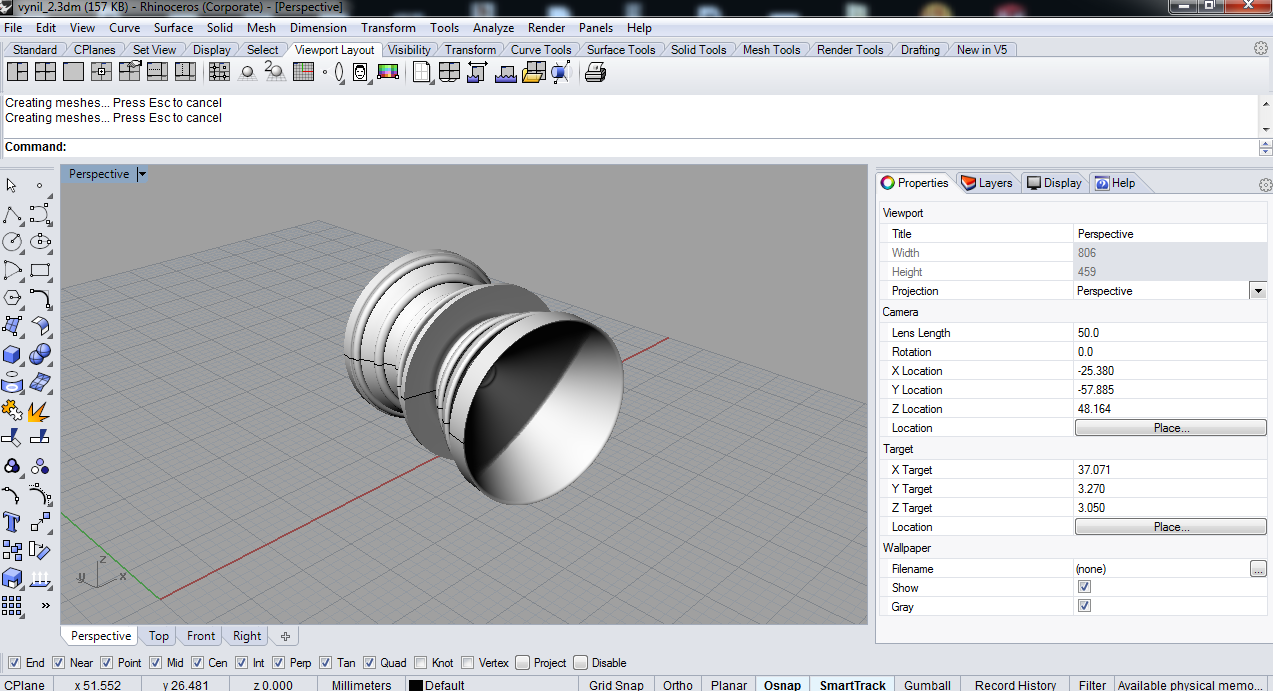

And then I made a 360 degrees revolution with my drawing.

FILES: HERE!
