The Process:

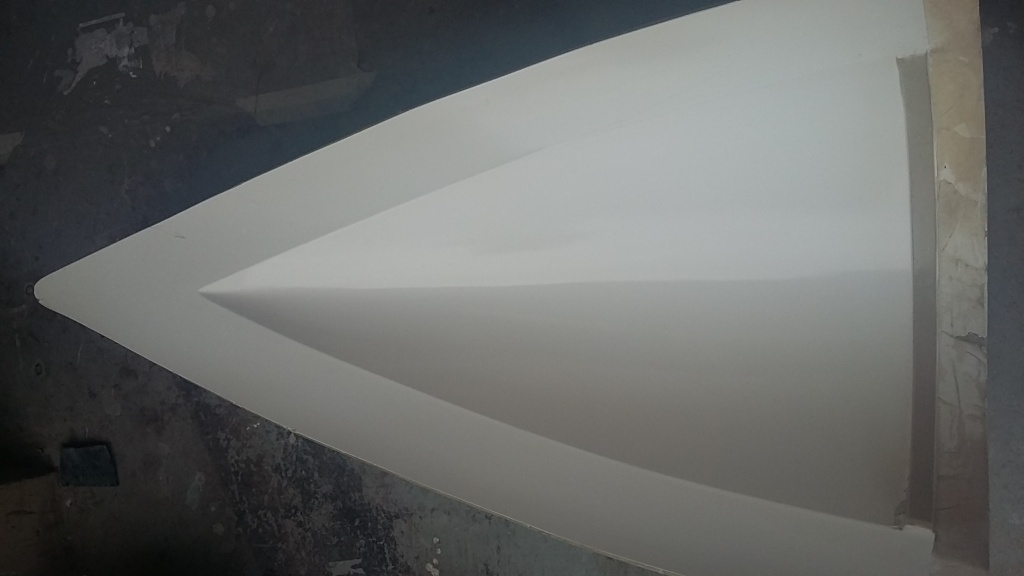

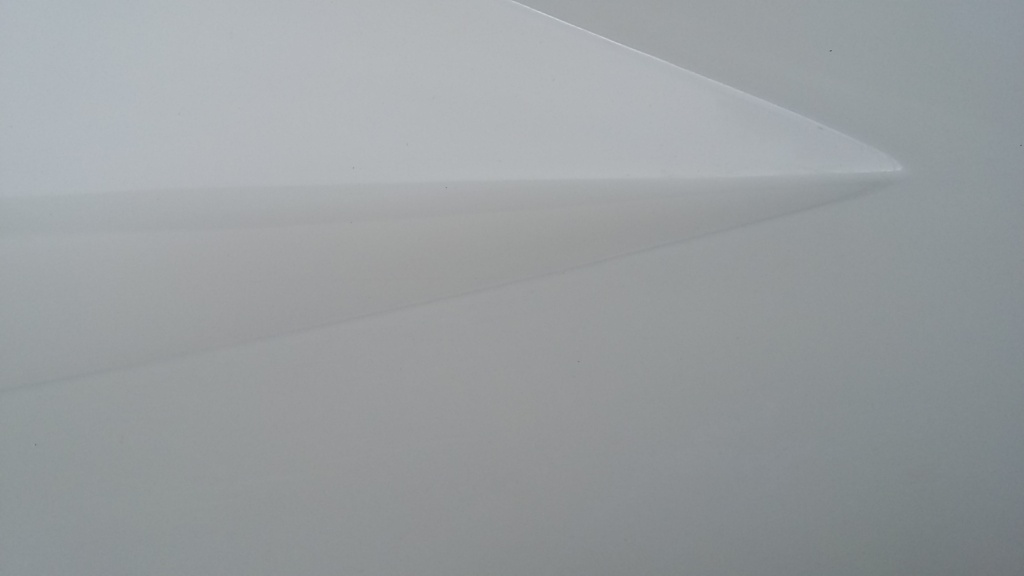

1- Mold preparation :

  • Cleaning both parts(Male/Female) of the mold with water and aceton to remove dust particles.

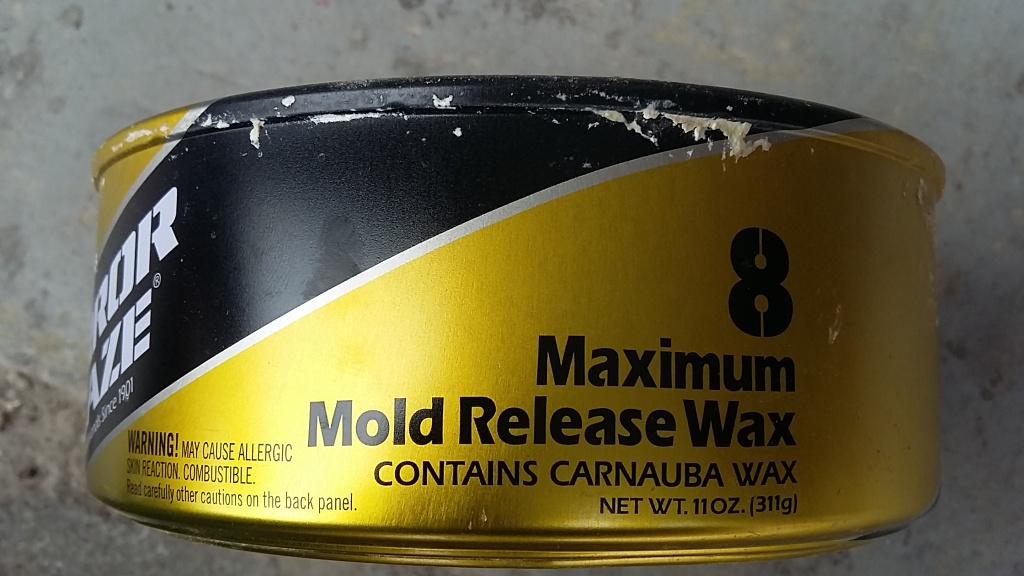

  • Mold releas wax applied on both sides twice to allow for easy release of the finnished articles.

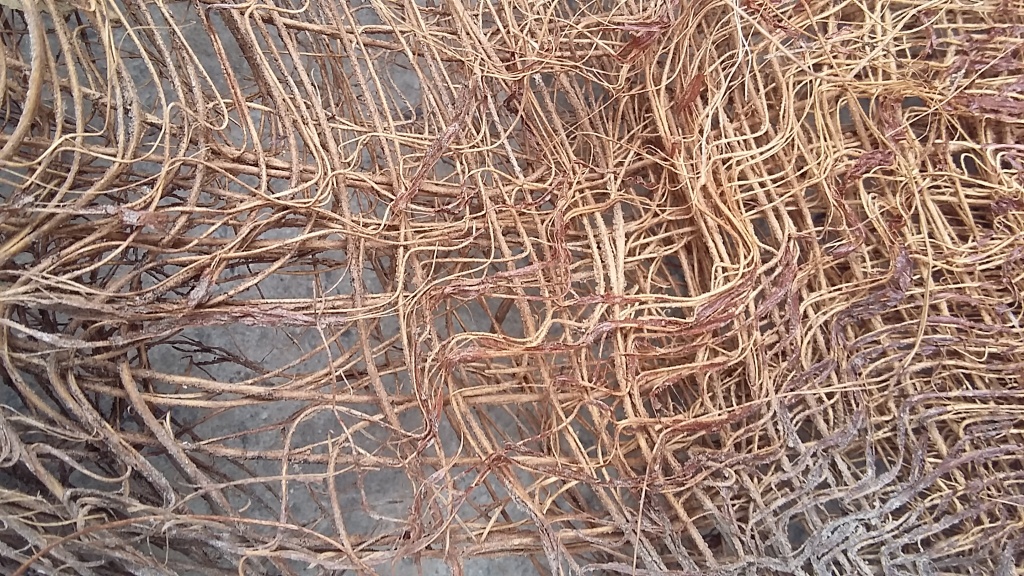

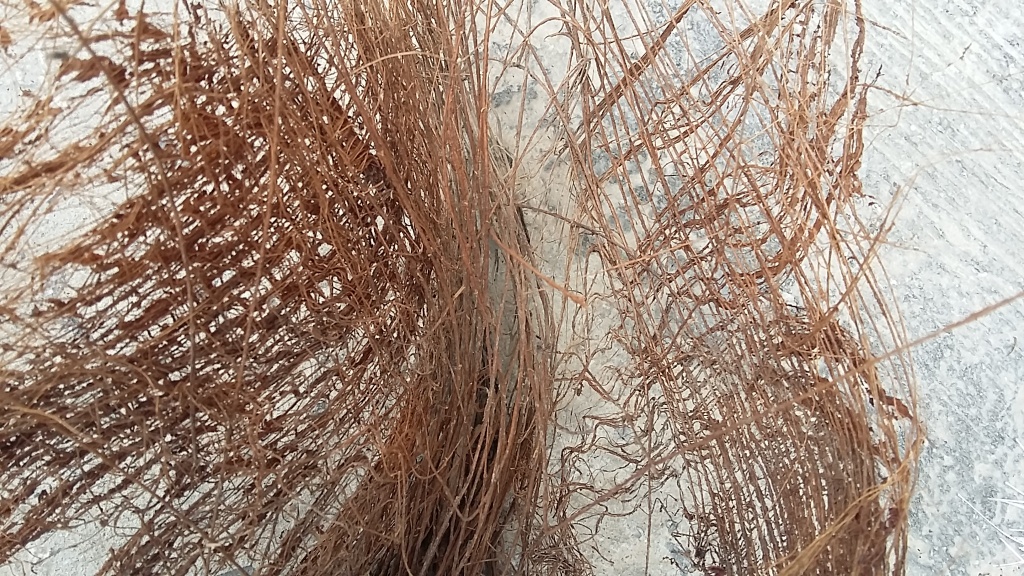

2- Fiber selection :

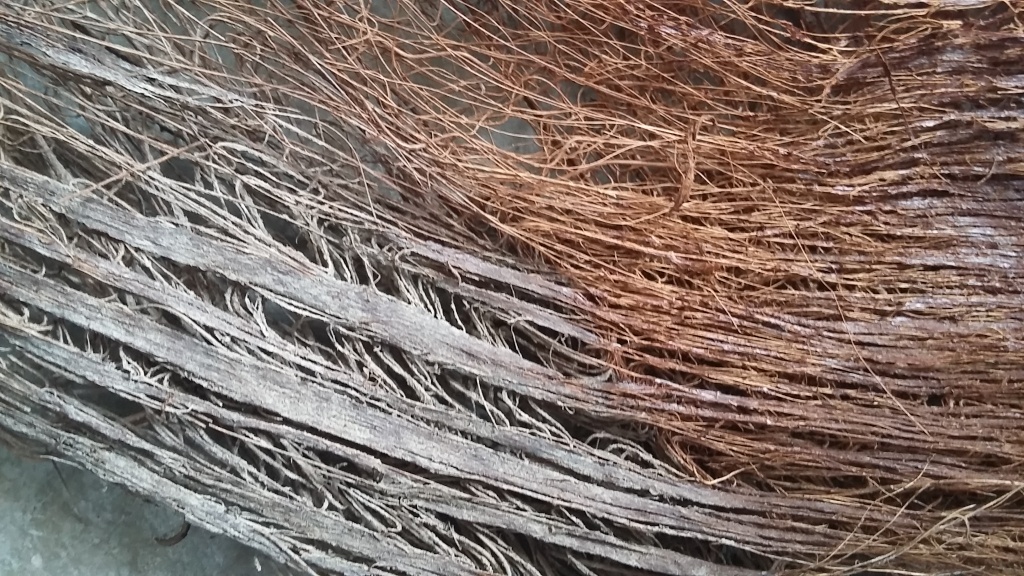

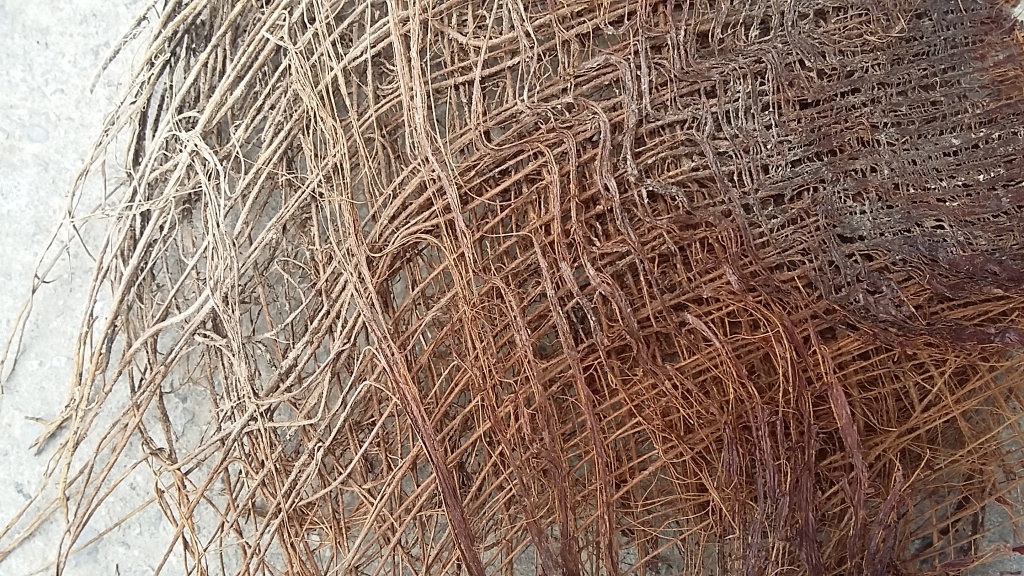

  • Isolated the fresh and felxible palm fibers from the dry ones.

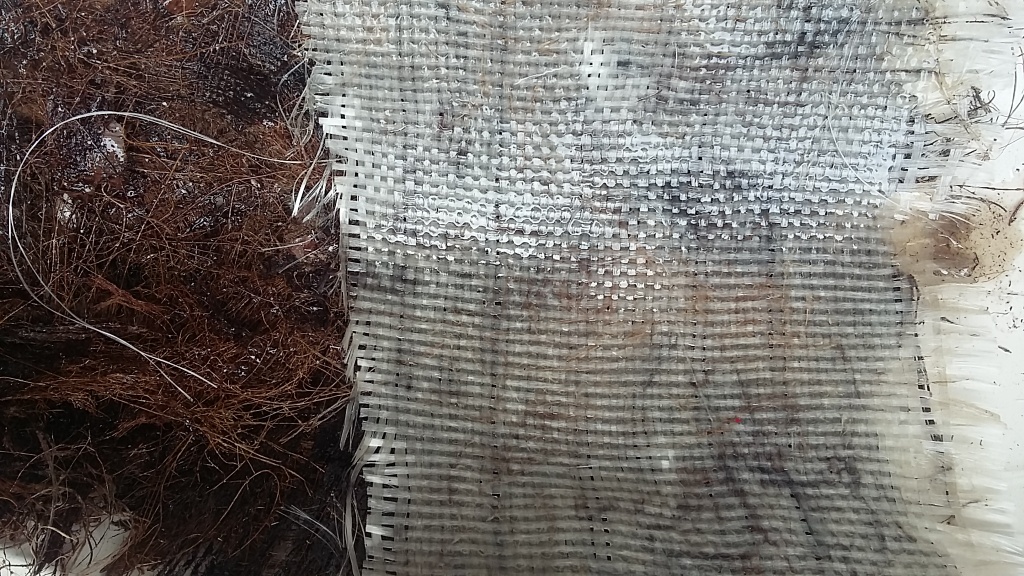

3- Layup of the fiber

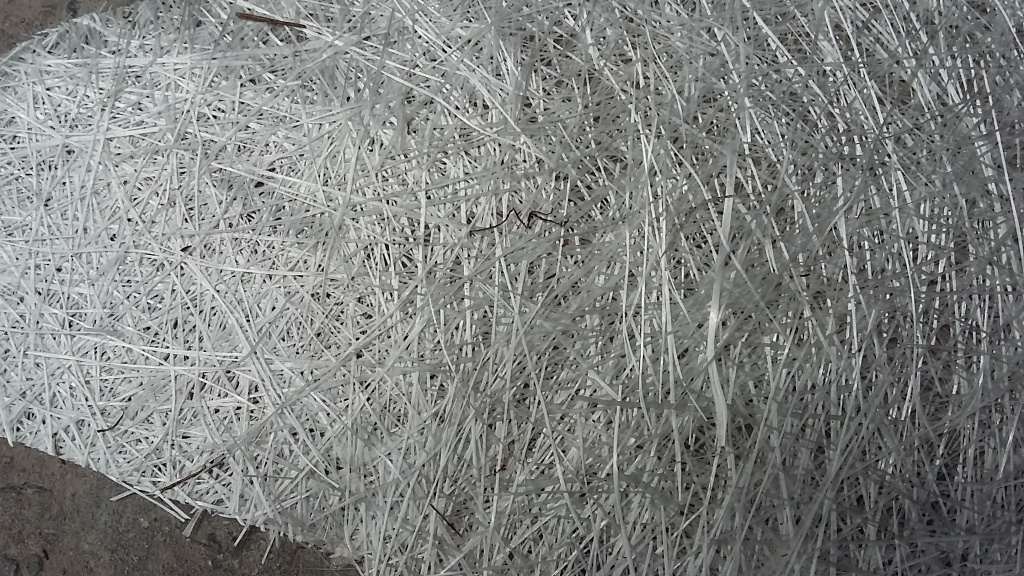

  • Chopped strand mat

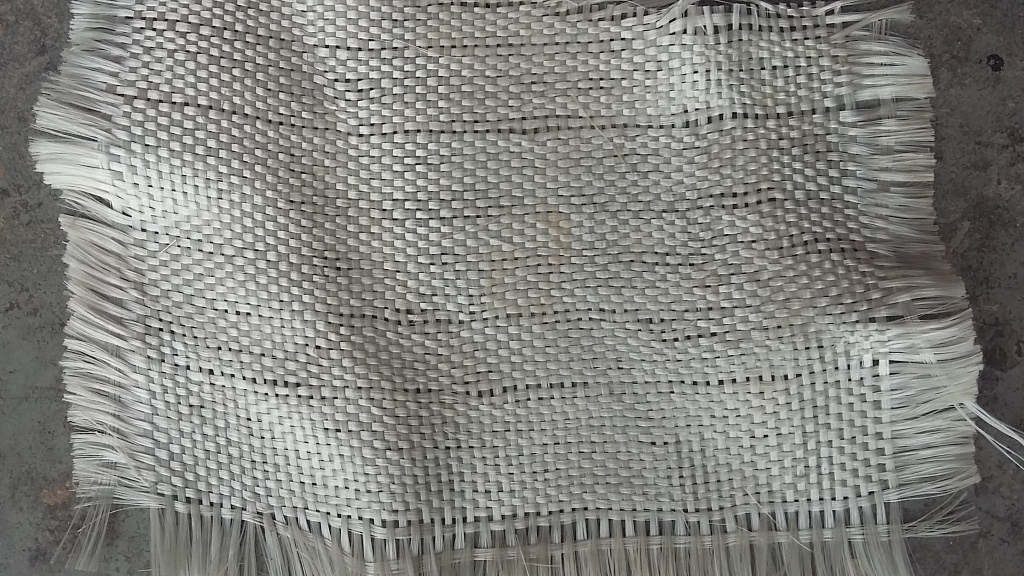

  • Woven Roving 90 degress

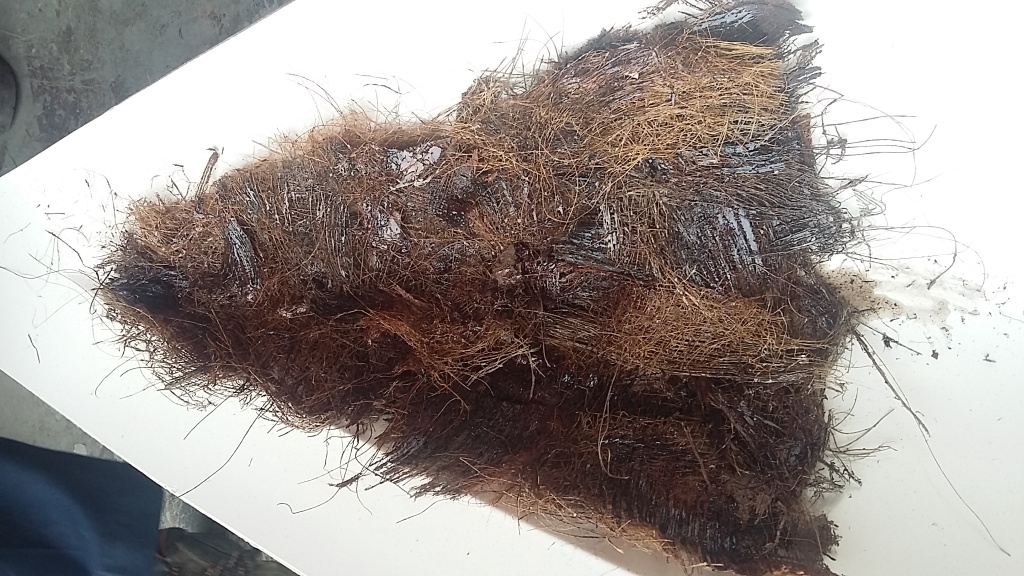

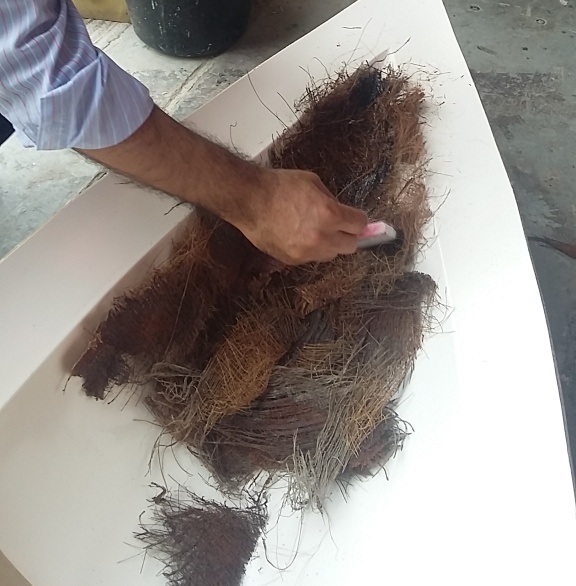

4- Lamination

  • With brush idealy with spray but wasn't available
  • I used polyster resin




6- Compression

used weights to compress both sides of the mold

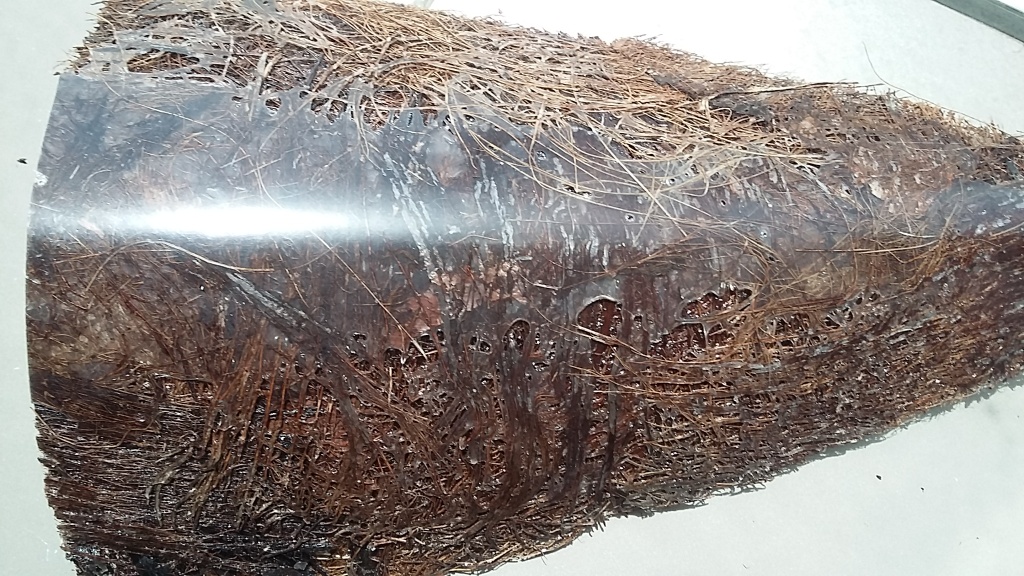

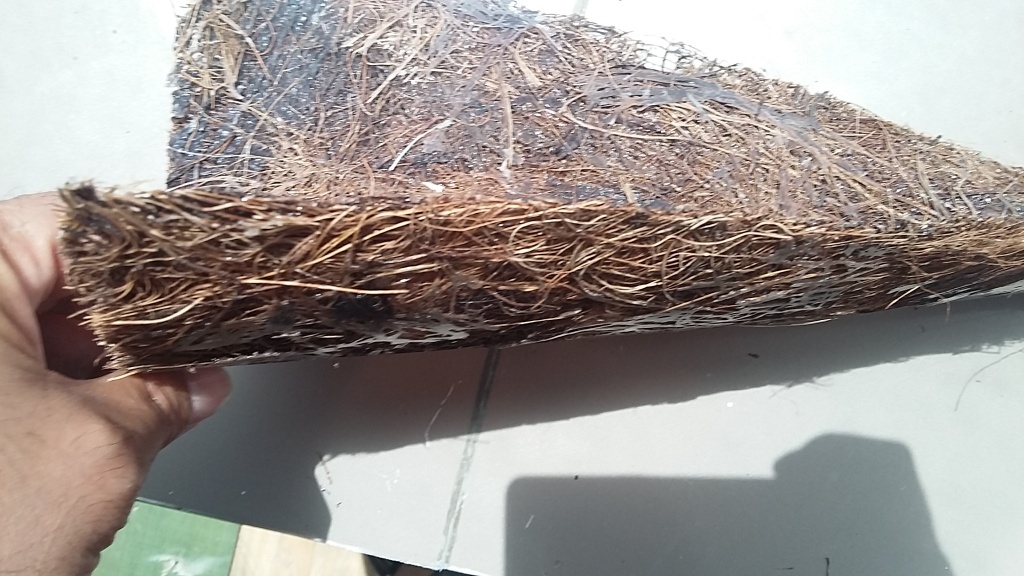

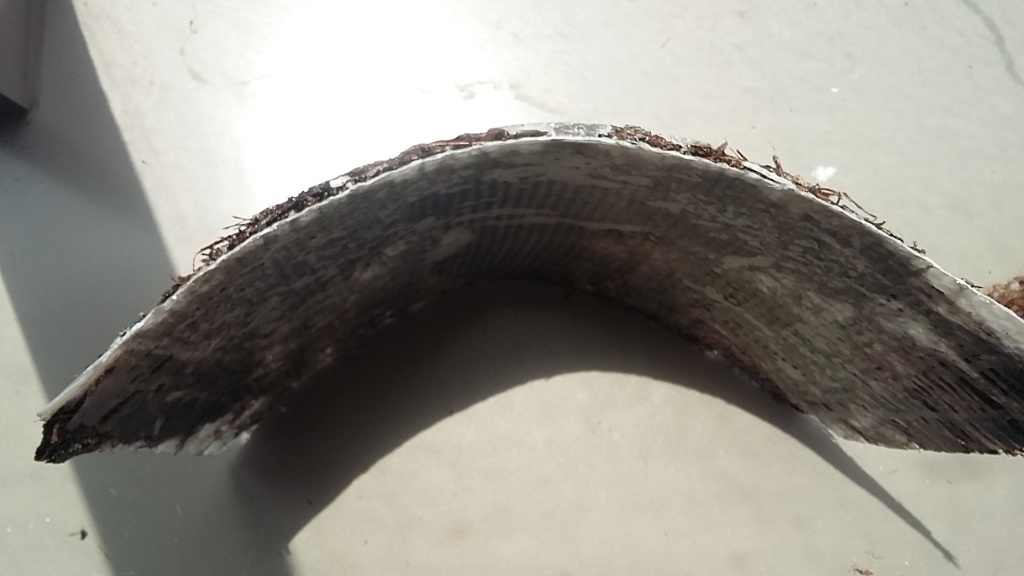

7- Demolding
