satshakit

An improved & fabbable 100% Arduino IDE/libraries compatible board.

The story

satshakit born during my FabAcademy2015 as one the first test boards for my quadcopter final project. As some of my fellow students had difficulties with Fabkit, they tried to make this prototype board. The board was very appreciated that now almost all my fellow students made it for their exercises, or use it as a starting point for their final projects. Thus I decided to do this release, if anyone wants to try it. Now, one year later, I am again in a FabLab developing new satshakit boards in my spare time.

What is satshakit?

satshakit is a 100% Arduino IDE and libraries compatible, fabbable and open source board, and also an improved version of Fabkit.

Main improvements and features over Fabkit are:

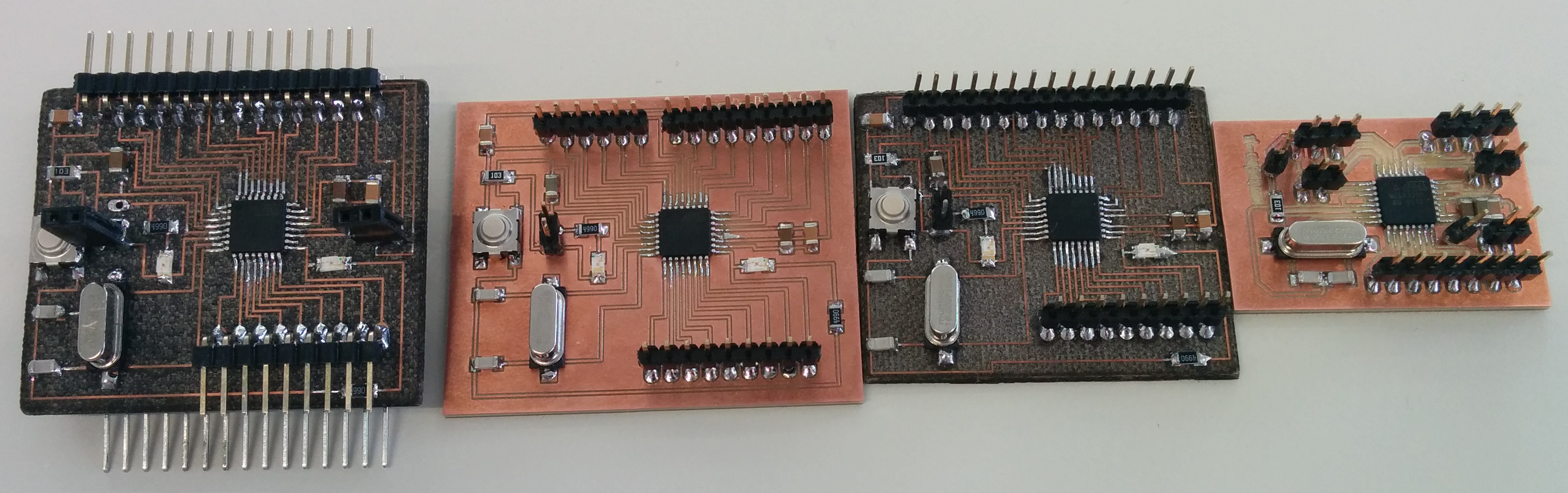

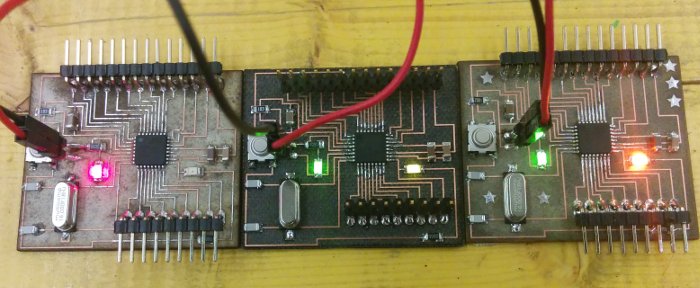

satshakit boards

There are different kinds of satshakit boards depending on the fabrication technique you will use to make them, or on the size of the board.

Here is a comparison table about different satshakit boards:

name mcu pins size(mm)
satshakit laser ATmega328P Arduino + ADC6/7 48 x 42
satshakit cnc ATmega328P Arduino + ADC6/7 54 x 45
satshakit multicore 2 x ATmega328P 2 x Arduino + ADC6/7 50 x 42
satshakit micro ATmega328P Arduino 40 x 24

satshakit laser and cnc

satshakit laser and satshakit cnc are the standard versions of the satshakit. They are actually the same board, showing some layout differences to improve the fabrication process using a fiber laser cutter machine, or a little cnc mill. These satshakits are meant to be a general purpose board, having the full Arduino pinout plus ADC6/7 pins, large space for easy soldering and two led onboard for power and pin 13.

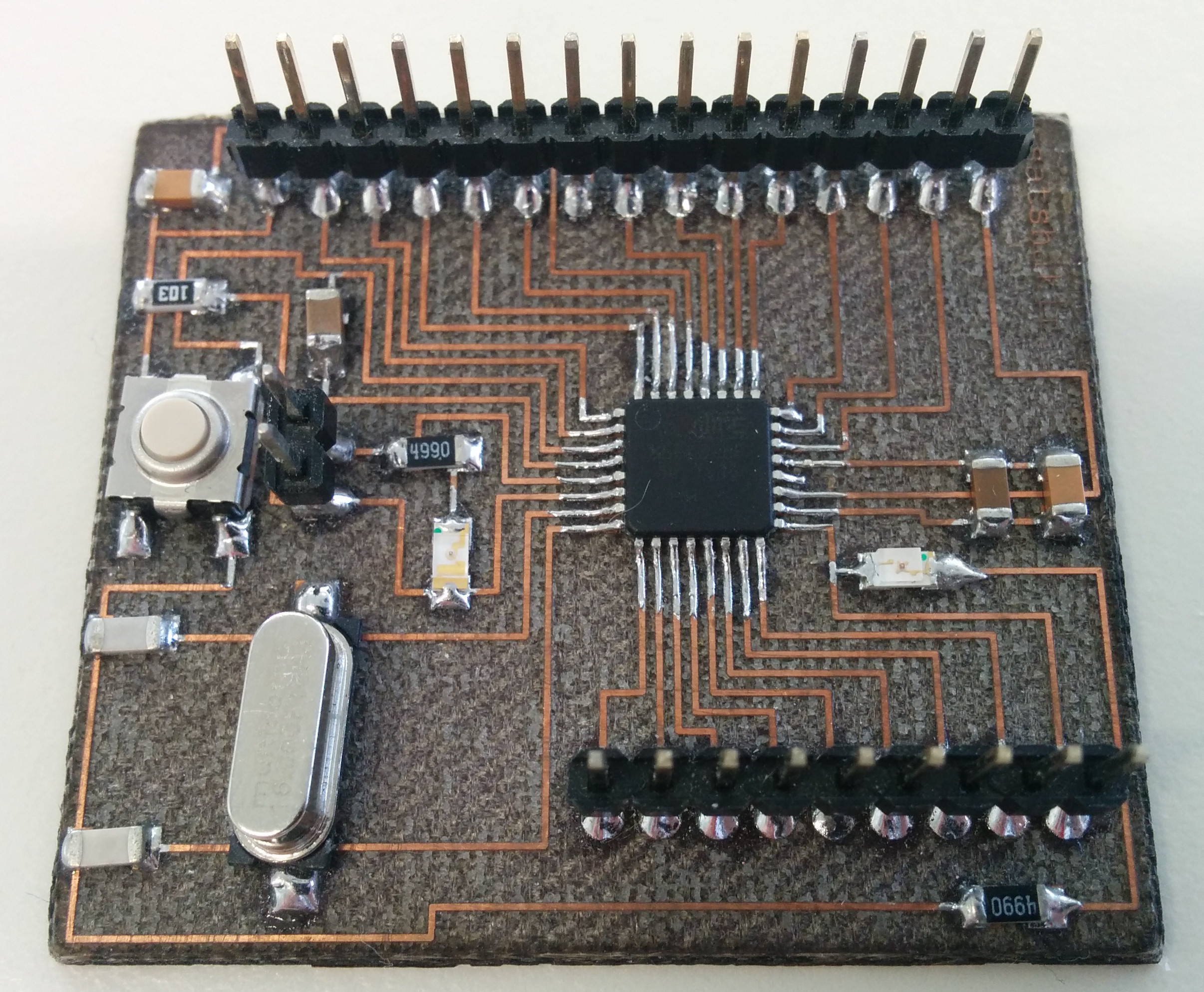

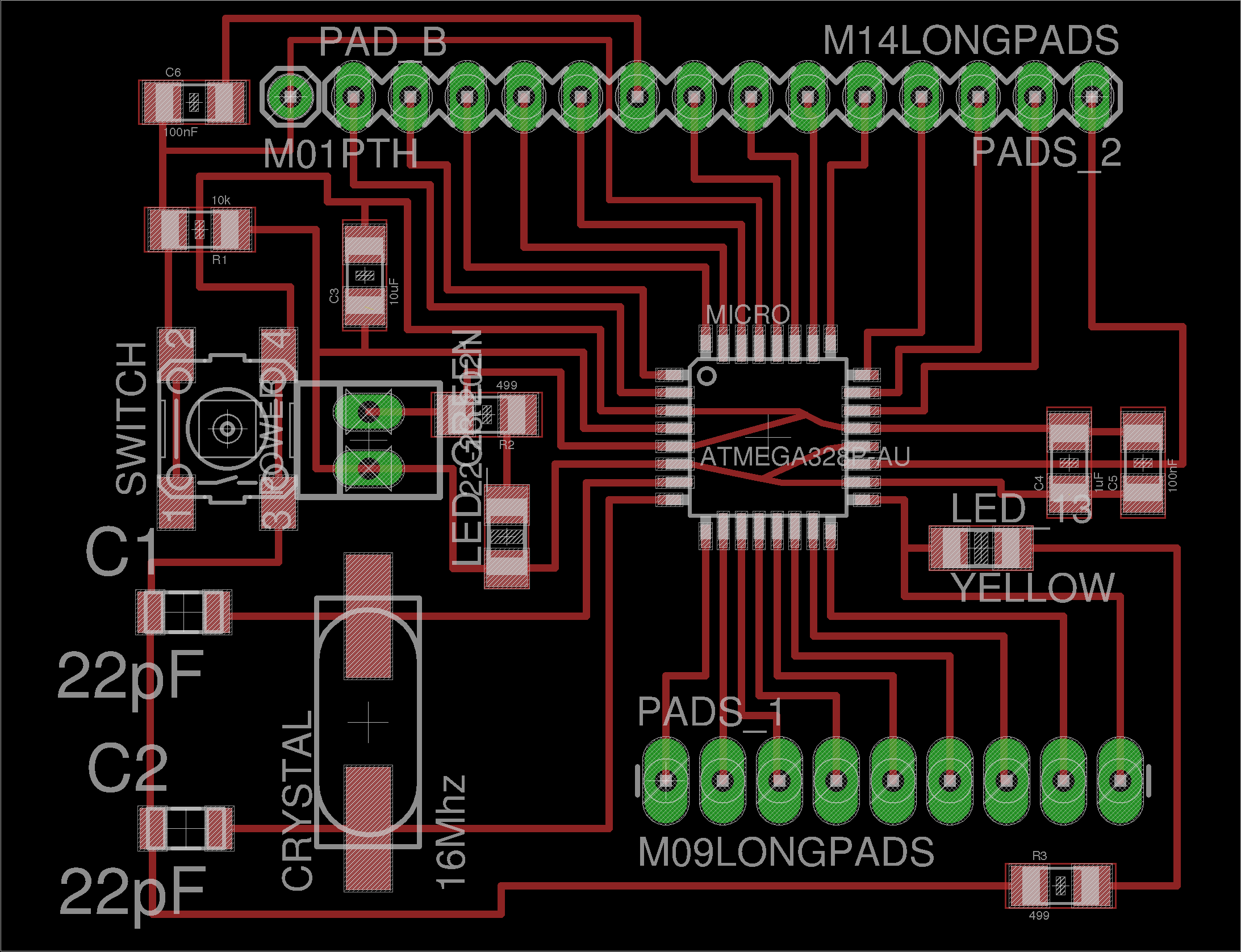

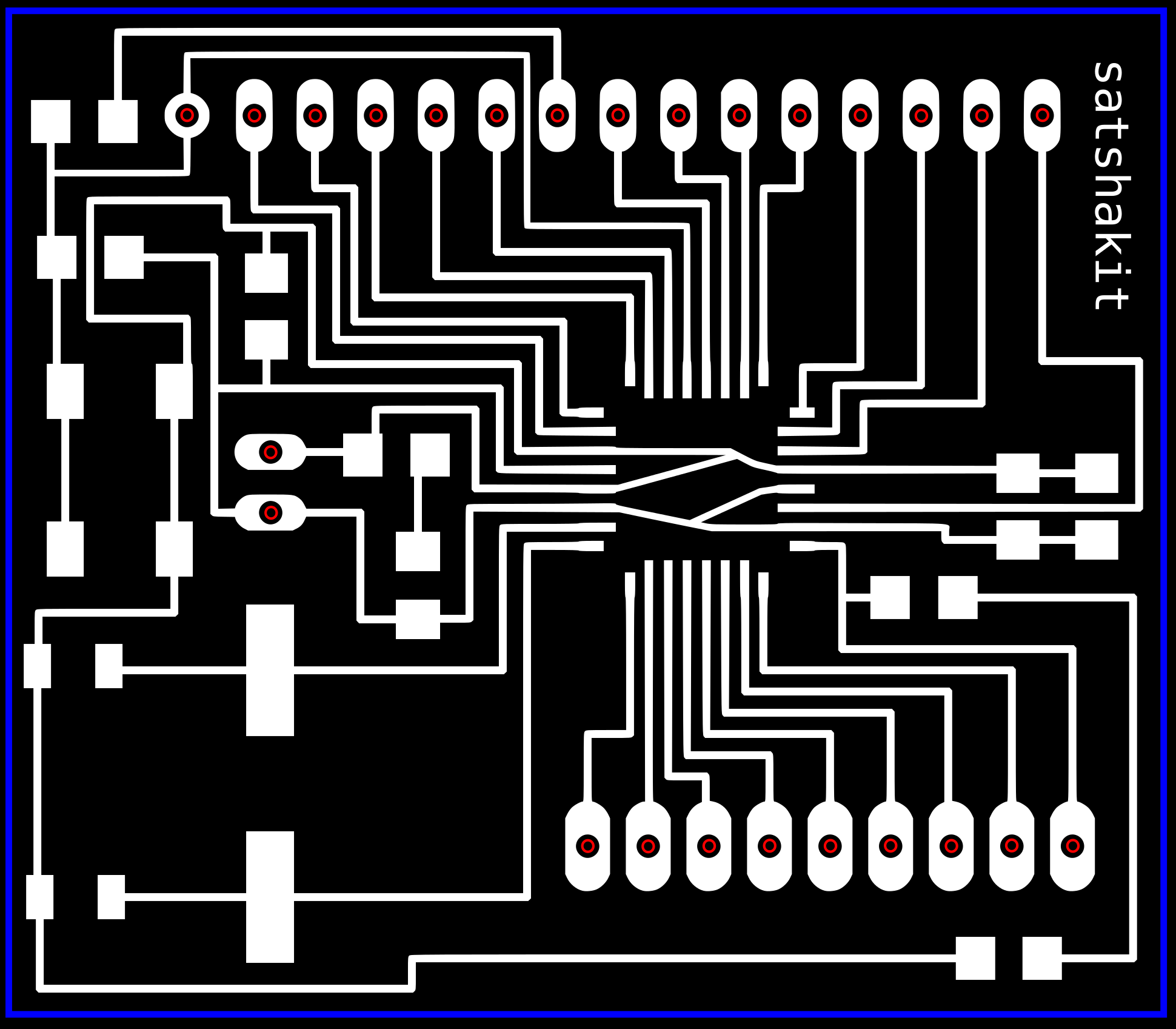

Here is the satshakit laser board:

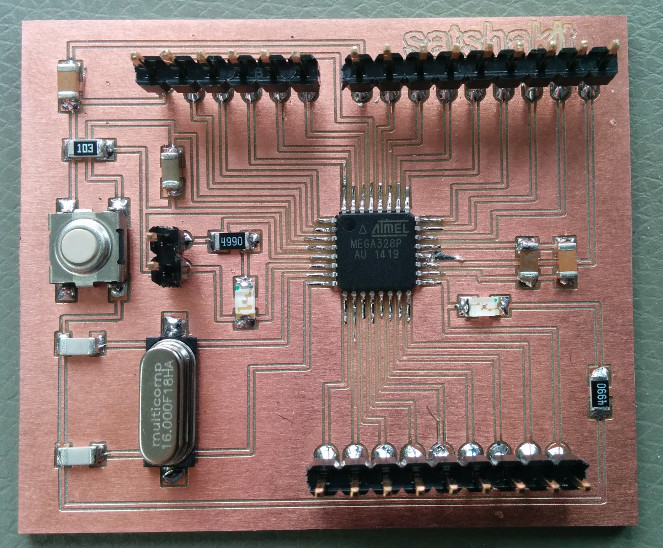

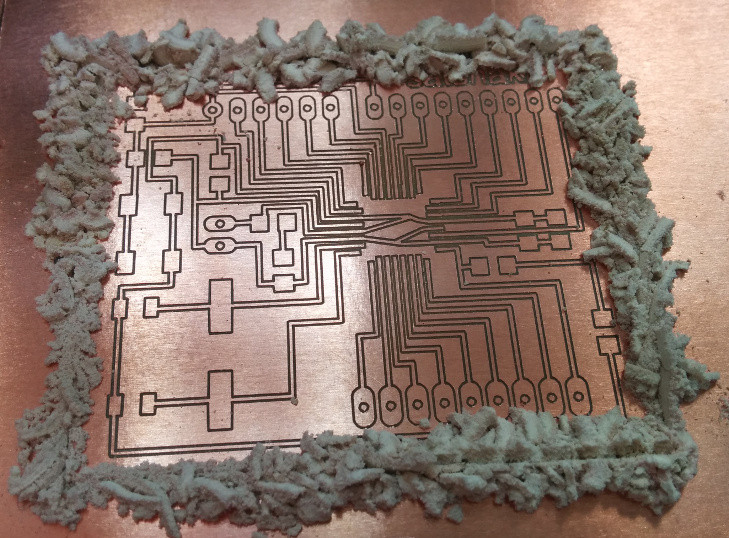

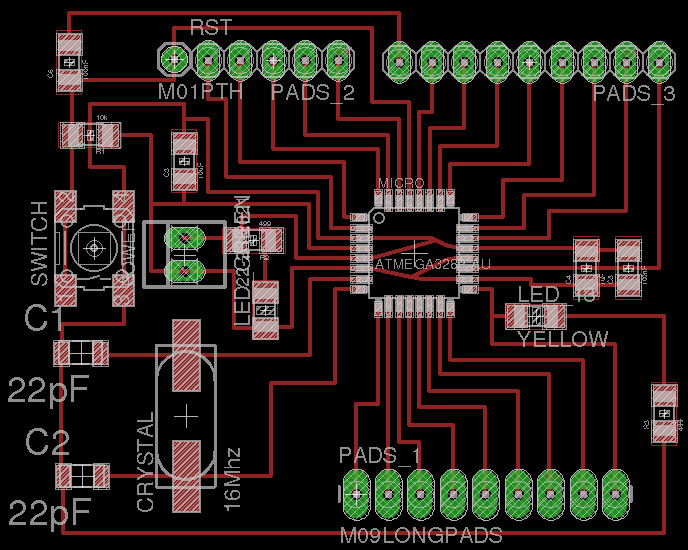

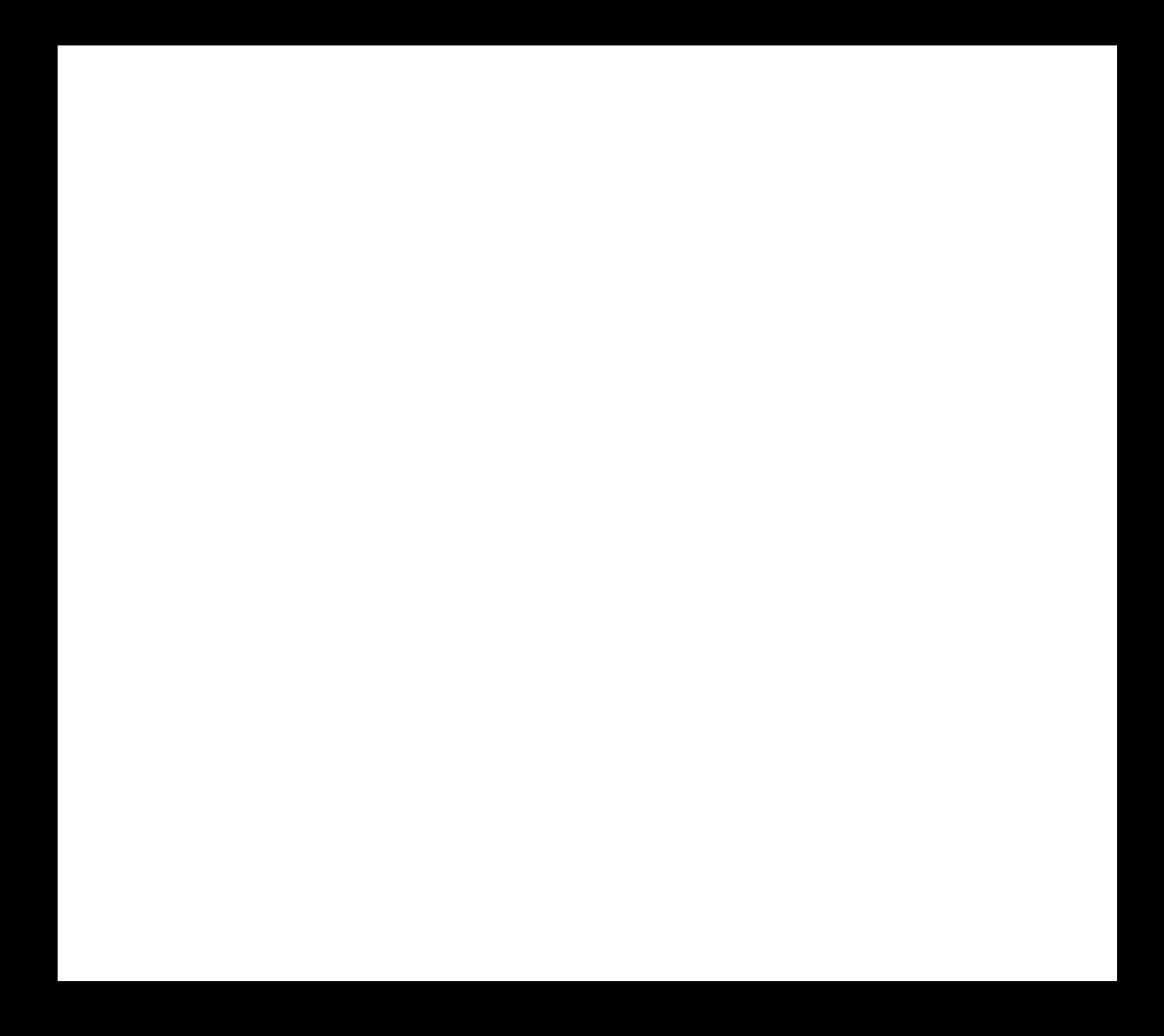

And this is the satshakit cnc board:

downloads (right click, download as)

media

satshakit laser:

satshakit cnc:

satshakit cnc blinks:

satshakit programmed with a FabISP:

Here are some videos of satshakit while is working with different configuration and/or sensors:

satshakit car with sonars sensors and Raspberry Pi:

satshakit little radar, a satshakit modified board with an ULN2003A:

satshakit micro

satshakit micro is a downsized version of the satshakit laser and cnc, developed to be used in constrained space applications like embedding the board in textiles or in small objects, or useful for who wants just a bare metal board to start with, also easy to be modified and/or customized. While satshakit micro is less than half the size of the other satshakits, it's a full featured board with the full Adruino pinout, missing only the possibility to be programmed using an FTDI cable.

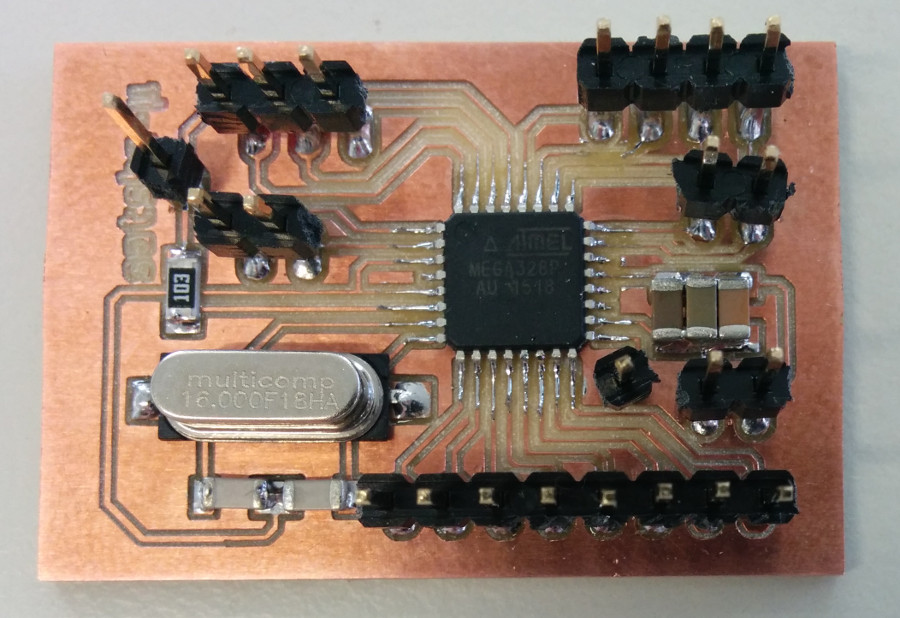

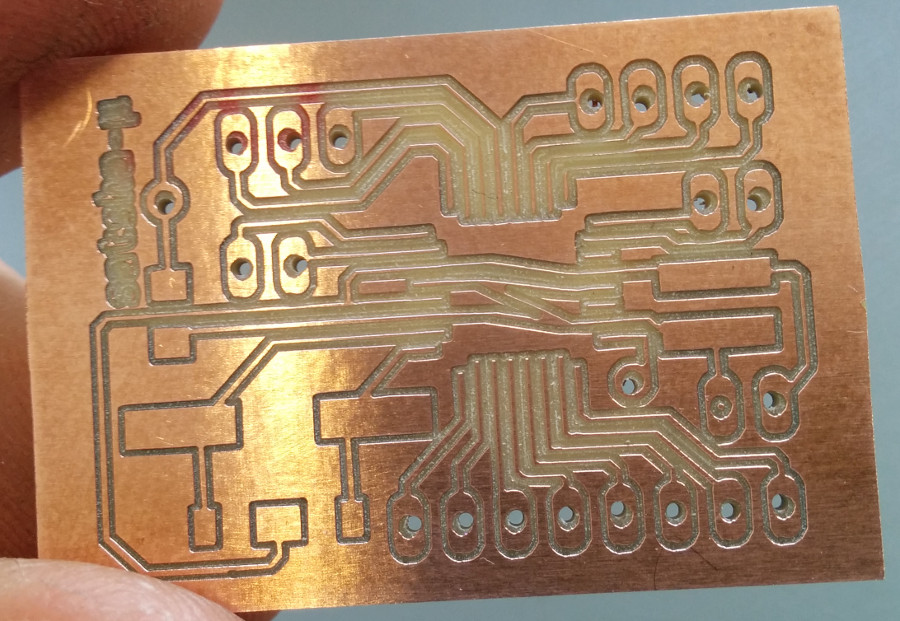

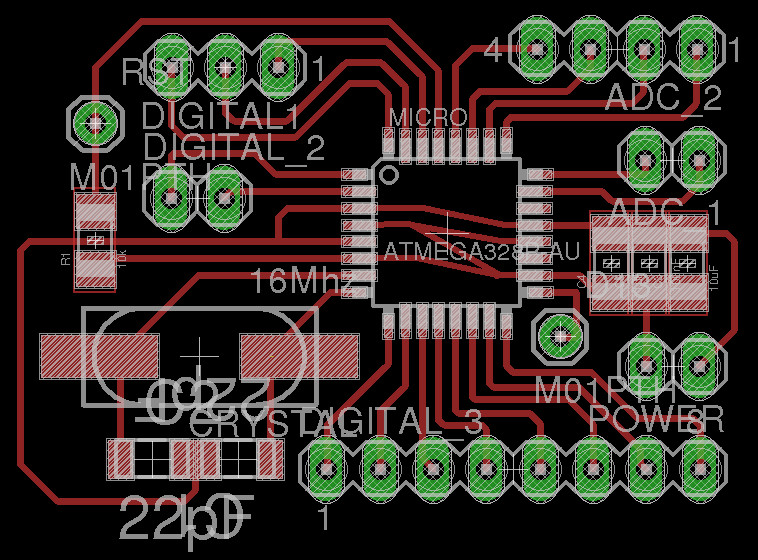

Here is the satshakit micro board:

downloads (right click, download as)

media

satshakit micro blink:

satshakit multicore

satshakit multicore boards born as a further experiment on MCU multithreading and networking. satshakit multicore boards have only the following modifications in confront of the standard satshakit: 4 extra pin headers (1 GND,1 VCC,1 A4, 1 A5). These pin headers serve also a structural pillars to build a modular satshakit tower. So modular satshakit share the same power source, and can direct communicate with I2C.

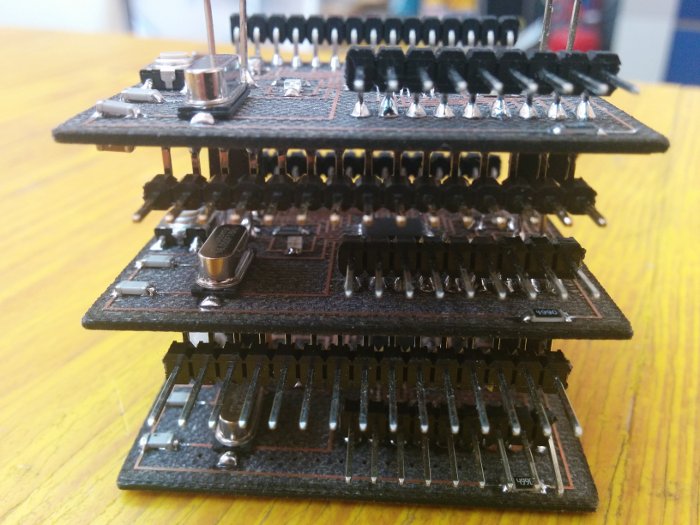

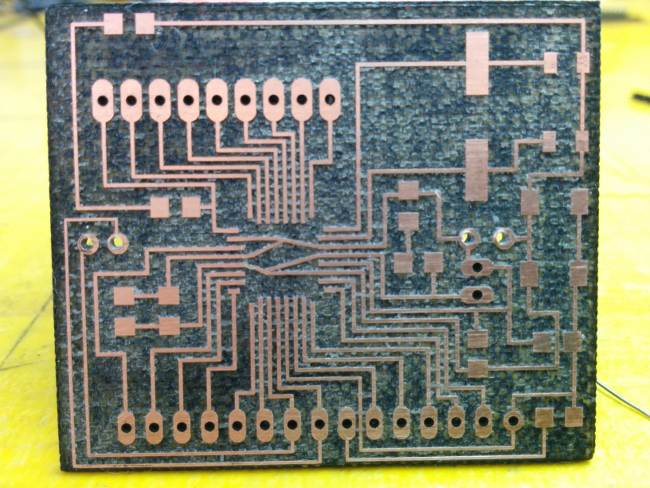

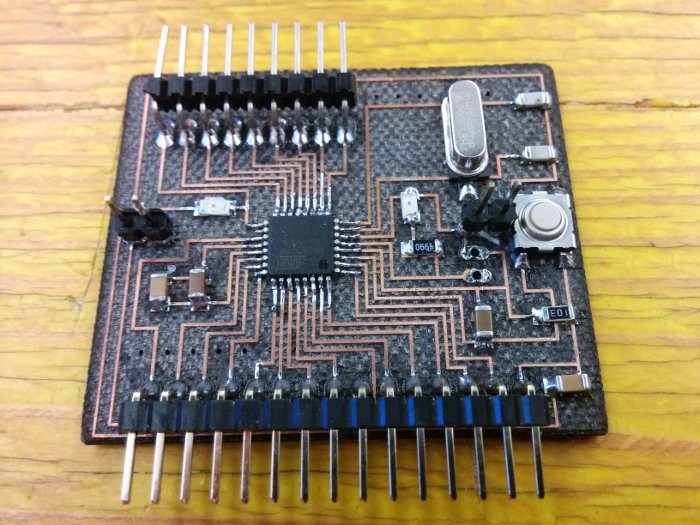

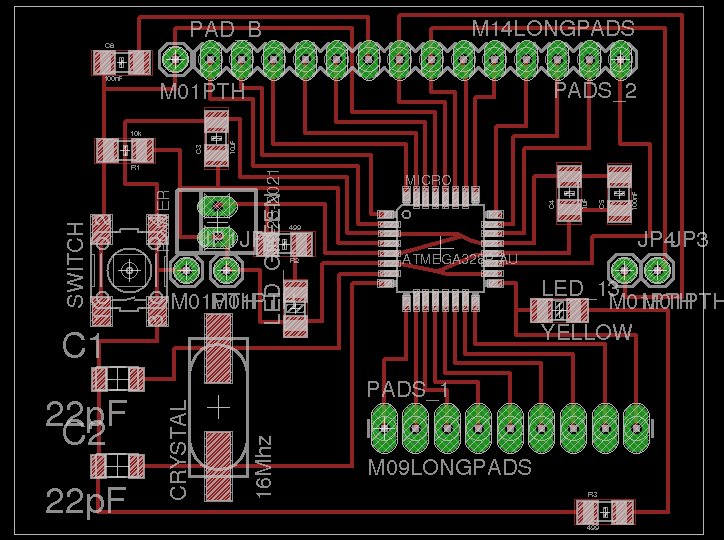

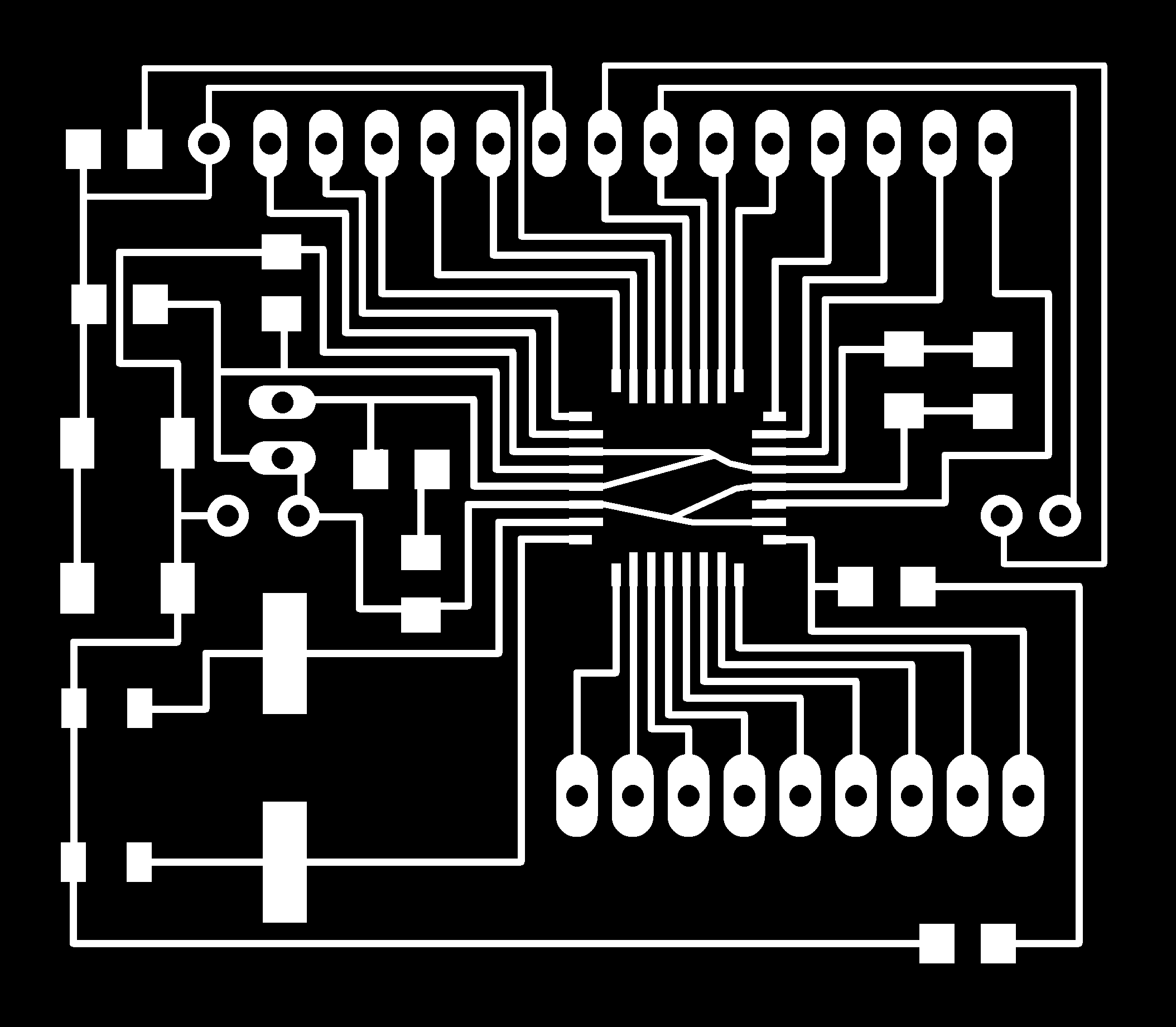

Here is the satshakit multicore board:

downloads (right click, download as)

media

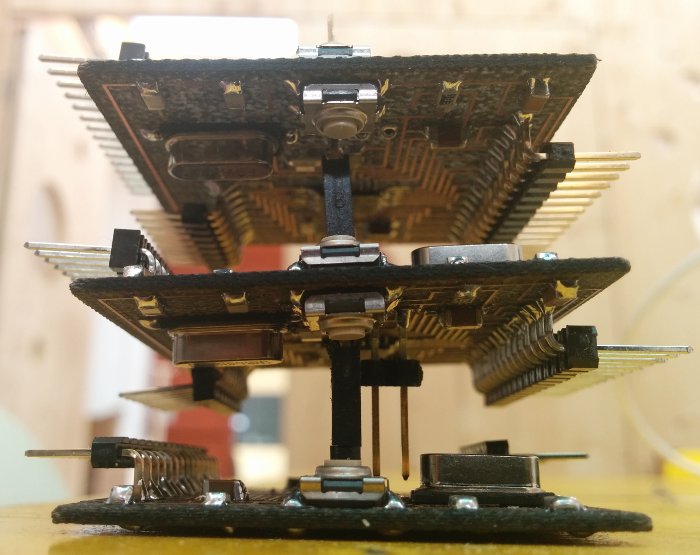

5-core satshakit system:

satshakit multicore assembly & test:

satshakit multicore blink:

quad satshakit bluetooth triangulation:

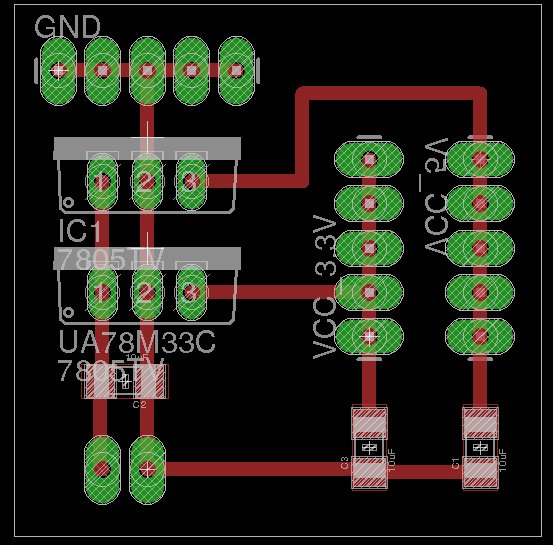

satshakit power board

Due to the power requirements of a multicore satshakit system and to eventually provide power to 3.3V devices, I have also developed a simple power board. This power board can work with 7V-12V as input voltage, and give out 5V and 3.3V. I made this power board with the components I had available, obviously you can make this board only with SMD components.

downloads (right click, download as)

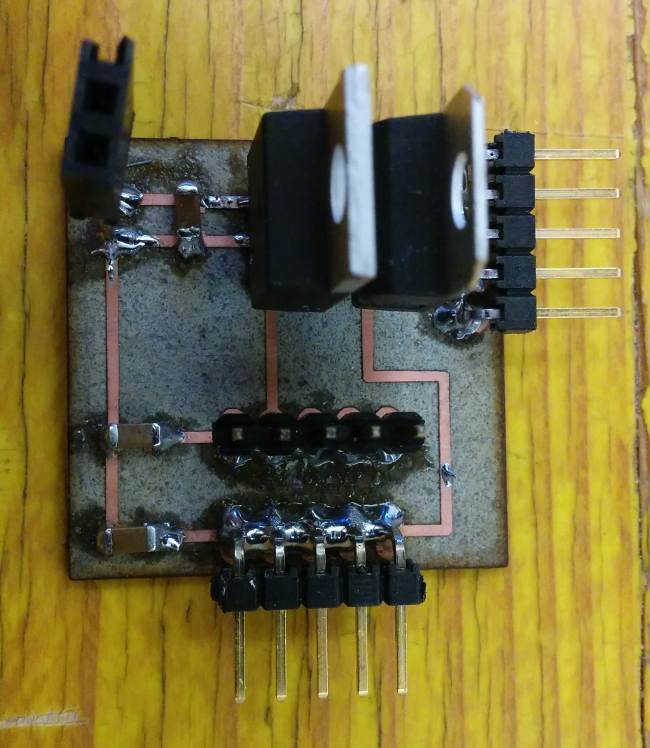

Here is a picture of a soldered power board:

Getting Started

A satshakit board is totally like an Arduino board, thus is possible to use the Arduino IDE without any modification. When you finish solder satshakit, you're ready to program it. If you want to use satshakit as an Arduino, you first need to upload Arduino bootloader. This will also set the ATmega328P fuses as the same of an Arduino UNO. To do this you need to use a programmer, for example another Arduino or FabISP. If you plan to program a satshakit with an Arduino, be sure to upload the Arduino as ISP skecth before connecting the satshakit to it.

Here are the connection schemas to program satshakit laser, satshakit cnc or a satshakit multicore with an Arduino as ISP or with a FabISP:

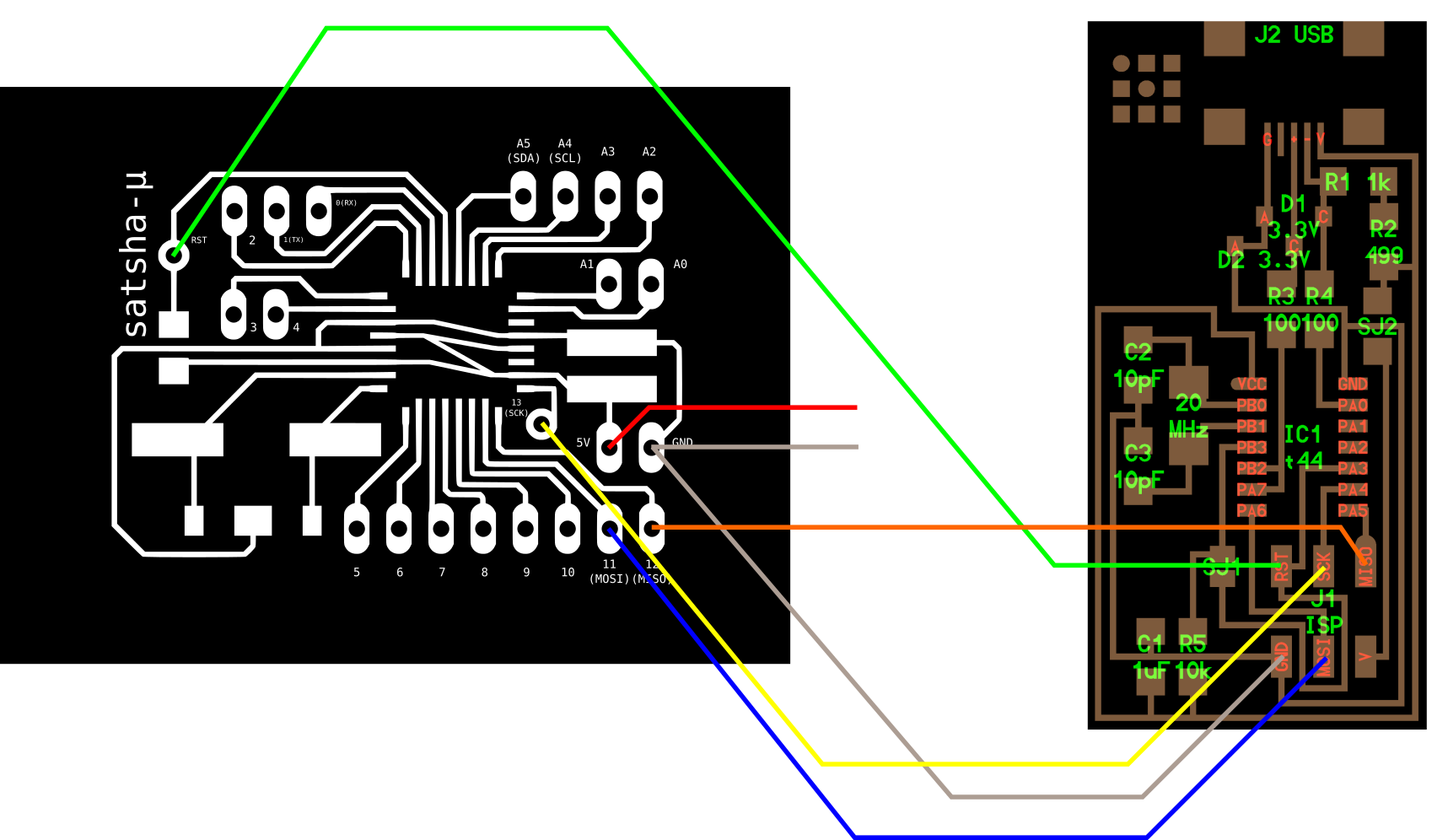

If you made a satshakit micro, here are the connection schemas to program it as before for the other satshakits:

Once everything is connected, follow these steps to upload Arduino bootloader:

  1. open Arduino IDE
  2. select proper programmer (for example Arduino as ISP or USBtinyISP)
  3. select Arduino UNO as board
  4. click on tools->Burn Bootloader

If you made a satshakit cnc, satshakit laser or satshakit multicore, you can use an FTDI USB cable to upload and use you favourite sketch without the need to use a programmer anymore. If you made a satshakit micro, you have always to use a programmer, and use the Sketch >Upload using a programmer function of the Arduino IDE.

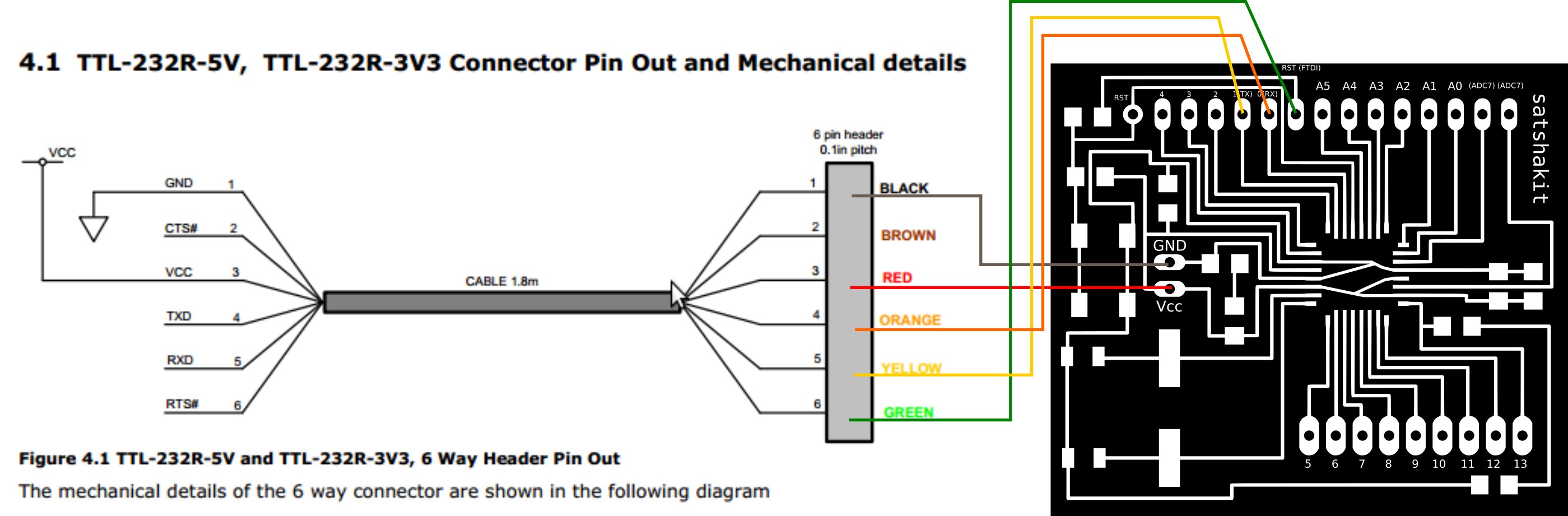

Here is the connection schema to program a satshakit using the FTDI cable:

Remember that if you don't have an FTDI cable you always need a programmer, and to select File->Upload using a programmer to upload the code to satshakit.

To use a satshakit like an Arduino, here is the Arduino pinout on satshakit cnc, satshakit laser and satshakit multicore:

And here is the Arduino pinout of the satshakit micro:

Authors

satshakit cnc and micro: Daniele Ingrassia

satshakit laser, multicore and power board:

Contact

Thanks

Fablab opendot
info@opendotlab.it
Via Tertulliano N70, 20137, Milan, Italy
+39.02.36519890

Fablab Kamp-Lintfort
Hochschule Rhein-Waal
Friedrich-Heinrich-Allee 25, 47475 Kamp-Lintfort, Germany
fablab@hochschule-rhein-waal.de

License

This work is licensed under the terms of Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0).

Satshakit on Github.
