Input Devices

Back to Mónica Pedro ←main page ←Assigments

        individual assignment:
        add an output  device to a microcontroller  board you've designed,
         and  program  it to do something

Program an Input

I'm very interested in knowing hot to process data coming from a sensor produced in the Lab, and want to understand how some of them work, so for starting this assigment I produced some of teacher Neil...

Temperature Sensor

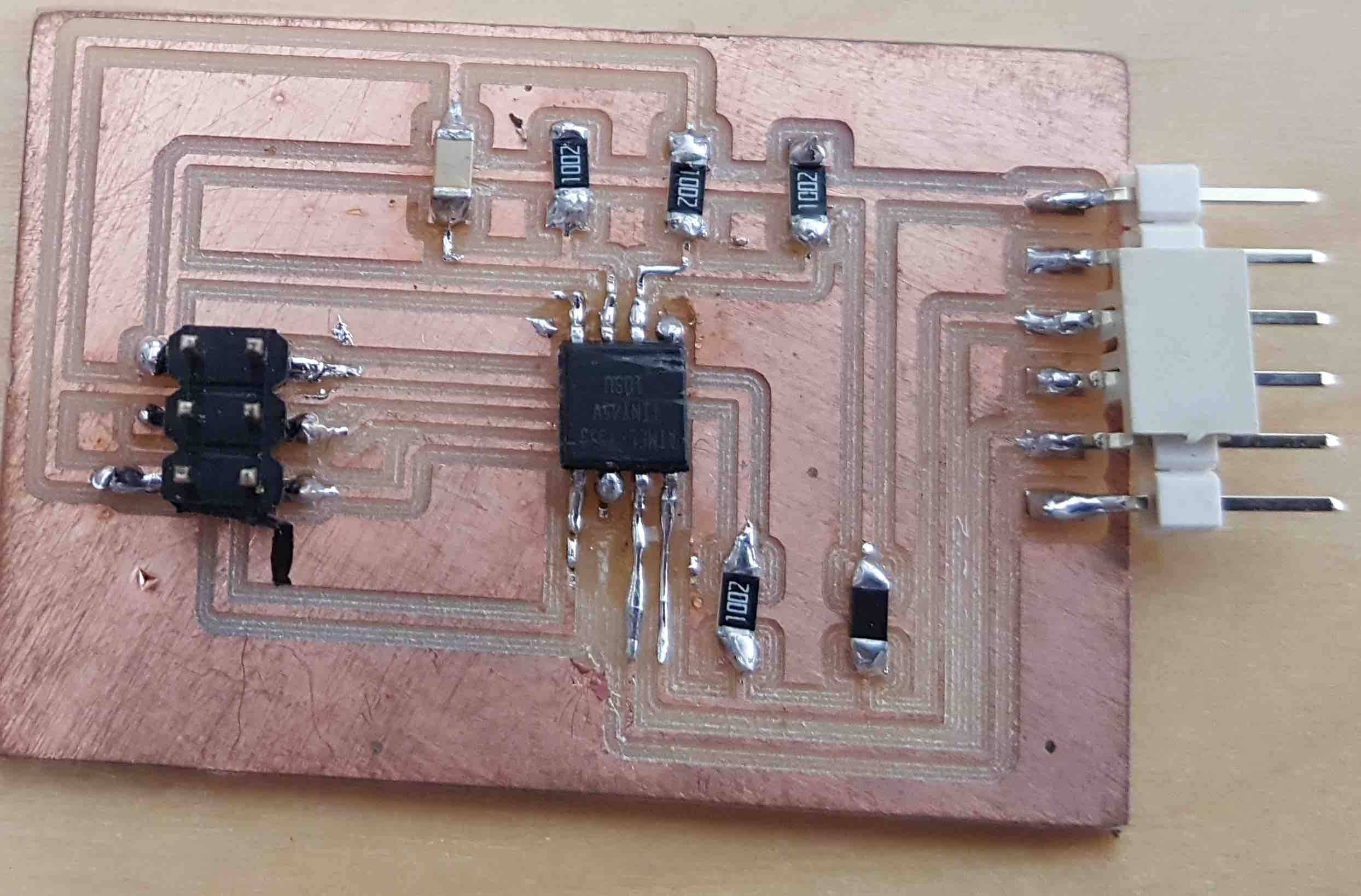

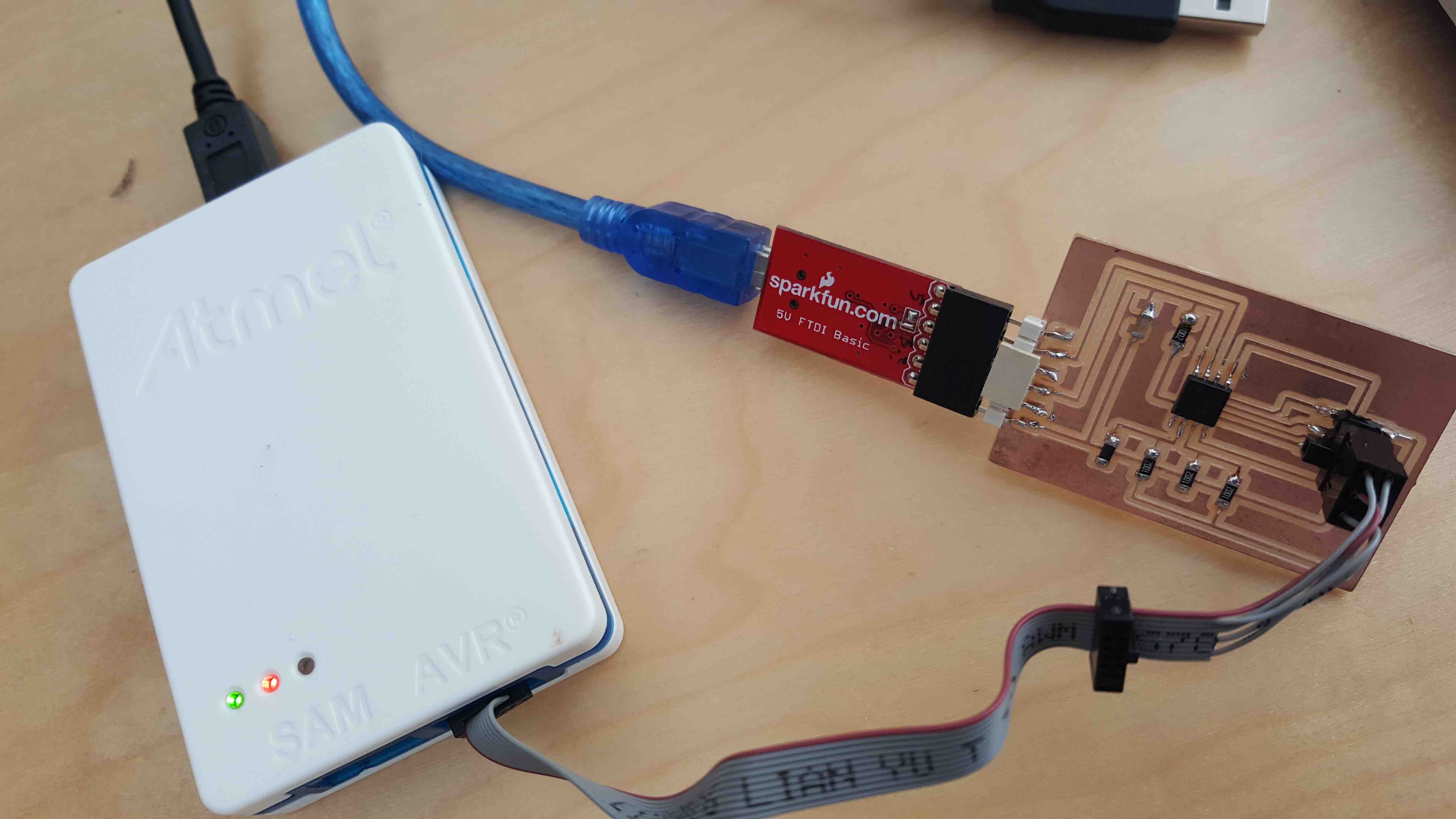

So I made a Temperature Board

but as is documented above, it was a quite long and frustating crusate to program the board

trying to program with Atmel-ICE, but I'm on a MAC....
strugled with MAC OS security to have access to Atmel-IC but not succeded...
and finaly succeded in Atmel-ICE on a Linux

and will programming it with Atmel-ICE

So downloaded the programs to a folder "Temperature" and CD to it, wher I'd used the comand

make -f hello.temp.45.make

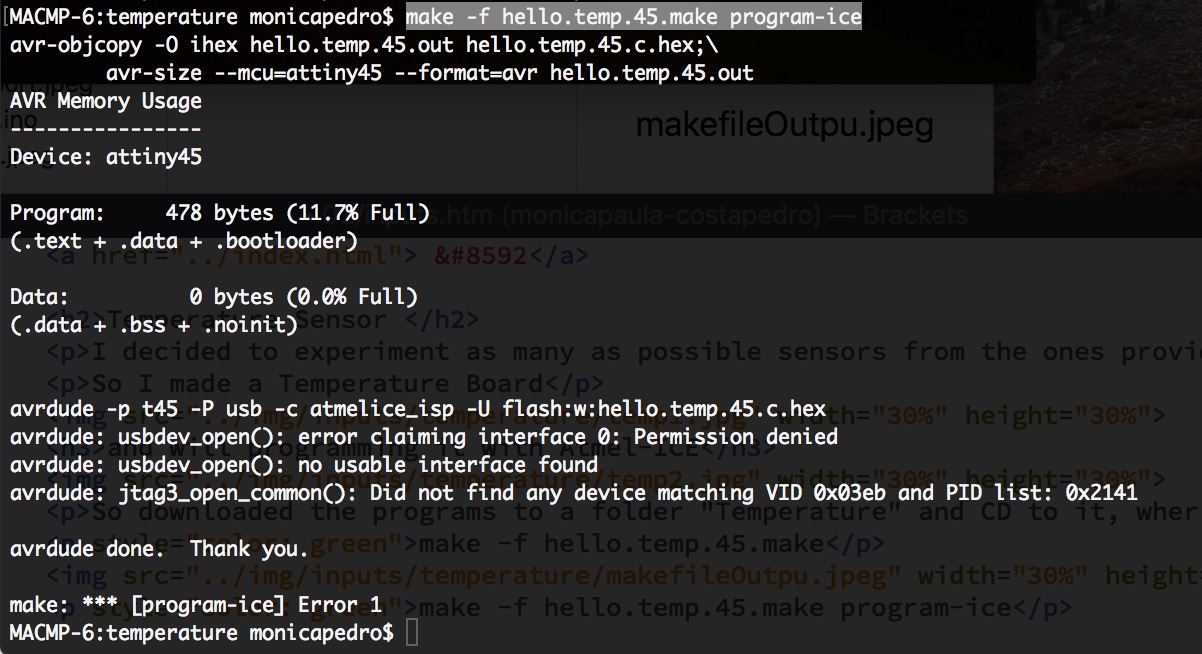

make -f hello.temp.45.make program-ice

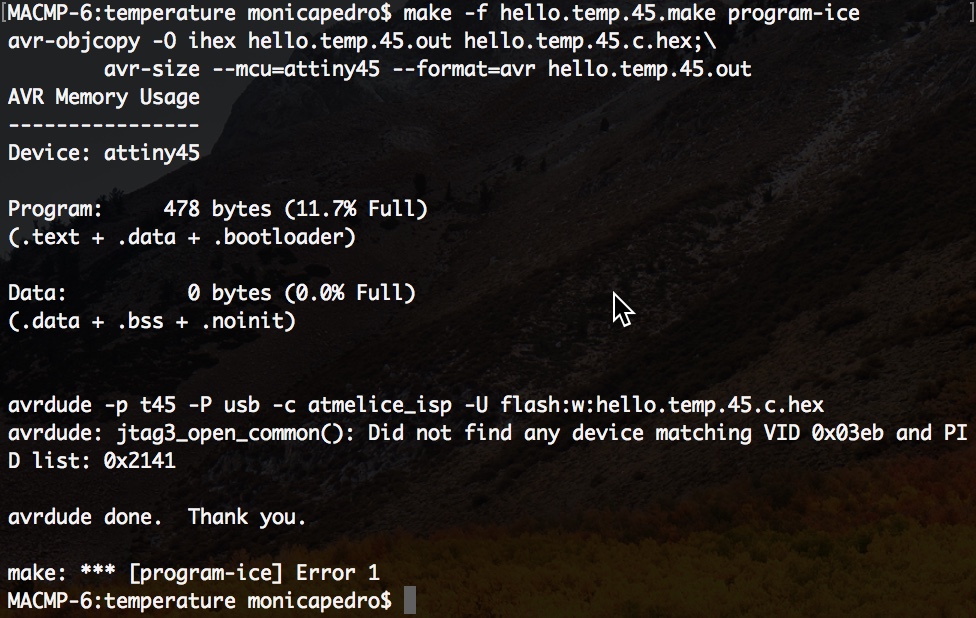

Does not worked... PROBLEM

Atmel-ICE on MAC OS Sierra

when lokking for suppor online I found a nice overview in AVRDude and Atmel ICE on OSX 10.3 High Sierra

sudo cp -r ~/Downloads/AtmelICE.kext /Library/Extensions

sudo kextload -v /Library/Extensions/AtmelICE.kext

Stil continue with the permissions problem... so I'd made

sudo chown -R root:wheel /Library/Extensions/AtmelICE.kext

sudo chmod -R 755 /Library/Extensions/AtmelICE.kext

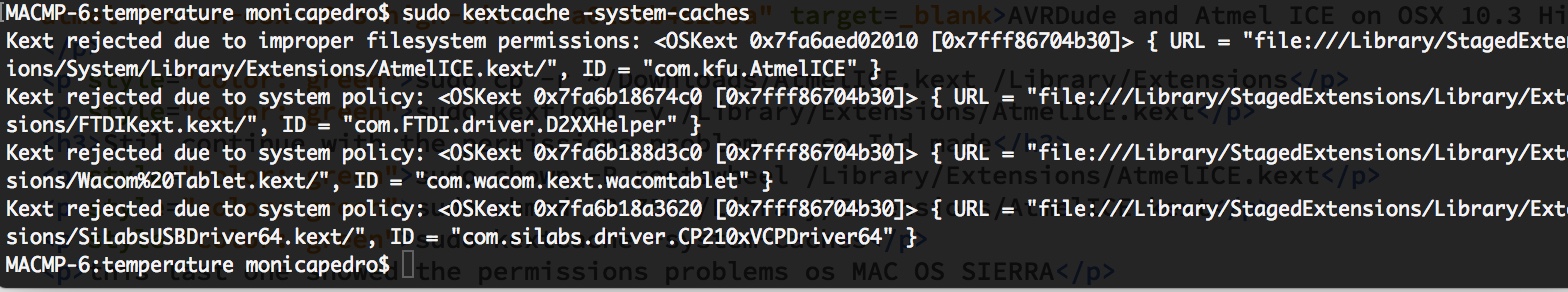

sudo kextcache -system-caches

this last one showed the permissions problems os MAC OS SIERRA

So I'll Turn Off the System Integrity Protection of my system...

I've Reboted the system and used the keys CMD+R to access the booting and on the terminal window used the command

csrutil disable; reboot

made all the previous steps and boot the system again... and it continues to do the same error:

After 4 hours trying to use Atmel-ICE in my MAC OS Sierra, i decided to go for a walk... and forget it...

...................

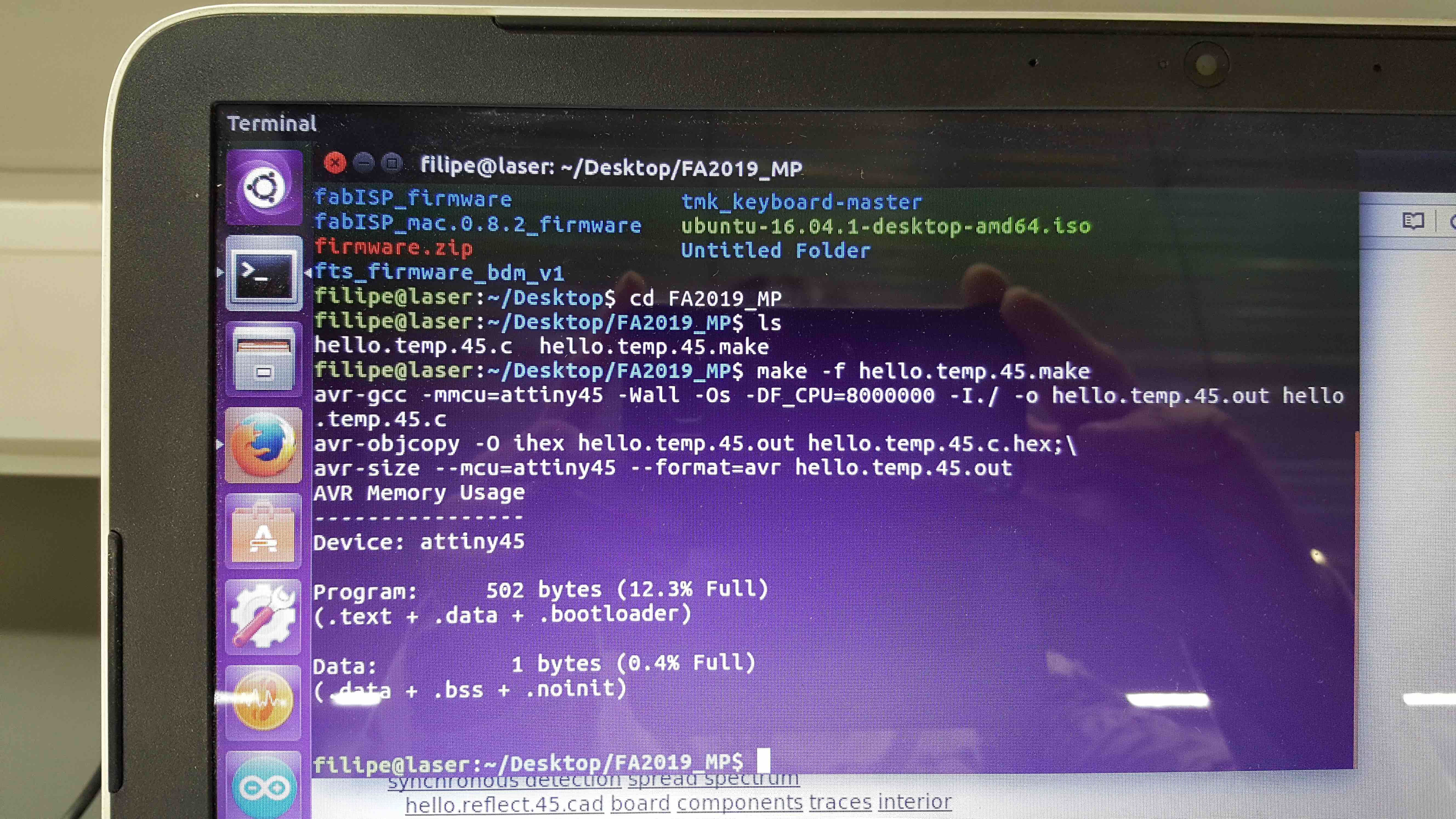

Atmel-ICE on a Linux

Plain and simple... it worked perfectly

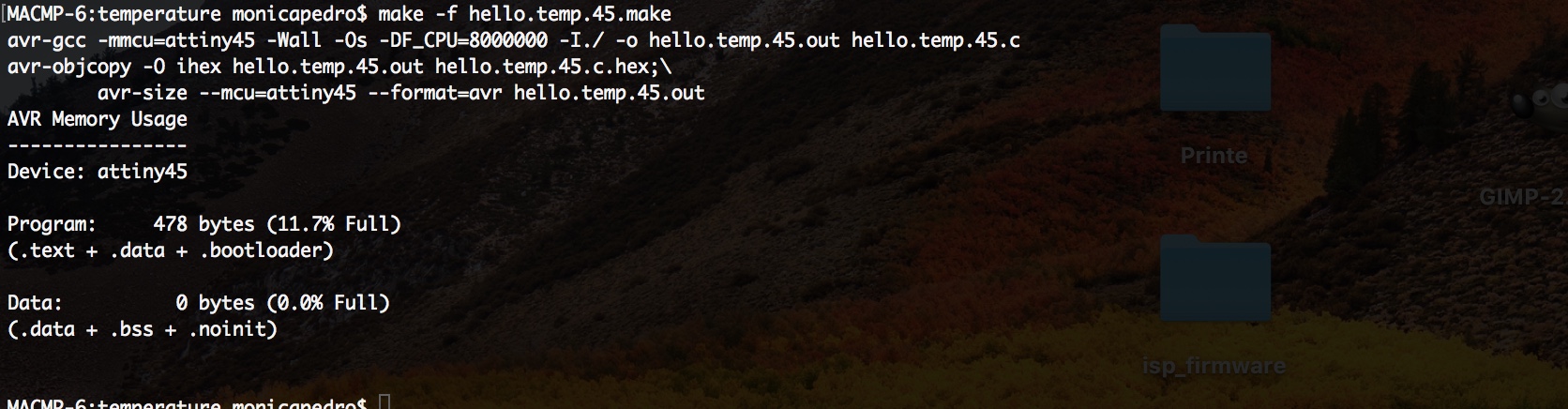

make -f hello.temp.45.make

since it worked, now verify if the Atmel-ICE is set in Make file with the command:

cat hello.temp.45.make

it was, so i continued with..

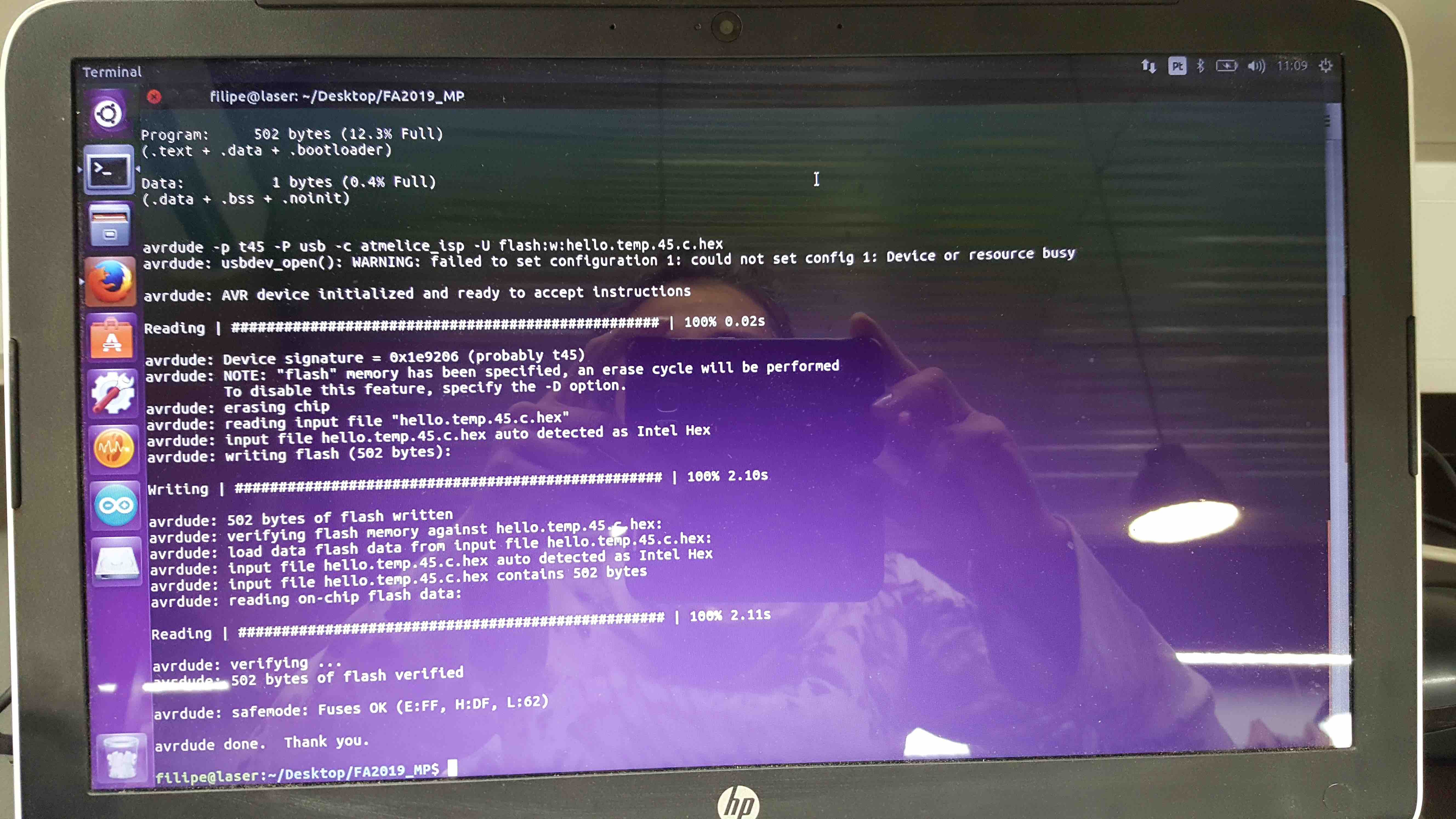

make -f hello.temp.45.make program-ice

UAU... at first attemp it worked.... which reinforces my saing: Forget Atmel-ICE on a MAC...

next would be to use the TERMinal app developed by professor Neil "hello.term.45.py"

make -f hello.temp.45.make program-ice

pyhton hello.term.45.py

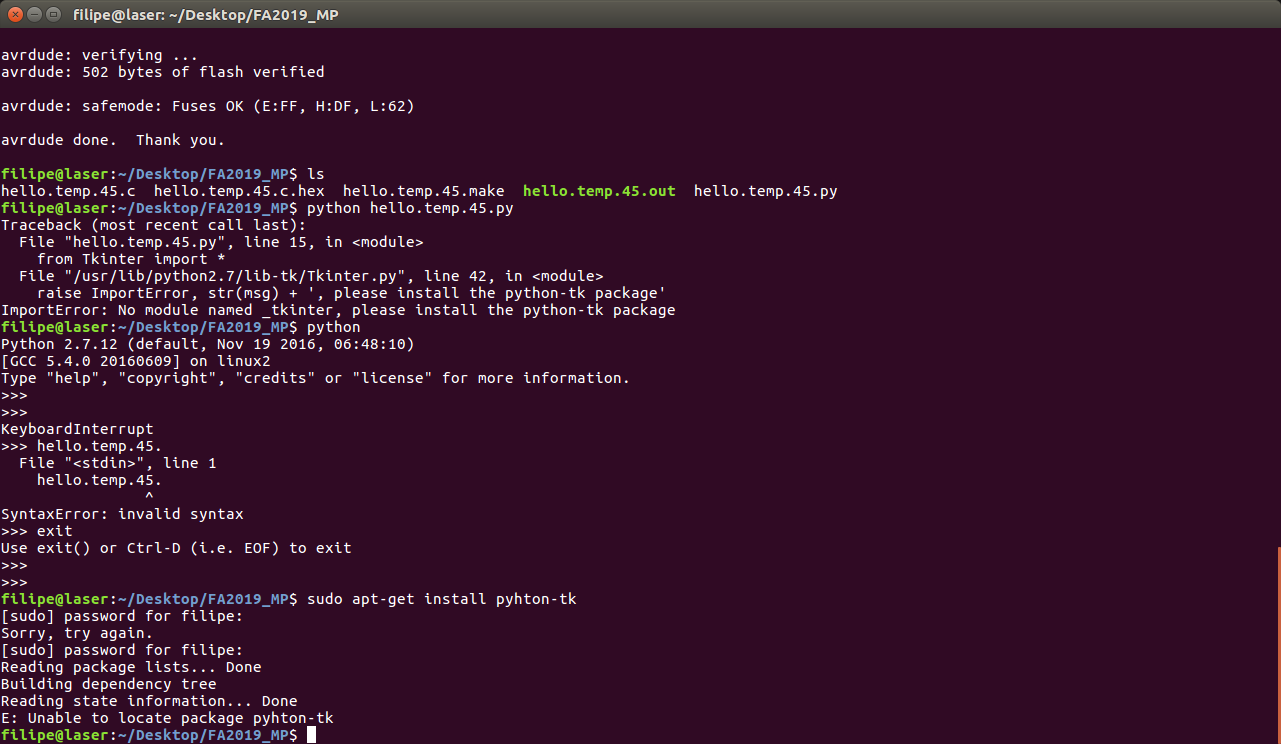

ERROR... it was needed to install some software... Tkinter

sudo apt-get install python-tk

OOK.... now

pyhton hello.term.45.py

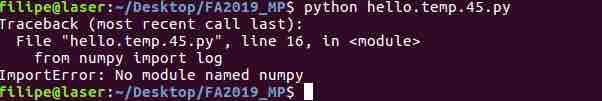

Another problem...... Need of numpy

sudo apt install python-numpy

pyhton hello.term.45.py

Answer: Command line: hello.temp.45.py erial_port

to figure out the serial ports used the command

dmseg | grep tty

pyhton hello.term.45.py /dev/ttyUSB0

[Errno 13] could not open port /dev/ttyUSB0: [Errno 13] Permission denied: '/dev/ttyUSB0'

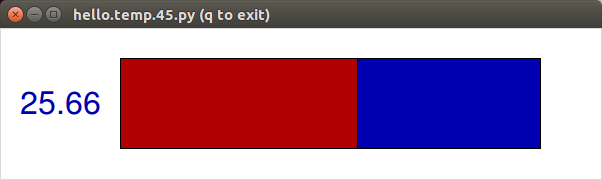

sudo pyhton hello.term.45.py /dev/ttyUSB0

UAUU-... worked

Add an input to my board

Moisture Sensor

What's Moisture measuring?

SparkFun Soil Moisture Sensor uses two large exposed pads as probes for the sensor, together acting as a variable resistor:

The more wateris in the soil means better conductivity between the pads and will result in lower resistance, and a higher SIC out.
the SIG out will depend on the amount of water in the soil.
One comonly issue: short lifespan when exposed to a moist environment.
Theory of Operation: Two probes are acting as a variable resistor - more water in the soil means better conductivity and results in a lower resistance and a higher SIC out.
Your analog readings will vary depending on what voltage you use for VCC as well as the resolution of your ADC pins.
System callibration: with VCC connected to 5V has higher signal resolution (from 0 to 880) than when connected to 3.3V (from 0 to 540).
nice to read after: Soil moisture-sensing by hacking a solar light

the Moisture sensor I've in my lab is quite basic, and the information found online is not precise...

Moisture Sensor from ACCROW

Try it out with Arduino Programmer

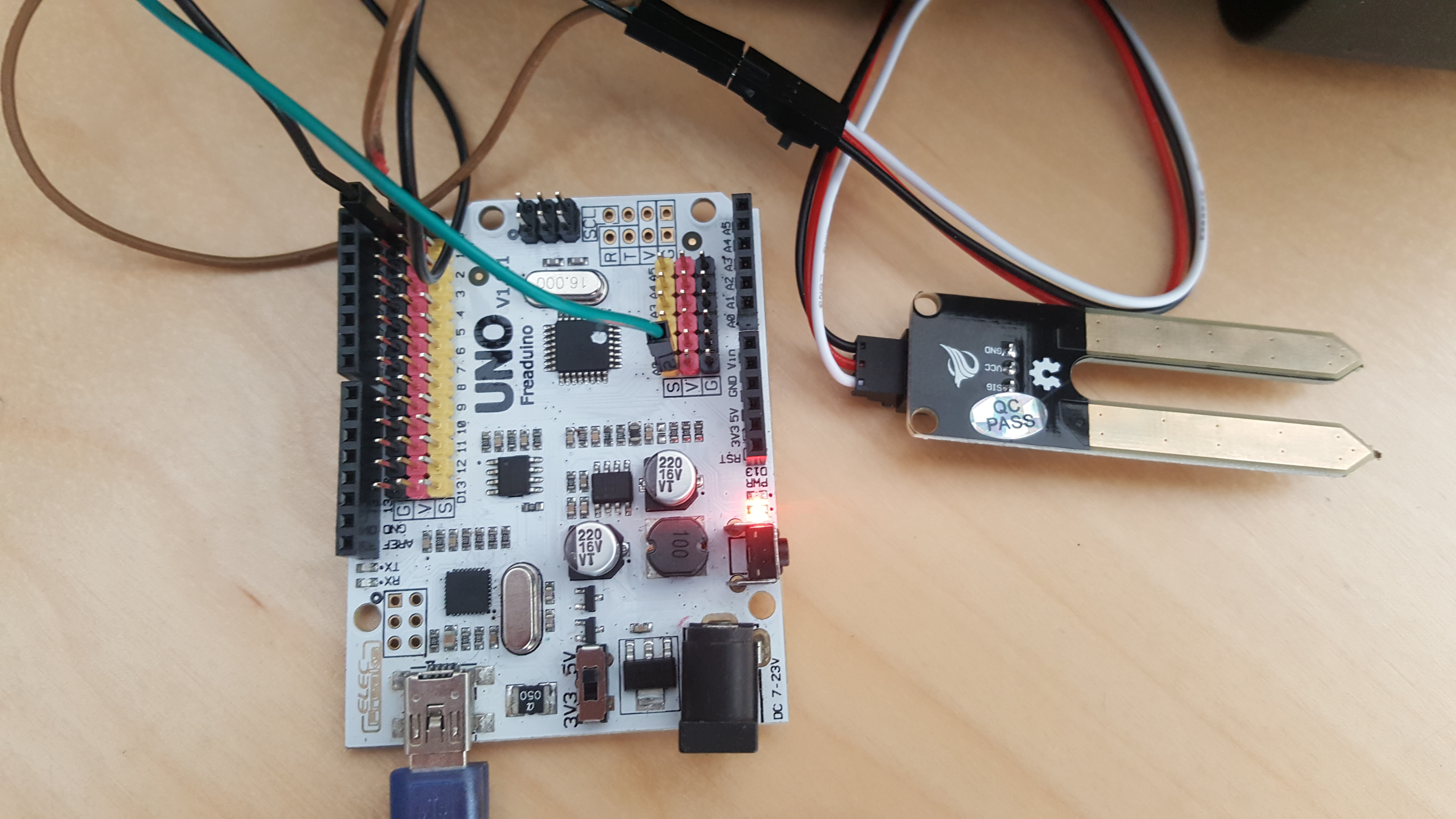

Connecting it to Arduino as ISP

Moisture Sensor pins - Arduino Pins

GND - G
VCC - V
SIG - A0

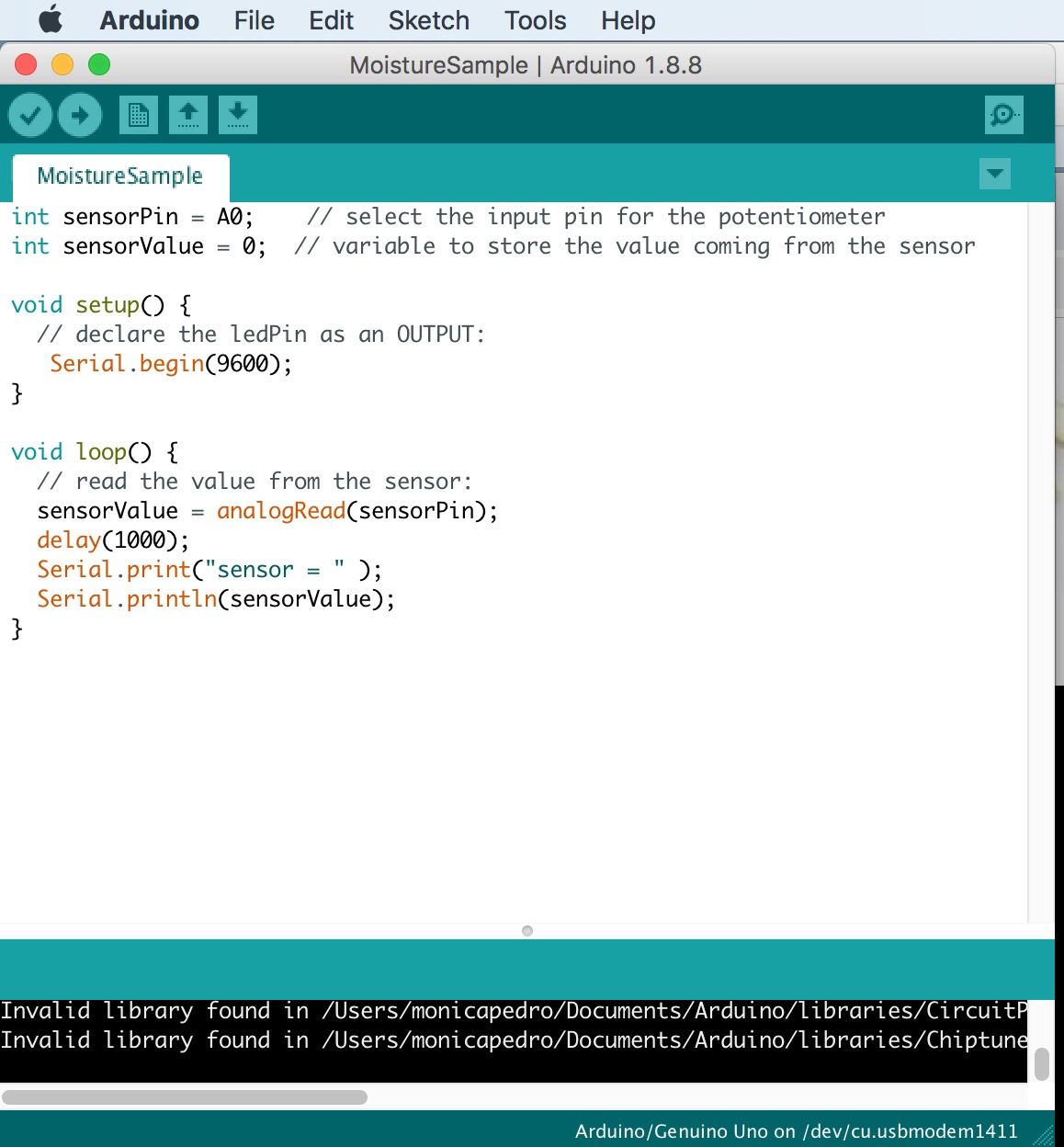

Sample code on Arduino

Tools - Board:"Arduino/Genuino UNO
Tools - Port: "/dev/cu.usbmodel1411 (Arduino/Genuino Uno)"
Tools - Programmer: "Arduino as ISP"

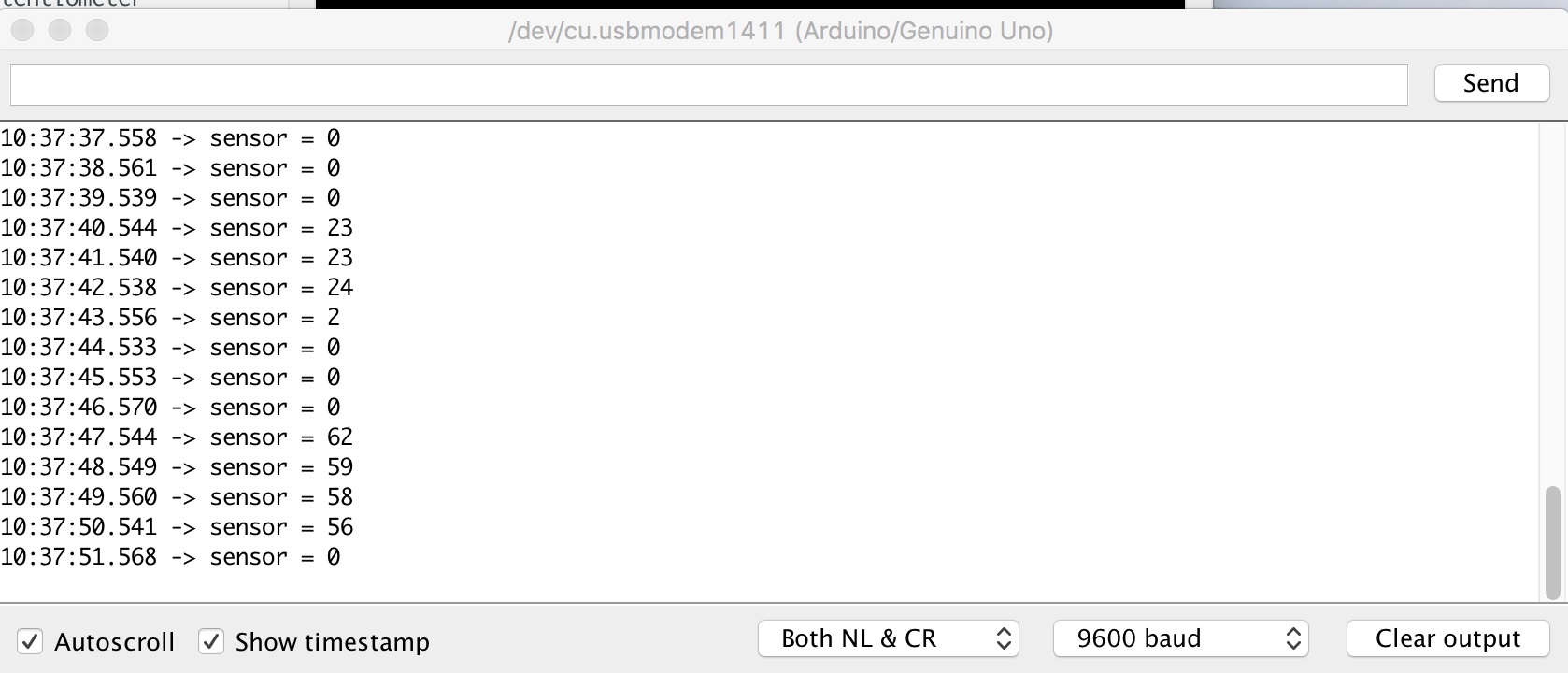

after Verify and UpLoad, open the serial port and:

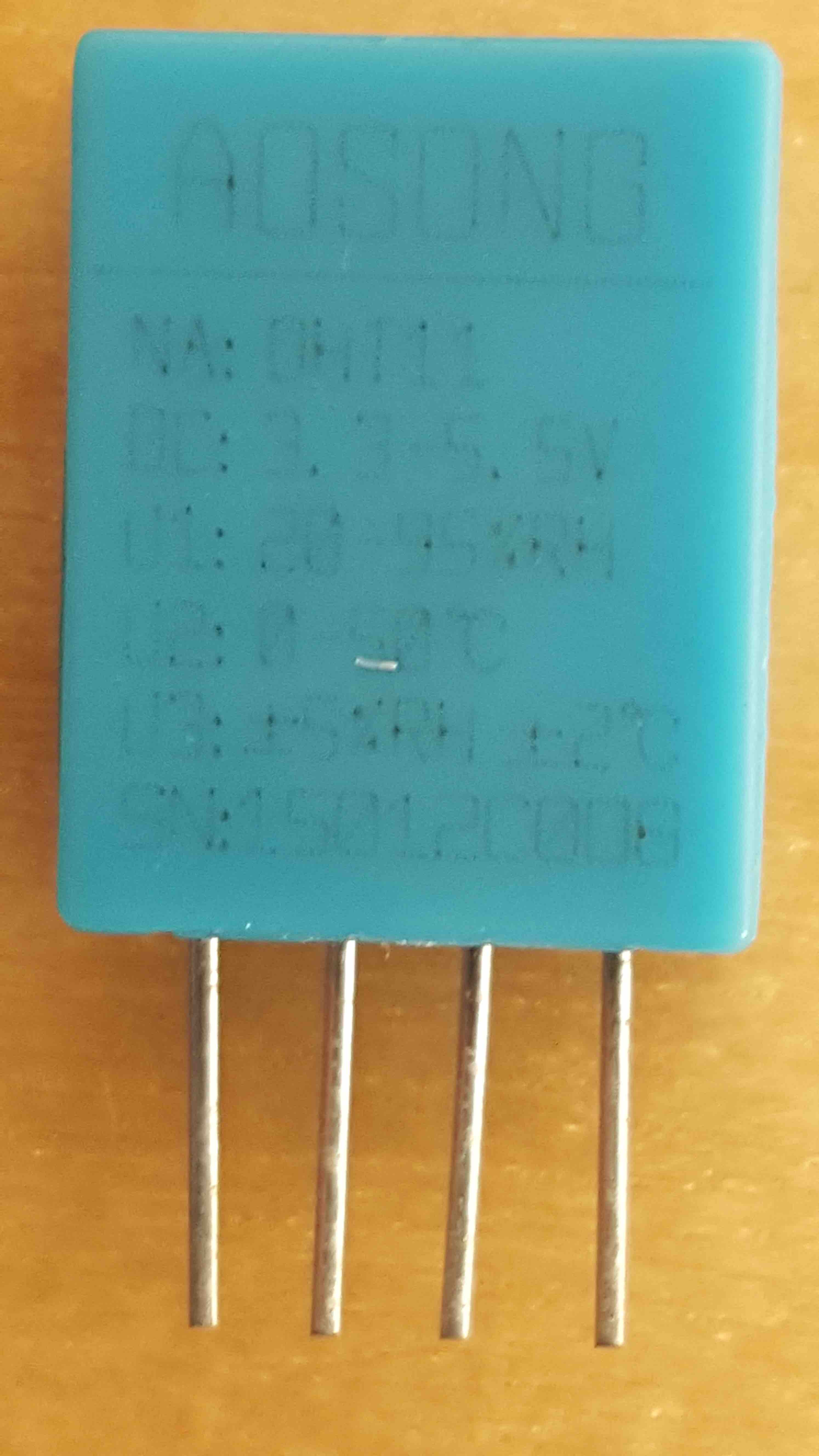

DHT11 - temperature & humidity Sensor

Adafruit overvew of DHT's sensors

about Dht11

its made of two parts: capacitive humidity sensor + thermistor
good for 20-80% humidity readings with 5% accuracy
good for 0-50ºC temperature readings with +-2ºC accuracy
No more than 1 Hz sampling rate (once every second)
You will want to place a 10 Kohm resistor between VCC and the data pin, to act as a medium-strength pull up on the data line.

But how does DHT11 works!?

found a very good documentation....DHT11 & DHT22 Sensors Temperature and Humidity

and here: How DHT11 DHT22 Sensors Work & Interface With Arduino

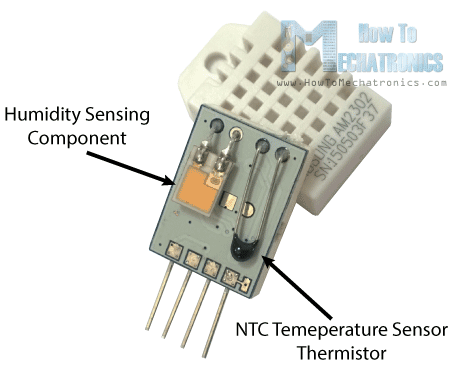

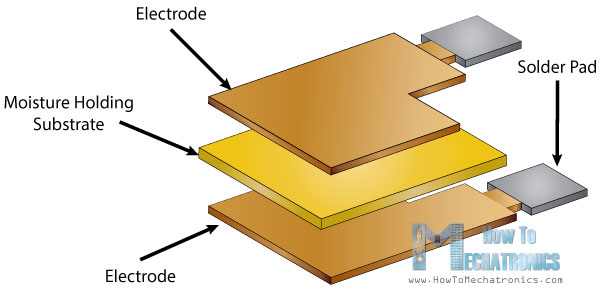

the humidity sensing component uses two electrods
  with moisture holding substracte between them
    So as the humidity changes, the conductivity of the substract changes
      or the resistance between these electrodes changes.
This change in resistance is measured
  and processed by the IC
      which makes it ready to be read by the microcontroller.
The substract (usally is a salt or conductive plastic polymer)
    The ions are released by the substract as water vapor is absorved by it,
         which in turn increases the conductivity between the electrods.
The change in resistance between the two electods is proportional to the relative humidity
    higher relative humidity decreases the resistance between electrodes, while
         lower relative humidity increases the resistance between the electrodes.

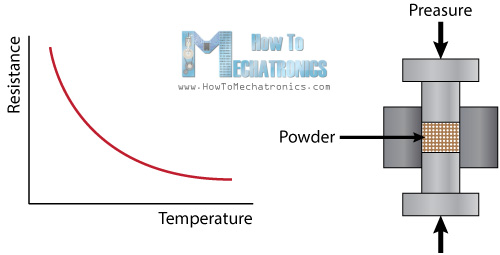

the NTC temperature sensor is a  thermistor
    a thermistor is a thermal resistor:
        a resistir that changes its resistance with change of the temperature.
    These sensors are made by sintering of  semiconductive materials
        such as ceramics or polymers
            in order to provide larger changes in the resistance  with just small changes in temperature.
The term “NTC” means “Negative Temperature Coefficient”,
    which means that the resistance decreases with increase of the temperature.

Try it out with Arduino Programmer

Connecting it to Arduino as ISP

DHT11 pins - Arduino Pins

GND - G
VCC - V
SIG - A2

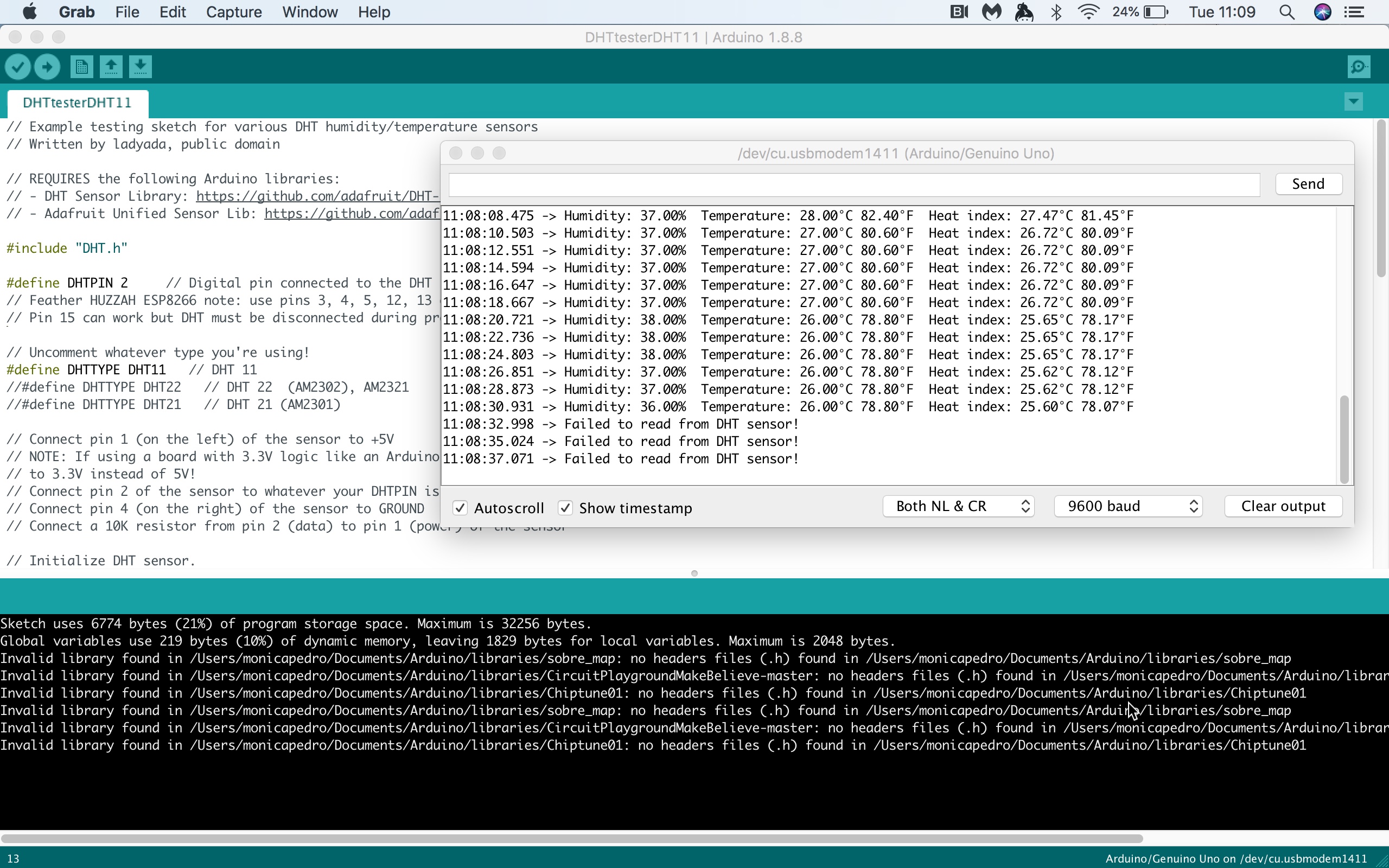

Lets analyse the code

#include "DHT.h"

.............. will inlcude in compiling the "DHT.h" library

DHT library in Arduino website

#define DHTPIN 2

.............. creates a varibale called "DHTPIN with a value of "2"

#define DHTTYPE DHT11

.............. creates a varibale called "DHTTYPE with a value of "DHT11"

DHT dht(DHTPIN, DHTTYPE)

.............. sends a comand to the funtion "dht" existent in the Lybrary DHT, sending to that function the previous created variables (DHTPIN and DHTTYPE)

looking inside DHT lybrary

#ifndef dht_h
ifndef directive checkes whether the given "dht_h" has been defined earlier in the file or in an included file, if not, it includes the code between it and the closing "#else" at the end of the scketch
#define dht_h
define - directive allows the definition of macros within source code. Macro constant values cannot be changed by the program code like variables.
#if ARDUINO >= 100
checks is the Arduino ID version is upper than 1.00
#include "Arduino.h"
includes the "Arduino.h" file/library
#else
#include "WProgram.h"
includes the "WProgram.h" file/library
#endif
#define DHT_LIB_VERSION "0.1.00"
defines the constant macro
class dht
creates a "Class" called "dht"
public:
int read11(uint8_t pin);
int read22(uint8_t pin);
double humidity;
double temperature;
private:
uint8_t bits[5];
int read(uint8_t pin);
#endif

Adding Moisture and DHT11 to my board

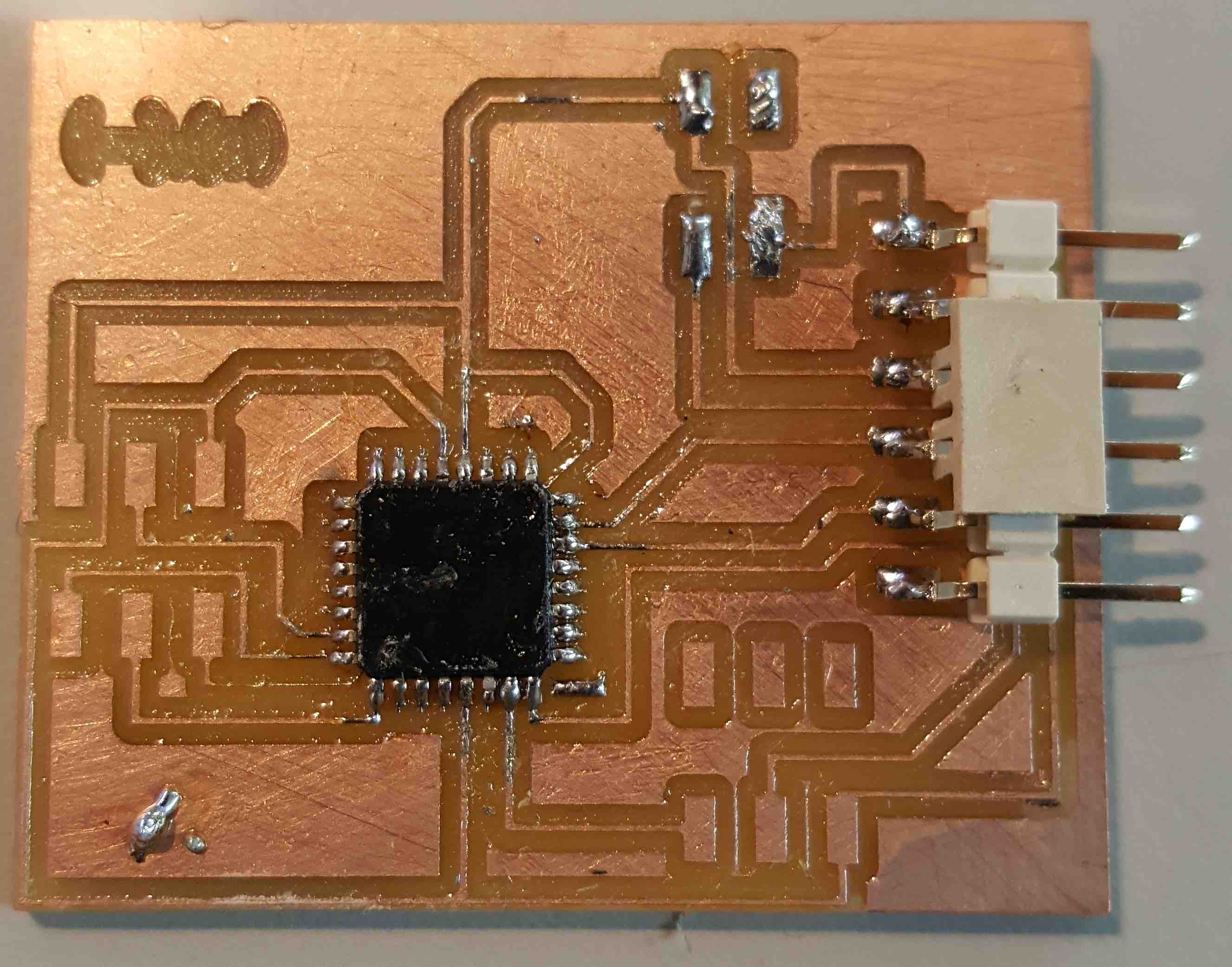

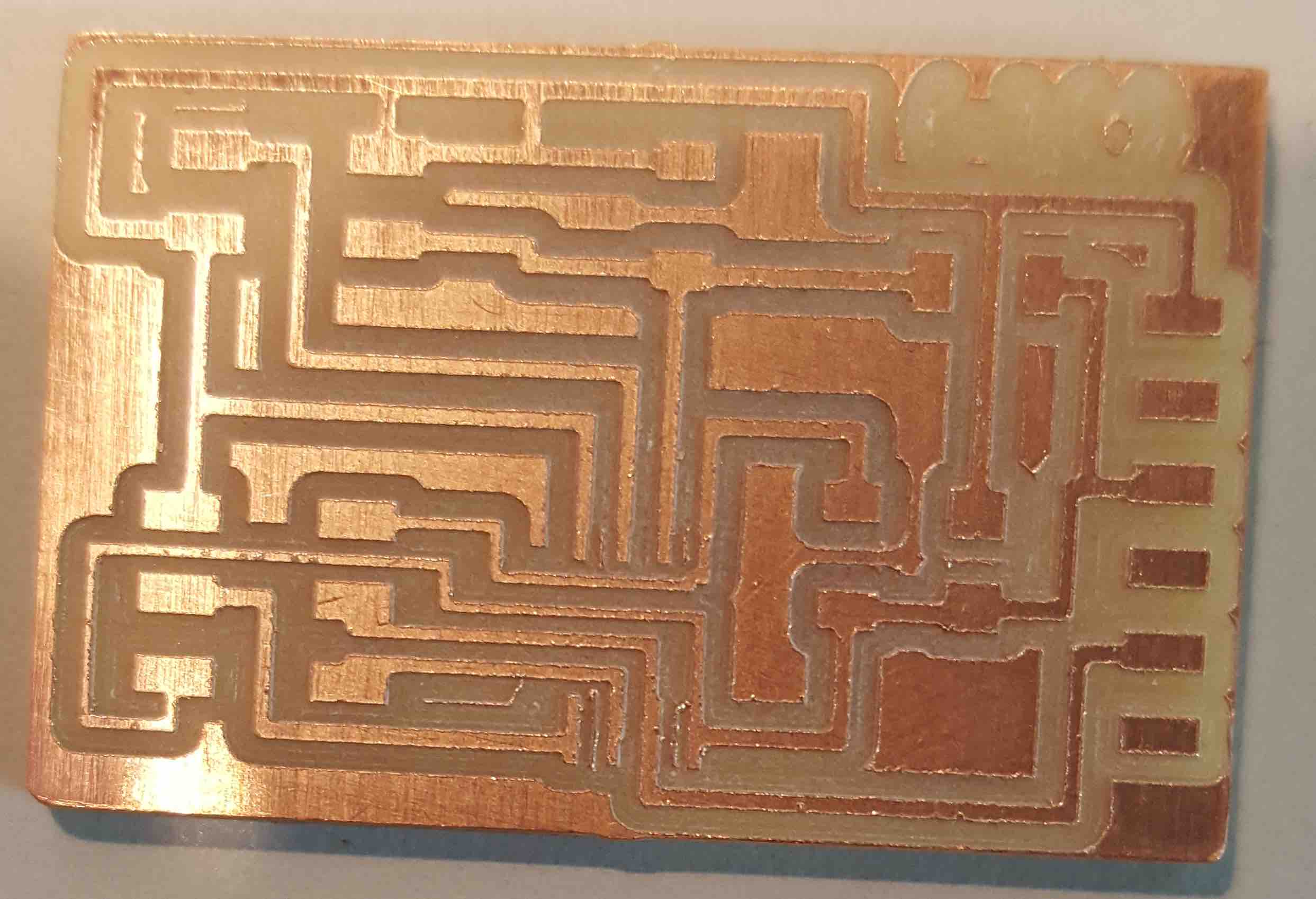

making a my board for Moisture + DHT11

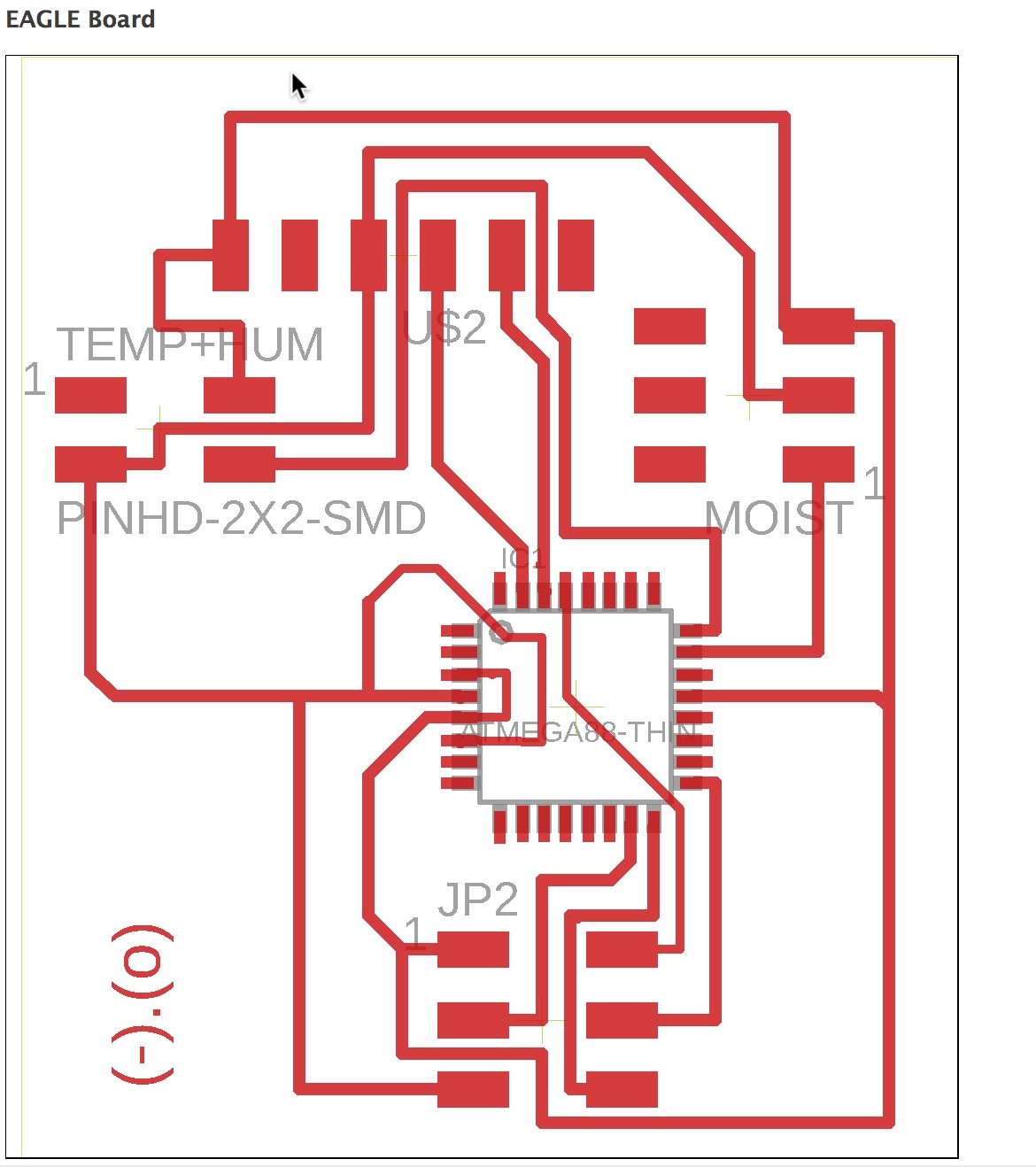

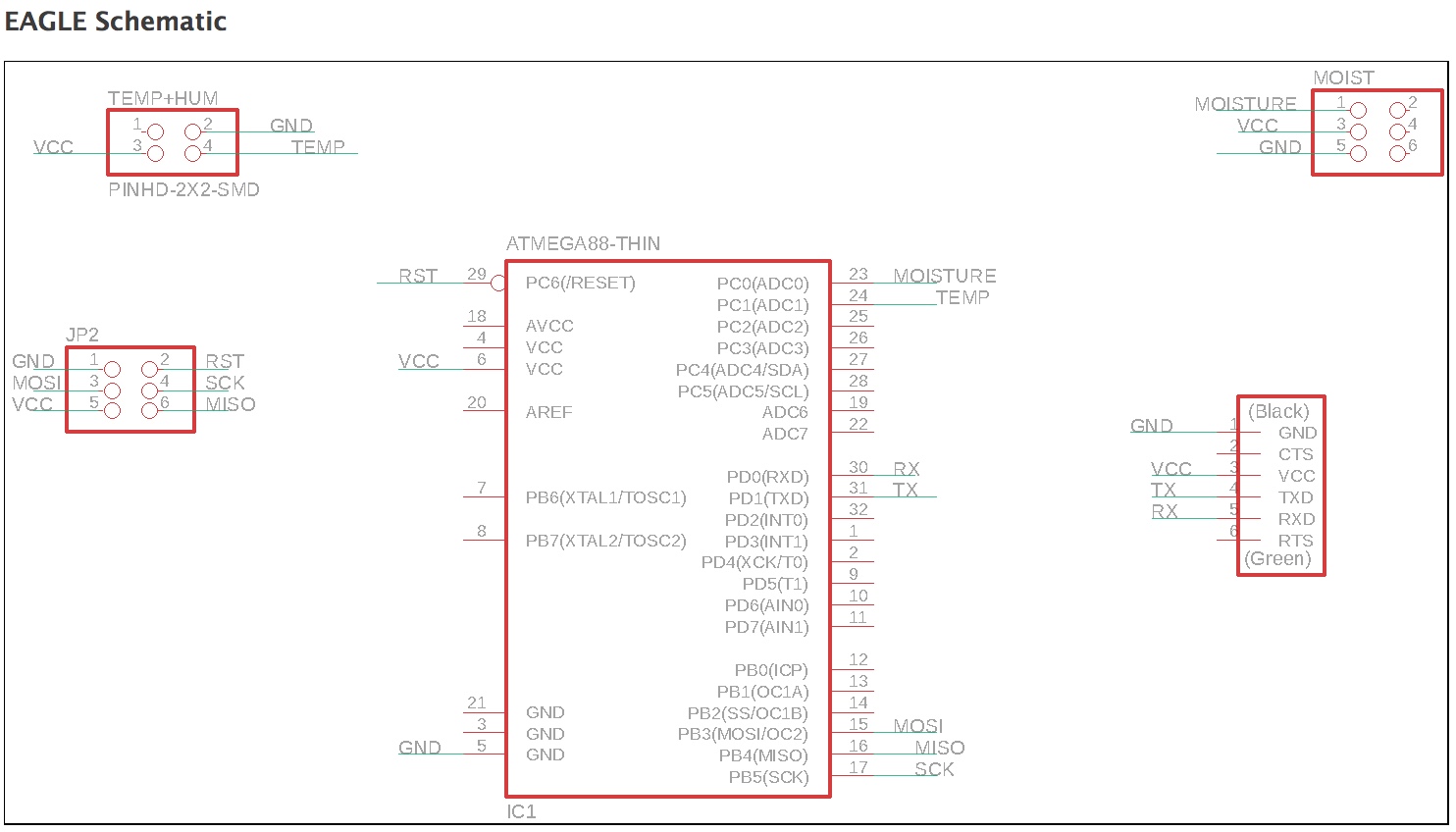

used EAGLE to design a board using two different microcontrollers

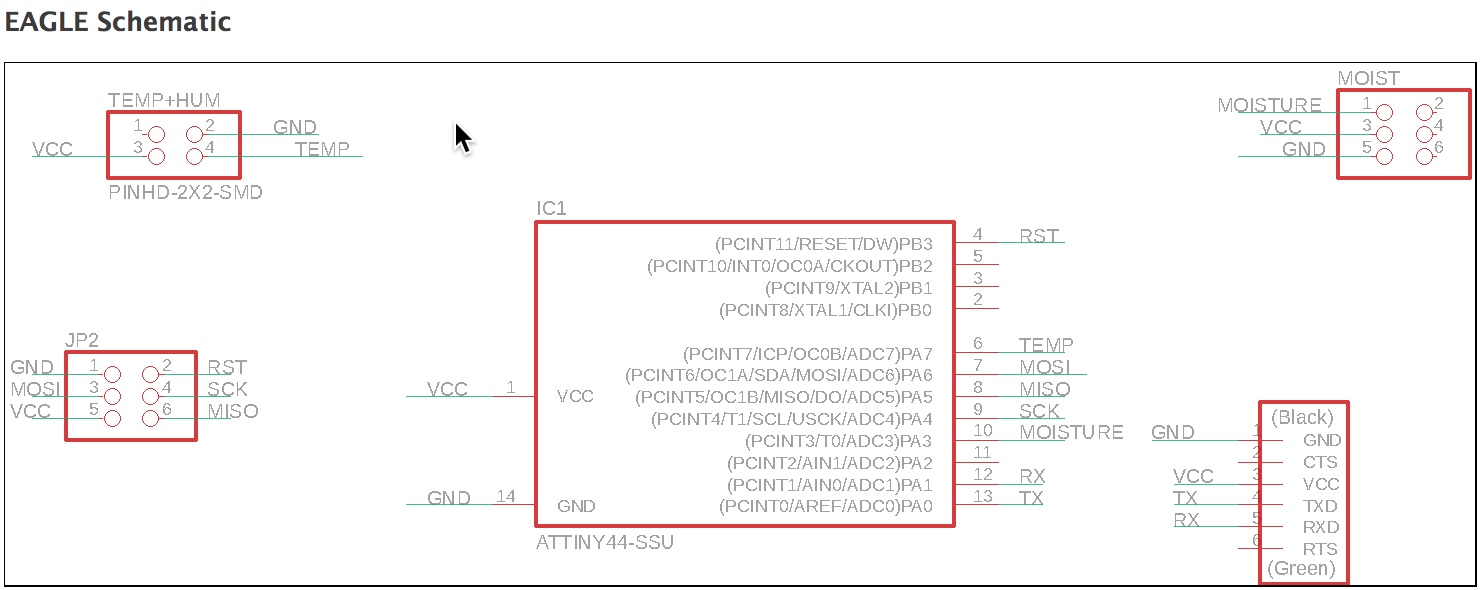

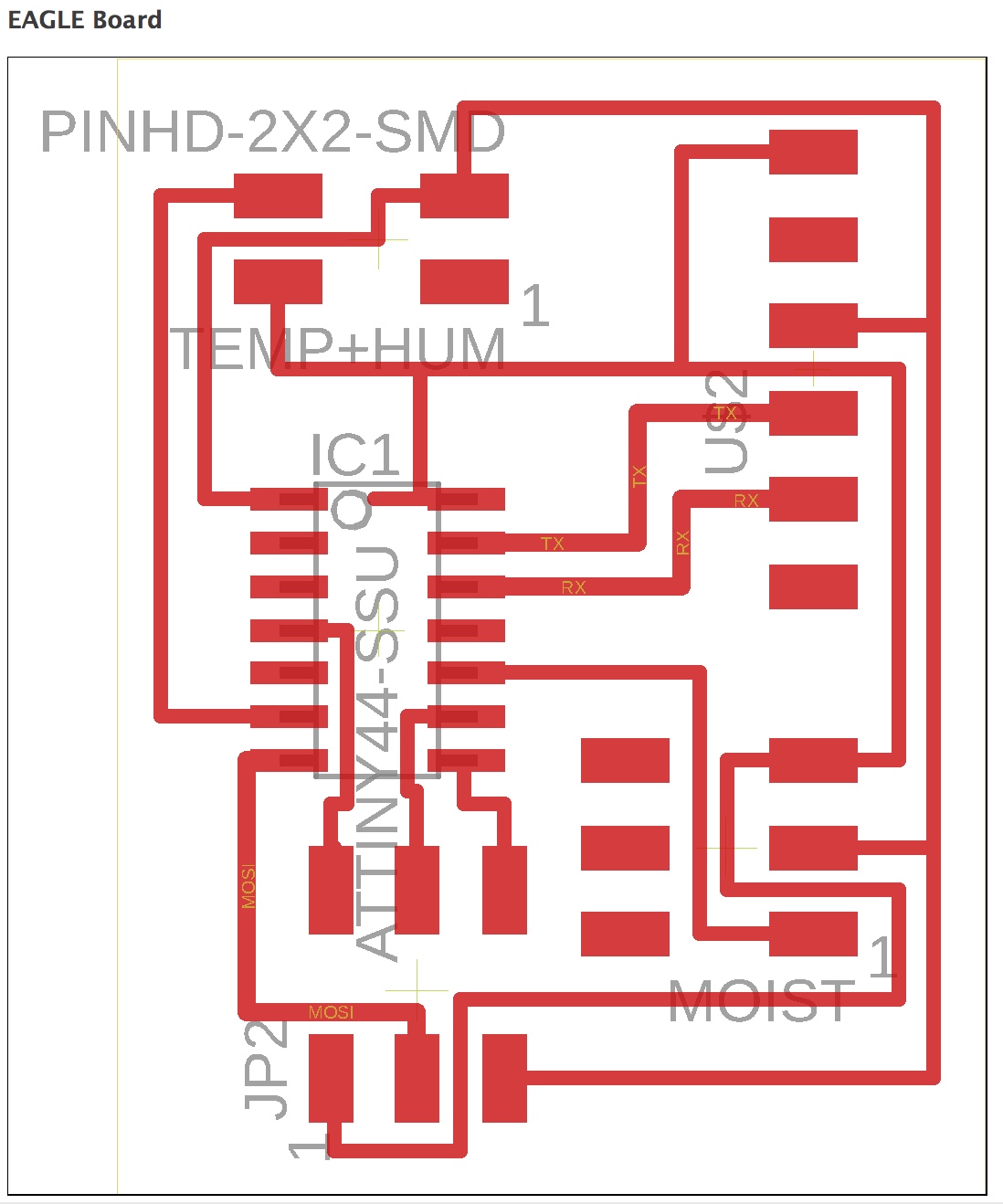

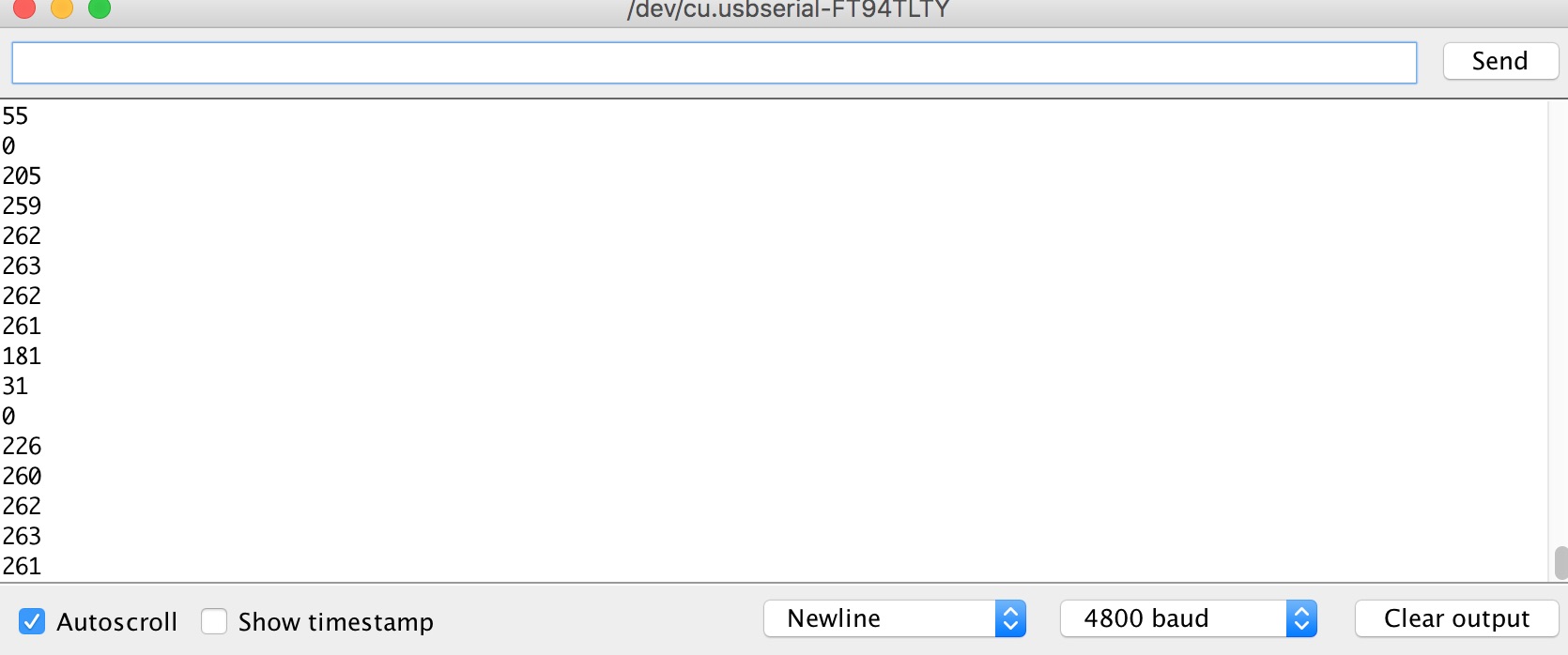

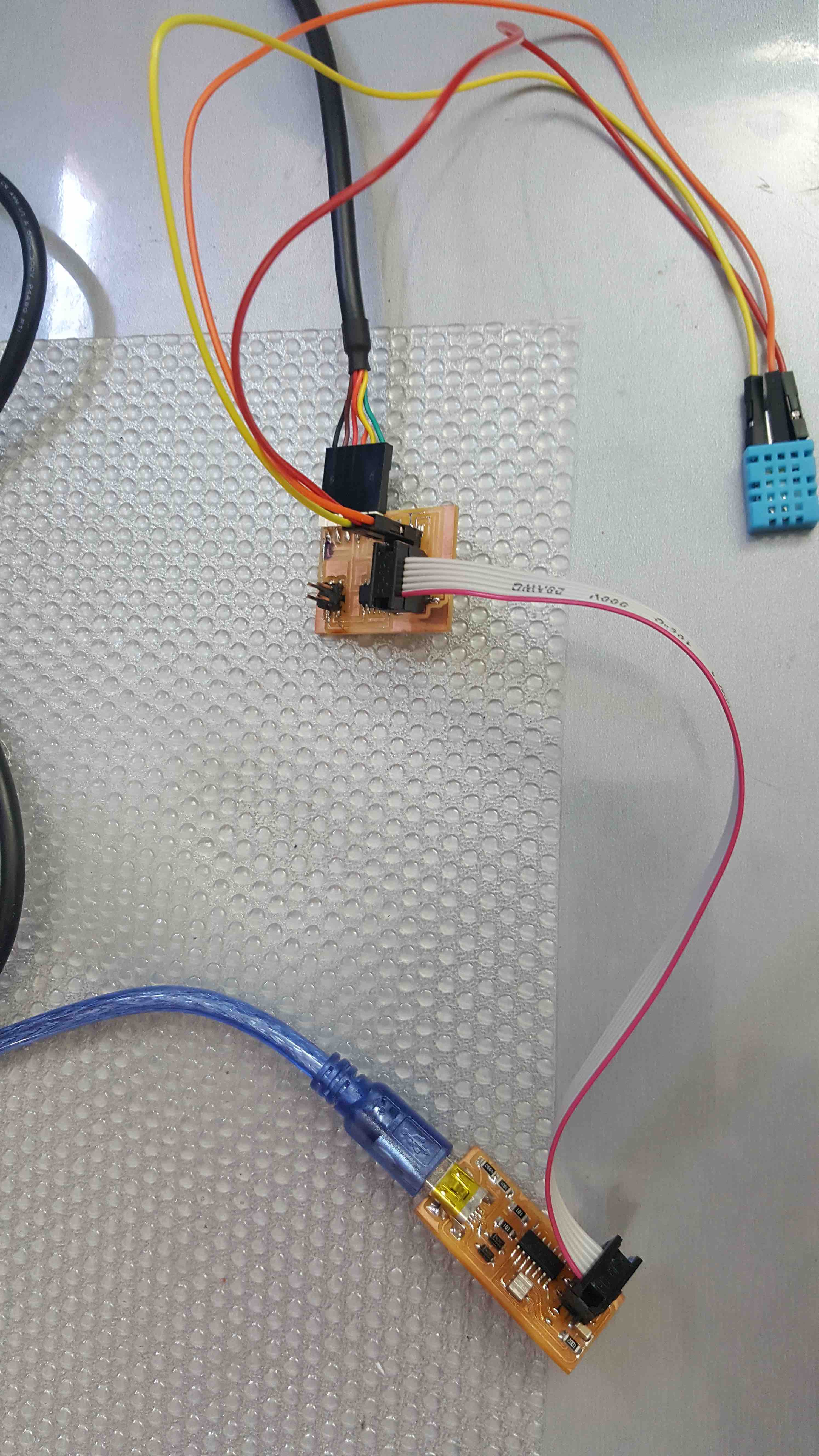

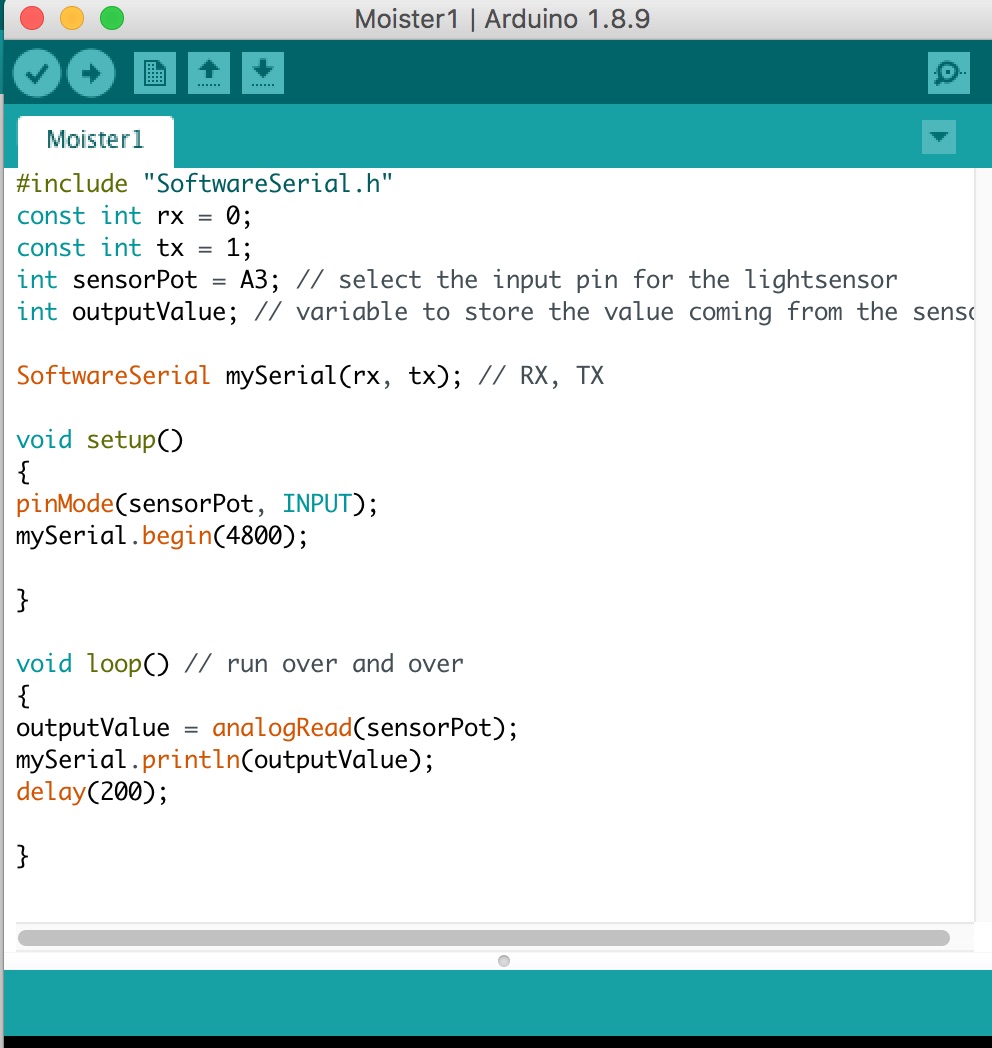

Inputs in Attiny44 programming

←

Input Devices

Program an Input

Temperature Sensor

and will programming it with Atmel-ICE

Atmel-ICE on MAC OS Sierra

Stil continue with the permissions problem... so I'd made

So I'll Turn Off the System Integrity Protection of my system...

After 4 hours trying to use Atmel-ICE in my MAC OS Sierra, i decided to go for a walk... and forget it...

Atmel-ICE on a Linux

Plain and simple... it worked perfectly

UAU... at first attemp it worked.... which reinforces my saing: Forget Atmel-ICE on a MAC...

UAUU-... worked

Add an input to my board

Moisture Sensor

What's Moisture measuring?

Try it out with Arduino Programmer

DHT11 - temperature & humidity Sensor

But how does DHT11 works!?

Try it out with Arduino Programmer

Lets analyse the code

Adding Moisture and DHT11 to my board

making a my board for Moisture + DHT11

Atmega328P

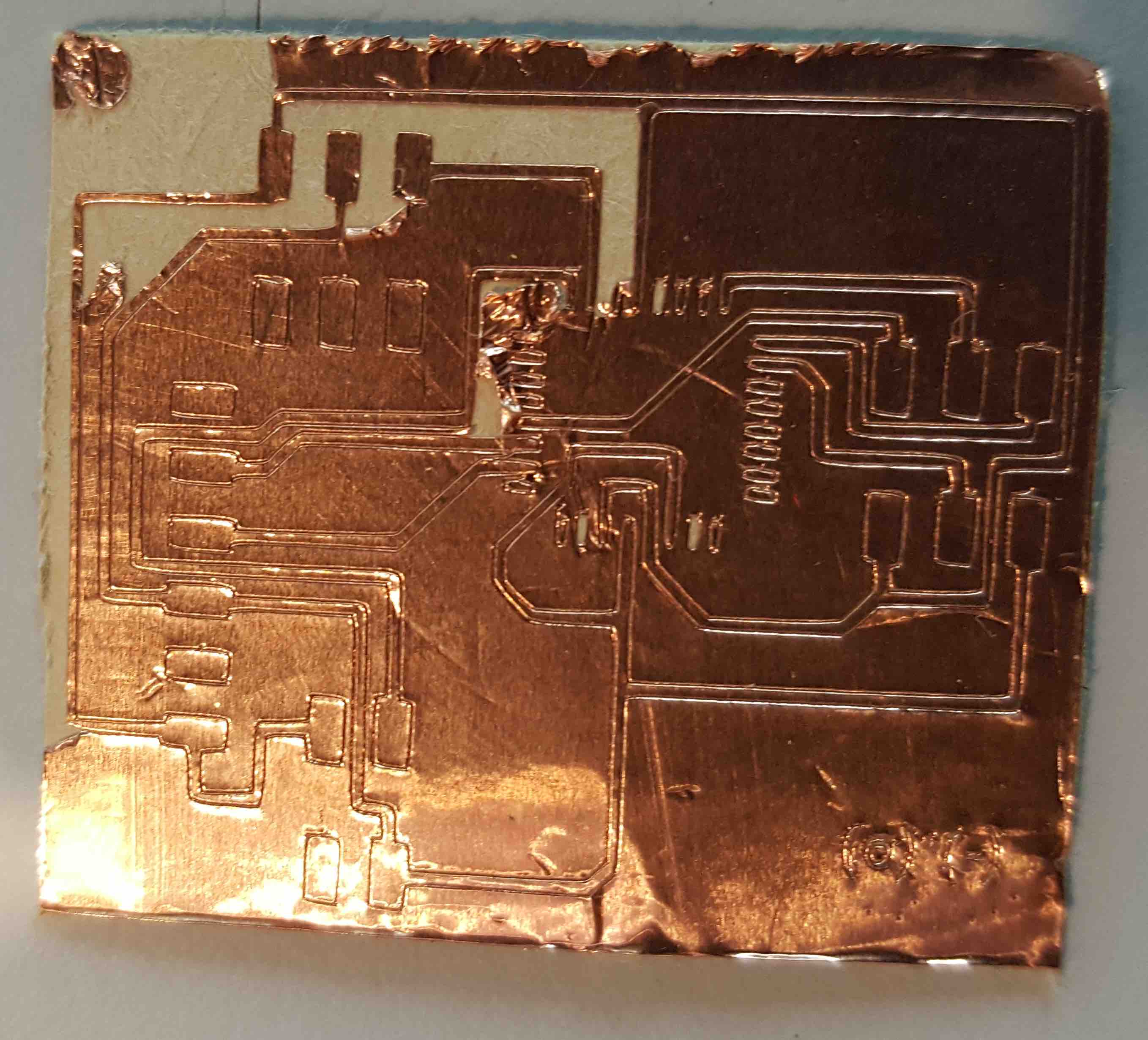

I want to try to make it flexible, so I made a image to cut in Vynil Cutter
