I'll use fusion 360 in Sculting Mode to produce a fish as this one:

using some of the technices I learned designing a shoo in this video: Fusion 360 Lezione 12 - Esercitazione Tsplines

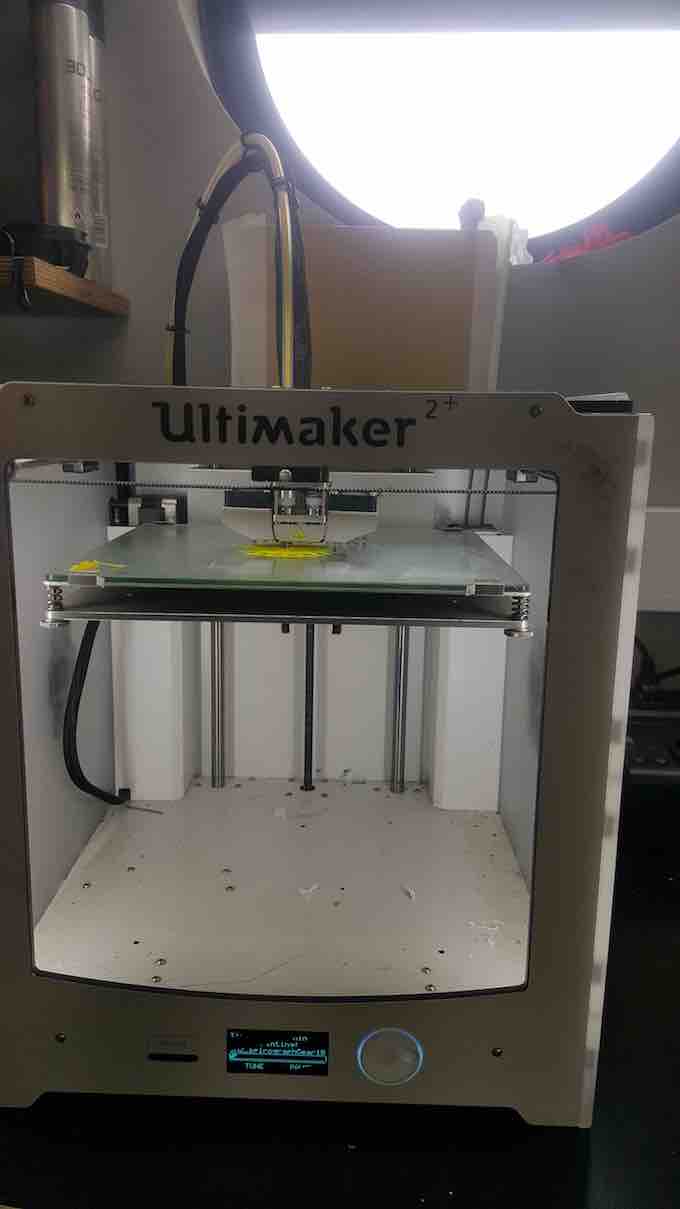

The Lab printer is a Ultimaker 2+

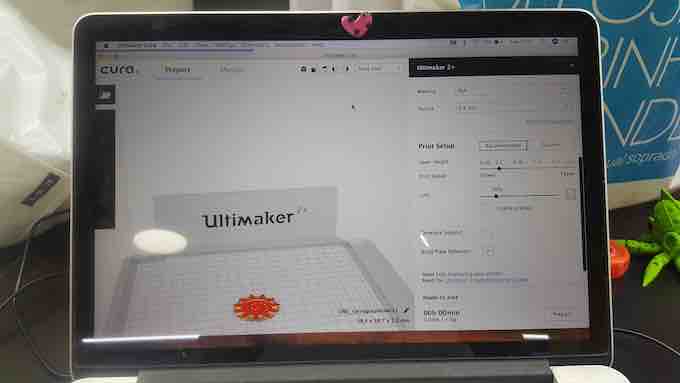

needed to instal Cura

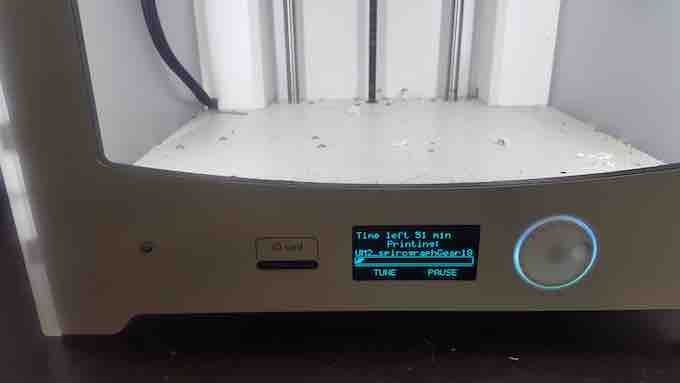

and the process to print was:

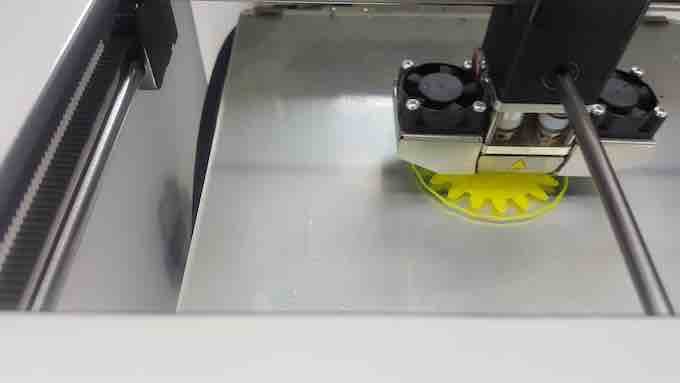

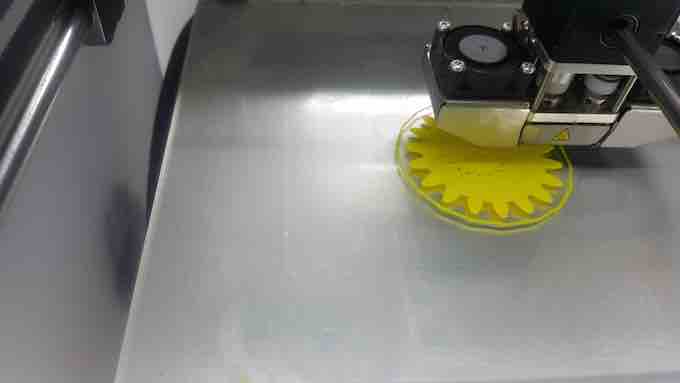

and this are the first prints to know how to operate the machine

configuration for the first prints...

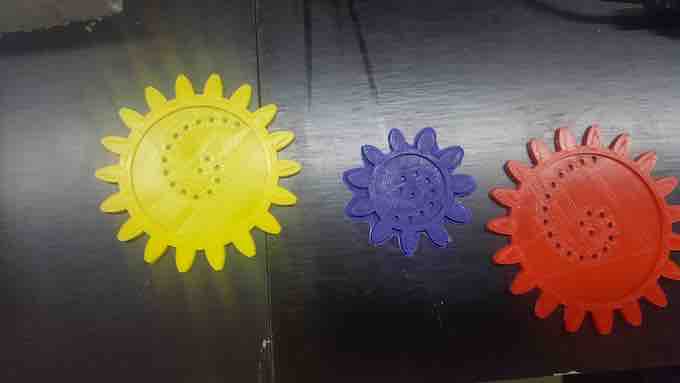

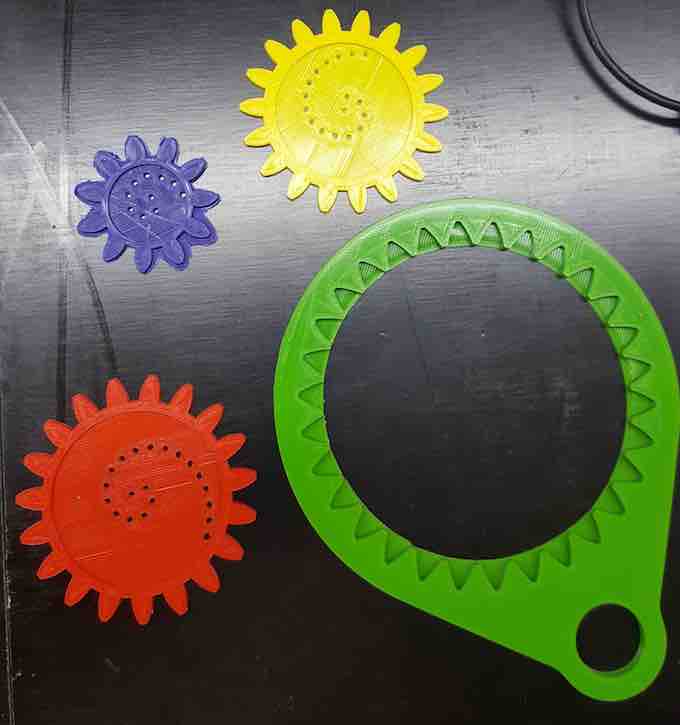

finaly some objects to play with Geometry...

---------------------------- (-).(o) -----------------------

I'll try the Flexible Filamente using larger NOOZLE, to evaluate both the material and the viability of such product

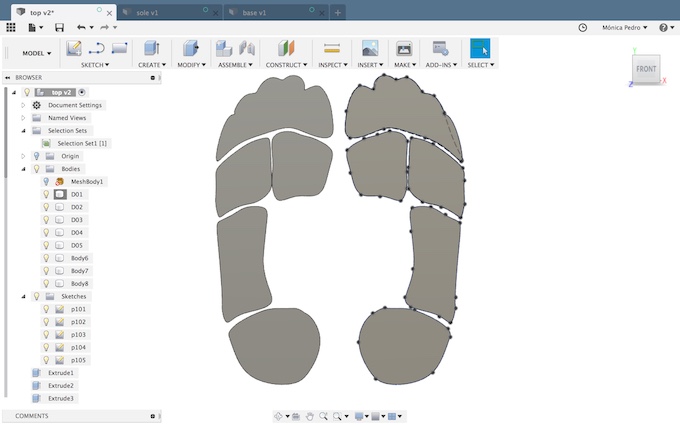

I'd decied to design a ergonomic modular sole so that the Printer tests would be quiker ;-)

Thikness of the sole: 3mm

steps:

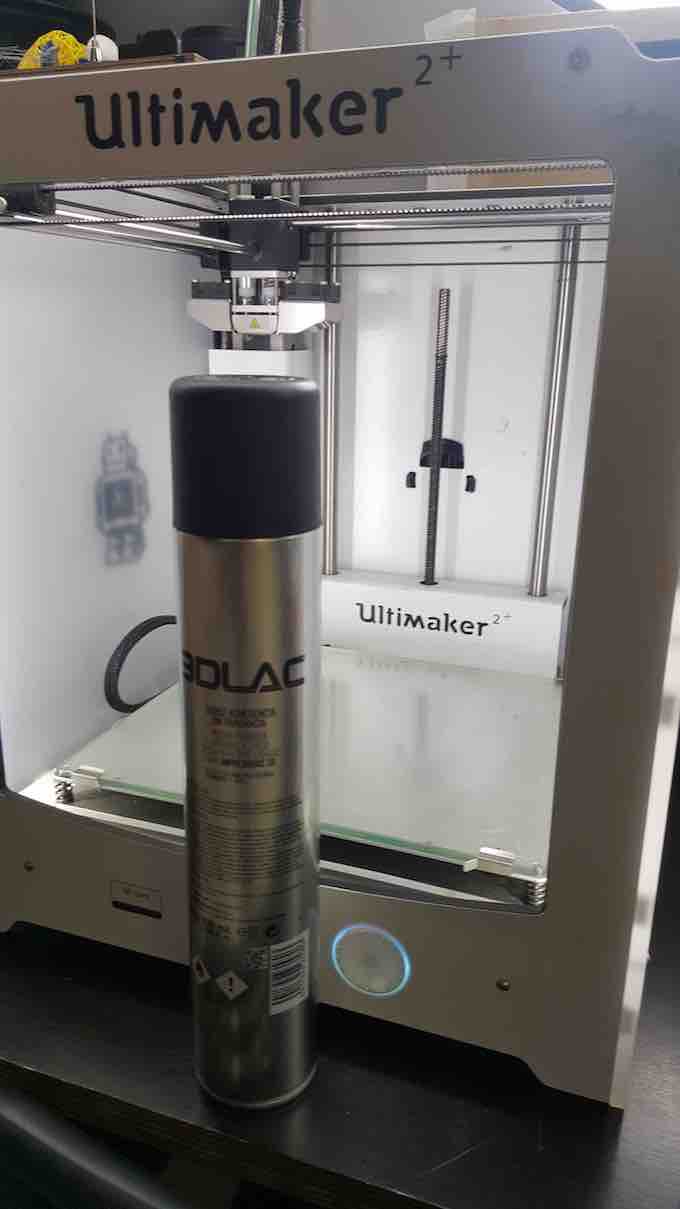

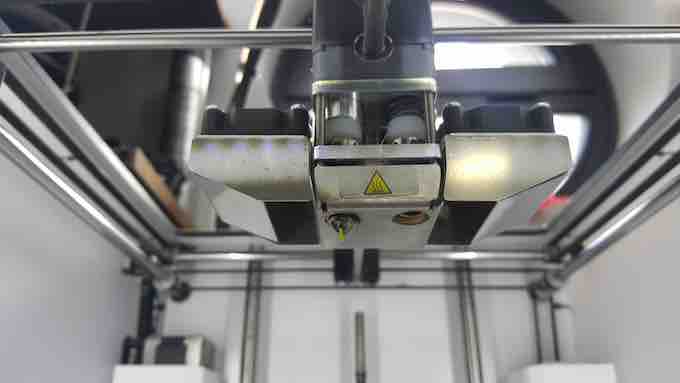

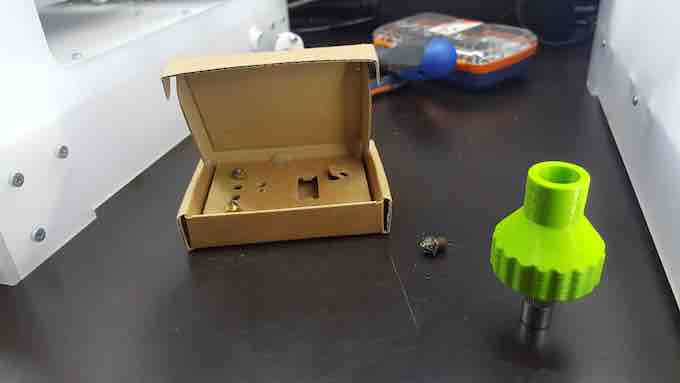

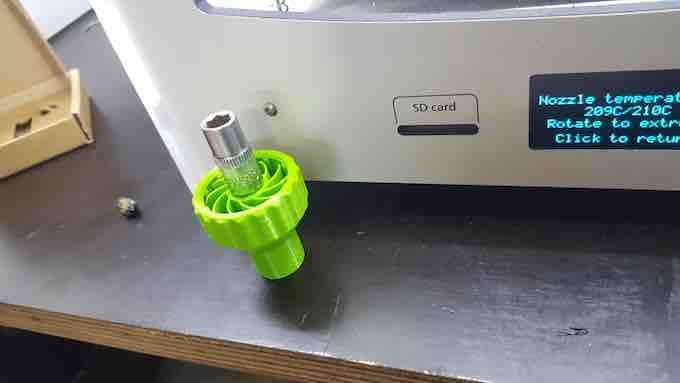

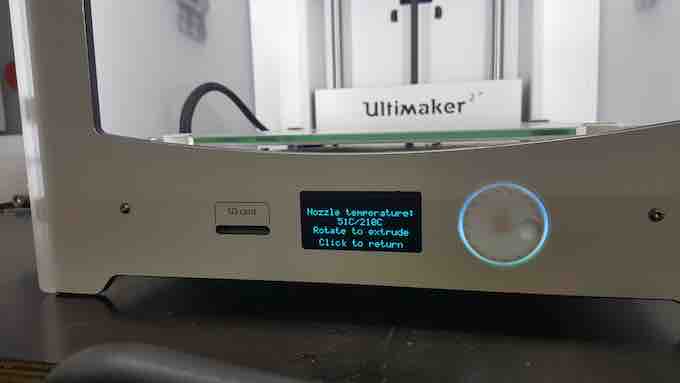

When the temperature is high (around 210C), use the special tool to change the Noozle

... make sure is tight enough
On the printer menu return to main menu and fallow the indications to change material, I'll use the Flex

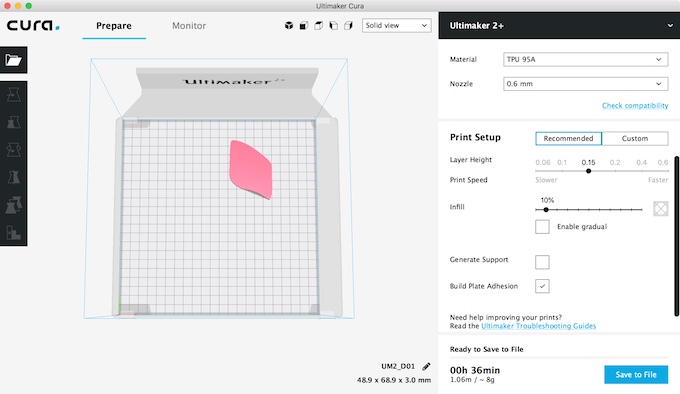

Configuring CURA for the new material

When printing.....

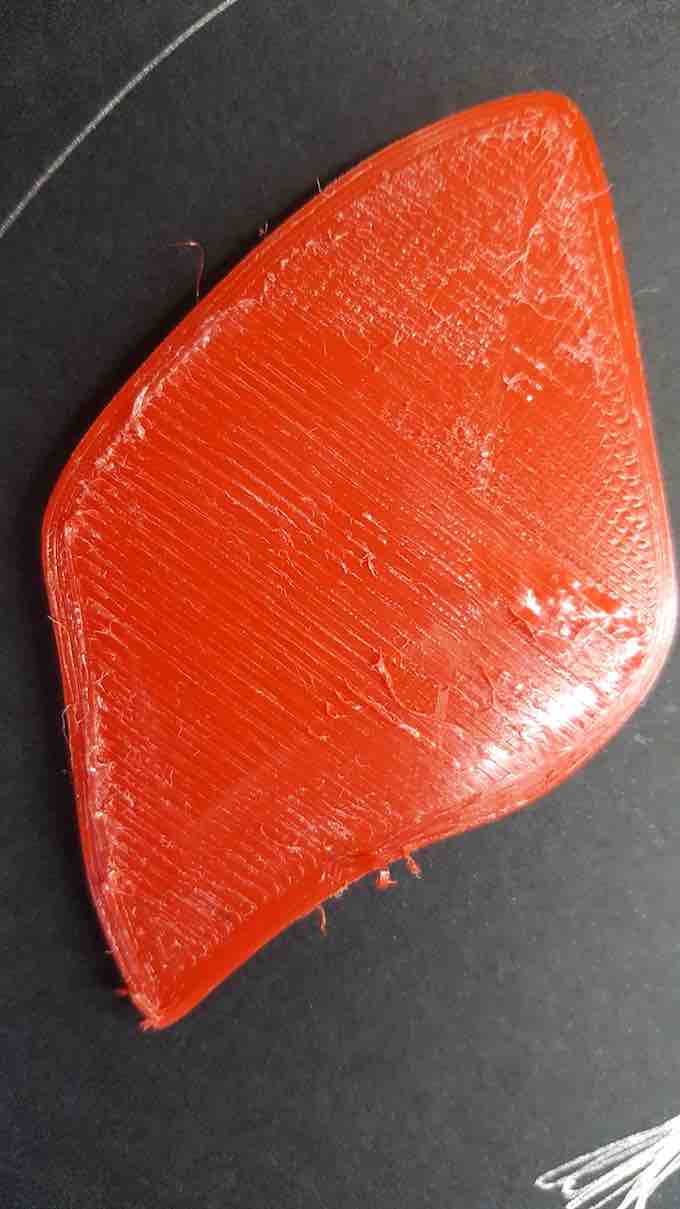

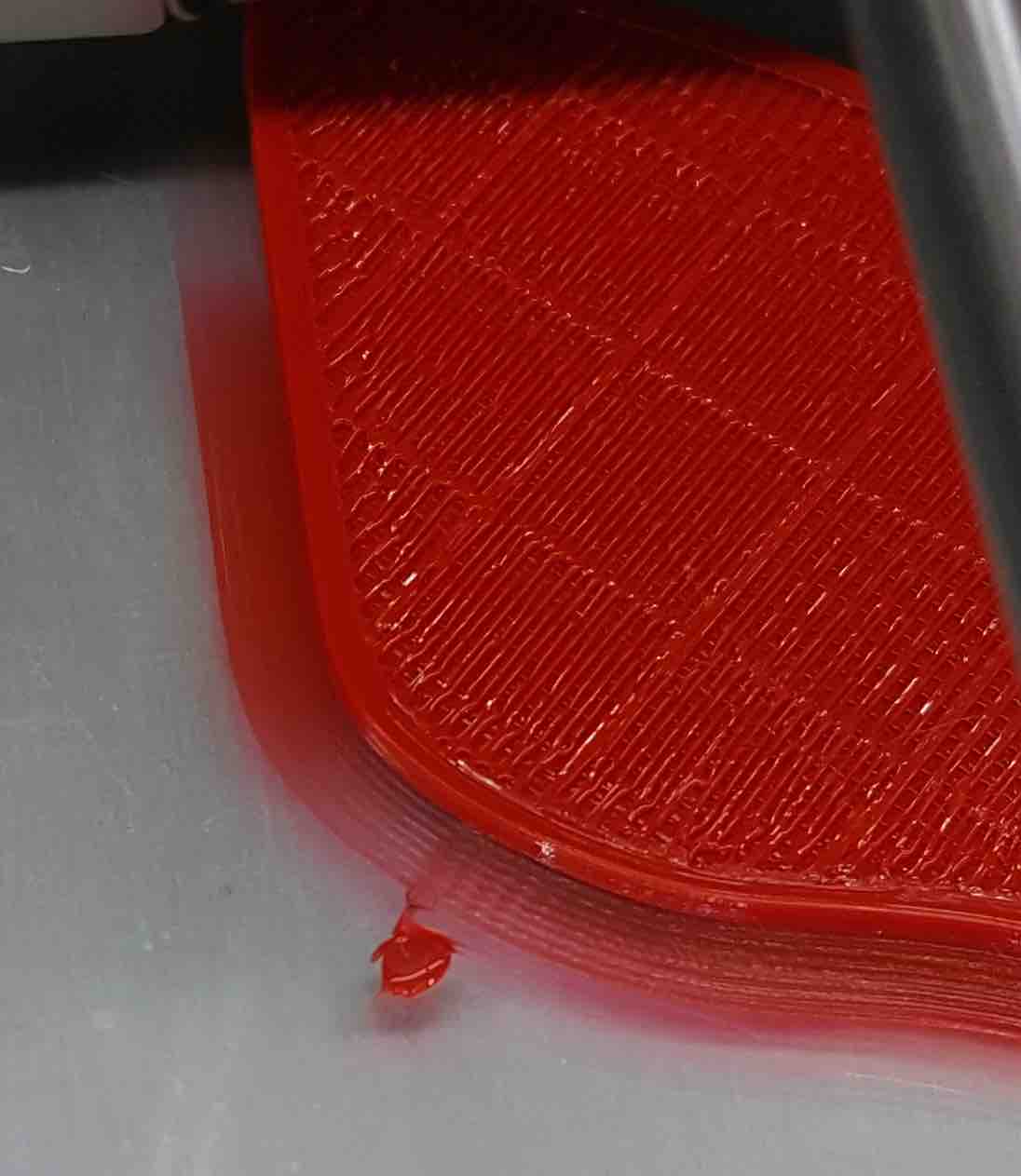

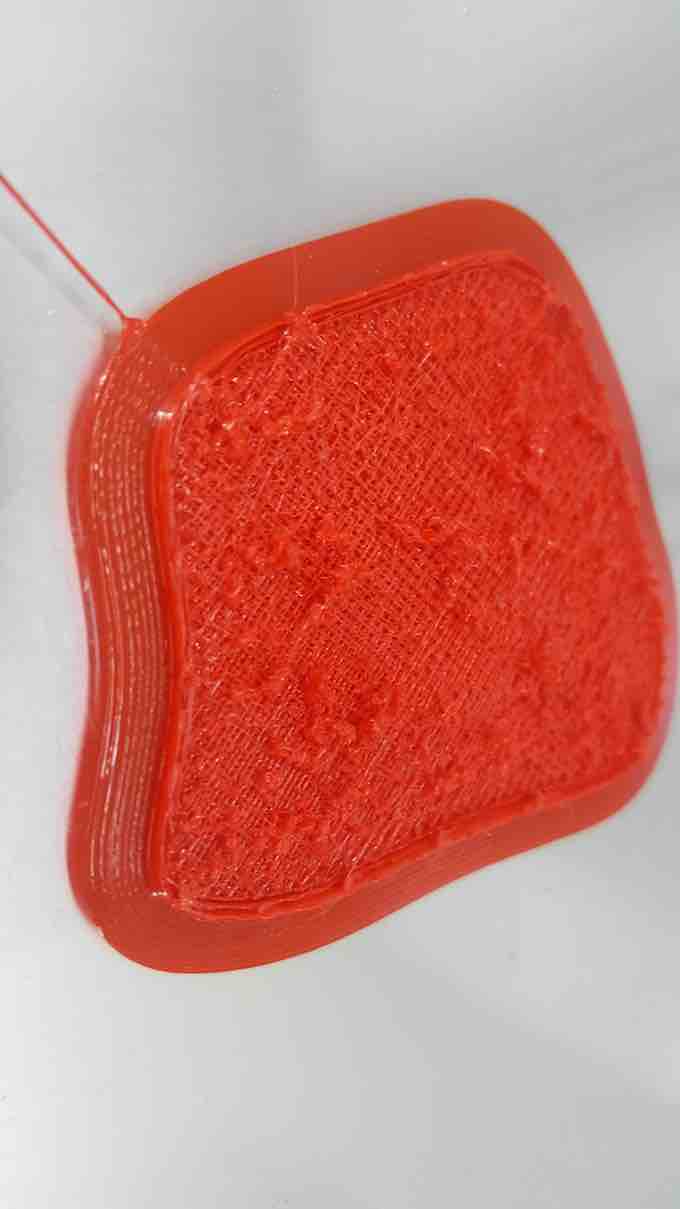

Final print... its not very bad, but NOT GOOD for the purpose...because it's not flexible and soft enought to give a "no Shoo sense"

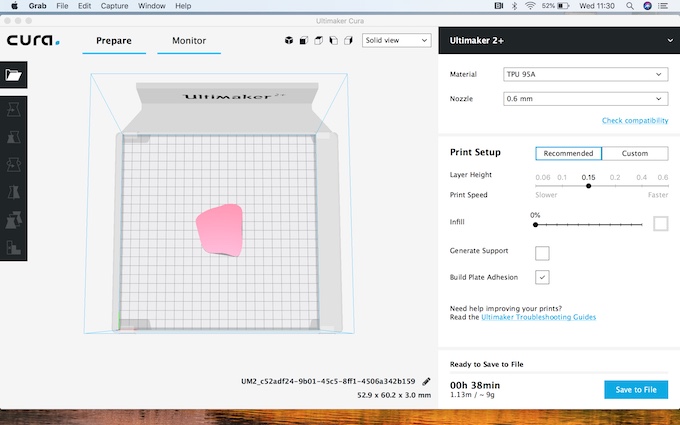

I'll try a print without Infil...INFILL = 0

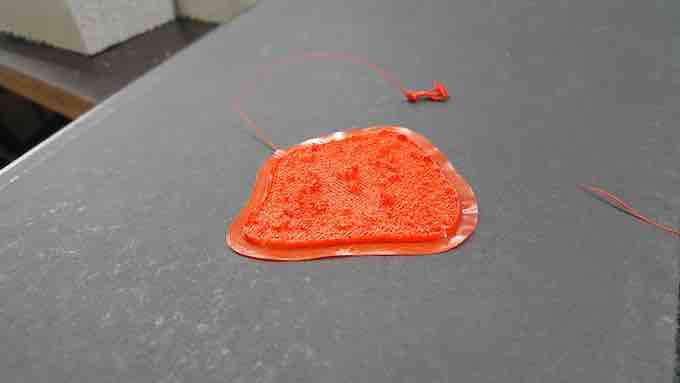

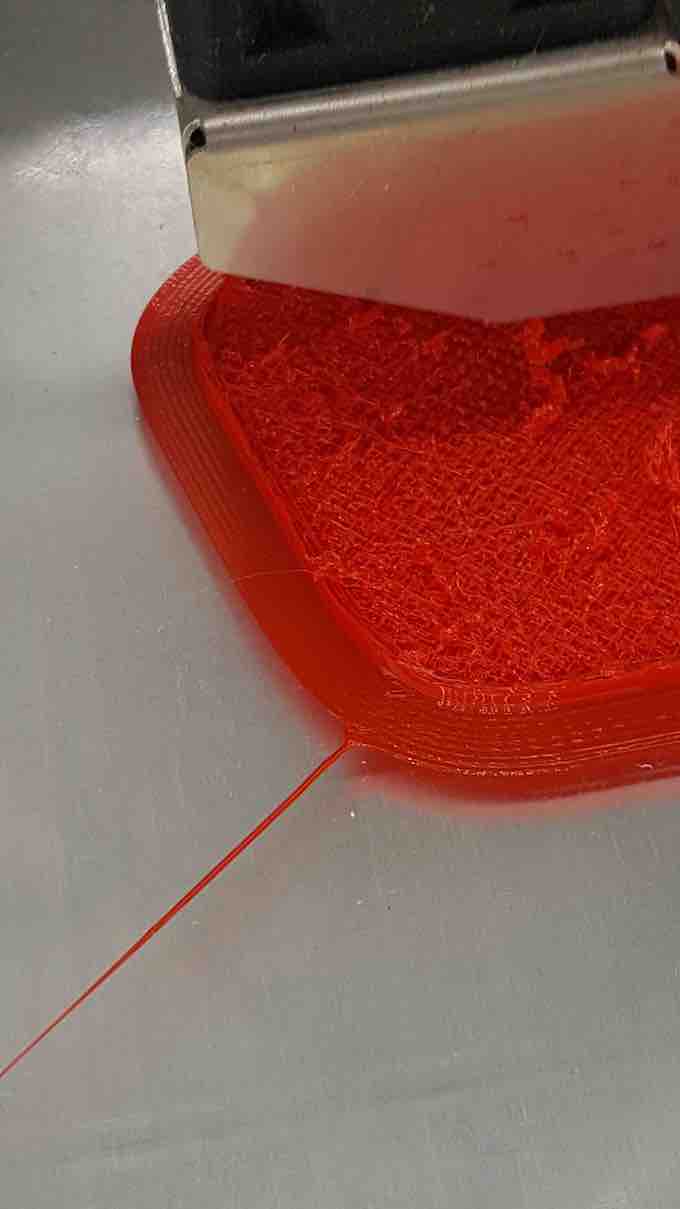

and the Printing becomes quite strange....

Look fuzy... but it has its qualities.. flexible... soft

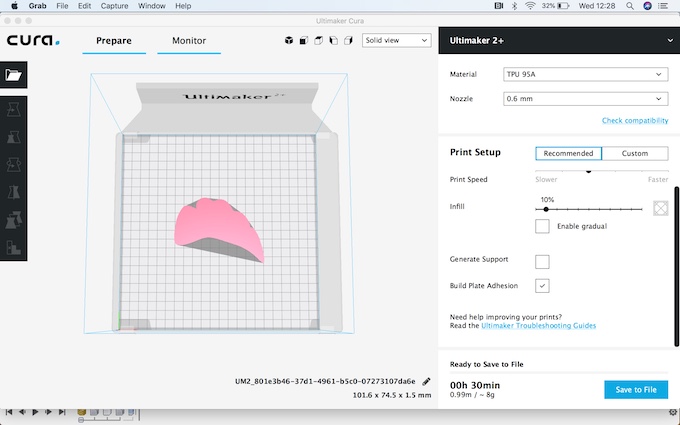

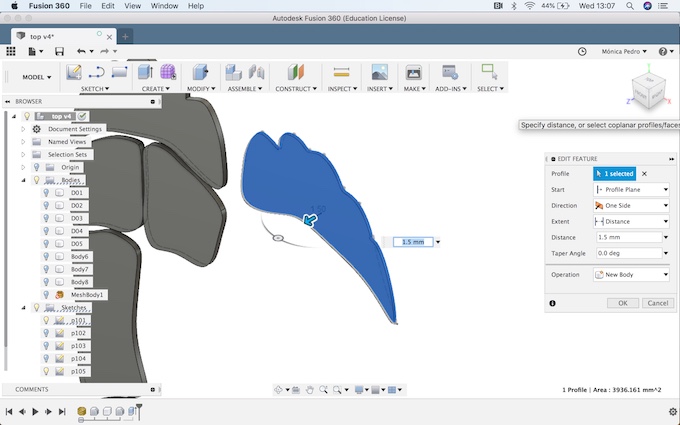

I'll try with lower thikness of the sole...EXTRUDE = 1.5mm

sent it to Cura

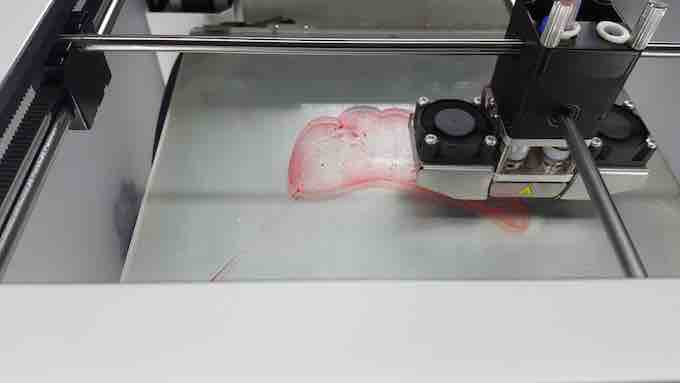

and then this was happening in the printer

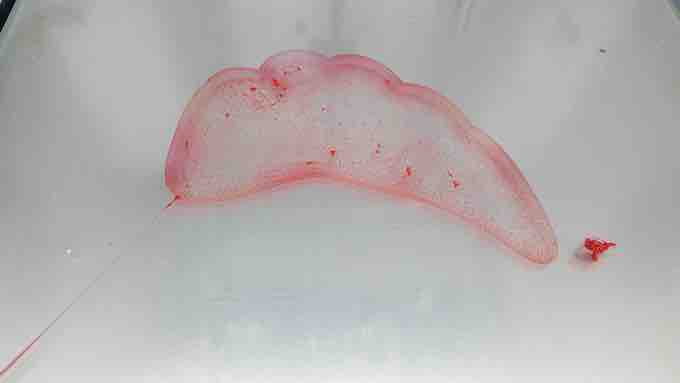

the BAD RESULT

group assignment

test the design rules for your 3D printer(s)

individual assignment

design and 3D print an object (small, few cm) that could not be made subtractively
3D scan an object (and optionally print it)
